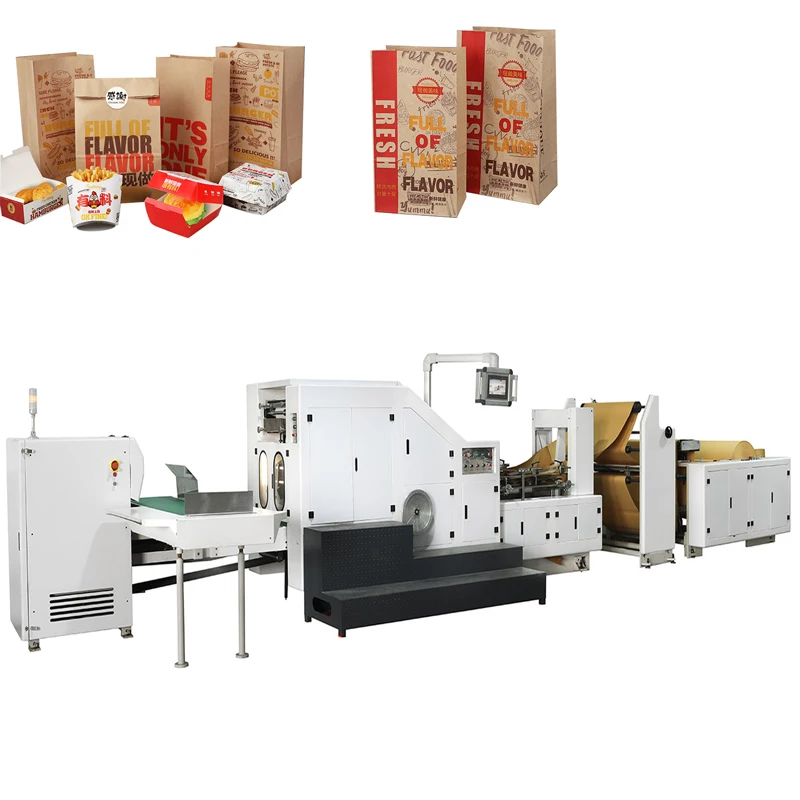

XKFD 220 Square Bottom Kraft Paper Bag Making Machine With Printing Price
- Category: >>>
- Supplier: Zhejiang Hongwei Machinery Co. Ltd.
Share on (1600604099596):
Product Overview
Description
Products Description
Machine use roller paper, from primary color paper or printed web paper to square bottom paper bag one times production.The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production.

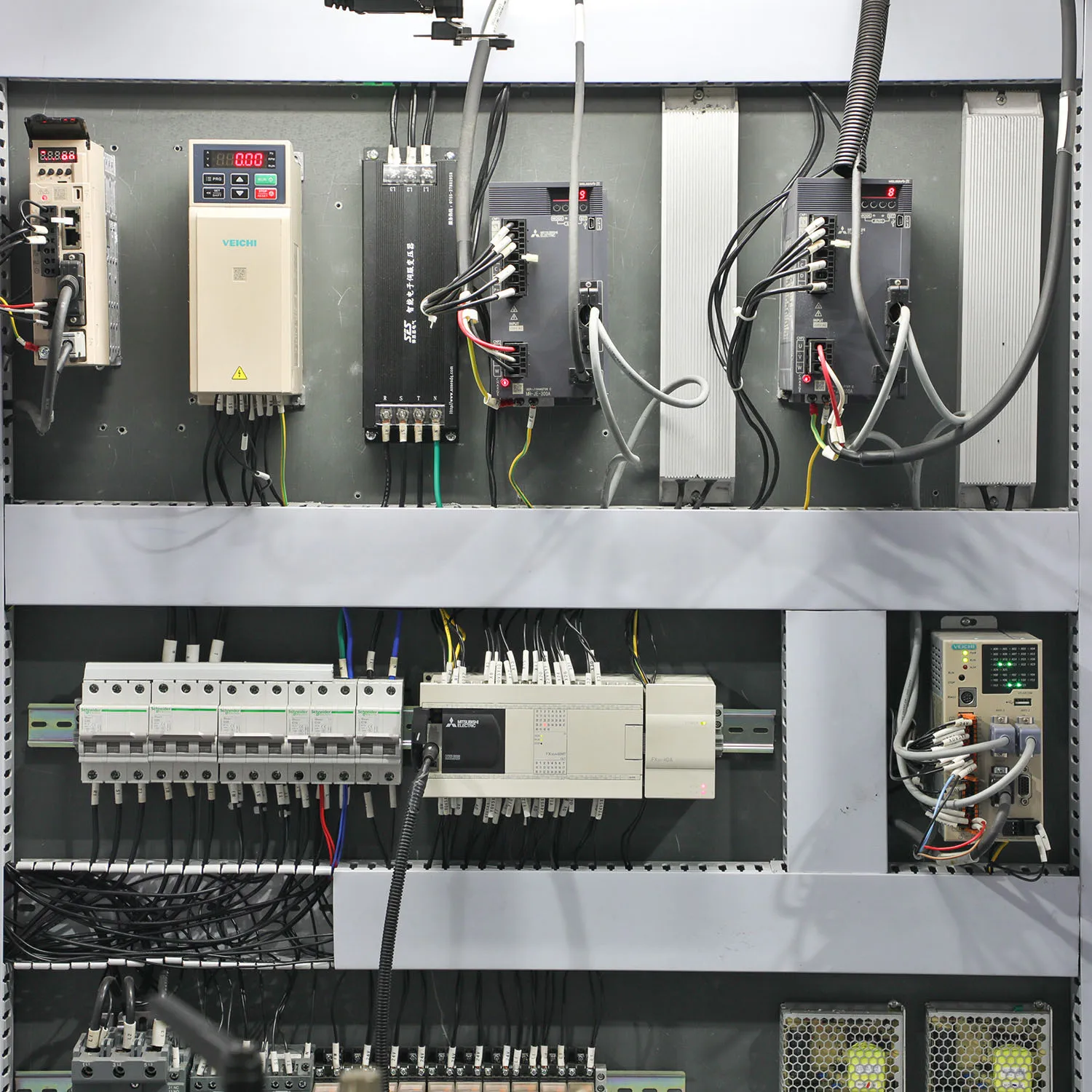

This machine is composed of roll unwinding (hydraulic feeding, automatic web guide, constant tension), side gluing, printing electric eye tracking, base paper into cylinder, fixed-length traction cutting, bag bottom indentation opening, bag bottom gluing, bag bottom molding, bag sending etc.The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
It can pretend 2 color /4 color printing group, bag surface window lamination device and handgrip hole device according to your need. Can be matched with rope twisting, flat rope handlebar machine, rewinding machine, etc., to make the products more competitive and diversified.
This machine is composed of roll unwinding (hydraulic feeding, automatic web guide, constant tension), side gluing, printing electric eye tracking, base paper into cylinder, fixed-length traction cutting, bag bottom indentation opening, bag bottom gluing, bag bottom molding, bag sending etc.The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
It can pretend 2 color /4 color printing group, bag surface window lamination device and handgrip hole device according to your need. Can be matched with rope twisting, flat rope handlebar machine, rewinding machine, etc., to make the products more competitive and diversified.
Product Paramenters
Model | XKFD-220 | XKFD-280 | XKFD-330 | XKFD-450 | XKFD-540 |
Paper Roll Length | 190-370mm (C) | 270-530mm(C) | 270-530mm (C) | 285-530mm (C) | 420-760mm (C) |
Paper bag length | 150-320mm (L) | 225-470mm (L) | 225-470mm (L) | 225-470mm (L) | 320-680mm (L) |
Paper bag width | 80-220mm (W) | 120-280mm(W) | 150-330mm (W) | 220-460mm (W) | 250-540mm (W) |
Paper bag bottom width | 50-100mm (H) | 60-180mm (H) | 60-180mm (H) | 80-220mm (H) | 120-260mm (H) |
Paper thickness | 50-130g/m2 | 60-160g/m2 | 60-160g/m2 | 80-160g/m2 | 90-160g/m2 |
Bag Making Speed | 30-200pcs/min | 30-180pcs/min | 30-160pcs/min | 30-150pcs/min | 30-120pcs/min |
Paper roll width | 290-670mm | 385-950mm | 445-1050mm | 630-1390mm | 770-1640mm |
Roll paper diameter | 1300mm | 1300mm | 1300mm | 1300mm | 1300mm |
Machine power | 3phase,380v, 10kw | 3phase,380v,12kw | 3phase,380v, 12kw | 3phase,380v,15kw | 3phase,380v,18kw |
Machine weight | 5500kg | 7000kg | 8000kg | 10000kg | 13000kg |
Machine size | 8000x2980x1800mm | 9700x2980x1900mm | 9800x3050x1900mm | 10200x3150x2200mm | 11250x3400x2160mm |

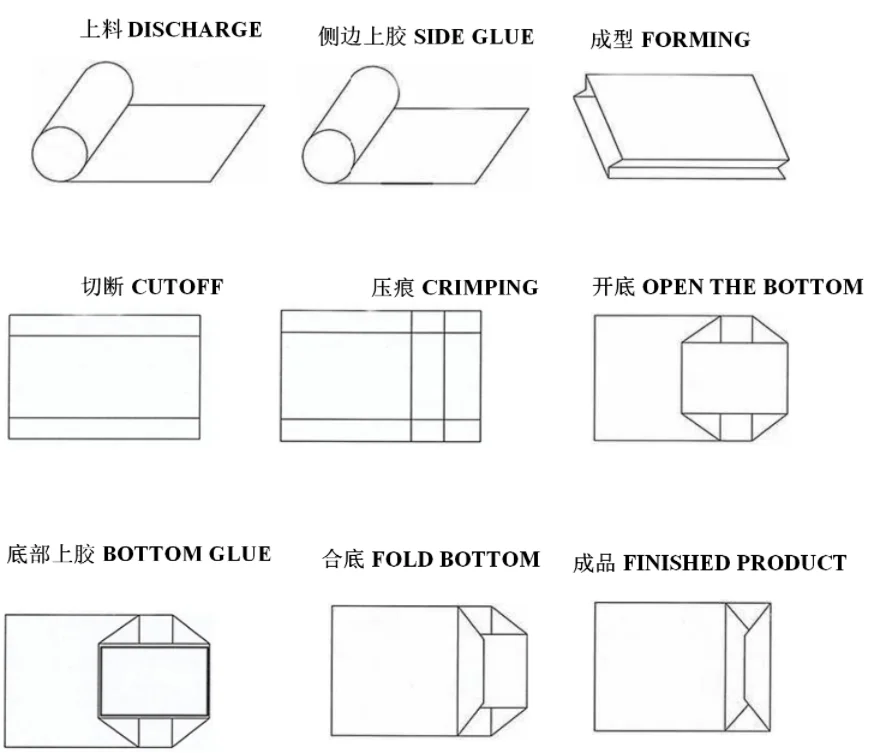

Producing Process
Machine Features

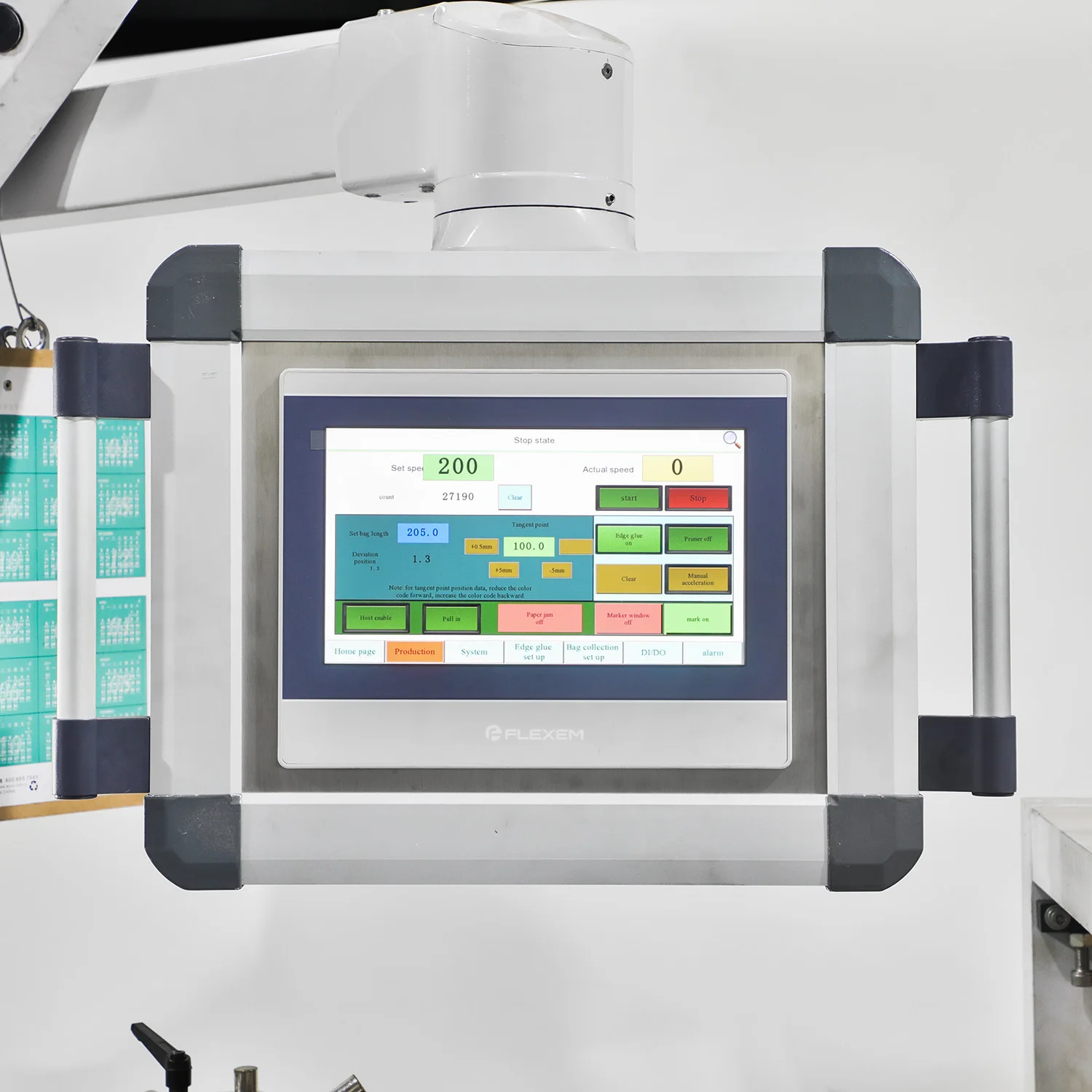

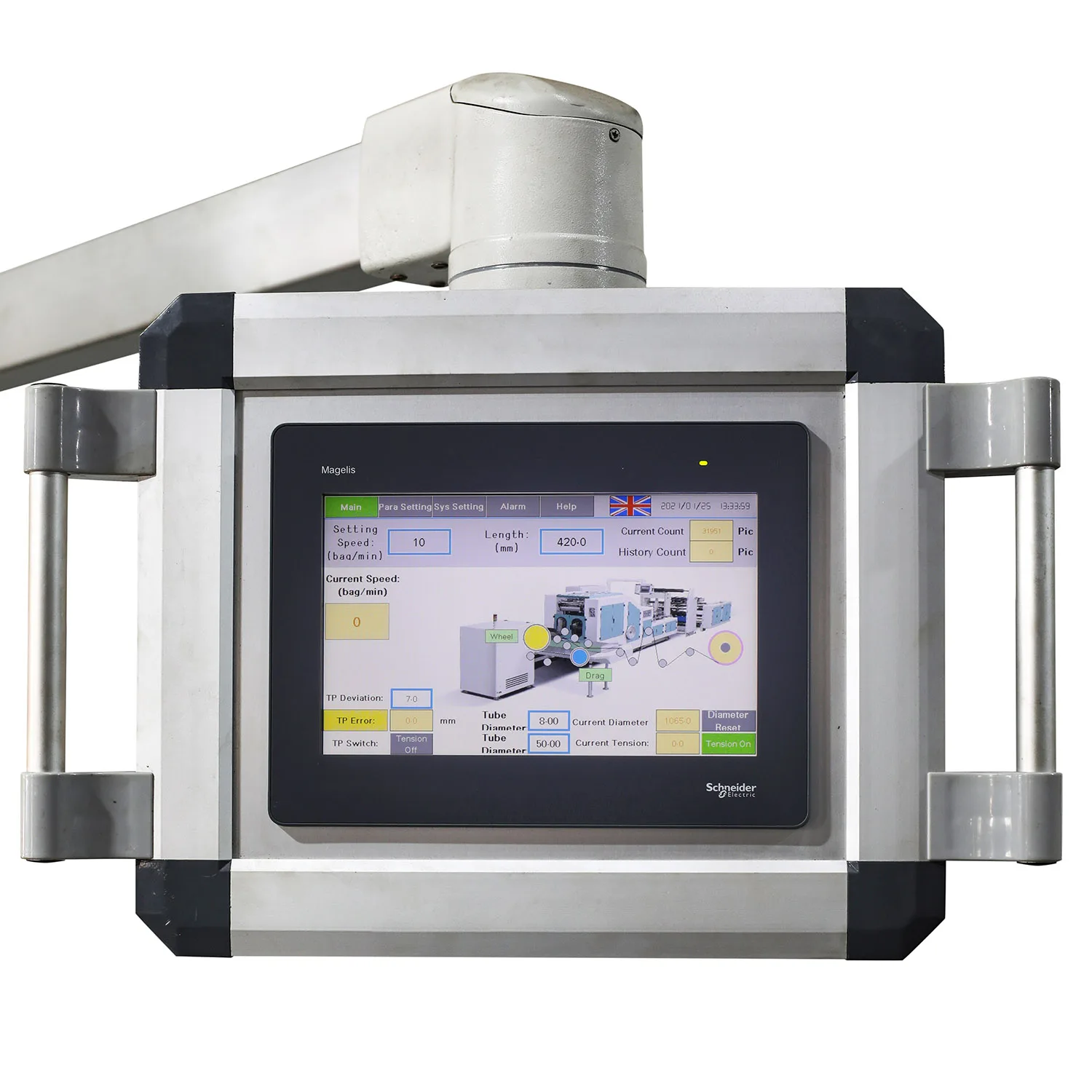

Touch Screen
The human-machine touch screen interface, the work condition can be shown in real- time.

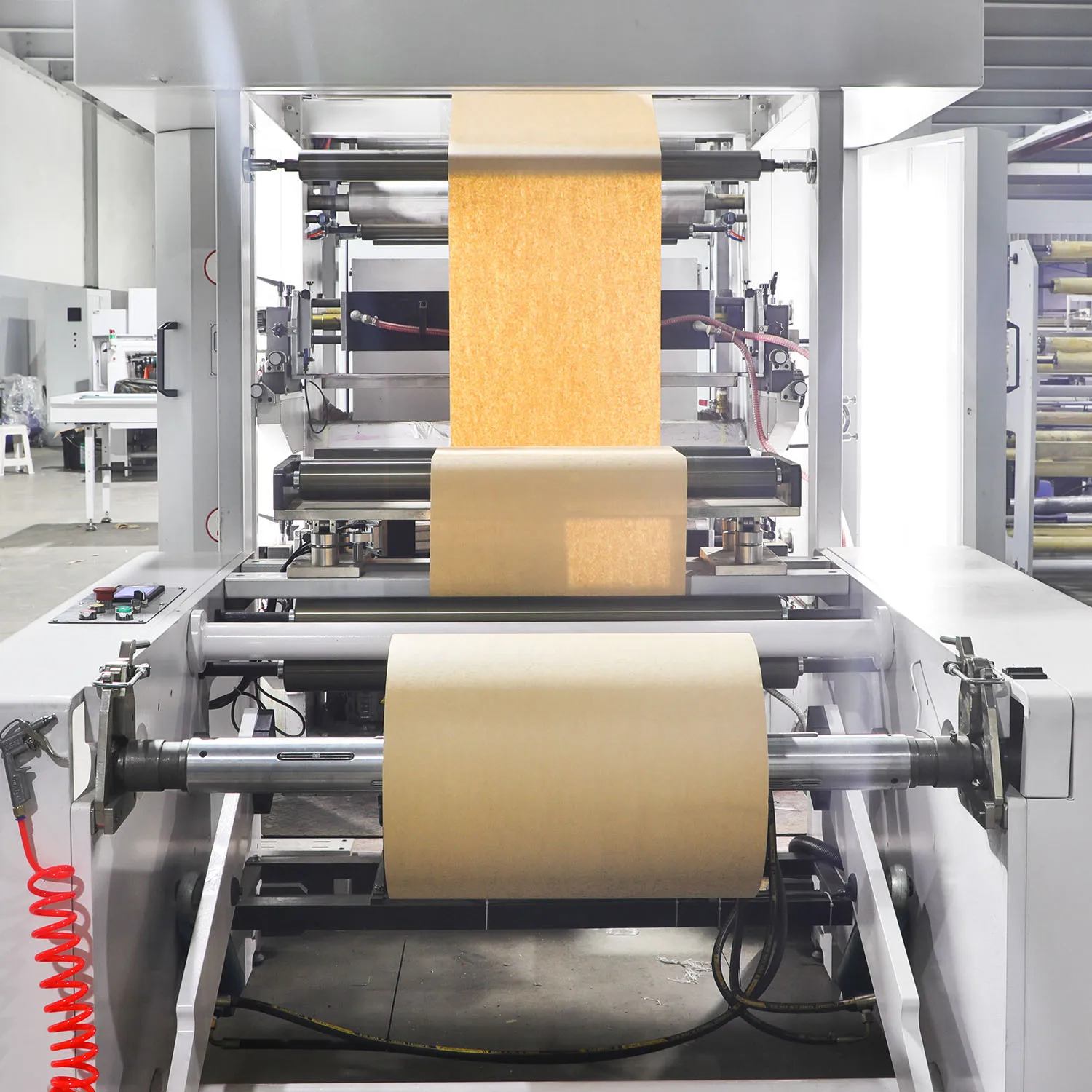

Hydraulic Auto Rewinding Part
Feeding part the max diameter of roll is 1300m. Machine adopt large air cylinders automatically up, it running by hydraulic station.
Servo motor
Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
Automatic correction control system
Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
1.Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
2.Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
3.Accurate color tracking system, automatic alarm prompt when color is wrong.
2.Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
3.Accurate color tracking system, automatic alarm prompt when color is wrong.

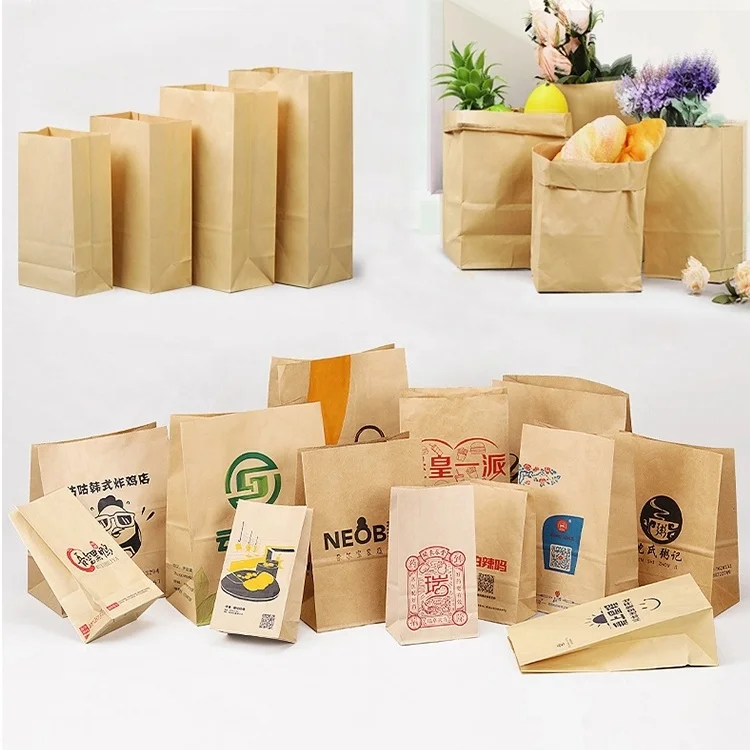

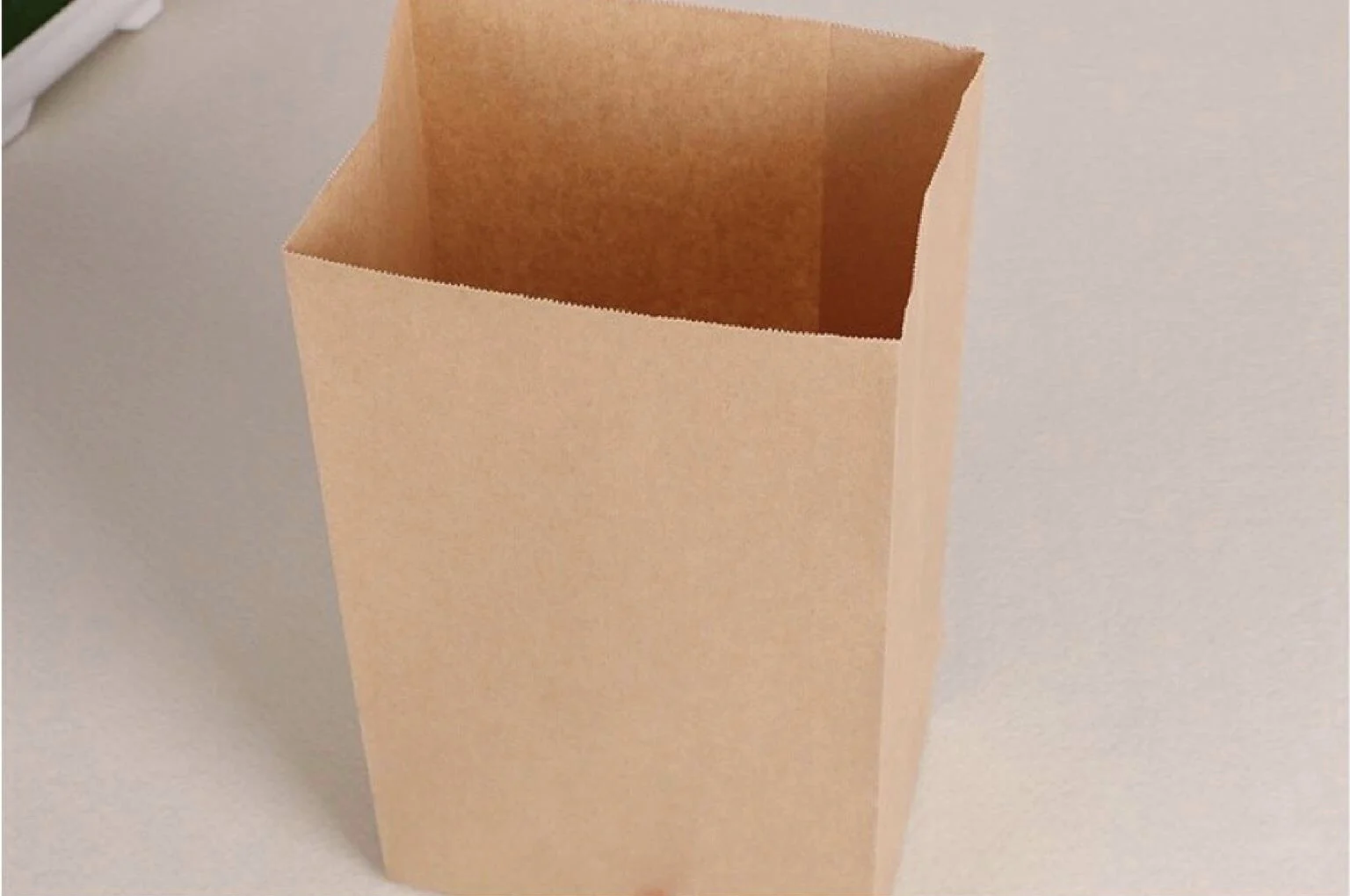

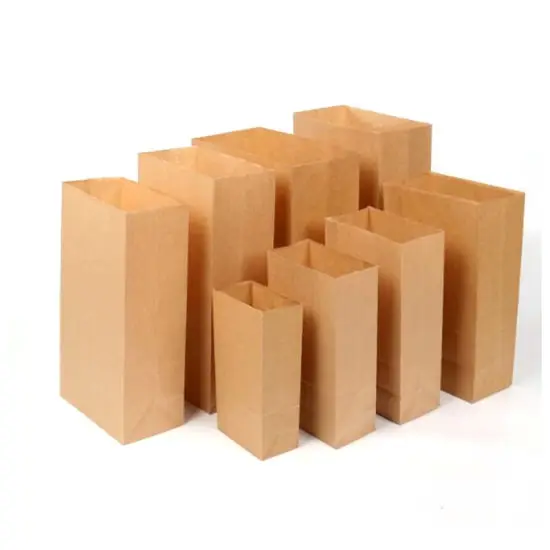

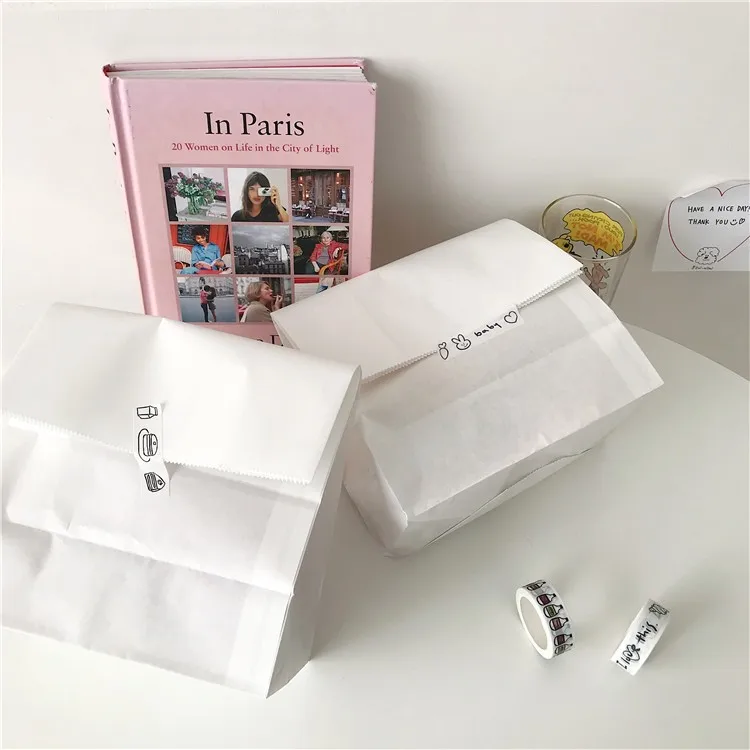

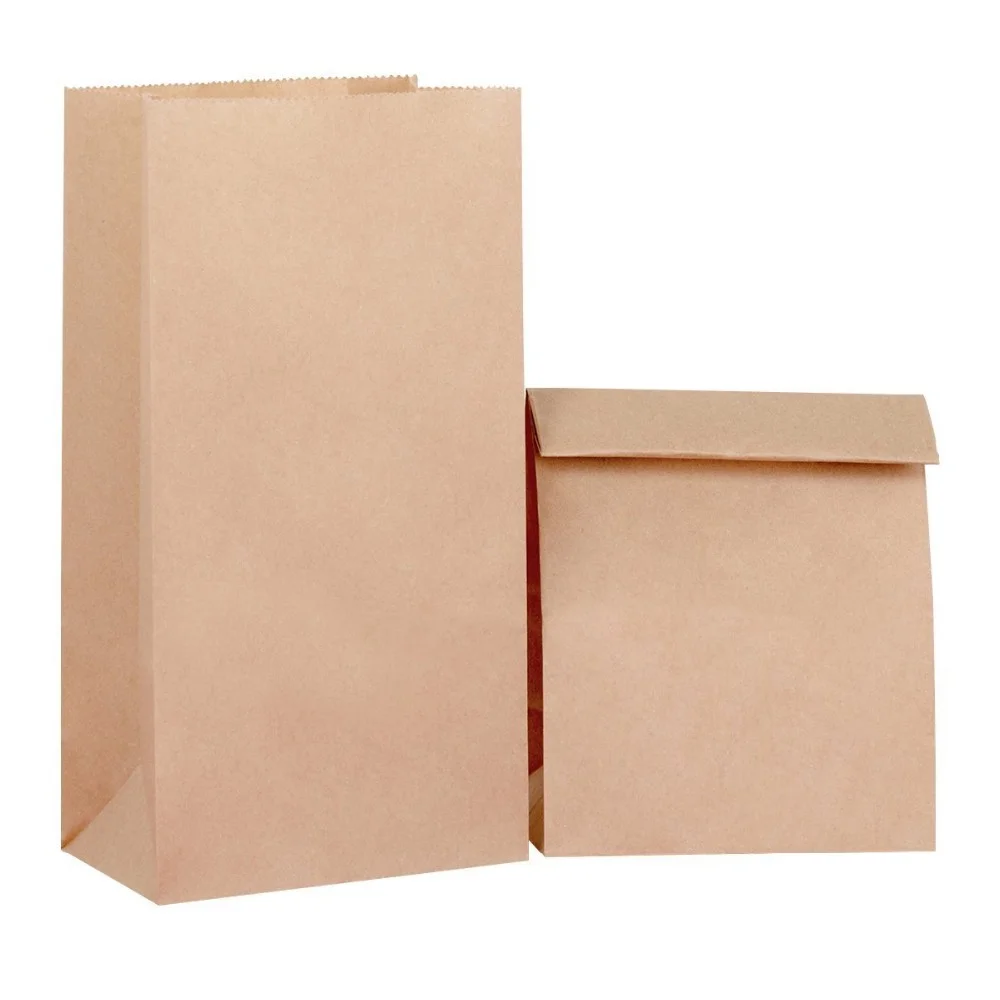

Samples
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from beginning to the end. Our factory has gained CE, ISO certificate.
Q: How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: If some problems happen to this machine during warranty period, what should I do?
A:We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q: What's the delivery time?
A: Around 35-60 days, however, based on order.
A: Quality is the priority. We always attach great importance to quality controlling from beginning to the end. Our factory has gained CE, ISO certificate.
Q: How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: If some problems happen to this machine during warranty period, what should I do?
A:We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q: What's the delivery time?
A: Around 35-60 days, however, based on order.
