TESmart OEM 4X4 Video Matrix Switcher 4 in 4 out Matrix Support RS232 EDID Management PAP Mode Quad multi Viewer HDMI Matrix
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600604104595):
Product Overview
Description
Product Description
4X4 HDMI Matrix
This 4 input 4 output HDMI matrix routes 4 Ultra HD sources to four 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS232. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
Features
*With 4 HDMI inputs and 4 HDMI outputs
*Each HDMI output can share same input or select standalone inpute
*Each HDMI output can share same input or select standalone inpute
*Support resolution up to 3840x2160@30Hz
*HDCP1.4 compliant
*HDCP1.4 compliant

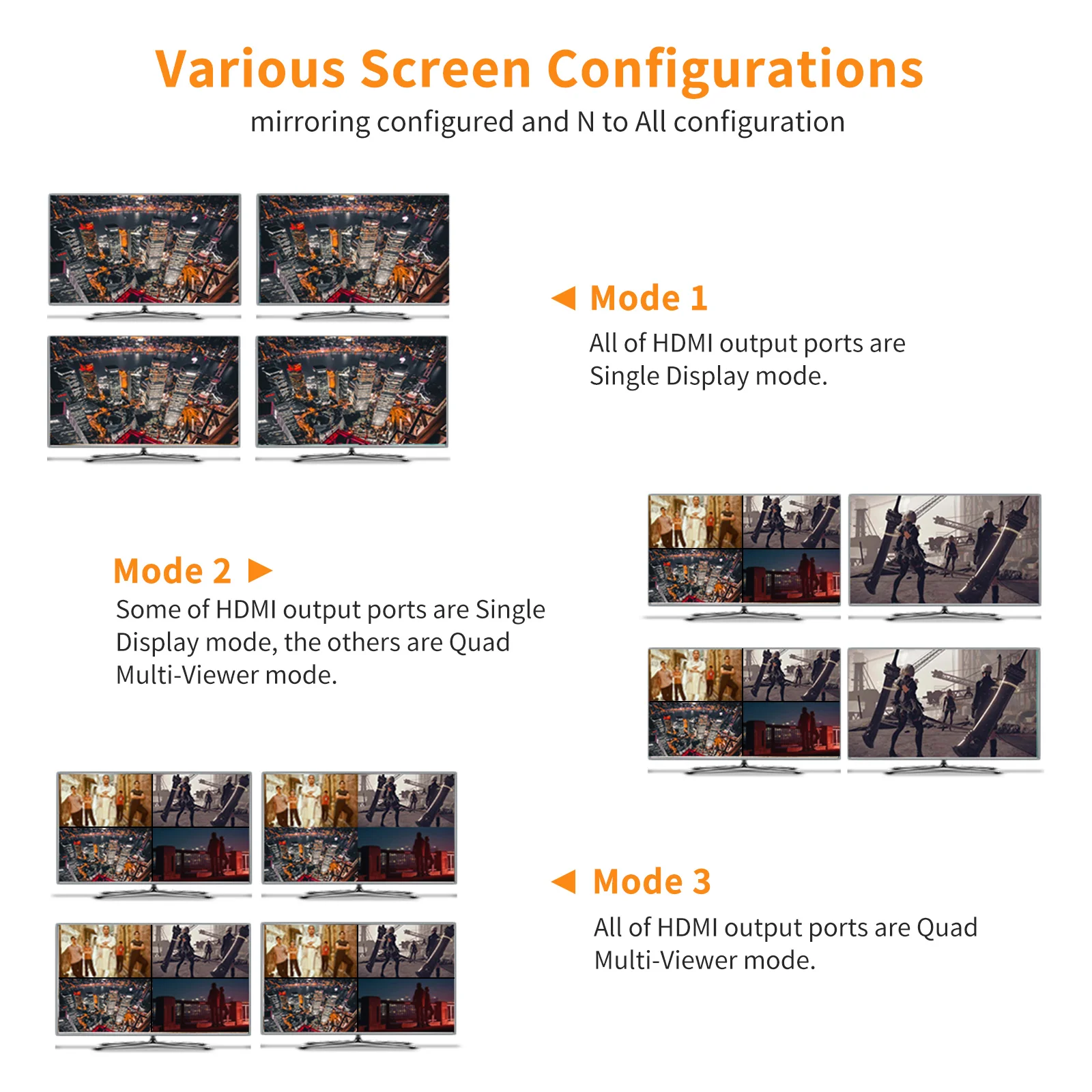

*Each HDMI output support Quad Multi-Viewer mode
*Supports two difffferent resolutions in Quad Multi-Viewer mode: 1280x720@60Hz or
1920x1080@60Hz
1920x1080@60Hz

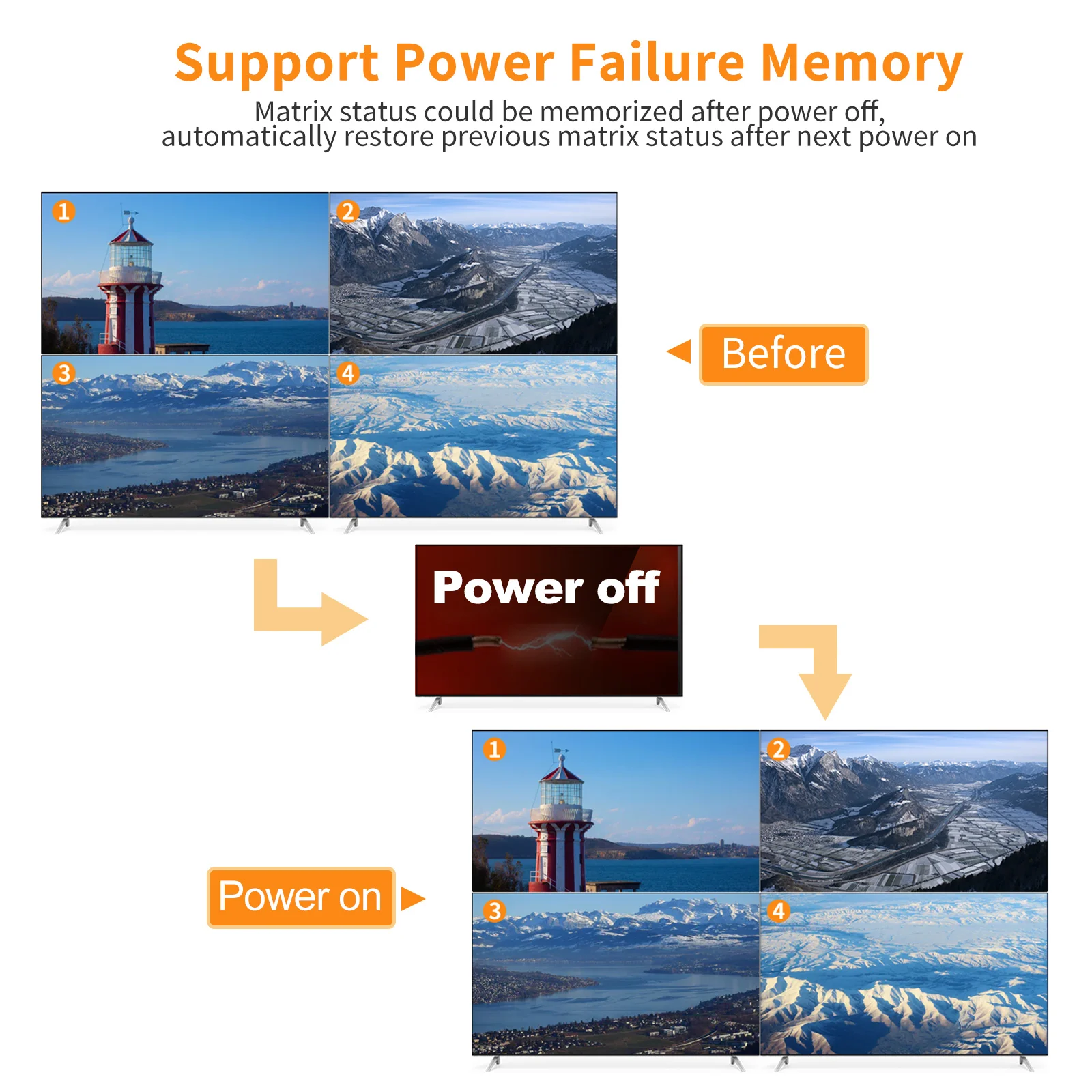

*Matrix status could be memorized after power down, automatically restore previous
matrix status after next power on
matrix status after next power on

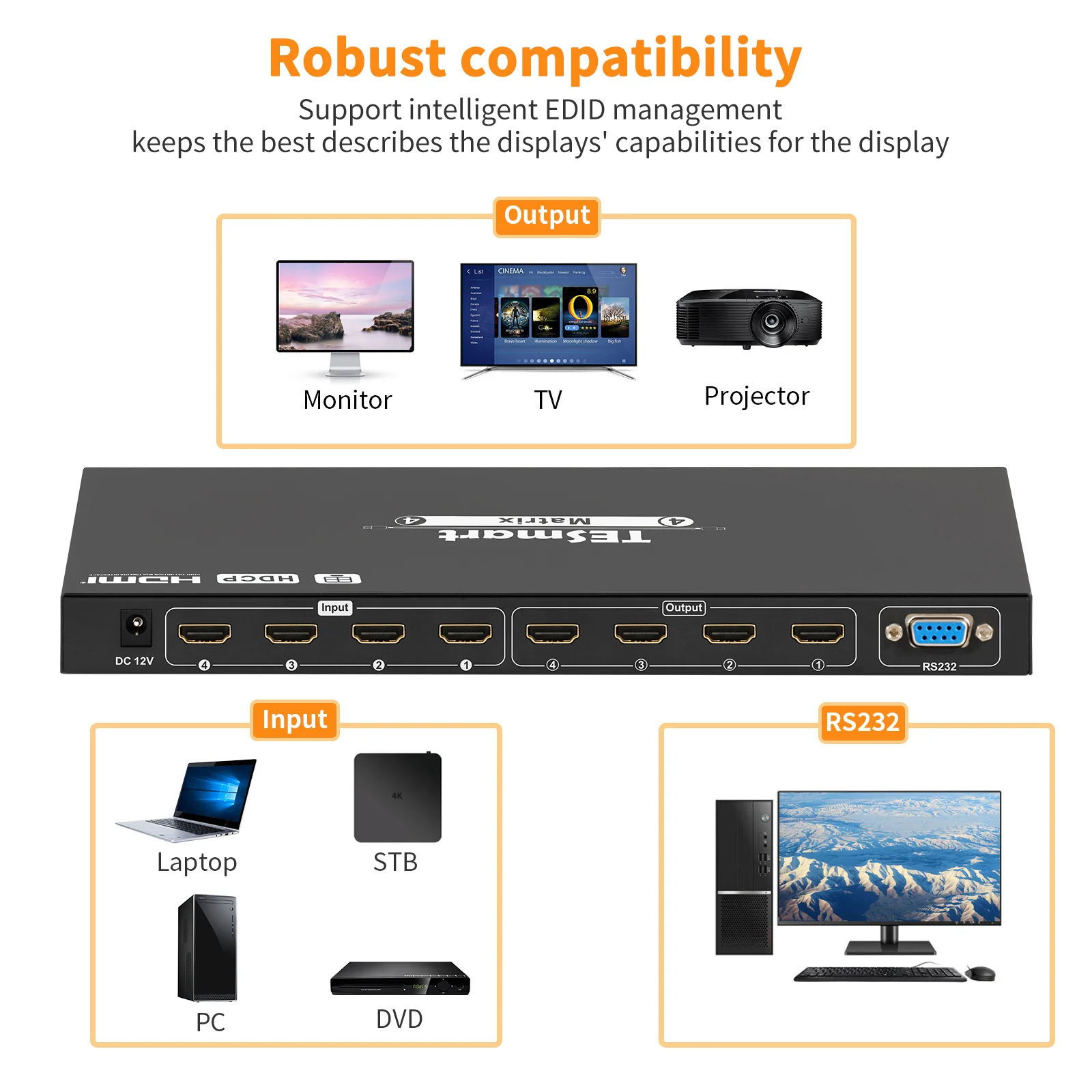

*Smart EDID management, make it compatible with most display devices
*Support 4 confifigurable user preset connections

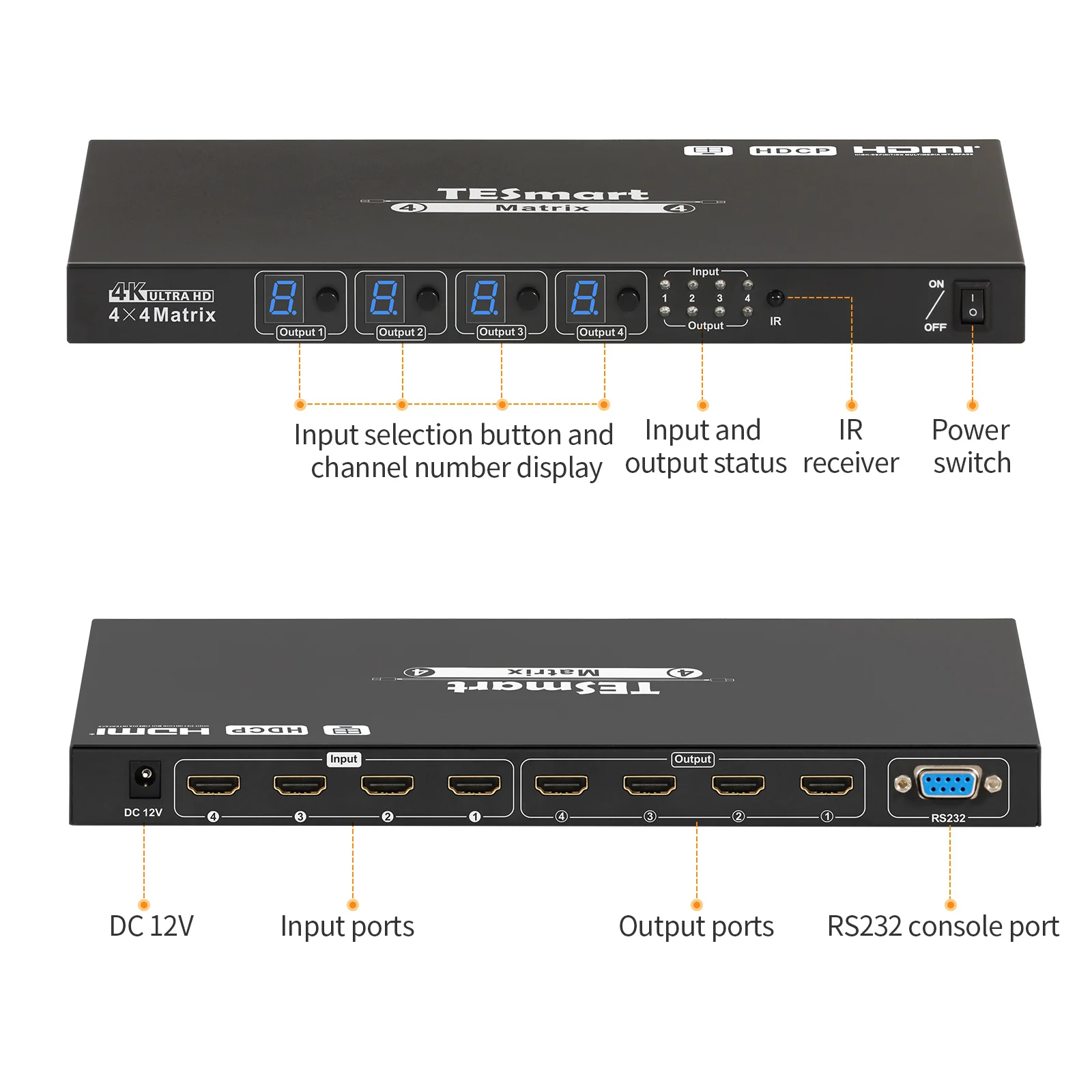

*Easy to control matrix via IR receiver, front panel key and RS232 port
Supports PCM, Dolby AC3,DTS5.1,DTS7.1 and DSD audio format
Support 1080P 60Hz 3D and 3840x2160 30Hz
Being controlled via RS232 and also front-panel buttons,IR Remote Control
Packing List
1 * HDMI Matrix 4x4
1 * Remote control
1 * Remote control
1 * DC 12V Power Adapter ( AU / EU/ US/ UK Standard)
1 * User manual
1 * User manual
Specification
HMA0404A60 | 4x4 HDMI Matrix | |||||
Functionality | ||||||
Port selection | Front panel buttons | Yes | ||||
Console commands | RS232 | |||||
IR remote control | Yes | |||||
OSD | No | |||||
Smart EDID | Yes | |||||
Technical | ||||||
Max. Resolution | 3840x2160@30Hz | |||||
HDCP version | 1.4 | |||||
Data rate | 10.2 Gbps | |||||
Input | 4*HDMI Type A, 24/26 AWG HDMI cable up to 8M | |||||
Output | 4*HDMI Type A, 24/26 AWG HDMI cable up to 10M | |||||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||||
Mechanical | ||||||
Chasing material | Metal | |||||
Power supply | DC 12V 2A | |||||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |||||
Operating Humidity | 10 to 90% RH | |||||
Product | Dimension | 440(L) x 139 (W) x 44.5 (H) mm | ||||
Weight | 1541g | |||||
Item | Dimension | 476 (L) x 90 (W) x 232 (H) mm | ||||
Weight | 2185g | |||||
Carton | Dimension | 515 (L) x 285 (W) x 470 (H) mm | ||||
Quantity | 5pcs | |||||
Total Weight | 11.775kg | |||||
