Contitech FD120 17 Senho 2S120 17 Double Convoluted Air ride bag spring kits for light truck air suspension system
- Category: >>>
- Supplier: Qingdao Senho Tech Trade Co. Ltd.
Share on (1600604124193):
Product Overview
Description
Product Description

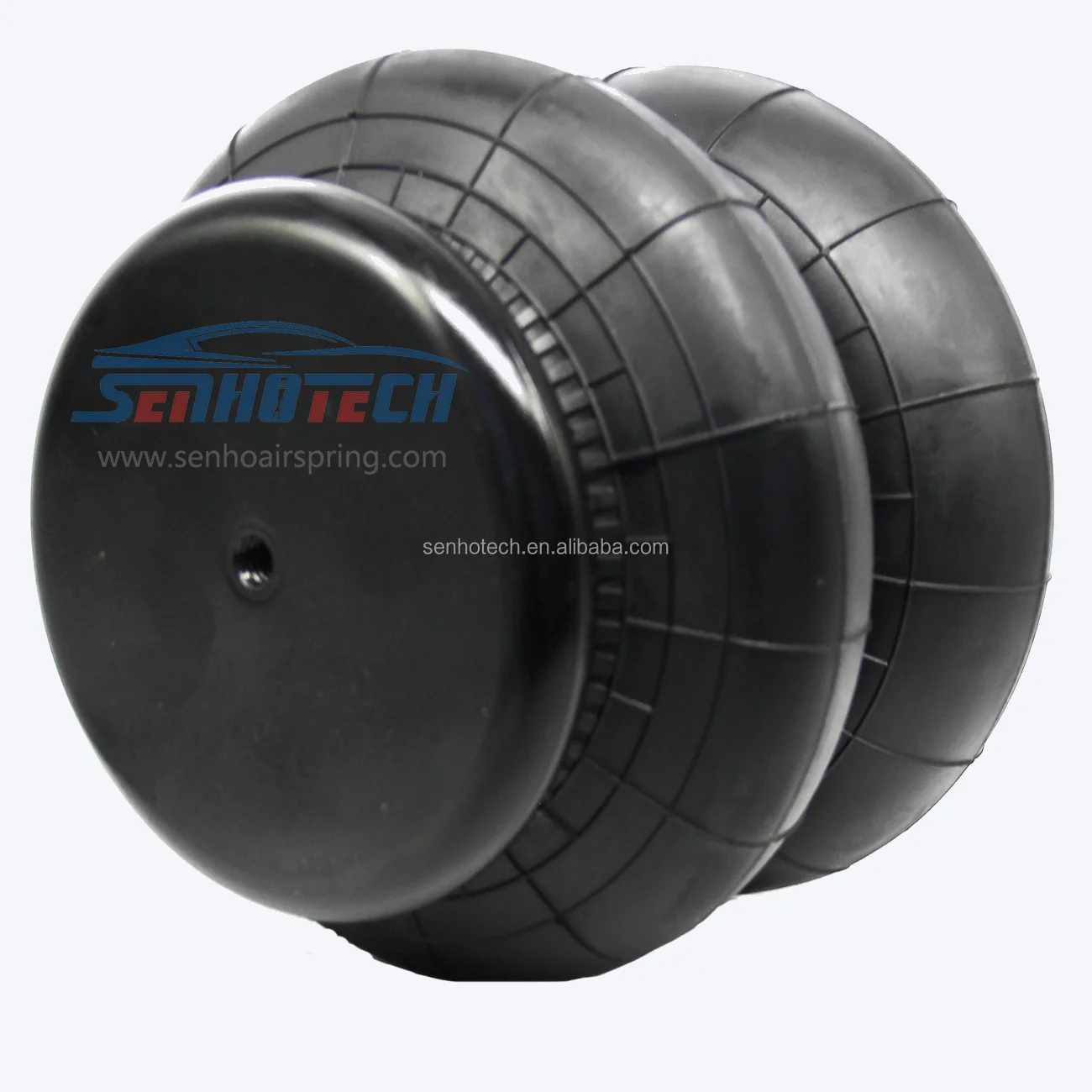

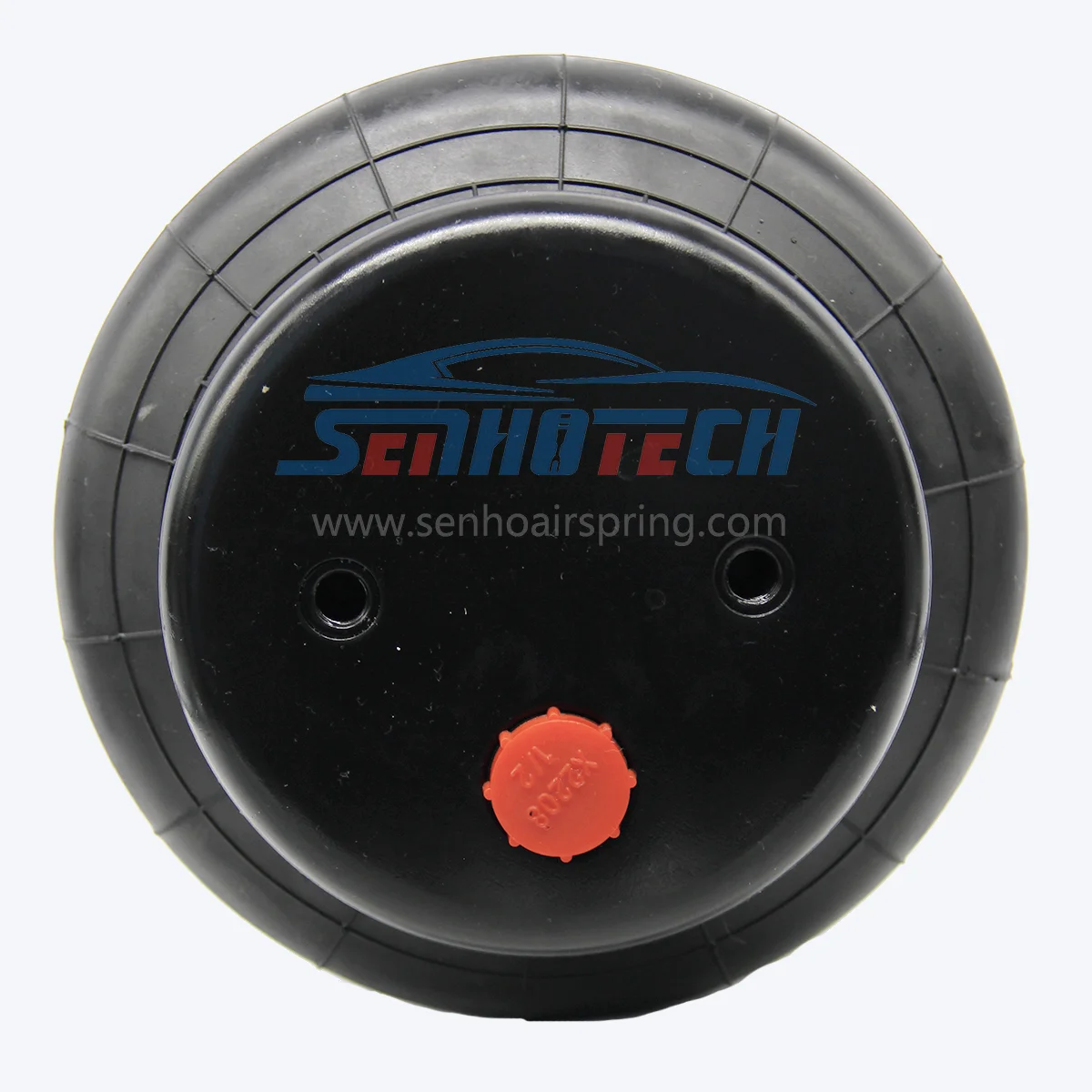

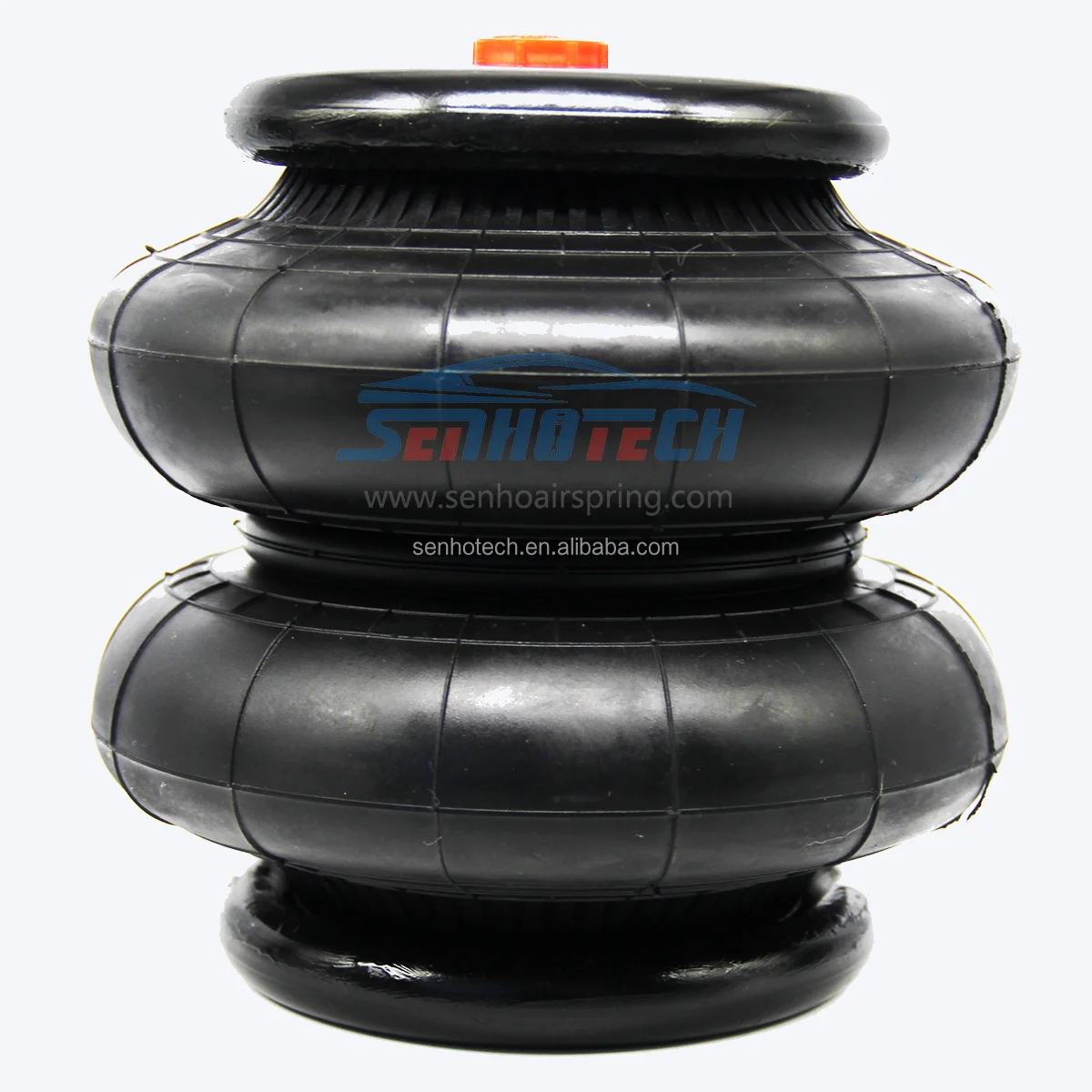

Contitech FD120-17 Senho 2S120-17 Double Convoluted Air ride bag spring kits for light truck air suspension system
| Iterm name | Air spring |
| Product type | 2S120-17, FD120-17 |
| Design height | 185mm |
| Design Outer Diameter | 176mm |
| Min height | 75mm |
| Max height | 230mm |
| Air inlet size | 1/2NPT, or customized |
| Screw size | 3/8-16unc or customized |
| Plate color | Black painting, yellow or white zinc coated |
| Bursting pressure | More than 2.5Mpa |
| Temperature range | -40℃ to 70℃ |
| Fatigue life testing | 5 million times |
| Loading capacity | 7 bar, 9.47KN |
Packaging & Shipping
1. Package method:
Carton, pallet, wooden case
Customized packaging is acceptable.
2. Shipping:
FedEx, UPS, TNT, Sea freight, Air freight, Train transport.
3. Delivery time:
Sample shipment within
Within 6000 pieces, within 35 days after receive deposit payment
Our Services
1. Professional develop team
We can adjust our products' specification according to client's requirement.
2. Customized logo
Rubber logo, laser print flange logo
3. OEM service
Customized carton, plate color, air inlet size, screw size

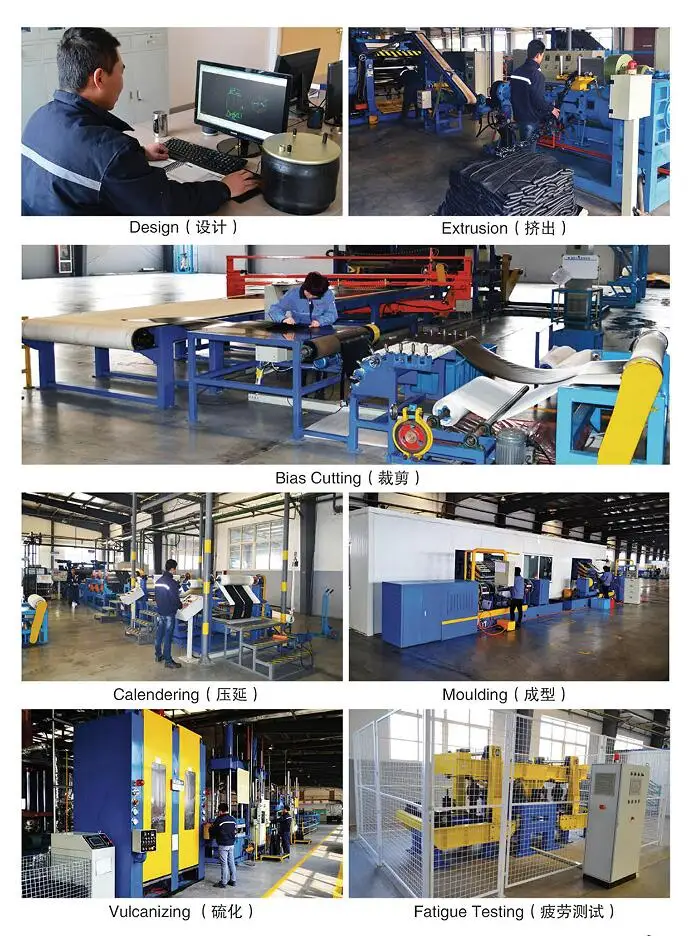

Company Information
