Product Overview

Description



Product Description

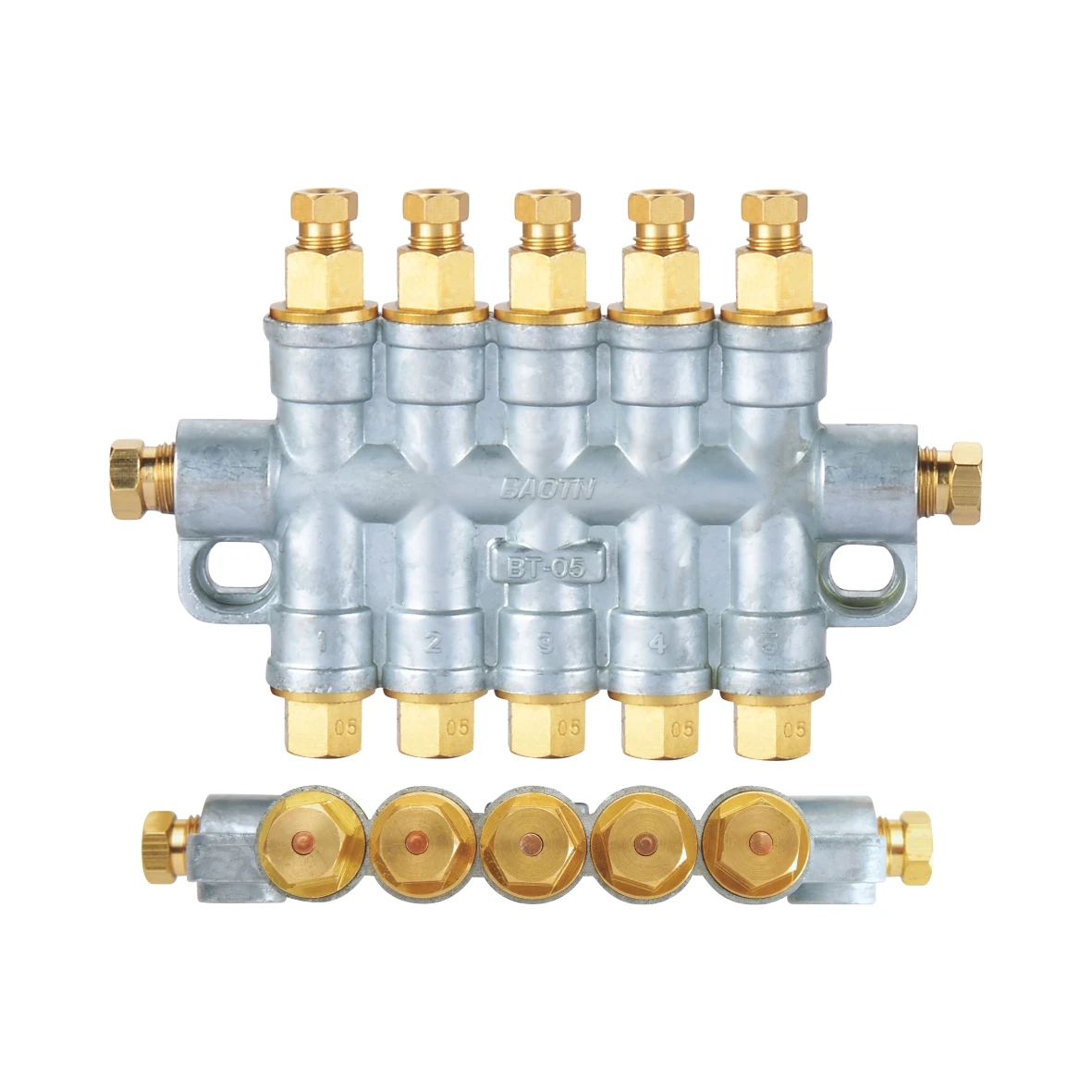

BAOTN Brand Decompression Thin Oil Distributor BFA (old article No. BT) for Lubrication Pump

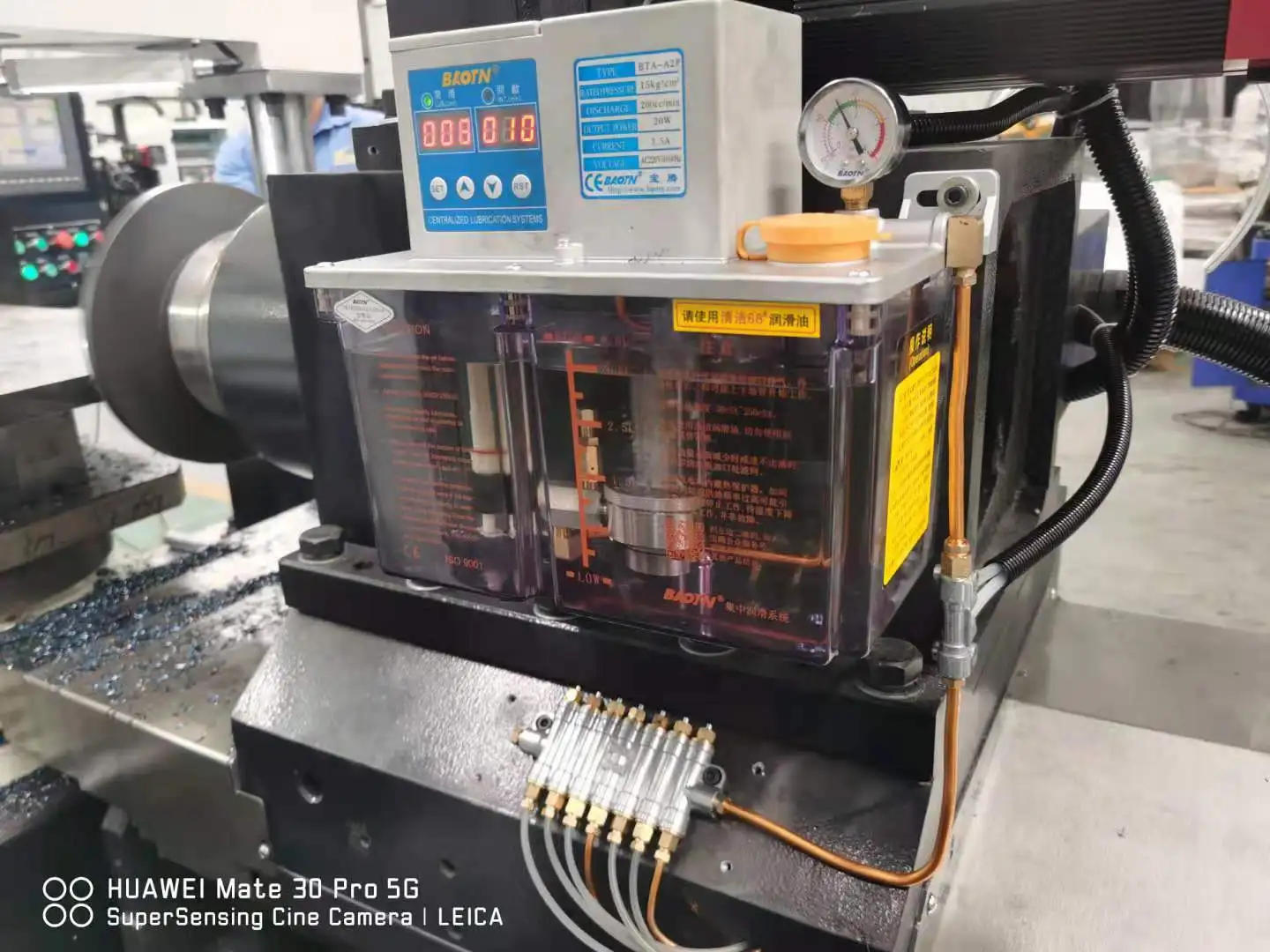

 For BT type electric lubricator, 2L, 3L, 4L, 6L, 8L high strength plastic tanks or various metallic tanks are available. Different lubricator tpye selection is based on its application and host system. Optional accessories contain level switch, pressure switch, which can connect with the host system, to realize integrated interval, lubrication and alarming. With the free choice of lubrication system, lubrication time can be set freely by lubricator. They adopt buzzer for alarm when exception, provides No, Nc connection, ease of usage.

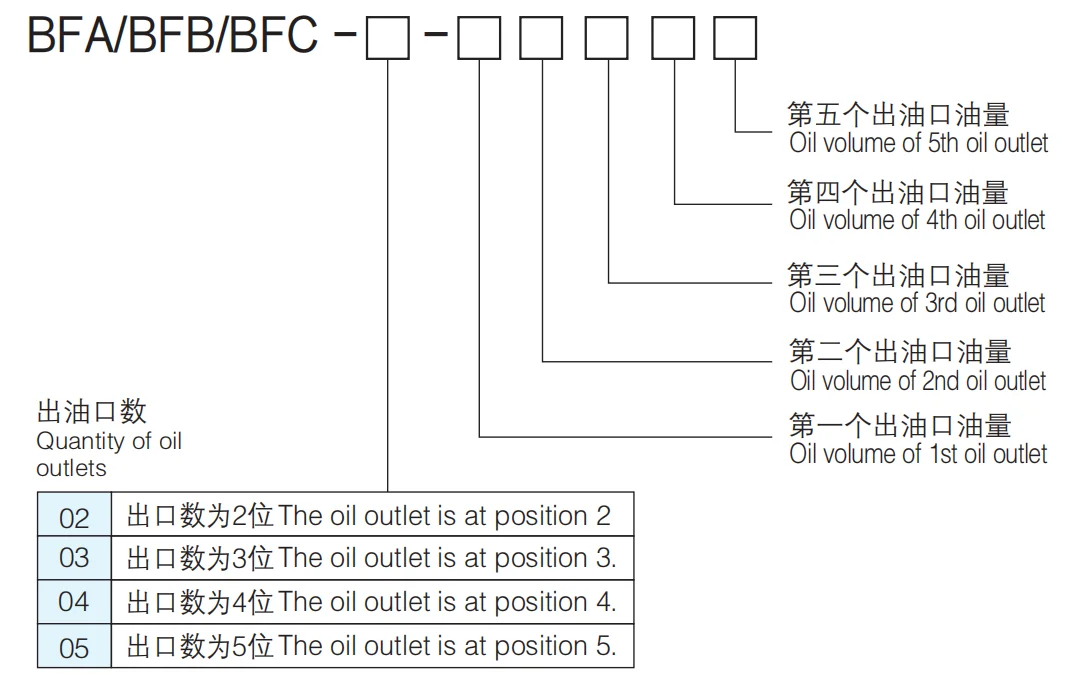

Oil volume indication: (notes: when oil volume values of all oil outlets are identical, represented with one oil volume).
Example 1: BFA/BFB/BFC-05-2 means 5-position distributor with model of BFA/BFB/BFC, oil delivery volume of oil outlets 1, 2, 3, 4 and 5 is 0.2ml/time.
Example 2: BFA/BFB/BFC-05-53235 means that outlet oil volumes of outlets 1, 2, 3, 4 and 5 of 5-position distributors with model of BFA are 0.5, 0.3, 0.2, 0.3 and 0.5ml/time.

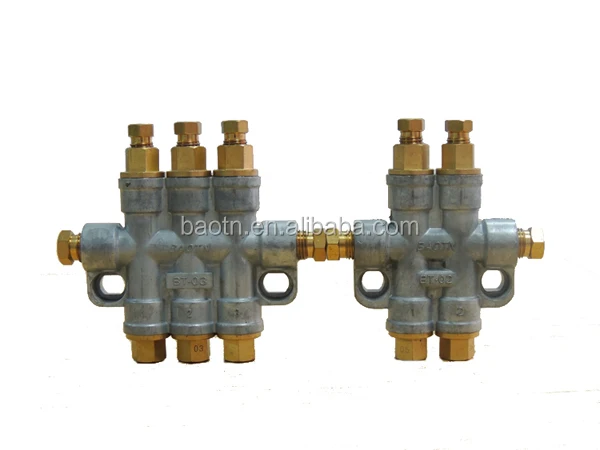

Notes: 7, 8, 9 and 10 are combination of BFA/BFB/BFC-03,BFA/BFB/BFC-04,
BFA/BFB/BFC-05 and BFA/BFB/BFC-05.
6 is combination of BFA/BFB/BFC-03 and BFA/BFB/BFC-03.

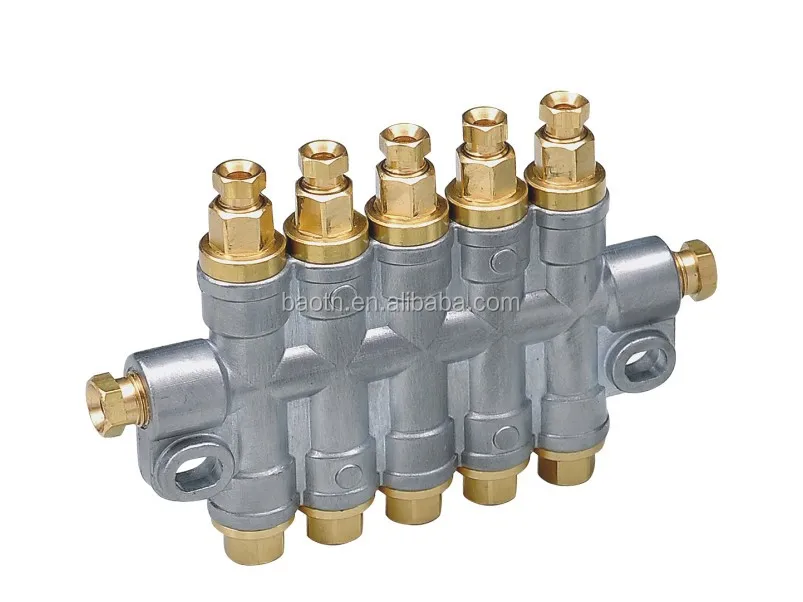

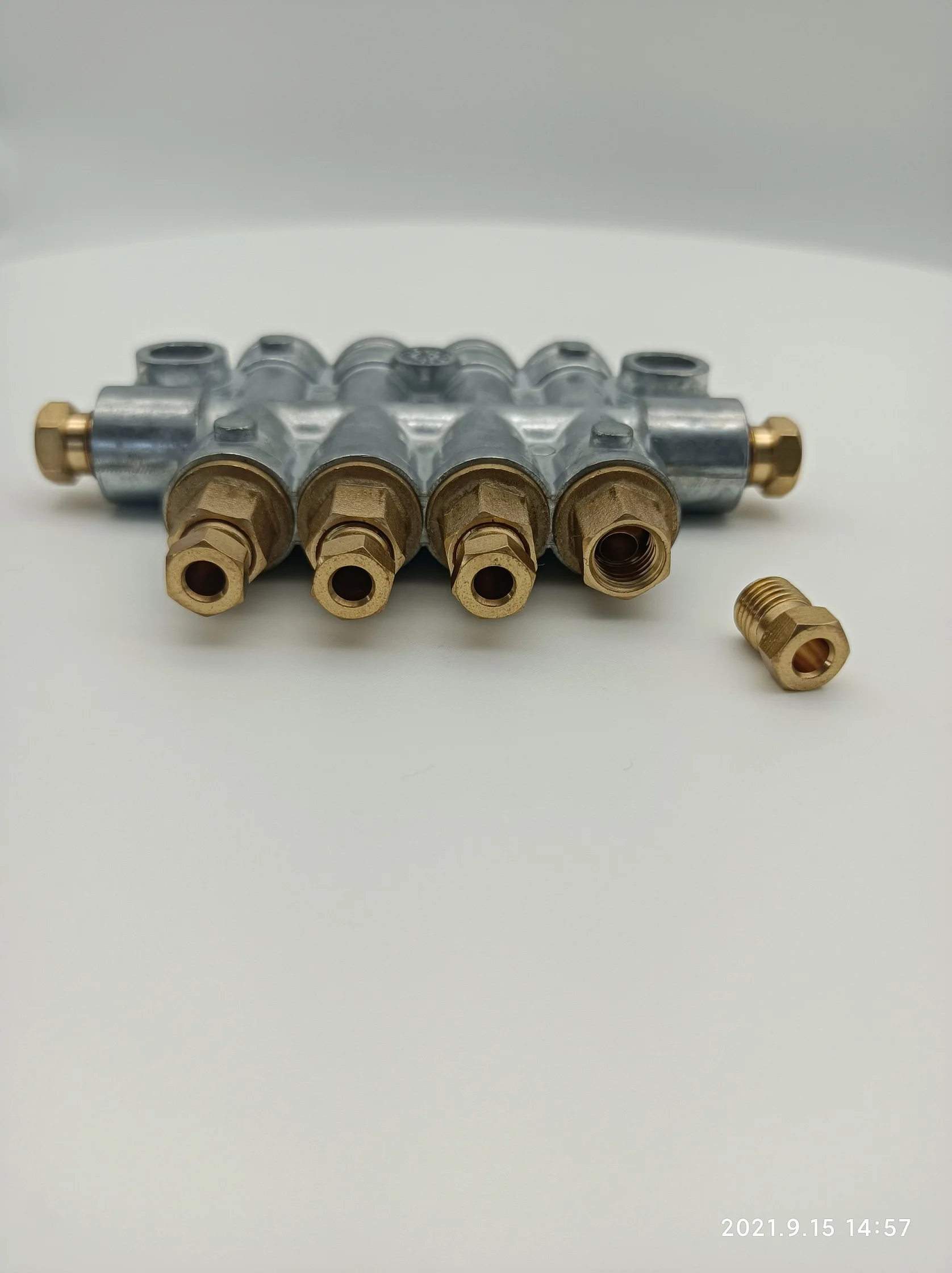

MODEL
BFA-05-5
MATERIAL
ALLOY, COPPER
APPLICATION
VOLUMETRIC LUBRICATION SYSTEM DECOMPRESSION OIL DISTRIBUTOR
OUTLET
5 OUTLET, 4mm(connect with 4mm pipe), 0.5cc/cycle (0.1/0.2/0.3/0.4/0.5cc/cycle/outlet optional)




Products Detail

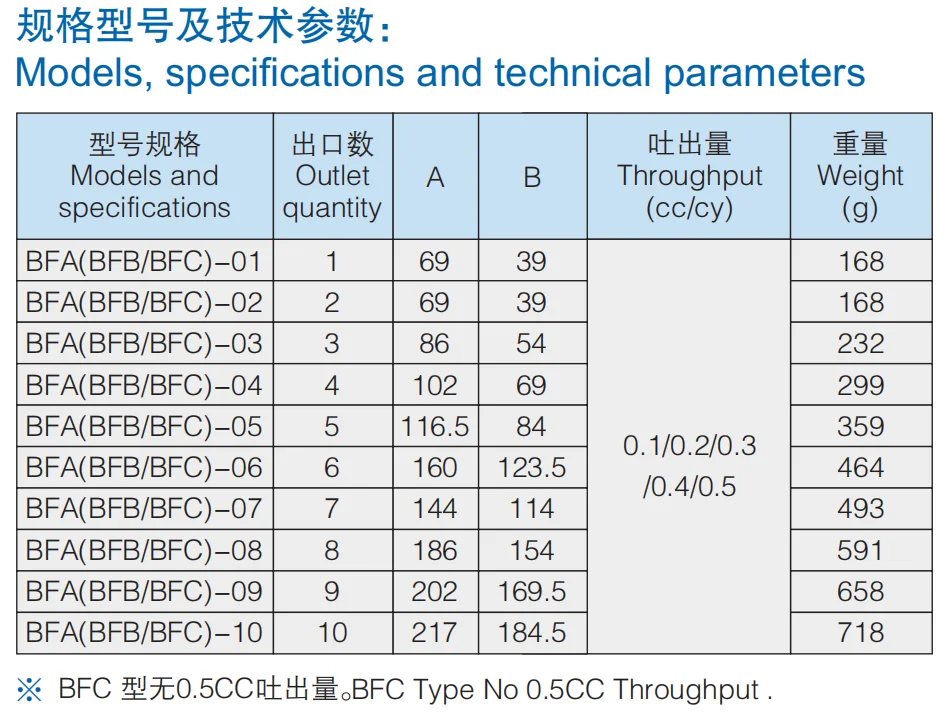

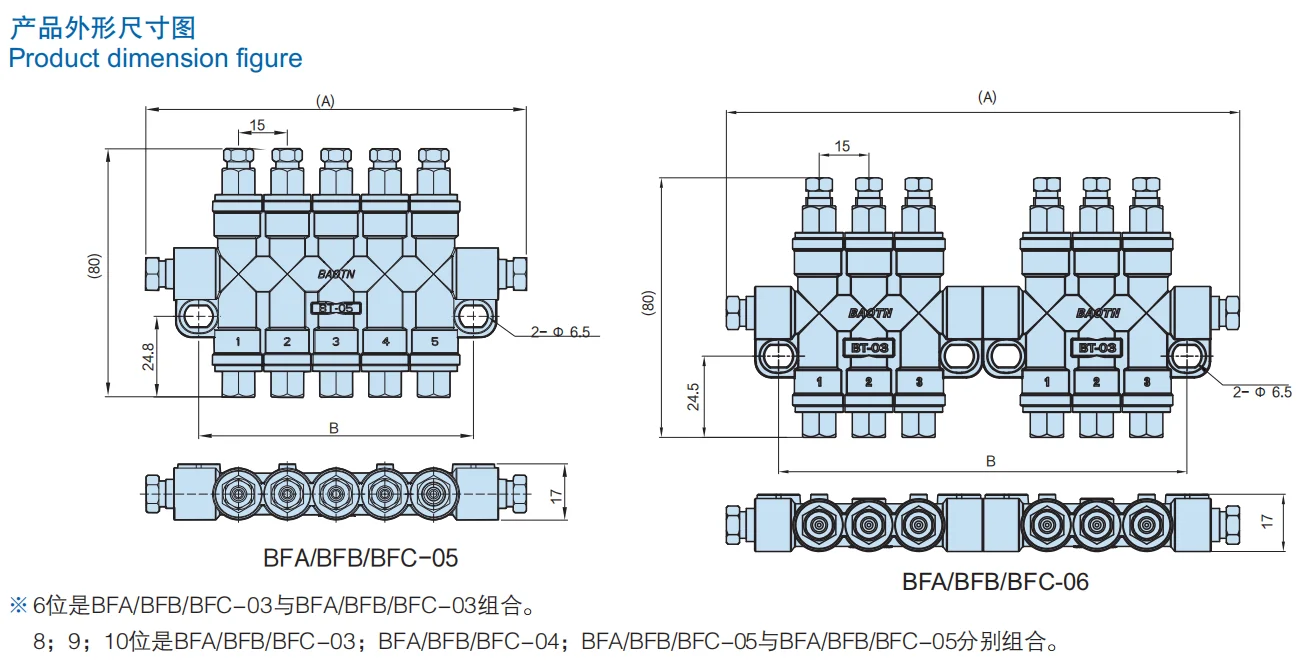

Models, specifications and technical parameters of BFA (old article No. BT)



                    BFA-05
                     BFB-05
                   BFA-07

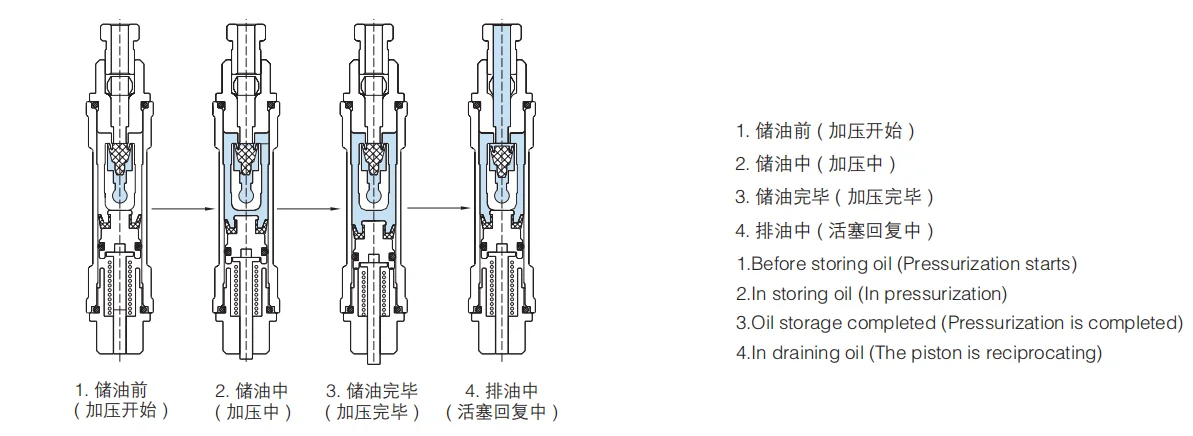

Schematic diagram of the BFA/BFB/BFC distributor
Lubricant delivered from the oil injector starts to drive through the umbrella valve in the BFA/BFB/BFC distributor.
When the umbrella valve closes the oil outlet hole, oil pressure forces oil storage block to overcome spring force and lower down, and the oil cavity starts to store oil.
When BFA/BFB/BFC oil storage block arrives at the top of the oil cavity, storing oil by BFA/BFB/BFC is completed.
When the oil pump stops supplying oil, the decompression valve is automatically opened to make lubricant in the main oil pipe to return through the decompression valve. The system pressure is lowered, the umbrella valve reciprocates and closes the inlet oil,
and the BFA/BFB/BFC oil storage block compresses the lubricant in the oil cavity to the the oil outlet port.




3D Reality showroom


VR


Company profile

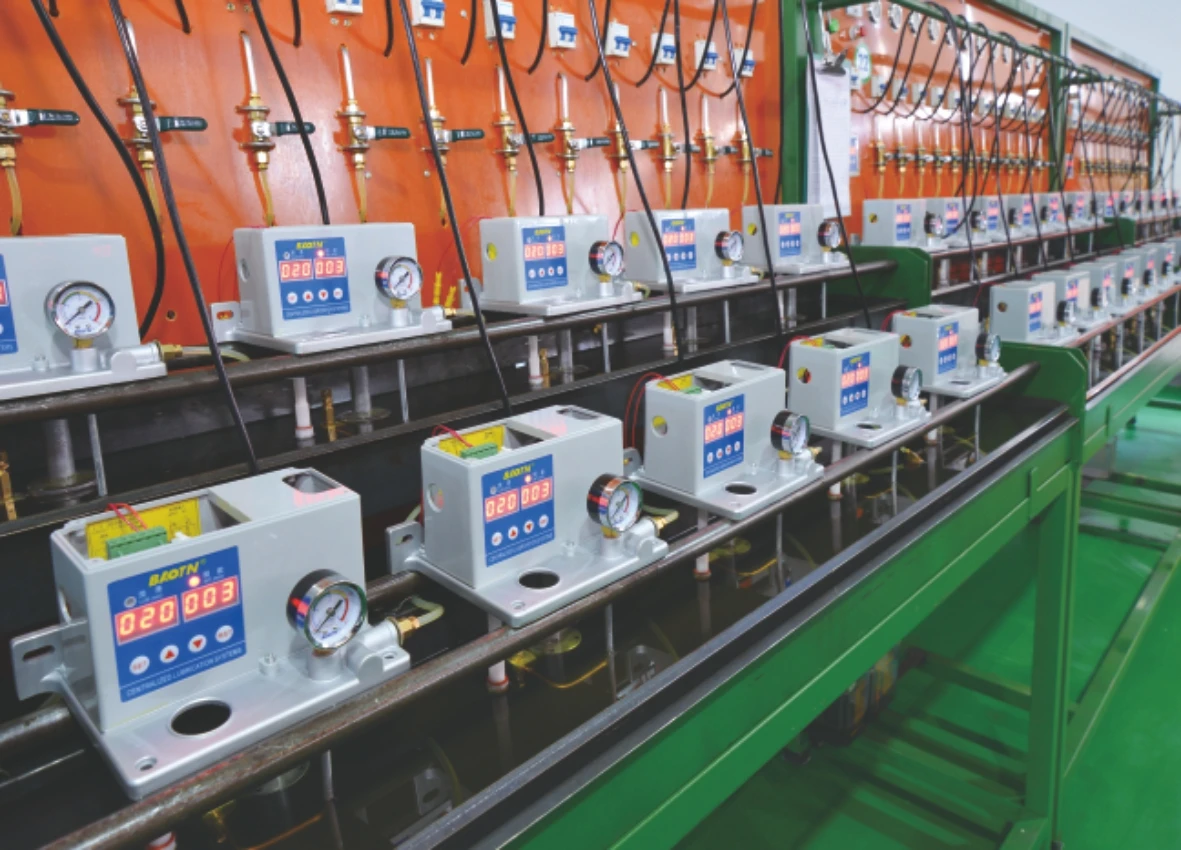

BAOTN Intelligent Lubrication Technology (Dongguan) Co., Ltd, founded in 2006, has developed into one of the leading machinery manufacturer specializing in centralized lubrication system. . We always stay with the principle "fundamental integrity, quality win the future". We produce variety, high quality and stability lubricating device products, including volumetric, resistance type lubrication system for thin oil or grease lubrication, cooling system, water/oil pump, accessories, etc..








Our company has more comprehensive sales network, with Dongguan , Tianjin, Shenyang, Suzhou, Xi'an and other sales offices or agents. We keep moving on expanding domestic and foreign markets and we are searching for more agents aboard. Our products have been exported to America, Brazil, Mexico, Germany, Russia, Indonesia, etc..Welcome customers to visit our company or contact with us for long run business relationships and mutual success.




Why choose us


In mainland China, the company with 15 years of professional machinery lubrication systems sales and manufacturing experience and technology. We cooperate with Taiwan's most famous lubrication system company, and we have good management system, professional R&D department and after-sales service system, We devote ourselves to building a pioneer in the self-lubricating industry in China and now we are one of the top brand in it. And we still keep moving and try our best to serve our customers.






FAQ


Q1: What payment method your company accepts?
A: We accept T/T (Bank Transfer), Paypal, Alipay.

Q2: How long for the production time?
A: Standard products in stock, or 5-7 days depends on order quantity and product type. Exactly time please contact us.

Q3: Can I have a sample products for testing?
A: Yes you can buy sample product.

Q4: Can you do drop shipping?
A: Yes, we can help you ship the goods to any address you want. We will not put any catalog or any document with our company info in it if you request.

Q6: What is the shipping methods?
A: Depends on customer or by express, such as DHL, FedEx, TNT, UPS etc..
