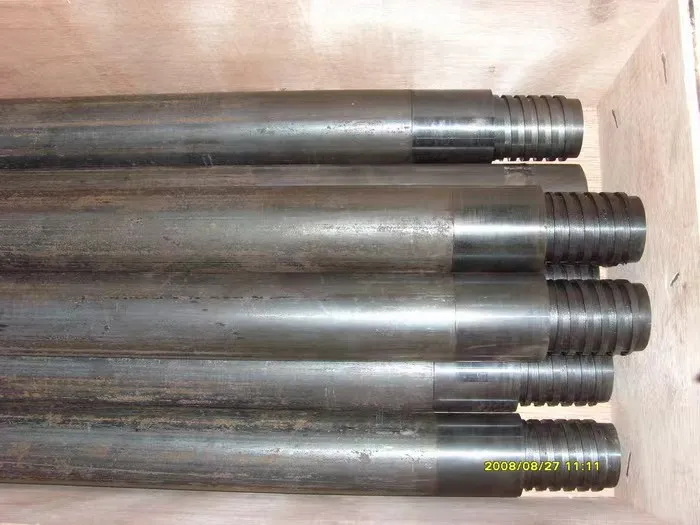

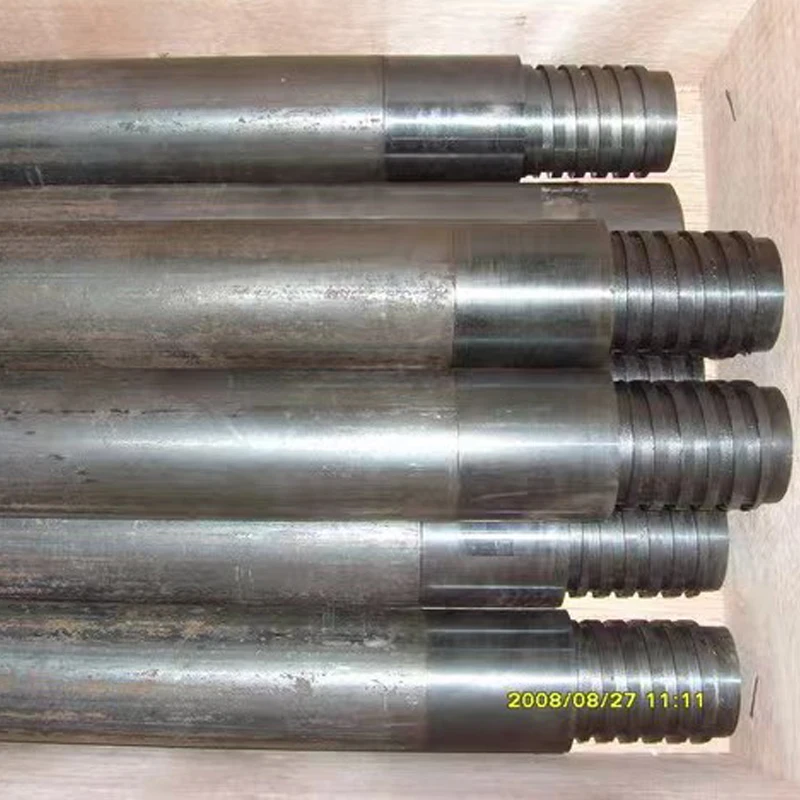

NW BW Drill Pipe / Drill Rod
- Category: >>>
- Supplier: Hebei Solidkey Petroleum Machinery Co. Ltd.
Share on (1600604183541):
Product Overview
Description
| Q series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
| Spec. | Unit | BQB | NQB | HQB | PQB |
| OD/ID | mm | 55.6/46 | 71/60 | 89/77.8 | 114.3/101.6 |
| Thickness | mm | 4.8 | 5.5 | 5.6 | 6.35 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 44.45 | 44.45 | 44.45 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth angle | . | 29 | 29 | 29 | 29 |
| tensile resistance(A series) | kn | 400 | 530 | 510 | 565 |
| tensile resistance(B series) | kn | 450 | 615 | 625 | 660 |
| bore depth | m | 1200 | 1000 | 900 | 800 |
| QR series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
| Spec. | Unit | BRQ | NRQ | HRQ | PRQ |
| OD/ID | mm | 55.6/46 | 69.9/60.3 | 88.9/77.8 | 114.3/101.6 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 42 | 42 | 41.91 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth negative angle | . | 5 | 5 | 5 | 5 |
| tensile resistance(A) | kn | 450 | 525 | 545 | 565 |
| tensile resistance(B) | kn | 530 | 625.5 | 602 | 660 |
| bore depth | m | ||||
Profile & Contacts
| Tasks of Solidkey | |
♦To exploit energy resources underground.
Who we are:
We are one of the people who makes above easier. Let’s work together and enjoy this job. |
| Solidkey Profile | |
Established in year 2009, with the first-class engineers of tricone bits and PDC bits, Solidkey is a professional factory of rock drilling bits.
Main products: Tricone Bits, PDC Bits, Hole Openers, Single Roller Cone Bits.
We service for : ♦Tenders from government or national enterprise. ♦Drilling contractors. ♦Construction projects including HDD and Foundation Piling. ♦Water well drilling, exploration, etc. |
| Solidkey Advantages | |
♦Advanced technology&Equipment, International standard. ♦R&D center for rock drilling tools, high precision CNC machines, API&ISO Certified. ♦10+ Years & 35 Countries service experience. ♦Optimized solutions for various of requirement. |
