Hikins 3G 6-8L Plastic PP RO Drinking Bucket Barrel Pressure Tank
Products Description
Water pressure tank is mainly used in closed water purifier circulation system, which plays the role of balancing the water volume and pressure, avoiding frequent opening of the safety valve and frequent replenishment of the automatic water replenishment valve.
Product Features
Product Features
1. The shell is molded from food-grade polypropylene. New plastic raw materials, no recycling, no secondary pollution.
2. The thickened nozzle design avoids the traditional risk of nozzle cracking and slipping.
3. Using aerospace grade pressure resistant materials and equipped with imported spool, strengthen airbag sealing,
2. The thickened nozzle design avoids the traditional risk of nozzle cracking and slipping.
3. Using aerospace grade pressure resistant materials and equipped with imported spool, strengthen airbag sealing,
reduce the risk of air leakage.
4. Anti slip bottom design, groove can play a fixed role, anti slip and anti fall.
4. Anti slip bottom design, groove can play a fixed role, anti slip and anti fall.

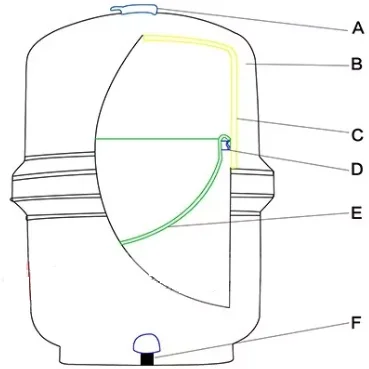

Product Structure Schematic
B: Barrel Body
C: The inner wall of Barrel Body
D: The Core Circle
E: Rubber Airbag Liner
F: Pressure Relief Valve

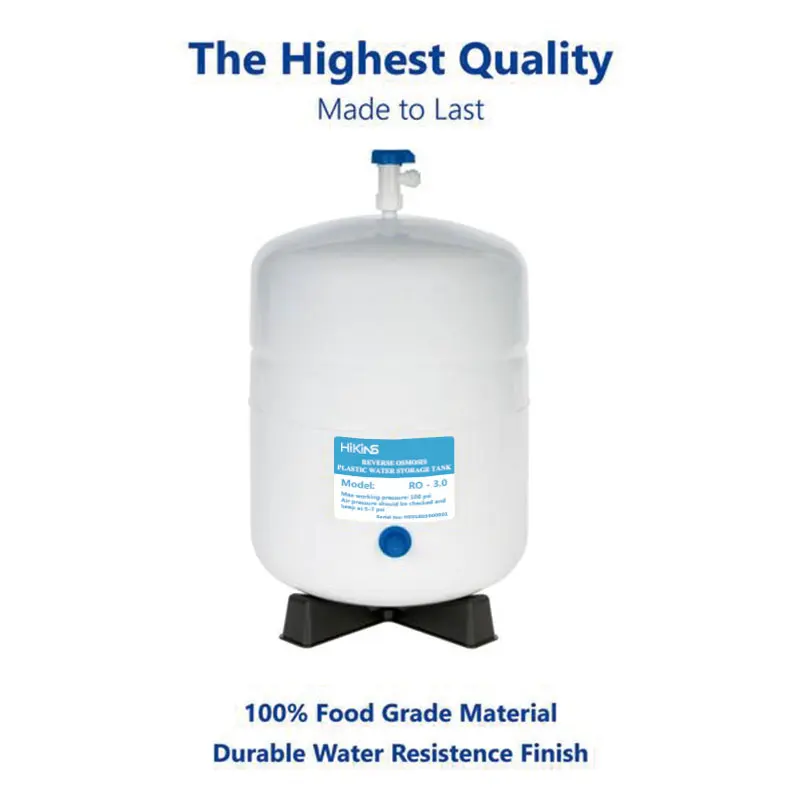

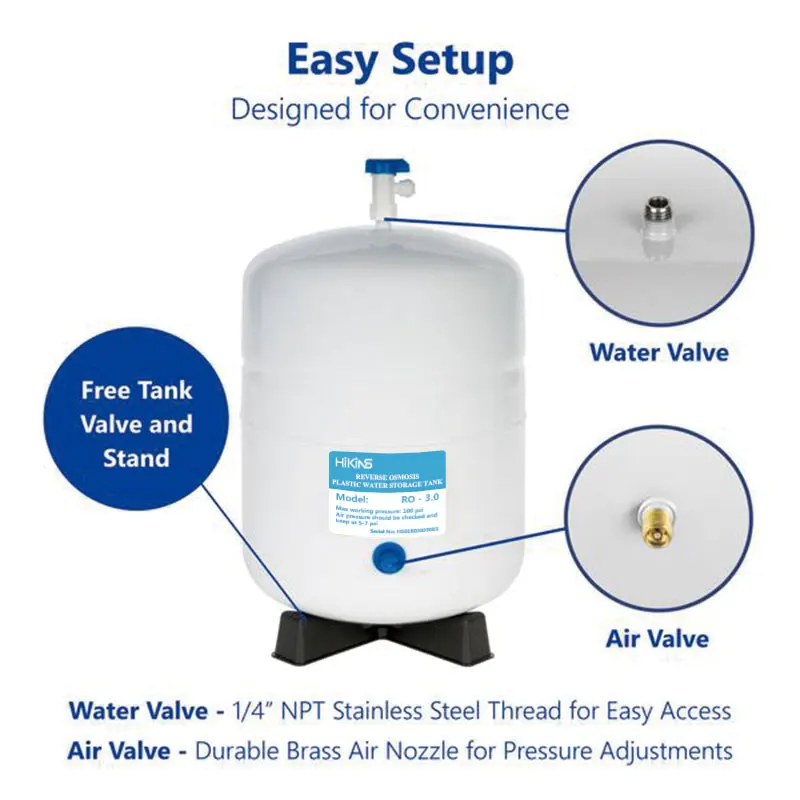

Product Photos
Specification | ||||
Model NO. | 3G-P | |||
Product Category | RO Water Purifier Fittings | |||
Water Storage Capacity(L) | 6~8 | |||
Preset Air Pressure(PSI) | 6~8 | |||
Working Pressure(PSI) | 40~50 | |||
Max Pressure(PSI) | 100 | |||
Water Port Size | 1/4" | |||
Main Body | Food Grade PP | |||
Inner Liner | Food Grade Rubber | |||
Product Size(mm) | 330(H)*250(D) | |||
Net Weight(KG) | 2 | |||
Gross Weight(KG) | 2.3 | |||
Inner Packing Size(mm) | 248*245*340 | |||
Outer Packing Size(mm) | 505*505*700(8pcs) | |||
*Contact us for more models.

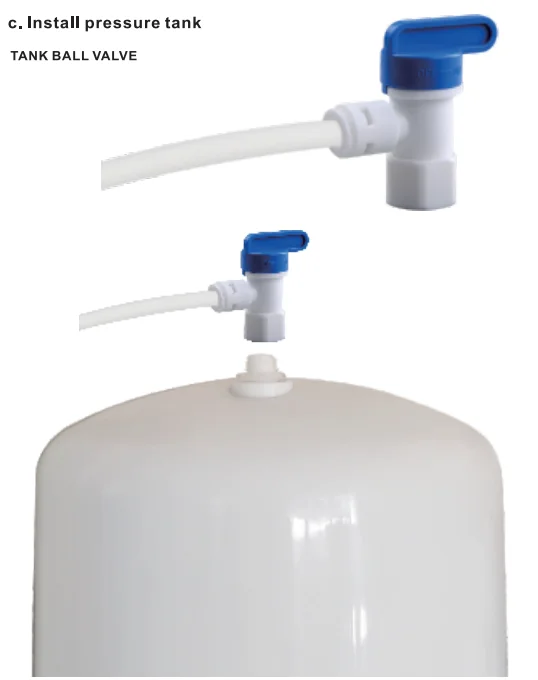

Check all pipe are connected well (pipe should insert about 1.5cm into fitting/connector). And then add the blue clip to fix.
Open tap water inlet valve, and open water inlet tee valve, let the water go through the system. And then connect power adapter.Then water purifier will work automatically.
For newly installed water purifier, we should close tank valve, and open faucet(Wash system).
After 10 minutes to 15 minutes, close faucet, and open tank valve.
About 15 minutes, tank will be full and water purifier should stop production water auto.
Then open Faucet. Till water in tank empty, we close faucet(wash tank). Then testing is finished.
You May Like
About Us
Guangdong Haiqingxin Environmental Technology Co.,Ltd is the top OEM/ODM Manufacturer for robot vacuum cleaner in South China, as well as the robot cleaner components manufactuer, its business field involves smart homes including robot cleaner, RO water purifier, domestic RO membrane, RO boost pump and water tank, POM fittings and Filter cartridges. Hikins has become a industry leader in supplying the household facilities in robot cleaners,RO Water Purifierindustrial and domestic RO products.

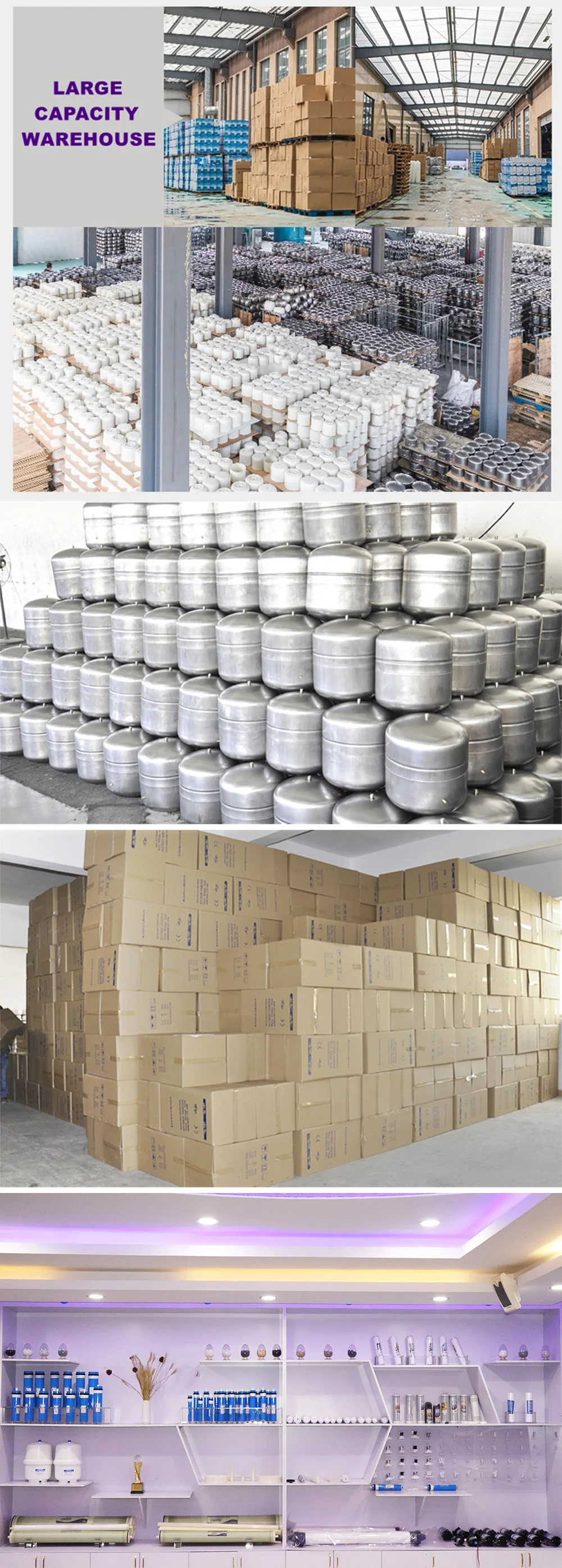

Our factory covers an area of 36,000 square meters and has mature injection molding, mold processing, SMT chip processing, productionline assembly, and specialized Industry's supporting service team, R & D and production teams have served OEM / ODM products in nearly 40 countries, Production and management experience of famous brand service.
Hikins has done lots of effort and investment in Robot vacuuming cleaner and Air purifier manufacturing, we are aiming to be your valuable China manufacturing partner and we are looking for distributor and agent worldwide.
Our factory covers an area of 36,000 square meters and has mature injection molding, mold processing, SMT chip processing, productionline assembly, and specialized Industry's supporting service team, R & D and production teams have served OEM / ODM products in nearly 40 countries, Production and management experience of famous brand service.
Hikins has done lots of effort and investment in Robot vacuuming cleaner and Air purifier manufacturing, we are aiming to be your valuable China manufacturing partner and we are looking for distributor and agent worldwide.
FAQ
FAQs on Reverse Osmosis RO membrane OEM manufacturing
1. What are material of each parts?
1. What are material of each parts?
Plastic tank: food grade PP for tank body, food grade rubber for inner pot, brass charging valve.
Metal tank: Carbon steel for tank body, Lined with PP inner cushion, food grade rubber for inner pot, brass charging valve, SUS water port, plastic base.
Plastic-steel tank: PP material outer case, carbon steel for tank body, food grade rubber for inner pot, brass charging valve, SUS water port.
2. Will plastic tank broken, and wash my floor?
Some tank with pressure relief valve, when inner pressure is high, then water will go through this valve, and stop
Metal tank: Carbon steel for tank body, Lined with PP inner cushion, food grade rubber for inner pot, brass charging valve, SUS water port, plastic base.
Plastic-steel tank: PP material outer case, carbon steel for tank body, food grade rubber for inner pot, brass charging valve, SUS water port.
2. Will plastic tank broken, and wash my floor?
Some tank with pressure relief valve, when inner pressure is high, then water will go through this valve, and stop
pressure increasing. So it will not broken.
3. Does 400GPD RO water purifier need pressure tank?
Normally 50GPD to 300GPD RO water purifier need pressure tank. Commercial RO water purifier also add tank to meet large water supply in short time.
4. How to keep tank clean?
After use, we should empty tank one time every month.
3. Does 400GPD RO water purifier need pressure tank?
Normally 50GPD to 300GPD RO water purifier need pressure tank. Commercial RO water purifier also add tank to meet large water supply in short time.
4. How to keep tank clean?
After use, we should empty tank one time every month.
