Medical Gas Digital Alarm System
- Category: Security >>>
- Supplier: Shanghai Etar Mechanical And Electrical Technology Co. Ltd.
Share on (1600604254243):
Product Overview
Description
Product Description

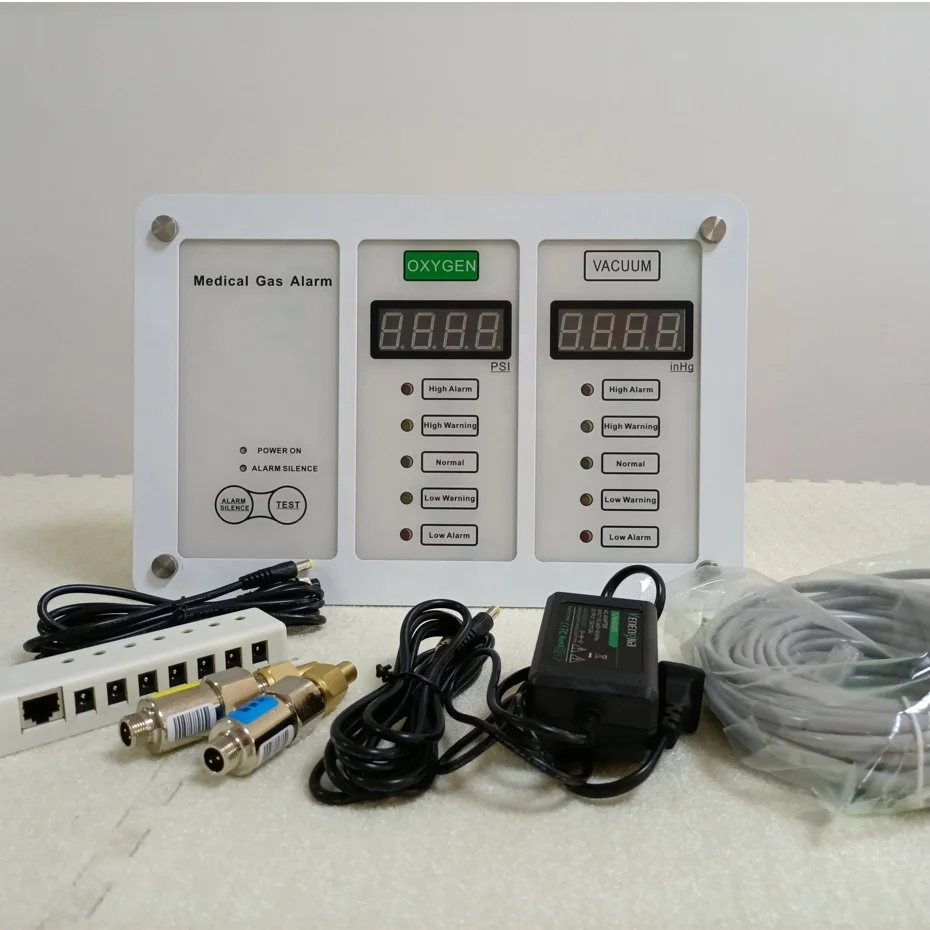

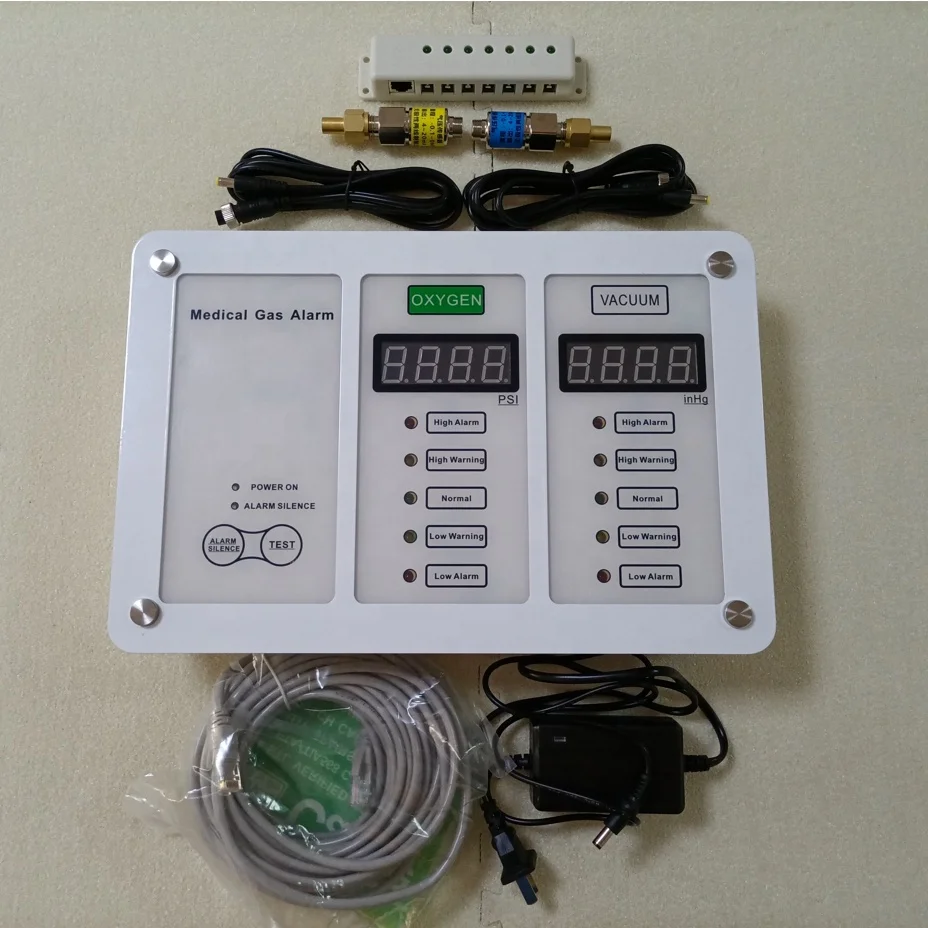

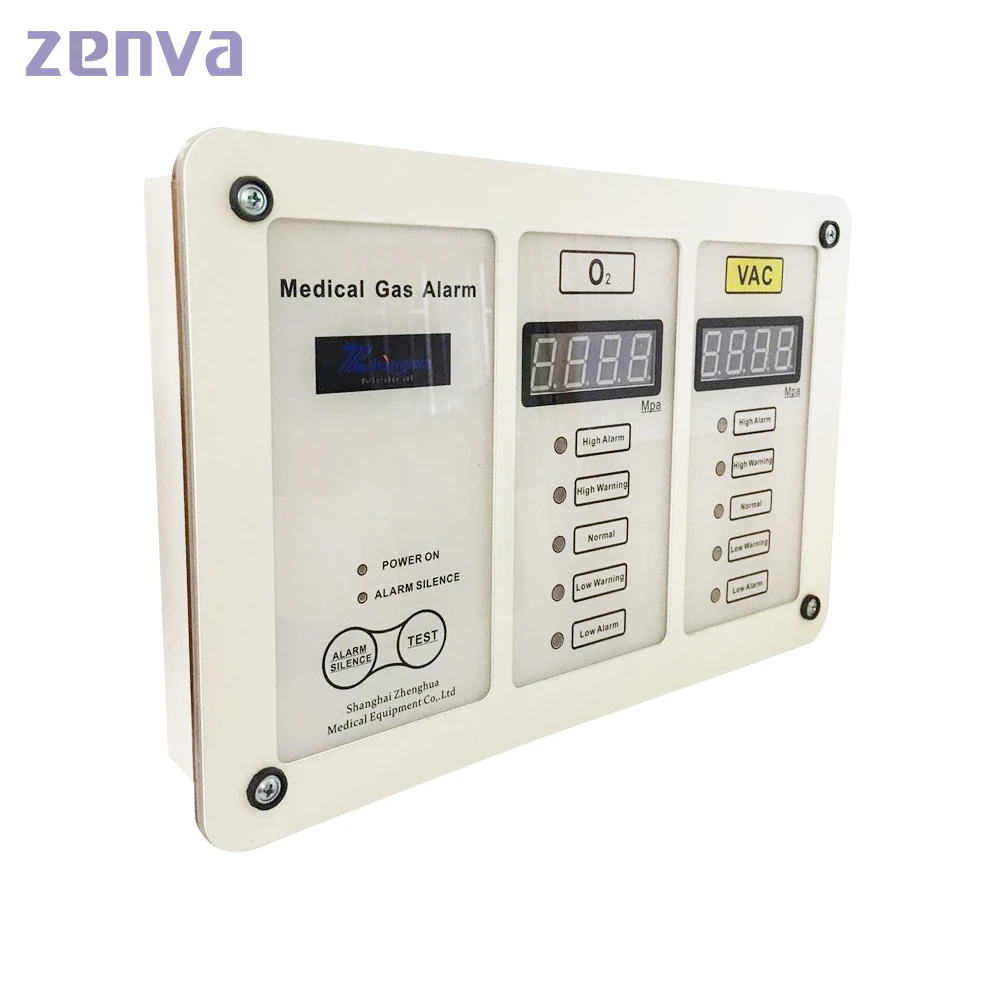

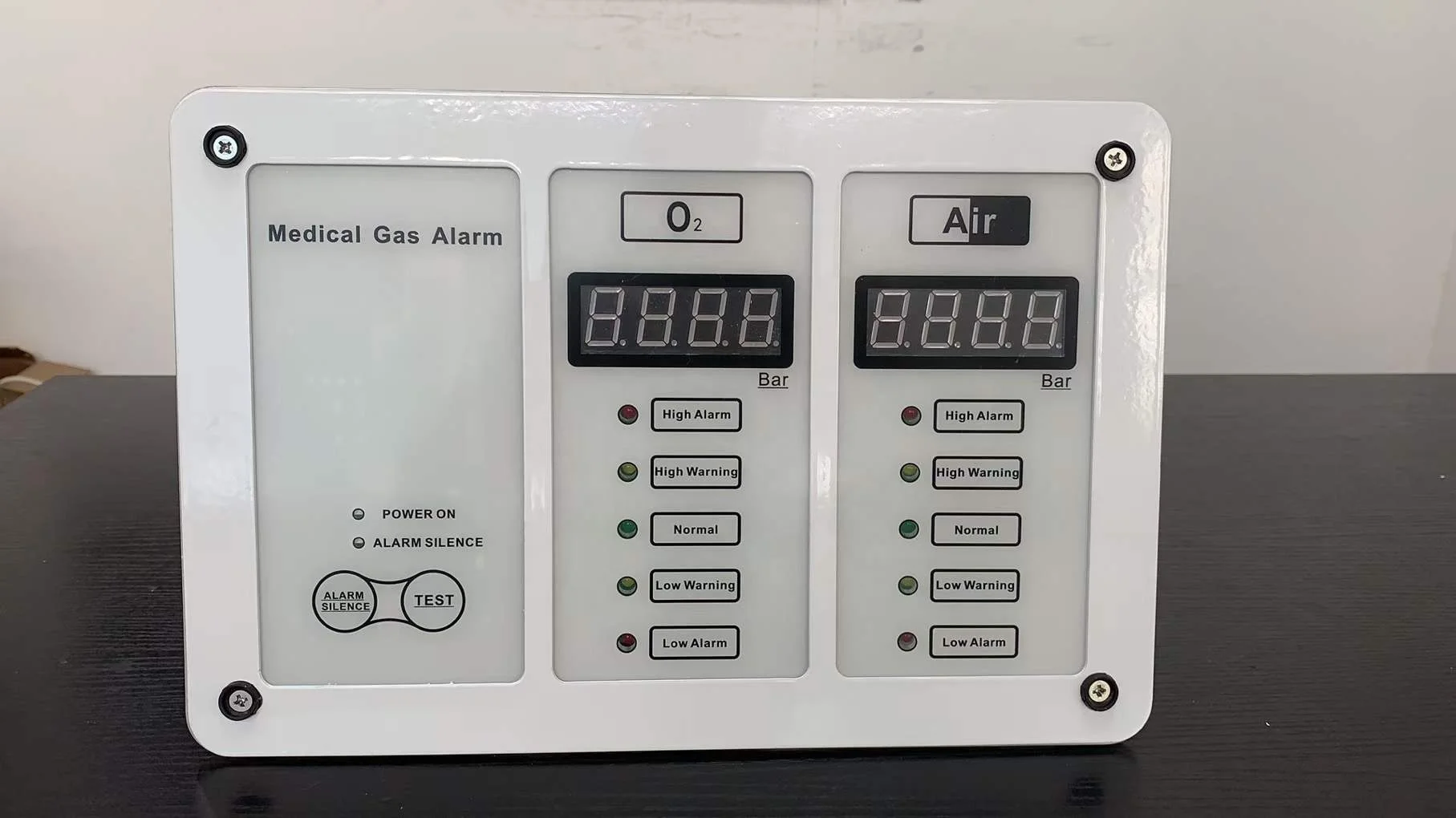

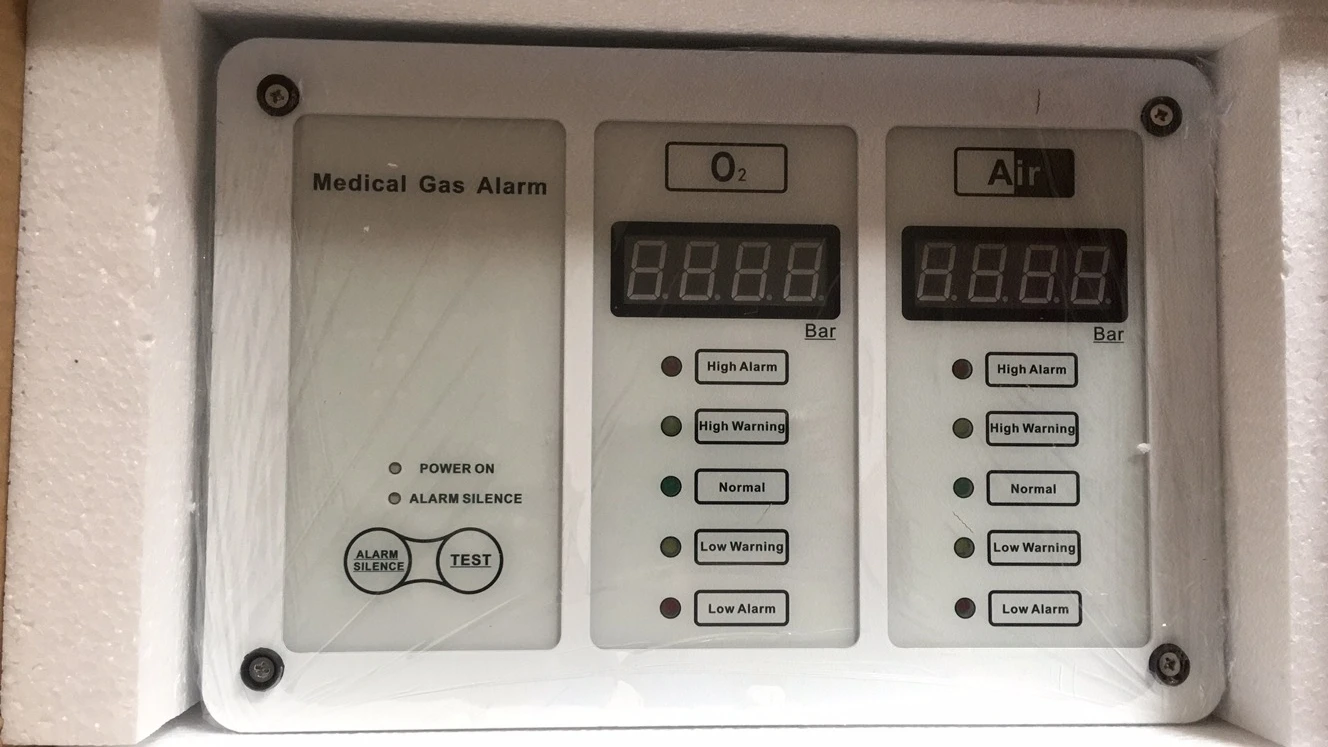

This regional Gas Pressure Alarm is suitable for monitoring the gas supply of Hospital Floors, Nurse Stations, Operating rooms, and ICU Or the gas supply pressure of the centralized gas supply in the laboratory, special gas cylinders, bus bars, gas valve boxes, etc., pass 0.8 -Inch digital tube displays the pressure of the gas being monitored in real time. The required alarm point parameters can be set by pressing the button, and an over-limit alarm can be realized. When the parameter Value exceeds or falls below the set parameter value, an audible and visual alarm will sound to notify the relevant personnel, so as to solve in time Faults or problems, to ensure that the gas supply pressure of the gas pipeline is normal, the alarm host is equipped with an RS-485 communication interface, which can realize the networking with the main alarm box and the central monitoring system host through the network, and transmit to the monitoring through the data line In the central monitoring computer, the computer collects, controls and processes related operating data, forms a complete database file for all operating parameters, and conducts comprehensive monitoring of the gas parameters at each site.
Specification
Host supply voltage | DC9V±5% |
Power Supply voltage | AC100V～240VAC |
Default pressure range | -0.1MPa～1.0MPa |
High pressure range | 0MPa～25MPa |
LED size | 0.8 inch |
Default air pressure unit | MPa |
Default positive pressure and high pressure alarm parameter value: 0.8 MPa, high pressure warning parameter value 0.7 MPa, low pressure alarm parameter value 0.2 MPa, low Pressure warning parameter value 0.3 MPa, parameters can be set on site. The default negative pressure and high pressure alarm parameter value is -20 KPa, the high pressure warning parameter value is -30 KPa, the low pressure warning parameter value is -110 KPa, the low pressure warning parameter value is 100 KPa, and the parameters can be set on site.

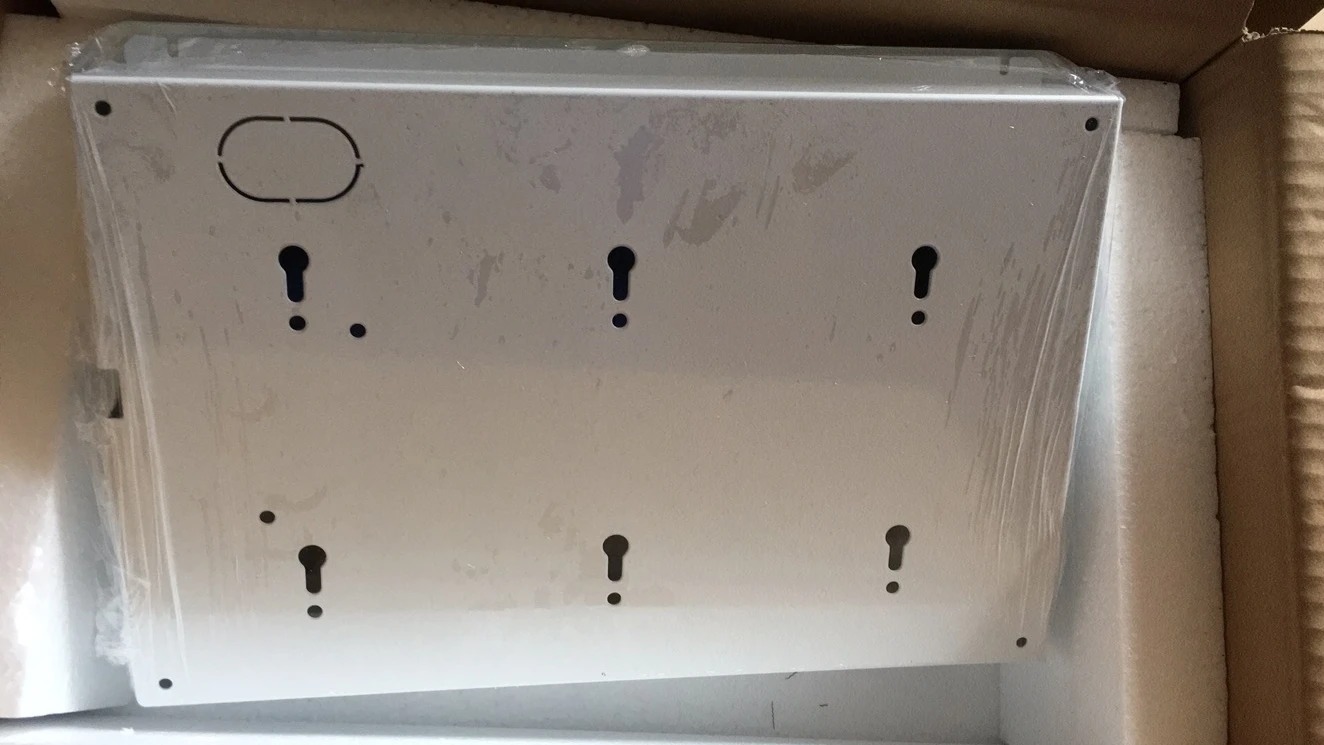

Packing & Delivery
Details
Company Profile
•Since 1993 from now.
•A professional manufacturer factory of all types of medical equipment.
•Consecutive sales increasing of 8 years.
•Located in Shanghai, we enjoy convenient water, land and air transportation.
•Provide OEM and ODM service to overseas customer.
•Export to more than 15 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
•Our hope is to cooperate with more customer for mutual development and benefits.
•Our mission is elaborately caring for your health.
•A professional manufacturer factory of all types of medical equipment.
•Consecutive sales increasing of 8 years.
•Located in Shanghai, we enjoy convenient water, land and air transportation.
•Provide OEM and ODM service to overseas customer.
•Export to more than 15 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
•Our hope is to cooperate with more customer for mutual development and benefits.
•Our mission is elaborately caring for your health.
Exhibition
Certifications
FAQ
What are the main products?
Zhenghua mainly produce medical pendent, bed head unit, Led/Halogen Lamp, Endoscopy trolly, gas outlets and other medical equipment product.
When do you Start?
We are manufacture located in shanghai established in 1993 over 23 experiences about producing medical equipment.
Where are you?
Located in Shanghai which the modern city of China closes to Disney Entertainment Park.
Why to trust Shanghai Zhenghua Medical Equipment Co.,Ltd?
All our products have CE ISO approved with high quality.
Zhenghua mainly produce medical pendent, bed head unit, Led/Halogen Lamp, Endoscopy trolly, gas outlets and other medical equipment product.
When do you Start?
We are manufacture located in shanghai established in 1993 over 23 experiences about producing medical equipment.
Where are you?
Located in Shanghai which the modern city of China closes to Disney Entertainment Park.
Why to trust Shanghai Zhenghua Medical Equipment Co.,Ltd?
All our products have CE ISO approved with high quality.
