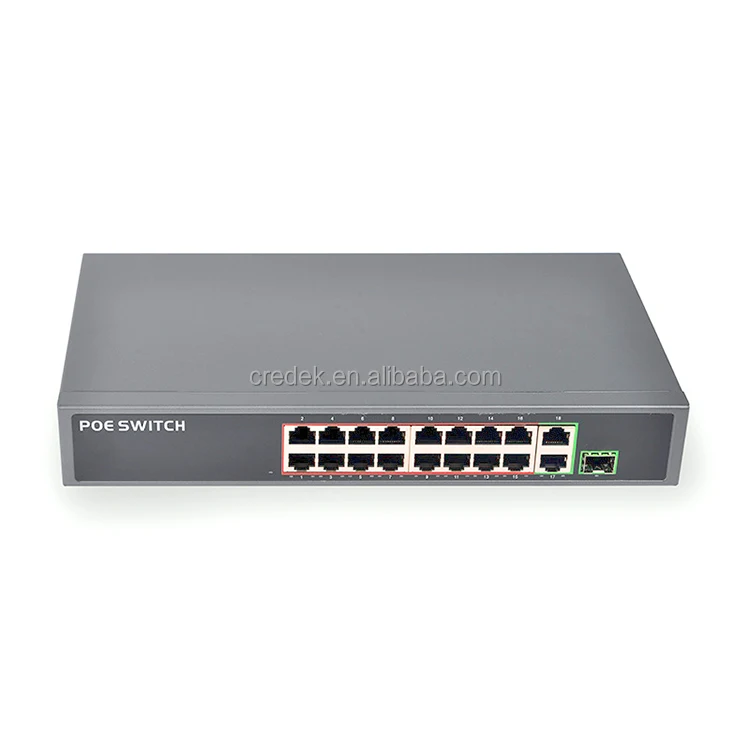

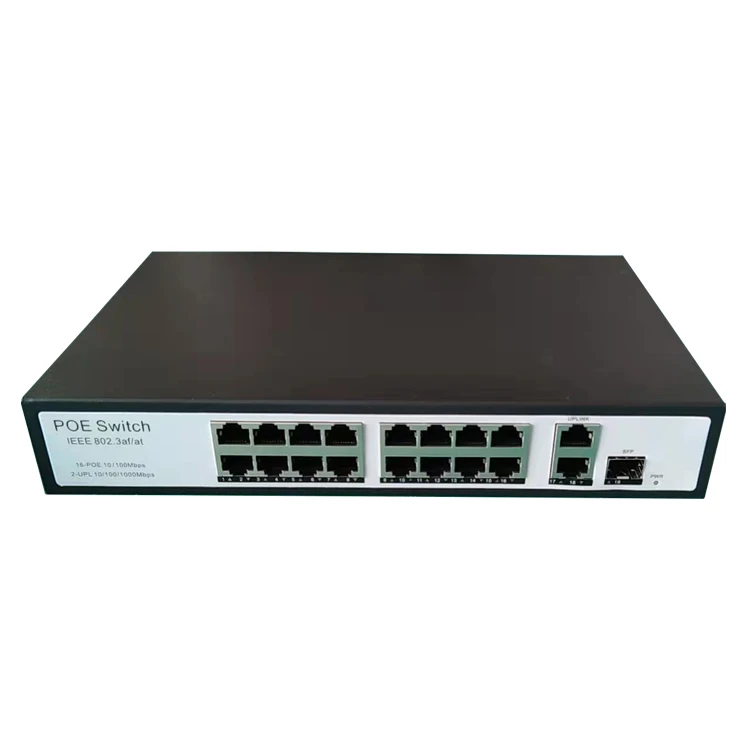

Mini type 802.3AF 802.3 AT 2 Port Ethernet 1 Port SFP uplink 16 Port POE Switch
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600604277987):
Product Overview
Description
Products Description
16 Port 10/100M POE Switch With 2 Gigabit RJ45+1 Gigabit SFP Port Uplink
CREDEK Mini Type 16 ports PoE switches is 10/100M unmanaged PoE Switches. It is designed for growing businesses that want control over their network...Easy Installation and Cable Connection. As data and power are transmitted over one cable, the PS-6016 does not need a second cable and electrical outlets on the wall, celling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. all the RJ45 copper interfaces of the PS-6016 support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 6,5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special
straight-through or crossover cables.
straight-through or crossover cables.
Features
*Can supply power to network surveillance cameras that with PoE function
*16x10/100Mbps PoE ports, 2x10/100/1000m+1xSFP uplink ports
*Standard: IEEE802.3af/at
*Supports port auto-flip (Auto MDI/ MDIX)
*Maximum power of single PoE port: 30W
*Power Consumption:200W
*Adopts store-and-forward architecture;
*Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
*Can supply power to network surveillance cameras that with PoE function
*16x10/100Mbps PoE ports, 2x10/100/1000m+1xSFP uplink ports
*Standard: IEEE802.3af/at
*Supports port auto-flip (Auto MDI/ MDIX)
*Maximum power of single PoE port: 30W
*Power Consumption:200W
*Adopts store-and-forward architecture;
*Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
Product Paramenters
Product Name | 16+2+1 ports 10/100Mbps PoE Switch |
Product Model | PS-6016 |
Connector | 16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) |
16x POE ports | |
PoE Power | Max output power (single port): 30W |
Total output power: 200W | |
PoE Pin assignment: 1/2(+),3/6(-); 4/5(+),7/8(-) for customization | |
Input Power supply: AC100-240V 50/60Hz; | |
Transfer Mode | Store-And-Forward |
MTBF | 190,000 hours (about 21 years) |
Bandwidth | 7.4Gbps (non-blocking) |
Packet Buffer Memory | 5.4M |
MAC Address Table | UP to 8K MAC addresses |
Support auto-update, two-way learning | |
Port Flow Control | Back-pressure traffic control under Half-Duplex mode |
Network standard | IEEE 802.3x traffic control under Full-Duplex mode |
IEEE 802.3af, Power over Ethernet | |
IEEE 802.3at, Power over Ethernet | |
IEEE 802.3i, 10BASE-T | |
IEEE 802.3u, 100BASE-TX | |
IEEE 802.3x, Full-Duplex Flow Control | |
IEEE 802.1af DTE Power via MDI | |
LED Indicators | System: power supply |
Every Port: connecting, PoE working status | |
Environment | Operating Temperature: 0°C~55°C |
Storage Temperature: -20°C~75°C | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 10%~95% non-condensing | |
Radiation | CE mark, commercial |
RoHS | |
Safety | CE Mark ,commercial |
CE/LVD EN60950, RoHS | |
Warranty | 2 Year warranty |
