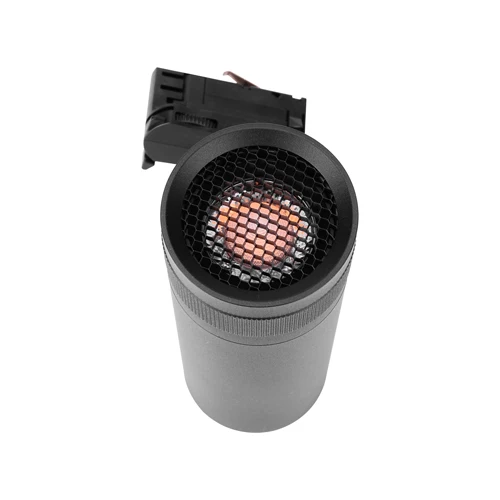

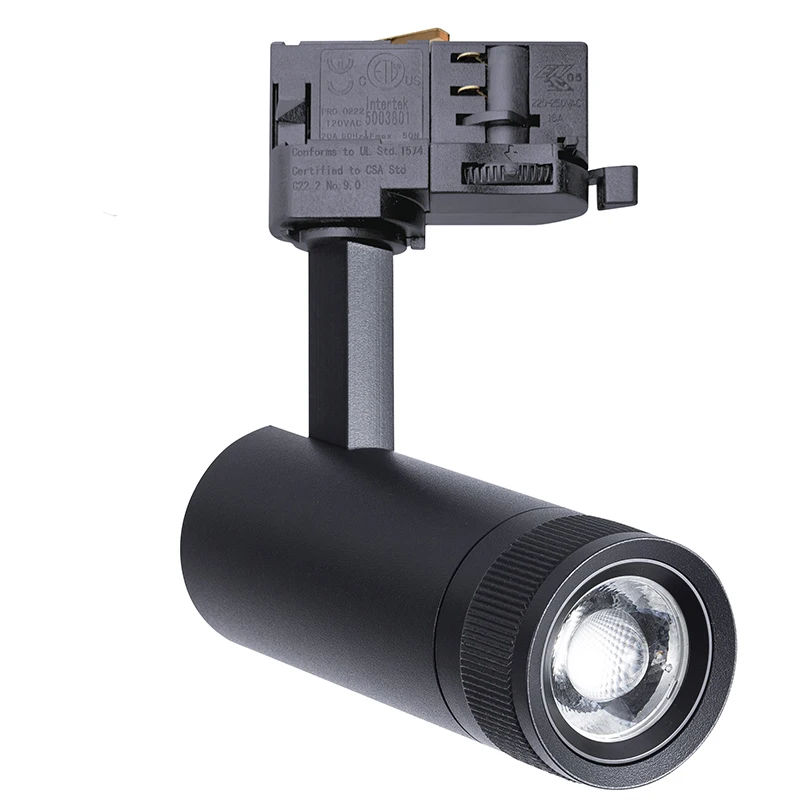

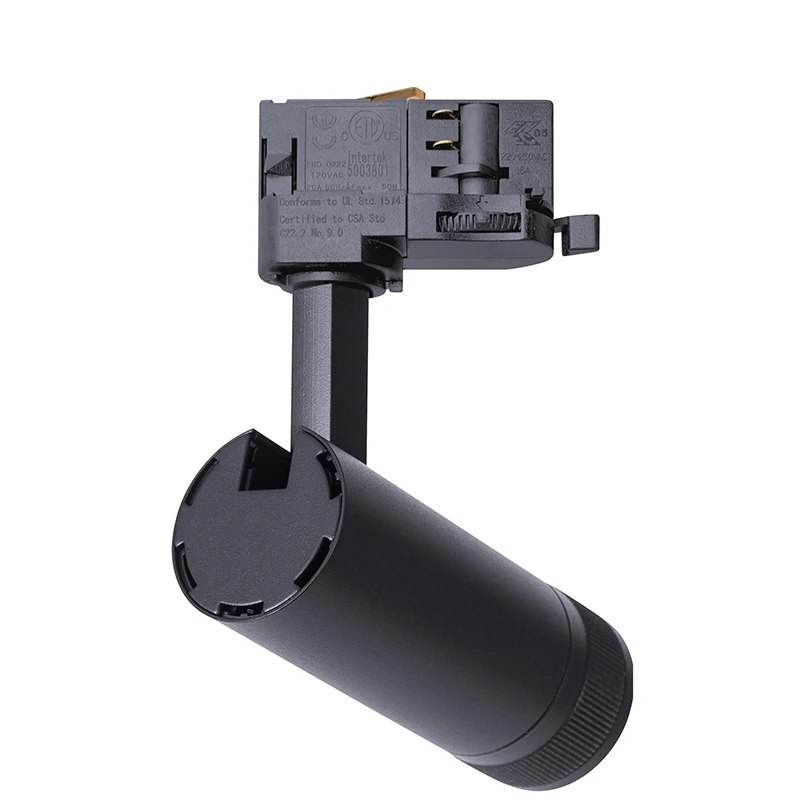

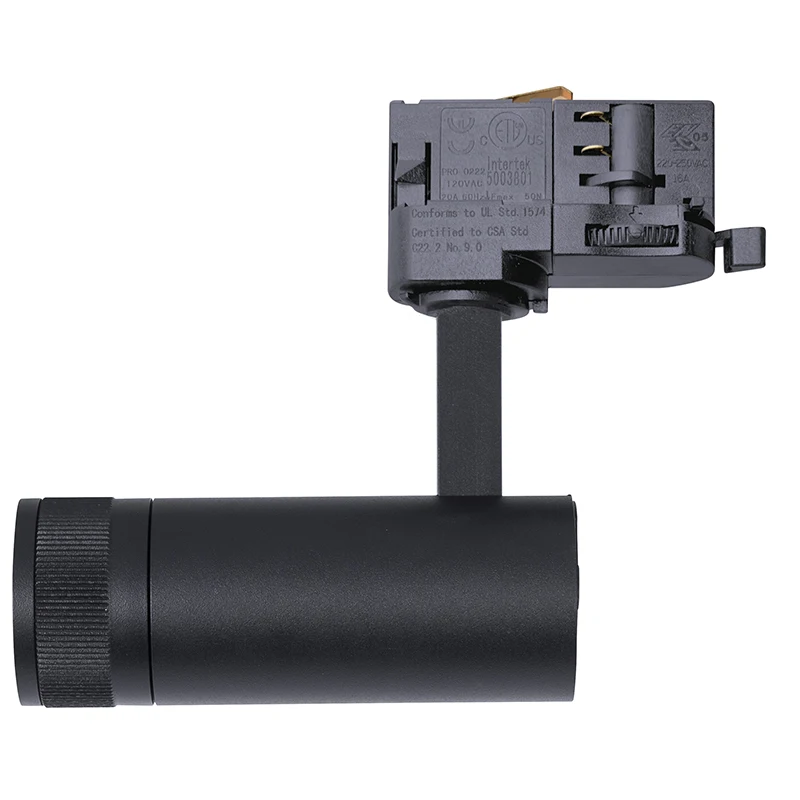

Showroom Focusing Diecast Aluminum Linear COB Led 2/3/4/6wires Led Track Lights
- Category: >>>
- Supplier: Foshan Chenhong Lighting Electrical Appliance Co. Ltd.
Share on (1600604344208):
Product Overview
Description
Model | CH-GD8811C | CH-GD8812C | CH-GD8813C | CH-GD8814C | CH-GD8815C | ||||||
Electronical | Rated Input | 220-240VAC | 220-240VAC | 220-240VAC | 220-240VAC | 220-240VAC | |||||
work Range | 165VAC-265VAC | 165VAC-265VAC | 165VAC-265VAC | 165VAC-265VAC | 165VAC-265VAC | ||||||
Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | ||||||
System Power | 10W | 15W | 20W/24W | 30W/32W | 36W/40W | ||||||
Driver Brand | Lifud | Lifud | Lifud | Lifud | Lifud | ||||||
Power Factor | PF>0.5 | PF>0.5(0.9) | PF>0.5(0.9) | PF>0.9 | PF>0.9 | ||||||
Lumination | LED Chip Model | CREE/Osram | CREE/Osram | CREE/Osram | CREE/Osram | CREE/Citizen | |||||
CRI | > 90 | > 90 | > 90 | > 90 | > 90 | ||||||
System Lumen | 700lms | 1050lms | 1500lms | 2200lms | 2800lms | ||||||
Efficiency of Fixture | 70lm/w | 70lm/w | 70lm/w | 70lm/w | 70lm/w | ||||||
Color Temperature | 2700K， 3000K, 3500K， 4000K，5000K， 6500K | ||||||||||
Optical | Beam Angle | 15°－60° | 15°－60° | 15°－60° | 15°－60° | 15°－60° | |||||
Device | PMMA Lens | PC reflector | PC reflector | PC reflector | PC reflector | ||||||
Control Method | On/OFF，Triac Dim | On/OFF, Triac/0-10V/Dali Dim | On/OFF, Triac/0-10V/Dali Dim | On/OFF, Triac/0-10V/Dali Dim | On/OFF, Triac/0-10V/Dali Dim | ||||||
Classification of Protection | Class I | Class I | Class I | Class I | Class I | ||||||
Structure | Housing Material： | Diecast Aluminum | Diecast Aluminum | Diecast Aluminum | Diecast Aluminum | Diecast Aluminum | |||||

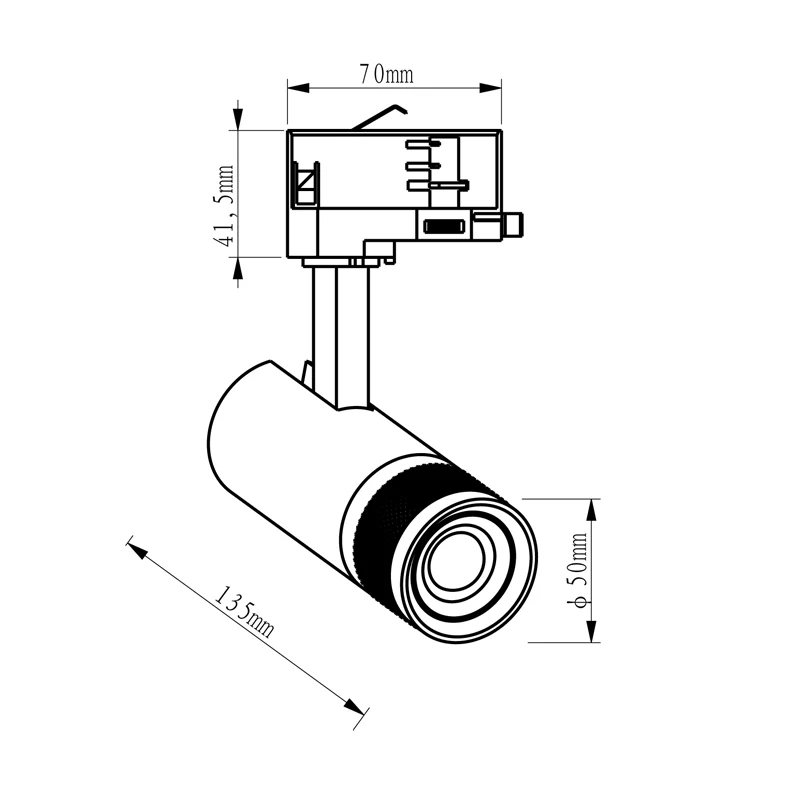

Heatsink Size: | Ø50x135mm | Ø62x170mm | Ø72x172mm | Ø80x188mm | Ø94x190mm | ||||||
Adapter | 2/3/4/6wires | 2/3/4/6wires | 2/3/4/6wires | 2/3/4/6wires | 2/3/4/6wires | ||||||
Warranty | 3years | ||||||||||
Package | Print Color Box or Blank White Box | ||||||||||
Q1. Can I have a sample order for led light?
A1. Yes, we accept sample order to test and check quality. Mixed models are acceptable.
Q2. What’s the lead time for sample and batch order?
A2. 3-5 days for samples, 1-2 weeks for batch order. We normally have inventory for some of the models.
Q3. What’s the MOQ for led light order?
A3. Low MOQ, 1pc for sample checking.
Q4. How do you ship the goods and what’s shipping time?
A4. We can ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airplane and sea shipping are also available.
Q5. Is it OK to print my logo on led light product?
A5. Yes. Please inform us in advance when place the order.
Q6. Do you offer guarantee for the led light?
A6. Yes, we offer 2-5 years warranty to all our products.
Q7. How to deal with the products fail in period of guarantee?
A7. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.
Q8. What type test report can you offer?
A8. We can offer IES report, Photometric report, LM80 reports.
Q9. What other service you have ?
A9. We are able to offer value-add service, such as inspection on behalf of clients, materials sourcing, free testing, shipment-combination etc.
