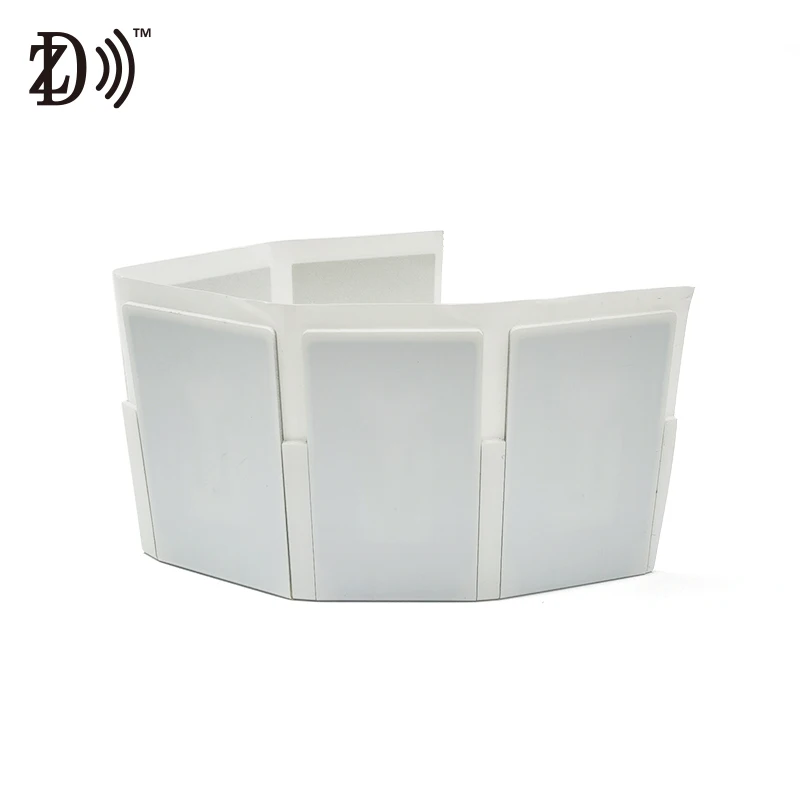

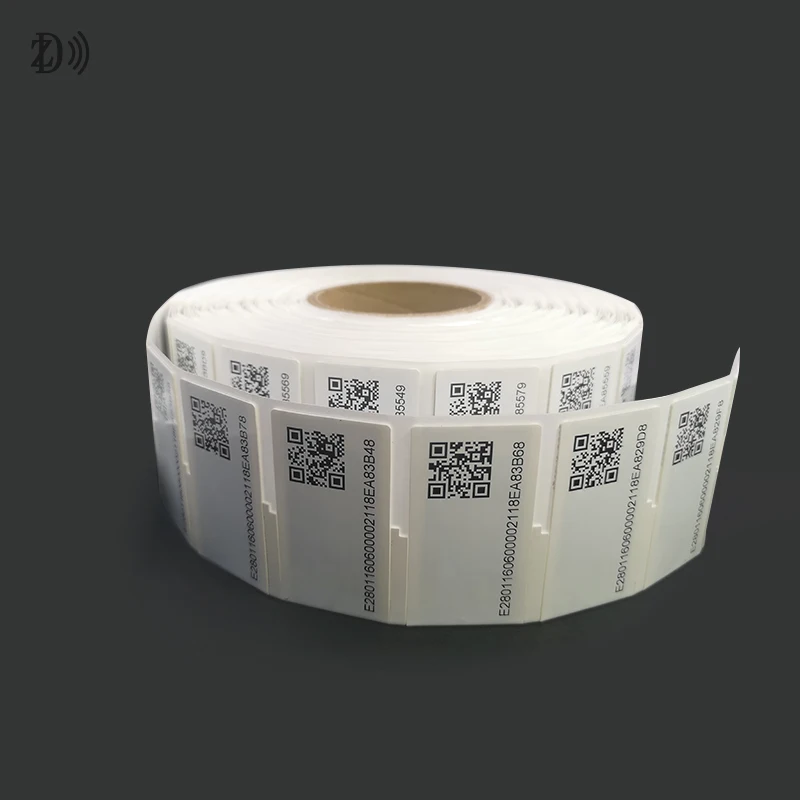

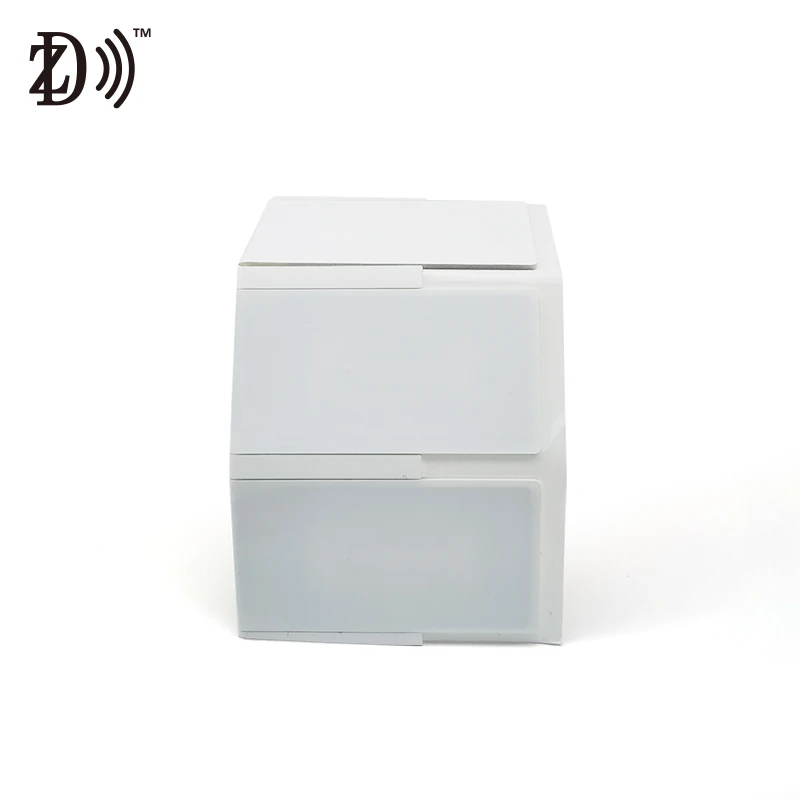

Big promotion PET UHF Label 55*15mm Impinj Monza R6 A RFID Flexible Anti metal Label
- Category: >>>
- Supplier: Shenzhen ZD Technology Co. Ltd.
Share on (1600604401475):
Product Overview
Description
Product Description

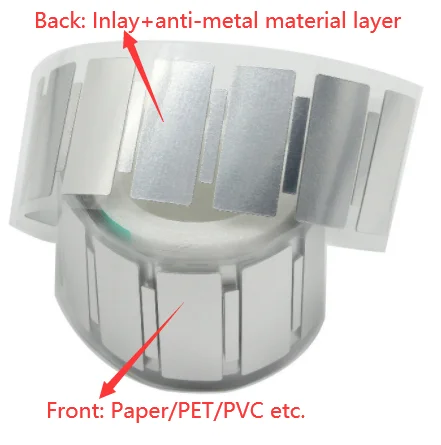

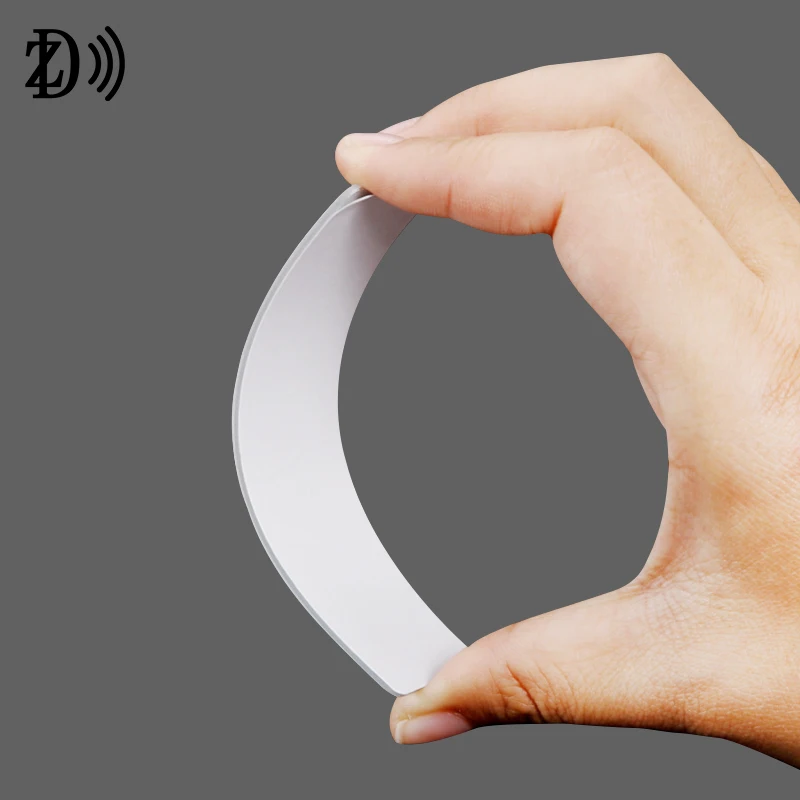

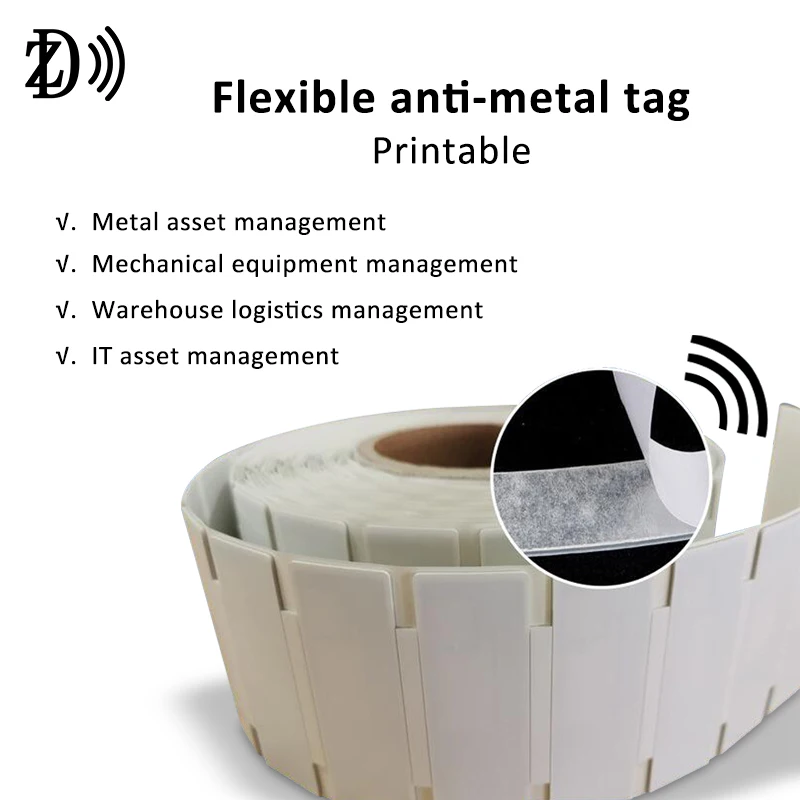

This Ti-Power FCC flexible printable on metal rfid label is compatible with the EPC C1G2(ISO18000-6C) standards. Suitable for metal and liquid-rich environment, it can be made into any kind of printed label, barcode, or graphic label. Its thin and light shape makes it easy to attach to curved surfaces such as cylinders, pipes, and metal containers and fixed assets. Widely used in product certification asset tracking, logistics tracking, anti-counterfeiting of valuables, and medical asset management, to improve the operational efficiency and inventory management for manufacturers and retailers.
Advantage
1. Personal printable;
2. Anti metal;
3. Long reading distance;
4. Chip and size Customized;
5. Strong adhesive;
5. Wide range of applications.
Specification | ||
Surface Material | White PET | |

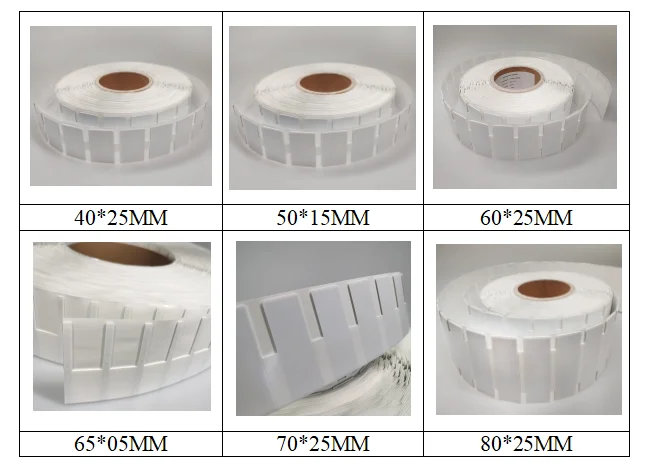

Size | 55*15mm, 60*25mm, 63*35mm, 65*35mm, 80*40mm or customized | |
Chip | Impinj Monza R6-A/R6-P, UCODE® 8, etc | |
Protocol | ISO18000-6C EPC Class1 Gen 2 | |
Frequency | 860MHz-960MHz | |
Storage Temp | -40°F to +185°F (-40°C to + 85°C) | |
Working Temp | -40°F to +185°F (-40°C to + 85°C) | |
Print Performance | Excellent | |

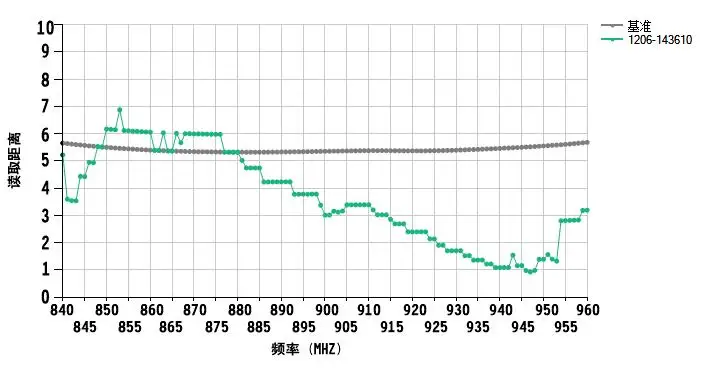

Read Range on metal | 8m | |
Read Range on liquid | 9m | |
Read Range on plastic | 3.5m | |
Adhesive | PSA (Pressure Sensitive Adhesive) | |

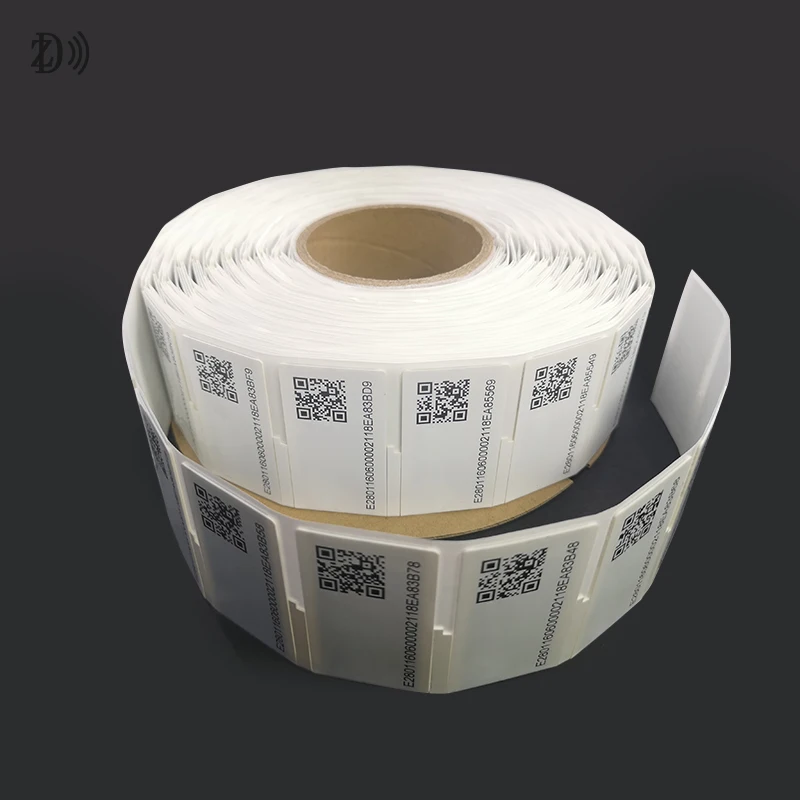

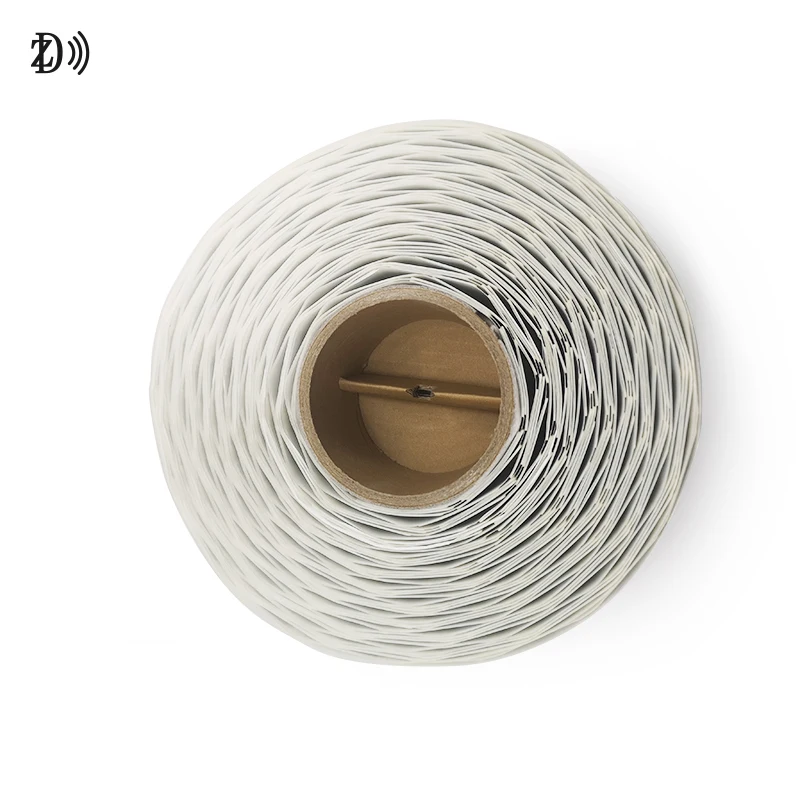

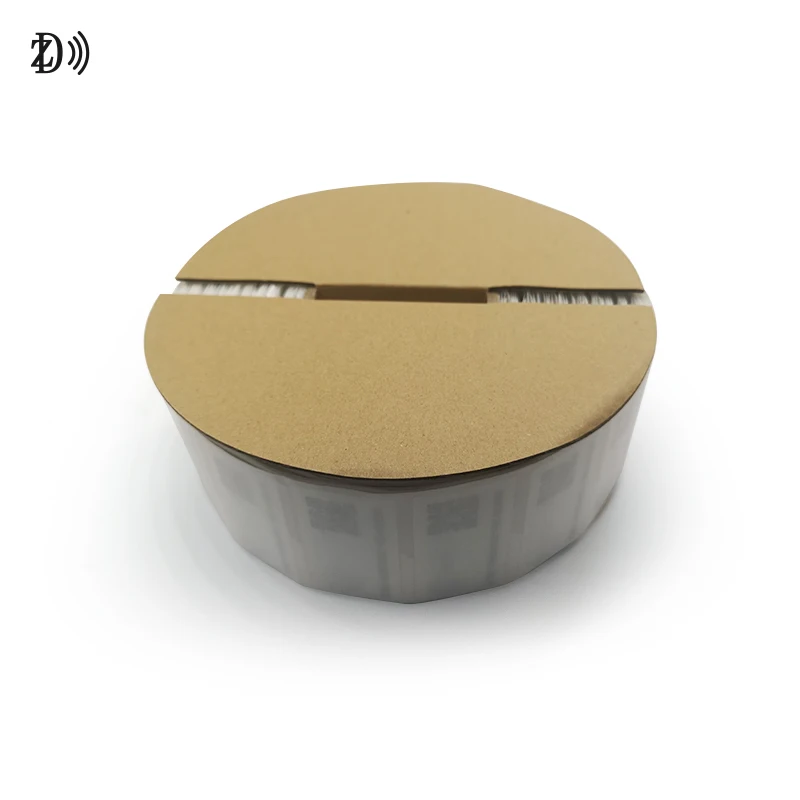

Standard Packing | 500 pcs/roll | |

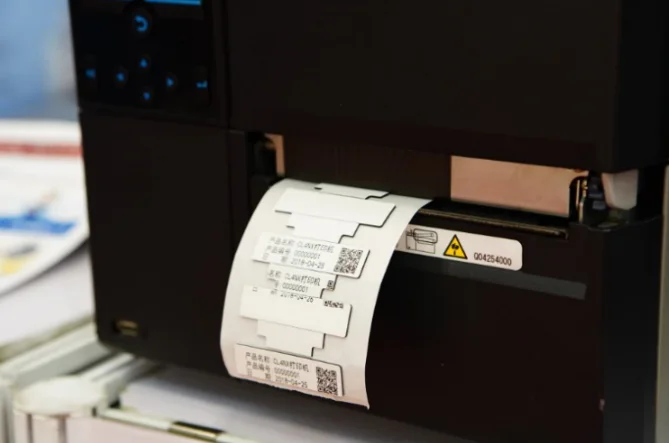

Printer | Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 | |
Application | Asset tracking, logistics tracking, anti-counterfeiting of valuables, and medical asset management. | |
Remark:
UCODE are registered trademarks of NXP B.V. and are used under license.
Household Appliances
Mechanical equipment
Fire Extinguisher
Industrial equipment
Medical Facilities
Metal Shelf
Chip type | Reserved | EPC | User | Protocol | Frequency | |||||||
Access (bits) | Kill (bits) | EPC (bits) | user (bits) | |||||||||
NXP | ||||||||||||
UCODE® 9 | 32 | 32 | 96 | - | ISO18000-6C Class1 Gen 2 | 860~960MHz | ||||||
UCODE® 8/8m | 32 | 32 | 128/96 | 0/32 | ||||||||
UCODE® 7m | 32 | 0 | 128 | 32 | ||||||||
UCODE® 7 | 32 | 32 | 128 | 0 | ||||||||
UCODE are registered trademarks of NXP B.V. and are used under license. | ||||||||||||
Impinj | ||||||||||||
Monza 4QT | 32 | 32 | 128 | 512 | ISO18000-6C Class1 Gen 2 | 860~960MHz | ||||||
Monza 4E | 32 | 32 | 496 | 128 | ||||||||
Monza 4D | 32 | 32 | 128 | 32 | ||||||||
Monza R6 | None | None | 96 | None | ||||||||
Monza R6-A | 32 | 32 | 96 | None | ||||||||
Monza R6-P | 32 | 32 | 96/128 | 64/32 | ||||||||
M730 | 32 | 32 | 128 | None | ||||||||

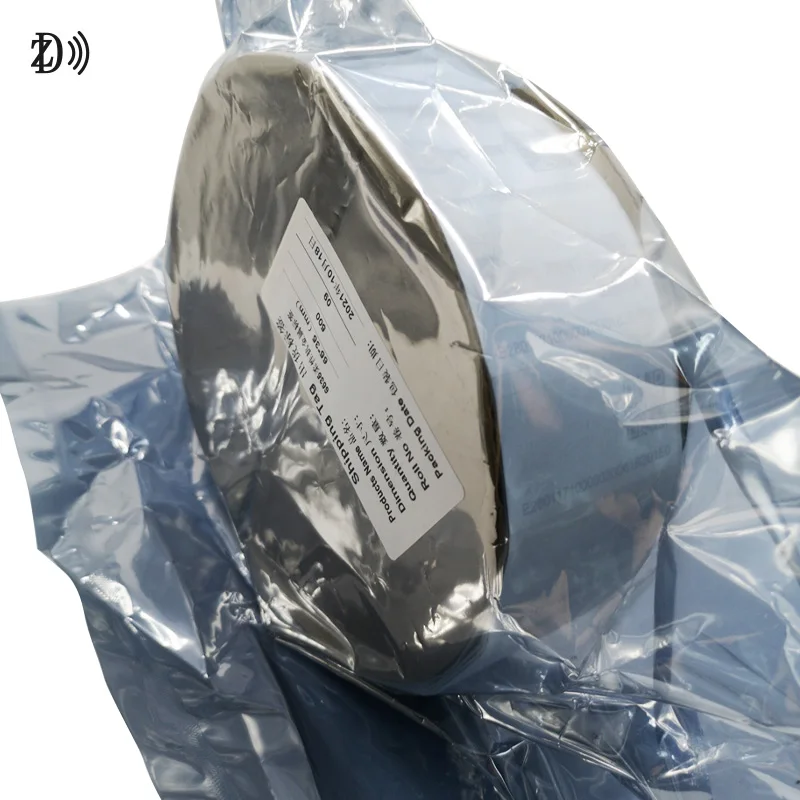

Packing & Delivery
