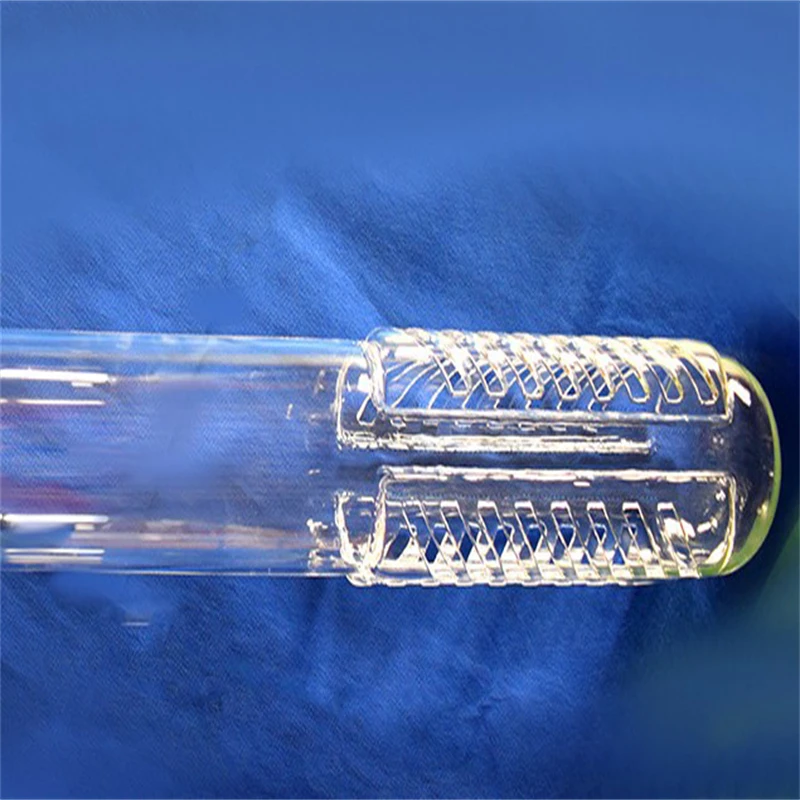

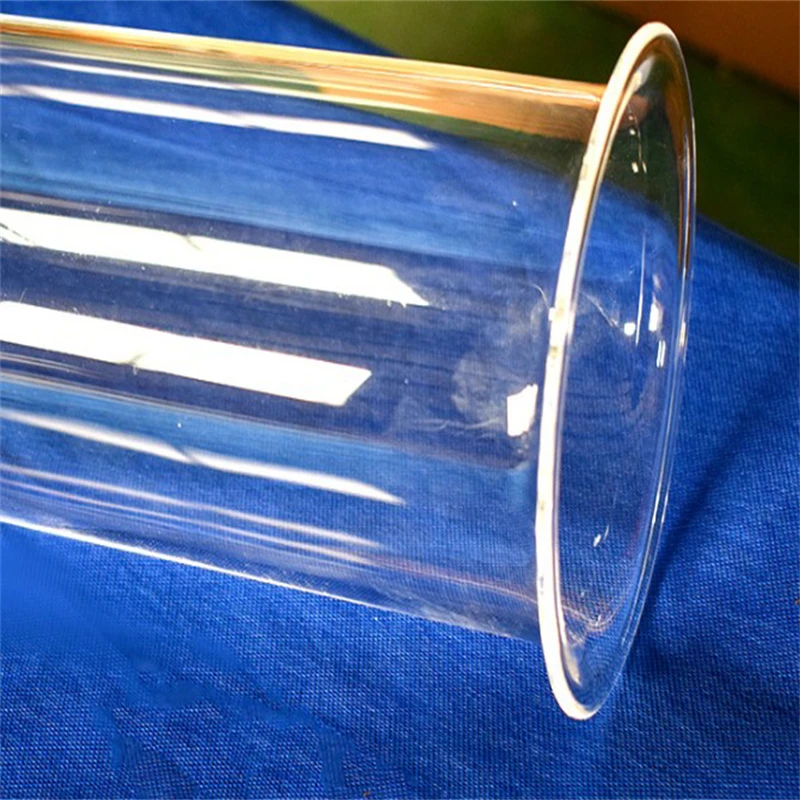

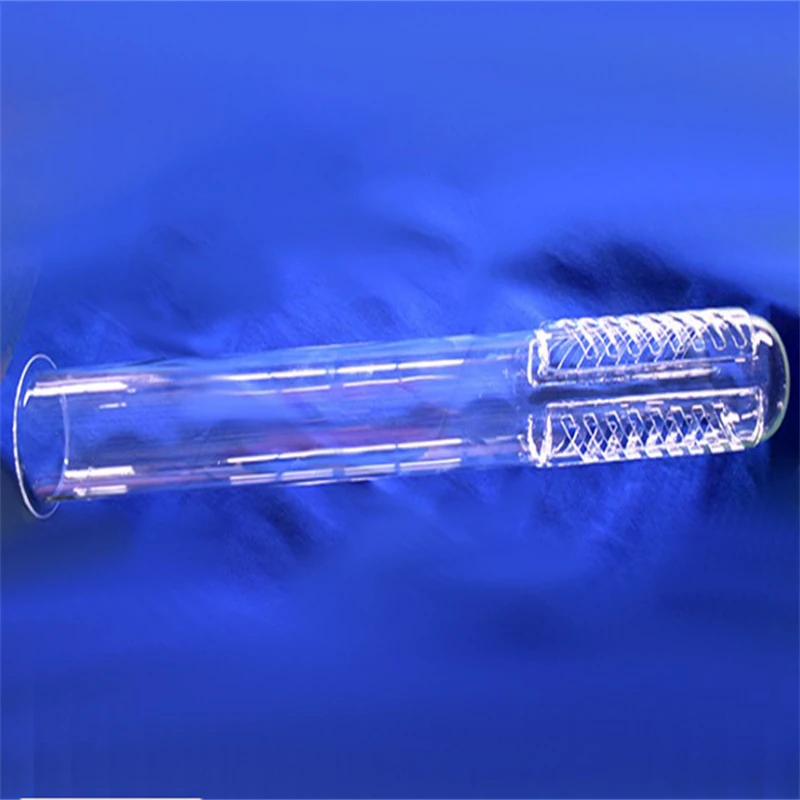

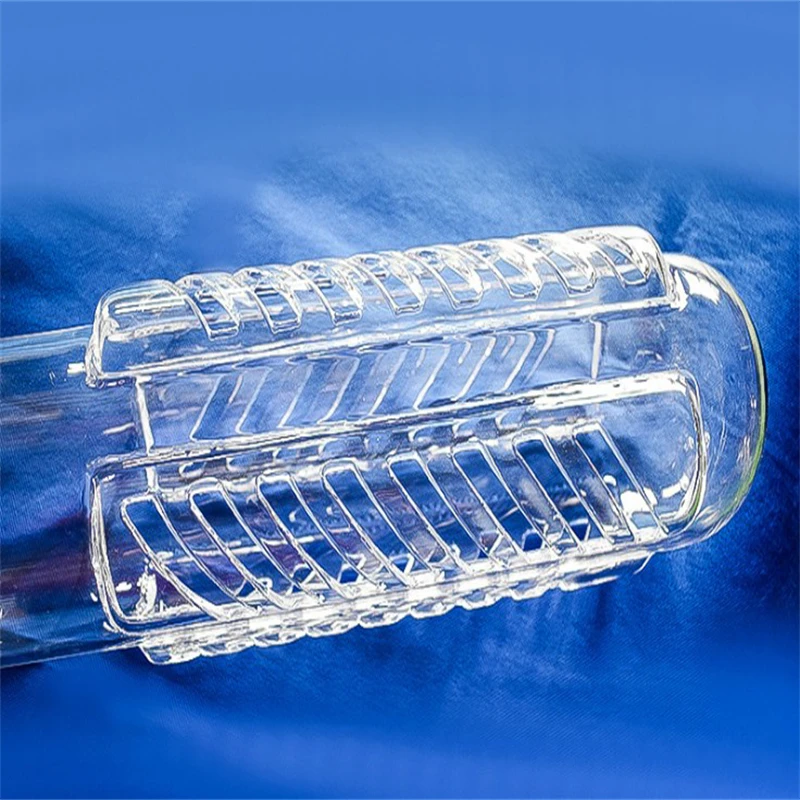

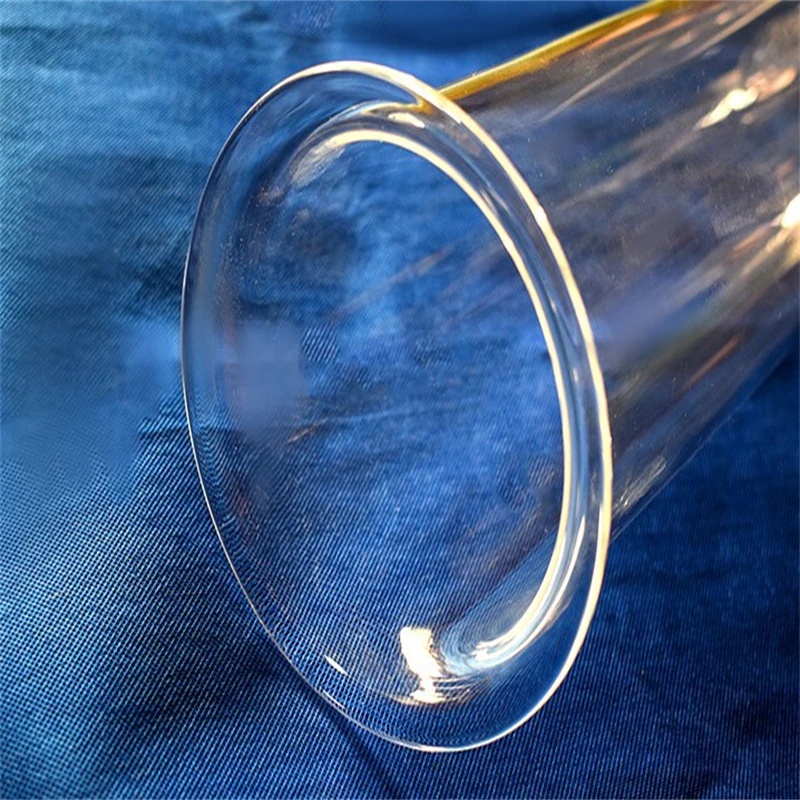

Custom Quartz Tube High Quality Polished Quartz Glass pipe
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1600604719682):
Product Overview
Description
Product Description
Features and advantages of quartz ultraviolet light glass
High acid and alkali resistance
High temperature
Quartz glass's softening point temperature is about 1780 °C, and can be used at 1000 °C for a long time. The highest temperature
can be 1450 °C within a short period of time.
Good thermal stability
Quartz glass's thermal expansion coefficient is minimal, can withstand a strong temperature change.
Good light transmission
Quartz glass has a high transmittance on the ultraviolet band which can be up to 80% – 90%. While the ultraviolet transmittance of
high borax glass is less than 50%.
Good electrical insulation performance
The resistance value of quartz glass is equivalent to ten thousand times of ordinary glass, and it has good electrical performance
even at high temperature.
High acid and alkali resistance
High temperature
Quartz glass's softening point temperature is about 1780 °C, and can be used at 1000 °C for a long time. The highest temperature
can be 1450 °C within a short period of time.
Good thermal stability
Quartz glass's thermal expansion coefficient is minimal, can withstand a strong temperature change.
Good light transmission
Quartz glass has a high transmittance on the ultraviolet band which can be up to 80% – 90%. While the ultraviolet transmittance of
high borax glass is less than 50%.
Good electrical insulation performance
The resistance value of quartz glass is equivalent to ten thousand times of ordinary glass, and it has good electrical performance
even at high temperature.
Advantage
1. High purity: SiO2 >99.99%
2. JGS1, JGS2, JGS3
3. Excellent chemical performance for acid resistance and alkali resistance
4. No air bubble no air line
5. High temperature resistance
6. Excellent electrical insulator
7. ISO 9001 Certification
8. We can accept customized according to your requirement.
1. High purity: SiO2 >99.99%
2. JGS1, JGS2, JGS3
3. Excellent chemical performance for acid resistance and alkali resistance
4. No air bubble no air line
5. High temperature resistance
6. Excellent electrical insulator
7. ISO 9001 Certification
8. We can accept customized according to your requirement.
Standard Clear Quartz Tube
The standard clear quartz tube is produced by high purified quartz sand. It has high purity, strong heat resistance, high
transmission rate, and precise dimension.
The standard clear quartz tube is applicable in many areas like lighting, and heating(halogen lamp, the mercury lamp, single-ended
lamp, automotive lamp, water treatment lamp).
The standard clear quartz tube is produced by high purified quartz sand. It has high purity, strong heat resistance, high
transmission rate, and precise dimension.
The standard clear quartz tube is applicable in many areas like lighting, and heating(halogen lamp, the mercury lamp, single-ended
lamp, automotive lamp, water treatment lamp).
Specification
Density | 2.2x103 kg/m3 | Hardness | 5.5 - 6.5 Mohs' Scale 570 KHN 100 |
Design Tensile Strength | 4.8x107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Rigidity Modulus | 3.1x1010 Pa (4.5x106 psi) |
Softening Point | 1730°C | Annealing Point | 1215°C |
You May Like
Packing & Delivery
Our Service
Company Profile
Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 7 days after receiving deposit.
A:Within 7 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A:DHL, UPS, FedEx or TNT are optional for small order.
It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
