aluminium copper stone sand gravel copper ore mining automatic powder coated specific dry wet separator for pet/pvc clay sale
- Category: >>>
- Supplier: Weifang Zhuiri Magnetoelectric Technology Co. Ltd.
Share on (1600604743149):
Product Overview
Description
Product Characteristic

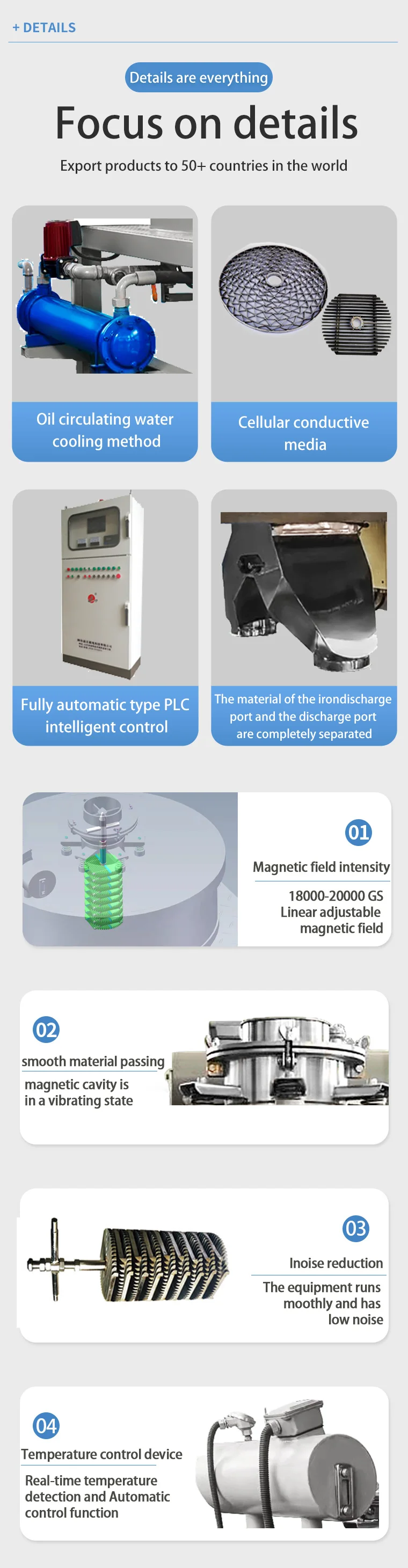

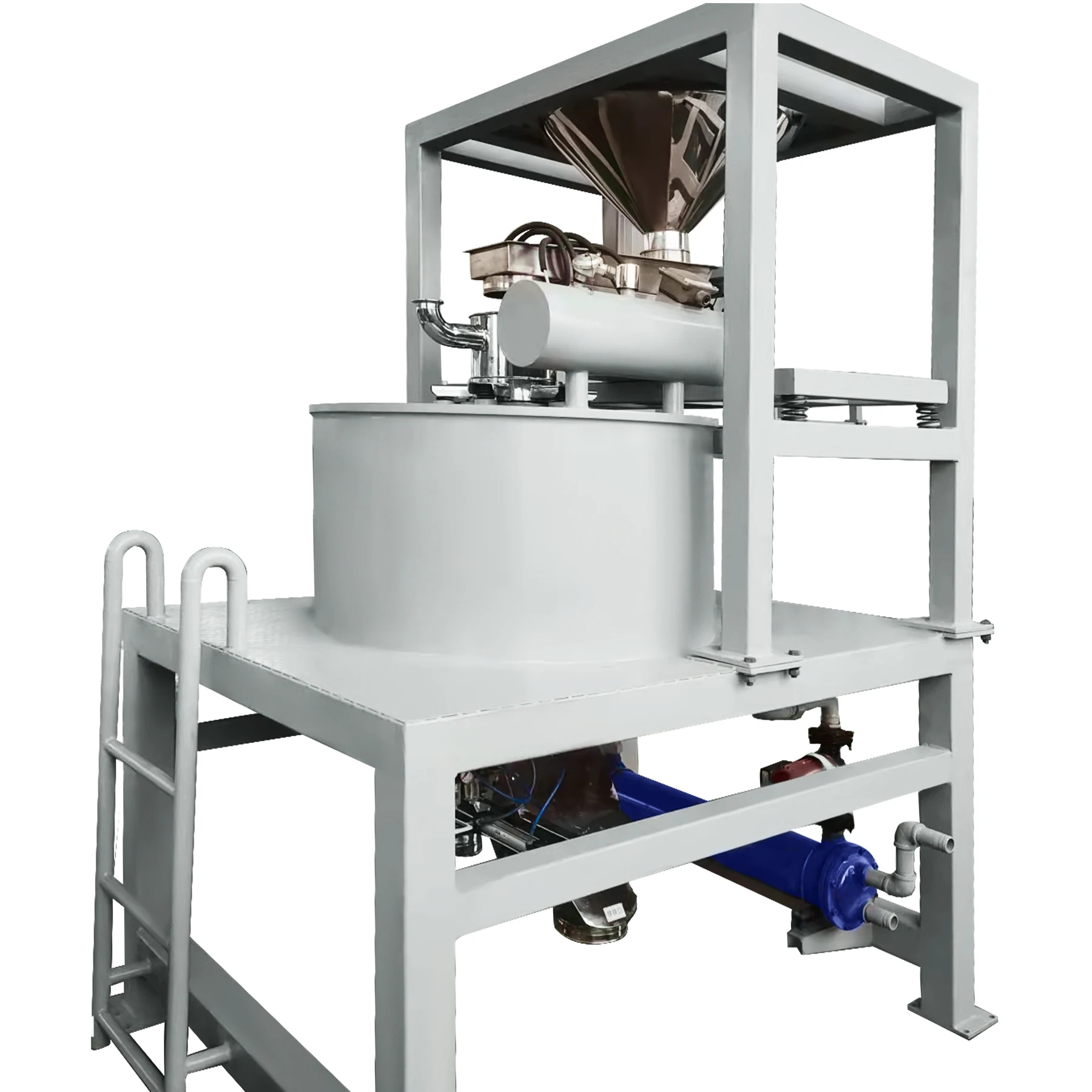

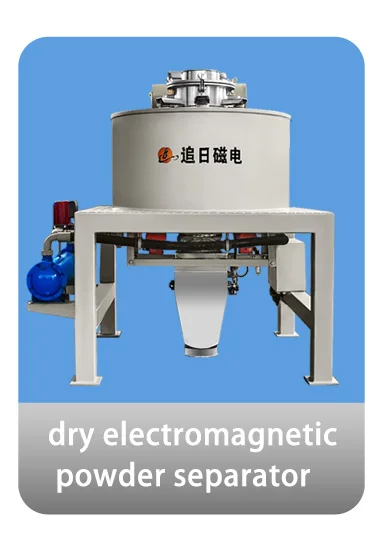

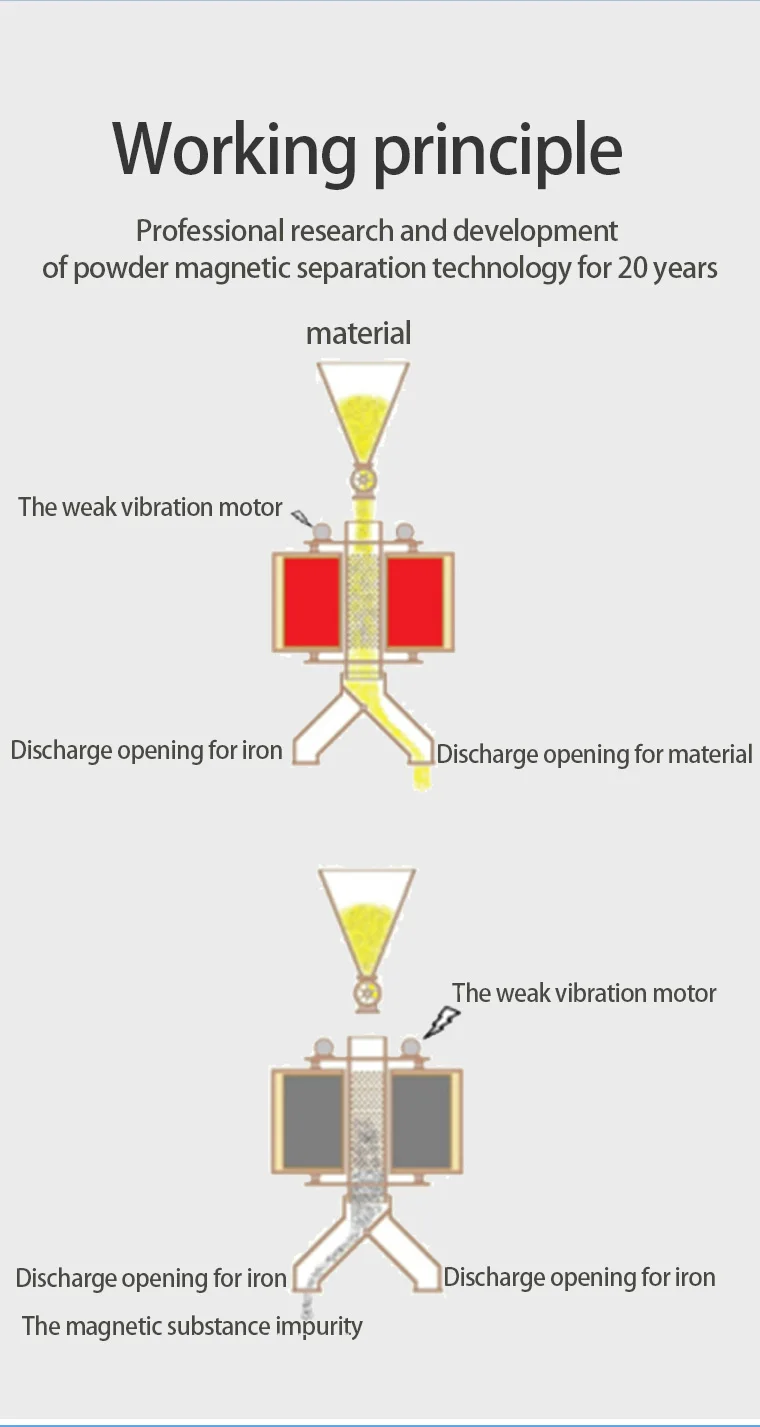

Electromagnetic dried-powder separator is a newly development machine. The characteristics of magnetic system are large wrap angle, multi-magnetic-pole. The absolute value of magnetic flux density of separation area is evenly. We can design different magnetic field intensity as the property of raw ores. Also, dried-powder separator doesn’t need to come over the gravity and resistance of the raw material. When the nonmagnetic minerals break away from the magnetic field, it can depart from the magnetic cylinder very well. With the mechanical vibrating equipment, it not only can improve the efficiency of iron remove but also can be easier to discharge the iron.
Products Description
Product Paramenters
Model | Magnetic induction (Gauss) | Input voltage | Excitation power（Kw) | Production capacity（t/h） | Adapt material | Mainframe weight（kg） |
ZR0709 series | 1000-21000GS | AC380V/ 50Hz/三相四线 AC380V/ 50Hz/ Three phase and Four wire | 3.9-24.5 | 0.2-5 | a.8 mesh to a fine dry powder or particles. b.non-magnetic material c.Dry; d. iron content lower than 1% | 850-4000 |
Manufacturing Technique

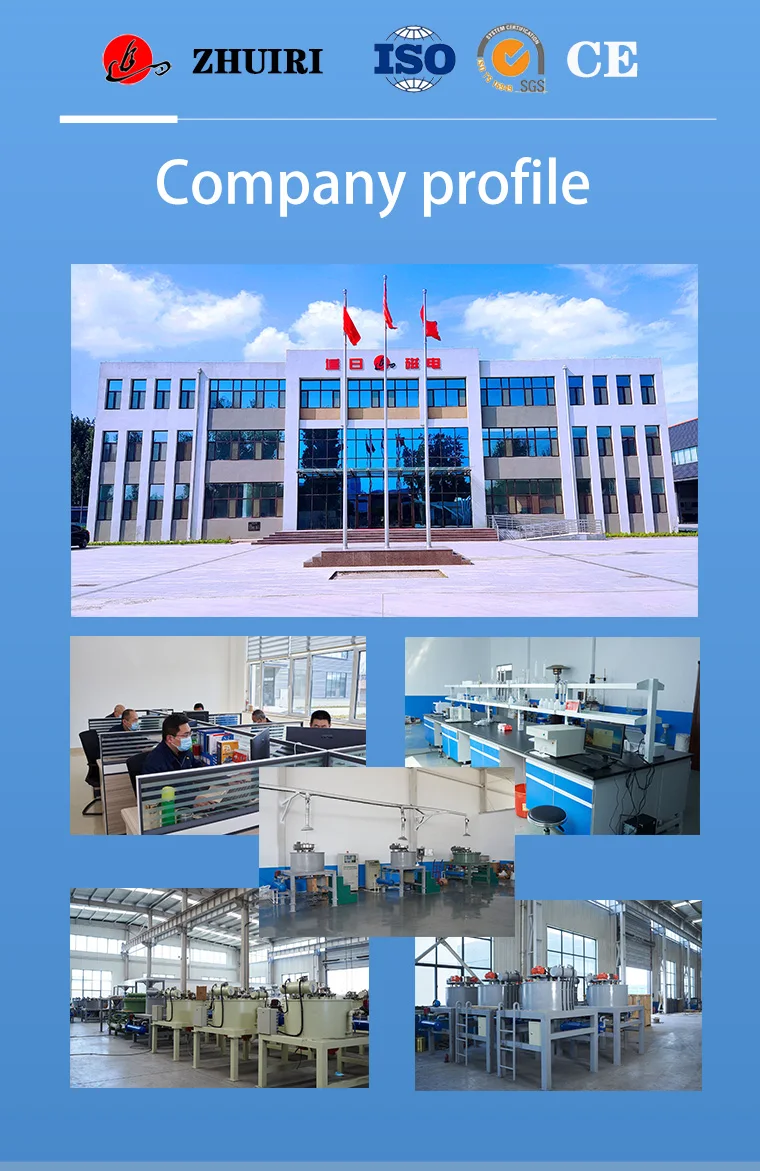

Company Profile
}Weifang zhuiri magnetoelectric Technology Co., Ltd. is a high-tech enterprise specializing in the development, production and sales of magnetic separation and electromechanical integration equipment, established in August 2003. For 20 years, the company is committed to the research and development of powder iron removal purification technology. Independent research and development of "ZR0709 series electromagnetic powder iron removal equipment", high magnetic induction intensity, unique structure, iron removal effect is remarkable. The product can partially replace the traditional high pollution pickling iron removal purification process,thus creating a new era of physical powder iron removal. After 20 years of improvement, the formation of serialized products. The main technical index of the product has reached the international advanced level. The State Intellectual Property Office has successively granted a number of national patents (patent number: ZL2011203128583, ZL2012200761494, etc.)
Exhibition
FAQ
FAQ

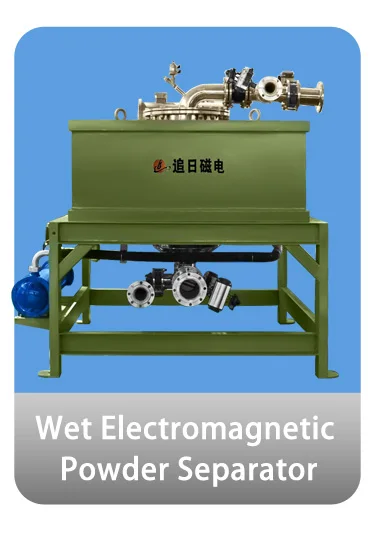

1、I understand that most iron remover is slurry iron removal now, but my production process can not see water.Our company independent research and development of dry powder magnetic separator, dry powder, slurry can be processed, focus on research and development of powder iron removal technology for 20 year.
2、What's the price?
Equipment in tens of thousands - hundreds of thousands of prices, more than 300 models, different models of different prices,equipment according to customer requirements, site structure and material characteristics customized.
3、What ingredients can be removed?
All magnetic elements can be removed, such as Fe, Mn, Co, Ni. Can remove magnetite, hematite, magnetite, limonite, ilmenite,siderite and so on.
4、There's mica in my mix. Can I get rid of it?
You can get rid of mica
5、 My material itself is magnetic material, can I only remove iron?
Yes, our magnetic field is adjustable, technicians will adjust a suitable magnetic field according to the material situation, in
this set magnetic field, only iron can be removed.
6. The magnetic separator I bought before will demagnetize after a long time. What about yours?
Our magnetic field is electrically generated, and it doesn't degausse no matter how long it takes.
7. There are many weak magnetic substances in my material. Can I remove them?
Can remove most of the raw ore iron, magnetic field intensity can reach 22000GS magnetic field
8. I've already used a permanent magnet separator
There is no contradiction. Many companies use permanent magnet equipment for rough processing at the front end and high purification at the back end with our equipment. For your material, the price will be many times higher.
9. How much iron content of my material can be processed by magnetic separation of your company?
The effect of iron removal is related to the composition, fineness, specific gravity, humidity and fluidity of raw ore. For

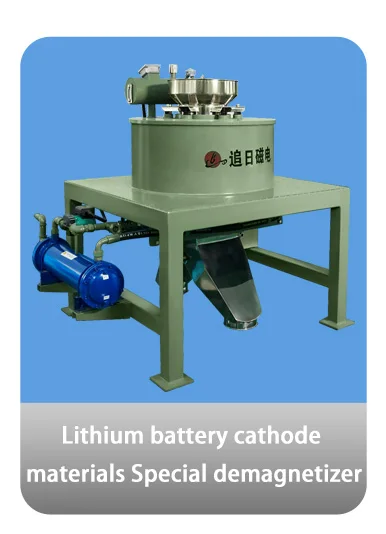

example, lithium electric materials, the best we can deal with the iron content of 10PPM, that is, only 1 gram of iron content in 100 tons of materials. For quartz sand, the best we can deal with is 100PPM iron, which is only 1 gram of iron in 10 tons of material.
10. What is the capacity of your machines?
Under the condition of good material fluidity, the single equipment can produce 100kg to 60t per hour.
2、What's the price?
Equipment in tens of thousands - hundreds of thousands of prices, more than 300 models, different models of different prices,equipment according to customer requirements, site structure and material characteristics customized.
3、What ingredients can be removed?
All magnetic elements can be removed, such as Fe, Mn, Co, Ni. Can remove magnetite, hematite, magnetite, limonite, ilmenite,siderite and so on.
4、There's mica in my mix. Can I get rid of it?
You can get rid of mica
5、 My material itself is magnetic material, can I only remove iron?
Yes, our magnetic field is adjustable, technicians will adjust a suitable magnetic field according to the material situation, in
this set magnetic field, only iron can be removed.
6. The magnetic separator I bought before will demagnetize after a long time. What about yours?
Our magnetic field is electrically generated, and it doesn't degausse no matter how long it takes.
7. There are many weak magnetic substances in my material. Can I remove them?
Can remove most of the raw ore iron, magnetic field intensity can reach 22000GS magnetic field
8. I've already used a permanent magnet separator
There is no contradiction. Many companies use permanent magnet equipment for rough processing at the front end and high purification at the back end with our equipment. For your material, the price will be many times higher.
9. How much iron content of my material can be processed by magnetic separation of your company?
The effect of iron removal is related to the composition, fineness, specific gravity, humidity and fluidity of raw ore. For
example, lithium electric materials, the best we can deal with the iron content of 10PPM, that is, only 1 gram of iron content in 100 tons of materials. For quartz sand, the best we can deal with is 100PPM iron, which is only 1 gram of iron in 10 tons of material.
10. What is the capacity of your machines?
Under the condition of good material fluidity, the single equipment can produce 100kg to 60t per hour.
11. What is the power of your machine and how much electricity does it consume?
Between 4 kilowatts and 25 kilowatts per hour.
12. What if the voltage in our country is different from that in China?
We will customize according to your country's requirements, supporting transformers.
13. How big is your machine and does it take up much space?
Our current equipment covers an area of 1 to 3 square meters. Series models only occupy one machine space, saving space.
14. Is your machine fully automatic? What brand is the control system and the electrical cabinet?
Our equipment has automatic, semi-automatic, manual, the price from high to low, customized. PLC control system, domestic or imported, imported brand for Schneider or the same grade brand.
15. Can you test the experimental materials?
Yes, our company has a special laboratory, which can detect the iron content of various materials.
12. What if the voltage in our country is different from that in China?
We will customize according to your country's requirements, supporting transformers.
13. How big is your machine and does it take up much space?
Our current equipment covers an area of 1 to 3 square meters. Series models only occupy one machine space, saving space.
14. Is your machine fully automatic? What brand is the control system and the electrical cabinet?
Our equipment has automatic, semi-automatic, manual, the price from high to low, customized. PLC control system, domestic or imported, imported brand for Schneider or the same grade brand.
15. Can you test the experimental materials?
Yes, our company has a special laboratory, which can detect the iron content of various materials.
16 the difference between pickling and magnetic separator?
Chemical pickling converts impurity elements into other forms by chemical means, but it is easy to mix mechanical iron in the process of pickling iron removal, which is easy to destroy the chemical structure of raw materials and pollute the environment.Physical iron removal without destroying the original element structure, easily separated magnetic substances, my company for the physical iron removal pioneer, leader, ranking the industry leader.
17. What is the iron removal time?
More than 10 seconds can easily discharge iron 1 times.
18. What is the service life?
At present, we sell hundreds of thousands of equipment without equipment damage can not be used, the longest 20 years of service life is still in use.
Chemical pickling converts impurity elements into other forms by chemical means, but it is easy to mix mechanical iron in the process of pickling iron removal, which is easy to destroy the chemical structure of raw materials and pollute the environment.Physical iron removal without destroying the original element structure, easily separated magnetic substances, my company for the physical iron removal pioneer, leader, ranking the industry leader.
17. What is the iron removal time?
More than 10 seconds can easily discharge iron 1 times.
18. What is the service life?
At present, we sell hundreds of thousands of equipment without equipment damage can not be used, the longest 20 years of service life is still in use.
19. How to solve the problem of material dust?
Each mouth of the material passage adopts closed dust-proof measures, which well solves the problem of dust pollution.
20. Can I represent your company?
We welcome agents from all over the world to cooperate. We can talk about agents with customer service in detail.
Each mouth of the material passage adopts closed dust-proof measures, which well solves the problem of dust pollution.
20. Can I represent your company?
We welcome agents from all over the world to cooperate. We can talk about agents with customer service in detail.
