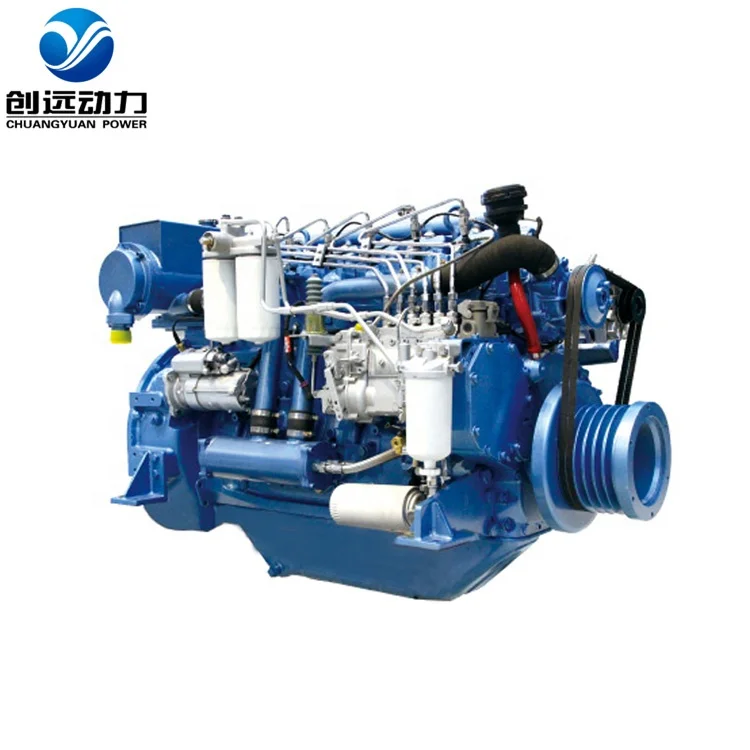

Made in China Weichai WP6C220 23 water cooler 6 cylinders 4 stroke inboard marine diesel engine
- Category: Boat Engines >>>
- Supplier: Zhongshan Chuangyuan Power Equipment Co. Ltd.
Share on (1600604757608):
Product Overview
Description
Products Description
WEICHAI 226B series engine is widely use in the Yatch,Fishing Boat ,Transport Ship Law enforcement etc.
Engine Model | WP6C220-23 |
Maker | WEICHAI Power |
Rated Power | 162kw/220hp |
Rated Speed | 2300rpm |
Bore*Stroke | 105mm x 130mm |
Engine Type | In line,direct injector,Turbocharged&Intercooled, Heat Exchanger |
Emission | IMO Tier II |
Roatation | Anti-clockwise(facing flywheel) |
Dimensions | 1185 x 744 x 1083mm |
Dry Weight | 750±50KG |
Series Model:
WP6C122-15 | Turbocharged | 90kw/122HP | 1500rpm |
WP6C140-23 | Turbocharged | 103kw/140HP | 2300rpm |
WP6C142-18 | Turbocharged | 105kw/142HP | 1800rpm |
WP6C150-15 | Turbocharged&Intercooled | 110kw/150HP | 1500rpm |
WP6C156-21 | Turbocharged | 115kw/156HP | 2100rpm |
WP6C163-23 | Turbocharged | 120KW/163HP | 2300rpm |
WP6C165-18 | Turbocharged&Intercooled | 122KW/165HP | 1800rpm |
WP6C185-21 | Turbocharged&Intercooled | 136KW/185HP | 2100rpm |
WP6C198-23 | Turbocharged&Intercooled | 145KW/198HP | 2300rpm |
WP6C220-23 | Turbocharged&Intercooled | 162KW/220HP | 2300rpm |
WP6C250-25 | Turbocharged&Intercooled | 168kw/228HP | 2425rpm |

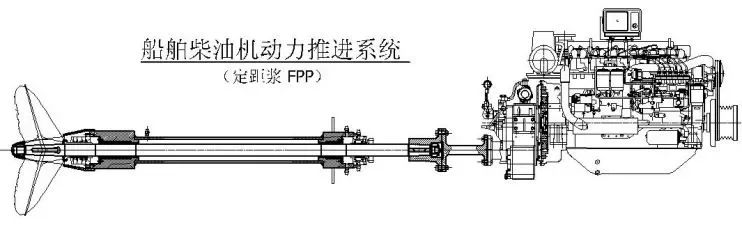

We supply the whole Propulsion and Design:Marine Diesel Engine+Gearbox+stern tube+shaft+propeller
Boat Diesel Engine WP6C220-23 Introduction
Boat Diesel Engine WP6C220-23 Introduction
♦ Certification
Emission compliant to IMO ANNEX VI of MARPOL 73/78 Guidelines,Certification are available for CCS,BV,RS,RINA&DNV
♦Engine Design
Robust engine block designed for continuous duty operation and long life.Metric O-ring seal and edge modeled gaskets eliminate
fluid leaks.Auto-tensioning belt driven design for alternator,Fresh water pump and Sea waterpump,L.O cooled alloy piston design
with 3 high performance rings.Wet type replacable cylinder liner.Seperate cast iron cylinder head with one inlet valve and one
exhaust valve.steel forged crankshaft with 7 bearing.
♦Cooling System
Fresh/Raw water heat exchanger with integrated themostatic valves and expansion tank.Cast iron centrifugal fresh water pump and
stainless steel housing rubber impeller raw water pump
♦Electrical System
Voltage: 24V, electrical starter on flywheel crown,local control and alarm pannel,Belting driven charging alternator
♦Fuel Oil System
Flanged driven Bosch type inline injection fuel pump with full speed mechanical governors.Double skin fuel injection pipe with
fuel leak alarm.Spin-on duplex oil secondary filters replaceable while engine running.Aplication of a single unit of water
seperating fuel oil primary filter which further enhance injection system reliability and durability.
♦Lubrication System
WEICHAI spin-on single oil filters provide extended service interval and less maintenance.Special one piece die cating flat oil
pan design in order to reduce the height of engine and maintain better suction for L.O pump in different of marine working
conditions.F.W cooled tube type L.O cooler.
♦ Exhaust & Intake Air System
Dry type exhaust manifold and dry turbo with insulation.Raw water cooled intake air cooler
♦ Option
Air starter ,Dirty oil hand pump,pre-lub hand pump,remote control panel,stainless/bronze raw water pump ,engine stop solenoid
valve.
Emission compliant to IMO ANNEX VI of MARPOL 73/78 Guidelines,Certification are available for CCS,BV,RS,RINA&DNV
♦Engine Design
Robust engine block designed for continuous duty operation and long life.Metric O-ring seal and edge modeled gaskets eliminate
fluid leaks.Auto-tensioning belt driven design for alternator,Fresh water pump and Sea waterpump,L.O cooled alloy piston design
with 3 high performance rings.Wet type replacable cylinder liner.Seperate cast iron cylinder head with one inlet valve and one
exhaust valve.steel forged crankshaft with 7 bearing.
♦Cooling System
Fresh/Raw water heat exchanger with integrated themostatic valves and expansion tank.Cast iron centrifugal fresh water pump and
stainless steel housing rubber impeller raw water pump
♦Electrical System
Voltage: 24V, electrical starter on flywheel crown,local control and alarm pannel,Belting driven charging alternator
♦Fuel Oil System
Flanged driven Bosch type inline injection fuel pump with full speed mechanical governors.Double skin fuel injection pipe with
fuel leak alarm.Spin-on duplex oil secondary filters replaceable while engine running.Aplication of a single unit of water
seperating fuel oil primary filter which further enhance injection system reliability and durability.
♦Lubrication System
WEICHAI spin-on single oil filters provide extended service interval and less maintenance.Special one piece die cating flat oil
pan design in order to reduce the height of engine and maintain better suction for L.O pump in different of marine working
conditions.F.W cooled tube type L.O cooler.
♦ Exhaust & Intake Air System
Dry type exhaust manifold and dry turbo with insulation.Raw water cooled intake air cooler
♦ Option
Air starter ,Dirty oil hand pump,pre-lub hand pump,remote control panel,stainless/bronze raw water pump ,engine stop solenoid
valve.
