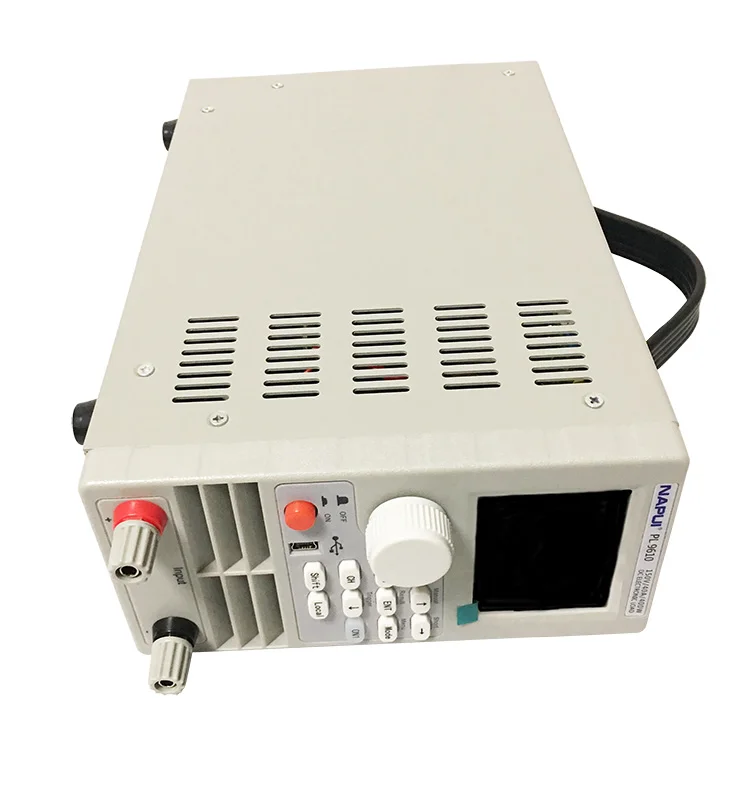

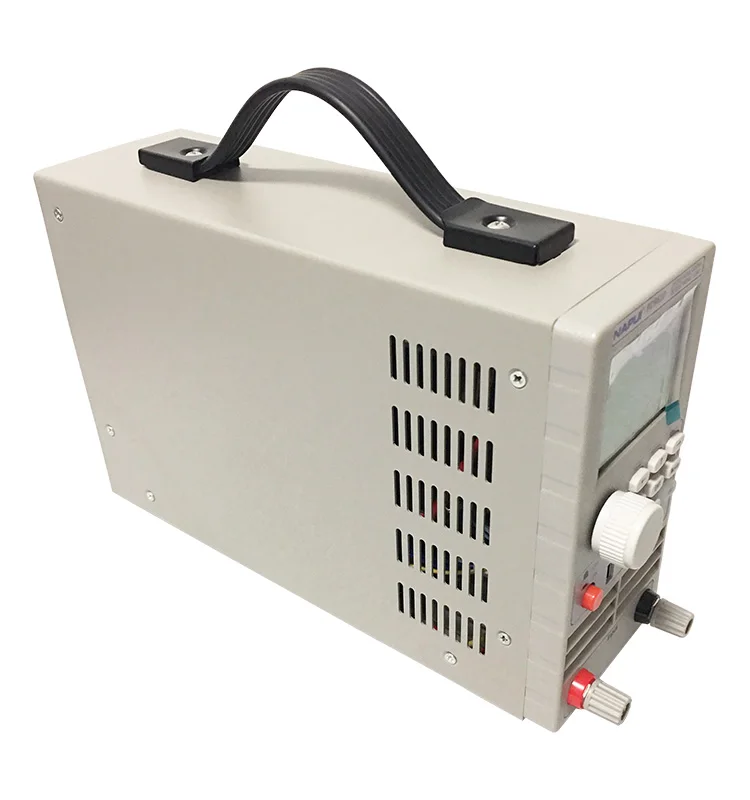

400w 40A 150V Programmable Battery Tester Single-Channel Programmable DC Electronic Load Battery Capacity dc electronic load
1.1 Profile size introduction
Different models of PL9600 series electronic load have different types and sizes, and the corresponding
detailed dimensions of different models are listed below:
Model :PL9610,PL9611,PL9612
Length :300 mm
Width :88 mm
Height :174 mm
1.2 Check power supply
Please check whether the provided power supply meets the following criteria before use:
Voltage :AC 220/100(±10%)V
Frequency :50/60Hz
Power Dissipation :50W
The power supply cable provided by the factory is a three-core power cord. Please ensure that the power
line of the three-phase socket is reliable grounded before use.
This device is equipped with 220/110v power supply switch. Please check and make sure the switch has
been allocated to the correct gear before the power is connected.
This device uses 250V/1.5A fuse with a specification of 5x20mm. The fuse has been installed properly and
spare fuse is provided. When replacing the fuse, please remove the external power supply cord first, then
open the fuse slot below the power supply interface and replace the old fuse with a new one. When the
replacement is completed, the device can be back to normal use.
Note: do not use the power line with any signs of damage to avoid danger! When using 110V AC power
input, please replace the fuse of 250V/2.5A
1.3 Product features
PL9610 series electronic load has the following features:
- Measurement range: 200~400W,0~500V,0~40A
- Four basic modes: CC/CV/CR/CP
- 1mV/1mA high resolution
- Up to 5K dynamic current test
- Up to 40kHz measurement speed of voltage/current
- Multi-mode battery discharge test
- List mode supports automatic test
- Independent short circuit test function
- Over voltage, low voltage, over current, over power, over heat, anti-wiring error, power on and other basic protection.
- upport RS232 communication interface
- Support external trigger input (optional)
- Support PASS/FAIL result output (optional)
- Support external foot pedal input (optional)
- Support external Sense input (optional)
- Equipped with upper computer software to realize remote operation and monitoring
- Power failure memory function
- Intelligent temperature-controlled cooling
- Support English/Chinese interface display
Model | PL9610 | PL9612 | PL9611 | ||||
Channel number | Single channel | Two-channel | Single channel | ||||
Input Rating | Voltage | 150V | 500V | ||||
Current | 0~40A | 0~20A | 0~15A | ||||
Power | 400W | 400W(2×200W) | 400W | ||||
CV Mode | Range | 0~18V 0~150V | 0~50V 0~500V | ||||
Resolution | 1 mV 10 mV | ||||||
Accuracy | ±(0.05%+0.025% FS) | ||||||
CC Mode | Range | 0~4A | 0~40A | 0~2A | 0~20A | 0~1.5A | 0~15A |
Resolution | 1mA 10mA | ||||||
Accuracy | ± ( 0.05% + 0.05%FS ) | ||||||
CR Mode | Range | 0.05Ω~7.5KΩ | 0.1Ω~25KΩ | ||||
Resolution | 16 bit | ||||||
Accuracy | 0.1% + 0.5%FS | ||||||
CP Mode | Range | 400W | 200W | 400W | |||
Resolution | 10mW | ||||||
Accuracy | 0.1% + 0.5%FS | ||||||
Dynamic Current | |||||||
Dynamic Mode | T1&T2 | 100μS~3600S | |||||
Accuracy | 5 μS±100 ppm | ||||||
Slope | 0.001~0.15 A/μS | ||||||
V Measurement | Range | 0~18V 0~150V | 0~50V 0~500V | ||||
Resolution | 1mV,10mV | ||||||
Accuracy | ± ( 0.05% + 0.1%FS ) | ||||||
C Measurement | Range | 0~4A | 0~40A | 0~2A | 0~20A | 0~1.5A | 0~15A |
Resolution | 1mA 10mA | ||||||
Accuracy | ± ( 0.05% + 0.1%FS ) | ||||||
P Measurement | Range | 400W | 200W | 400W | |||
Resolution | 10mW | ||||||
Accuracy | ± ( 0.1% + 0.5%FS ) | ||||||
