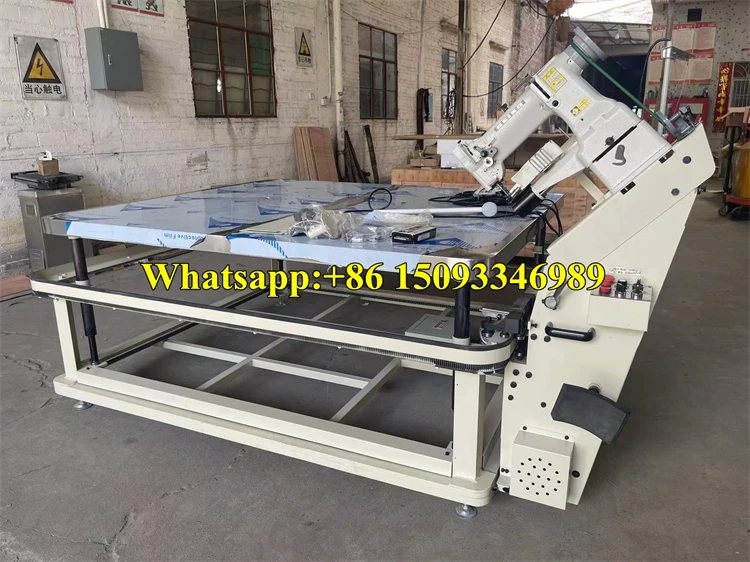

Домашняя мебель, швейная машина для матрасов/спального мешка

Product Overview

Description

home Furniture mattress sewing Making Machine/tape edge covering seaming machine bed mattress/sleeping bag Stitching Machine

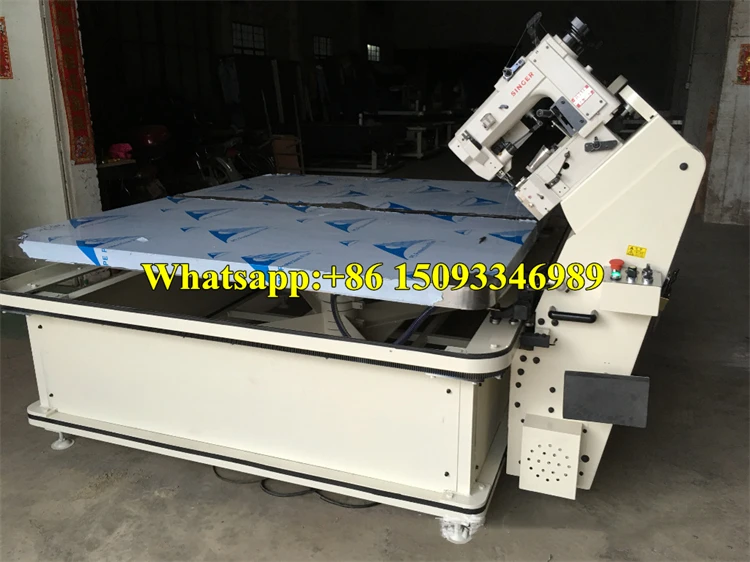

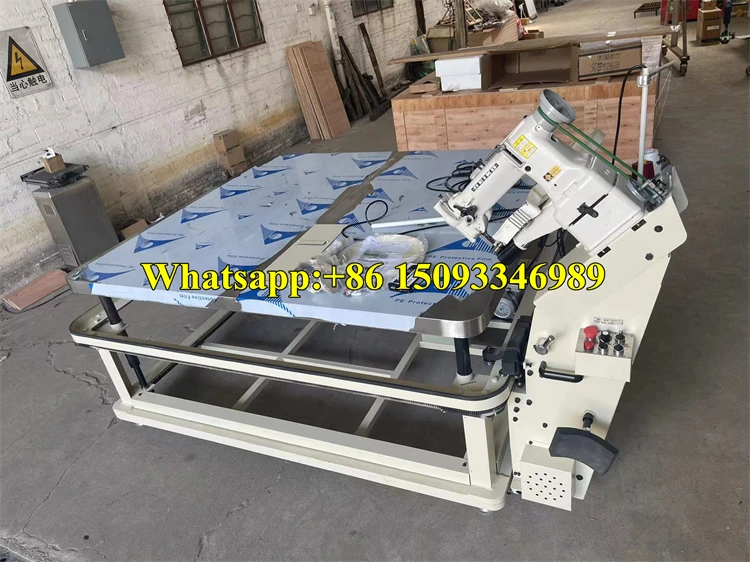

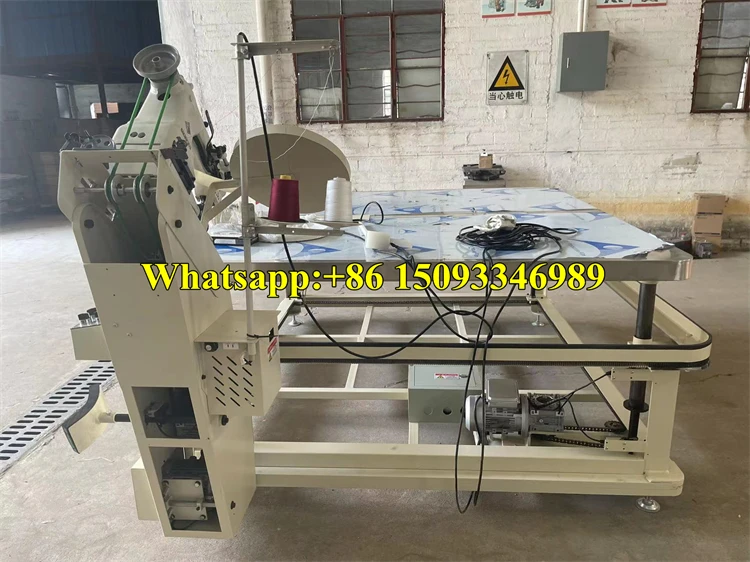

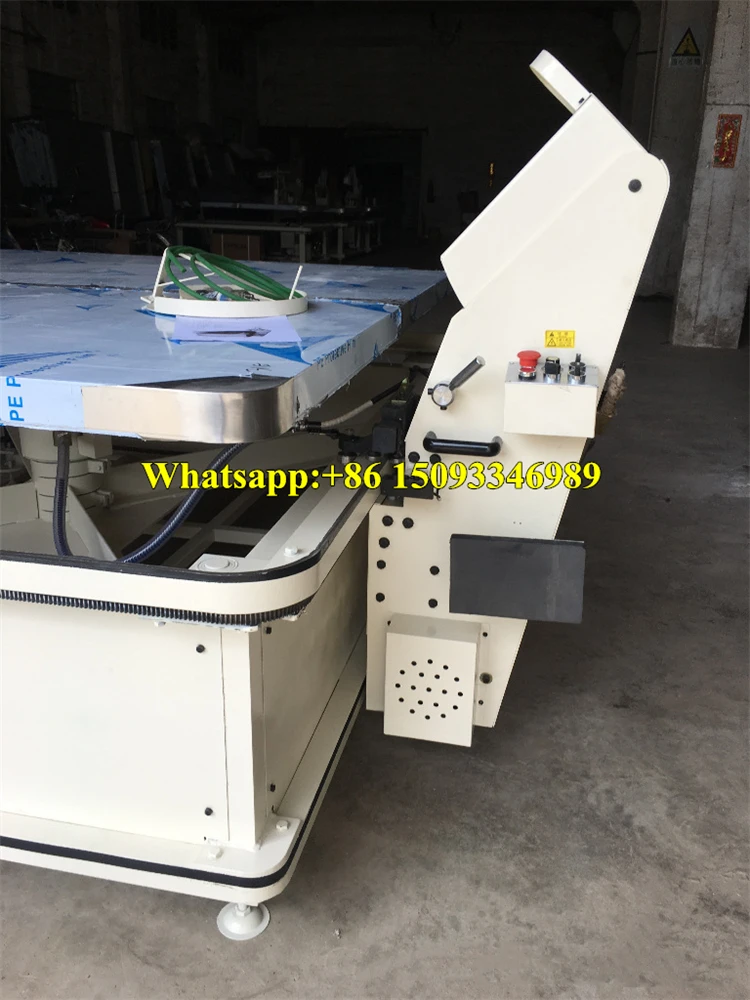

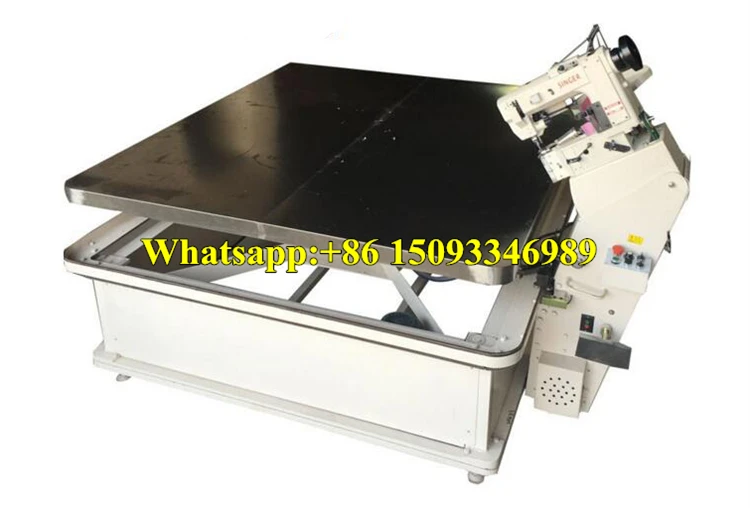

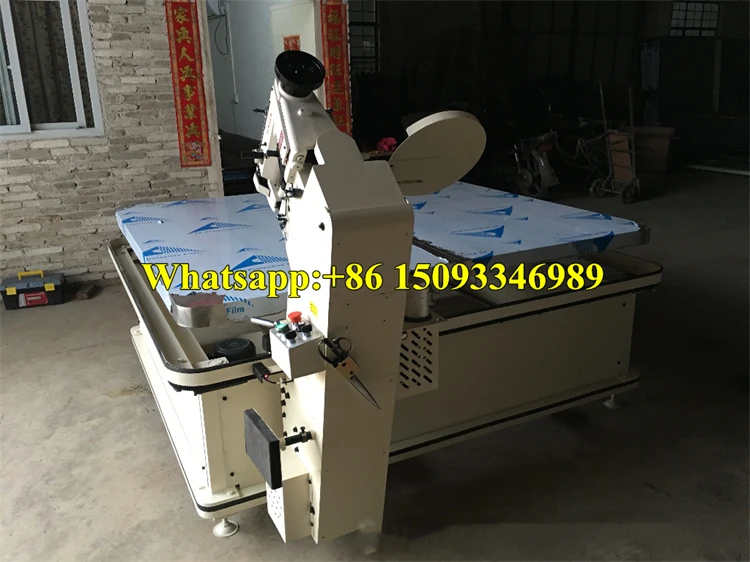

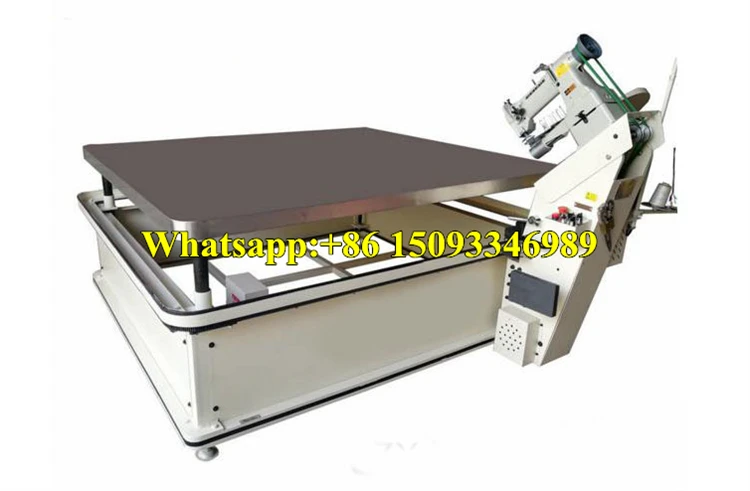

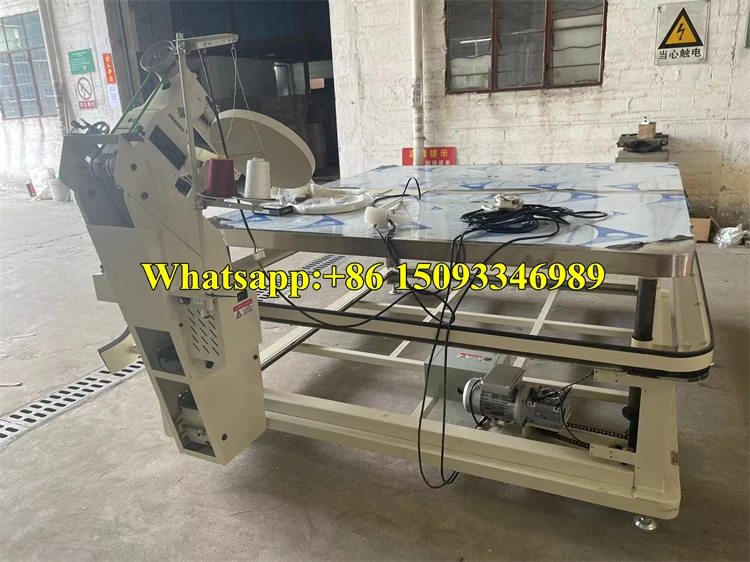

1. Introduction of tape edge covering seaming machine bed mattress

This mattress tape edge sewing machine mainly consists of working table, frame, and sewing carriage. it is widely used for spring mattress, side seaming between bottom fabric and side fabric, also suitable for sewing other upholstered bed mattress, sleeping bags, tent etc. The stitches are straight and uniform, with compact structure, stable operation, small vibration and low noise, the machine is a good helper for upholstered furniture production.



2. Features of tape edge covering seaming machine bed mattress

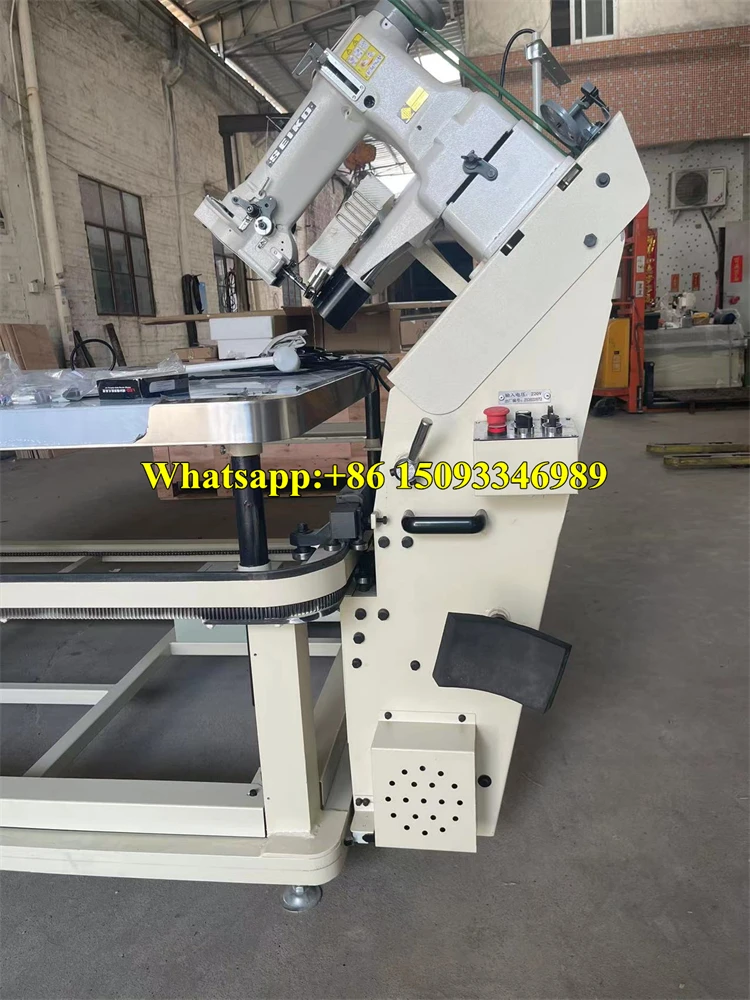

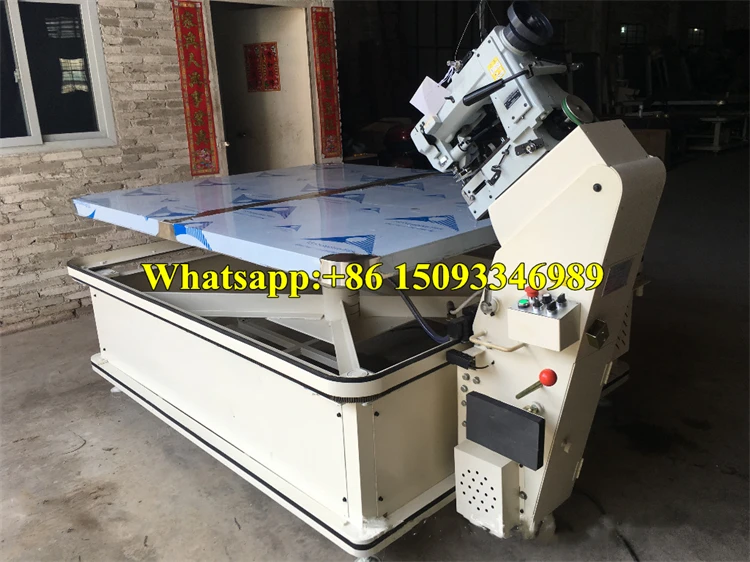

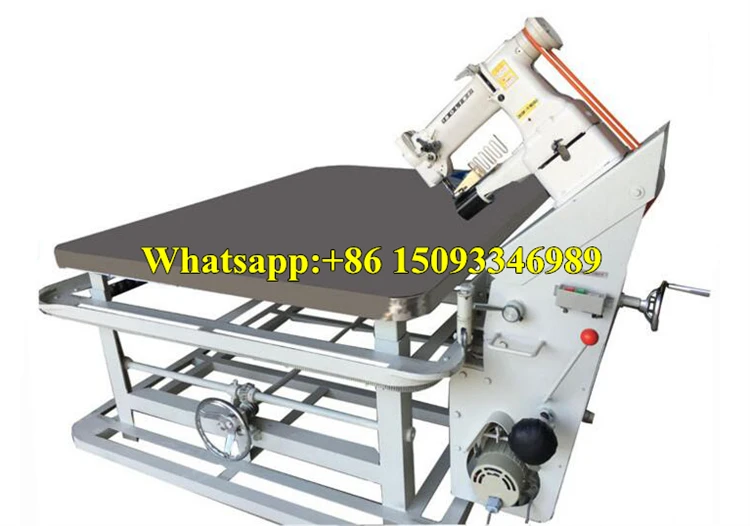

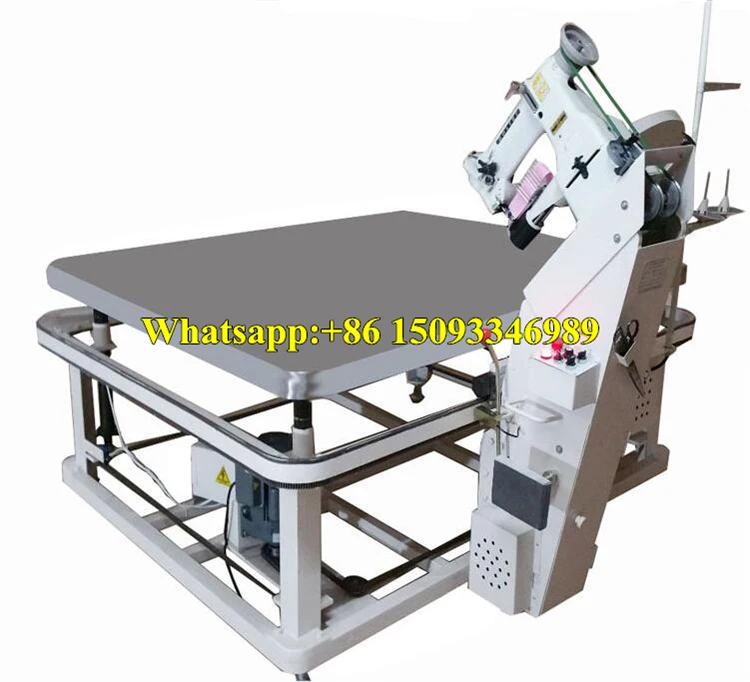

JCWB-1 mattress tape edge sewing machine



a. it is the most cost-effective model, with completely manual adjusting by handwheel.

b. sewing head can be 8B or standard 2603 according to client's  requirement

c. Manual rack lift of work table, manual adjustment of sewing head angle

d. Knee-controlled sewing sliding box travelling speed, knee-controlled deceleration in turning position







JCWB-2 mattress tape edge sewing machine









a. sewing head can be 8B, standard 2603 or Shuttleless 300U according to client's  requirement

b. working table height is electrically adjusted by chain four-corner screw rod, Avoid uneven tabletops

c. sewing head angle is adjusted electrically.

d. The sewing carriage is driven by stepless speed regulation, and it adopts automatic deceleration at turning position





JCWB-3 mattress tape edge sewing machine









a. sewing head can be 8B, standard 2603 or Shuttleless 300U according to client's  requirement

b. The working table adopts  electric middle lifting, no need to install the electric hoist on the roof, and no requirement for height of installation environment

c. sewing head angle is adjusted electrically.

d. The sewing carriage is driven by stepless speed regulation, and it adopts automatic deceleration at turning position





3. Parameters of tape edge covering seaming machine bed mattress

Model	JCWB-1	JCWB-2	JCWB-3
Mattress thickness	20-400mm
Sewing head angle	40-75°
Working table size	1485*1985mm
Worktable lifting range	280mm
Capacity	15pcs/h	18pcs/h	20pcs/h
power	400w	1300w	1300w
Weight	375kg	450kg	680kg
Size	2130*1600*800mm	2100*1600*1030mm	2100*1600*1030mm

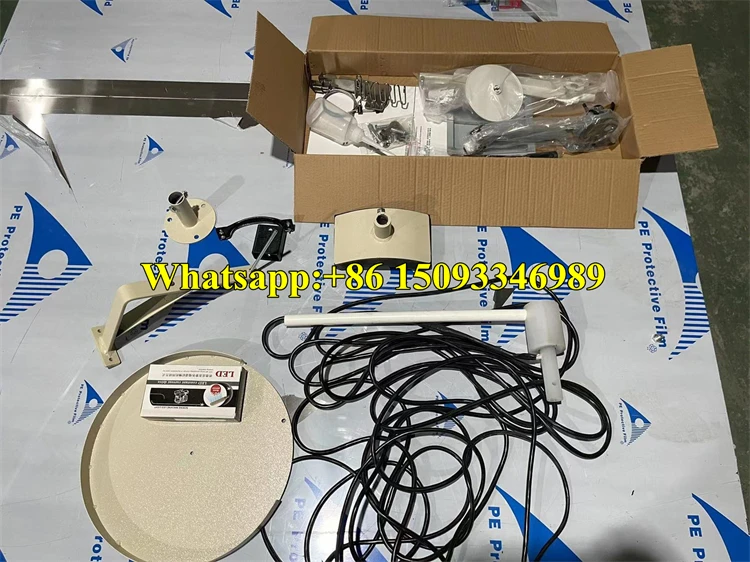

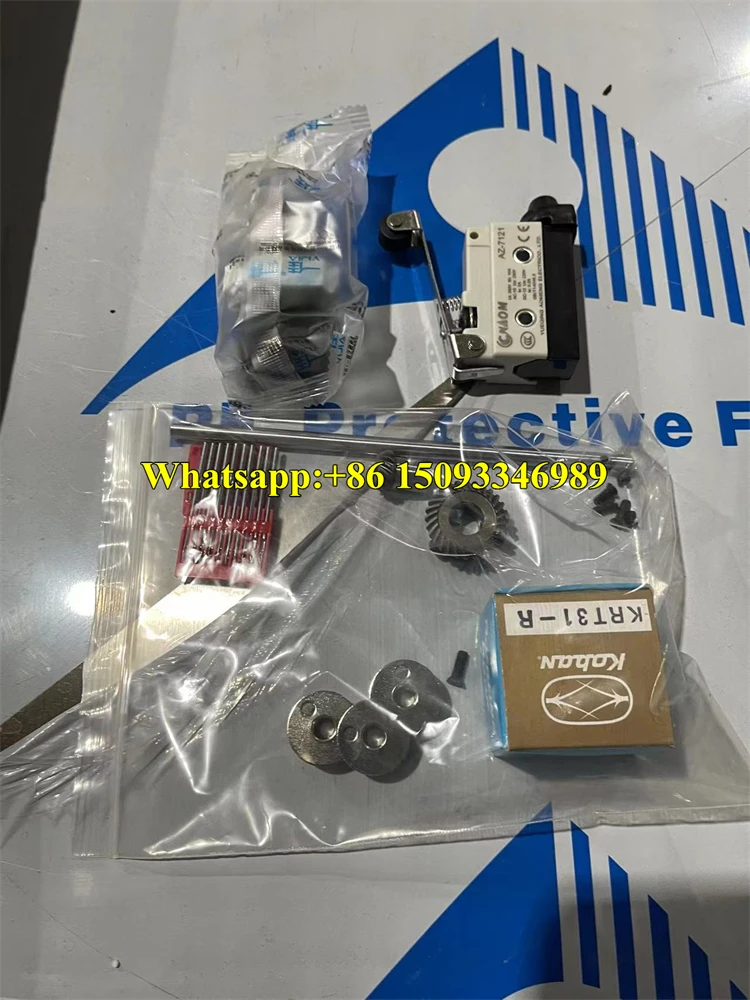

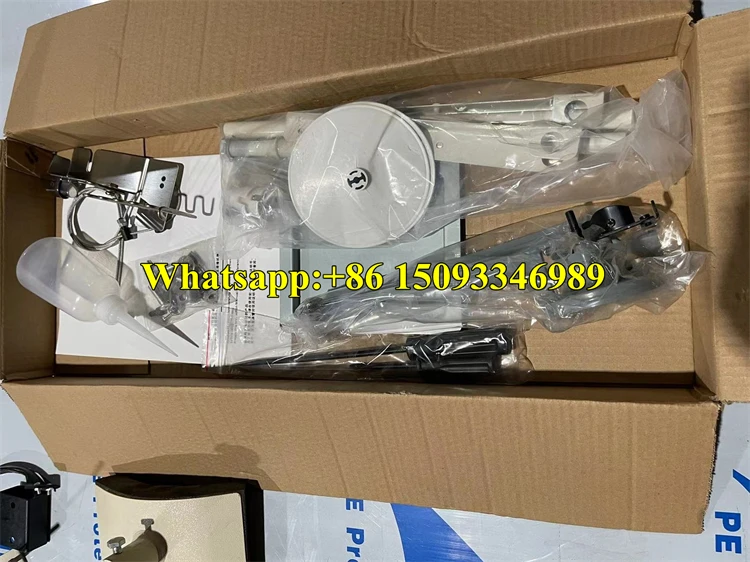

4. Spare parts of tape edge covering seaming machine bed mattress

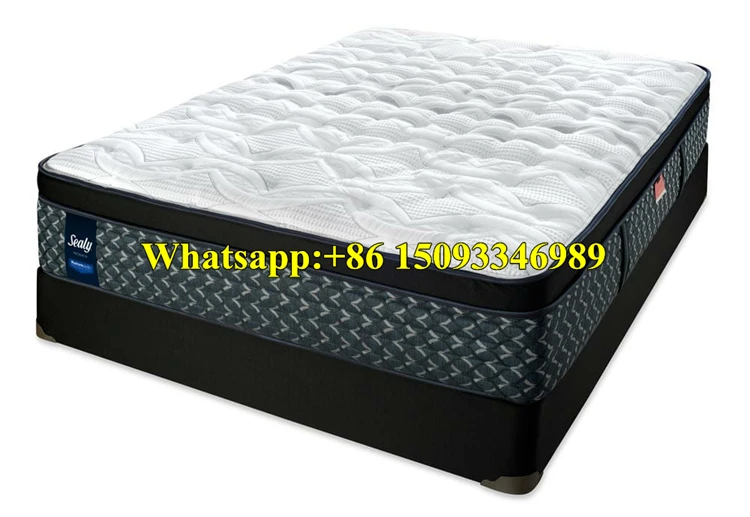

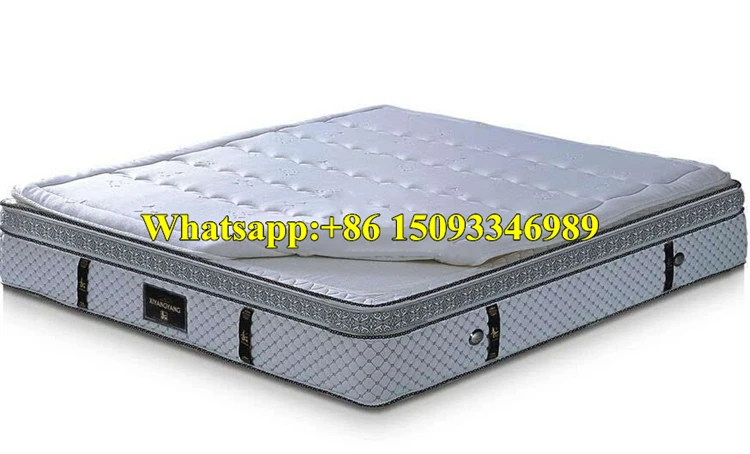

5. Final products
