Uv Fused Silica Right Angle Prisms For Broadband Applications
- Category: >>>
- Supplier: Jilin,Vico,Optoelectronics,Co.,Ltd.
Share on:
Product Overview
Description
Product information

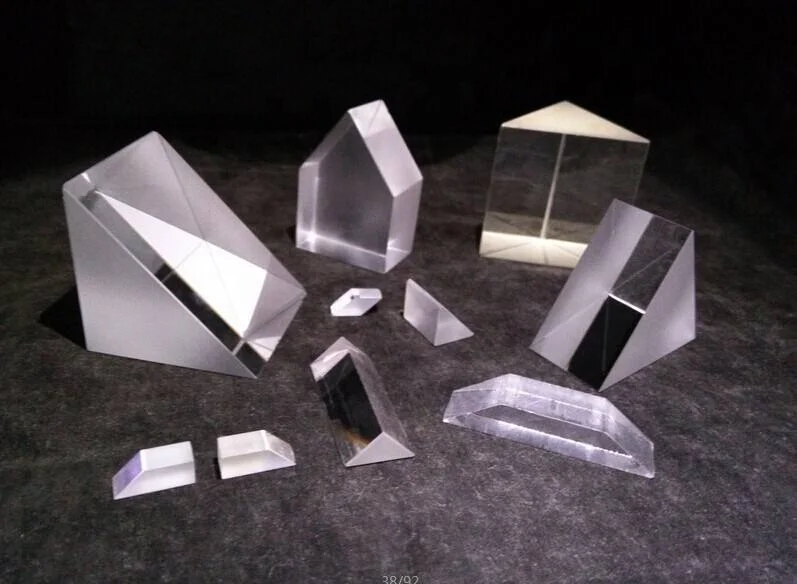

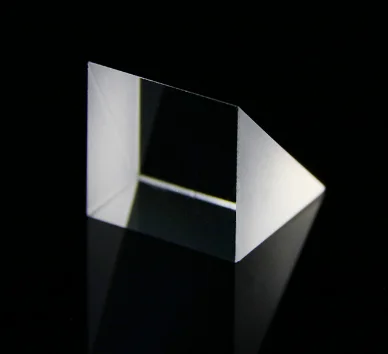

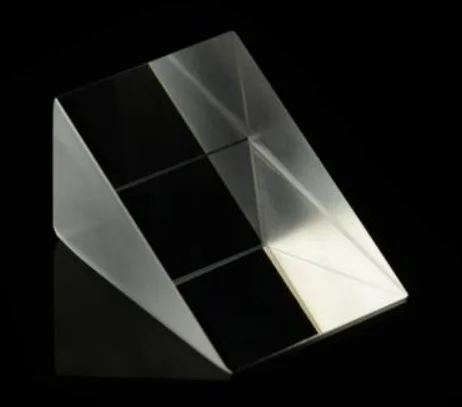

Right angle prisms are extremely versatile optical components, commonly used as individual prisms and components of optical assemblies.
Right angle prisms are optical elements having at least three polished faces inclined relative to each other at 45-90-45 degrees.
They can be used as total internal reflectors, hypotenuse face reflectors, retroreflectors and 90 degrees beam benders.
Various HR or AR coatings are available specified in the Coatings section. Custom fabrication also available: coating, cutting, edging, drilling according to your specification.
Substrate options include N-BK7, H-K9L UV Fused Silica, N-SF11, Calcium Fluoride (CaF2), Germanium (Ge), or Zinc Selenide (ZnSe).
A: To deviate the light path by 90° or 180°.
B: Used in Telescope, Periscope, Microscopy, Medical Instrument and other optical system.
Right angle prisms are optical elements having at least three polished faces inclined relative to each other at 45-90-45 degrees.
They can be used as total internal reflectors, hypotenuse face reflectors, retroreflectors and 90 degrees beam benders.
Various HR or AR coatings are available specified in the Coatings section. Custom fabrication also available: coating, cutting, edging, drilling according to your specification.
Substrate options include N-BK7, H-K9L UV Fused Silica, N-SF11, Calcium Fluoride (CaF2), Germanium (Ge), or Zinc Selenide (ZnSe).
A: To deviate the light path by 90° or 180°.
B: Used in Telescope, Periscope, Microscopy, Medical Instrument and other optical system.
Product Name | Prism |
Material | K9/BK7/fused silica/N-SF11 and so on |
Design Wavelength | 546.1 nm |
Size | 0.45-400 - mm |
Size Tolerance | + 0.1 mm |
Angular tolerance | <3 arc minutes |
Clear Aperture | > 90% |
Flatness | L/4 |
Surface Quality | 40/20 |
Bevel | 0.25 mm * 45 ° |
Coating | AR @440-700nm |
Product display

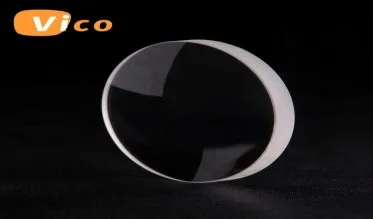

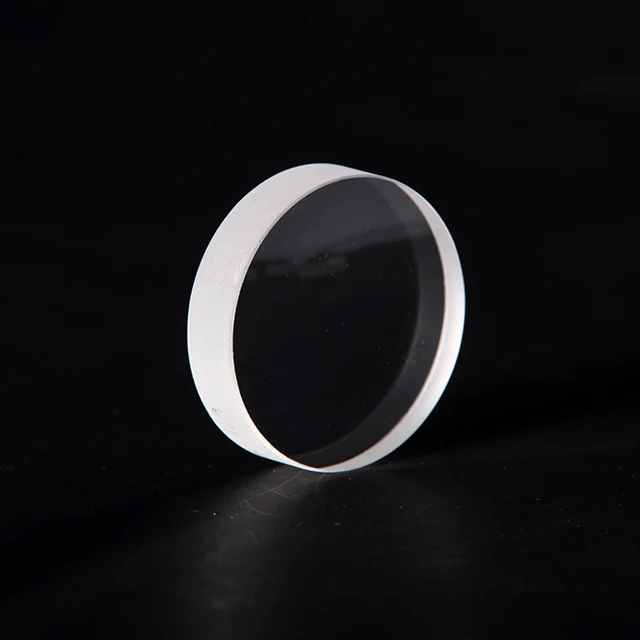

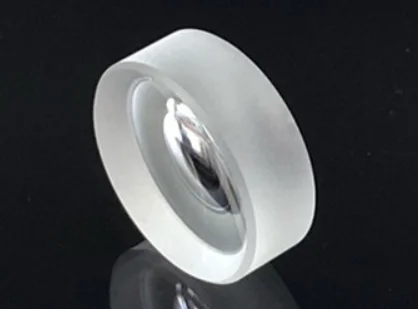

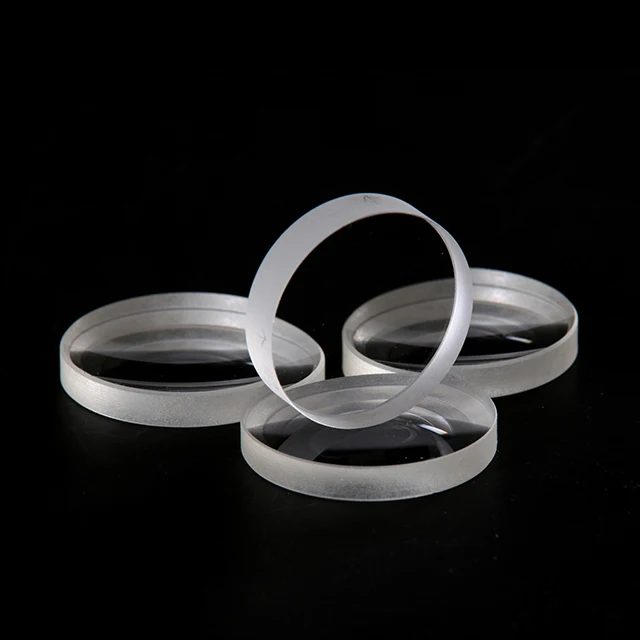

Main products
Company information
Package & Transport
FAQ
Q: How to place order?
A:Please tell us the service you need, OEM,and the quantity. then we will make the PL for you.
Q:Are you manufacture or simply trading company?
A:We are the manufacture,welcome to visit our factory.
Q:What guarantee can you provide?
A:Our warranty is 6 montjs,during the period of warranty, if there are any problems with the quality, you can send us the photo,we will replace the new one for you after we confirm.
A:Our warranty is 6 montjs,during the period of warranty, if there are any problems with the quality, you can send us the photo,we will replace the new one for you after we confirm.
Q:How did you test the product bafore they are packed?
A:We have the strict QC procedure,each produce will be tested by three by three times with professional machine before packing.
Q:Can you ensure the lead time?
A:Since we are the factory,we have more advantages on the lead time when compare with other suppliers. Usually the sample order will take 1-5 days, normal order will take 7-10 days.
Note: Our customer service will track the product procssing until you received the goods and verify the product quality. We would like to offer professional service if you need,welcome you offer us more respond. suaaestion and reauirement.
