90 Degree Sliding Table Saw Woodworking Machine
- Category: >>>
- Supplier: Shenyang Baoshan Woodworking Machinery Factory
Share on (1600604899342):
Product Overview
Description
Product Overview

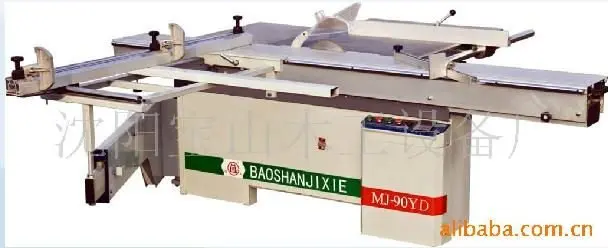

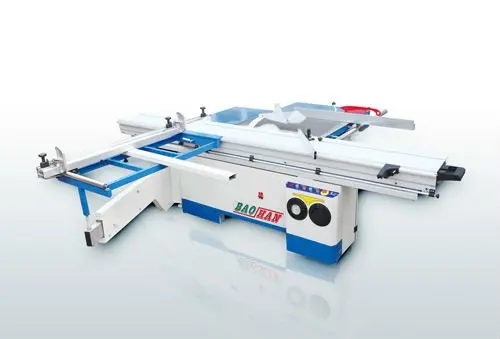

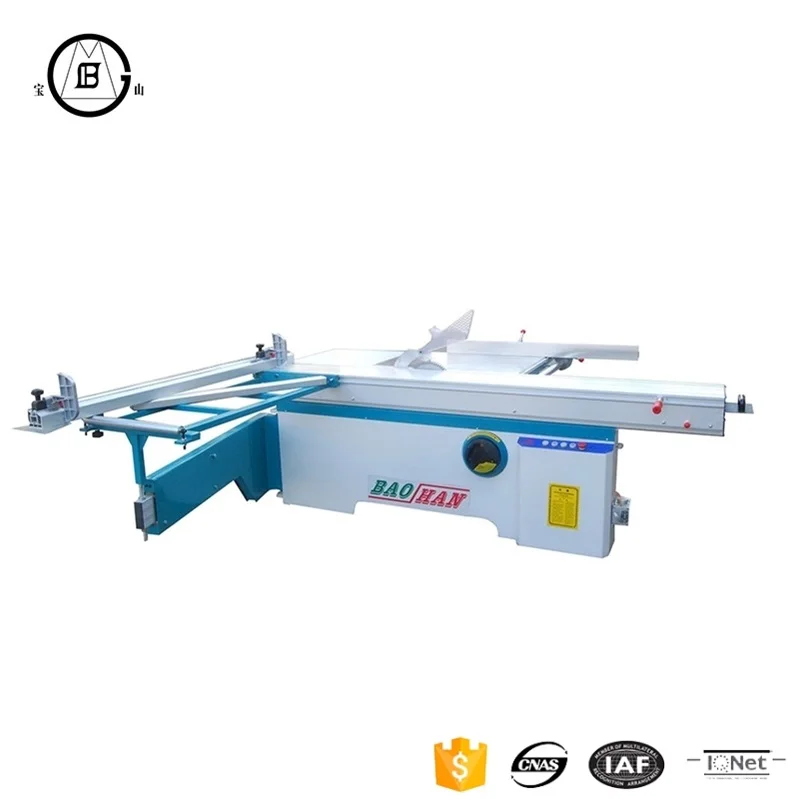

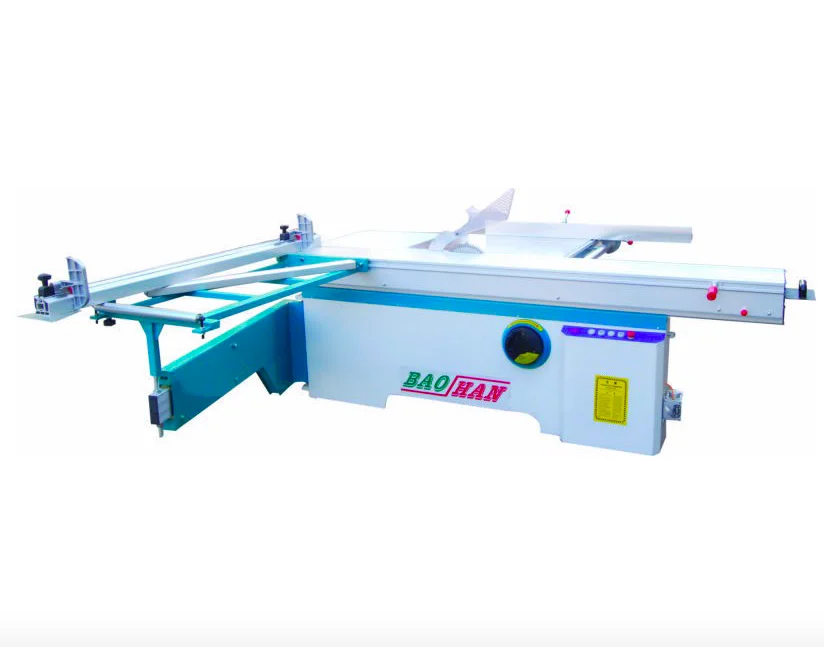

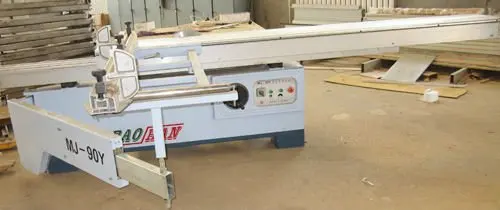

90 Degree Sliding Table Saw Woodworking Machine
Model: MJ 90
Table saw for wood plate is used for cutting plywood, particle-board, MDF, veneer, laminated board, stitching wood plate and plastic plate etc. ,cross-sectional or angled saw cut processing to obtain dimensions are in accordance with specifications of the plate also can be
used for the insulation board, sheet aluminum and aluminum profiles sawing.
used for the insulation board, sheet aluminum and aluminum profiles sawing.
There are two different cutting angles 45 degree and 90 degree.
The table saw is manual controlled which is applicable for small scale work shop with lower cost.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Technical specification | MJ90 | MJ45 |
1 | Sliding table size | 3000mm*375mm | 3200mm*375mm |
2 | Length of cut | 2900mm | 2900mm |
3 | Height of cut | 80mm | 80mm |
4 | Main saw blade diameter | 305mm | 305mm |
5 | Main saw spindle speed | 4000/6000rpm | 4000/6000rpm |
6 | Scoring saw spindle speed | 8000rpm | 8000rpm |
7 | Main saw spindle diameter | 30mm | 30mm |
8 | Scoring saw spindle diameter | 20mm | 20mm |
9 | Main saw motor | 5.5kw | 5.5kw |
10 | Scoring saw motor | 0.75kw | 0.75kw |
11 | Main saw blade tilting angle | 90 degree | 45-90 degree |
12 | Weight | 850kgs | 850kgs |
13 | Package size | 2050*1110*1130mm | 3250*425*290mm |

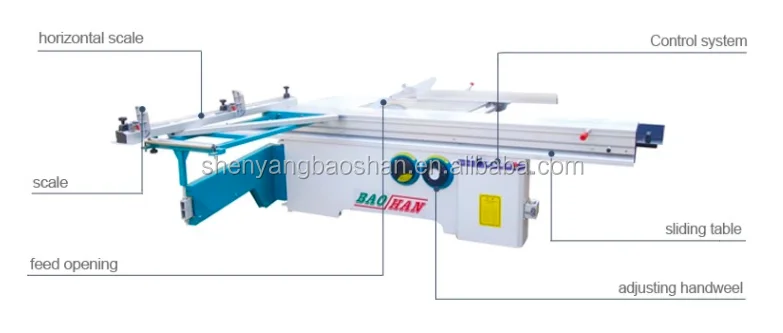

PRODUCT CONFIGURATION
High strength material
Samples
SALES AND SERVICE NETWORK
1. Your inquiry will be replied in 24 hours
2. 5 years Gold supplier continuously in this Alibaba. And there is more industry technology experience for 20 years with our manufactures
3. To offer free spare parts and service within 12 month of warranty
4. Technology Support Provide operation video for training
5. Professional after-sales service team
6. Give reasonable offers with the best quality
2. 5 years Gold supplier continuously in this Alibaba. And there is more industry technology experience for 20 years with our manufactures
3. To offer free spare parts and service within 12 month of warranty
4. Technology Support Provide operation video for training
5. Professional after-sales service team
6. Give reasonable offers with the best quality
