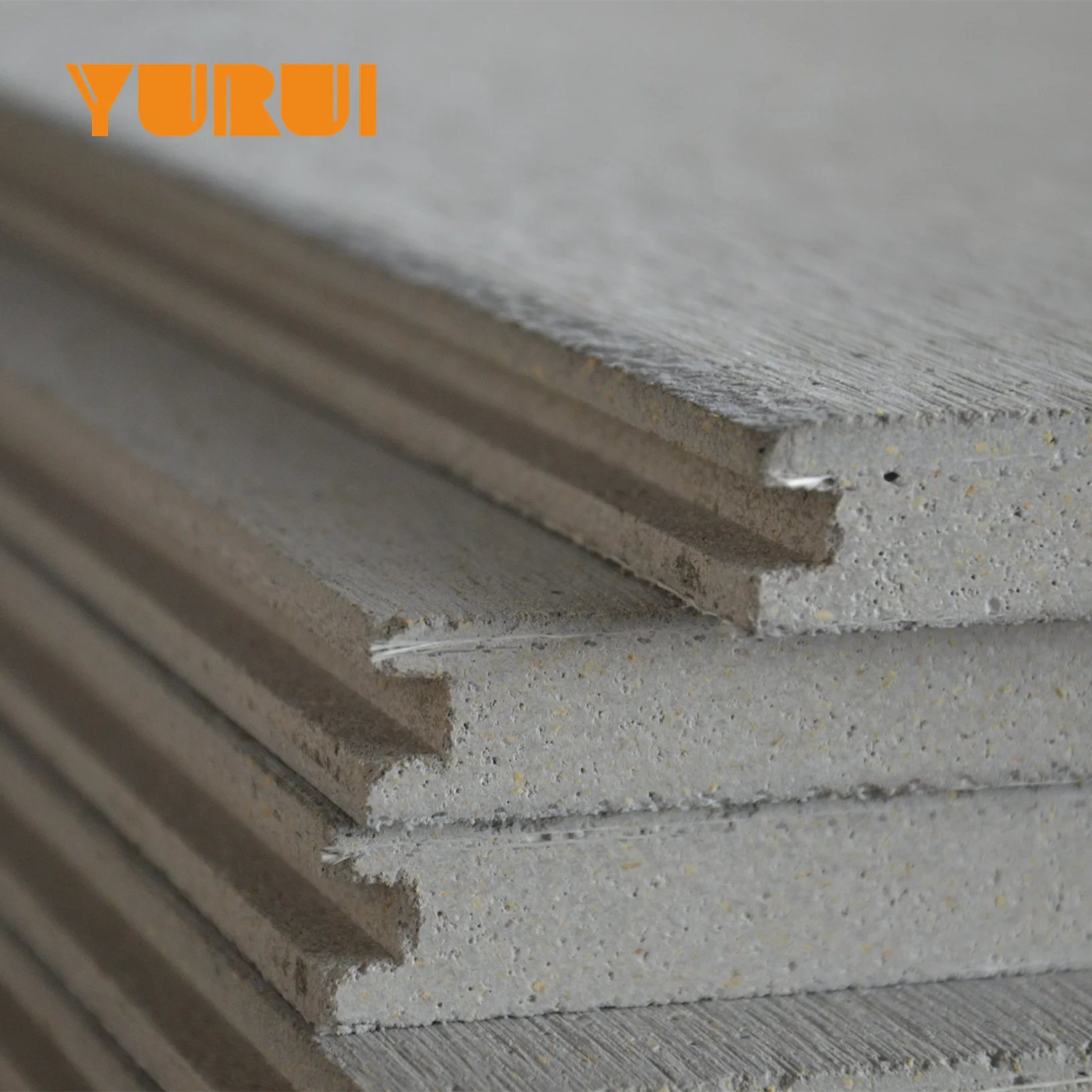

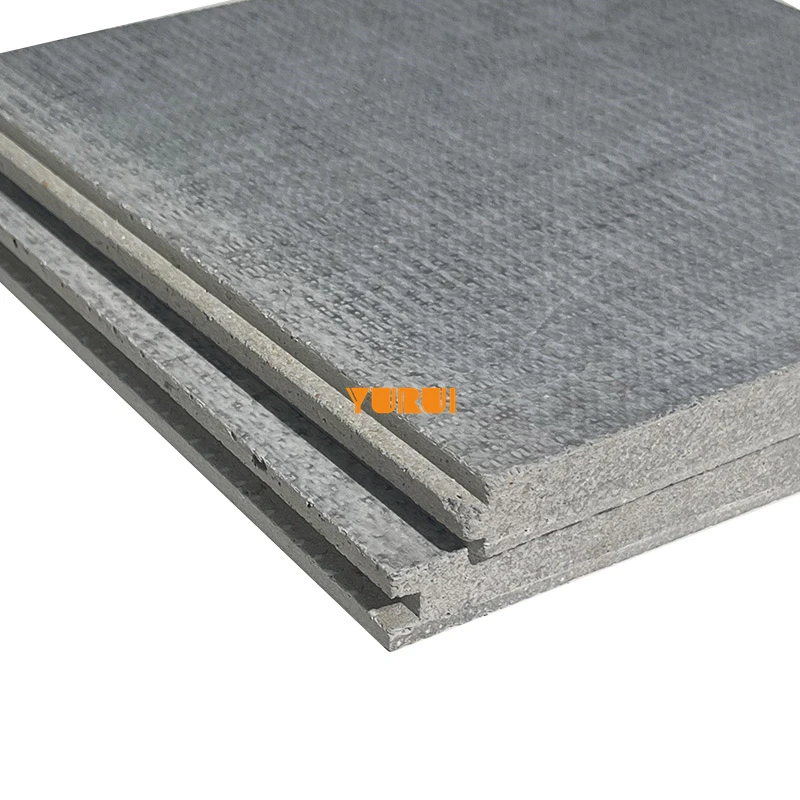

Eco Friendly Magnesium Oxide Board Price Mgo Board Fireproof Mgo Eps Sandwich Panel
- Category: >>>
- Supplier: Yurui (shandong) Machinery Co. Ltd.
Share on (1600604938510):
Product Overview
Description
Product Introduction
What is MgO board ?
Magnesium Oxide Board,also called MgO board, it’s a new multi-purpose building material, mainly made of MgO powder and magnesium
sulfate or magnesium chloride. MgO board gains its strength and resistance from very strong bonds between magnesium and oxygen
atoms that form magnesium oxide crystals (with the chemical formula MgO). MgO board is a mineral based green building material.
MgO board has high moisture resistance and repels mold, mildew and other fungal health hazards. This also means no warping,
swelling, or rot when exposed to water or other elements. Because it is resistant to extreme cold or heat, construction can take
place in virtually any environment, at any time, and in any season.
sulfate or magnesium chloride. MgO board gains its strength and resistance from very strong bonds between magnesium and oxygen
atoms that form magnesium oxide crystals (with the chemical formula MgO). MgO board is a mineral based green building material.
MgO board has high moisture resistance and repels mold, mildew and other fungal health hazards. This also means no warping,
swelling, or rot when exposed to water or other elements. Because it is resistant to extreme cold or heat, construction can take
place in virtually any environment, at any time, and in any season.
size | thickness | color /edge |

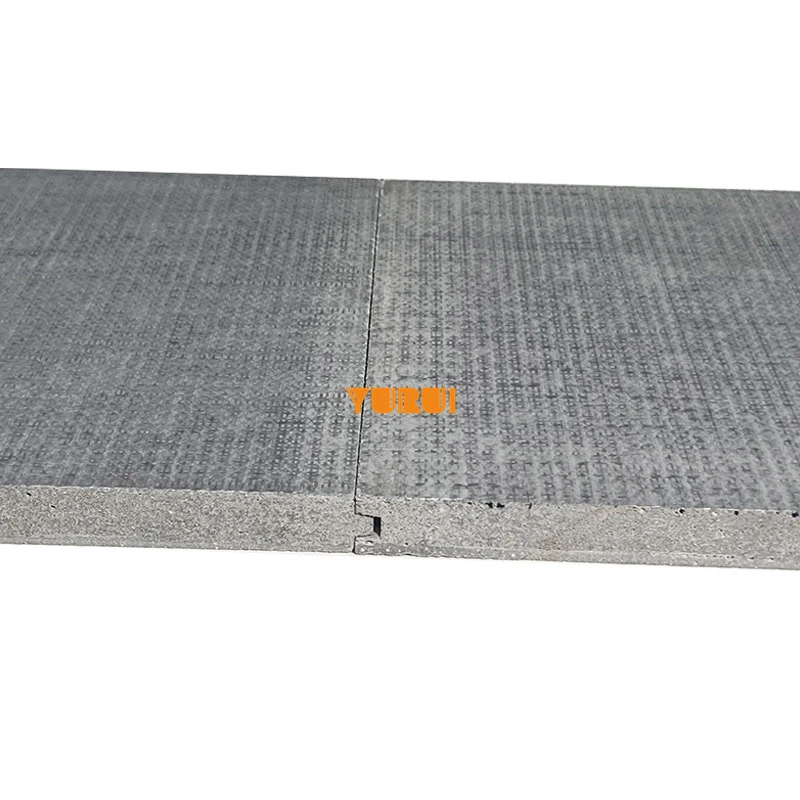

1220*2440 mm | 3-25mm | White(natural color), gray, green, brown ; T&G, L shiplap, Tapered edge, Square. |
1220*2700 mm | Popular: 6/8/10/12/18/19/20 mm | White(natural color), gray, green, brown/ T&G, L shiplap, Tapered edge, Square. |
1220*3050 mm | 3-25mm | White(natural color), gray, green, brown/ T&G, L shiplap, Tapered edge, Square. |
Why choose MgO
Extraordinary Fire performance is the most striking superiority of MgO board.
Spread of Fire Without MgO “ResCom” Firewall Sheating
MgO Corp “ResCom” Firewall Sheating System Provides Protection Against the Spread of Fire
We do the test and got the data as follow.Ite asily achieve 90 min fire performance with 10mm MGO board and 120min fire performance with 12mm MGO board.
thickness | Single panel performance | Single panel on stud | Single panel either of stud: System excl acoustic requirements |
10 mm | 60 mins | Non-loadbearing wall-60/60 Loadbearing wall-60/60/60 | Non-loadbearing wall-60/60 Loadbearing wall-60/60/60 (Thermal insulation required in ceiling cavity ) |
10 mm | 90mins | Non-loadbearing wall-90/90 Loadbearing wall-90/90/90 | Non-loadbearing wall-90/90 Loadbearing wall-90/90/90 (Thermal insulation required in ceiling cavity ) |
12 mm | 120 mins | Non-loadbearing wall-120/120 Loadbearing wall-120/120/120 | Non-loadbearing wall-120/120 Loadbearing wall-120/120/120 (Thermal insulation required in ceiling cavity ) |
14 mm | 180 mins | Non-loadbearing wall-180/180 Loadbearing wall-180/180/180 | Non-loadbearing wall-180/180 Loadbearing wall-180/180/180 (Thermal insulation required in ceiling cavity ) |
15 mm | 240 mins | Non-loadbearing wall-240/240 Loadbearing wall-240/240/240 | Non-loadbearing wall-240/240 Loadbearing wall-240/240/240 (Thermal insulation required in ceiling cavity ) |
18 mm | 120 mins | Non-loadbearing wall120/120 Loadbearing wall-120/120/120 | Non-loadbearing wall120/120 Loadbearing wall-120/120/120 (Thermal insulation required in ceiling cavity ) |
Is there any other superiority of MgO Board? ——Of cause, multiple as follow:

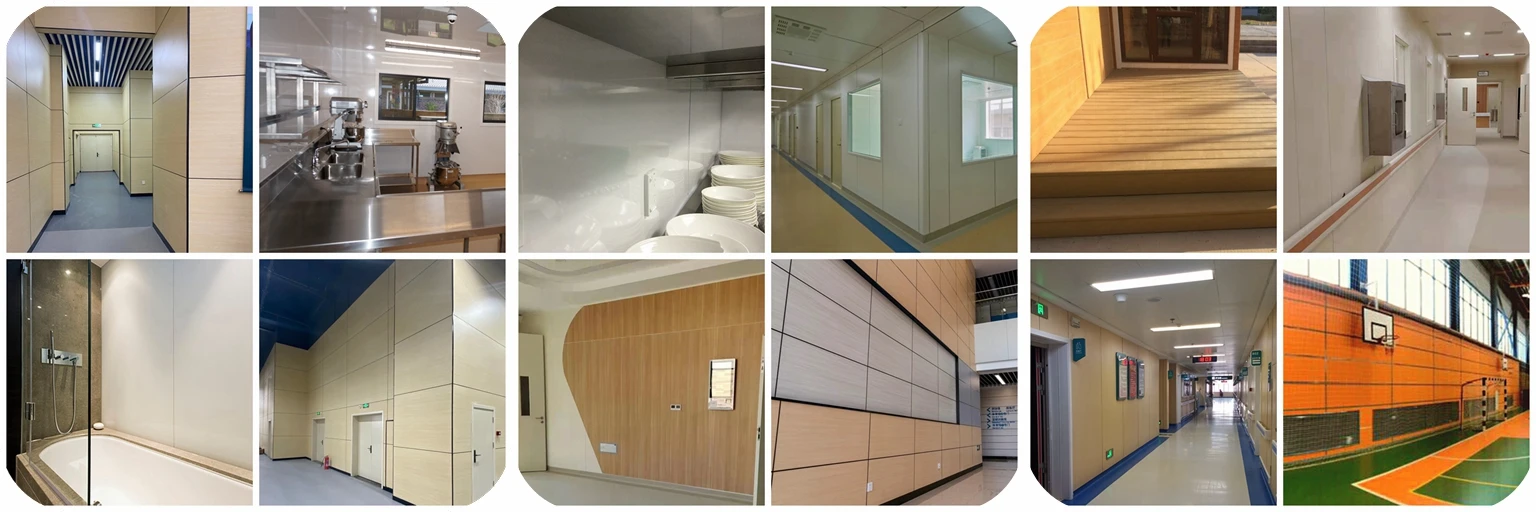

MgO multi-application
Where could use MgO board?
* Homes
* Theaters
* Offices
* Building shafts
* Schools
* Gyms
* Data centers
* Warehouses
* Libraries
* Equipment shelters
* Modular buildings
* Theaters
* Offices
* Building shafts
* Schools
* Gyms
* Data centers
* Warehouses
* Libraries
* Equipment shelters
* Modular buildings
Indoor usage:
*Structural floors
* Structural walls
* Fire-rated walls
* Ceilings
* Subflooring
* Backerboard for tile
* Stairways
* Corridors
* Drop ceiling tiles
* Cubicle walls
* Structural walls
* Fire-rated walls
* Ceilings
* Subflooring
* Backerboard for tile
* Stairways
* Corridors
* Drop ceiling tiles
* Cubicle walls

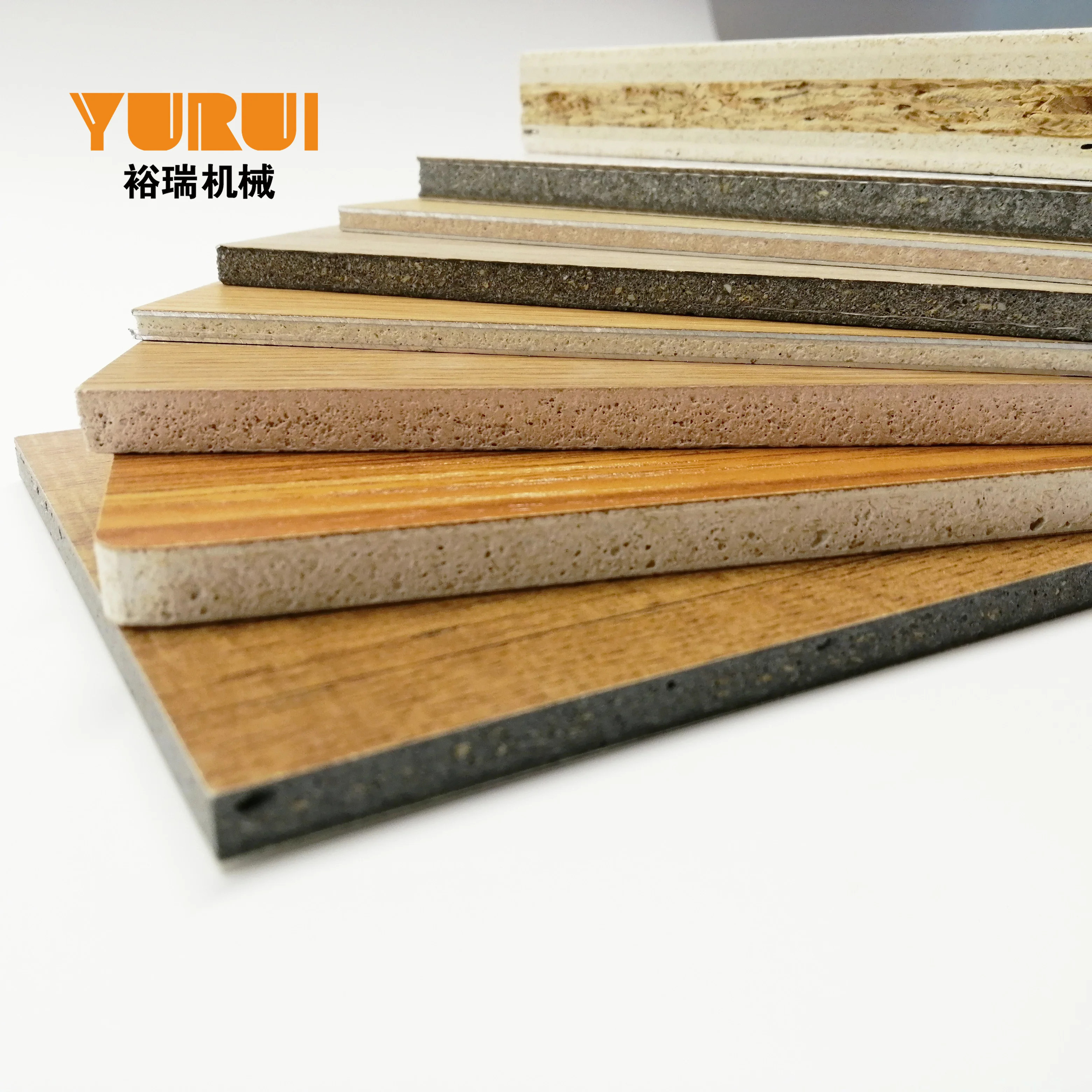

Different type MgO board for choice
Standard board
Common MgO Board. This is the standard MgO board, it has a smooth surface and rough backside. It is widely used in decoration and construction. Because of its nice fireproof performance and much stronger than the gypsum board, it is very popular for replacing the gypsum board.
Sanding board
Sanding MgO Board. This is a premium quality MgO board, it has a very smooth surface and sanded backside. Because the production process is difference from the common MgO board, the price is higher than the common MgO board. Its backside has been sanded, so the thickness tolerance is very small. Many customers use this for deep process, such as combine with decorative paper into a new material.
Floor MgO board

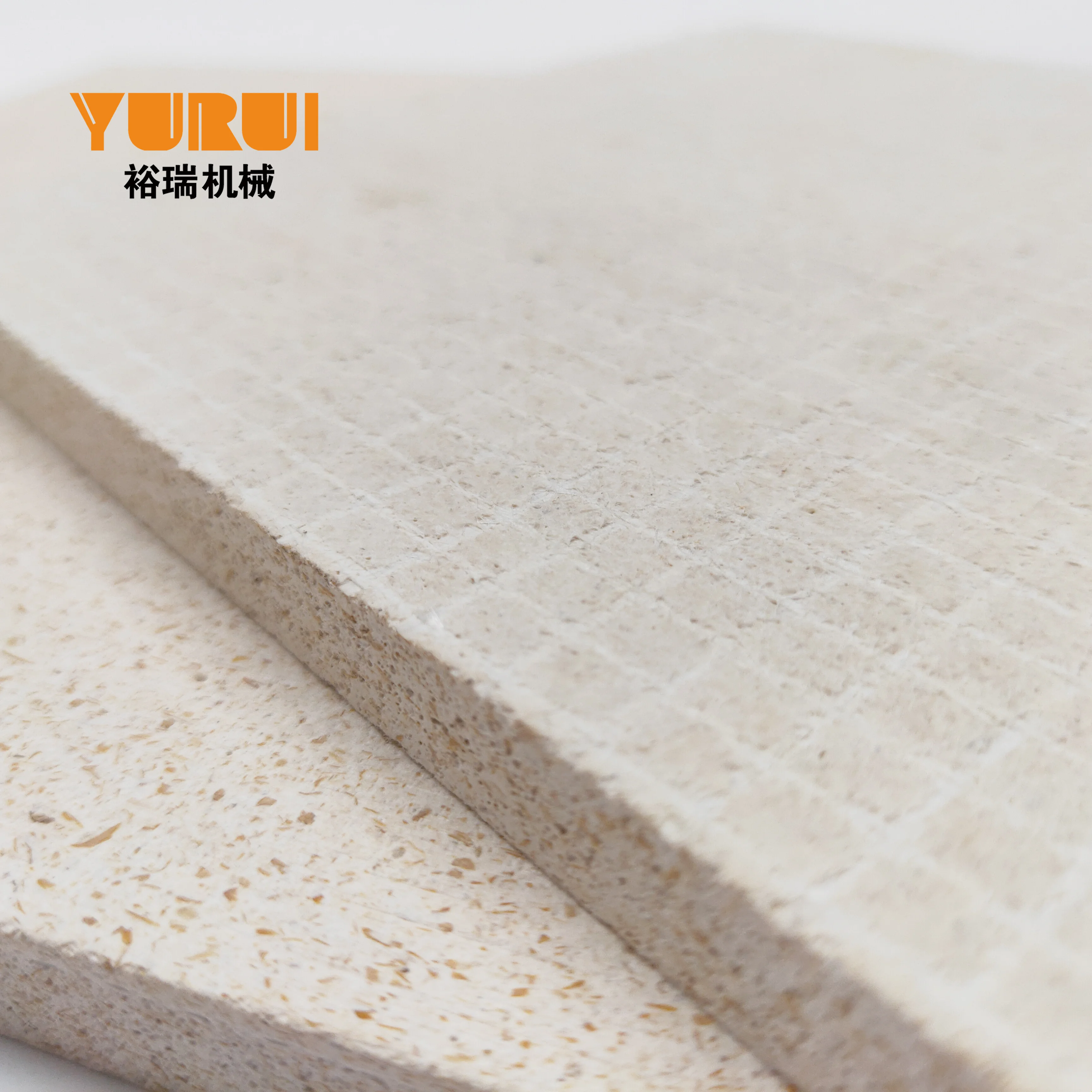

This kind MgO board is specially designed for the projects need high strength performance. For examples, floorings. To this board,we use over 6 layers high strength fiberglass mesh. Also, we chose a very nice glue coated fiberglass mesh. This mesh is much
longer working life and stronger than the common mesh.The bending strength of this board could reach 20MPa of 18mm.
longer working life and stronger than the common mesh.The bending strength of this board could reach 20MPa of 18mm.
Laminated MgO board
Now in our factory, we could provide the HPL laminated MgO board and melamine paper laminated MgO board.
This board combines the HPL/melamine paper on the Sanding MgO board. So, it has both the advantaged of the HPL/Melamine and the MgO board. Fireproof, high strength, waterproof and easy to clean.
Why Choose Us
222
- Deeply study MgO board and production machinery for 25+years,own top technique.
- Engineers and workers own tens years experience and professional technology.
- Equipped with high automatic production line,ensure standard and consistent processing.
- Regularly trained to improve standard operation and security.
- Strict QC system and implement
- Professional and considerate after-sales service
- Enough capacity to ensure delivery time
- Engineers and workers own tens years experience and professional technology.
- Equipped with high automatic production line,ensure standard and consistent processing.
- Regularly trained to improve standard operation and security.
- Strict QC system and implement
- Professional and considerate after-sales service
- Enough capacity to ensure delivery time
