Warehouse CAT5 UTP 0.5MM 0.56MM Ready to ship cable network
- Category: Communication Cables >>>
- Supplier: Huizhou,Adp,Optical,Communications,Co.,Ltd.
Share on:
Product Overview
Description

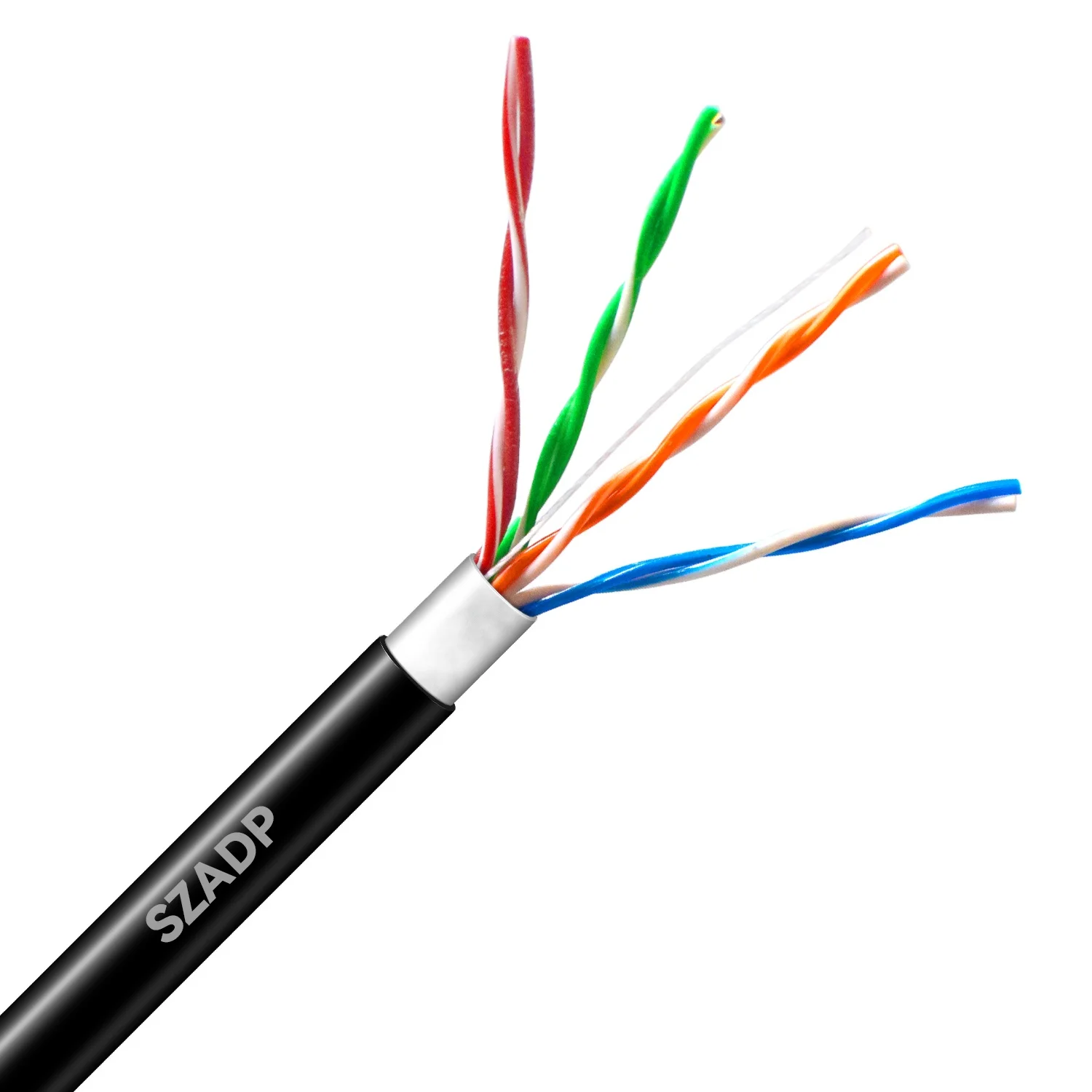

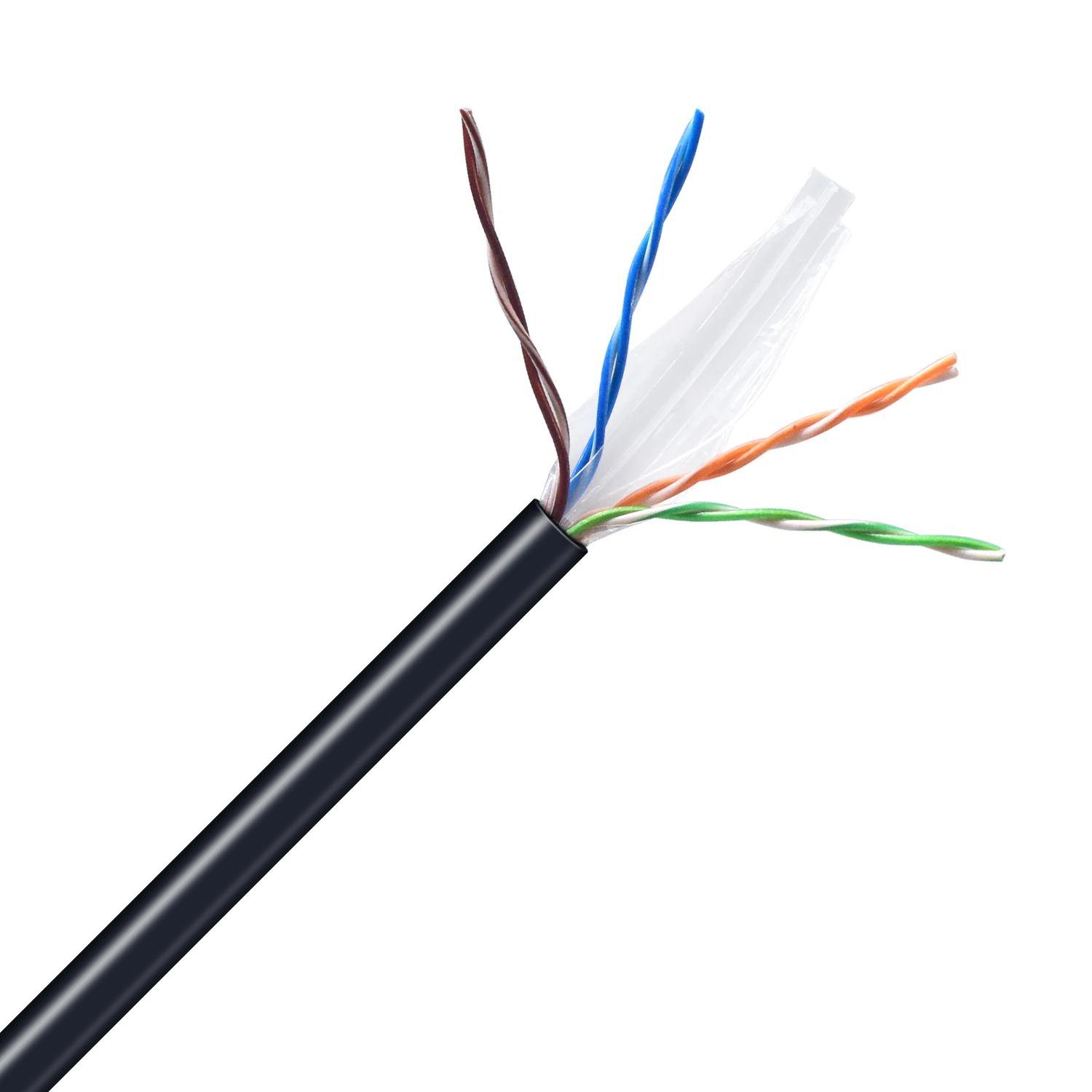

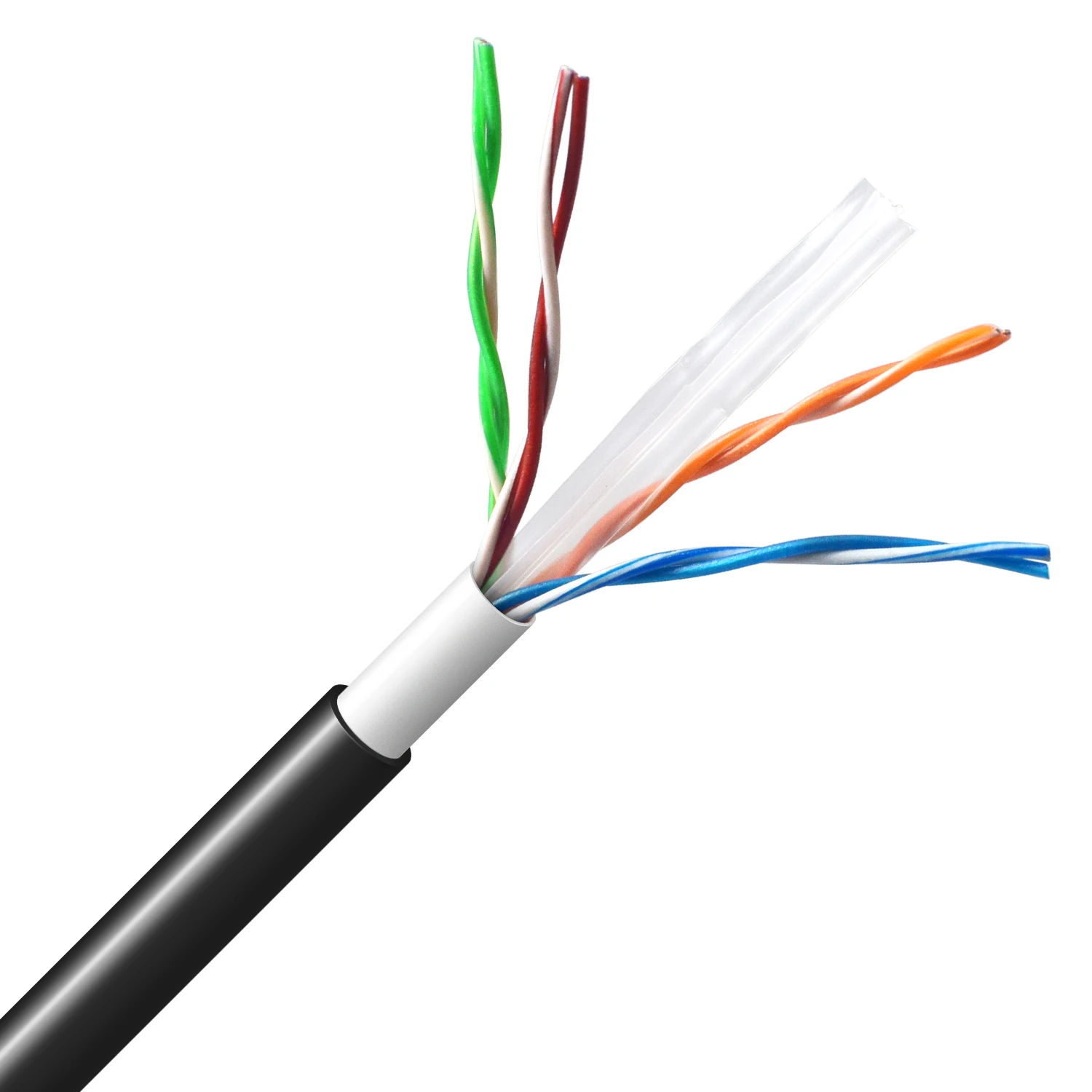

UTP Lan Cable
Cable type and number of pairs: cable UTP (unshielded twisted pair -- unshielded twisted pair) to the internal pads, 4 pairs (solid),
Electrical Performance:
1.0-100.0MHZ Impendance(ohms)100±15
1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
Pair to ground Capacitance Unbalance(PF/100M)330 Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%) 5
Test object : jacket
Test material: PVC
Before Tensile Strength(Mpa)≥13.8
Aging Elongation(%)≥100
Aging condition(C xhrs) 100*240
After tensile strength(Mpa)≥85% of unaged
Aging Elongation(%)≥50% of naged
Cold bend(-20±2℃*4hrs) No crock
1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
Pair to ground Capacitance Unbalance(PF/100M)330 Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%) 5
Test object : jacket
Test material: PVC
Before Tensile Strength(Mpa)≥13.8
Aging Elongation(%)≥100
Aging condition(C xhrs) 100*240
After tensile strength(Mpa)≥85% of unaged
Aging Elongation(%)≥50% of naged
Cold bend(-20±2℃*4hrs) No crock
Cable data:
Conductor:Solid bare copper
AWG:24
Conductor Dia(mm):0.51
Insulation:PE
Average Thickness(9±0.03mm):0.20
Min Point Thickness:0.17
Insulation Dia(±0.03mm):0.91
Twistiing lay length(mm):30 undemeath
Cabling lay length(mm):200 undemeath
Jacket:PCV
Average Thickness:0.5
Min Point Thickness:0.43
Qutor Dia(i1.0mm):5.1
Rip Cord:YES
Weight Nom(kg/km):32
Core Color:Blue-white/nlue,Orange-white/orange
Green_white/green,Brown_white/brown
Specification of cat6 network cable
1)Conductor: 23AWG 24AWG or 26AWG Solid/Stranded Cooper,CCA,CCS, etc
2)Jacket: PVC or LSOH PVC lan cable
3)Insulation: Color coated 4 Pair PE insulation
4)Flammability grade: CMX,CMP,CMR,etc
5)Tear line Inside The Jacket
6)Operating temperature: -20°C - +75 ° C

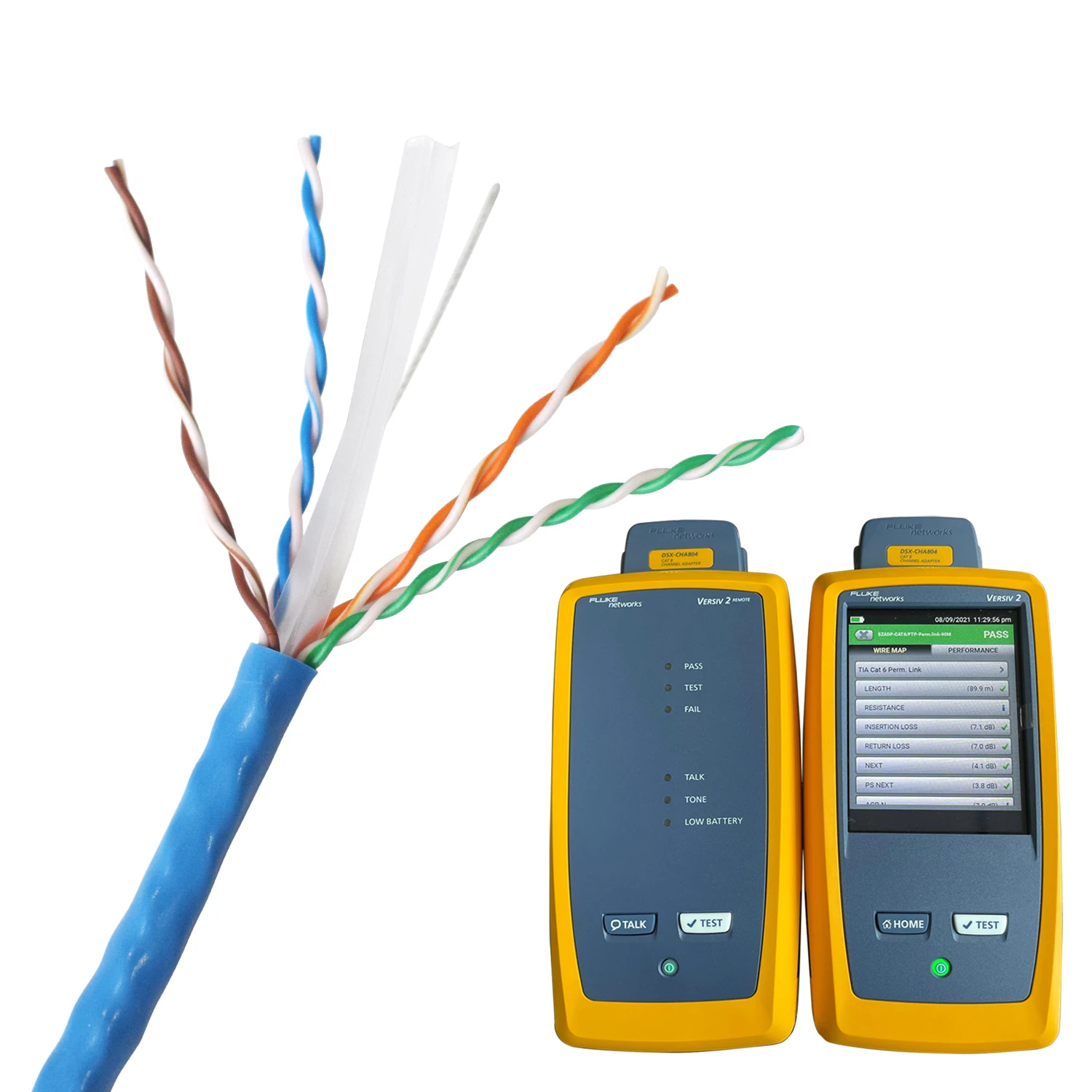

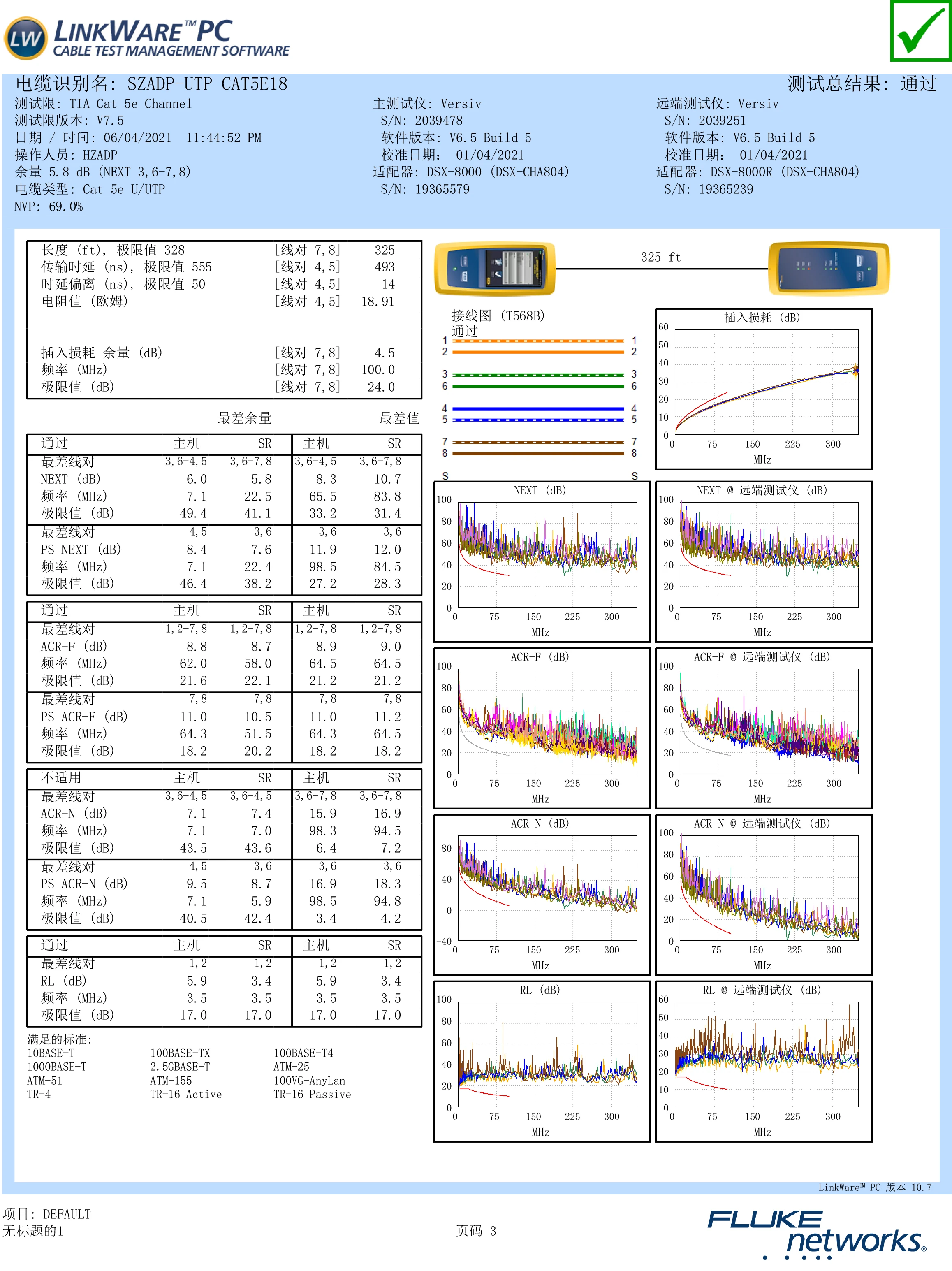

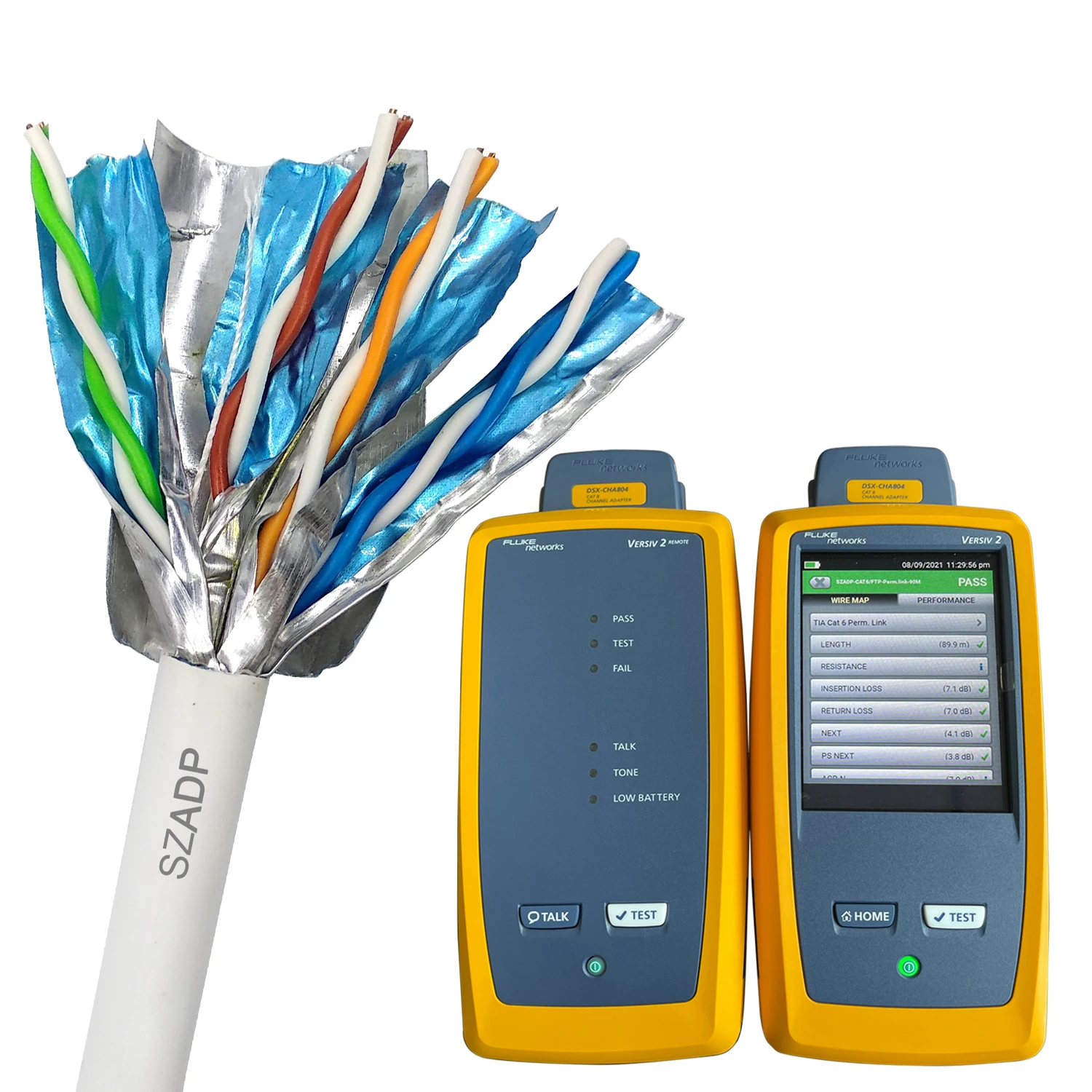

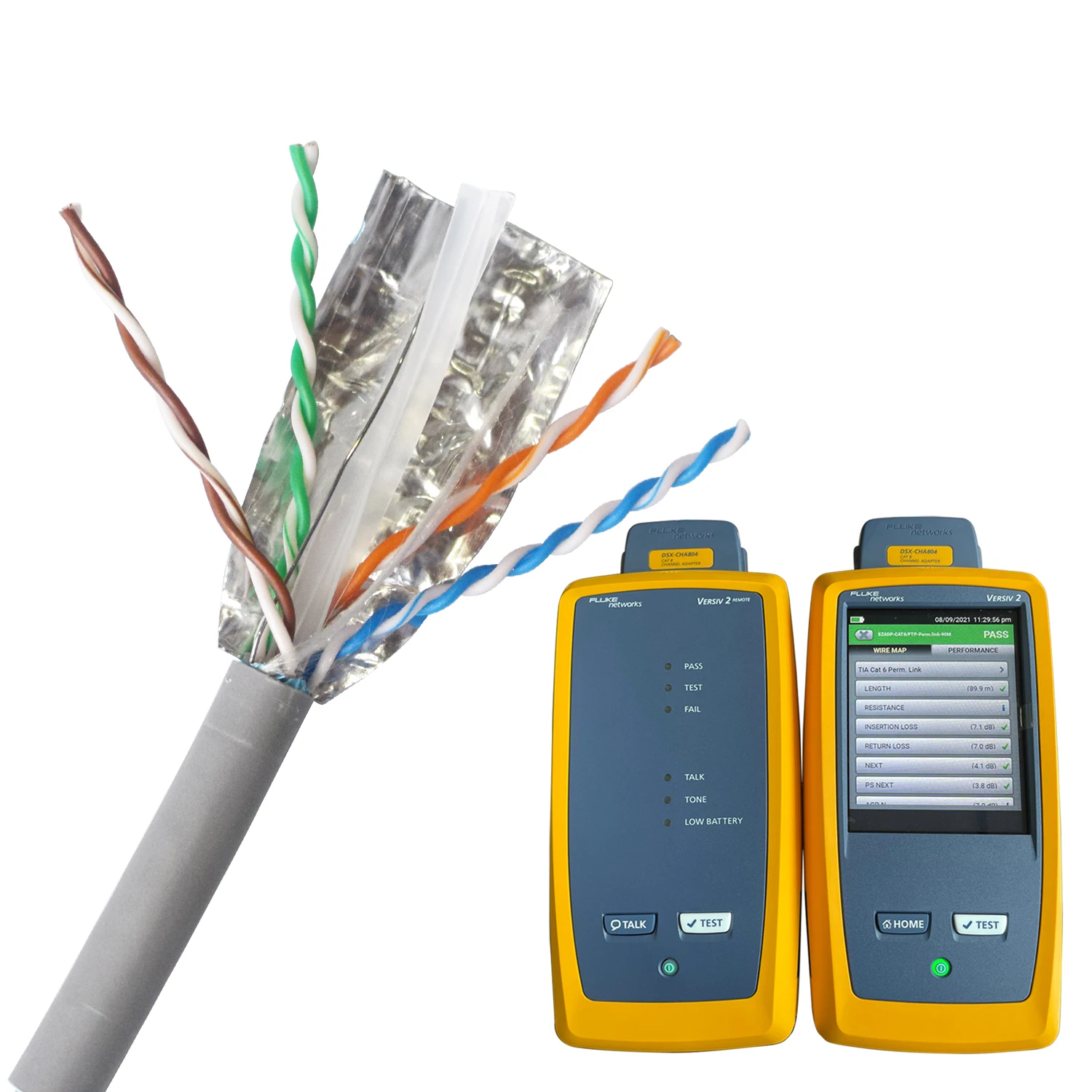

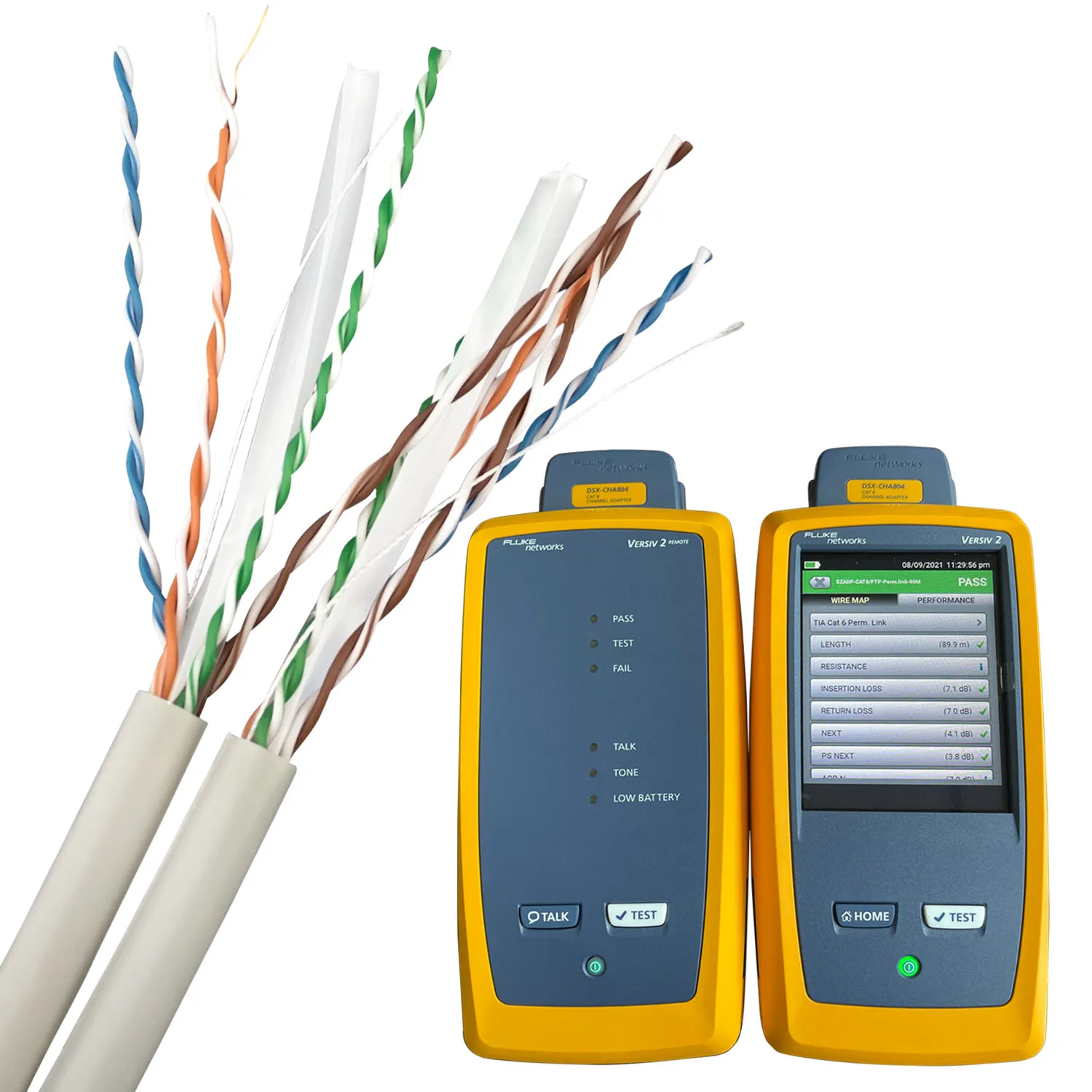

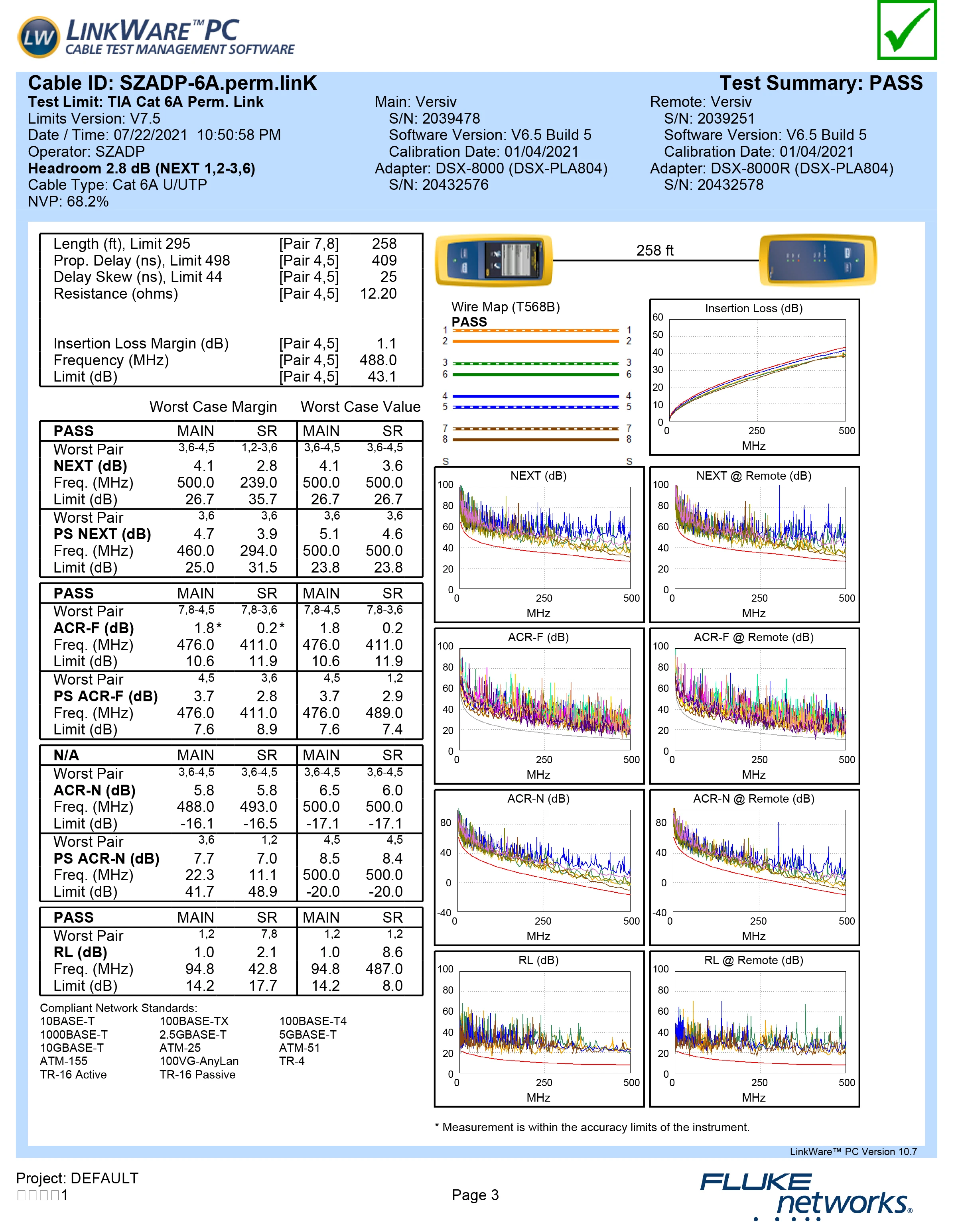

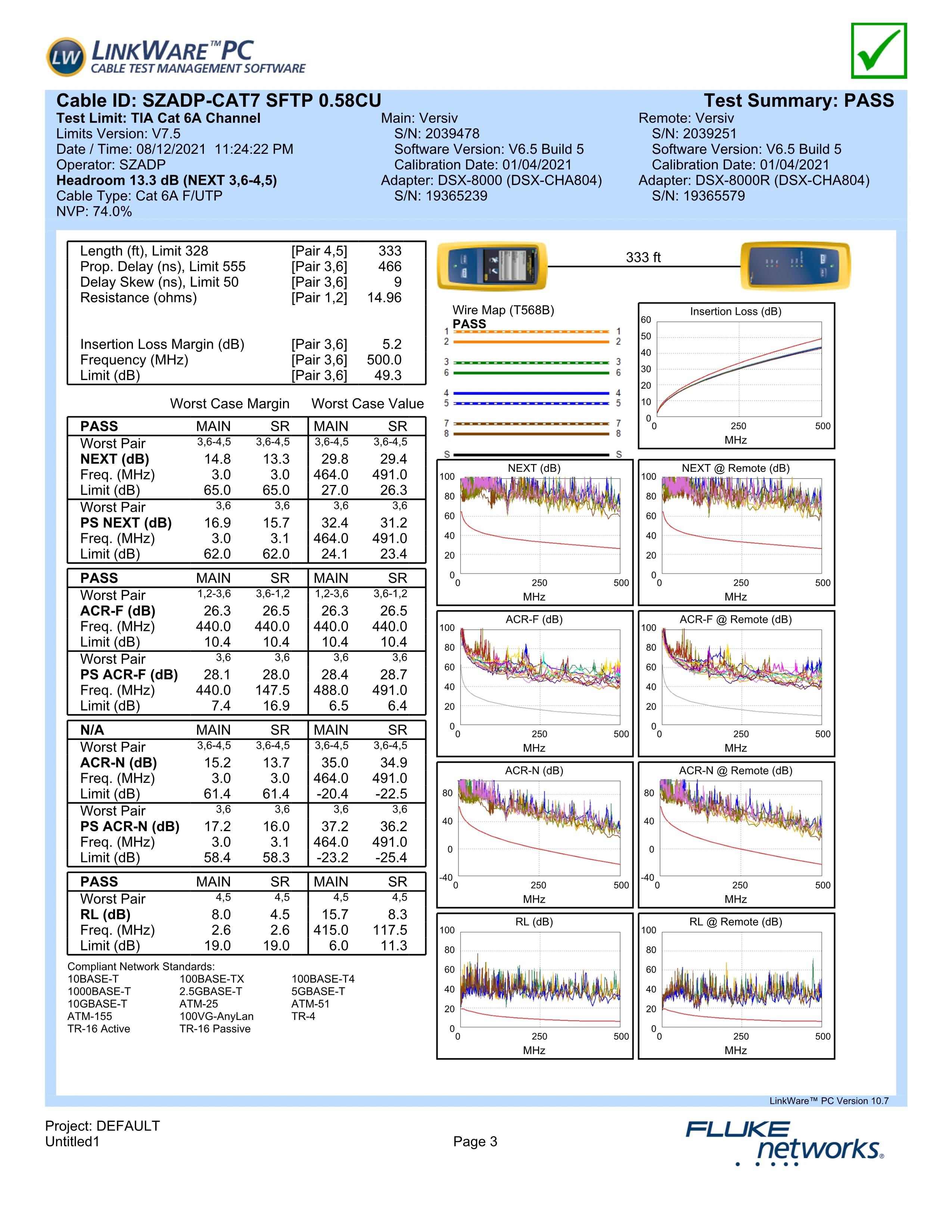

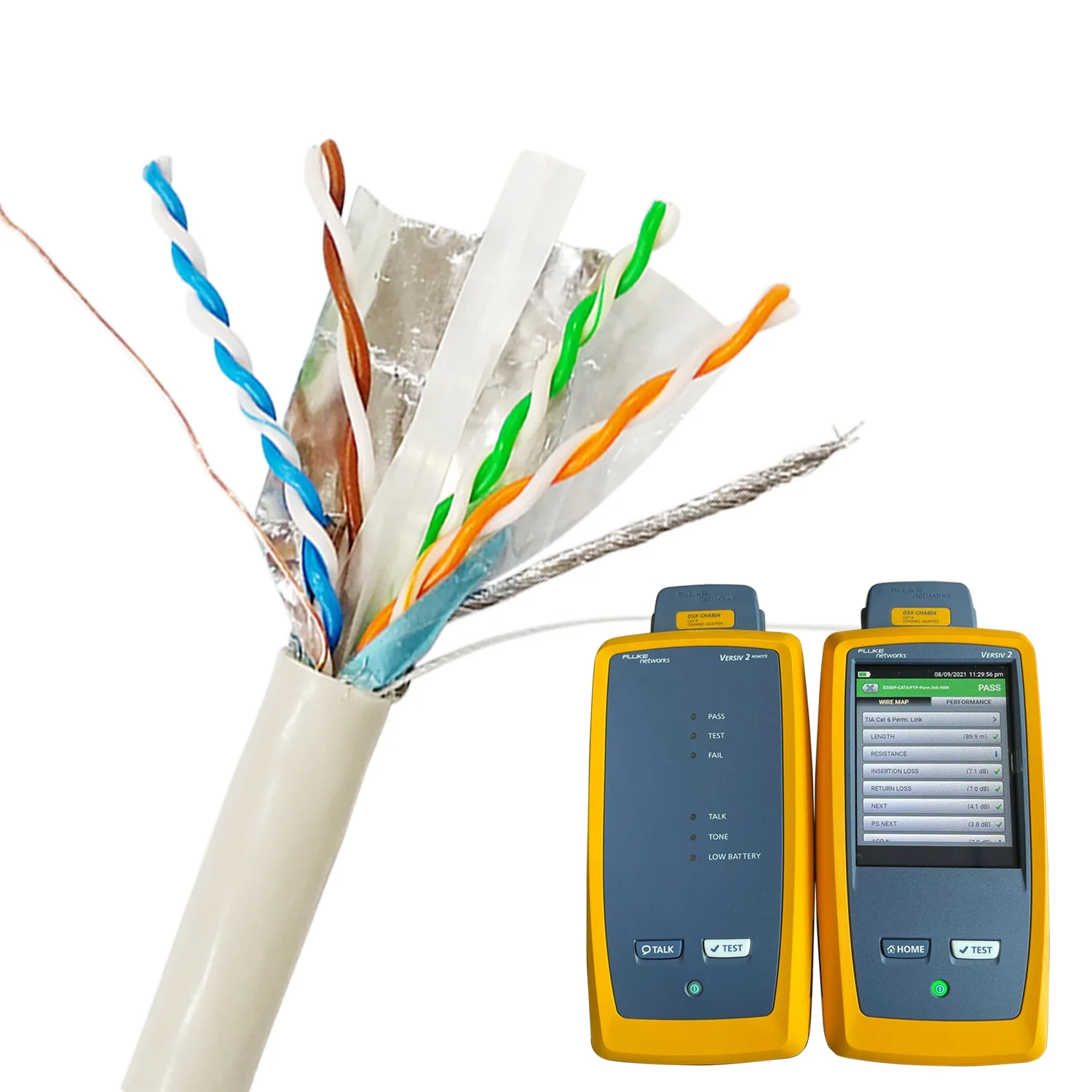

7)FLUKE-4300/DTX-1800 can pass
8)Standard:EIA/TIA-568B,ISO/IEC 11801,ISO9001: 2000,CE,ROHS Can Provide
2)Jacket: PVC or LSOH PVC lan cable
3)Insulation: Color coated 4 Pair PE insulation
4)Flammability grade: CMX,CMP,CMR,etc
5)Tear line Inside The Jacket
6)Operating temperature: -20°C - +75 ° C
7)FLUKE-4300/DTX-1800 can pass
8)Standard:EIA/TIA-568B,ISO/IEC 11801,ISO9001: 2000,CE,ROHS Can Provide
Frequency(MHz) | Character impedance(ohm) | Echo Loss(Db) | Attenuation(dB/100) | Nearedn crosstalk(dB/100m) | Equivalent farend Crosstalk(dB/100) |
0.772 | 100±15 | 19,4 | 1.6 | 76.0 | 70.2 |
1.0 | 20.0 | 1.8 | 74.3 | 68.0 | |
4.0 | 23.0 | 3.7 | 65.3 | 56.0 | |
8.0 | 24.5 | 5.3 | 60.8 | 49.9 | |
10.0 | 25.0 | 5.9 | 59.3 | 48.0 | |
16.0 | 25.0 | 7.5 | 56.2 | 43.9 | |
20.0 | 25.0 | 8.4 | 54.8 | 42.0 | |
25.0 | 24.3 | 9.5 | 53.3 | 40.0 | |
31.25 | 23.6 | 10.6 | 51.9 | 38.1 | |
62.5 | 21.5 | 15.4 | 47.4 | 32.1 | |
100.0 | 20.1 | 19.8 | 44.3 | 28.0 | |
200.0 | 18.0 | 29 | 39.8 | 22.0 | |
250.0 | 17.3 | 32.8 | 38.3 | 20.0 |
Products Show

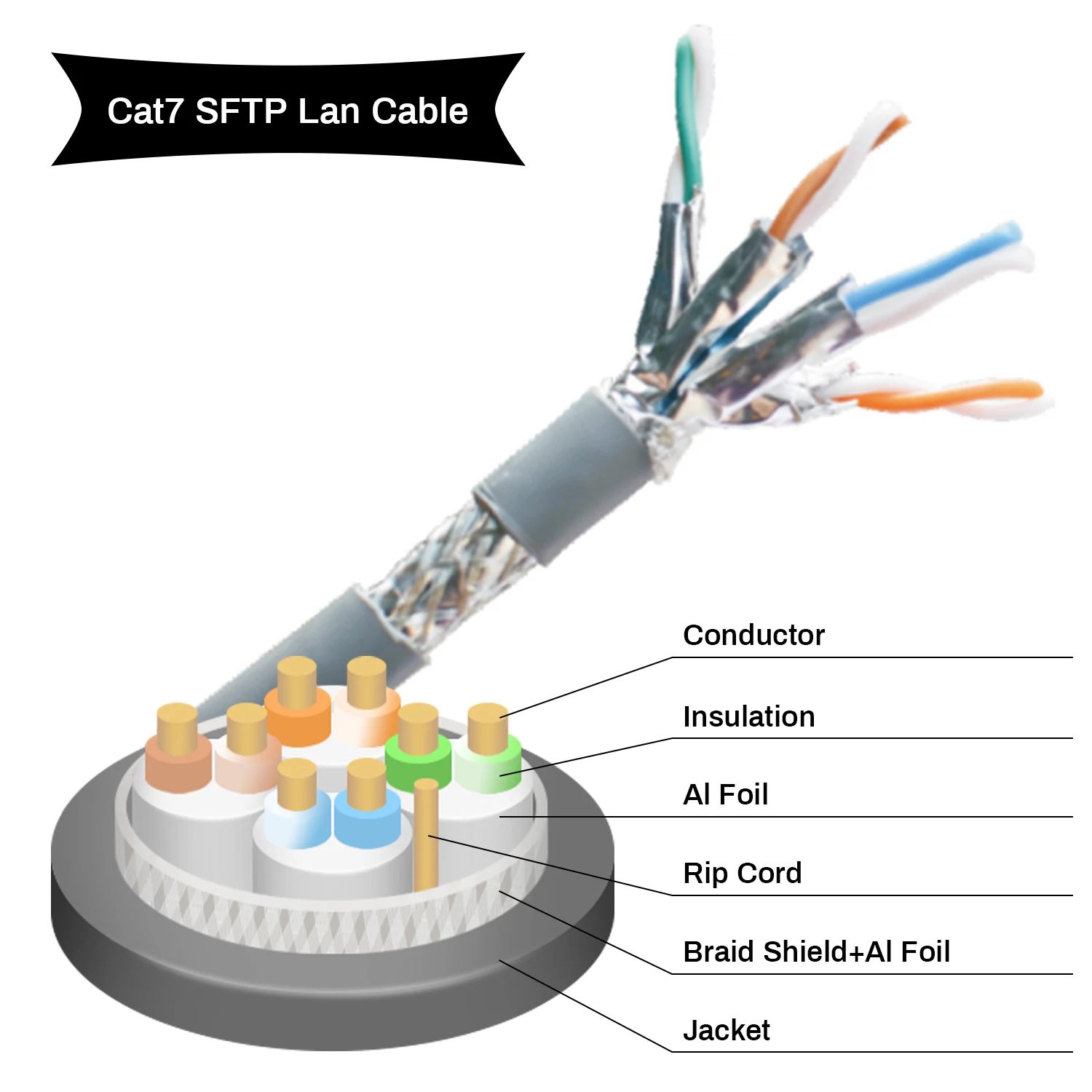

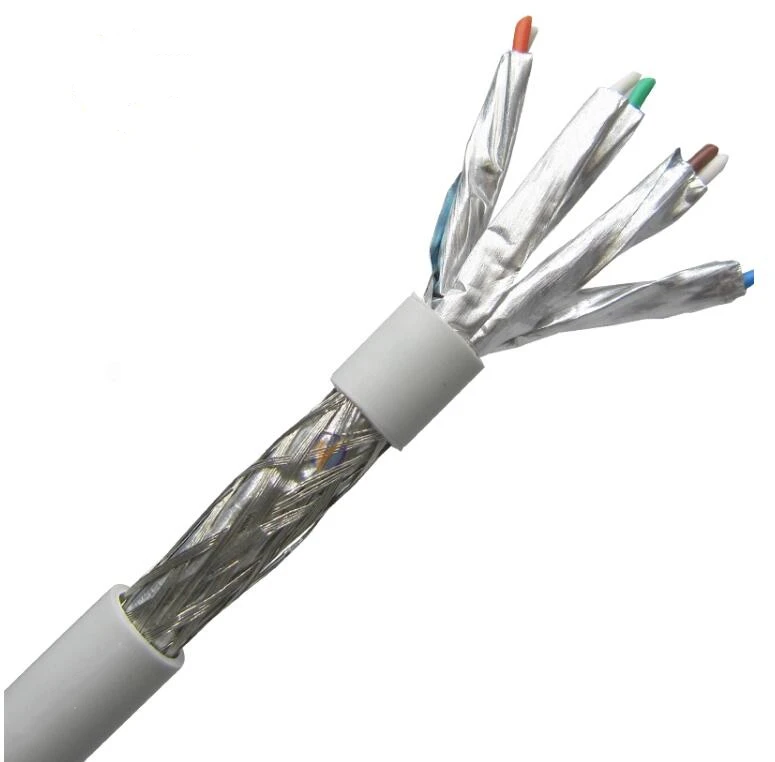

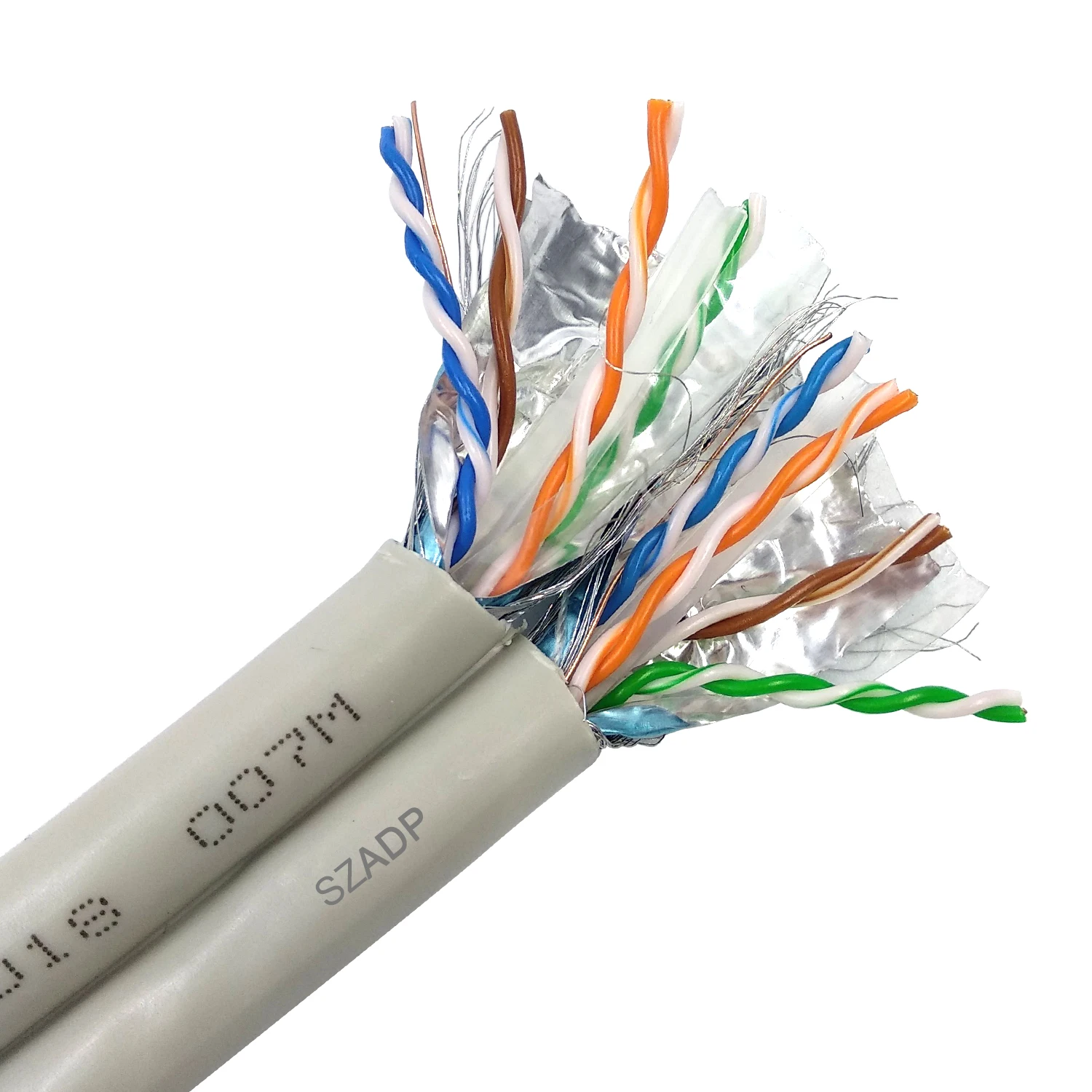

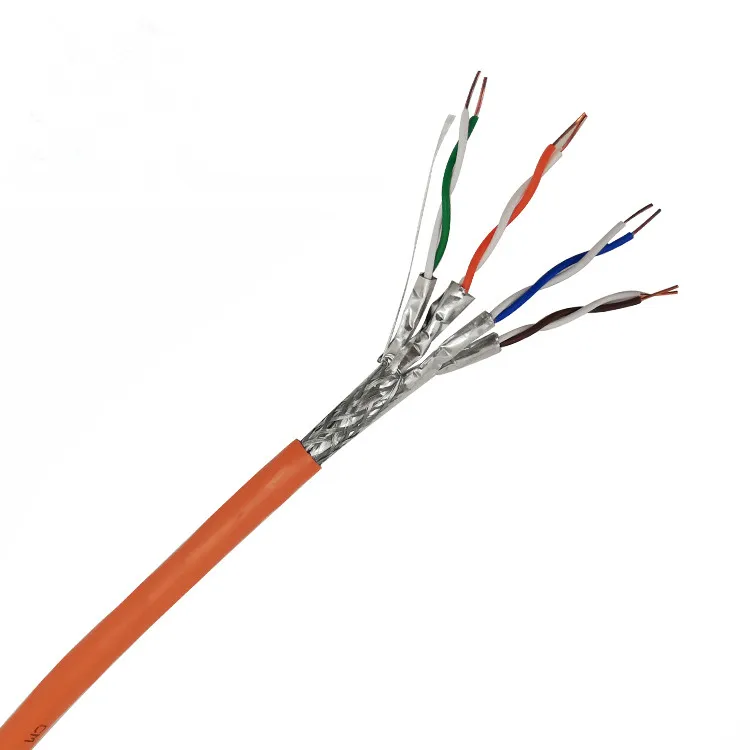

Cat7 SFTP Lan Cable

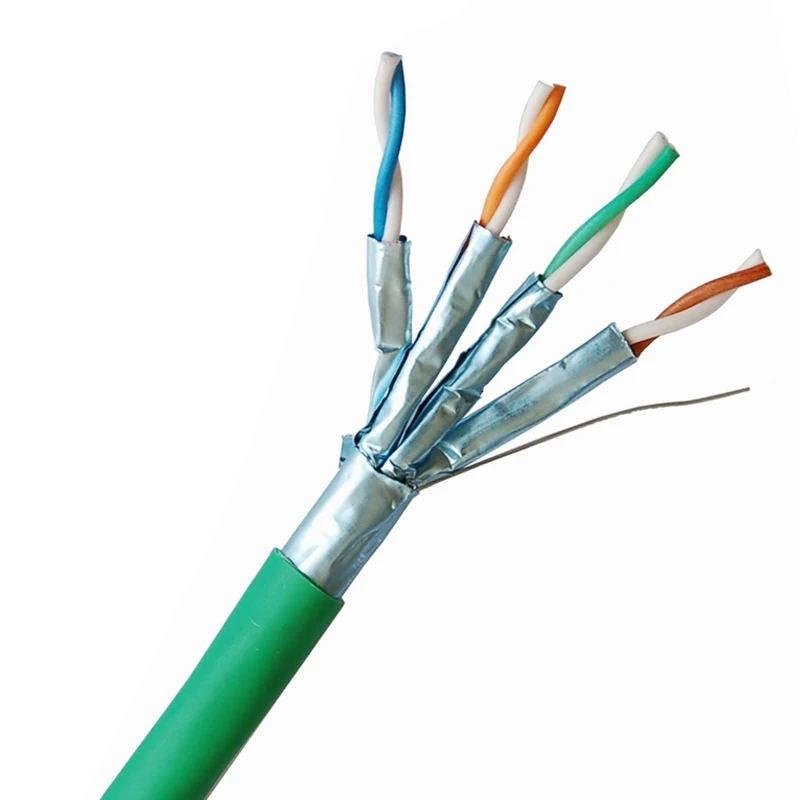

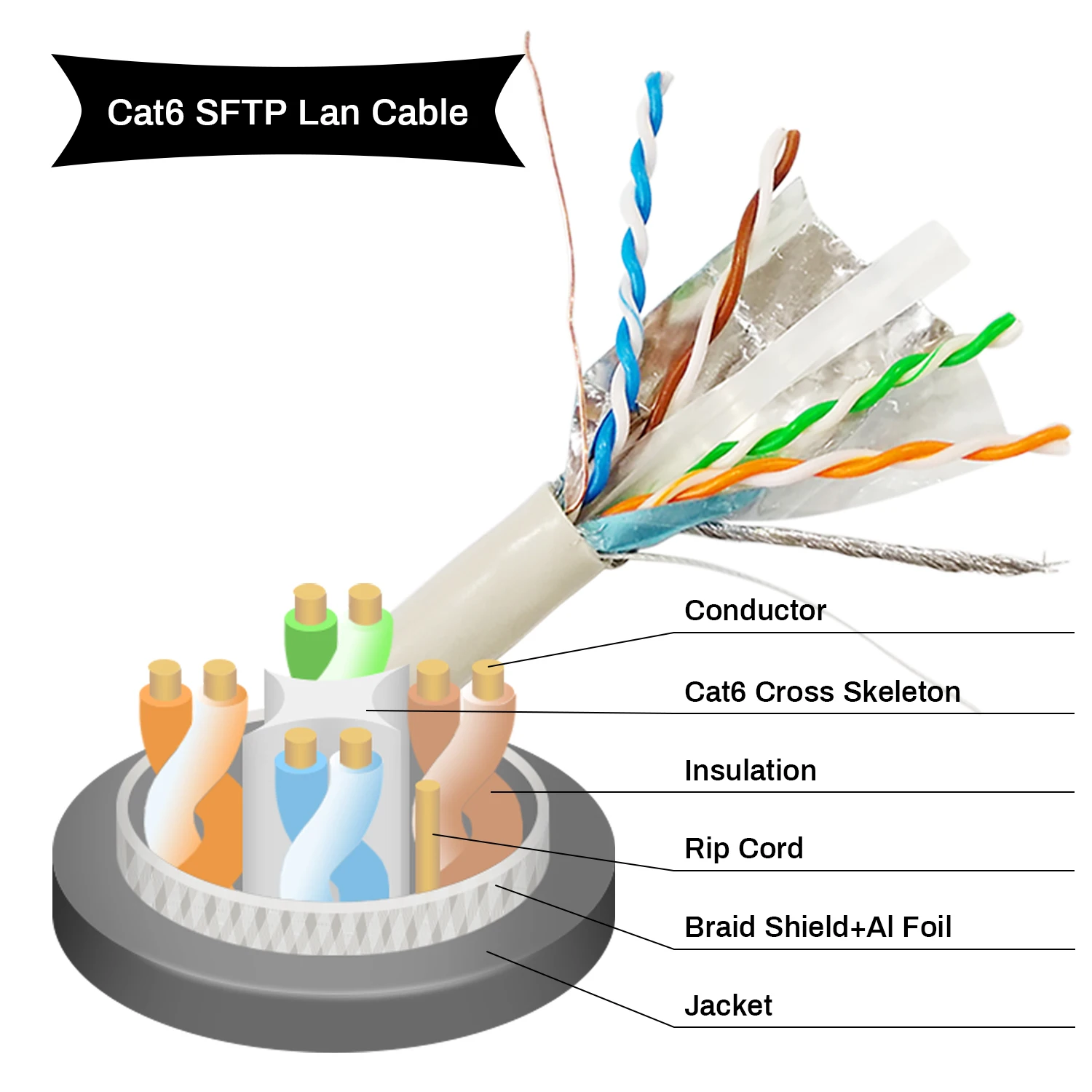

Cat6 SFTP Lan Cable

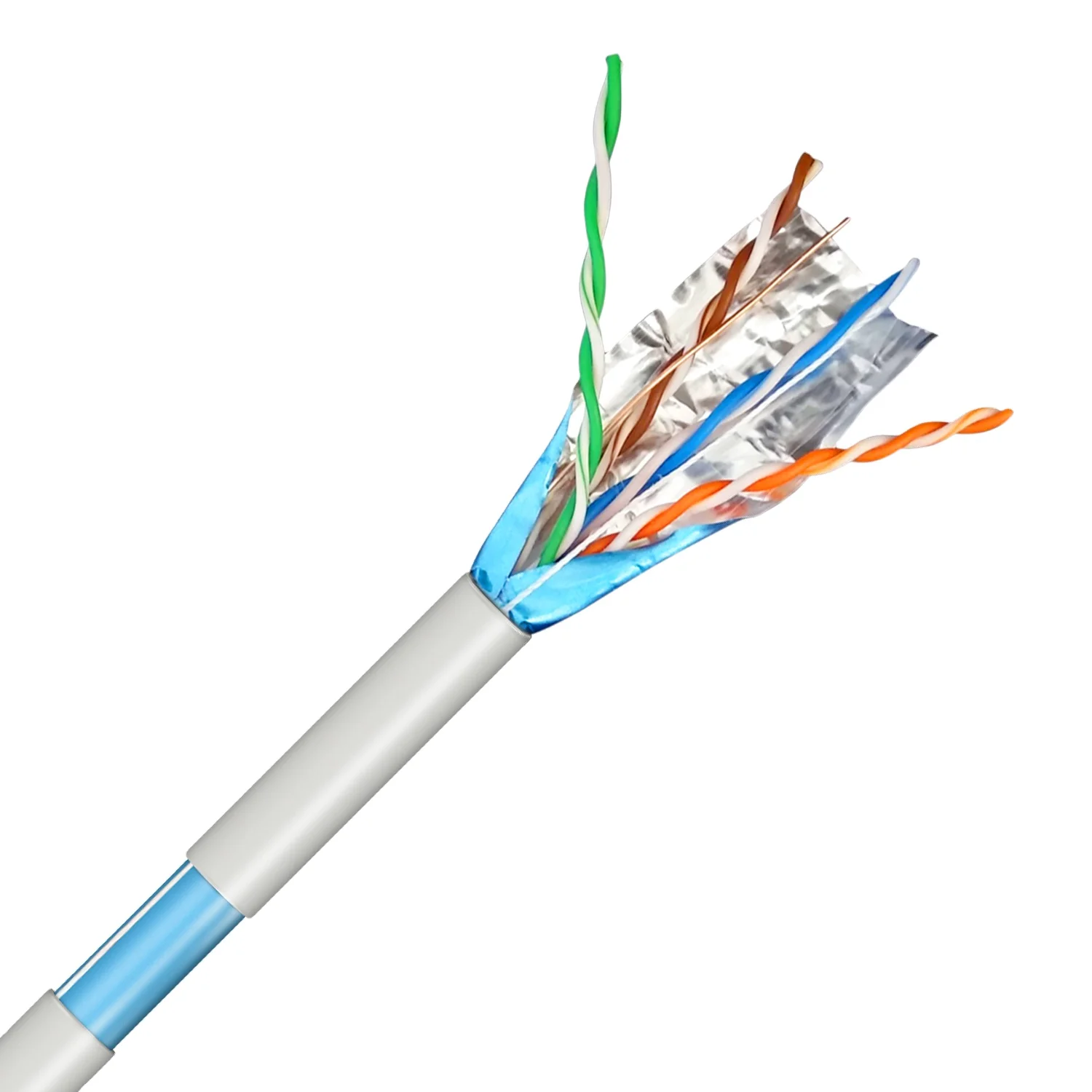

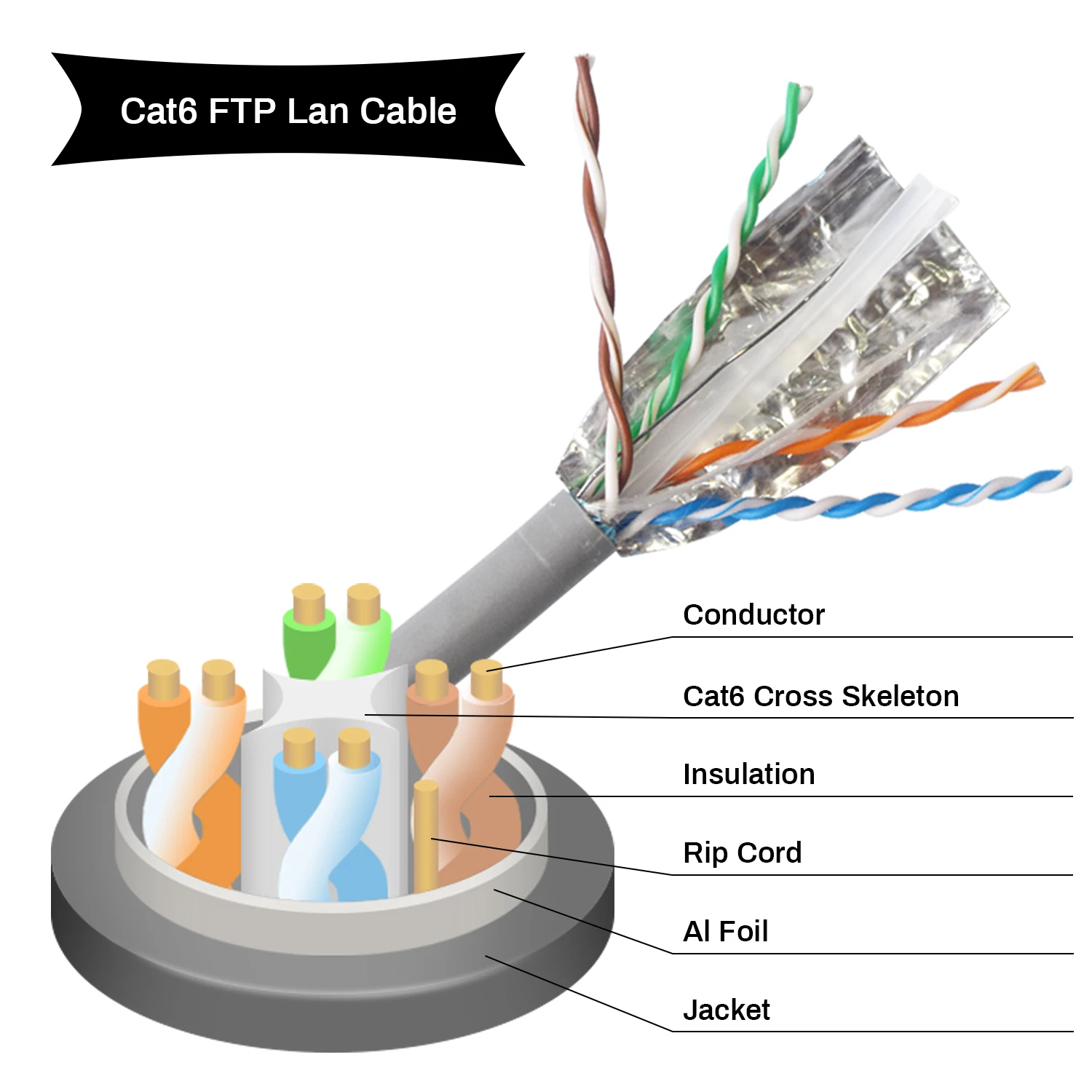

Cat6 FTP Lan Cable

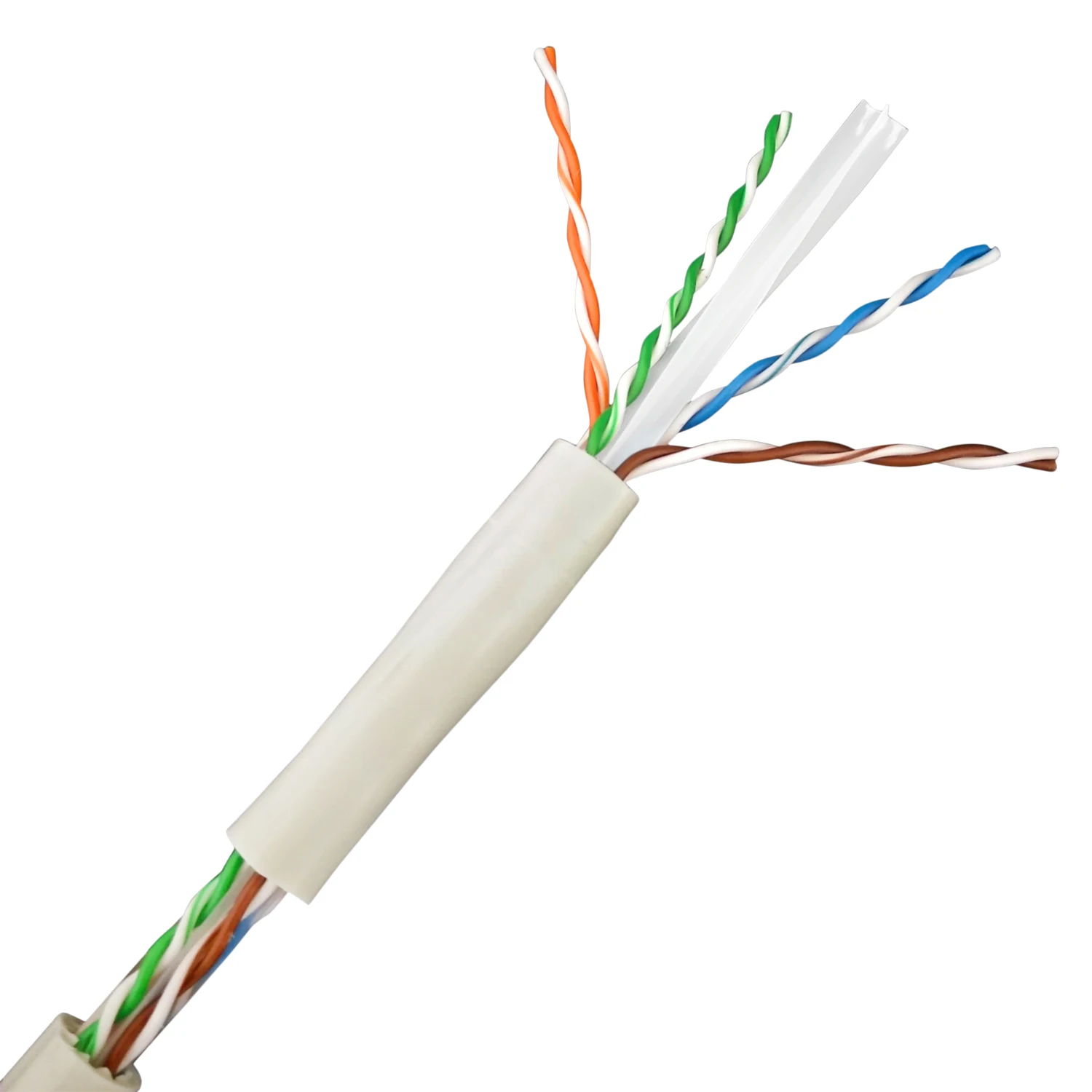

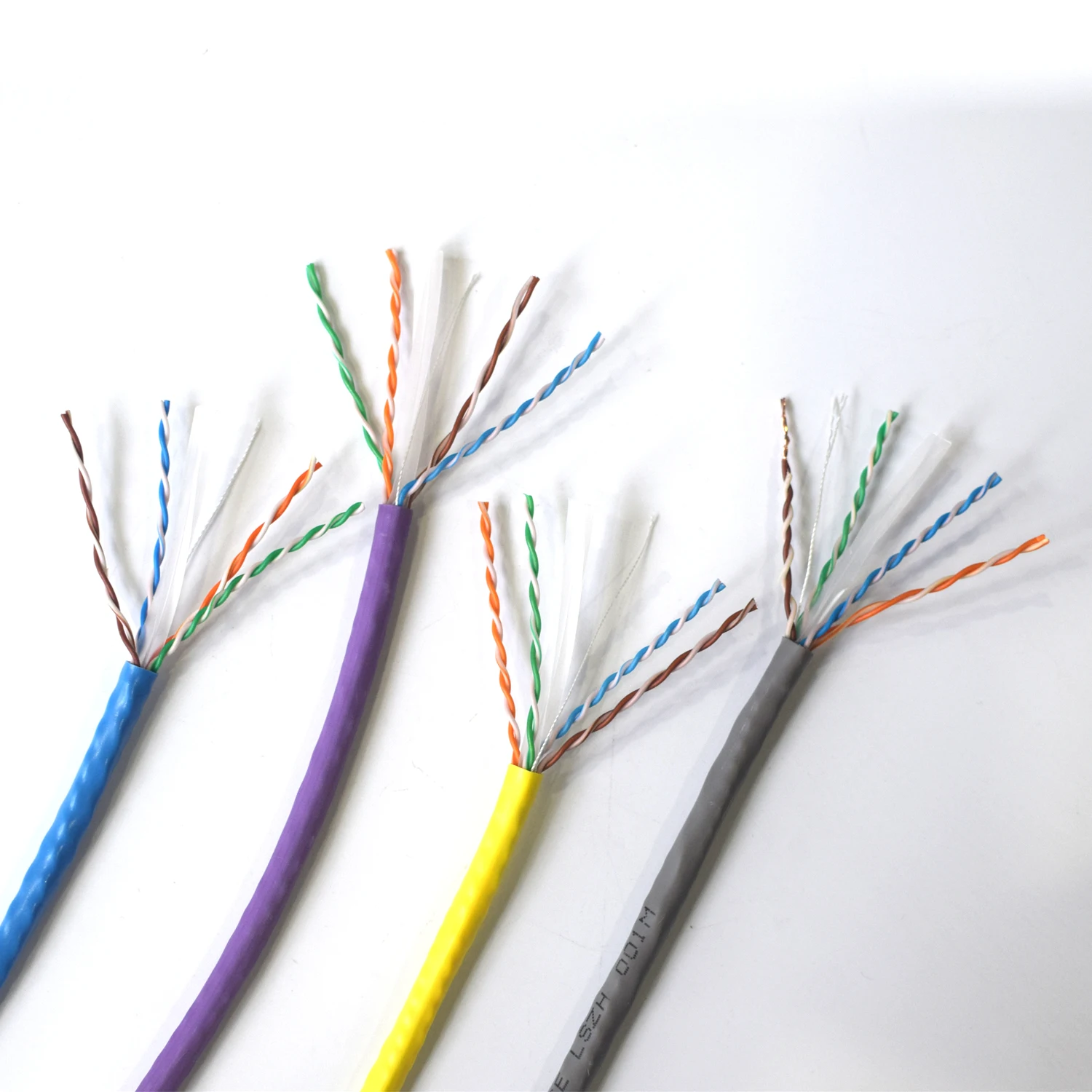

Cat6 UTP Lan Cable

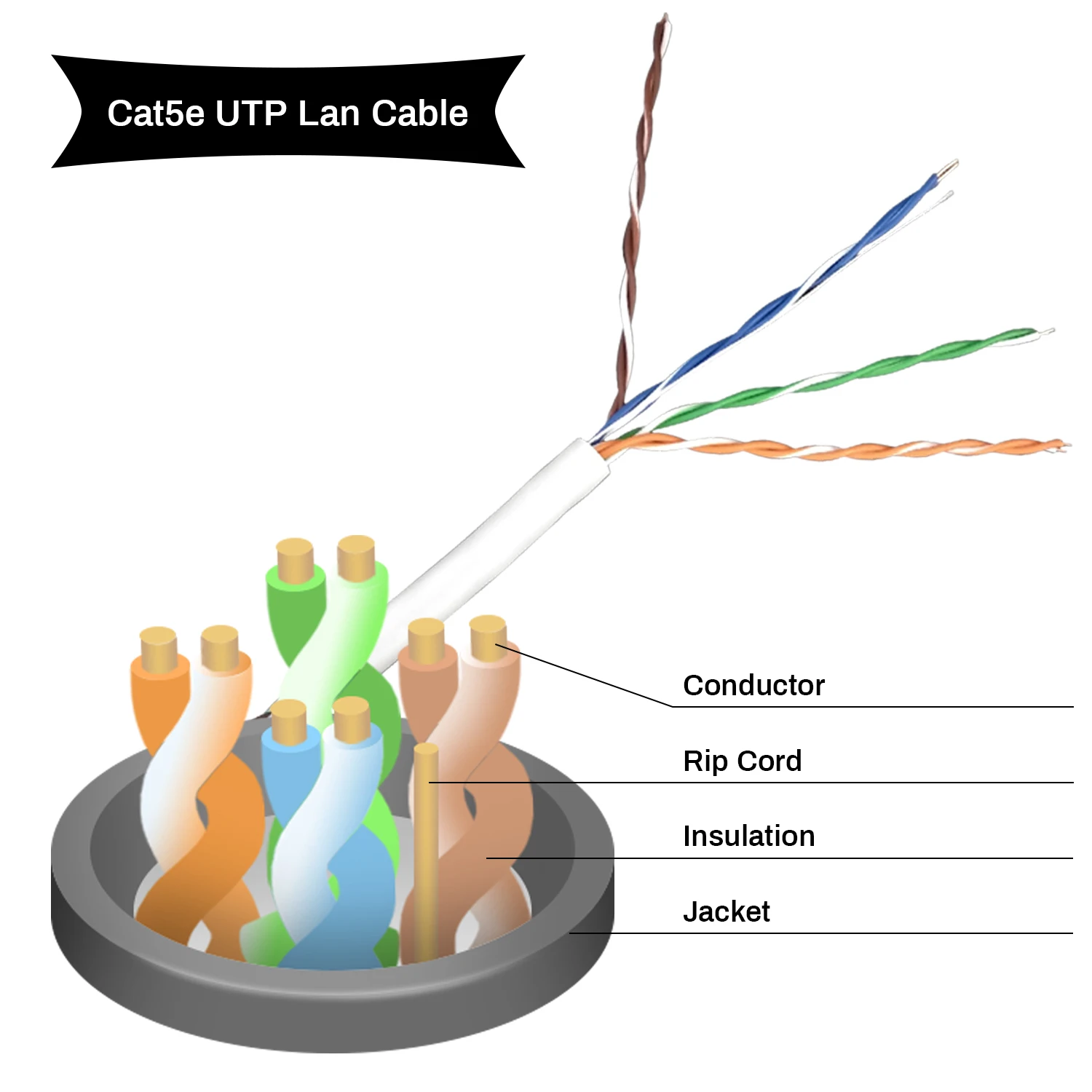

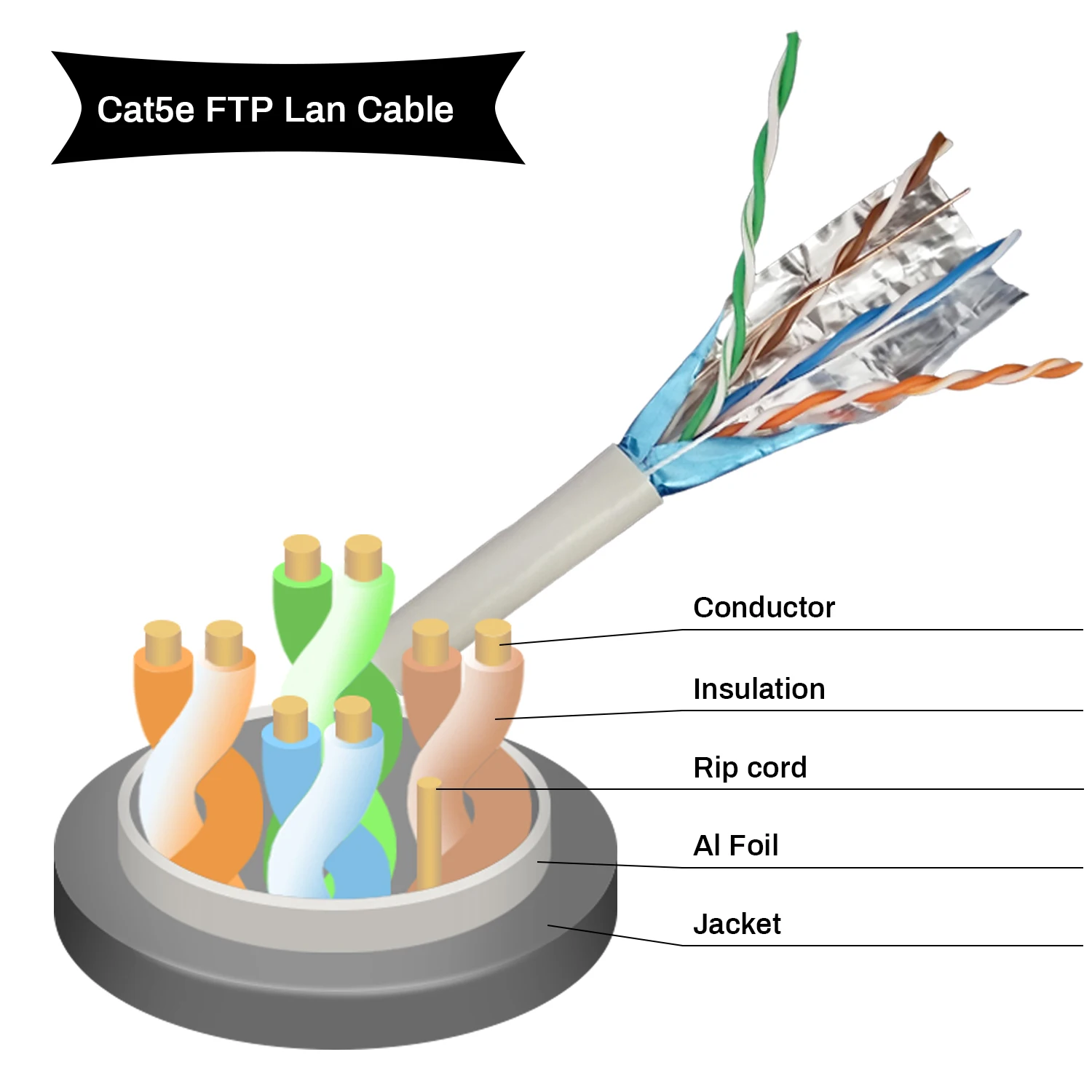

Cat5e SFTP Lan Cable Cat5e FTP Lan Cable Cat5e UTP Lan Cable
Product Description

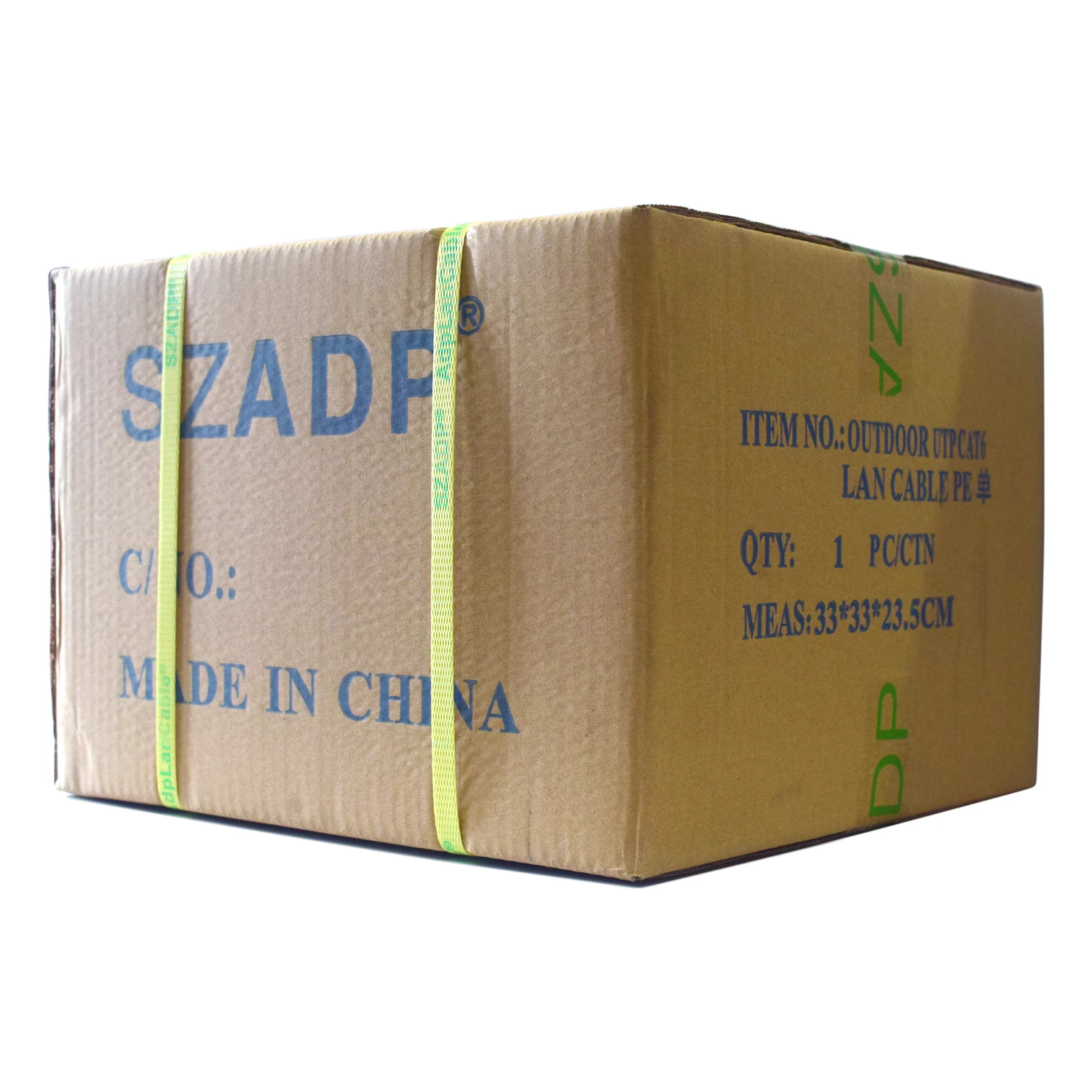

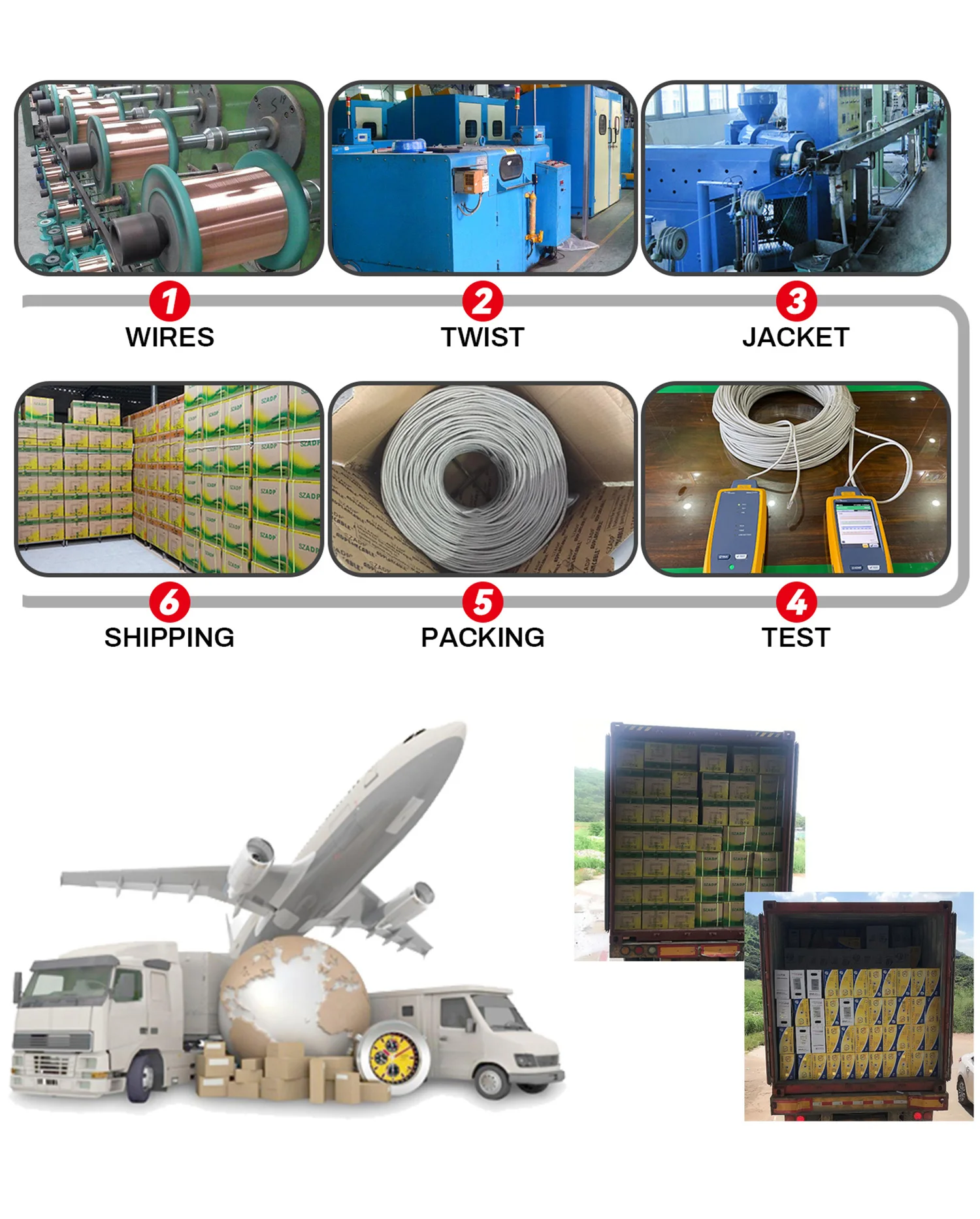

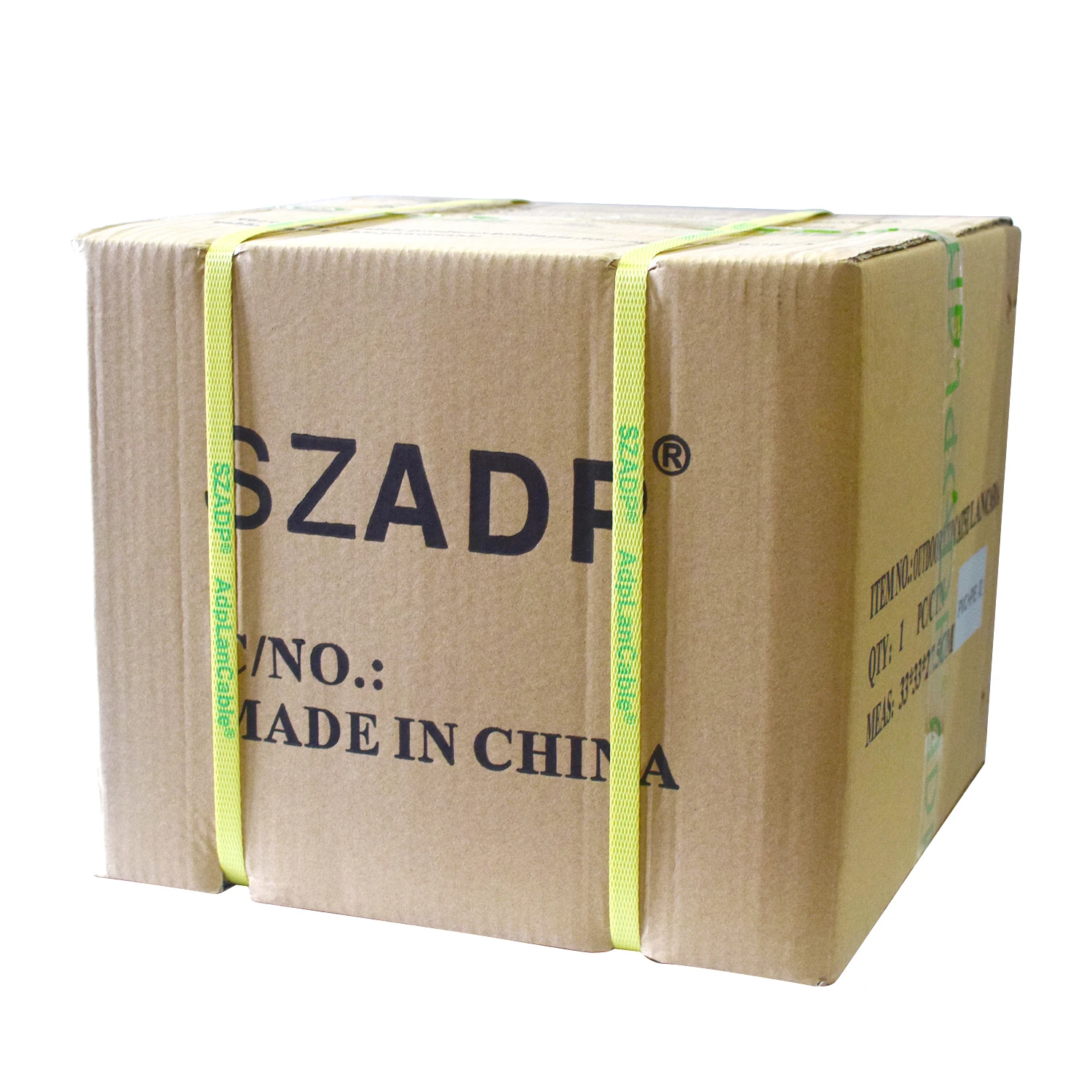

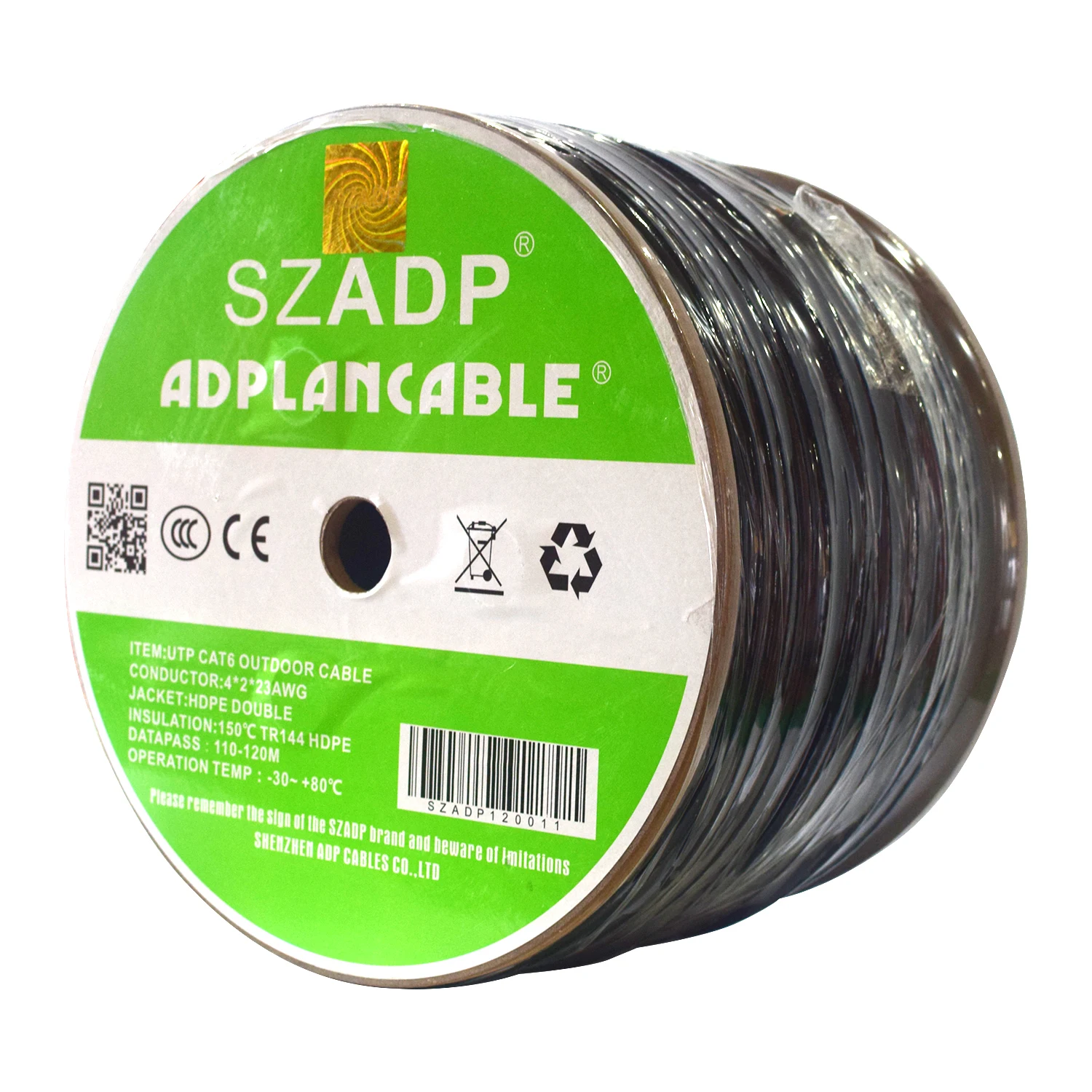

Production & packaging
