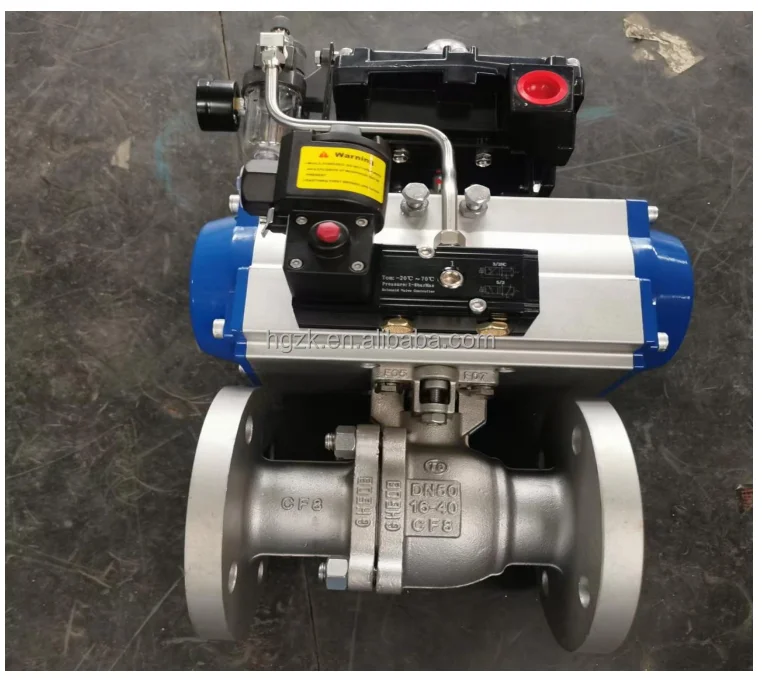

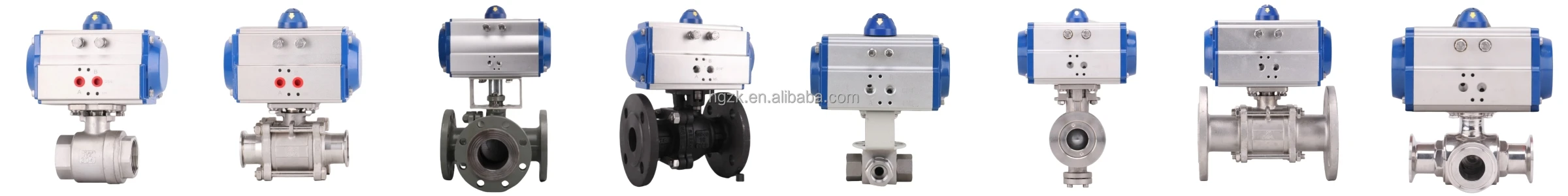

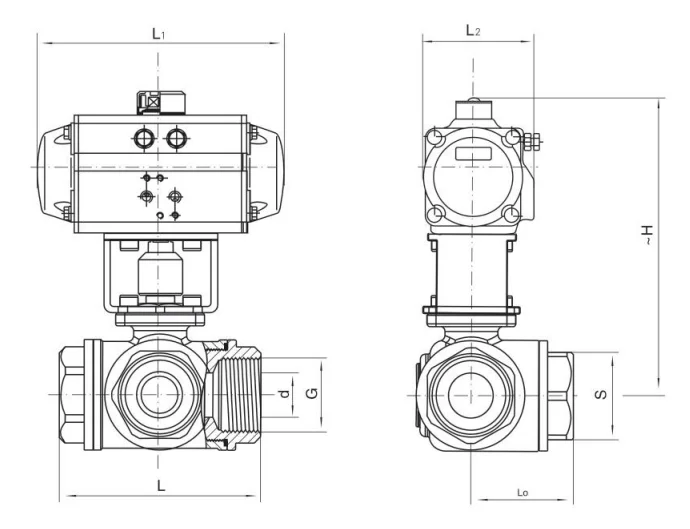

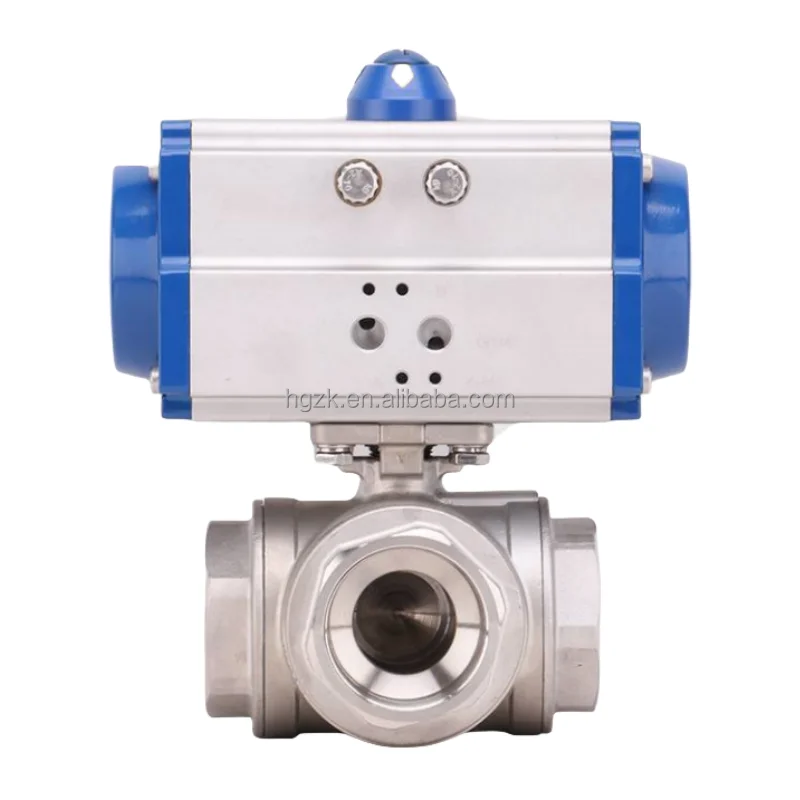

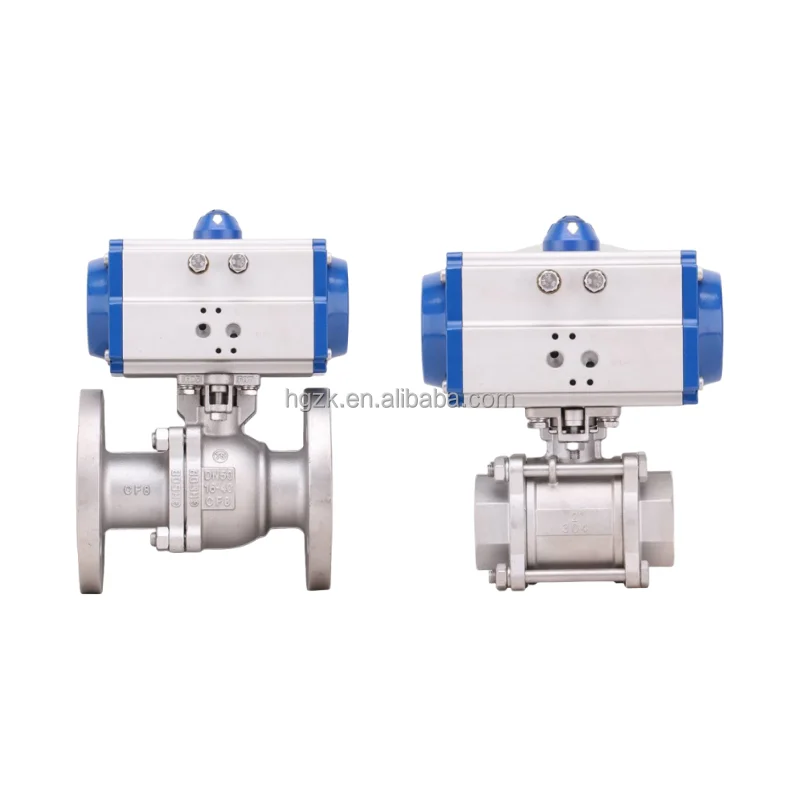

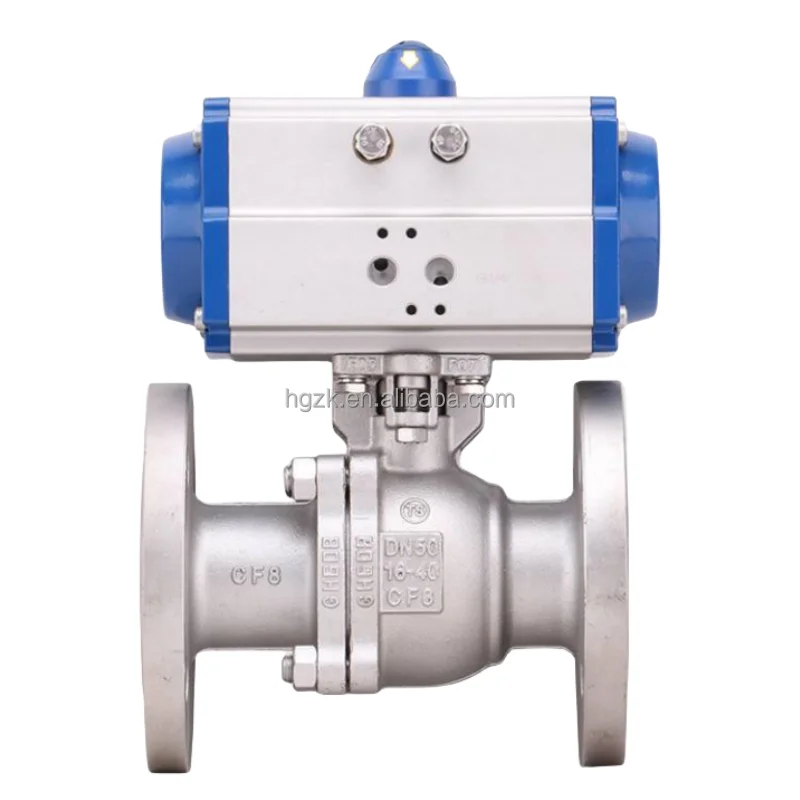

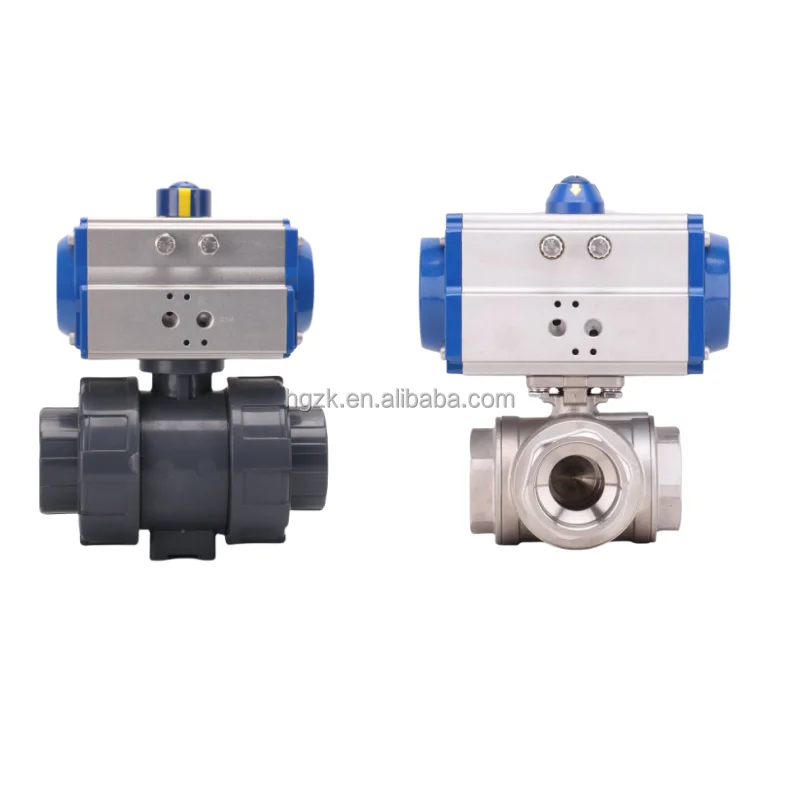

Pneumatic Ball Valve Series Screw Thread Stainless Steel Plastic Material Two Way Three Way L type T type Pneumatic Ball Valve
- Category: >>>
- Supplier: Jiangsu Huagong Automatic Control Valve Co. Ltd.
Share on (1600605474884):
Product Overview
Description
Our Advantage:
1. MOQ:1, wholesale from one piece2. Factory direct, technical support, quality assurance

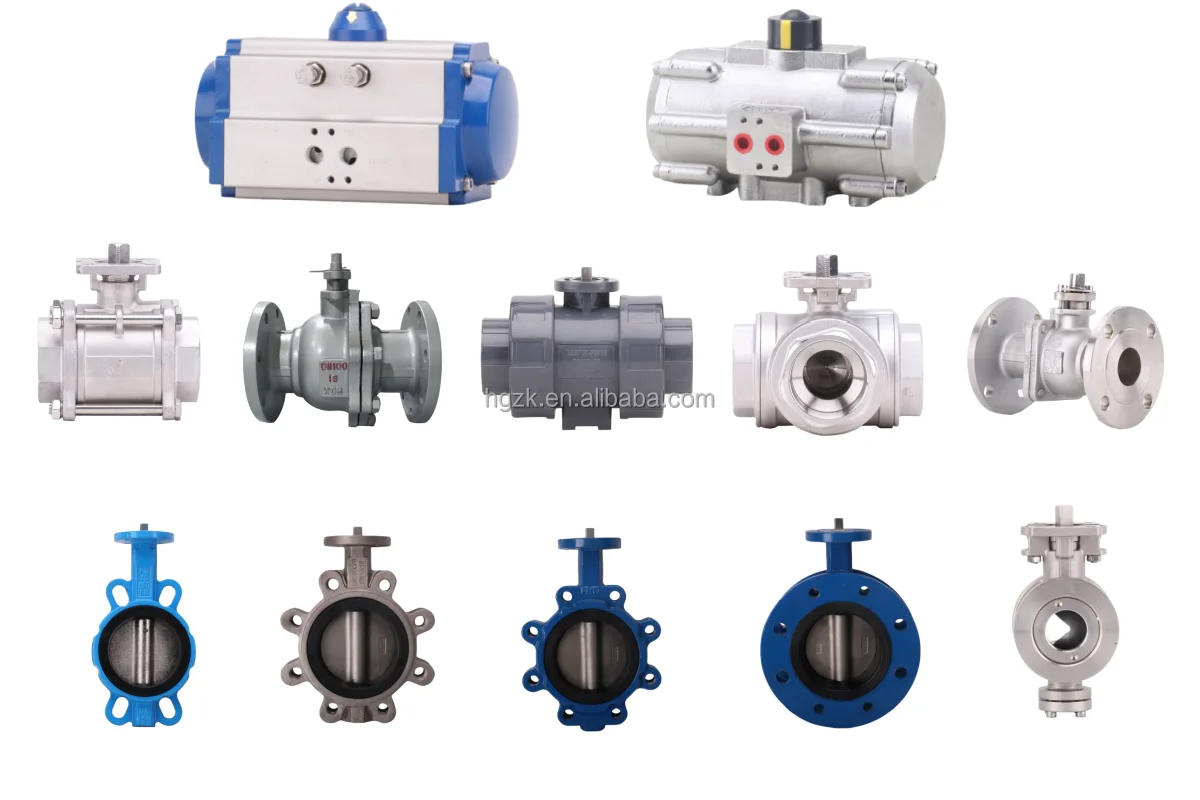

3. diversified product lines,one stop shopping
4. Strong production capacity, we can quickly respond to large-scale order requirements

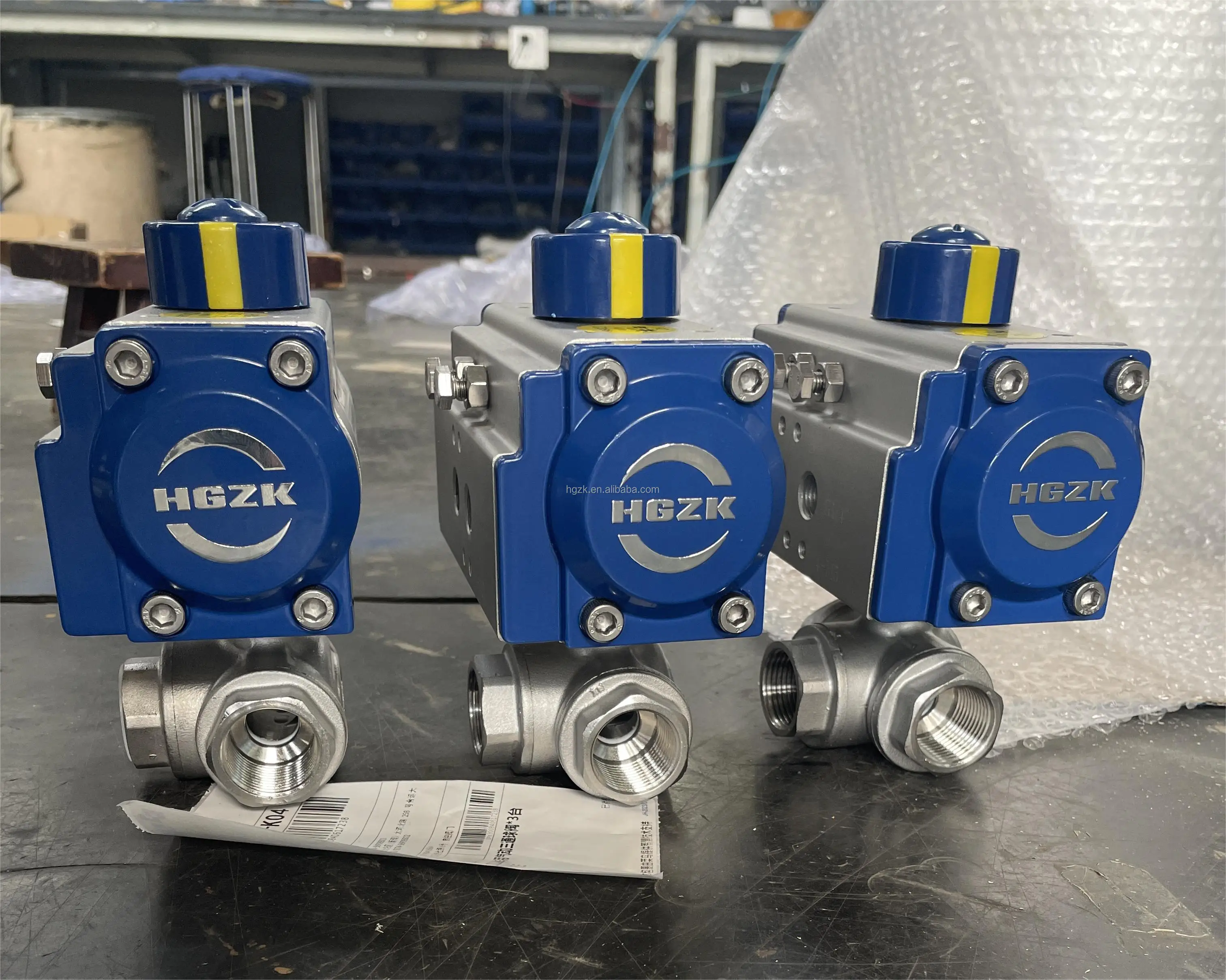

Features of HGZK Pneumatic Ball Valve:
1. Simple structure, small size and light weight.2. Tight and reliable, the sealing surface material of the ball valve is widely used in plastics, with good sealing performance, and has been widely used in vacuum systems.
3. Easy to operate, fast opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for long-distance control.
4. Easy maintenance, the structure of the pneumatic ball valve is simple, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
5. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. When the medium passes through, it will not cause erosion of the valve sealing surface.

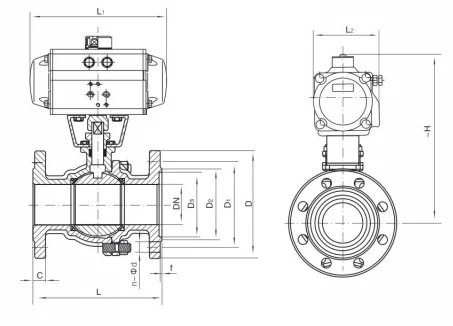

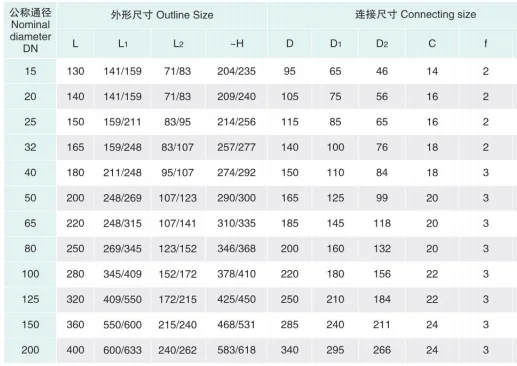

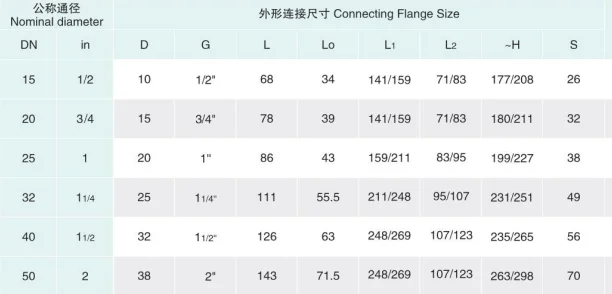

DN | 15~400mm | Seal | PTFE, PPL, hard seal |
PN | 1.0、1.6、2.5、4.0、6.4MPa | Media | water,oil,steam,etc |

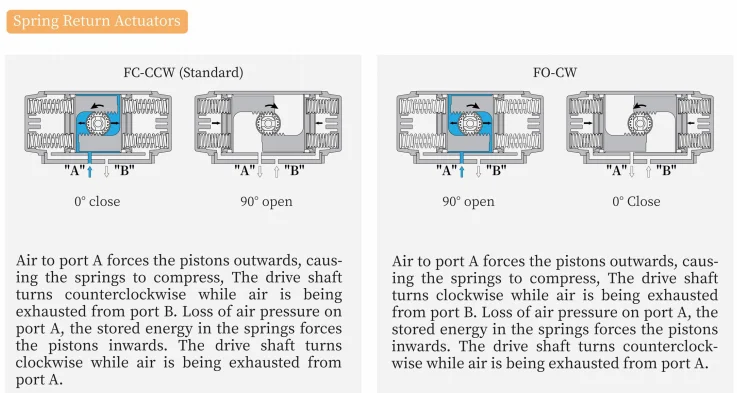

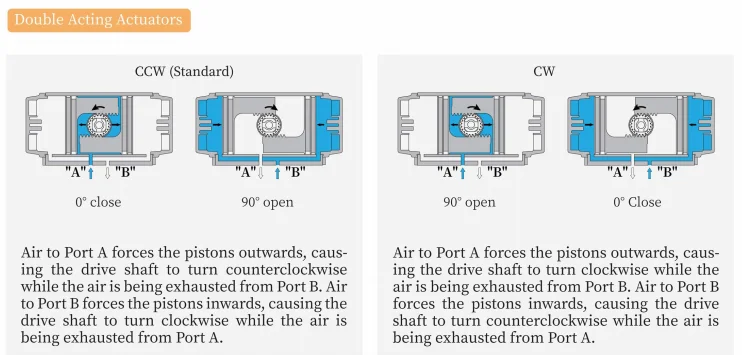

Power | compressed air | Type | double acting, single acting(spring return) |
Connection | thread,weld,wafer,flange,etc | Warranty | 12 months |

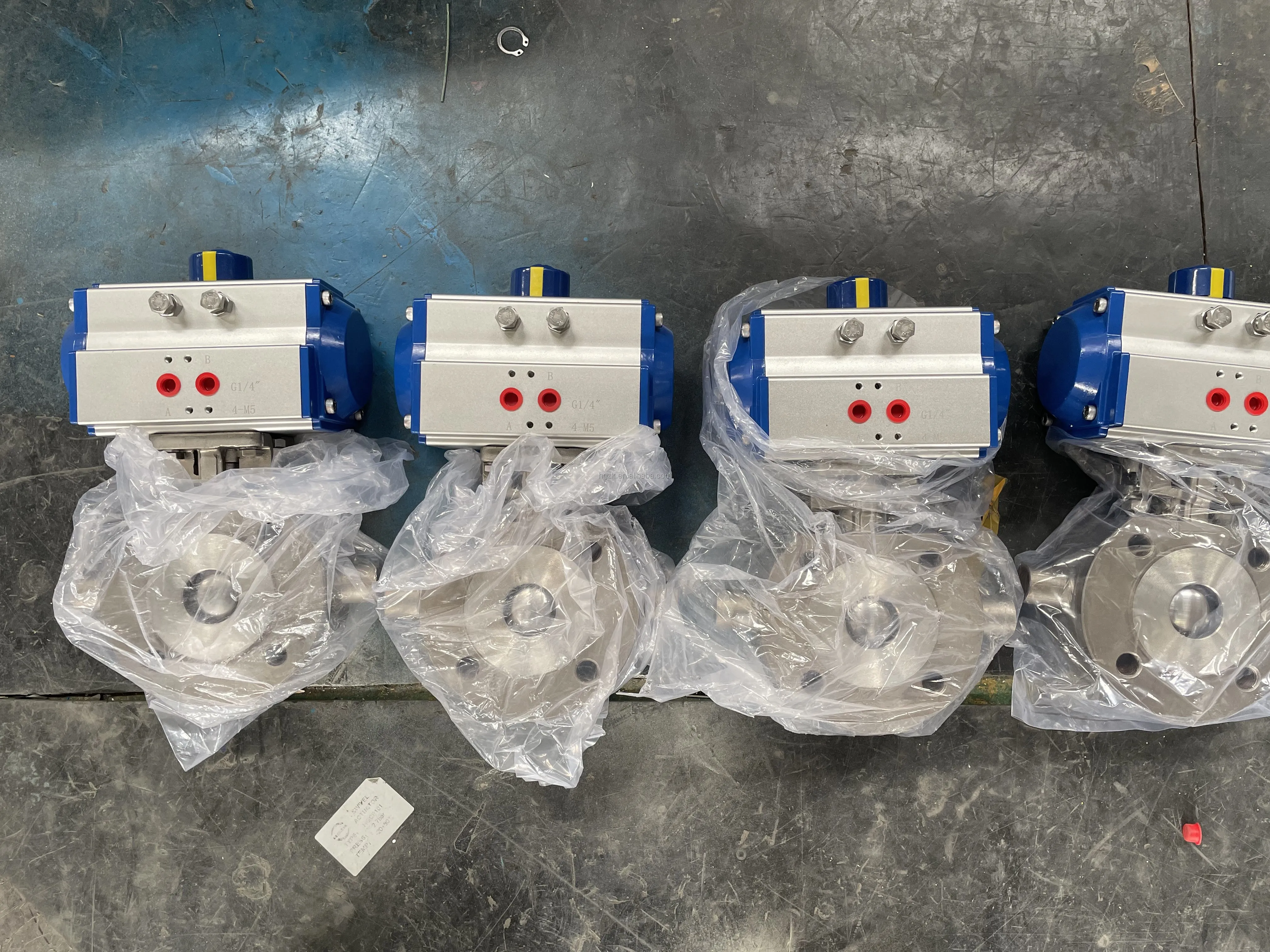

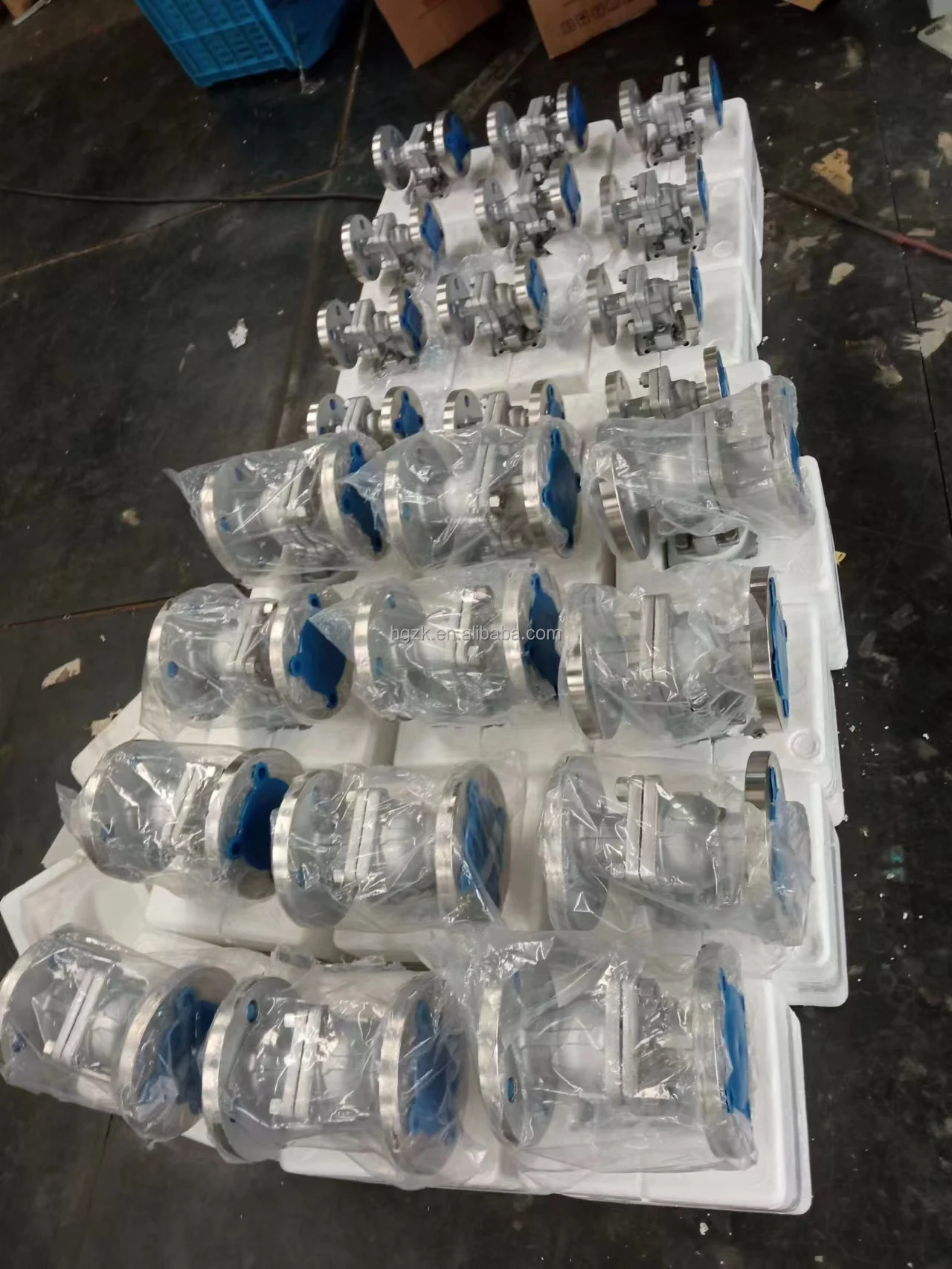

carton
woodencase
pallet
Sample order will deliver by air,7-10 weekdays directly to your door.
Bulk orders depends on your area and requirements.air/sea/rail..
1. What is the difference between Normally Open and Normally Closed valves?
As the name suggests, Normally Open valves allow air to pass when they are not actuated. Normally Closed valves must be actuated to allow air to pass.
2. How fast can a pneumatic valve operate if 90° rotation?
Generally, less than 2 inch, it is about 1 second. Larger valves up to 6 inch, it is about 1.5 seconds.
3. Can I use the air actuated ball valve outside?
Yes, air actuated valves are weatherproof per materials of construction. Do not exceed minimum and maximum temperature specifications.
4. How to confirm the valve position?

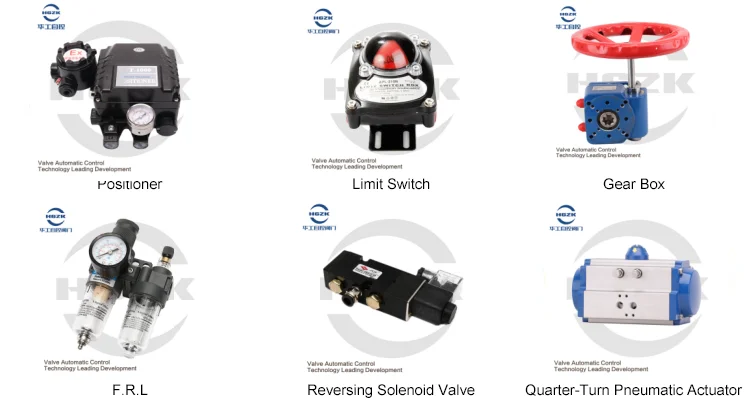

we can offer limit switch box and valve positioner.
5. Can you customize the color of the actuator?
We can customize different colors, LOGO and so on according to customer's requirements.
