[JT-ML750]Die cutting and paper creasing machine
US $4500-$6500
Автоматический аппарат для продольной резки пленки, стрейч пленки в рулоне, новый тип
- Category: Paper Production Machinery >>>
- Supplier: Wenzhou,Changli,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

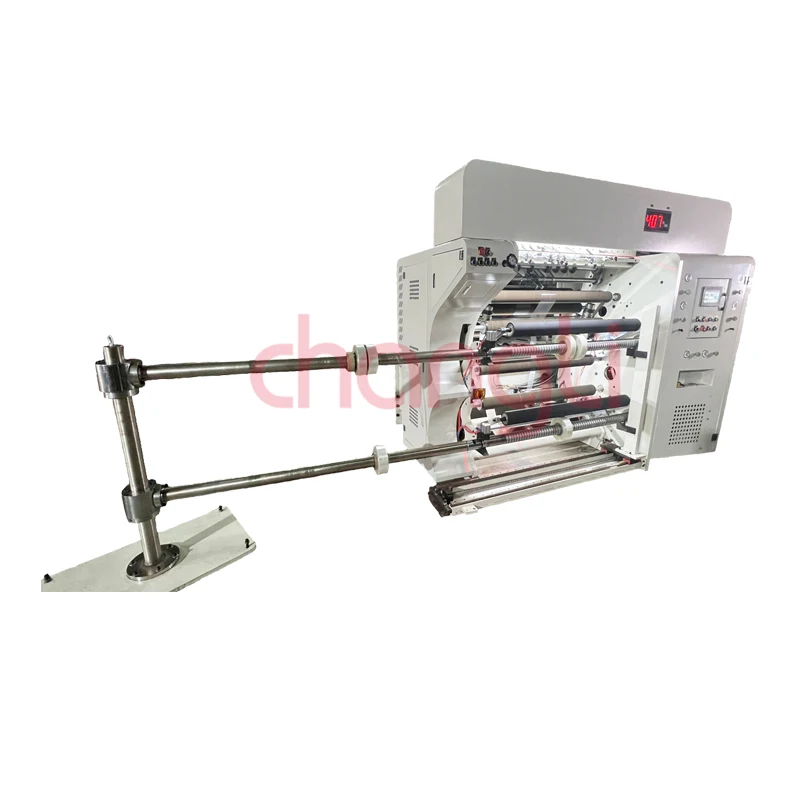

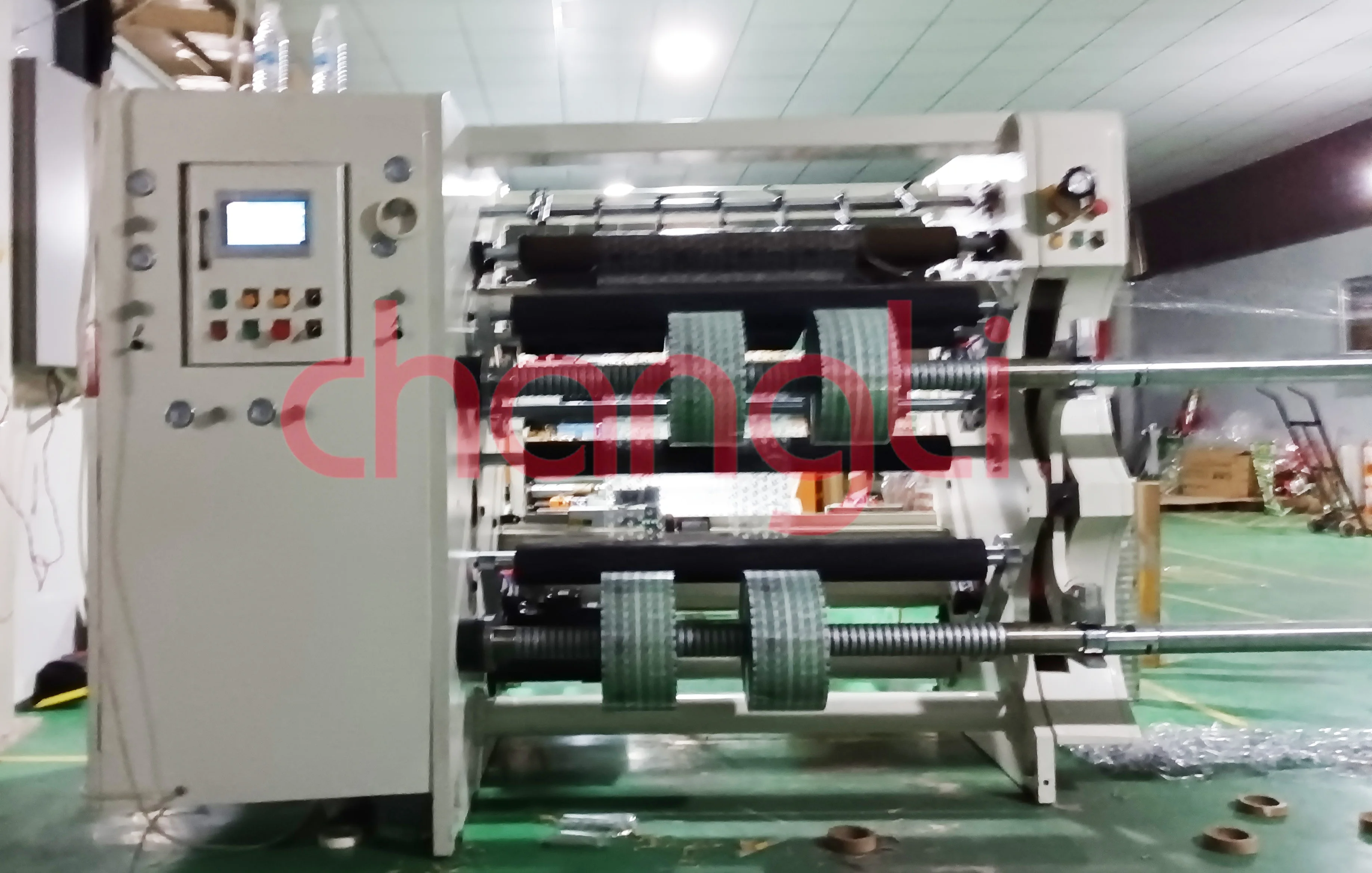

New Type Automatic Jumbo Roll Plastic Film Stretch Film Slitting Rewinder Machine
Scope of application:
This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, non woven, fabric, white cardboard, coated paper, aluminum foil, PVC plastic, thin foil and other coils.
Model | CLFQ-G 1300 | CLFQ-G 1600 |
MAX. Width of raw material | 1300mm | 1600mm |
Max.parent Web Diameter | Ø1100mm | Ø1100mm |
Max.Rewinding Diameter | Φ600mm | Φ600mm |
Max.Machine Speed | 10-500m/min | 10-500m/min |
Total Power | 27KW | 29KW |
Machine Weight | 3800kg | 4200kg |
Overall Dimensions | 3600*4500*1800mm | 3800*4500*1800mm |
Performance and characteristics:
1. The machine adopts more pneumatic and hydraulic actuators, which are operated centrally by the panel
and executed by solenoid valves. The degree of automation is high and the labor intensity is reduced.
2. Automatic meter counting and alarm function. The rewinding adopts friction shaft structure, auto pulling,which is easy to unload and operate.
3. The unwinding adopts freestanding cylinder loading and unloading frame.
4. Razor knife + round knife slitting method.
and executed by solenoid valves. The degree of automation is high and the labor intensity is reduced.
2. Automatic meter counting and alarm function. The rewinding adopts friction shaft structure, auto pulling,which is easy to unload and operate.
3. The unwinding adopts freestanding cylinder loading and unloading frame.
4. Razor knife + round knife slitting method.
5. Fully automatic unloading.
