Automated nucleic acid extractor RNA DNA extractions
- Category: Other Lab Supplies >>>
- Supplier: Guangzhou,Four,E's,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

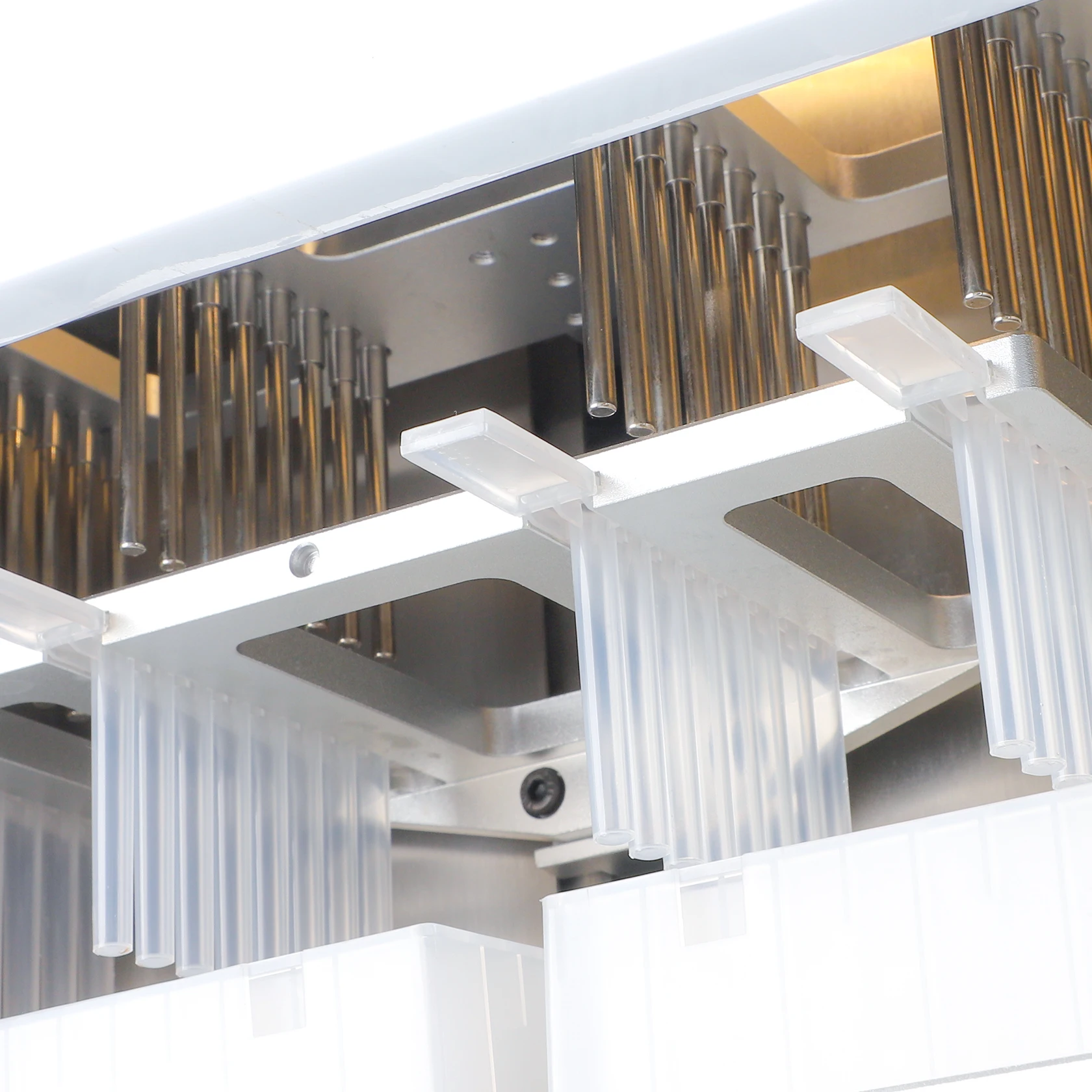

Automated nucleic acid extraction system
MultiEX 032 is an automated nucleic acid extraction and purification system which can process up to 32 samples per run. The system uses Magnetic Bead Separation technology, and has the capability of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc.
The system comes with a user-friendly touch screen interface allowing the user to easily set purification parameters. The automated system integrates all the purification phases including binding, mixing, washing, and elution, and delivers high-efficiency, high-quality purification. The system works with any prefilled magnetic bead-based reagent kit.
The system comes with a user-friendly touch screen interface allowing the user to easily set purification parameters. The automated system integrates all the purification phases including binding, mixing, washing, and elution, and delivers high-efficiency, high-quality purification. The system works with any prefilled magnetic bead-based reagent kit.
Features
1.Compact & Lightweight: Help save your limited laboratory bench space.
2.Stable and Efficient: Automated processing avoids discrepancies and errors caused by manual operations and increases the efficiency
3.Ease of Use: A 10-inch color touch screen and user-friendly interface lets you easily set purification parameters
4.Contamination Control: Built-in UV disinfection lamp eliminates cross-contamination.
5.Advanced Stirring Technology: Stirring speed up to 10,000 mm/min enables effective mixing of samples with high viscosity (blood, feces, etc.).
6.Multi Heating Modules: Multiple heating modules with individual heating controls ensures temperature accuracy for lysis and elution.
7.Safe and Reliable: The operation will automatically suspend once the safety door opens and only resumes after the safety door is shut, which provides better protection for users.
2.Stable and Efficient: Automated processing avoids discrepancies and errors caused by manual operations and increases the efficiency
3.Ease of Use: A 10-inch color touch screen and user-friendly interface lets you easily set purification parameters
4.Contamination Control: Built-in UV disinfection lamp eliminates cross-contamination.
5.Advanced Stirring Technology: Stirring speed up to 10,000 mm/min enables effective mixing of samples with high viscosity (blood, feces, etc.).
6.Multi Heating Modules: Multiple heating modules with individual heating controls ensures temperature accuracy for lysis and elution.
7.Safe and Reliable: The operation will automatically suspend once the safety door opens and only resumes after the safety door is shut, which provides better protection for users.
The Automated Nucleic Acid Extractor can be used in Research Labs (Government & Academic Research), Commercial Labs (Pharmaceutical & BioTechnology Industries), and Molecular Diagnostics Labs.
Specification
Model | MultiEX 032 |
Throughput | 1~32 |
Process Volume | 30~1000ul |
Heating Temp. | Room Temp.~ 100℃ |
Sample Quantities | 1-32 |
Plate Types | 96 Deepwell plate |
Mixing Intensities | Adjustable: 5 Levels |
Plate Quantity | 2 |
Magnetic Bead Recovery Rate | 96% |
Plate Type | 96 Deep-well Plate |
Operation | 10-inch Color Touch Screen |
Storage Capacity | more than 500 programs |
Extraction steps | Binding, mixing, washing and elution |
Protocol Management | Create, edit and delete options available |
Pollution Control | UV light |
Lighting | Yes |
Extension Ports | 1 USB port, 1 Ethernet port |
Exhaust | Fan |
Power Supply | 220V 50/60 Hz |
Dimensions | 349*325*390mm |
Weight | 25Kg |
Company Profile
Certifications
FAQ
1. Are you a factory or a trading company?
We are a professional manufacturer of lab supplies and scientific instruments.
2. What is your payment term?
T/T, L/C, Ali insurance or Paypal are available.
3. Do you have OEM/ODM service?
Sure, We're experienced in the OEM/ODM services.
4. What is your warranty?
Our warranty period is 24 months normally.
5. How to get a sample?
Please contact our customer service, we will arrange the best way for you.
2. What is your payment term?
T/T, L/C, Ali insurance or Paypal are available.
3. Do you have OEM/ODM service?
Sure, We're experienced in the OEM/ODM services.
4. What is your warranty?
Our warranty period is 24 months normally.
5. How to get a sample?
Please contact our customer service, we will arrange the best way for you.
