Headleader Self Pick Up Stainless steel Electronic Customized Intelligent Express Postal Delivery Parcel Lockers

Share on:

Price:$1,299.00 - $1,499.00
Price in USD:Details


Product Overview


Related Products

Product Paramenters

Product Name
Electronic Mortise Lock
Item No.
Stainless steel
Working Voltage
DC 12~24V
Working Current
28mA in standby mode; 240mA in the process of locking and unlocking
Working Temperature
-20°C ~ +70°C (Non-condensing)
Reaction Time
Less than 0.2msec
Working Life
100,000 times of open-close
Housing Test
Passing 48-hour salt-spraying test
Unlock Control
The signal for unlocking will be sent when it keeps a low-level for more than 100ms.
Status Feedback
When the output status signal is low-level, it unlocks.
Status Indication
LED indicator will show the lock status.
Emergency Unlock
One mount
Re-lock Type
Auto & Delayed

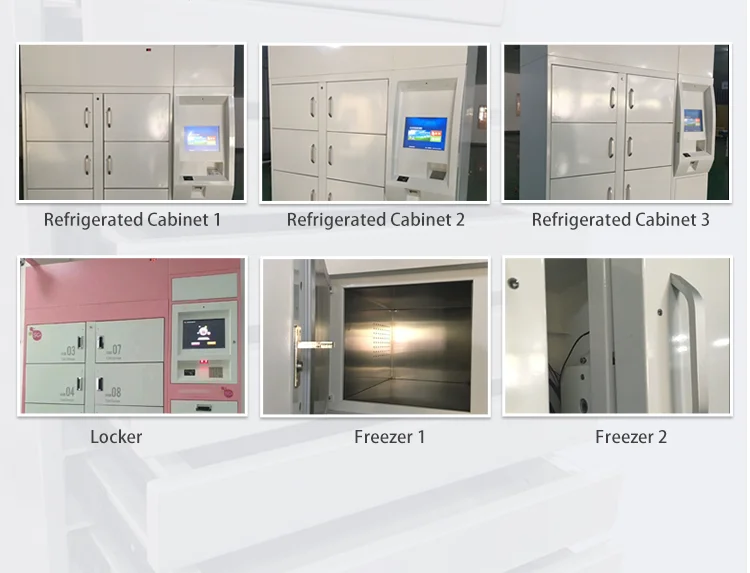

Product Application

Product Description

  • Product Description

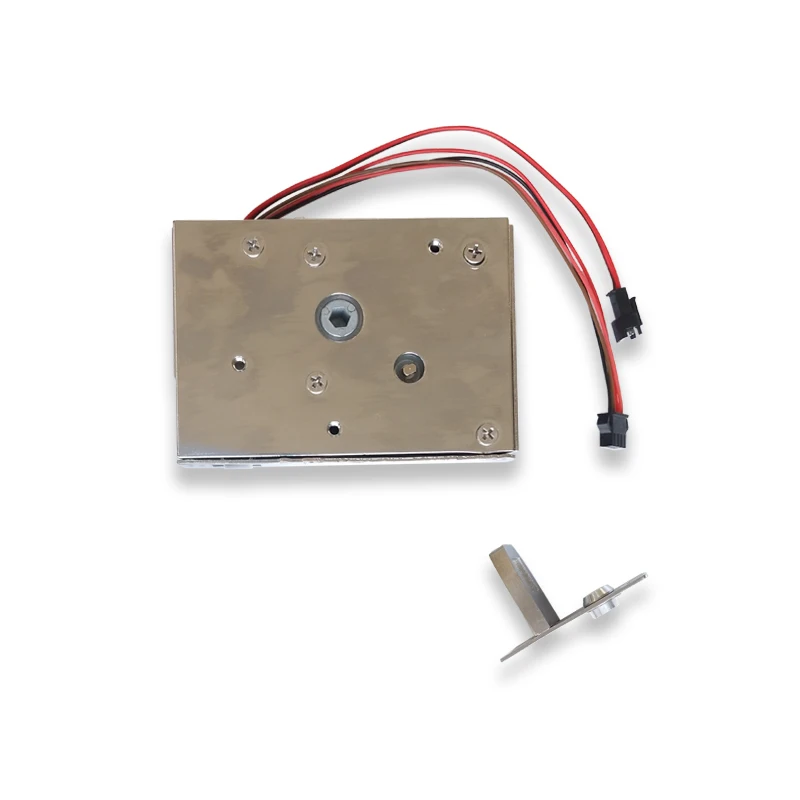

1. Headleader motor lock HLD1920 adopts steel shell, which is stable and durable, shockproof and prying-resistant. Electronical control and manual operation for unlocking under emergency are acceptable.

2. Working current is 240mA while the current in standby mode is only 28mA. And the power-on time for unlocking is not limited.

3. Compared with electromagnetic locks, HLD1920 motor lock performs better in the aspects like anti-vibration and anti-theft. HLD1920 also includes a built-in sensor, which makes it possible to lock/unlock the door of cabinet automatically with the aid of door-closer.

4. Applicable to various kinds of high-end smart cabinets, such as freezers, large lockers, etc.

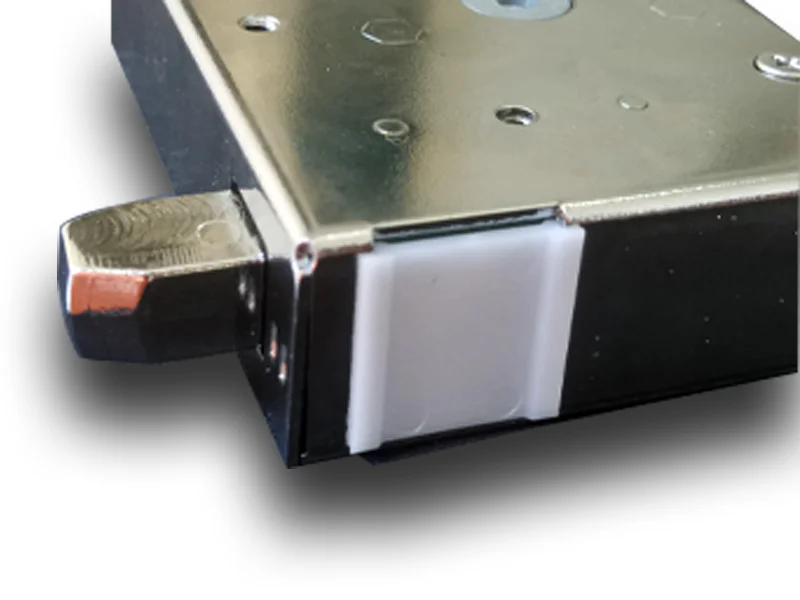

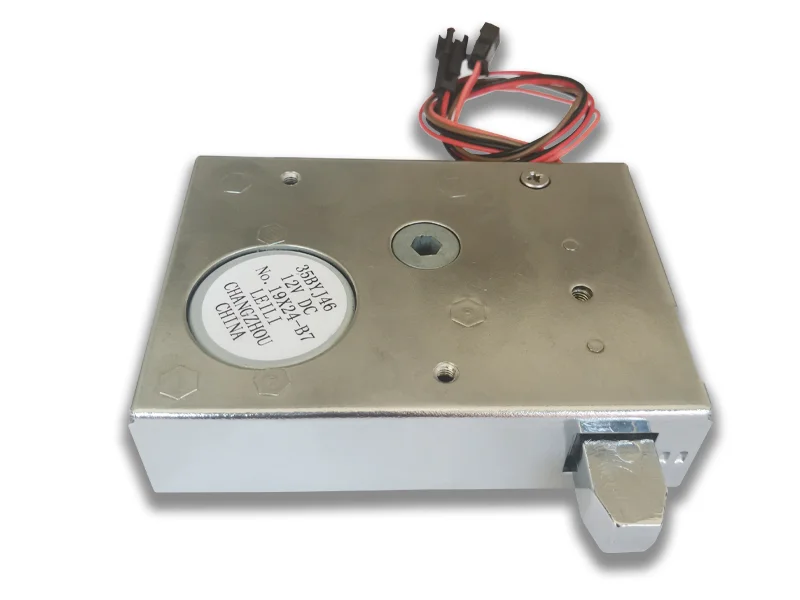

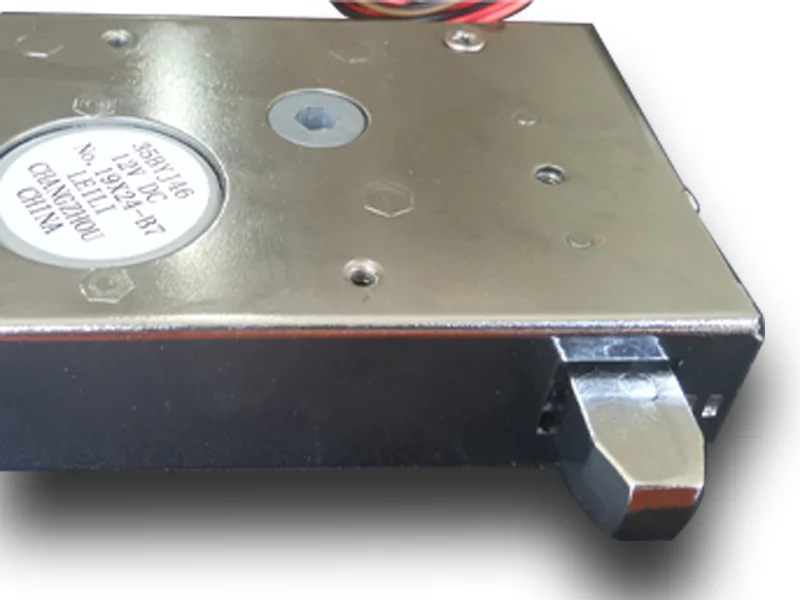

Products Show

Electrical Drives
Stable and Reliable
Steel Shell
Sturdy and Durable
Accepts electrical control and manual unlocking. Unlocking device under emergency is also available.

Product Usage

    • Product Usage Introduction

The unlocking signal is a pulse, and the general current of unlocking signal does not exceed 240mA.

When the lock receives the unlock command, the motor will rotate. Knowing that latch does not release automatically in normal circumstances, the door will be under a status that can be pulled open when the indicator turns on. The electric motor will go backward and be ready for next unlocking process when the unlock command comes to an end. It can be easily locked with a gentle push when necessary.

When the door gets stuck and the lock cannot be unlocked, the motor will invert and automatically get the door relocked after 3
minutes to prevent items from being stolen.

Topological Diagram
(Lock Control System)

We provide a complete set of mature lock control system, and the main control board is connected to the Internet through WIFI, TCP/IP, etc. External LCD display, IC card reading and writing module and the terminal motor lock can also be connected to it.

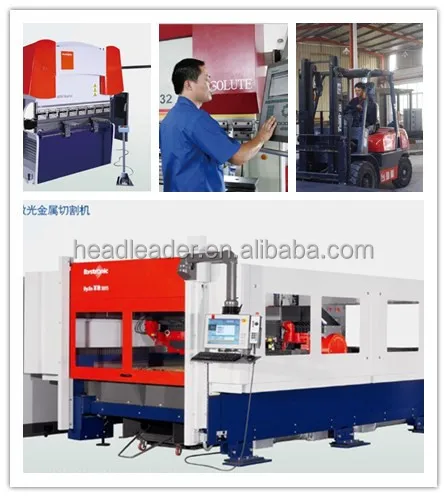

Company Introduction

Headleader is a hi-tech company located in Xiamen, which is an important port city of China. Since the establishment in 2009, Headleader has always been working on the development of IOT control systems. We stick to the principle of “Being professional, focusing on quality and always improving efficiency”, keep on delivering our customers the appropriate solutions for their requests.
Headleader specializes in designing and manufacturing electronic intelligent locks and lockers and various kinds of control systems. Headleader’s intelligent lockers, control system and electronic rotary lock are patented. The intelligent locker and its main parts are CE and UL certified. From the software to hardware, all major components are designed by Headleader itself. Headleader has distributed more than 6000 intelligent lockers and over 9000 control system kits to Europe, Asia and North America, providing solutions to logistics and storage industry, medical device industry, home automation industry, remote monitoring industrial purposes, etc.
Headleader majors in ODM & OEM, offering innovative and optimized solutions in the technology field of remote temperature controlling, UV application, refrigerated control system, customized HAVC devices, etc. High-quality products, stable delivery time, timely aftersales service, these advantages make us stood out from the market and win a great popularity among our clients worldwide.

Xiamen Headleader Intelligent Technology Co., Ltd. has invested heavily in technology research since its establishment. Headleader
attached much importance to technology upgrading, and obtained many patents in the field of intelligent cabinet system. At the
same time, Headleader gained ISO9001 certification in 2013, and its products have obtained UL, CE, ROHS and some other


1. Q: What’s the most advantages of your company?
A: Our company have own R&D team to provide ODM & OEM services to our customers.
2. Q: What kinds of lock control systems could be customized and supported by your company?
A: TCP/IP, WiFi, 4G, Bluetooth, Lora and other communication methods can be customized
and supported.
3. Q: what is your sample policy?
A: Sample could be sent to test within 7 days after customers buy it on line directly, with the same
privilege of technology supported.
4. Q: What are the merits of Electric Locks compared with Solenoid Lock?
A: Motor driver, lower power consumption, stability, safety, durability, water-proof and
anti-vandalism etc.
5. Q: How does the smart locker work?
A: It’s well designed and controlled by the lock control system, please browse our Topological
Diagram on each product details page.
