Hestia Sel Sup Pro DIA 3100 100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER
- Category: >>>
- Supplier: Hebei Hestia Global Trade Co. Ltd.
Share on (1600606190899):
Product Overview
Description
Hestia Global Trade Group
--- Select Superior Products For You
Demister pad,also called mist eliminator,wire mesh demister,mist mesh pad,catching mist,is used in gas entrained mist separation column to guarantee the filtering efficiency.
Product Description

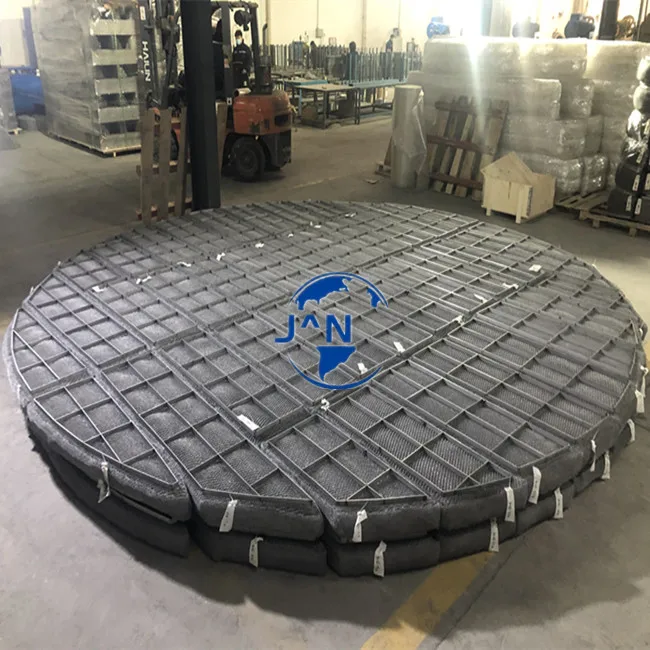

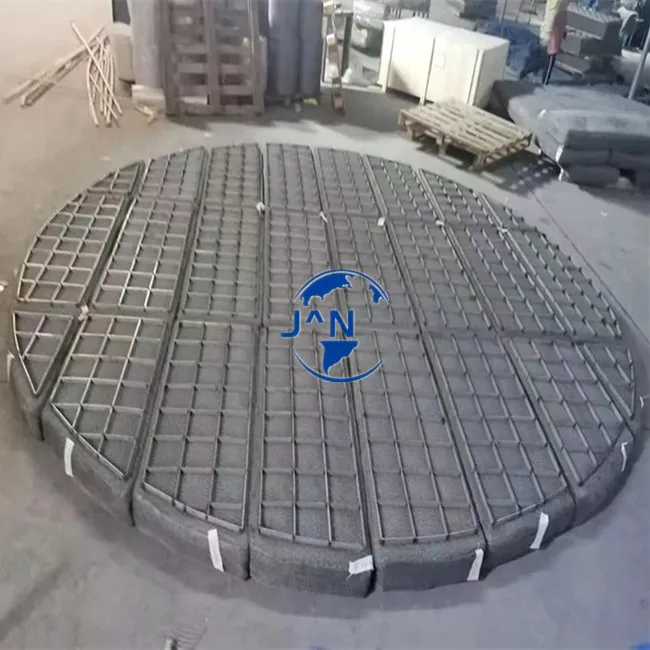

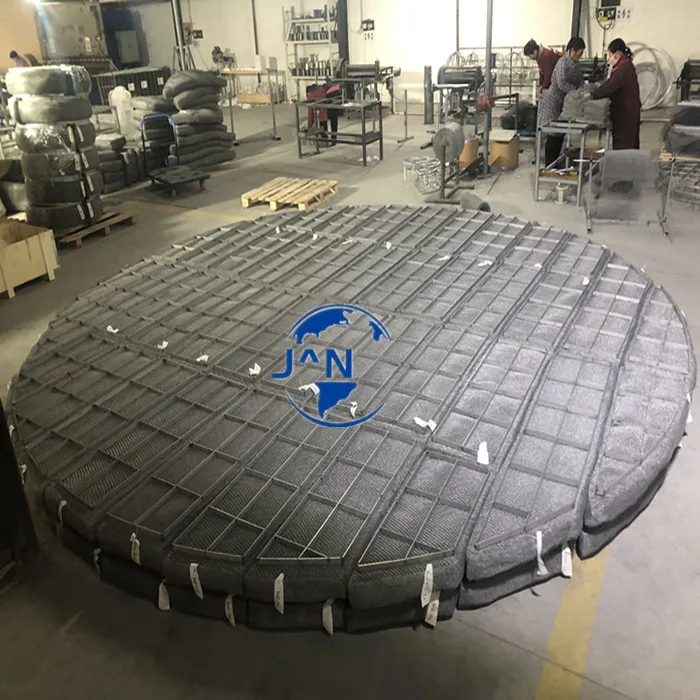

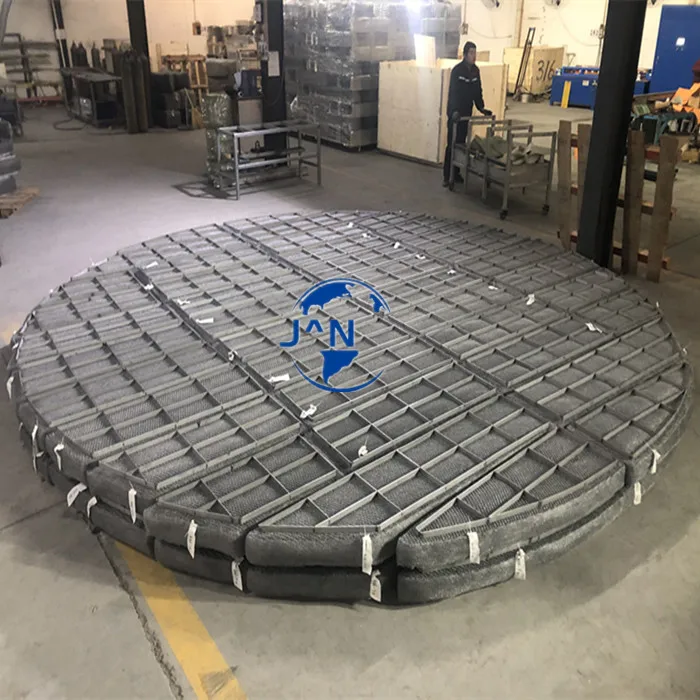

DIA 3100-100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER

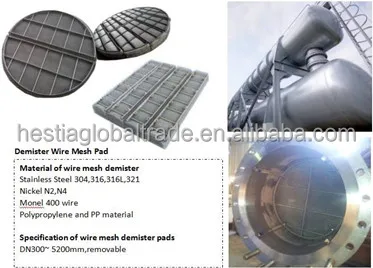

The wire mesh demister pad is a gas-liquid separation device. The gas passes through the wire pad of the demister, and the entrained mist can be discharged.
The wire mesh demister can not only filter out the larger liquid foam suspended in the air flow, but also filter out the small and micro liquid foam. It is widely used in gas-liquid separation in chemical, petroleum, tower manufacturing, pressure vessel and other industries. in the device.
The wire mesh demister has a collection efficiency of 98%~99.8% for mist with a particle size of ≥3~5 um, while the pressure drop of the gas passing through the demister is very small, only 250-500 Pa, which is conducive to improving the equipment. production efficiency.
The wire mesh demister can be made of a variety of materials, and can be customized according to user needs.
The wire mesh demister can not only filter out the larger liquid foam suspended in the air flow, but also filter out the small and micro liquid foam. It is widely used in gas-liquid separation in chemical, petroleum, tower manufacturing, pressure vessel and other industries. in the device.
The wire mesh demister has a collection efficiency of 98%~99.8% for mist with a particle size of ≥3~5 um, while the pressure drop of the gas passing through the demister is very small, only 250-500 Pa, which is conducive to improving the equipment. production efficiency.
The wire mesh demister can be made of a variety of materials, and can be customized according to user needs.

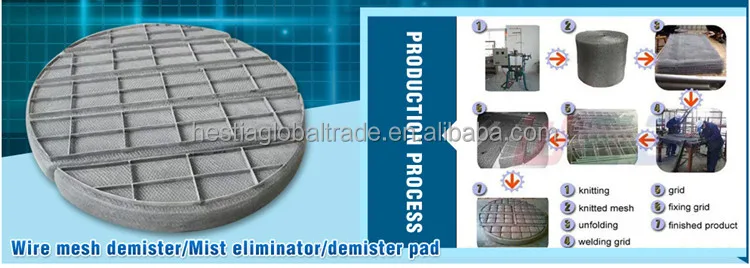

Manufacturing Technique
DIA 3100-100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER
1. Knitting into mesh ,then also can be corrugated if need;
2. Cutting and folding the mesh into pads;
3. Welding and fixing grids;
4. Hemming the edges;
5. Splicing the sections into the whole demister pad;
Specification
DIA 3100-100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER
Tell us your demister pad working environment,so that we can recommend you the right product for you.
Mesh Type | SP, DP, HP, HR |
Mesh Pad Thickness | 100 mm, 150 mm,or other size can be customized |
Grids Size | 25 mm*3 mm flat bar or 6 mm/8 mm round bar |
Mesh Material | Stainless Steel,Alloy,Monel,Ti,Nickel,PP,PTFE,Fiber |
Wire Diameter | 0.1 mm,0.15 mm,0.18 mm,0.23 mm,0.25 mm,0.27 mm,0.3 mm or multi-strand knitting |
Common Mesh Density | 128 kg/M3; 144 kg/M3; 193 kg/M3; 220 kg/M3 |
Features of DIA 3100-100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER
Simple Structure;
Lightweight and easy to transport;
High porosity,less pressure drops;
Large surface area and high separating efficiency;
Easy to install,operate and maintain;
Durable and long service life;
Corrosion and rust resistance;

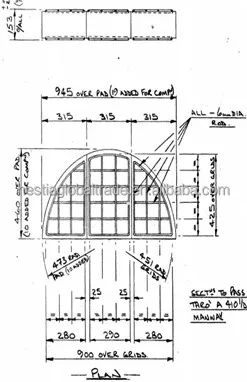

Welcome to provide drawings, any size, shape, material can be customized.

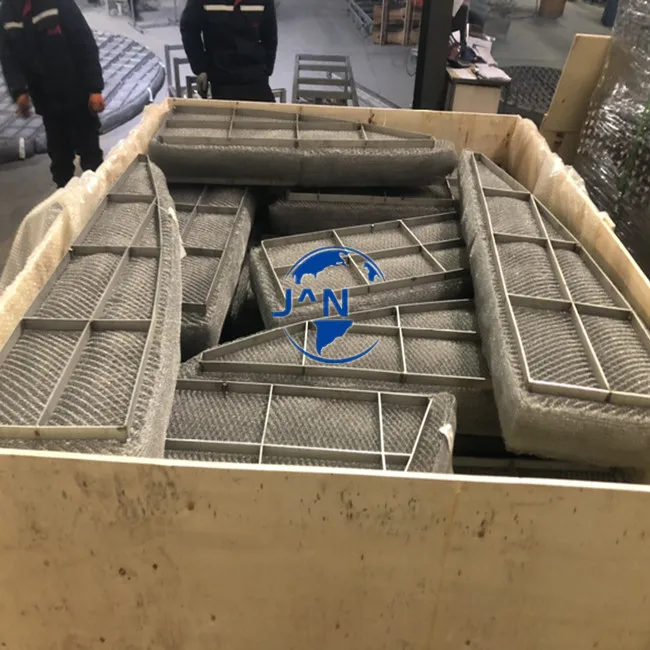

Packing & Delivery
DIA 3100-100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER

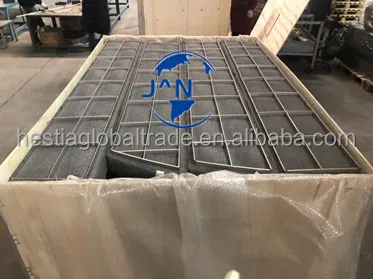

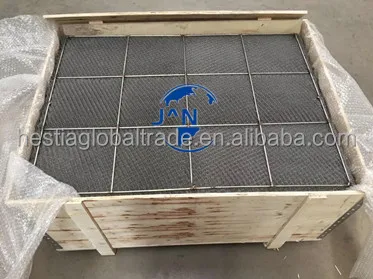

Inside :Pressure-resistant foam film
Outside: Export standard wooden box packaging
Our Advantages
DIA 3100-100 mm SS 316 York 431 Demister Pad For Vessel In PLANT INLET SLUG CATCHER
We always pay attention to the latest trends in the market, and put the wishes of customers first, and the interests of customers
are always our top priority. We've come a long way, so we know exactly which direction to take when it comes to providing you with
high-quality and budget-friendly products. We are always able to provide you with excellent service and friendly support. 1.We
Have Enough Supplying Factories---Direct Manufacturers With Top Quality Product And Best Price; 2.Excellent Service---24 hs*7 Days
Always On line; 3.Supply OEM Producing; 4.We Can Assist You To Find The Right Product You Need In China Market !
