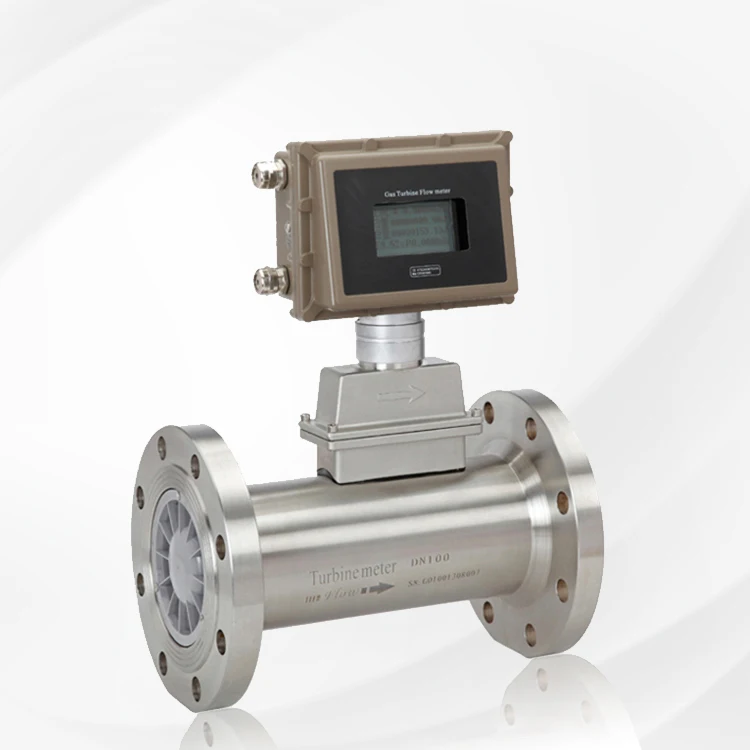

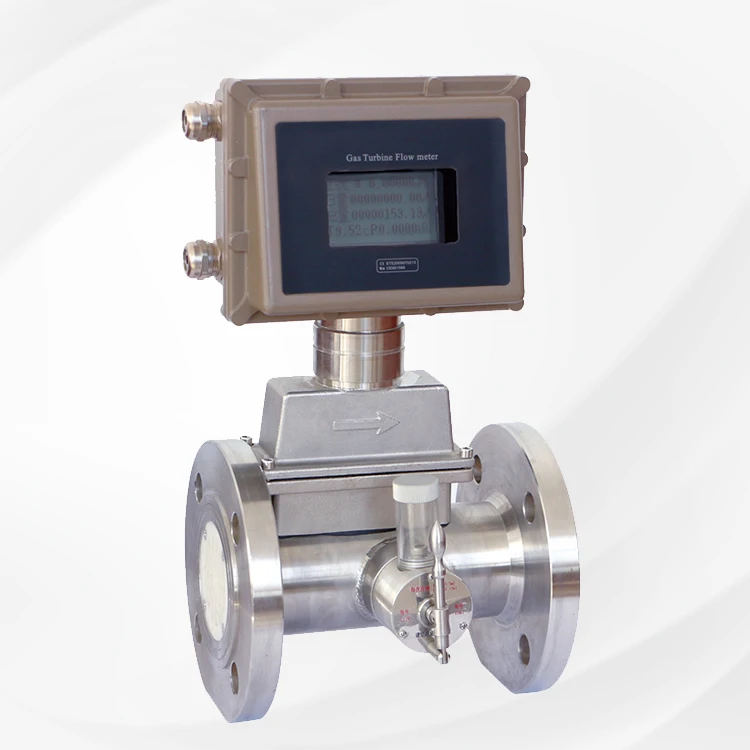

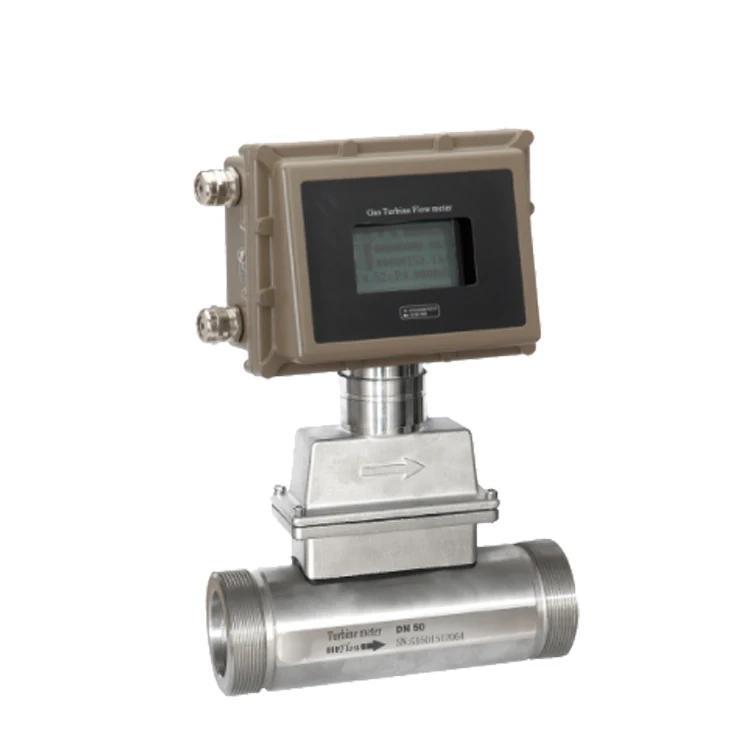

Air Flow Methane Gas Flow Meters Smart Flow Meter Sensor

Price:

Quantity:

Gauge diameter	20、25、40、50、65、80、100、125、150、200、250、300
Accuracy class	± 1.5%, ± 1.0% (special)
Requirements for straight pipe section	Before ≥ 2DN, after ≥ 1DN
Instrument material	Body: 304 stainless steel
		Impeller: high quality aluminum alloy
		Converter: cast aluminum
Conditions of use	Medium temperature: - 20C ° ~ + 80 ° C
		Ambient temperature: - 30C ~ + 65 ° C
		Relative humidity: 5% ~ 90%
		Atmospheric pressure: 86kpa ~ 106kpa
Working power supply	A. External power supply + 24 VDC ± 15%, suitable for 4 ~ 20 mA output, pulse output, RS485
Working power supply		B. Internal power supply: a set of 3.6v10ah lithium battery, when the voltage is lower than 2.0, under voltage indication appears
Overall power consumption	A. External power supply: ≤ 1W
Overall power consumption		B. Internal power supply: average power consumption ≤ 1W, can work continuously for more than three years
Instrument display	Liquid crystal display, instantaneous flow, cumulative flow, temperature and pressure can be displayed with temperature and pressure compensation
signal output	20mA, pulse control signal
Communication output	RS485 communication
Signal line connection	Internal thread M20 × 1.5
Explosion proof grade	ExdllCT6
Protection level	IP65

New products from manufacturers at wholesale prices
