GNSS Professional GPS GLONASS Beidou satellite surveying antenna U GGB13S
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600606673462):
Product Overview
Description
Product Description

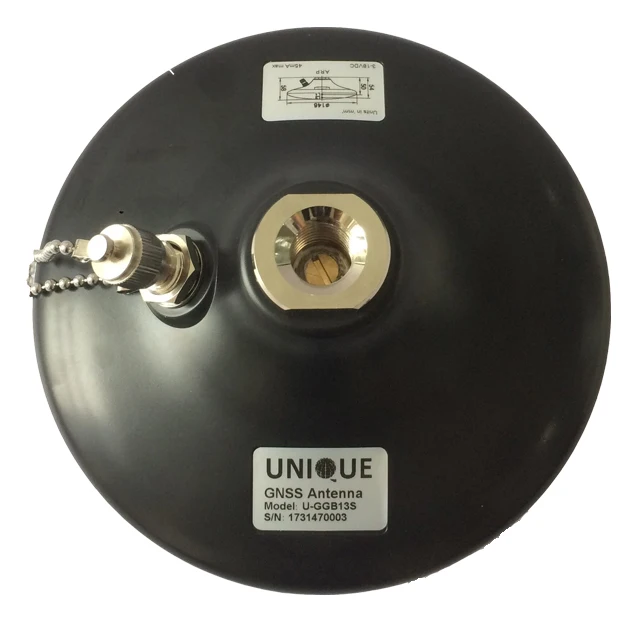

GNSS Professional GPS GLONASS Beidou satellite surveying antenna U-GGB13S
Product Description
Features
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
4. Water proof, shock proof and lightning resistance
Application
Survey antenna is the traditional RTK product standard antenna, can be widely used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation, etc.
| Antenna Specification | |
| Frequency Range | GPS L1, GLONASS L1,Beidou B1 |
| Impedance | 50 Ohm |
| Polarization | RHCP |
| Axial Ratio | ≤3dB |
| Azimuth Coverage | 360° |
| Output VSWR | ≤1.5 |
| Gainn at Zenith | 5.5dBi |
| Phase Center Error | ≤2mm |
| LNA Specification | |
| LNA Gain | 40dB |
| Noise Figure | ≤2.0 dB |
| Output VSWR | ≤1.5 |
| Ripple | ±1 dB |
| Drain Voltage | 3--18VDC |
| Current Consumption | ≤45mA |
| Group Delay | ≤5 ns |
| Mechanical Specification | |
| Dimension | Φ146×58mm |
| Connector | TNC Female |
| Weight | 440g |
| Base Screw Thread | 5/8"-11UNC |
| Environmental Specification | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 95% Non-Condensing |
Our Services
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
