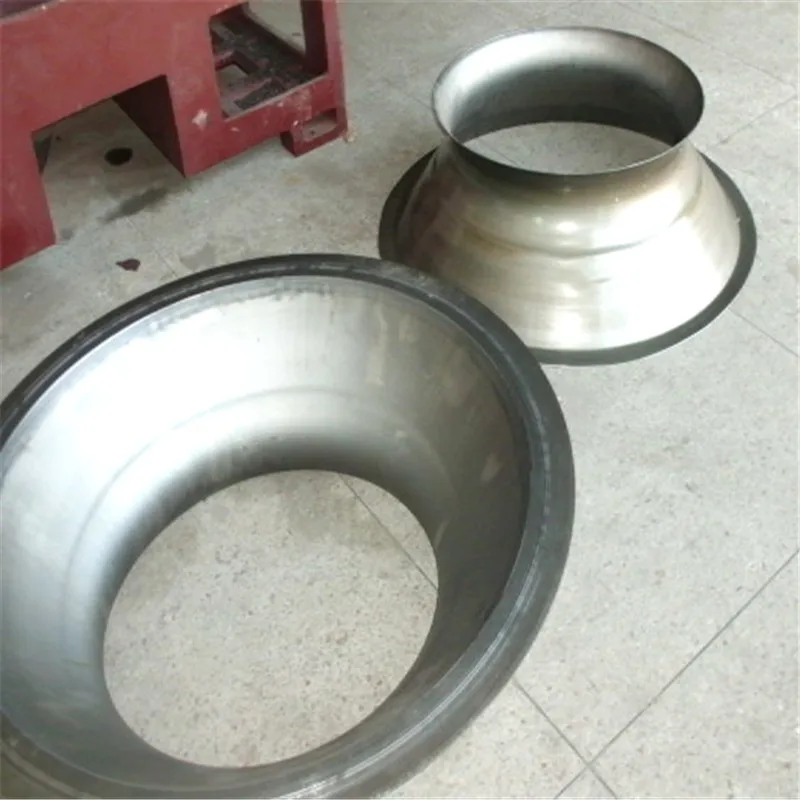

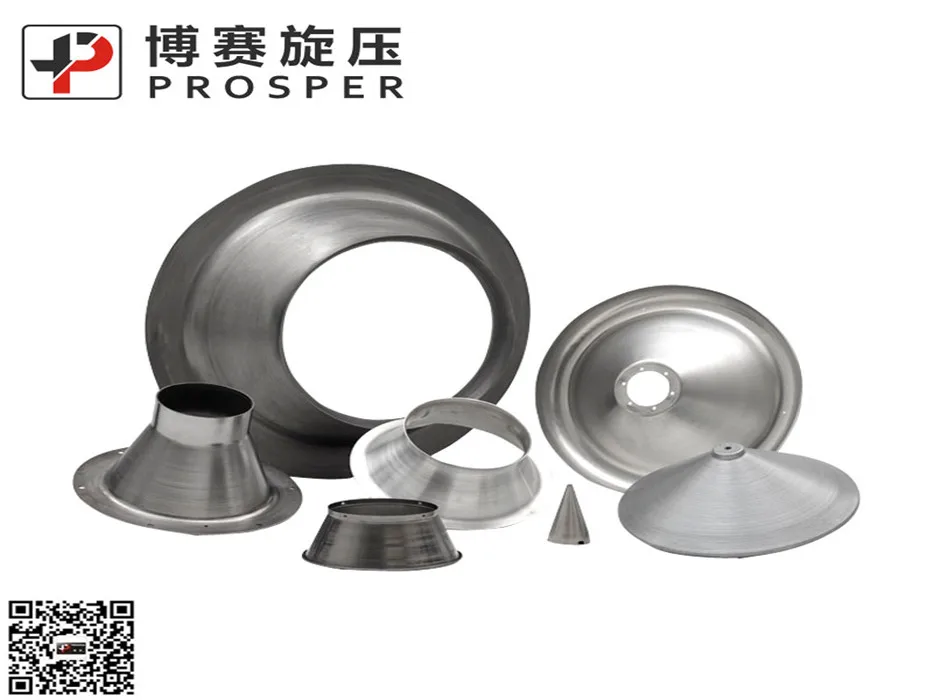

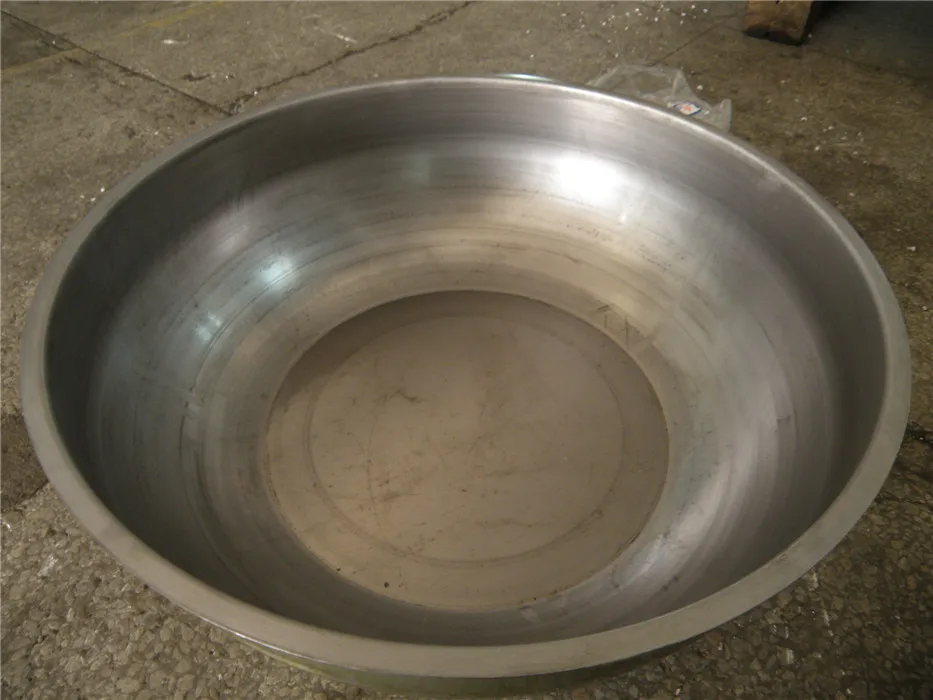

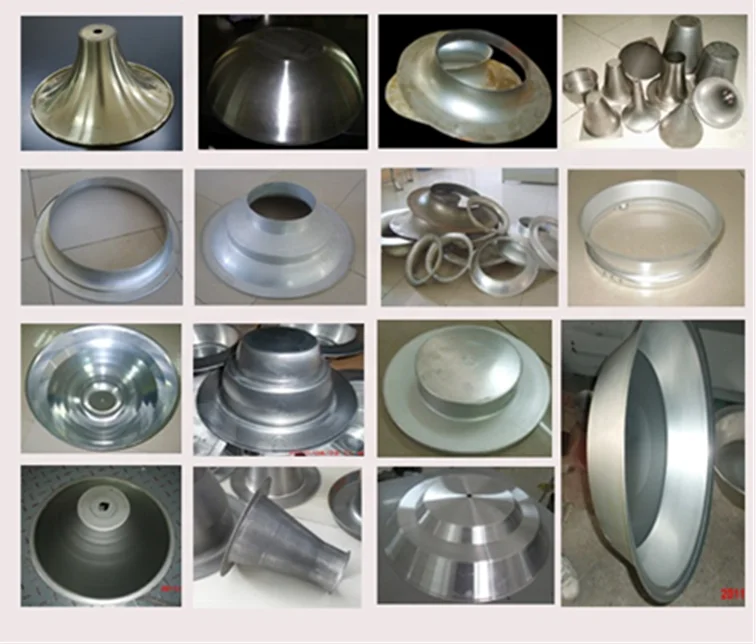

Air condition part metal spinning (cnc metal spiing national air conditioner parts )

SPECIFICATION:

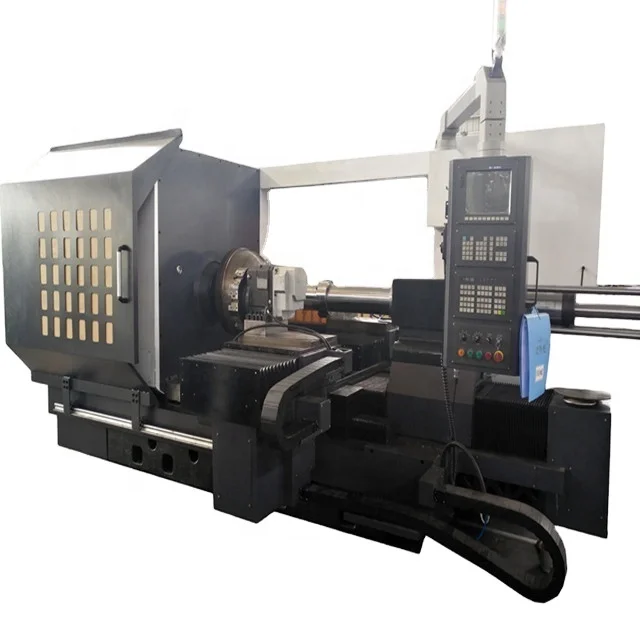

PS-CNCXY1000

Max. Blank Circle Diameter

1000 mm

Center Distance

1000 mm

Spindle size DIN 55027

Size 8 HD

Main Spindle Motor (Servo spindle motor)

30KW

Spindle Rotational Speed (Servo spindle control) Two steps

0-2000 rpm

X axis travel distance

DIA 1000mm

Z axis travel distance

600mm

Tailstock Travel

500+500mm

Ejector Travel

200mm

Hold Plate Travel

300mm

Tool Turret position

8

Sheet Thickness Approx ( Aluminum )

0.6~5mm

Sheet Thickness Approx ( Plain Steel )

0.6~3mm

Sheet Thickness Approx (Stainless Steel )

0.6~2mm

Weight

9000KG

Power supply

380V 50HZ

Size (Require space)

5000*2650*3000
