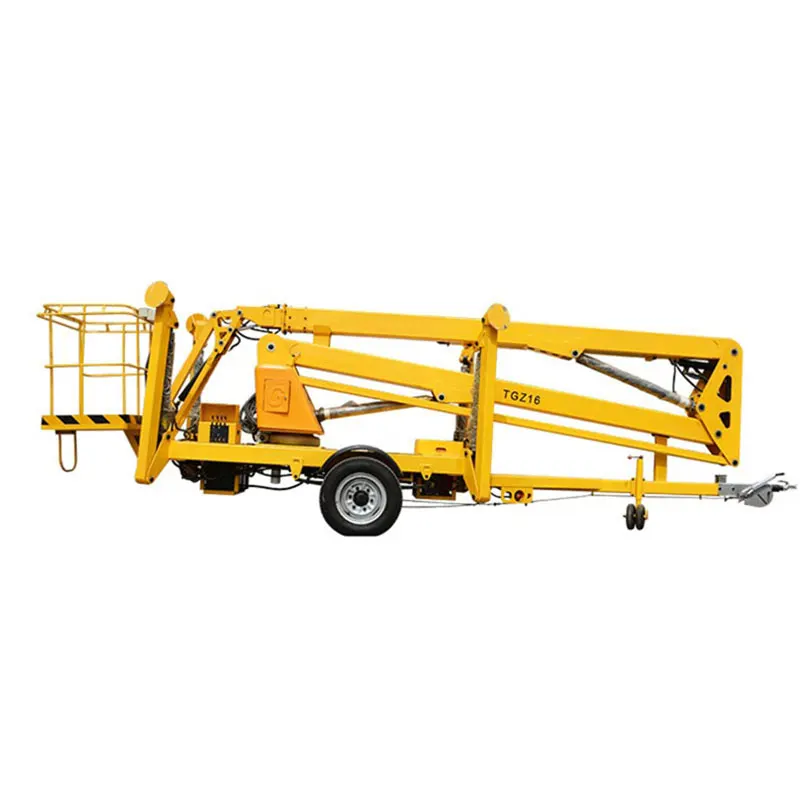

Qiyun 360 degree rotatable platform trailer arm lift is suitable for outdoor aerial work
- Category: >>>
- Supplier: Shandong Qiyun Group Co. Ltd.
Share on (1600607331964):
Product Overview
Description
PARAMETERS
| Model | TGZ08 | TGZ10 | TGZ12 | TGZ14 | TGZ16 | TGZ18 | TGZ20 |
| Max. Working Height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Max. Platform Height | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Max. Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg |
| Transportation Size(L*W*H) | 5.2X1.585X1.9m | 5.4X1.665X1.9m | 6.4X1.665X1.9m | 6.0X1.73X2.1m | 7.0X2.73X2.2m | 7.1X1.85X2.26m | 7.7X1.85X2.26m |
| Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Weight | 1538Kg | 1600Kg | 1800Kg | 2350Kg | 2900Kg | 4300Kg | 4450Kg |
| DC pumping station | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) |
| Tyre | 185/75R14C | 185/75R14C | 185/75R14C | 215/75R16C | 215/75R16C | 215/75R16C | 215/75R16C |
| Max. Working Distance | 4.5m | 5.7m | 6.4m | 8.5m | 9.5m | 10.9m | 12.5m |
Product Description

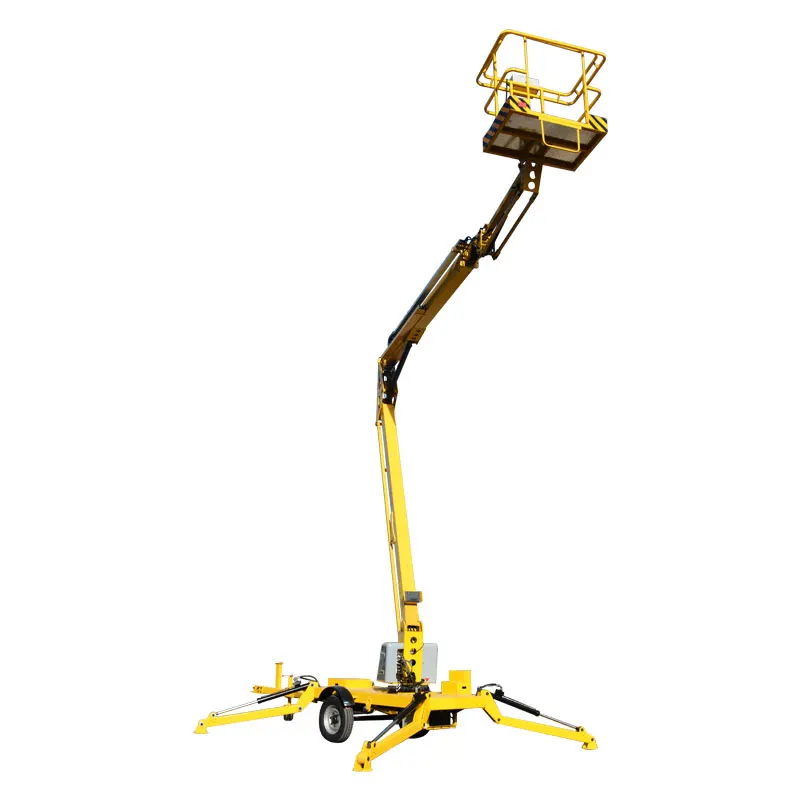

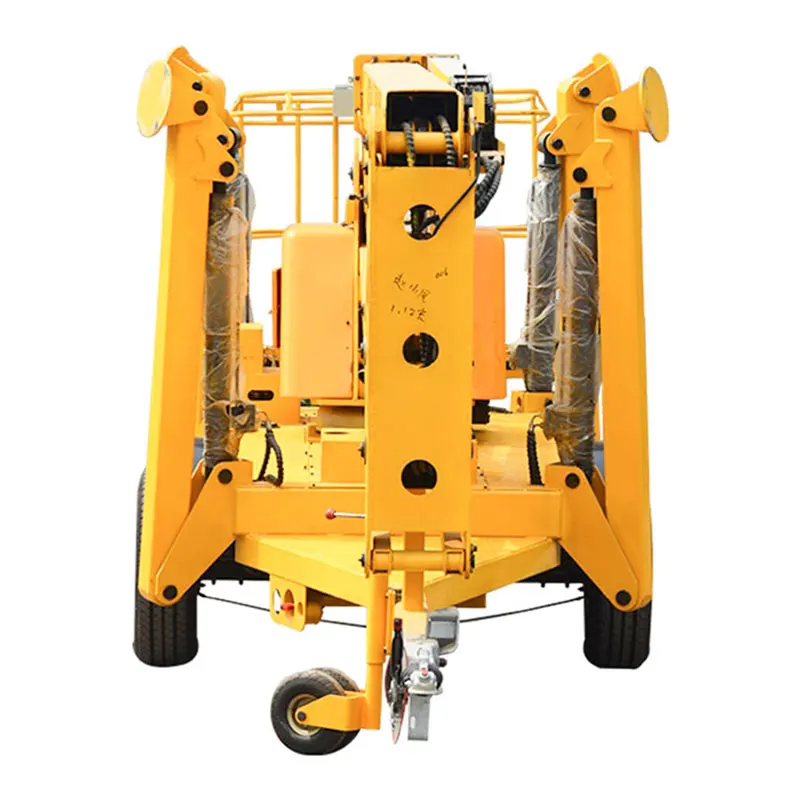

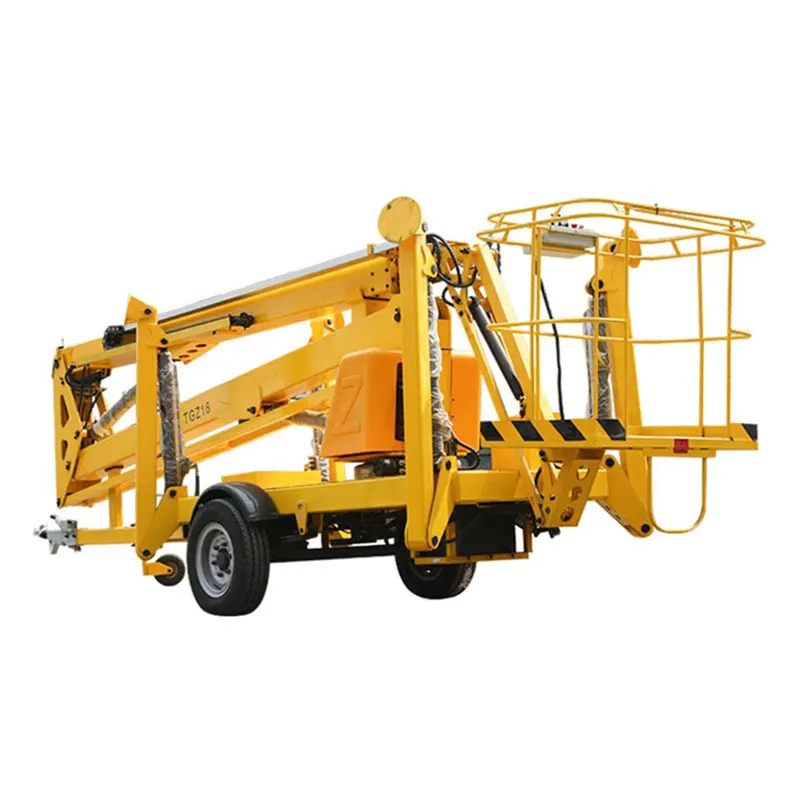

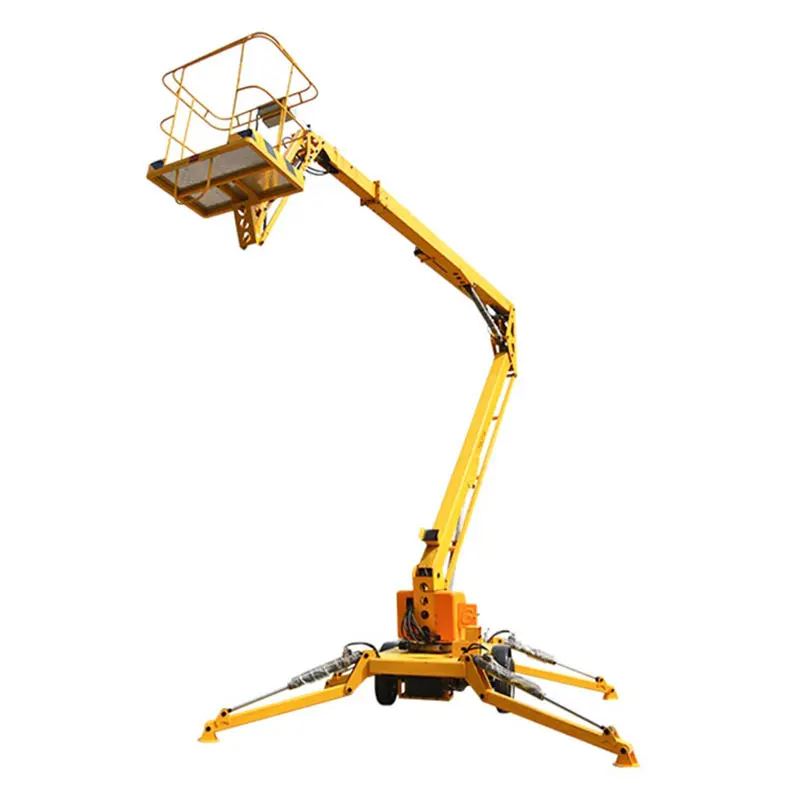

The trailer boom lift height is 8-20m .The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC,diesel or both.The lift arm using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has large working radius and it can be 360 degrees rotated.
Company Information
A 20 Year History

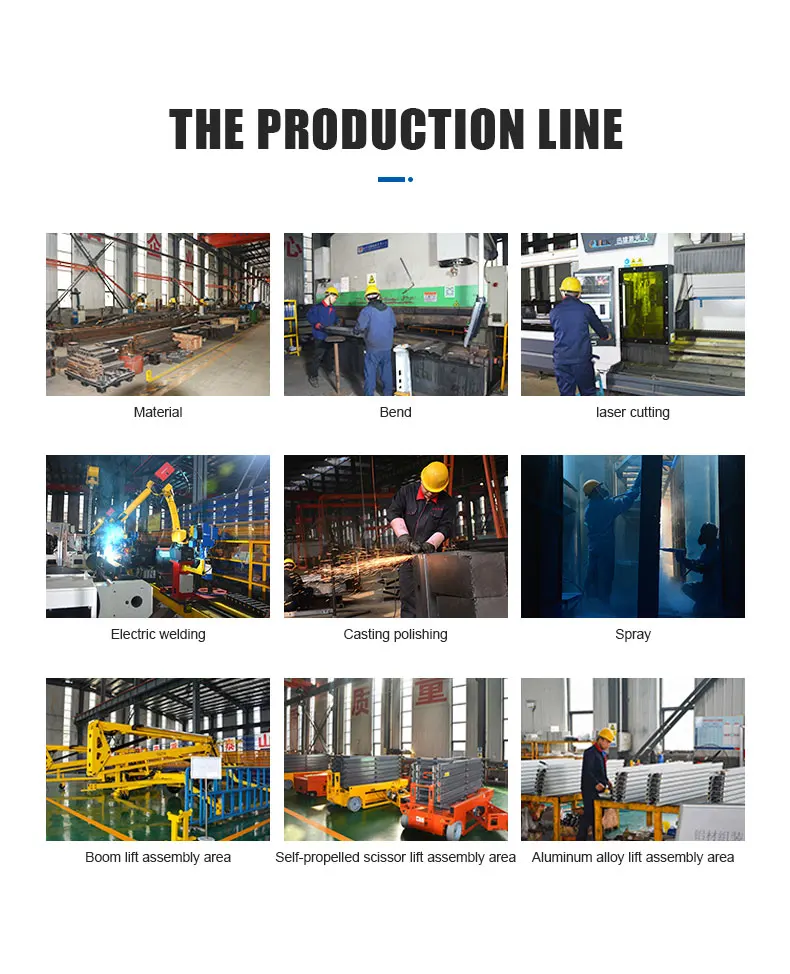

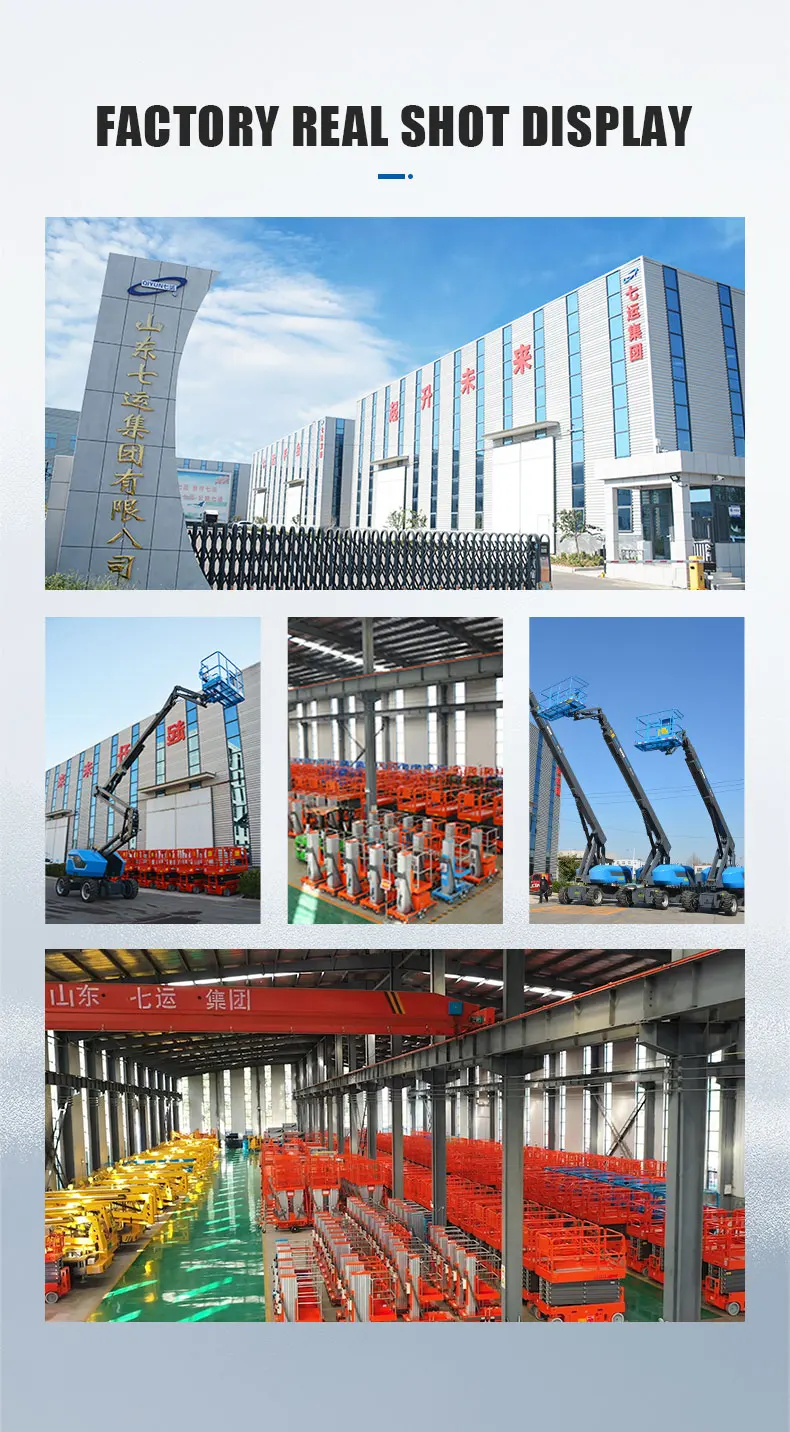

Qiyun, short for Shandong Qiyun Group Co,Ltd., is one of the largest lift equipment manufacturer in China. Dedicated to be the most influential lifting machine supplier, we have been designing, manufacturing and marketing variety of scissor lift, boom lift, cargo lift and dock ramp etc for over 10 years.
