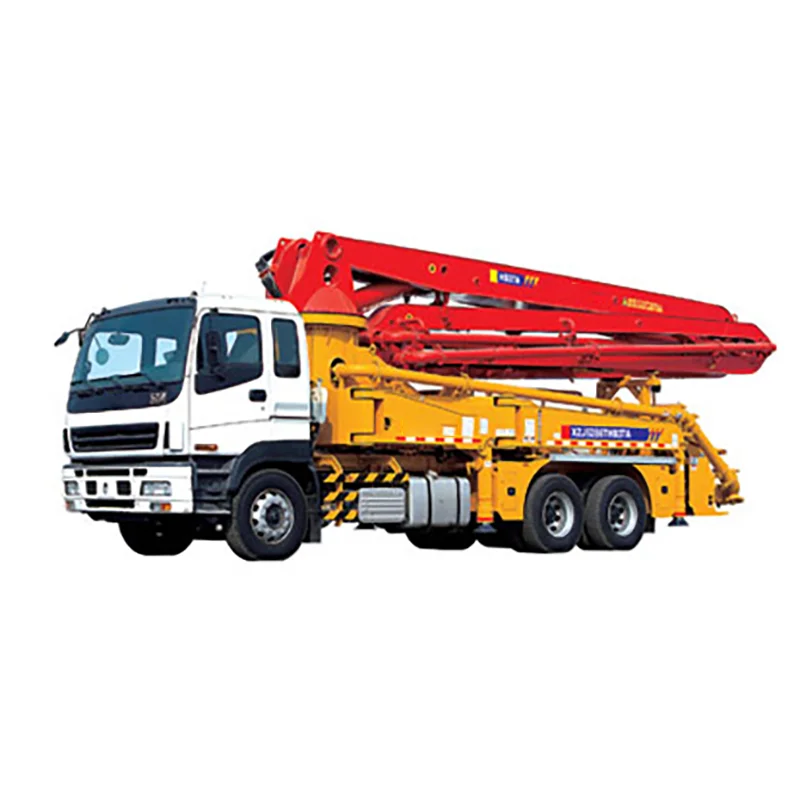

39m HB39K China new diesel truck mounted concrete pump truck
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
* Large diameter (230 mm) Φ, large displacement (108 / hour) pumping systems.
* Material absorption can reach more than85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Contact way
Lareina Yang
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15107124962
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15107124962
Web: www.newindu.com
Product Paramenters
Description | Unit | Parameter value |
Outline dimension | mm | 10955×2500×3800 |
Overall weight | kg | 26500 |
Model | / | |
Manufacturer | / | |
Max. speed | km/h | 90 |
Max. grade-ability | % | 40 |
Wheelbase | mm | 4600+1350 |
Tire | 11.00R22.5 | |
Model | / | |
Max. power | kW | 279 |
Max. torque | N·m/(r/min) | 1590/1100~1600 |
Displacement | L | 9.276 |
Emission standard | Eruo III | |
Theoretical output | m³/h | 130 |
Concrete pumping pressure | MPa | 8 |
Theoretical pumping times | Time/min | 24~27 |
Delivery cylinder diameter ×stroke | mm | φ230×2000 |
Max. diameter of pumping concrete | mm | 40 |
Filling height | mm | 1580 |
Concrete slump range | cm | 8~23 |
Reach height | m | 39.1 |
Reach depth | m | 26.8 |
Slewingradius | m | 35.1 |
Slewing angle | ° | ±270 |
