Product Overview
Description

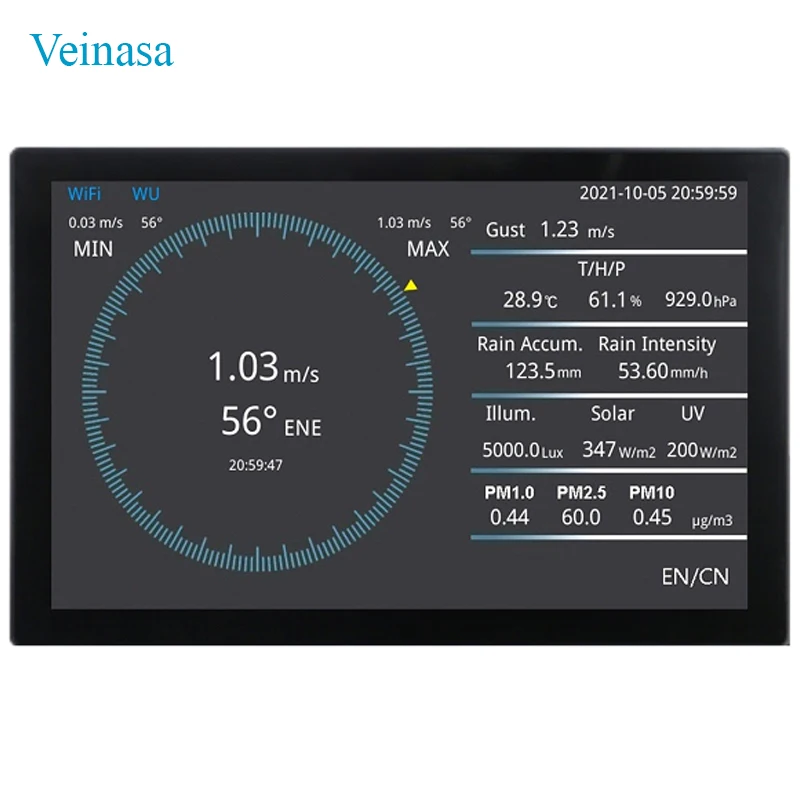

Veinasa-HD 7 Inch Large Weather Station Display Console Data Logger Acquisition for Weather Station WIFI SD Card
Products Description

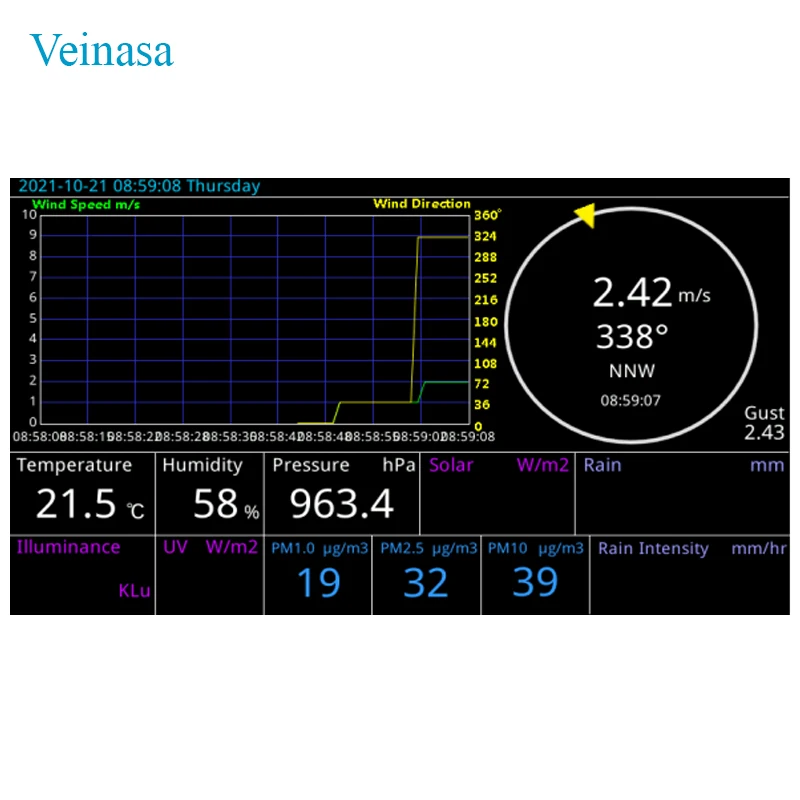

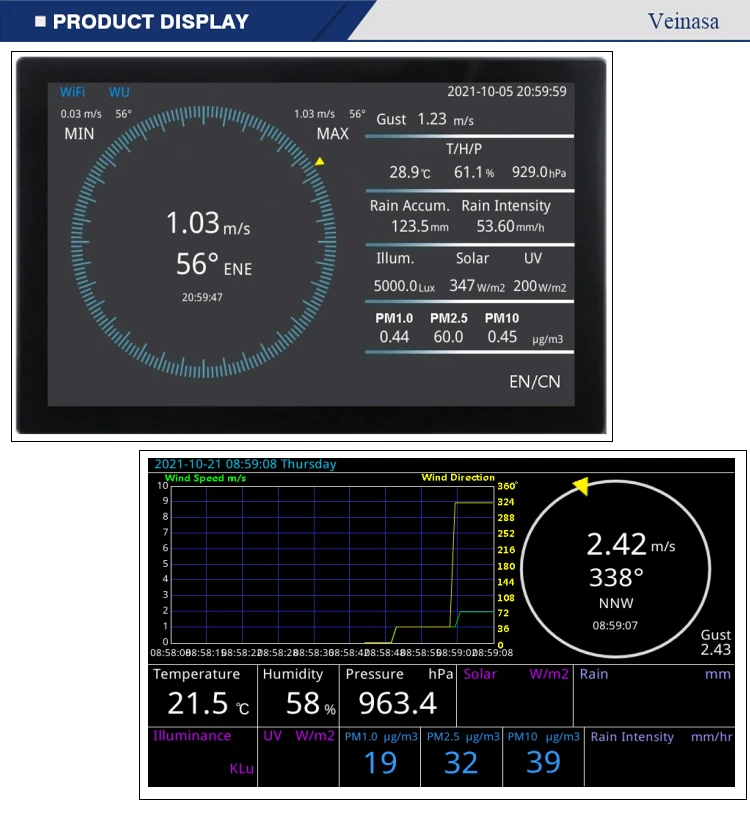

Veinasa-HD is a data acquisition display independently developed by our company, which integrates multiple functions and supports switching between Chinese and English. Not only can it display real-time data, history graph, do data logging, but also conduct TCP connection as client to your server, upload data to Weather Underground, Our company IoT platform.
All data received by serial port(UART, RS485, RS232, TTL) will be automatically uploaded to your server.
It’s working based on embedded real-time operating system, which is stable, free of system crash.

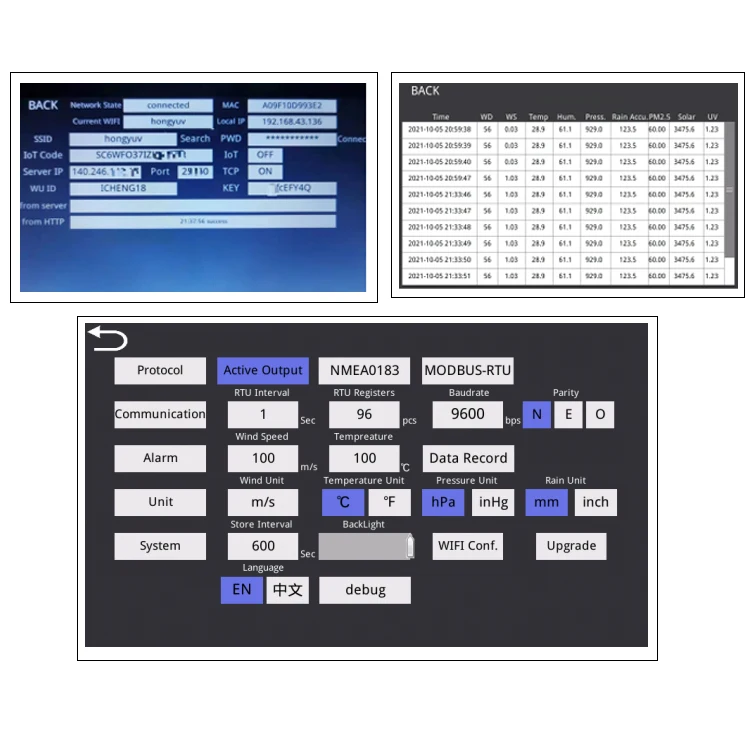

It can support Our company unsolicited(active) output in ASCII stream format, NMEA0183, MODBUS-RTU protocol.
We can also make it suit to your own protocol based on your requirement customization.
Multiple language can be customized.
Technical Parameters
Screen | 7 inch TFT Capacitive touch screen | |
CPU | 800Mhz | |
RTC function | Yes | |
Dimension | 189.0mm×105.3mm×17.5mm | |
Display Zone | 155.5mm×87.2mm | |
Interface | TTL or RS485 or RS232 | |
WIFI | Optional: 2.4GHz-2.48GHz supported | |
Internal Storage | About 90MB for 30 days’ data | |
TF card | TF storage, a 8G TF card can store 2000 days’ data | |
Operational Temp. | -20～+70℃ | |
Storage Temp. | -30℃～ +80℃ | |
Optional protocol | One of MODBUS-RTU,NEMA0183,Active output Other protocol can be customized | |
Reliability | It has passed industrial standard high and low temperature, ESD, group pulse and radiation tests | |
Power consumption | Backlight off:120mA 20%:150mA 100%: 240mA @12VDC | |
Specifications may be subject to change without prior notice. | ||
Product Features
Features of Veinasa-HD:
Min and Max wind indication\t Wind Sector indication
Wind and Temperature Alarm\t \tHistorical Graph & Changeable wind & temp unit
TCP connection\t\t\t\t \tSupport Weather Underground
WIFI & SD card supported\t\t\tSupport Our company IoT platform
Can upload data to your own server or IoT platform
Min and Max wind indication\t Wind Sector indication
Wind and Temperature Alarm\t \tHistorical Graph & Changeable wind & temp unit
TCP connection\t\t\t\t \tSupport Weather Underground
WIFI & SD card supported\t\t\tSupport Our company IoT platform
Can upload data to your own server or IoT platform

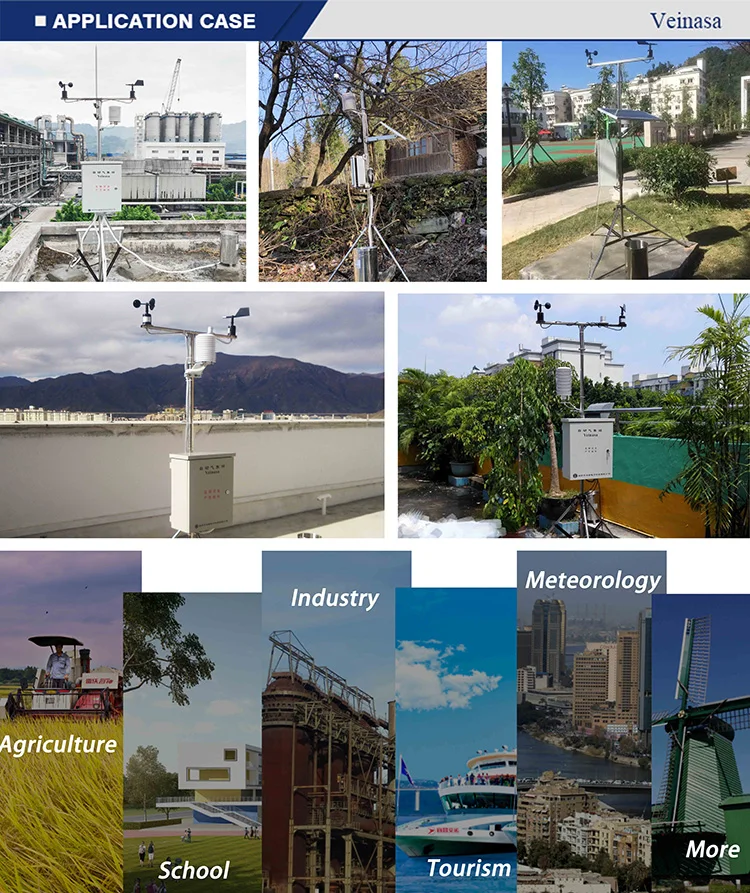

Application Field
