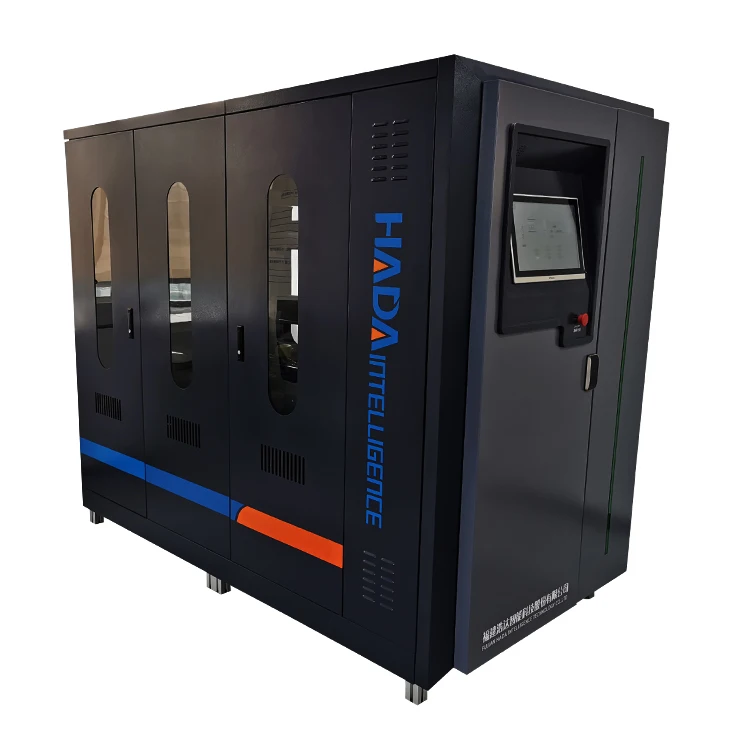

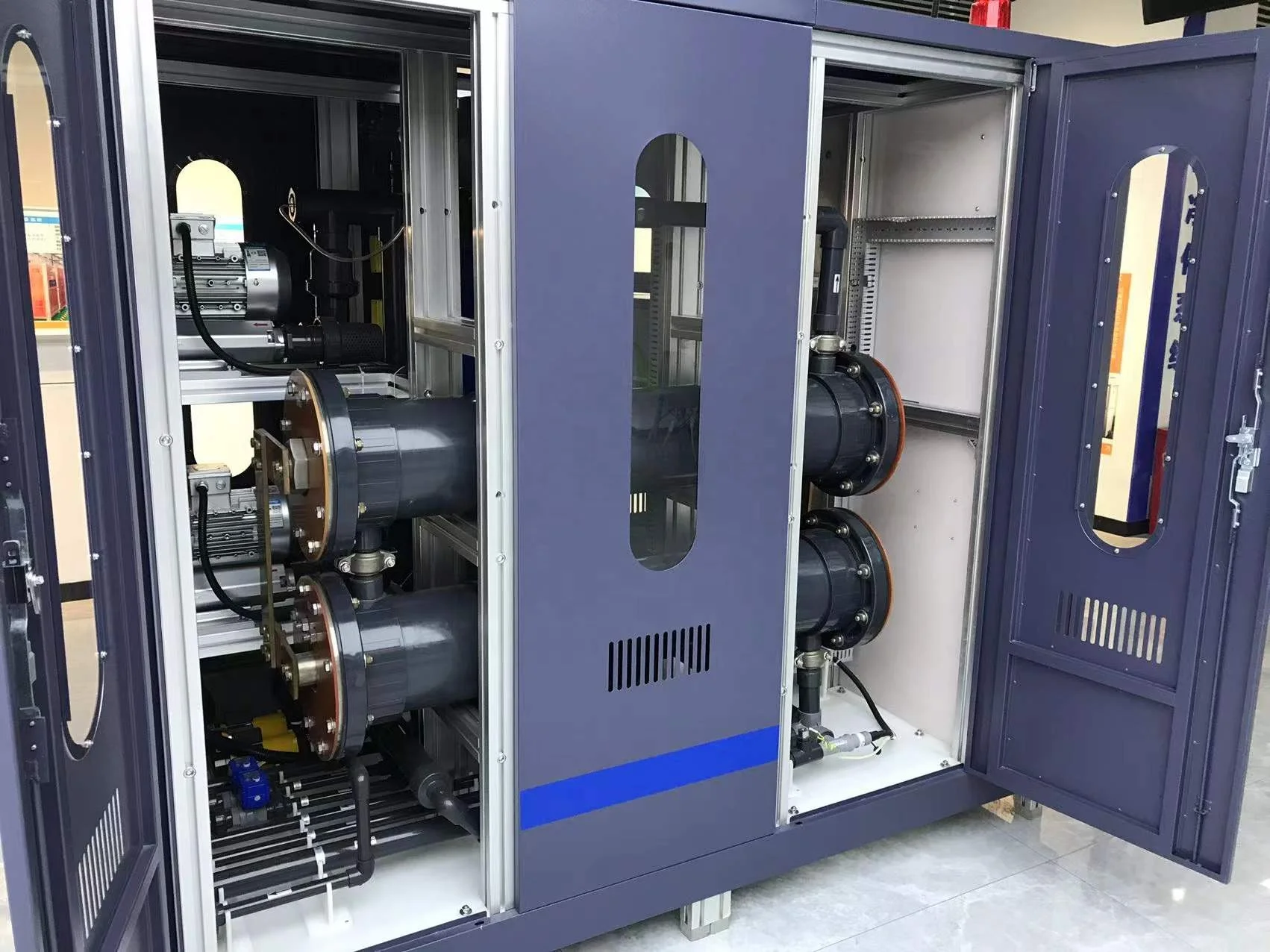

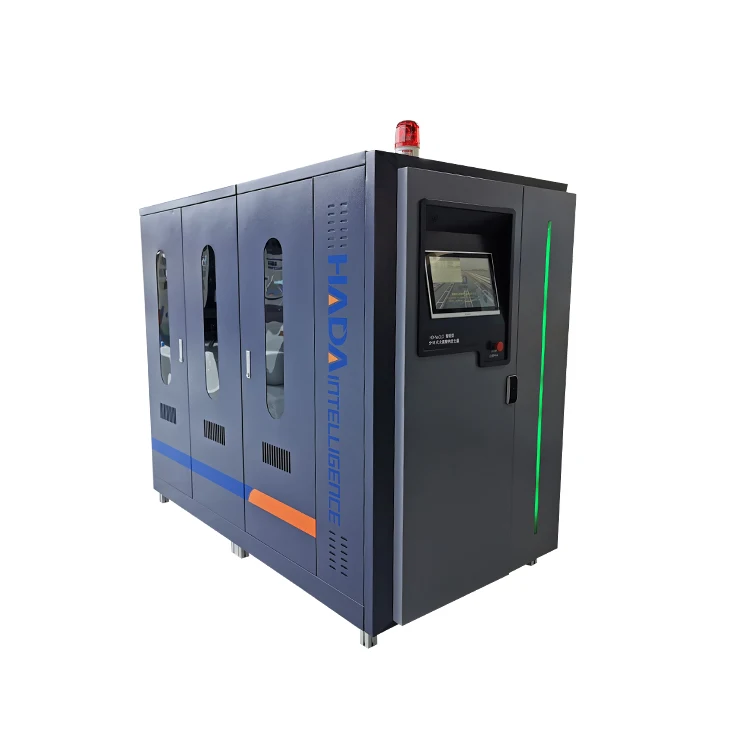

New Original pure titanium electrode for sodium hypochlorite generator
- Category: >>>
- Supplier: Fujian Hada Intelligence Technology Co. Ltd.
Share on (1600607408007):
Product Overview
Description
Product Description

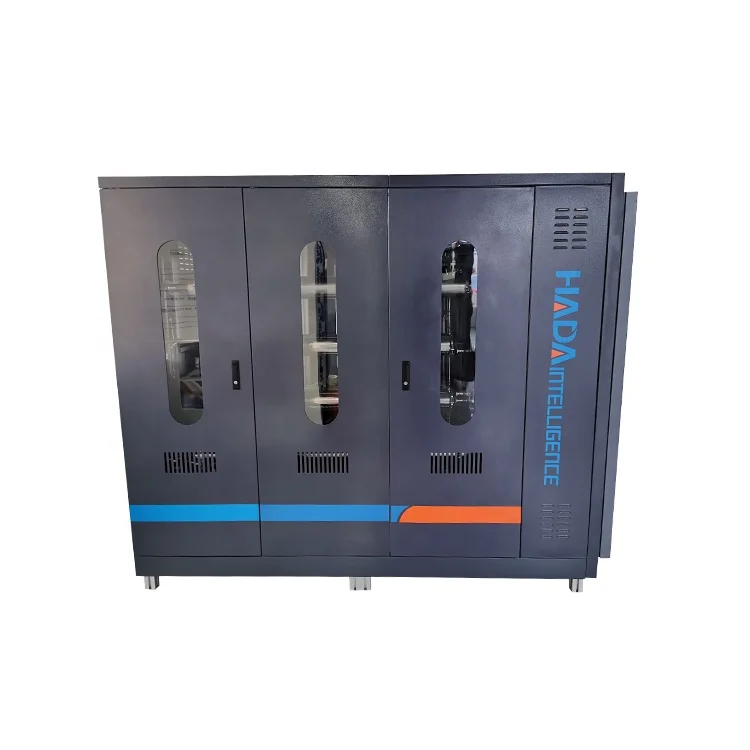

Spilt Type Sodium Hypochlorite Generator
The only raw material-- salt -- is safe and easily get
Controlled by the PLC smart center, quality assurance
Remote real-time monitoring and maintenance services
The maximum output of active chlorine can reach 60,000 g/h
The concentration of sodium hypochlorite solution is 0.7%~0.9%
Have CE certificate, meet drinking water standards
Patented electrolyzer saves salt and electricity consumption
Controlled by the PLC smart center, quality assurance
Remote real-time monitoring and maintenance services
The maximum output of active chlorine can reach 60,000 g/h
The concentration of sodium hypochlorite solution is 0.7%~0.9%
Have CE certificate, meet drinking water standards
Patented electrolyzer saves salt and electricity consumption
Product Paramenters
Model | Specification | Cl2 production | Power consumption | Salt consumption |
HD-3K-NACLO | 1200*860*1950 | 3Kg/h | 4.2kw(per kg active chlorine) | 3.85kg(per kg active chlorine) |
HD-4K-NACLO | 1200*860*1950 | 3Kg/h | 4.2kw(per kg active chlorine) | 3.85kg(per kg active chlorine) |
HD-5K-NACLO | 1200*860*1950 | 3Kg/h | 4.2kw(per kg active chlorine) | 3.85kg(per kg active chlorine) |
HD-6K-NACLO | 1200*860*1950 | 3Kg/h | 4.2kw(per kg active chlorine) | 3.85kg(per kg active chlorine) |
HD-8K-NACLO | 1200*860*1950 | 3Kg/h | 4.2kw(per kg active chlorine) | 3.85kg(per kg active chlorine) |

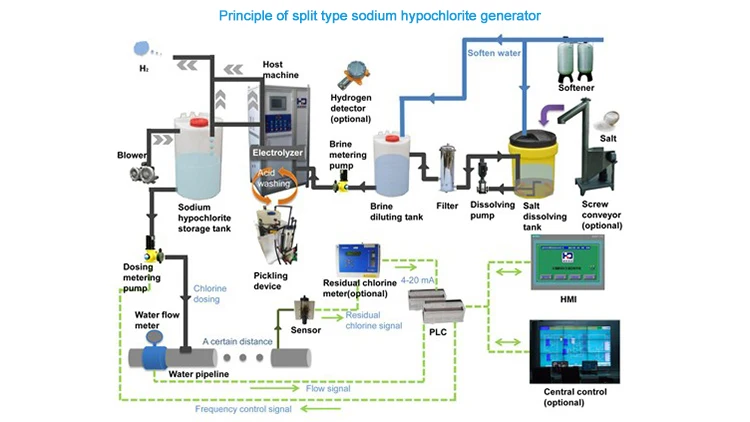

Process & Operation:
1) Salt will be dissolved in the tank and become saturated brine (25%);
2) Diluted into 3% after filtered ( If use sea water as raw material, it will be treated before electrolysis);
3) Electrolysis in the host machine;
4) The final product- Sodium hypochlorite liquid (7000ppm-9000ppm) in the storage tank;
5) The sodium hypochlorite solution will be injected into the pipe by metering pump;
6) Residual chlorine detective will monitoring the residual chlorine and return feedback to PLC center;
7) PLC center will adjust the speed of dosing pump according to the preset standard.
2) Diluted into 3% after filtered ( If use sea water as raw material, it will be treated before electrolysis);
3) Electrolysis in the host machine;
4) The final product- Sodium hypochlorite liquid (7000ppm-9000ppm) in the storage tank;
5) The sodium hypochlorite solution will be injected into the pipe by metering pump;
6) Residual chlorine detective will monitoring the residual chlorine and return feedback to PLC center;
7) PLC center will adjust the speed of dosing pump according to the preset standard.

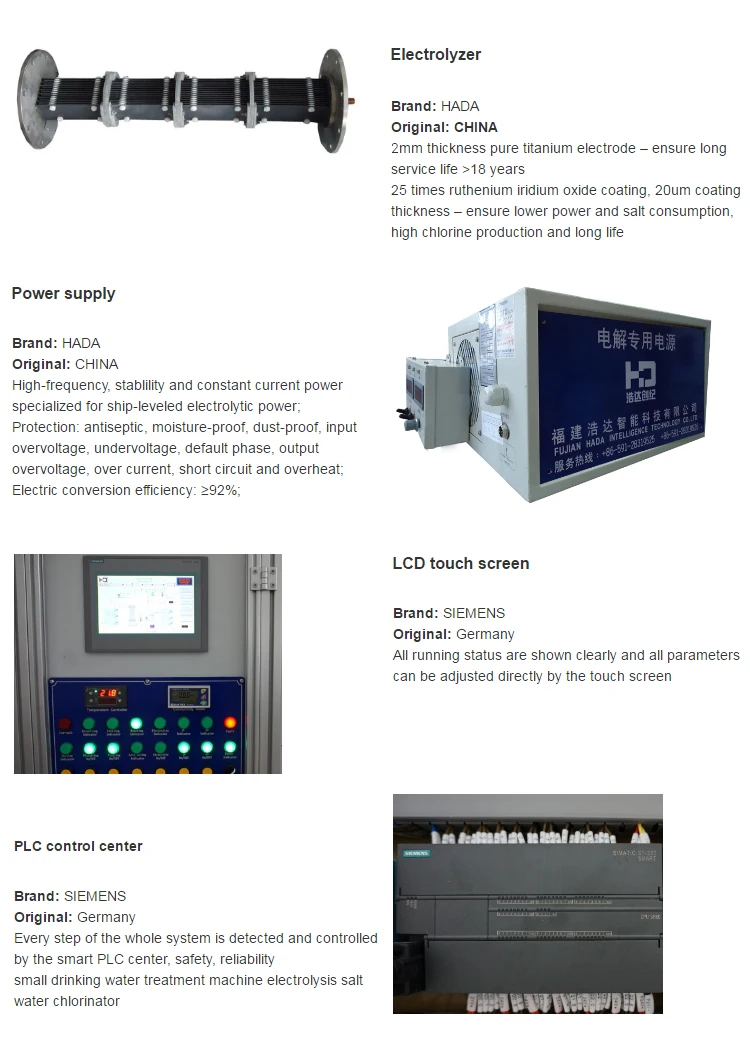

Configuration of product

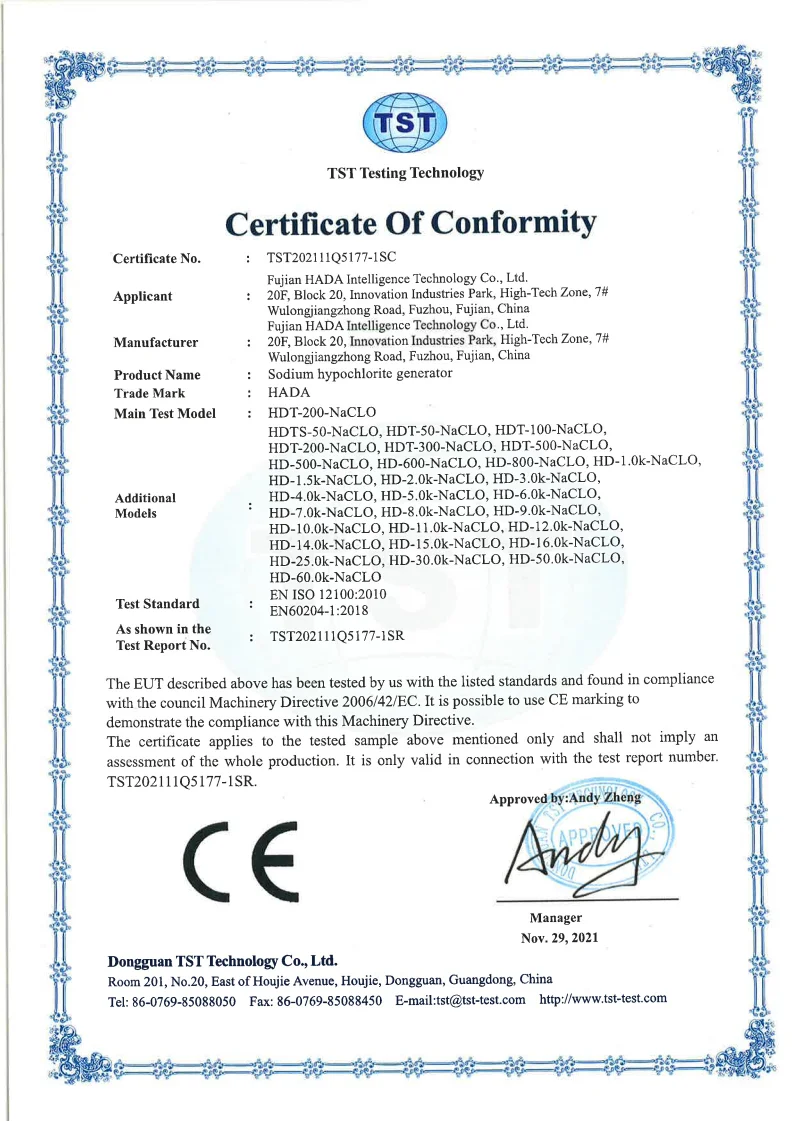

Certificates
