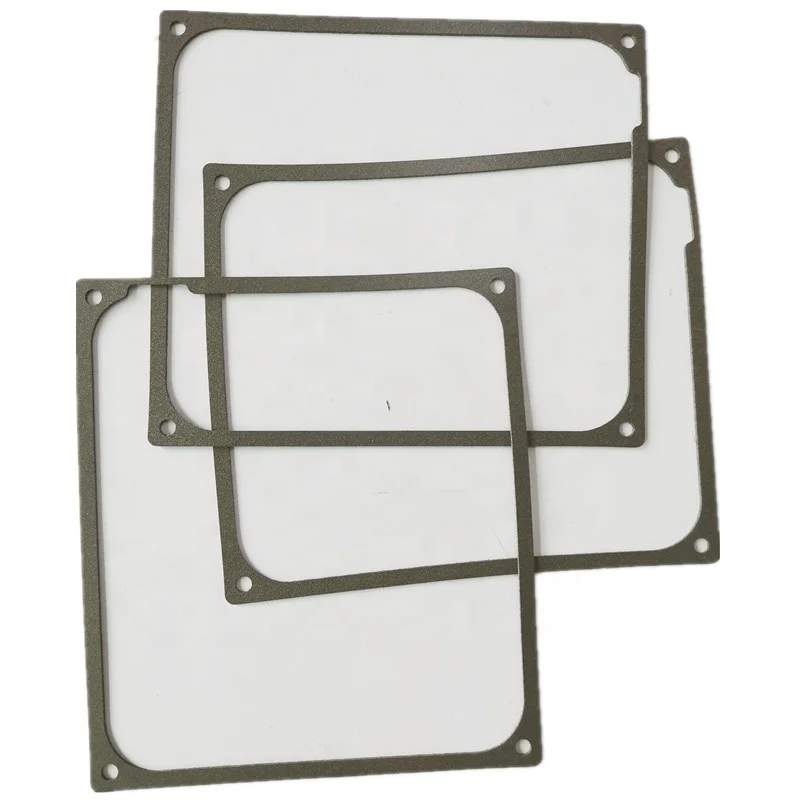

customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield

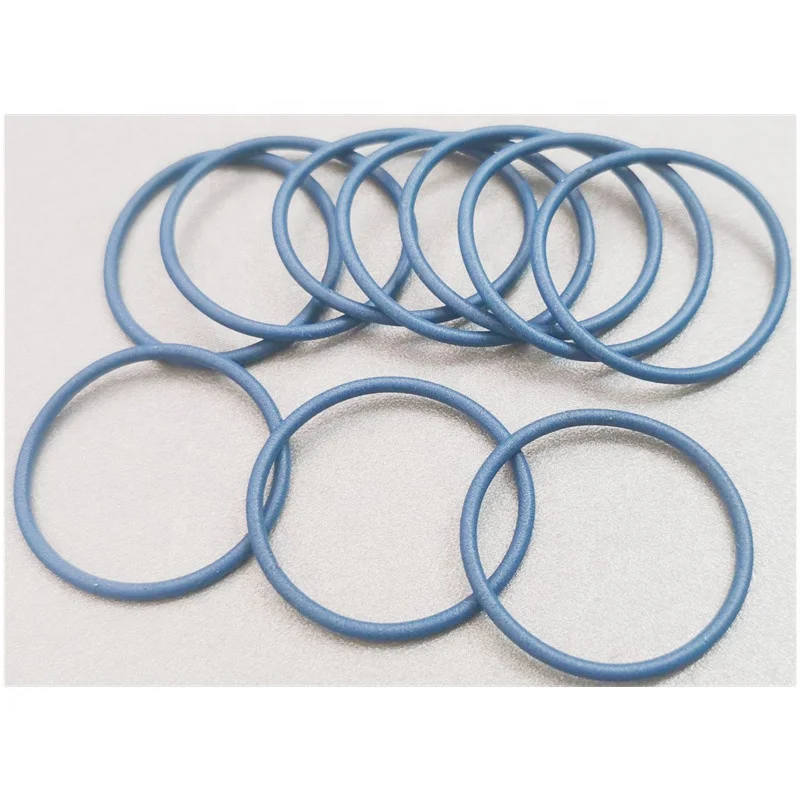

customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield
customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield
customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield
customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield

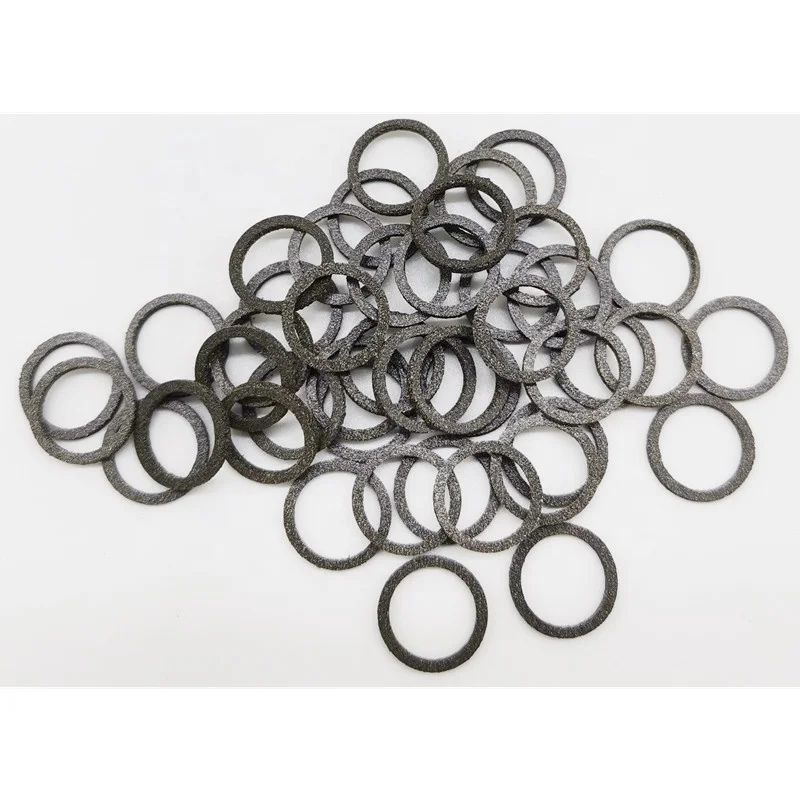

customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield
customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield

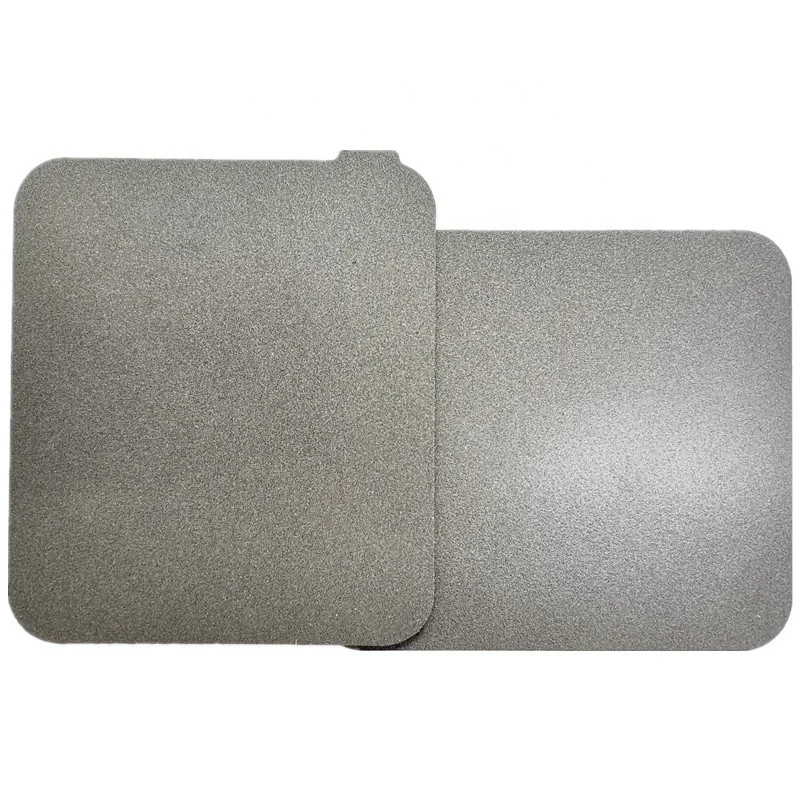

customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield

Share on (1600607484075):


Price:

Quantity:


Product Overview

Description

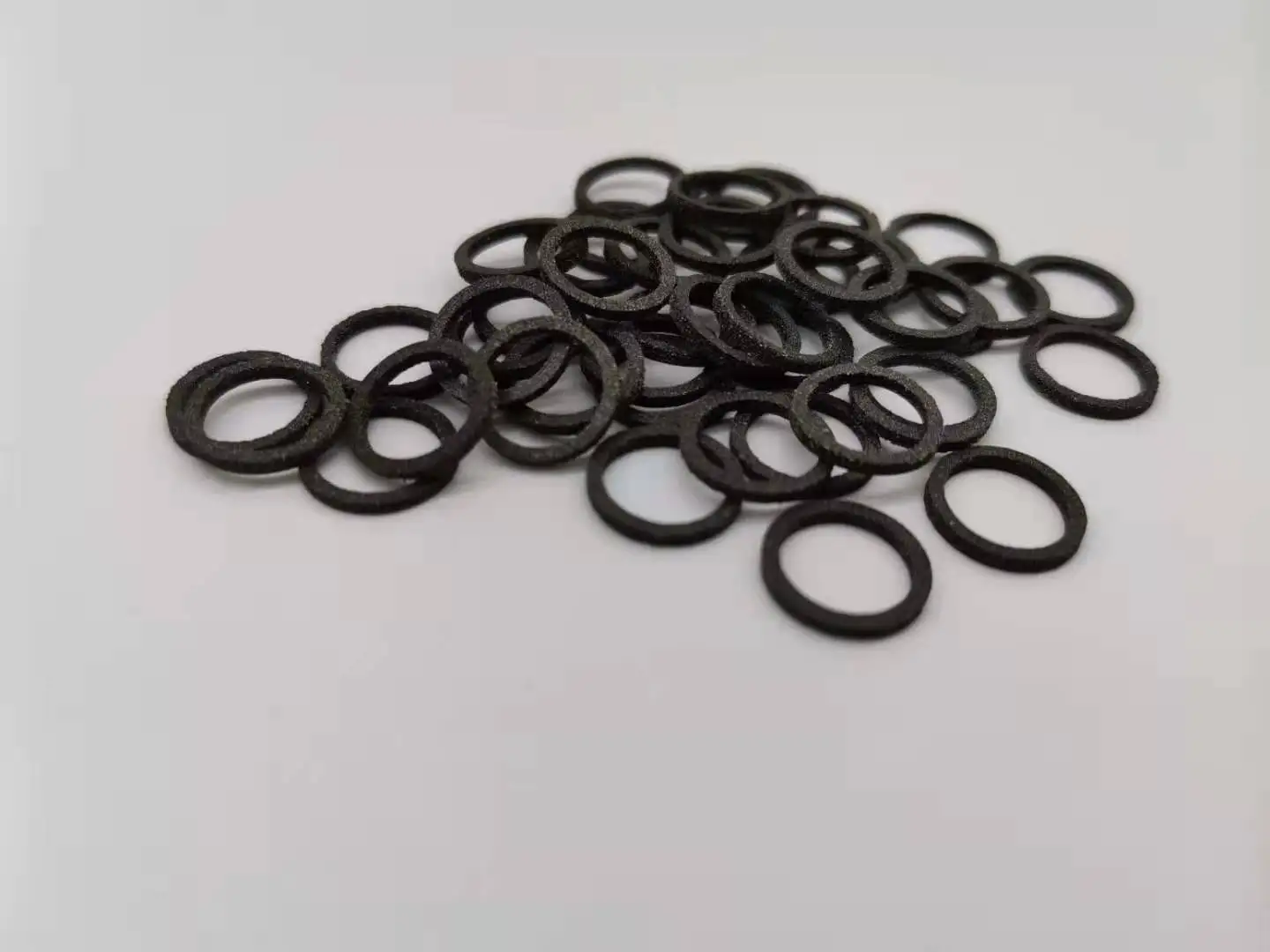

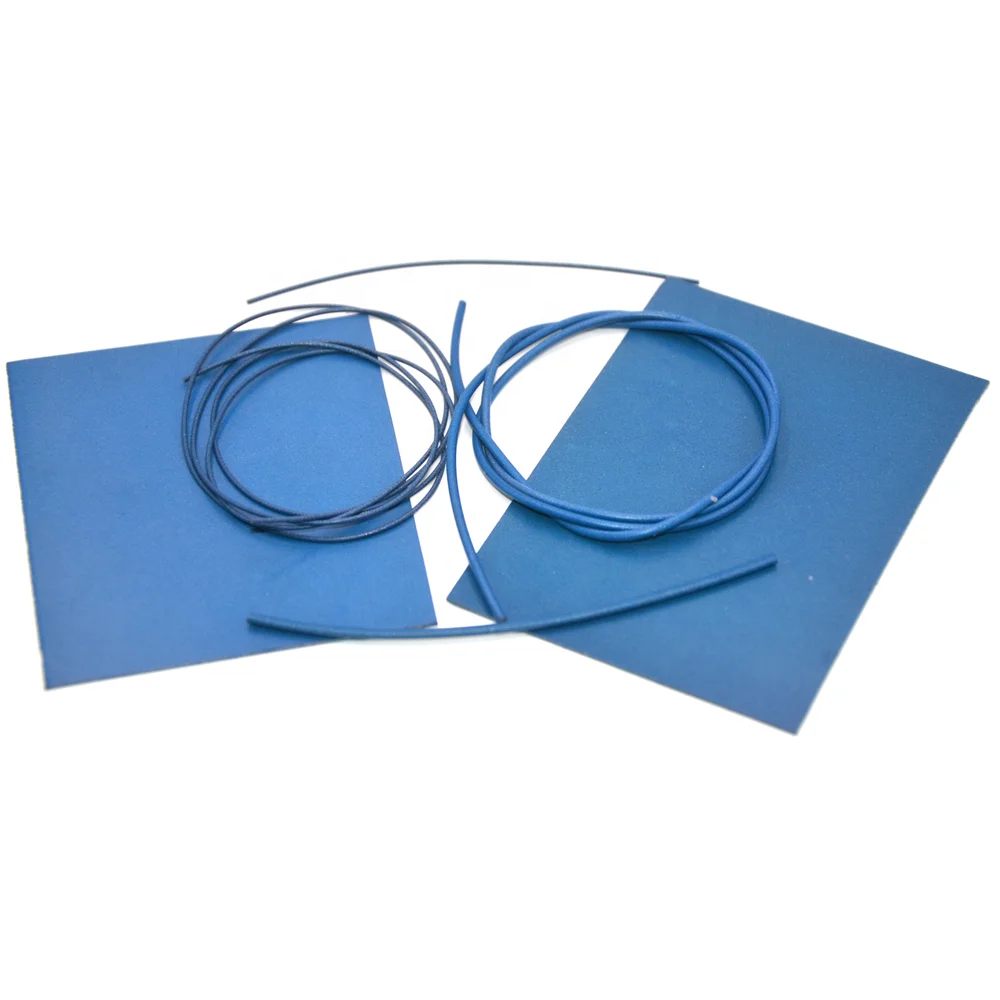

customized conductive rubber gasket electrical conductivity silicone rubber for seal and EMI shield





Specification


Product Name
Conductive Silicone Rubber
Material
Nickel Carbon / Glass Silver / Aluminum Silver/Copper Silver
Hardness
(Shore A)
65 ±5
Certificate
ISO 9001:2015 / ROHS
Important Information
 Type
SNC (NI/C)
SSG (Ag/Gl)
SSA ((Ag/Al)
SSC(Ag/Cu)

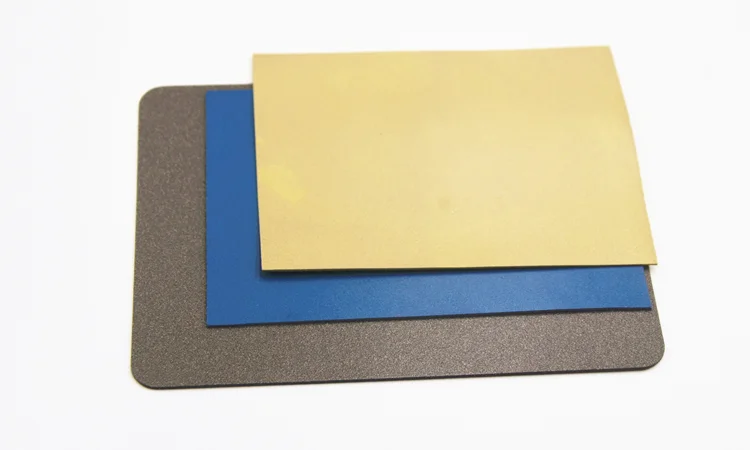

Color
Dark grey
Beige
Blue
Tan
Volum Resistivity (ohm-cm)
Max. 0.08
Max. 0.01
Max. 0.008
Max. 0.004
Electrical Stability       (ohm-cm)
After Heat Aging Max. 0.18;
After Break Max. 0.1
After Heat Aging Max. 0.015;
After Break Max. 0.015
After Heat Aging Max. 0.01;
After Break Max. 0.01
After Heat Aging Max. 0.01;
After Break Max. 0.008
Shielding Effectiveness ( dB )
200 KHz
Min. 40
Min. 50
Min. 70
Min. 70
100 MHz
Min. 100
Min. 100
Min. 115
Min. 120
500 MHz
Min. 100
Min. 100
Min. 115
Min. 120
2 GHz
Min. 100
Min. 100
Min. 105
Min. 120
10 GHz
Min. 90
Min. 100
Min. 100
Min. 120
Specific Gravity (g/cm³）
2 ±0.25
2 ±0.25
2.2 ±0.25
3.4 ±0.25
Tensile Strength (PSI)
200
200
200
200
Elongation
 ( % )
Min. 100
Max. 220
Min. 100
Max. 300
Min. 100
Max. 200
Min. 100
Max. 250
Tear Strength
( PPI )
Min. 30
Min. 30
Min. 30
Min. 30
Compression ( % )
Max.21
Max.30
Max.30
Max.35
Operating Temperature
    ( ℃ ）

-50~160

-50~160

-50~160

-50~160
Compression / Deflection
Min. 5
Min. 3.5
Min. 3
Min. 3.5












Features
1) Good electrical conductivity
2) High shielding effectiveness
3) Good sealing performance
4) Having better buffering effectiveness
5) Nickel-carbon, sliver-plated glass, sliver-plated aluminum materials are available for customers to choose. It also can be customized to produce various shapes and size of products.
6) Products can be added with adhesive according to customer's requirements.
7) Easy to install, there is a variety of installation methods for selection.














Hot-sale products


EMI Gasket Conductive Foam
All Direction Conductive Foam
PORON Foam Gasket


EMI Shield Can
Conductive Copper Tape
Beryllium Copper Fingerstock










Q1. Are you a factory or trading company?
We are a professional manufacturer in shielding material with over 16 years.
Q2. What are your main products?
We are supplying various gasket, EMI shrapnel, EMI conductive tape, conductive silicone rubber and other EMI shielding material.
Q3. What payment method will you accept?
TT, Ali trade assurance, Visa, E-checking, Master card, PayPal etc. acceptable.
Q4. Can you provide sample or customized service?
We are pleasure to provide you samples or customized service. Sample order is welcome.
Q5. What is our key advantages?
A. Effective communication, high efficiency and save time
B. Fast delivery time and rapid speed for sample arrangement
C. Over 16 years experience in manufacturing EMI shielding material, high quality, factory direct selling can offer very competitive price.
