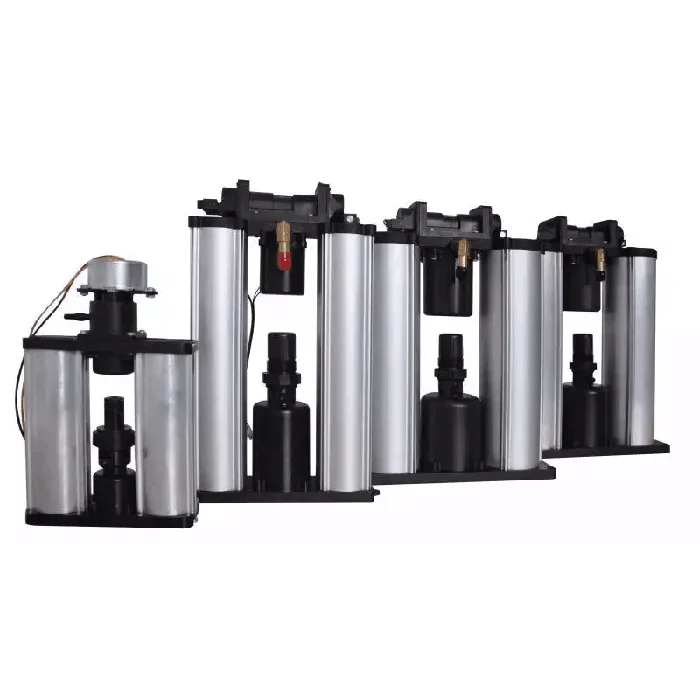

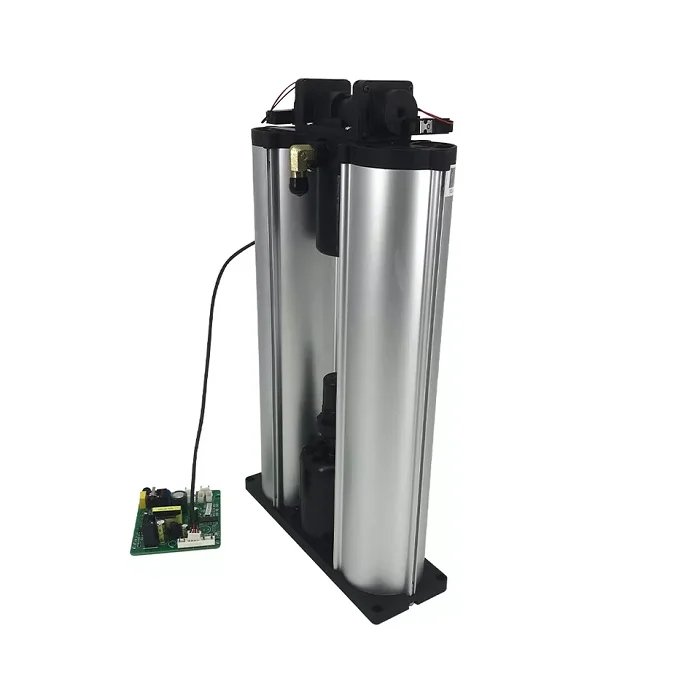

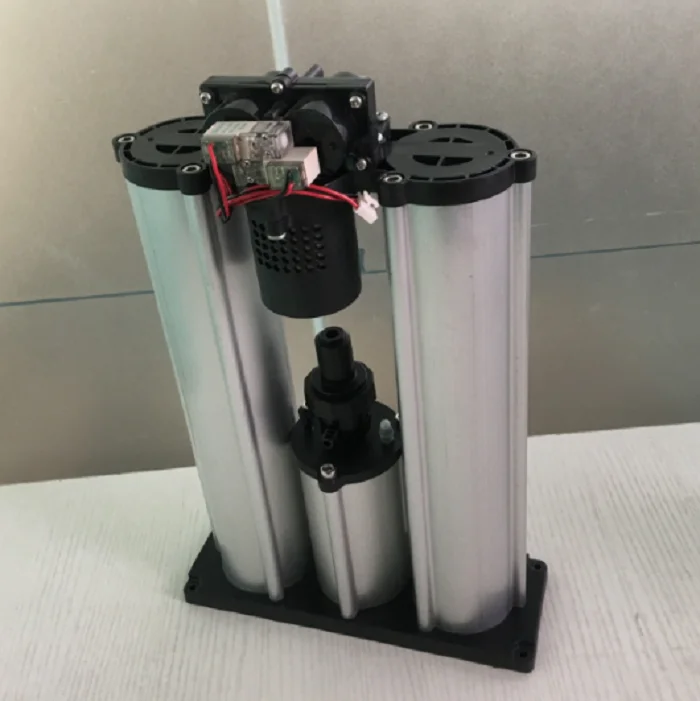

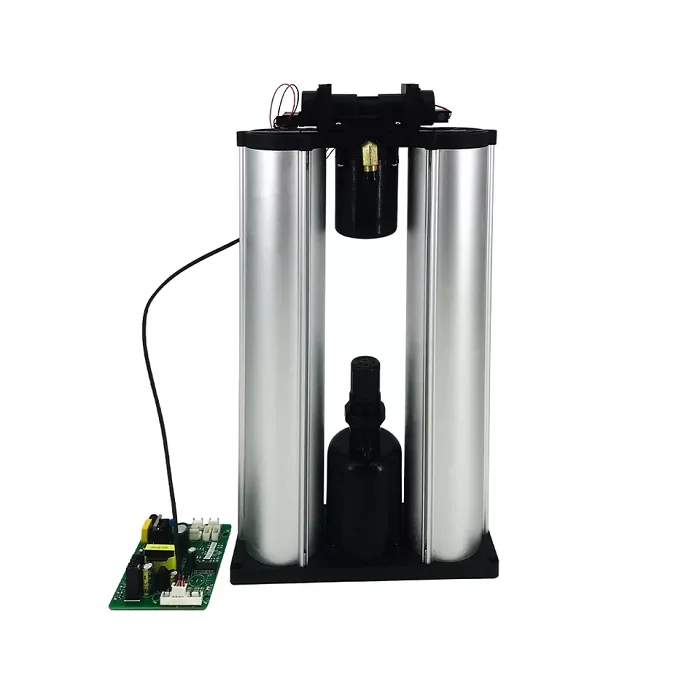

Factory Cheap price 1L 3L 5L 10L oxygen zeolite sieve bed oxygen concentrator spare parts for ozone generator

Product Overview

Description

Factory Cheap price 1L 3L 5L 8L 10L oxygen zeolite sieve bed oxygen concentrator spare parts for ozone generator







Product description



1. Simple structure, easy to operate, and stable oxygen output.

2. Material: High efficient Zeolite and Alumina molecular sieve

3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost.

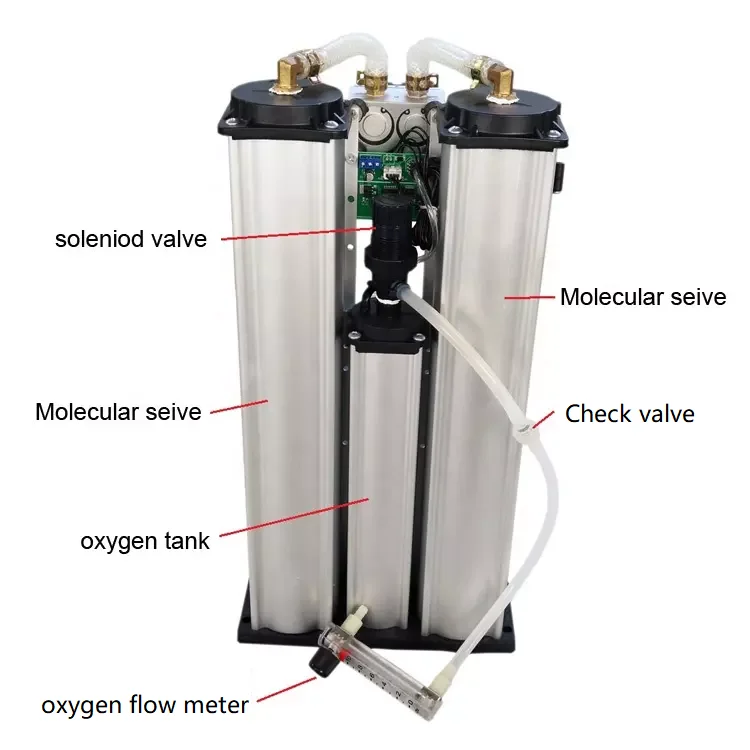

4. Oxygen purity can up to 93+3%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output.

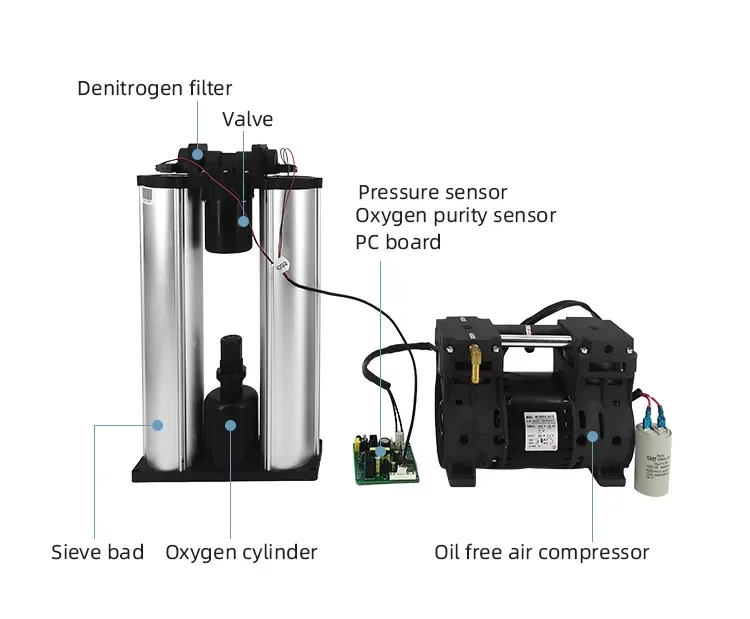

5. Parts with shipping: Air compressor, chiller, fan and air inlet pipe

6. Oxygen outlet pressure: 0.04~0.06Mpa



Product paramenter



Flow	Purity	Oxygen output	Outlet Pressure	Compressor requirement		Voltage	Dimension	Weight
	%	(LPM)	(Mpa)	Air flow (LPM)	Pressure (psi)	V/HZ	mm(L*W*H)	(kg)
OGP-OA1L	91~50%	1~3	0.04~0.05	13~20	20	220/110 50/60	138*55*218	1.3
OGP-OA3L	92±3%	3	0.045~0.05	45	20		205*70*320	1.6
OGP-OA5L	92±3%	5	0.06~0.065	67	20		215*75*320	2.4

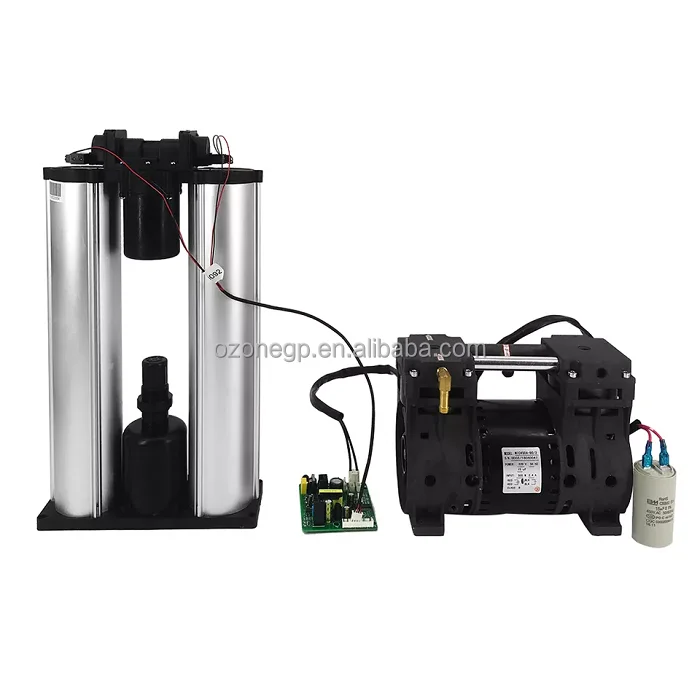

OGP-OA10L	92±3%	10	0.06~0.065	110	31		215*75*480	2.9
Remark	1bar=14.5psi
