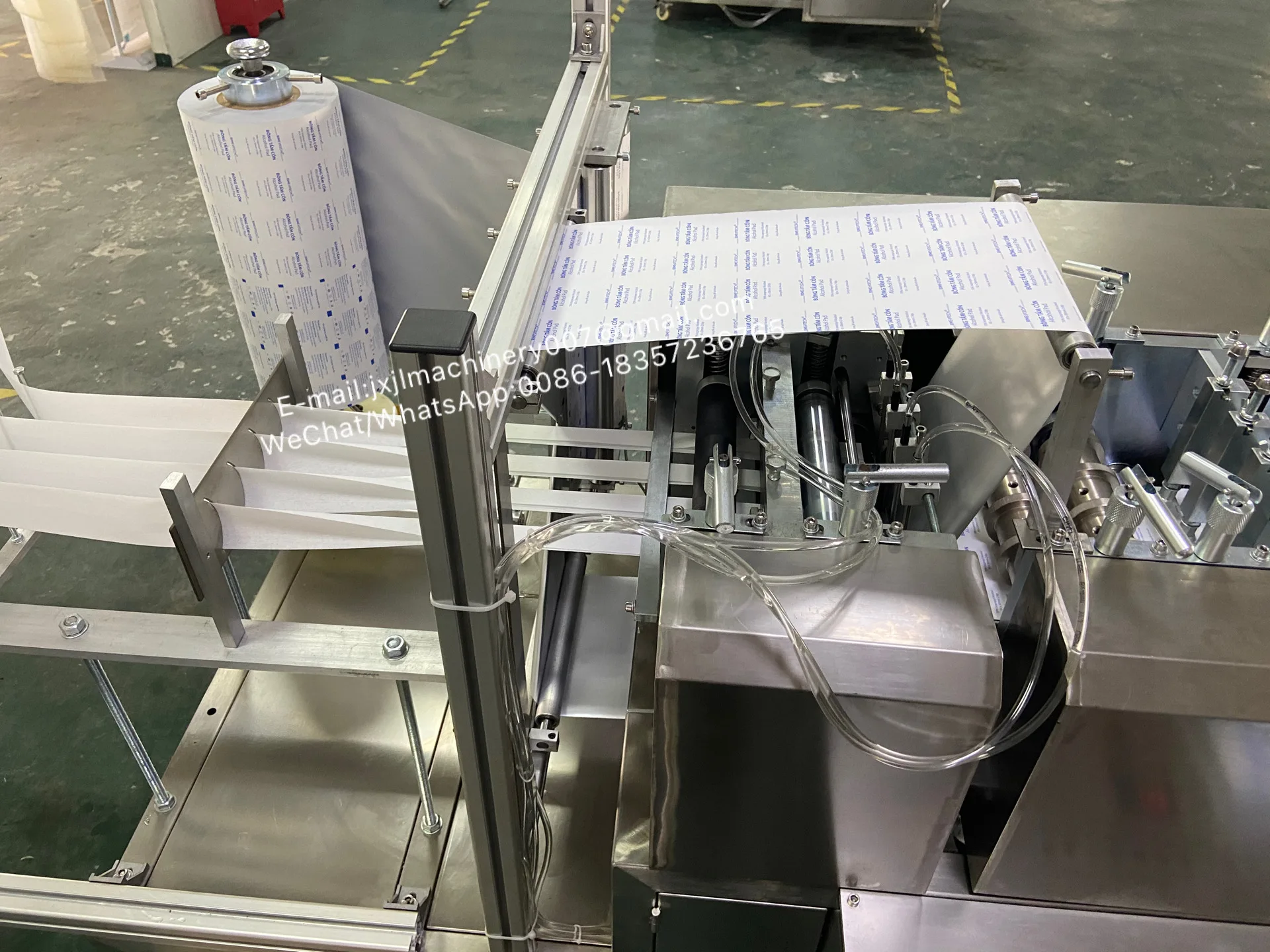

Полностью автоматическая машина для производства четырех спиртовых ватных тампонов с одним выходом

Fully Automatic One Output Four Alcohol Cotton Pad Machine

Support for customization

We have one output four and one output six alcohol pad swabs making machine. Our factory can also provide non-woven fabric and packaging film.

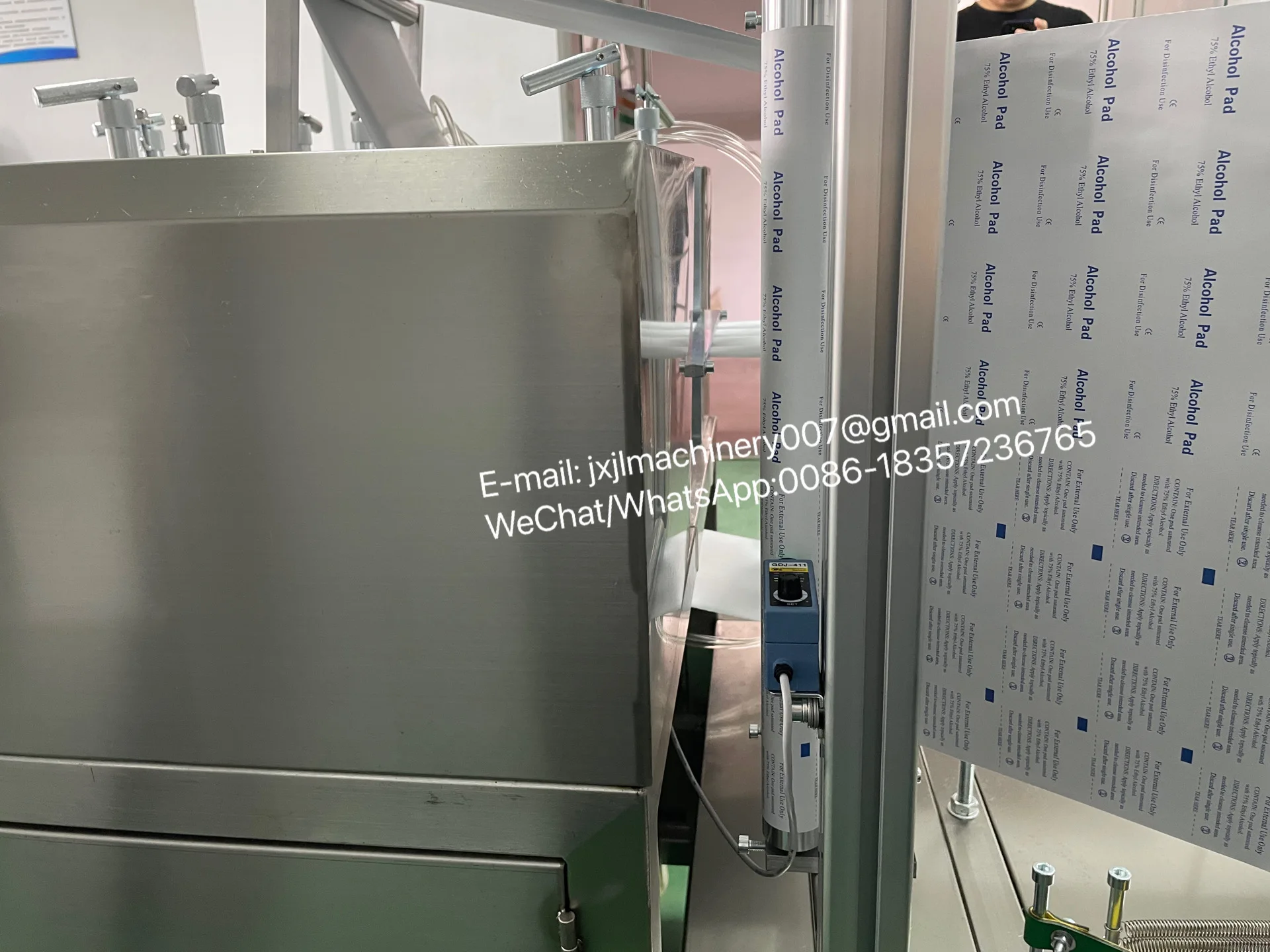

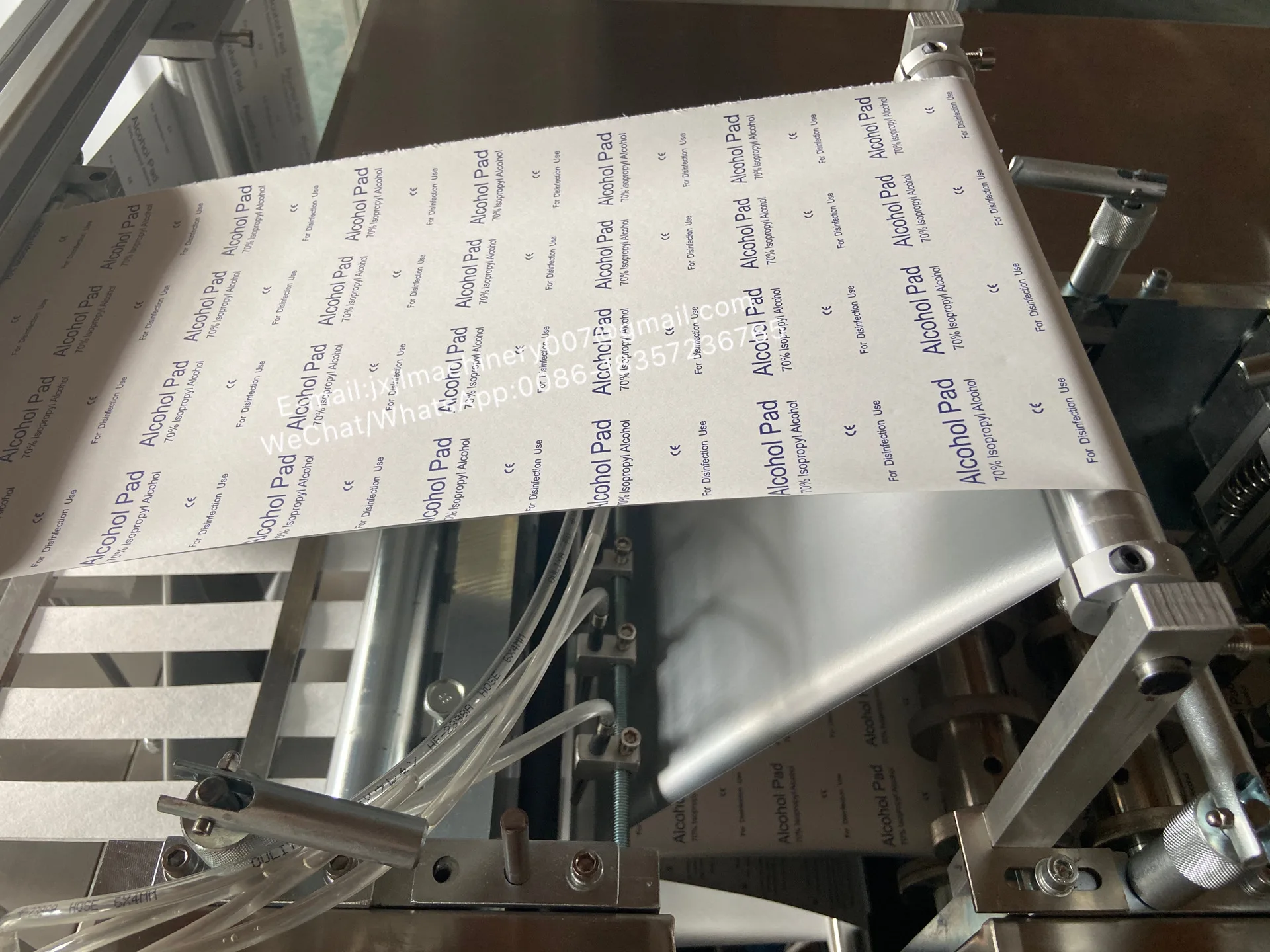

The high-sensitivity cursor electric eye is used to accurately track the roll film color block, which can effectively prevent the deviation phenomenon during the roll film process.

Packaging progress and drip volume can be adjusted.

1. Man-machine interface, parameter setting is convenient and quick.

2. Fault self-diagnosis function, the fault is clear at a glance.

3. High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.

4. Temperature independent PID control, better adapt to various packaging materials.

5. Positioning stop function, no sticking to the knife, no waste of film.

6. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

7. All controls are realized by software, which is convenient for function adjustment and technical upgrade, and never falls behind.

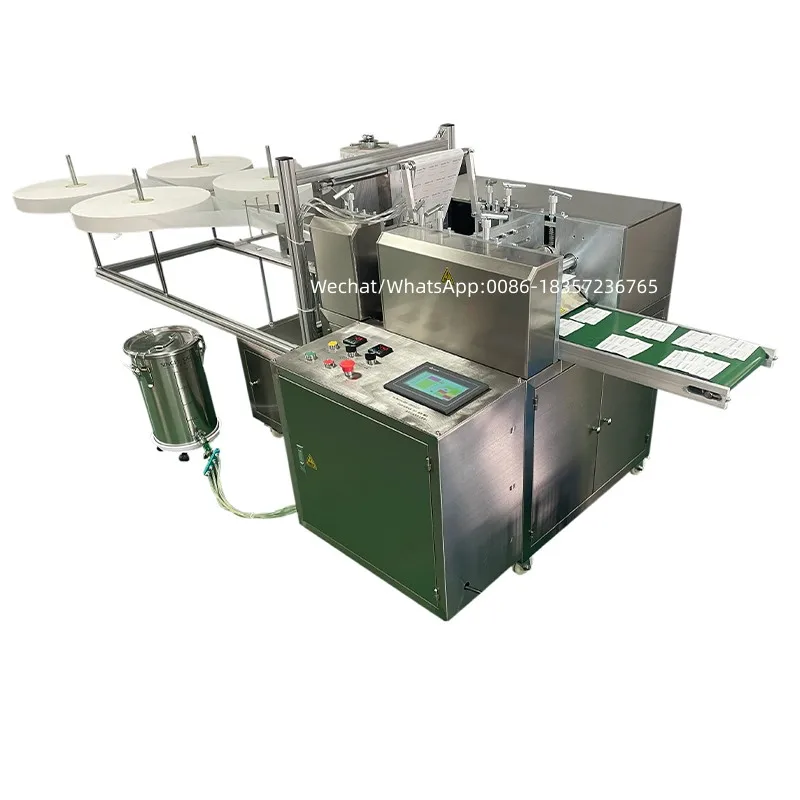

JL-S250 Fully-automatic Alcohol Swab Machine

Alcohol swab open size :  30x60mm.

Alcohol swab folded size:  30x30mm.

Folding way:  half folding, 2plys.

Bag size:  L 50 x W 50mm.

Production capacity:  200-400pcs/min.

Packing film material: 73-110gsm, paper laminated aluminum film

Packing film Specification: diameter≤350mm,width 400mm ,

Paper core diameter:76.2mm (3 inch)

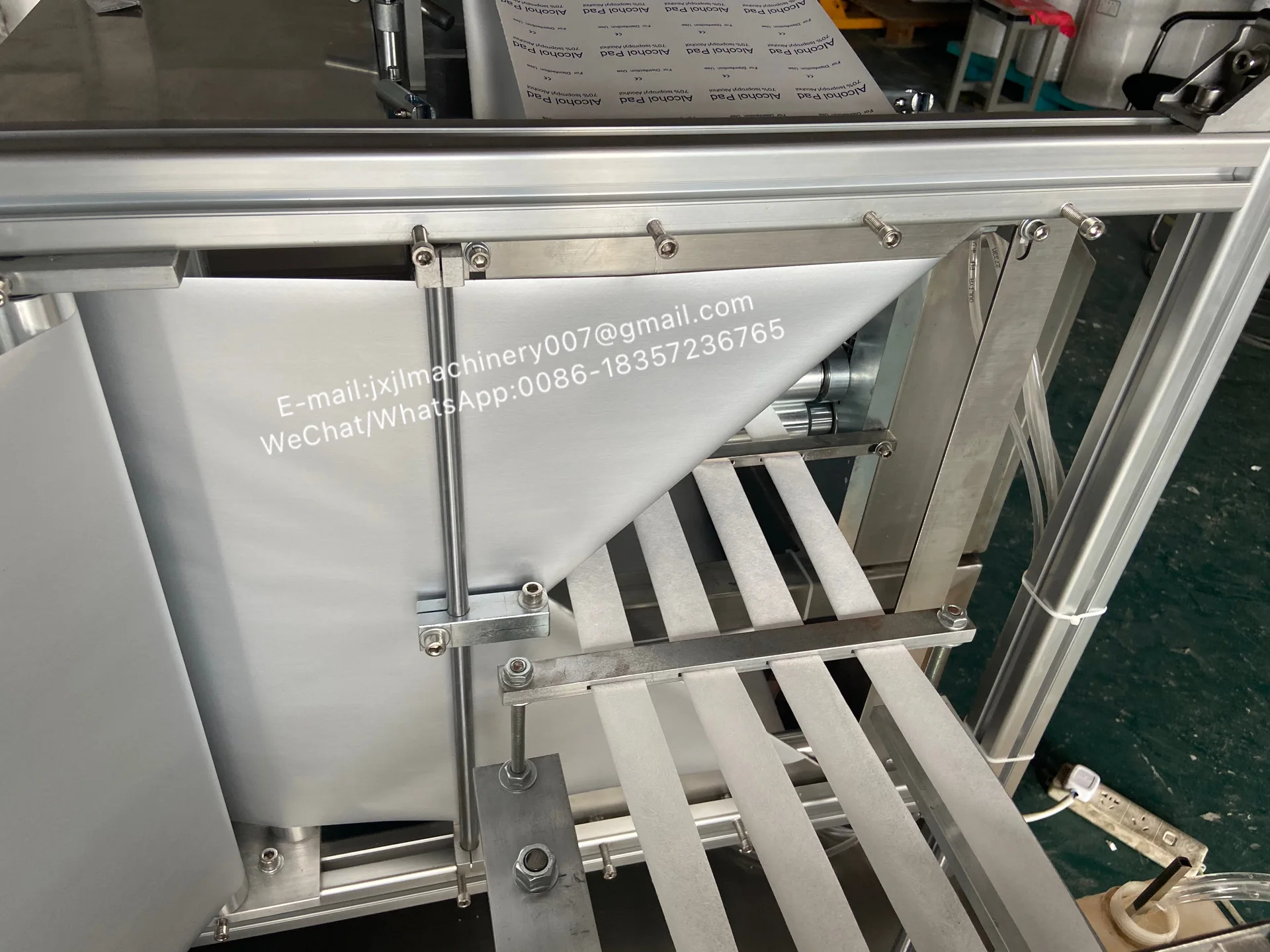

Suit non-woven material: 30-60gsm non-woven spunlace.

Non-woven spunlace specification: diameter≤600mm, width 60mm.

Paper core diameter:76.2mm (3 inch)

Power:220v,50hz,single phase, heating 3kw, motor,etc 1kw

Machine weight :  net weight 330kg. gross weight 390kg.

Machine dimension: 3500x 1300 x 1300 (LxWxH)

Wooden case packing size: 2020x 1180x 1350mm (LxWxH)

 Click here for more detail

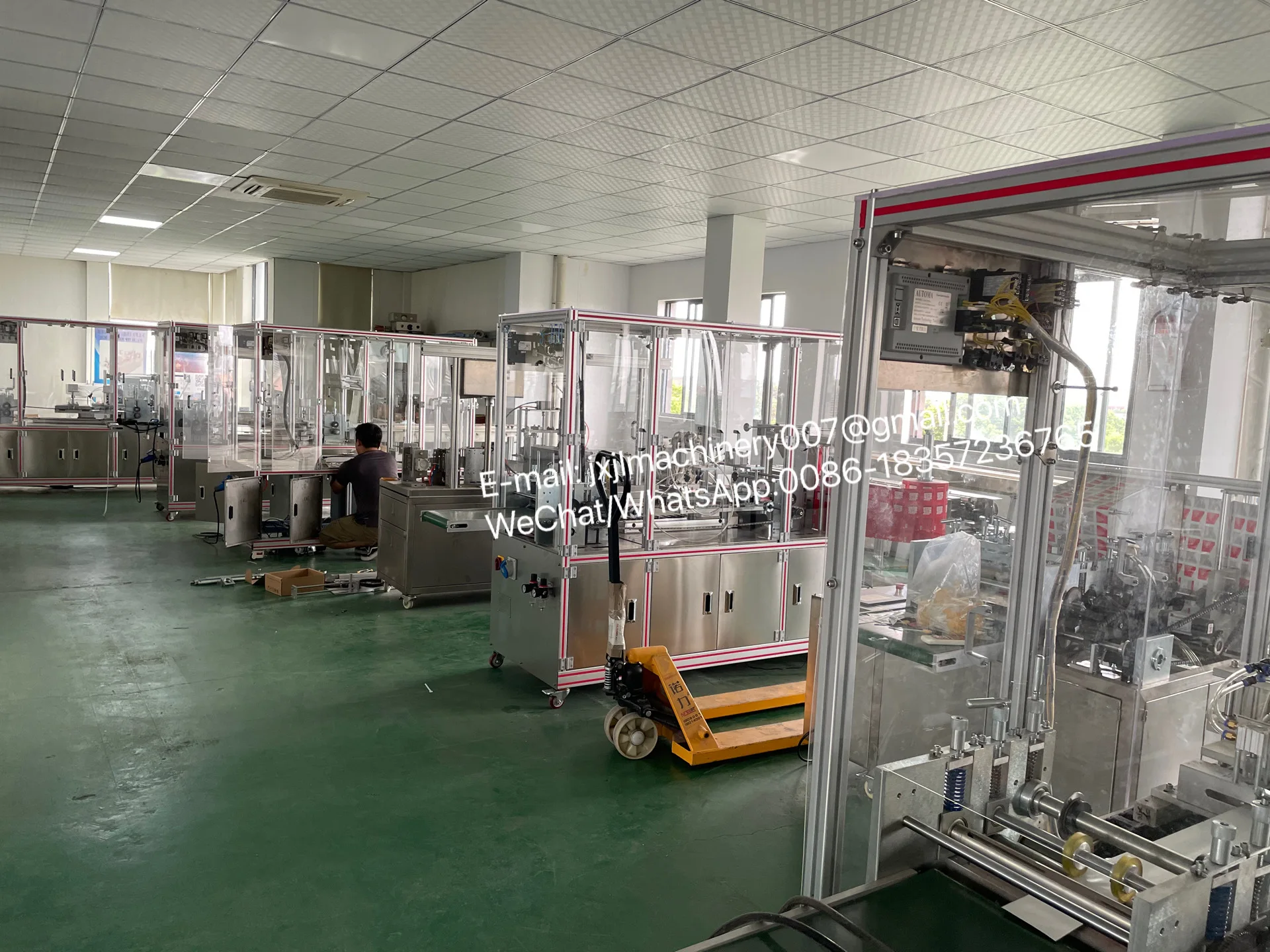

 Our company specialized in design, development, manufacturing and sales for the integration of professional company. Our company has built a strange operation management team by combining domestic and oversea advanced technology with mature scientific management experience. We produce Playing cards making machine, playing cards box & cellophane packing machine, hydraulic die cutting machine, paper cutting machine, etc. The company specialized in the production level, the integrity of business ideas adhering to the“strength, high quality, good service, integrity” for the purpose of service to all customers. We sincerely welcome our friends who come from home and oversea to visit our factory, sincere cooperation for creating a better future.

Q: Are you manufacturer of trading company?

A: We are a manufacturer in Zhejiang, China. The factory has been established for more than 10 years and has professional production technology and sales capabilities.

Q:  What is your terms of payment?

A:T/T 30% as deposit, and 70% before delivery.

Q: What is your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated.

Q: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service.

Q: What is the Loading Port?
A:Ningbo port&Shanghai port.
