Электрический Телескопический самоходный подъемник MORN 12 38 м, подъемная платформа для аэроработ, шарнирный подъемник для продажи
- Category: >>>
- Supplier: Jinan Morn Technology Co. Ltd
Share on (1600607576249):
Product Overview
Description
Products Introduction
Product Paramenters
Model | V14LA(Electric) | V16LA(Electric) | V18LA(Electric) | V20LA(Electric) |
Max. Working height | 16m | 18m | 20m | 22m |
Max. Platform height | 14m | 16m | 18m | 20m |
Max. Spanning height | 7m | 7.6m | 7.85m | 9.4m |
Operating radius | 8.05m | 10.1m | 12.05m | 12.23m |
Platform Size | 1.4*0.7m | 1.8*0.76m | 1.8*0.76m | 1.8*0.76m |
Dimensions | 6.4*1.76*2m | 7.6*2.32*2.6m | 8.5*2.49*2.38m | 8.5*2.49*2.38m |
Loading Capacity | 230kg | 230kg/340kg | 230kg/340kg | 230kg/340kg |
Drive speed(stowed) | 5.1km/h | 4.8km/h | 4.8km/h | 4.5km/h |
Model | V20D(Diesel) | V24D(Diesel) | V26D(Diesel) | V30D(Diesel) | V38D(Diesel) |
Max. Working height | 22m | 26.2m | 28m | 32m | 40.1m |
Max. Platform height | 20m | 24.2m | 26m | 30m | 38.1m |
Max. Spanning height | 9.4m | 10.2m | 10.2m | 12.2m | 19.5m |
Operating radius | 12m | 15.4m | 17.28m | 20.2m | 21.6m |
Platform Size | 1.83×0.76m | 2.44×0.91m | 2.44×0.91m | 2.44×0.91m | 2.44×0.91m |
Dimensions | 8.54*2.38*2.55m | 10.65*2.48*2.85m | 11.7*2.58*2.97m | 13.1*2.49*3.22m | 14.2*2.49*2.17m |
Loading Capacity | 230kg | 230kg | 230kg | 230kg/480kg | 230kg/480kg |
Drive speed(stowed) | (2WD）6.3km/h | 4.2km/h | (2WD）6.3km/h | 4.4 km/h | 4.4 km/h |

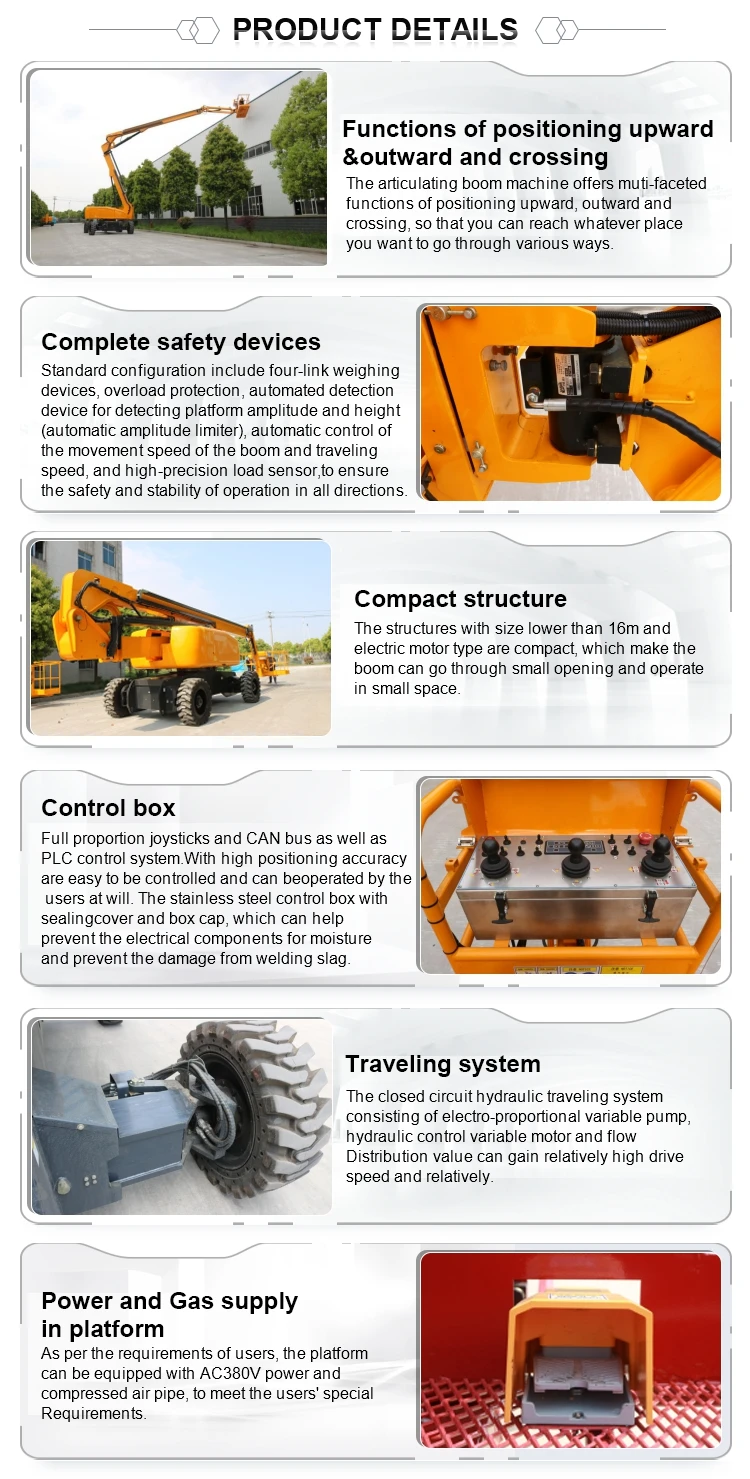

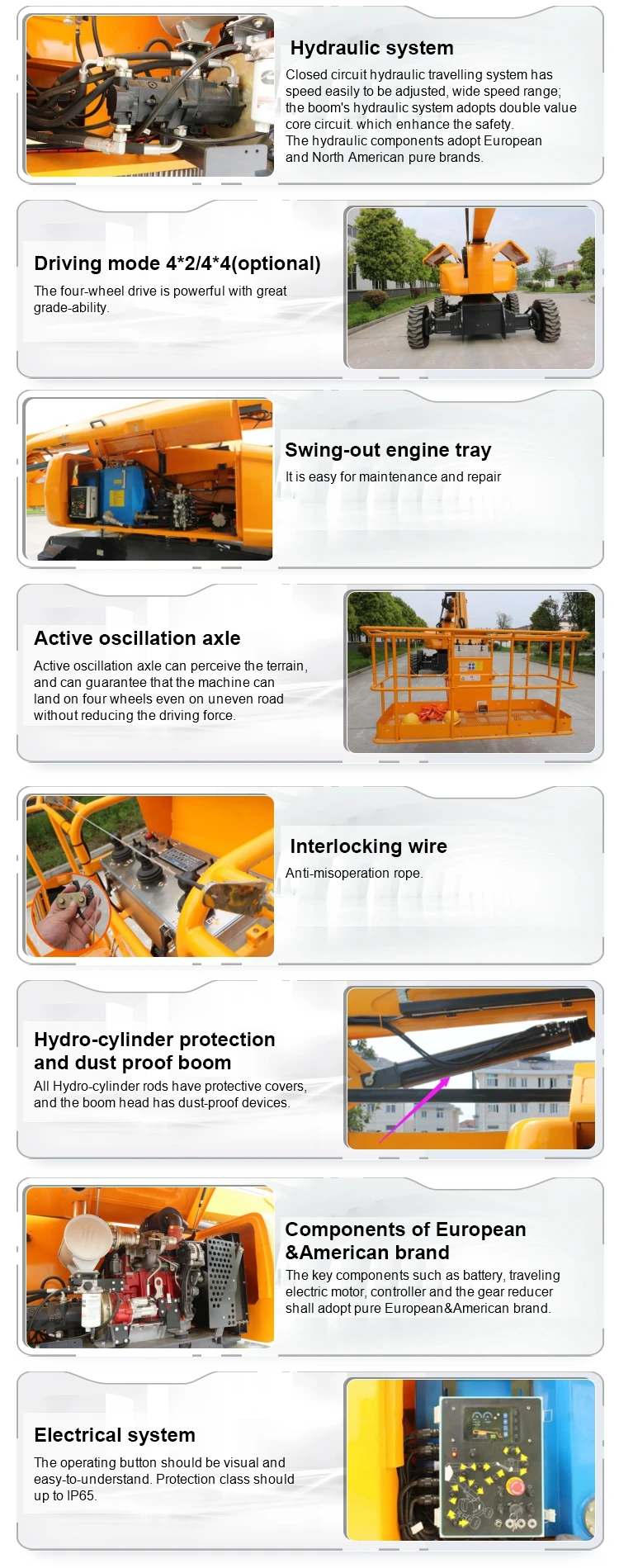

Product Details

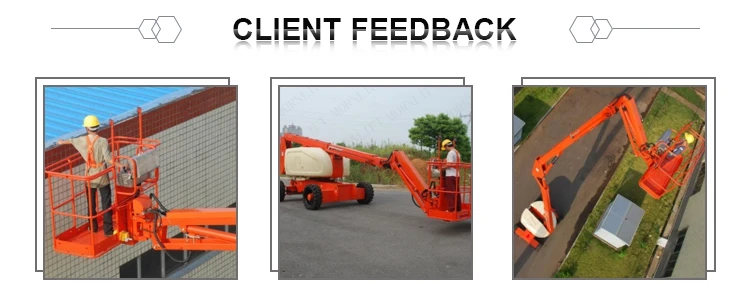

Customer Feedback
Packaging Details
Company Profile
