Product Overview
Description
Packing list:

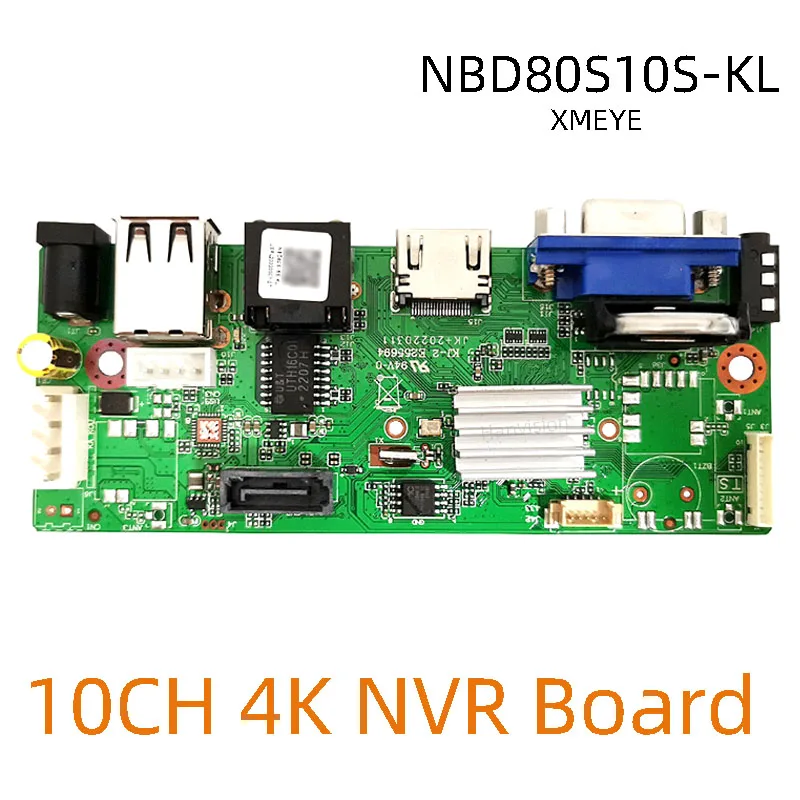

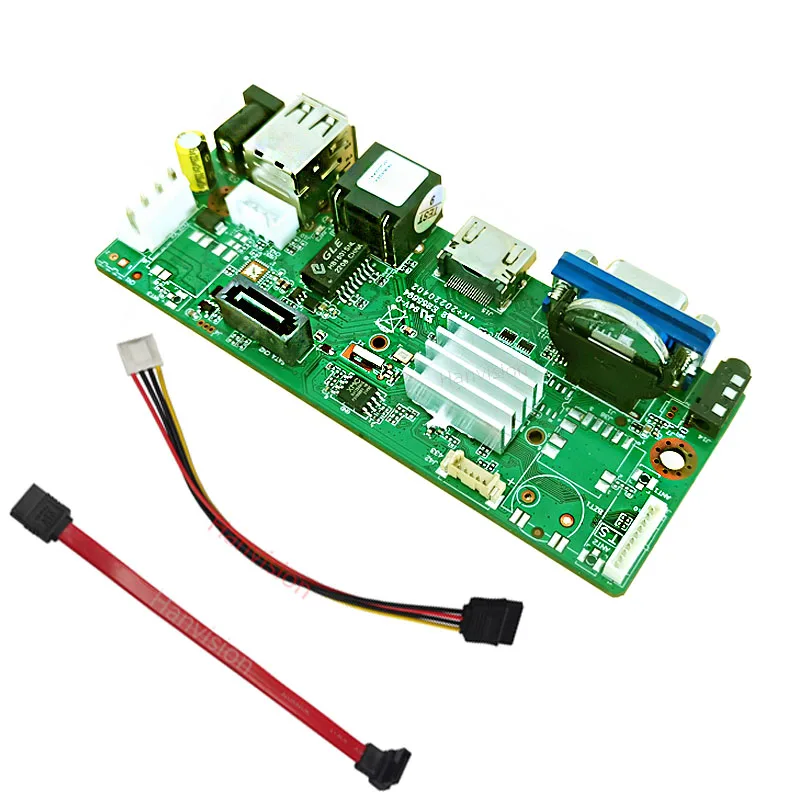

1 piece 10CH 4K NVR BOARD,1 piece SATA Cable,1 piece 4 PIN to SATA Power Cable
Product description:
Feature：
➢Support access of multiple XM smart front end devices with human detection and face detection function.
➢Support HDMI 4K,VGA 1080P HD output;
➢Support ONVIF;access third party;

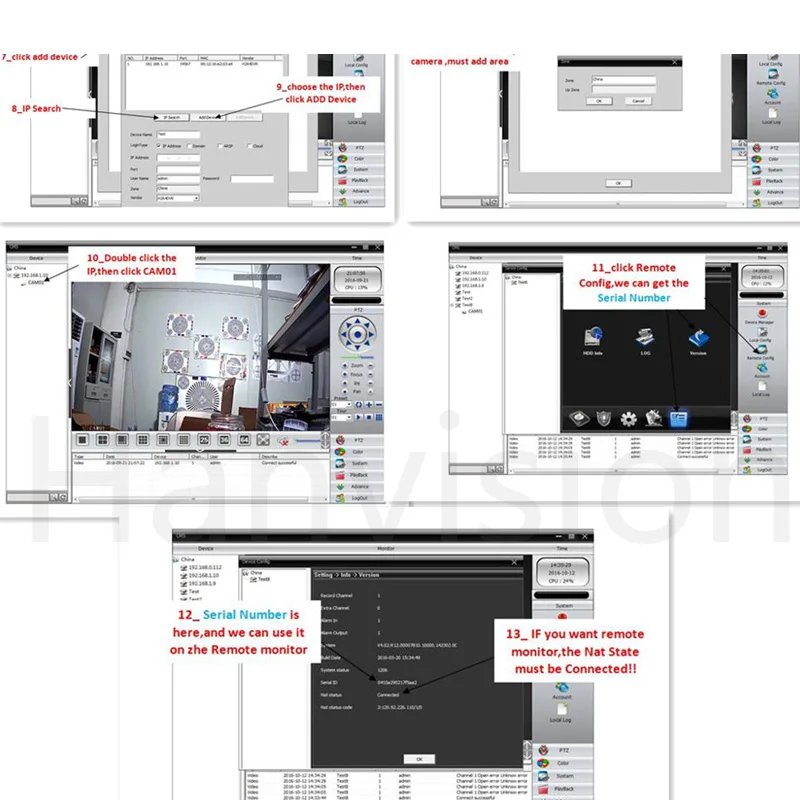

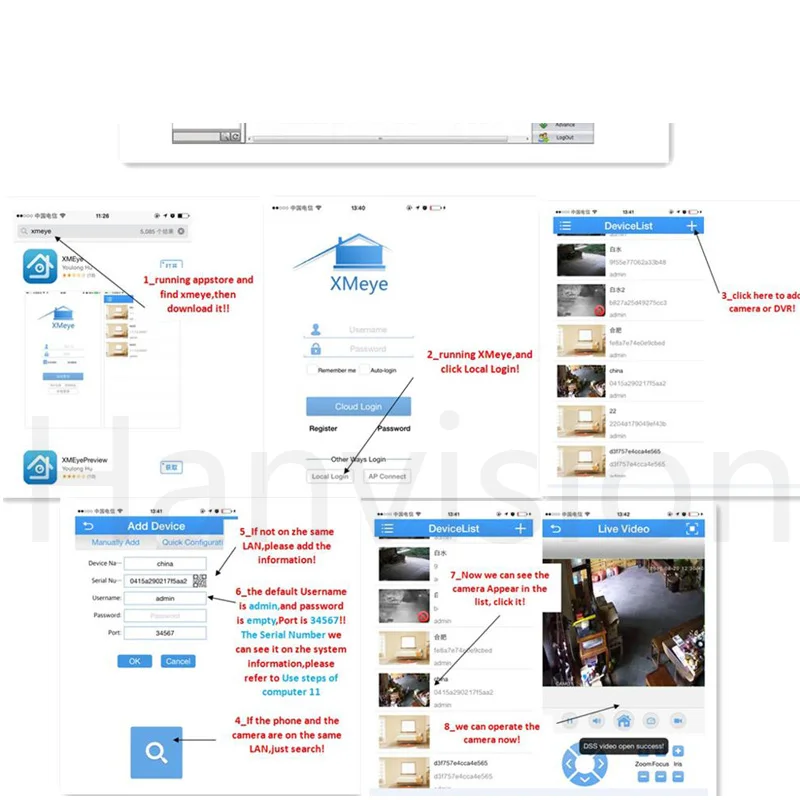

➢Support web, CMS， center platform management software MYEYE, provide SDK development;
➢Support multiple cloud technology, network penetration,alarm information pushed to your phone and other functions;
➢Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center,
etc.);
➢Support GB28181 protocol access tothird-party platforms.
➢Support access of multiple XM smart front end devices with human detection and face detection function.
➢Support HDMI 4K,VGA 1080P HD output;
➢Support ONVIF;access third party;
➢Support web, CMS， center platform management software MYEYE, provide SDK development;
➢Support multiple cloud technology, network penetration,alarm information pushed to your phone and other functions;
➢Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center,
etc.);
➢Support GB28181 protocol access tothird-party platforms.

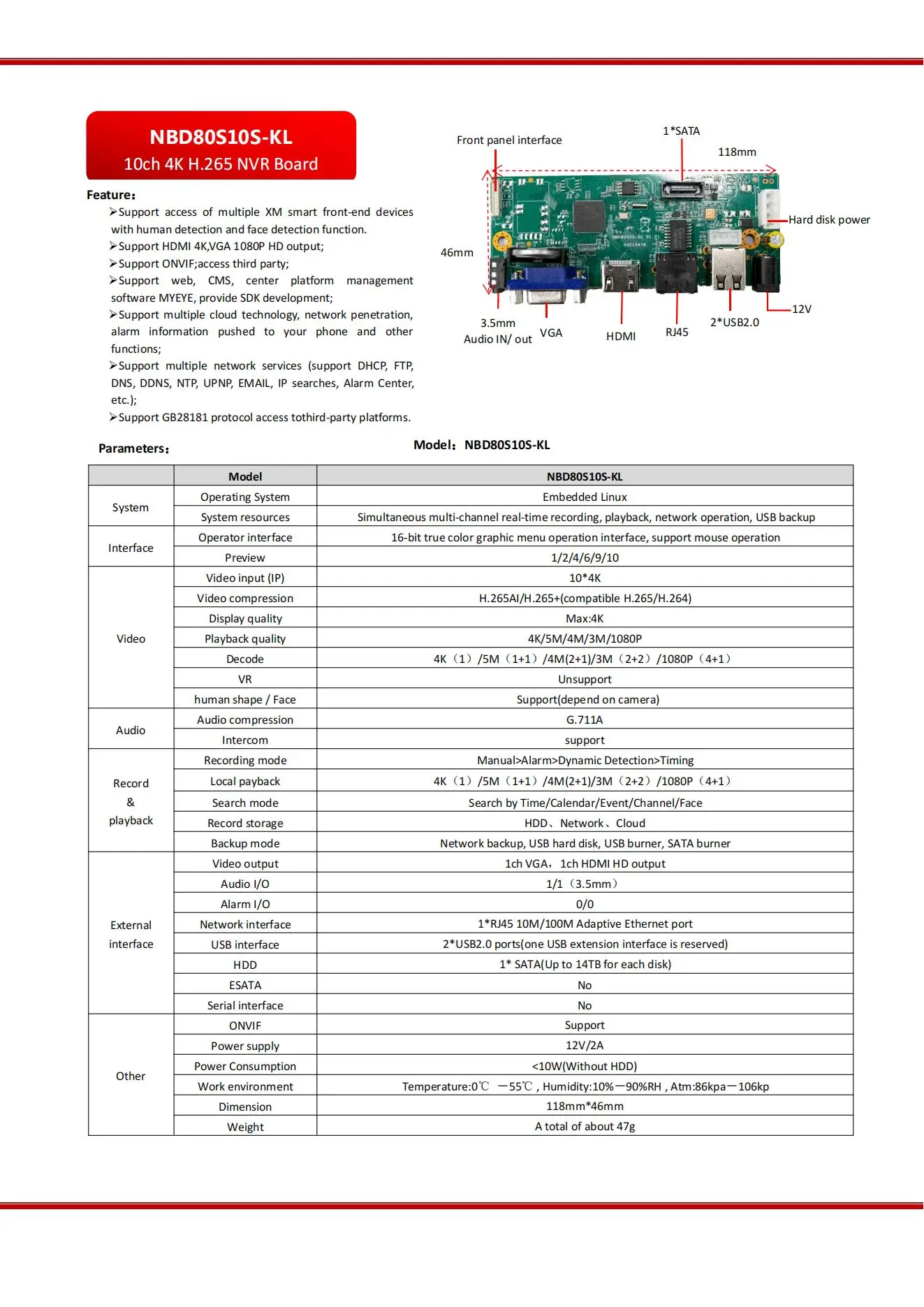

Model：NBD80S10S-KL
1.Operating System：Embedded Linux
2.System resources：Simultaneous multi-channel real-time recording, playback, network operation, USB backup
3.Operator interface：16- bit true color graphic menu operation interface, support mouse operation
4.Preview：1/2/4/6/9/10
5.Video input (IP)：10*4K
6.Video compression：H.265A/H.265+(compatible H.265/H.264)
7.Display quality：Max:4K
8.Playback quality：4K/5M/4M/3M/1080P
9.Decode：4K (1) /5M (1+1) /4M(2+1)/3M (2+2) /1080P (4+1)
10.VR：Unsupport
11.human shape / Face：Support(depend on camera)
12.Audio compression： G.711A
13.Intercom：support
1.Operating System：Embedded Linux
2.System resources：Simultaneous multi-channel real-time recording, playback, network operation, USB backup
3.Operator interface：16- bit true color graphic menu operation interface, support mouse operation
4.Preview：1/2/4/6/9/10
5.Video input (IP)：10*4K
6.Video compression：H.265A/H.265+(compatible H.265/H.264)
7.Display quality：Max:4K
8.Playback quality：4K/5M/4M/3M/1080P
9.Decode：4K (1) /5M (1+1) /4M(2+1)/3M (2+2) /1080P (4+1)
10.VR：Unsupport
11.human shape / Face：Support(depend on camera)
12.Audio compression： G.711A
13.Intercom：support
14.Recording mode：Manual>Alarm>Dynamic Detection> Timing
15.Local payback：4K (1) /5M (1+1) /4M(2+1)/3M (2+2) /1080P (4+1)
16.Search mode：Search by Time/Calendar/Event/Channe/Face
17.Record storag：HDD、Network、 Cloud
15.Local payback：4K (1) /5M (1+1) /4M(2+1)/3M (2+2) /1080P (4+1)
16.Search mode：Search by Time/Calendar/Event/Channe/Face
17.Record storag：HDD、Network、 Cloud
18.Backup mode：Network backup, USB hard disk, USB burner, SATA burner
19.Video output：1ch VGA，1ch HDMI HD output
20.Audio I/O：1/1 (3.5mm)
21.Alarm I/O：0/0
22.Network interface：1* RJ4510M/100M Adaptive Ethernet port
23.USB interface：2*USB2.0 ports(one USB extension interface is reserved)
24.HDD：1* SATA(Up to 14TB for each disk)
25.ESATA：No
26.Serial interface：No
27.ONVIF：Support
28.Power supply：12V/2A
29.Power Consumption：<10W(Without HDD)
30.Work environment：Temperature:OC - 55C , Humidity:10%- -90%RH , Atm:86kpa- 106kp

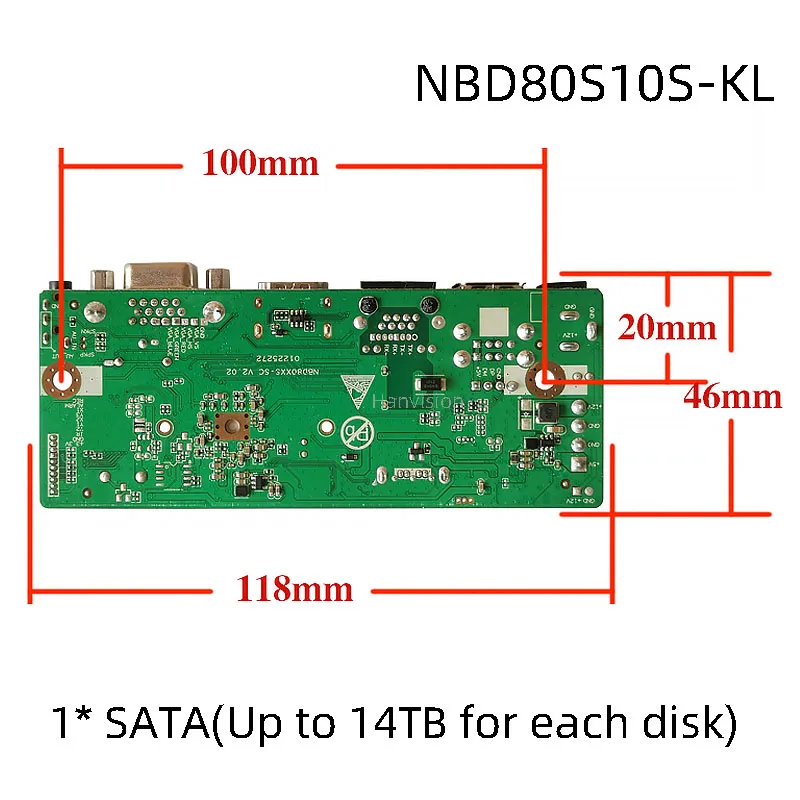

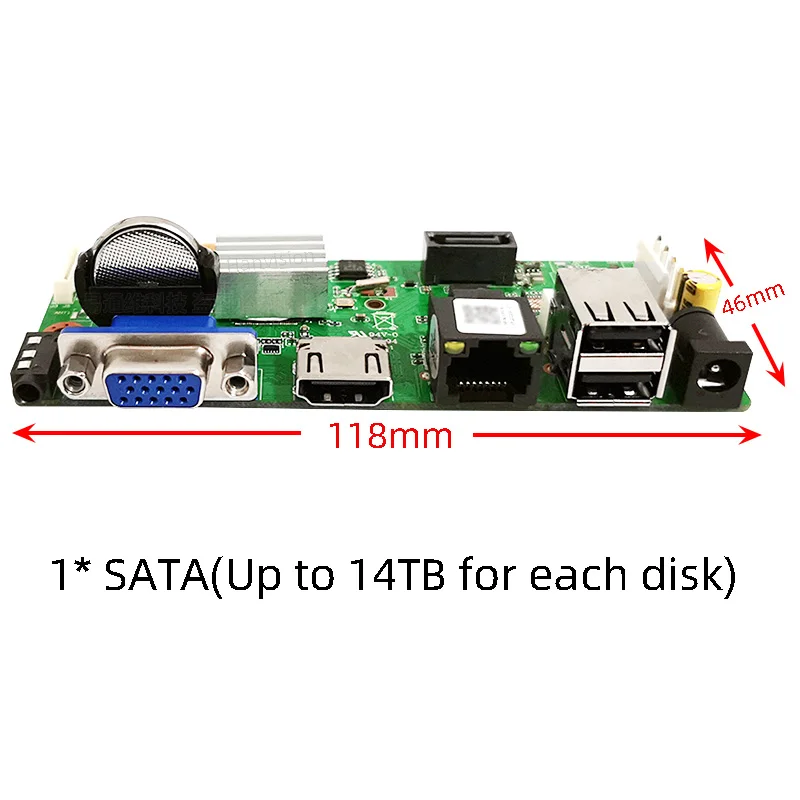

31.Dimension：118mm*46mm
32.Weight：A total of about 47g
20.Audio I/O：1/1 (3.5mm)
21.Alarm I/O：0/0
22.Network interface：1* RJ4510M/100M Adaptive Ethernet port
23.USB interface：2*USB2.0 ports(one USB extension interface is reserved)
24.HDD：1* SATA(Up to 14TB for each disk)
25.ESATA：No
26.Serial interface：No
27.ONVIF：Support
28.Power supply：12V/2A
29.Power Consumption：<10W(Without HDD)
30.Work environment：Temperature:OC - 55C , Humidity:10%- -90%RH , Atm:86kpa- 106kp
31.Dimension：118mm*46mm
32.Weight：A total of about 47g
Packaging & Delivery
Packaging Details 1 piece into a color packaging, then packed by outer standard carton.
Port Shenzhen Lead
Time:
Quantity(Pieces) | 1 - 100 | 101 - 500 | >500 |
Est. Time(days) | 10 | 20 | To be negotiated |
