Product Overview
Description

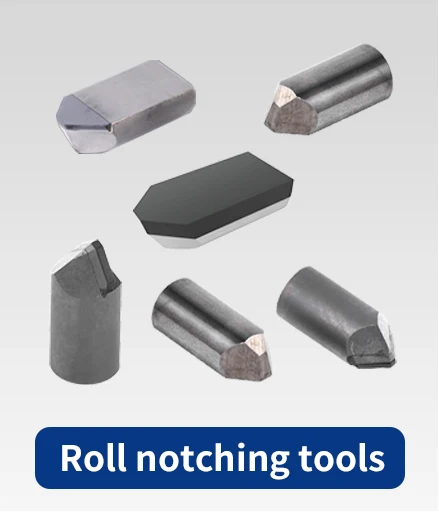

PCD notching tool turning carbide rebar roll C03 C04 slot milling polycrystalline diamond tool

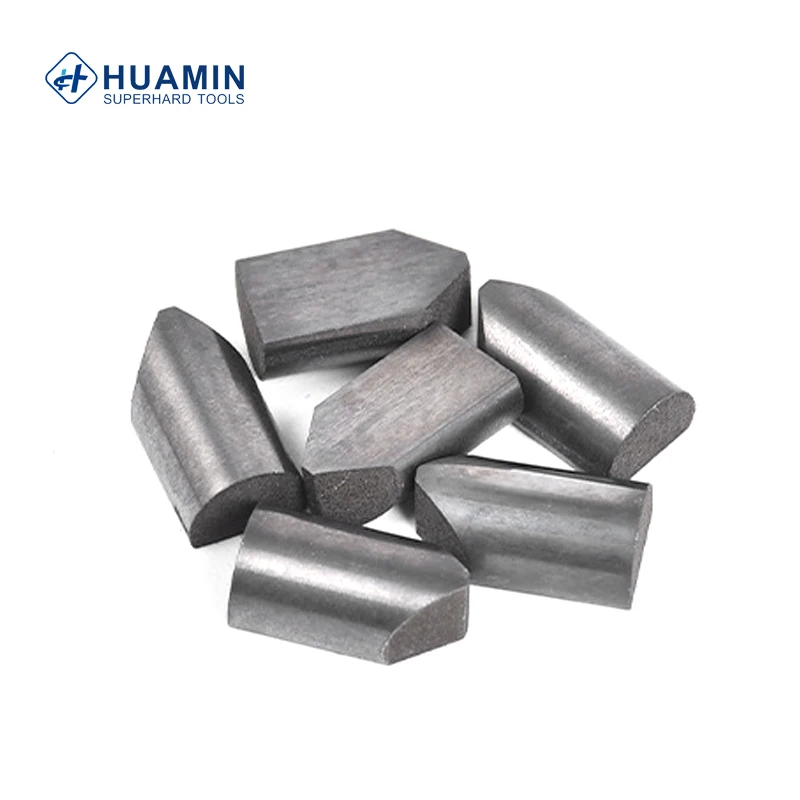

Huamin provides cemented carbide notching tools, PCD notching tools, as well as matching milling tool holders, support blocks, screws and other accessories, and accepts customization.
Product Description

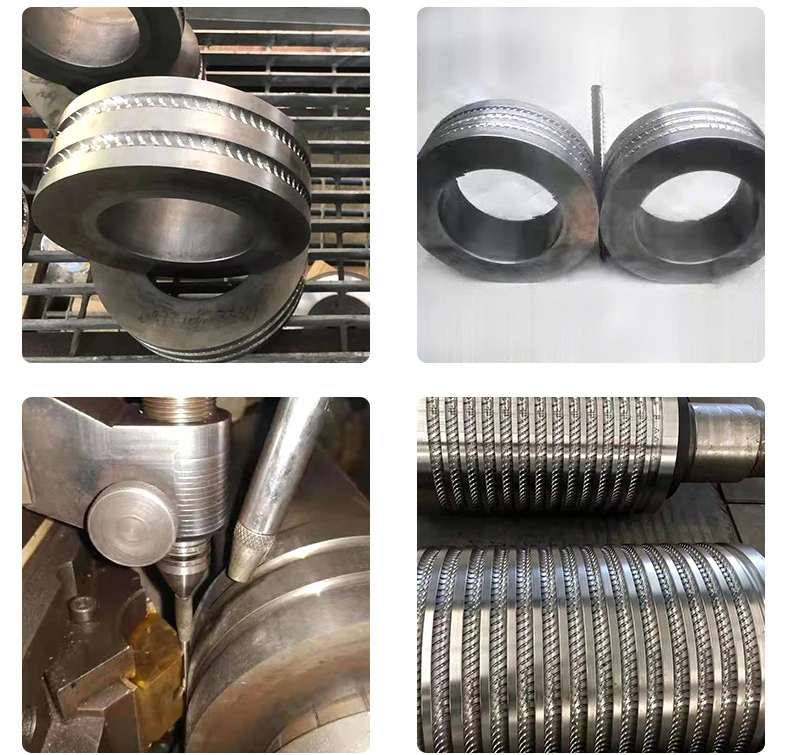

Carbide notching tool and PCD notching tool for milling HSS rolls and carbide rolls, Huamin can provide,It has the advantages of high efficiency, high wear resistance and long life.

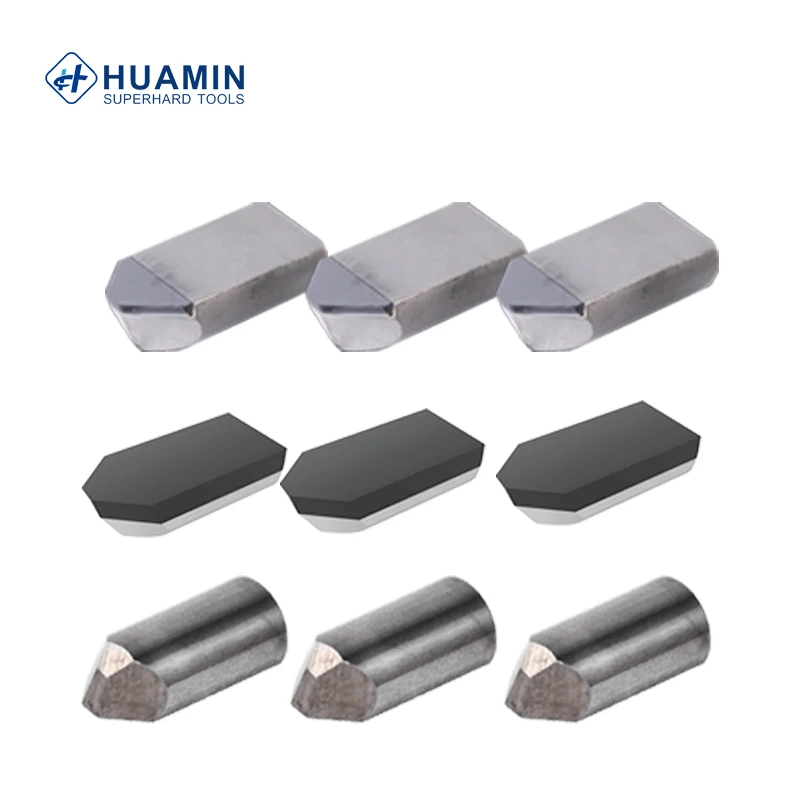

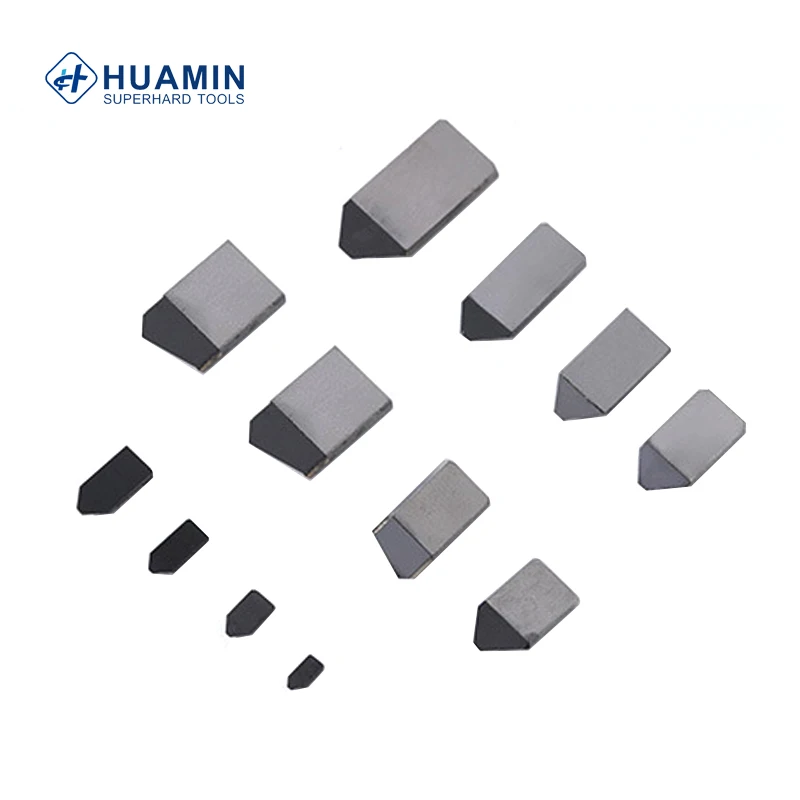

PCD notching tools have two structures, namely welding and full veneer, full veneer PCD notching tools are used for blades below 4mm, welded PCD notching tools are larger than 4mm, and only the cutting edge is PCD,The base is cemented carbide.

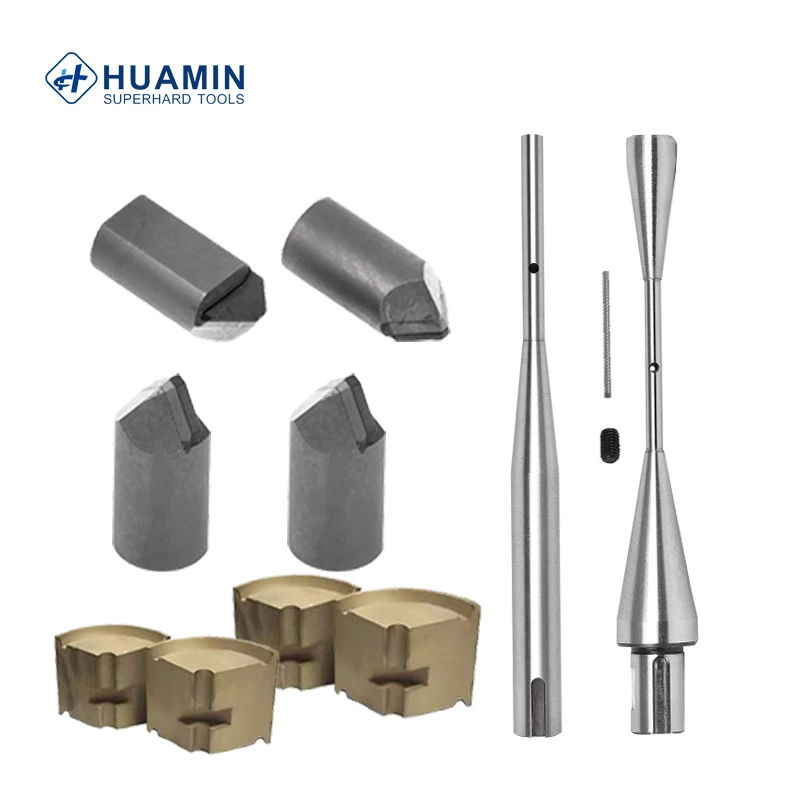

Huamin also provides ancillary products for carbide PCD notching tools, including milling tool holders and support blocks. At the same time, it provides customized services, which can be customized according to customer needs.welcome to contact.
Product Paramenters
Order No. | Dimension(mm) | ||||||||
ΦD | b | H | L | θ° | |||||
Φ2*0.4*4.06*80° | 2.0 | 2 | 0.4 | 4.06 | 80° | ||||
Φ2.5*0.5*5.2*80° | 2.5 | 2.5 | 0.5 | 5.2 | 80° | ||||
Φ3*0.6*5.5*80° | 3.0 | 3 | 0.6 | 5.5 | 80° | ||||
Φ3.2*0.6*6.2*85° | 3.2 | 3.2 | 0.6 | 6.2 | 85° | ||||
Φ4*0.6*7.53*80° | 4.0 | 4 | 0.6 | 7.53 | 80° | ||||
Φ4*0.7*7.83*70° | 4.0 | 4 | 0.7 | 7.83 | 70° | ||||
Φ4*0.8*9.55*80° | 4.0 | 4 | 0.8 | 9.55 | 80° | ||||
Φ4.5*0.9*10.7*80° | 4.5 | 4.5 | 0.9 | 10.7 | 80° | ||||

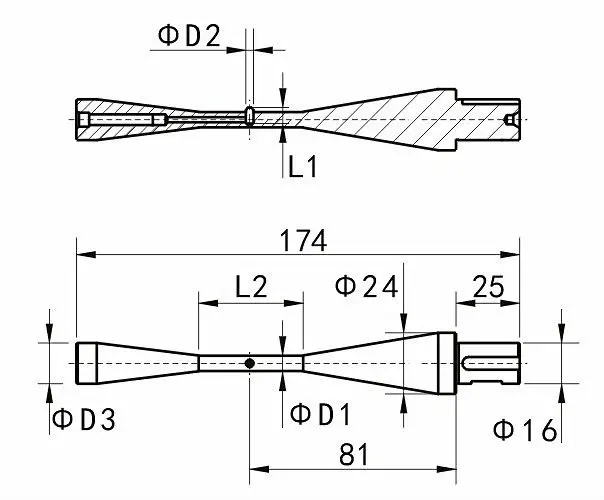

Order No. | Dimension(mm) | ||||||||
D1 | D2 | D3 | L1 | L2 | |||||
N4 | 4 | 2 | 16 | 4.06 | 35 | ||||
N6 | 4.5 | 2.5 | 16 | 5.22 | 35 | ||||
N8 | 5 | 3 | 16 | 5.5 | 37 | ||||
N9 | 6 | 3 | 16 | 6 | 37 | ||||
N10 | 6 | 3.2 | 16 | 6.8 | 41 | ||||
N12 | 7.3 | 4 | 16 | 8 | 56 | ||||
N13 | 8 | 4.5 | 16 | 9 | 56 | ||||
N14 | 8.8 | 5 | 16 | 9.5 | 56 | ||||
N16 | 10.4 | 5 | 18 | 11 | 65 | ||||
N18 | 12 | 6 | 18 | 12 | 65 | ||||
N20 | 13.5 | 6 | 18 | 14 | 65 | ||||
N22 | 15.2 | 6 | 20 | 16 | 66 | ||||
Details Images
Recommend Products
Carbide PCD Notching Tool Holder
Carbide PCD Notching Tool Support Block
RNMN/RNGN CBN inserts
RCM(G)X-V CBN inserts
RCM(G)X-Y CBN inserts

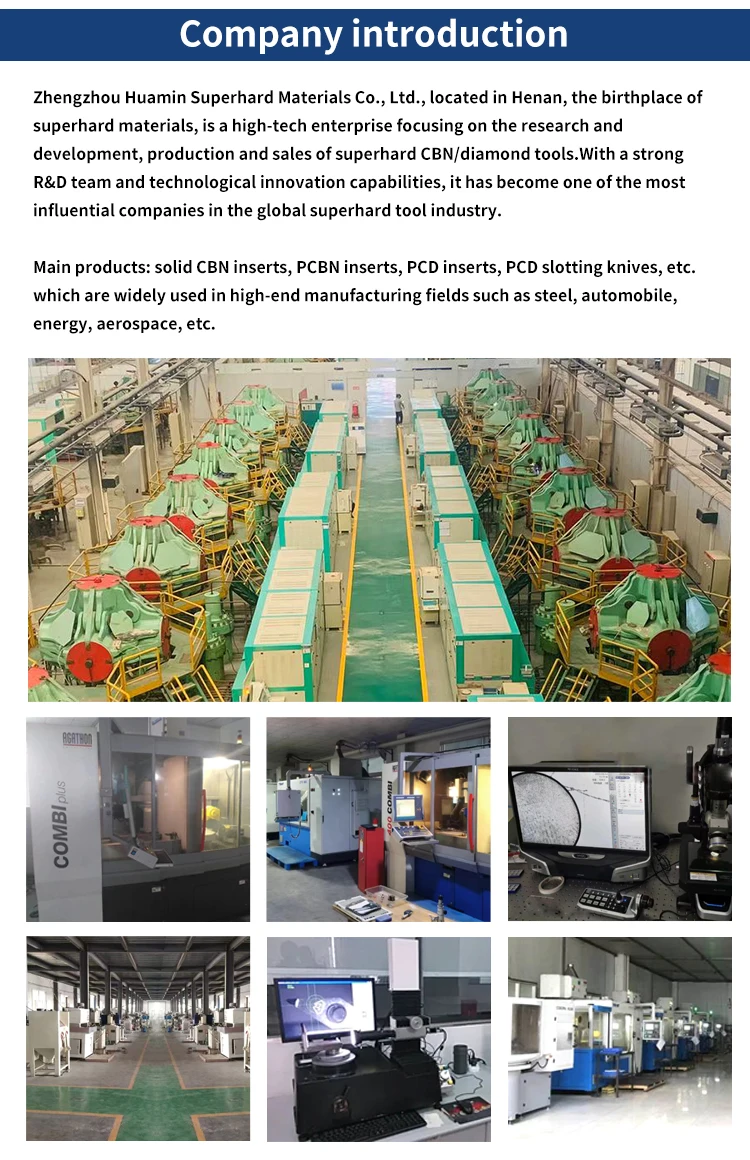

Company Profile
Certifications
FAQ
Q：How about the payment methods?
A:1)Recommending:Trade Assurance online order.
It is the most safety way for your payment and goods delivery.Supporting:TT, L/C,E-CHECKING,PAY LATER and so on.
2) TT by Proforma Invoice with Bank details.
3)Paypal and Western Union.
Q：Can you offer the sample firstly?
A:Yes, we can provide the best quality samples for you to test for free, but the shipping cost is borne by the buyer.
Q：How long is your delivery time?
A:For samples, it usually takes 2-3 days, for bulk order quantity, we will give you the exact time according to your specific order quantity.
Q：Can you supply non-standard cutting tools/PDC cutter/etc?
A:Of course, we can provide you with tailor-made services according to your specific requirements.
Q：Can we get the after-sale service?
A:Yes,we have professional after-sale service for you,including sample changes,product problem solving solution,prompt feedback online service,etc
Any other question, kindly feel free to let me know.
