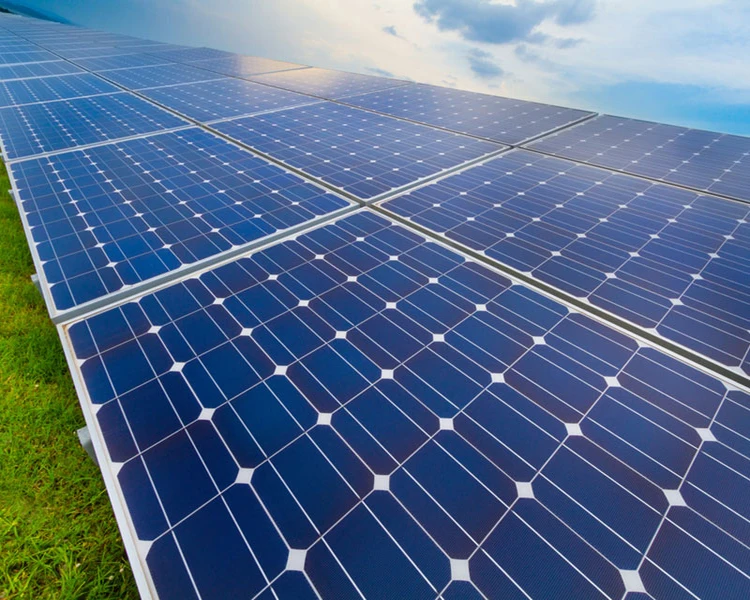

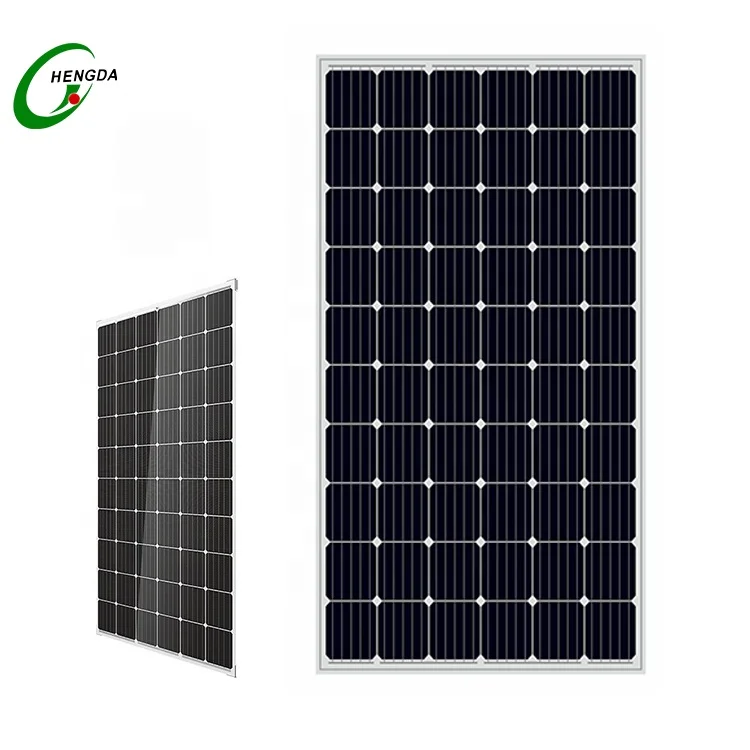

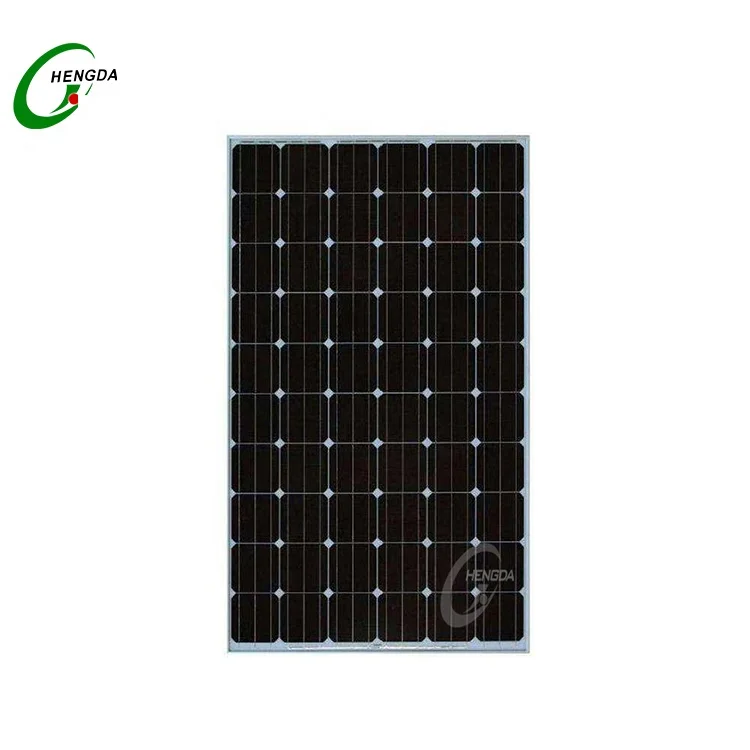

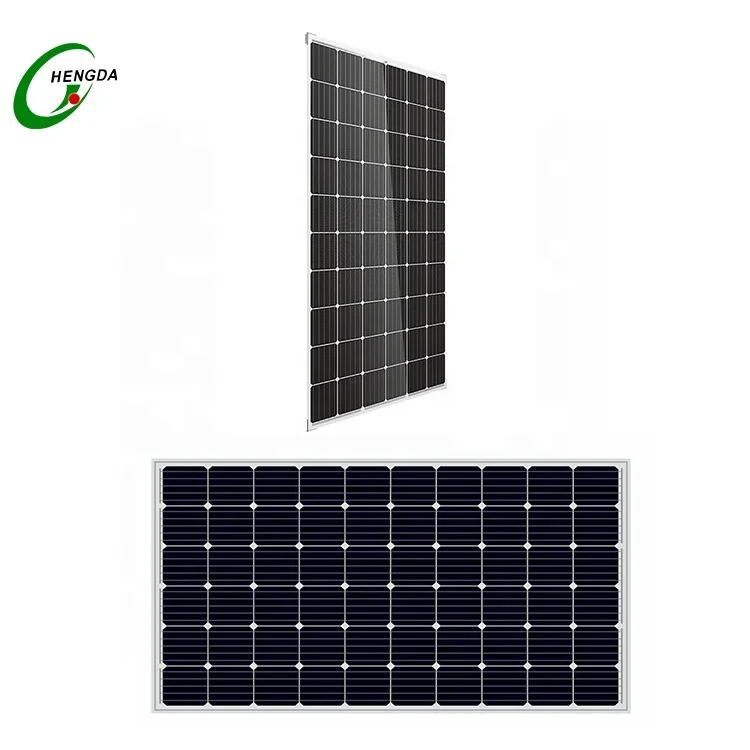

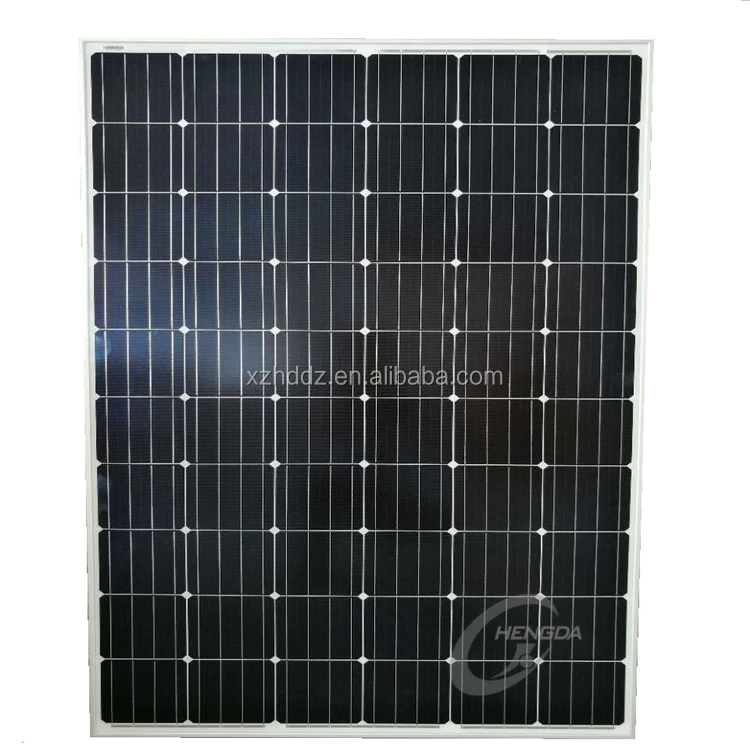

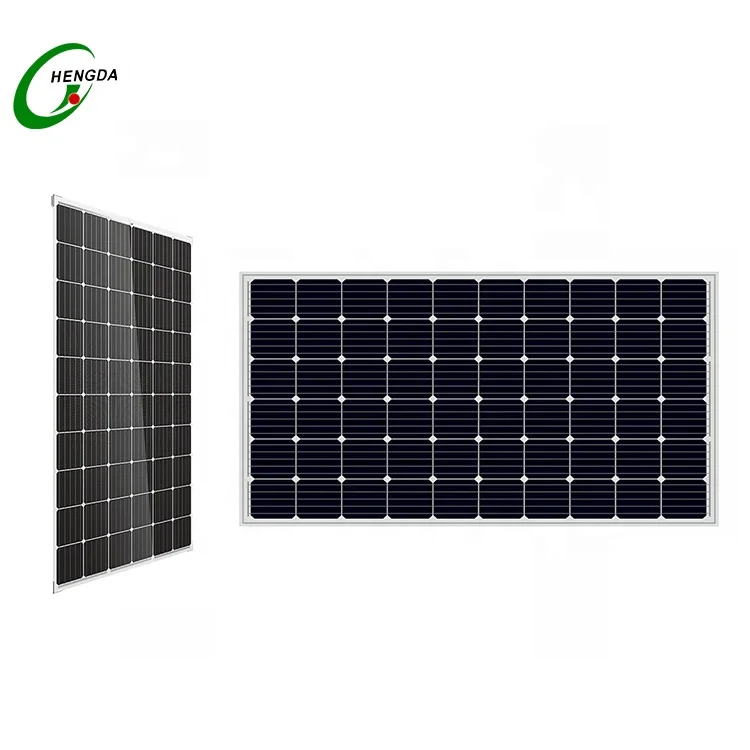

Solar panel cell solar panels and lithium battery solar energy panels 316w

Product Overview

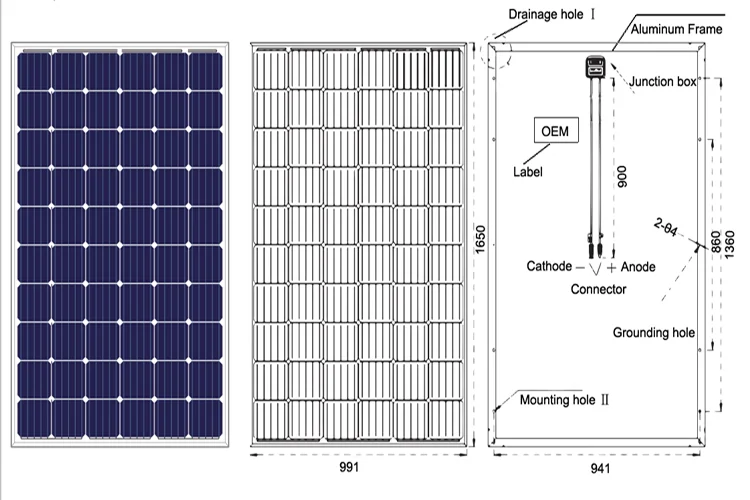

Description

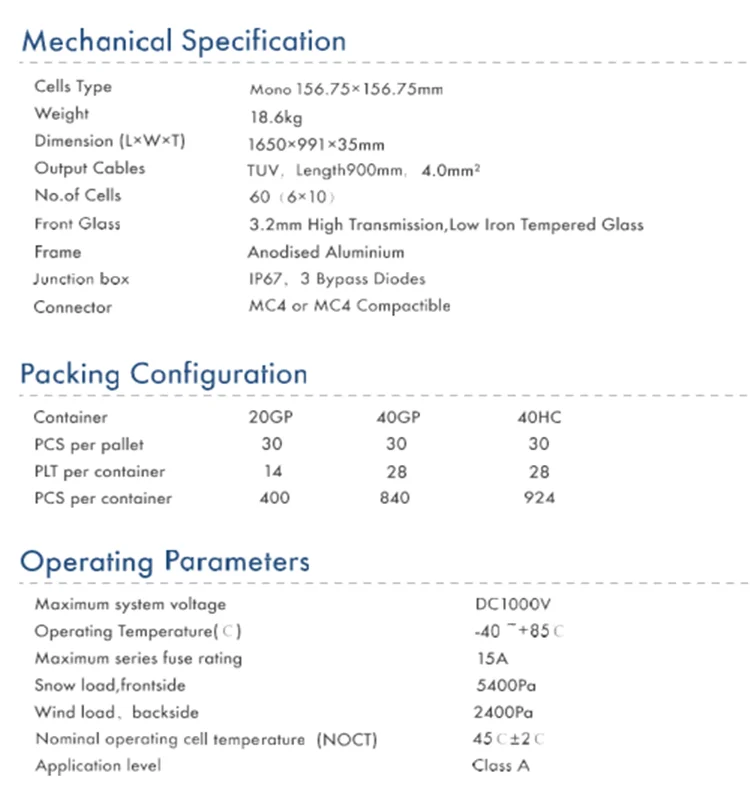

Electrical Characteristics (Standard Test Conditions)
Module	HDM60-290	HDM60-295	HDM60-300	HDM60-305	HDM60-310
Rated Maximum Power at STC	290	295	300	305	310
Open Circuit Voltage(Voc/V)	38.9	39.6	39.8	40	40.2
Maximum PowerVoltage(Vmp/V)	32.2	32.5	32.6	32.6	33.1
Short Circuit Current(Isc/A)	9.66	9.68	9.77	9.85	9.94
Maximum Power Current(Imp/A)	9.01	9.08	9.19	9.28	9.37
Module Efficiency(%)	17.7	18	18.3	18.6	18.9
Power Tolerance	-0~+3%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

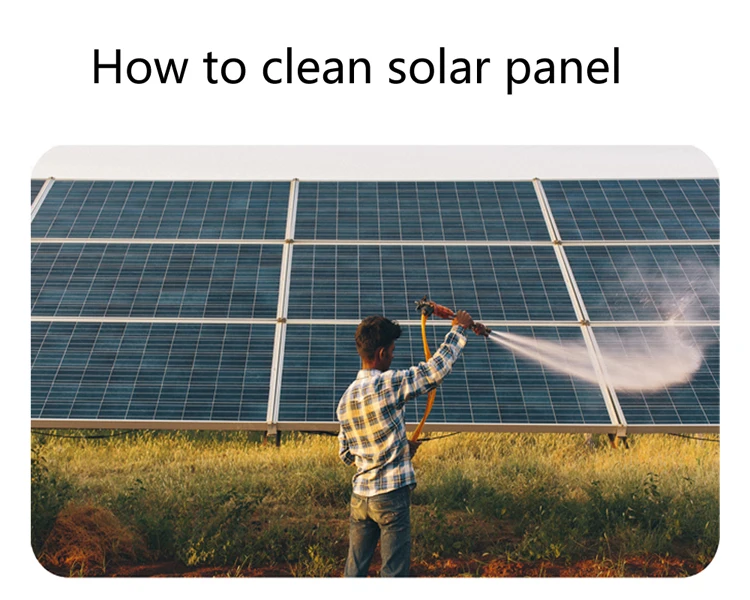

How To Clean

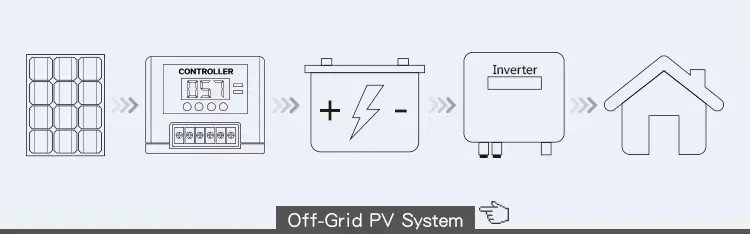

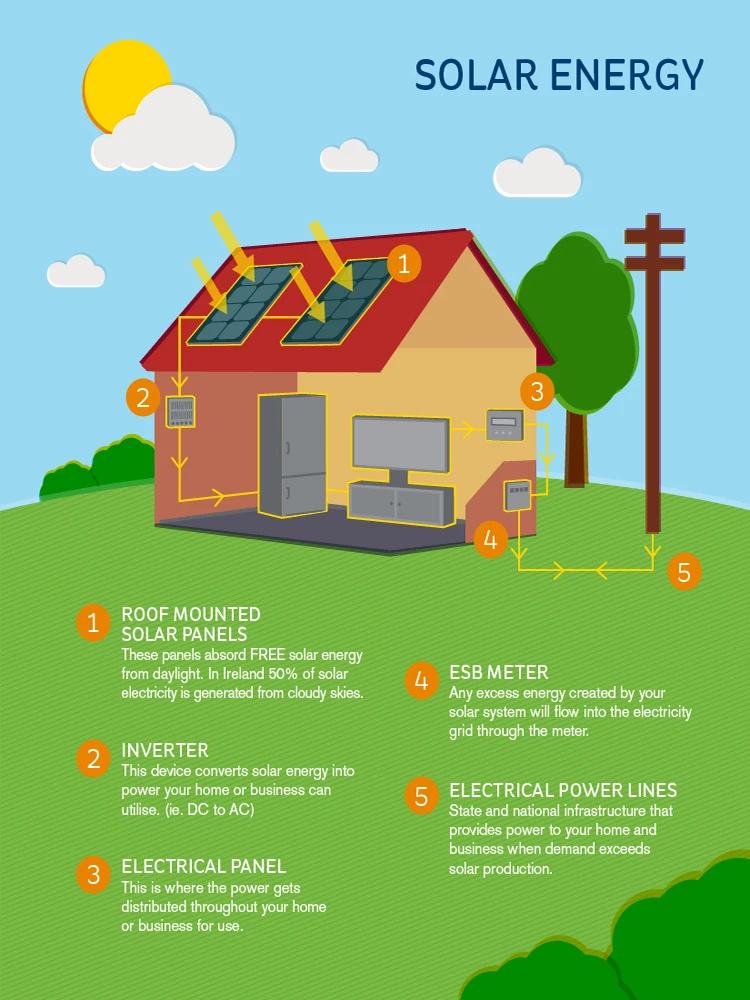

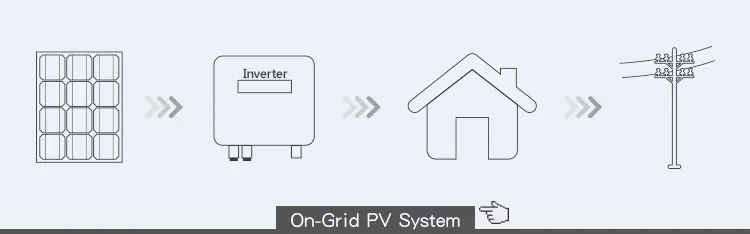

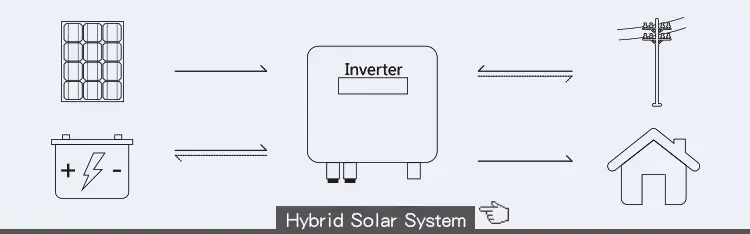

 System Schematic





Production Flow





Certificates

Exhibitons



Why Choose HENGDA?

Quality:

•Each set solar power system has tested by power-off test of 100 times per hour.

Service:

•Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

•Selling: Three days per time of follow-up services, video inspection.

•After sales: Engineer can be on-site installation service.

Efficiency:

•Project design solution will send to you quickly within 1 hour

•The fastest will be shipped in 7 days

•The engineer will arrive at the installation site within 10 days after the goods arrived at port.
