Standard Jaw Puller TMMP 3x300/2x65/2x170/3x185/3x230 mechanical puller bearing installation Removal puller
- Category: >>>
- Supplier: Jingjiang Acepom Instrument Manufacturing Co. Ltd.
Share on (1600608348668):
Product Overview
Description
Product Description

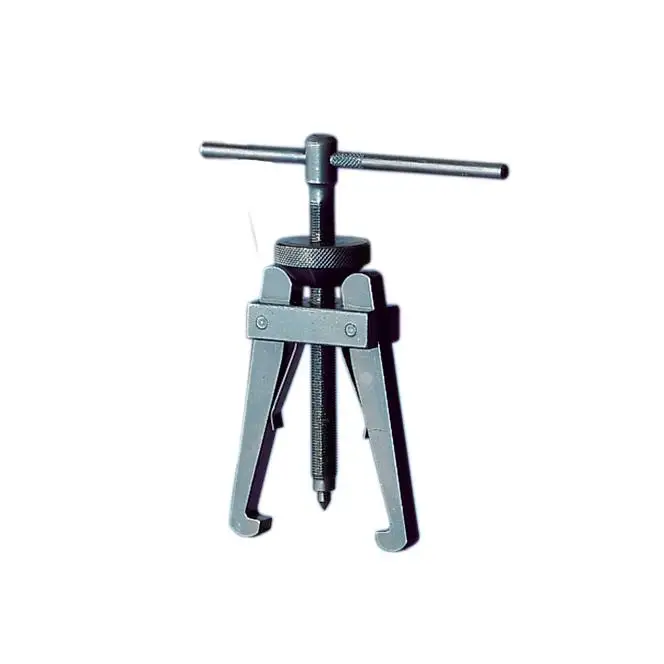

SKF Standard Jaw Puller TMMP 3X300
One of the most common ways to dismount small to medium size bearings is to use a mechanical puller. The SKF TMMP 3X300 is a three arm puller for small to medium sized bearings. It helps the user to safeguard against damage to the bearing or to the bearing seating during dismounting. The SKF Standard Jaw Pullers TMMP series allow for easy and fast dismouting jobs and safe puller operation.
Cone system for automatic centring and secure positioning of arms
Strong springs keep arms apart for easy operation
Hardned, high quality carbon steel
TECHNICAL DATA (METRIC)
| Designation | No. of arms | Width of grip | Effective arm length | Max. withdrawal force | Weight |
| qty | mm | mm | kN | kg | |
| TMMP 2x65 | 2 | 65 | 60 | 6,0 | 0,4 |
| TMMP 2x170 | 2 | 170 | 135 | 18,0 | 1,9 |
| TMMP 3x185 | 3 | 185 | 135 | 24,0 | 2,5 |
| TMMP 3x230 | 3 | 230 | 210 | 34,0 | 5,5 |
| TMMP 3x300 | 3 | 300 | 240 | 50,0 | 9,0 |
TECHNICAL DATA (IMPERIAL)
| Designation | No. of arms | Width of grip | Effective arm length | Max. withdrawal force | Weight |
| qty | in | in | lbf | lb | |
| TMMP 2x65 | 2 | 2.6 | 2.4 | 1,340 | 0.9 |
| TMMP 2x170 | 2 | 6.7 | 5.3 | 4,030 | 4.2 |
| TMMP 3x185 | 3 | 7.3 | 5.3 | 5,380 | 5.5 |
| TMMP 3x230 | 3 | 9.1 | 8.3 | 7,610 | 12 |
| TMMP 3x300 | 3 | 11.8 | 9.4 | 11,200 | 20 |
SPARE PARTS
| Designation | Description |
| TMMP 2X170-6 | Spindle for TMMP 2x170 |
| TMMP 3X185-6 | Spindle for TMMP 3x185 |
| TMMP 3X230-6 | Spindle for TMMP 3x230 |
| TMMP 3X300-6 | Spindle for TMMP 3x300 |
Packaging & Shipping
Our Services
Company Information
FAQ
1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2. About Sample:
Some Sample is Free, but the air freight is collect or you pay us the cost in advance.Some sample require payment at lowest price ,if need sample pls contact us.
3. About MOQ:
The MOQ is 1 pcs; For some products we have in stock, the MOQ is 5 pcs.
4. About OEM:
Welcome, you can send your own design of product and LOGO, we can open new mold and print or emboss any LOGO for you.
5. About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.
6. About Payment or other question:
Pls email me or chat with me on TradeManager directly.
