European Heat Pump Evaporator/Condenser Brazed Plate Heat Exchanger FHC040G/ACH040/ACH043
- Category: >>>
- Supplier: Zhejiang Forwon Plate Heat Exchanger Co. Ltd.
Share on (1600608375035):
Product Overview
Description
Features
FHC040G Brazed Plate Heat Exchanger
This heat exchanger has a wide range of heat transfer capacity, and has both flow resistance and high performance. It is the best choice for heat pump systems.
1.Compact structure: adopt thin stainless steel, high heat transfer factors.
2.Reliability: adopt 316L and copper as well as high quality brazing works. Endure high pressure and temperature. Long life and no maintenance need.
3.Reduce water require: with the high heat transfer efficiency, only needs 1/3 water usage compare to shell and tube exchanger under same condition
4.Lightly: Only 20-30% weight compare to shell and tube heat exchanger and reduce the logistics cost.
5.Low fouling factors: high disorderly flow lower the fouling condition, reduce the maintain.
6.With distributor: increase the refrigerant evaporating efficiency and reduce the risks by using distributor to force the
refrigerant flow direction.
2.Reliability: adopt 316L and copper as well as high quality brazing works. Endure high pressure and temperature. Long life and no maintenance need.
3.Reduce water require: with the high heat transfer efficiency, only needs 1/3 water usage compare to shell and tube exchanger under same condition
4.Lightly: Only 20-30% weight compare to shell and tube heat exchanger and reduce the logistics cost.
5.Low fouling factors: high disorderly flow lower the fouling condition, reduce the maintain.
6.With distributor: increase the refrigerant evaporating efficiency and reduce the risks by using distributor to force the
refrigerant flow direction.

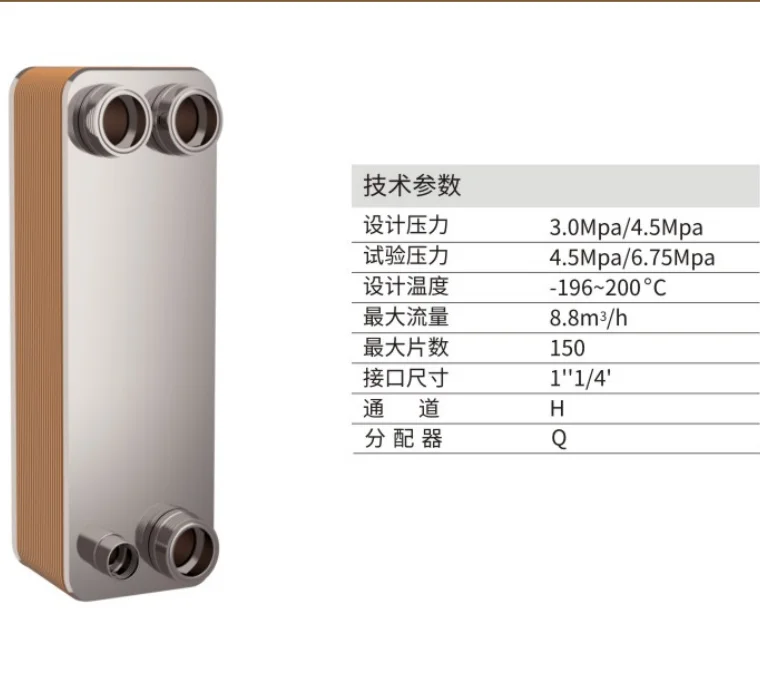

Model | FHC040G |
Design pressure | 3.0Mpa/4.5Mpa |
4.5Mpa/6.75Mpa | |
Design temperature | -196~200℃ |
Max flow | 8.8m3/h |
Max plate numbers | 150 |
Max size of connection | 1-1/4" |
Channel | H |

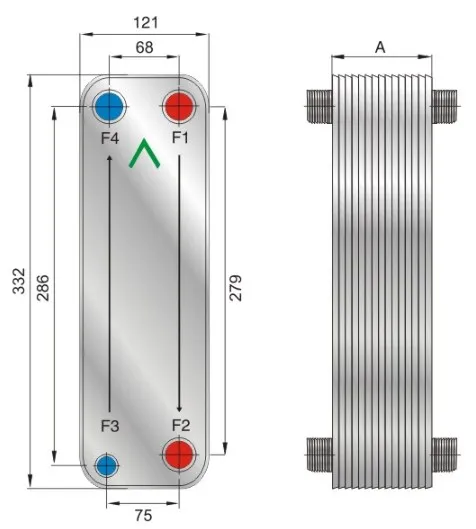

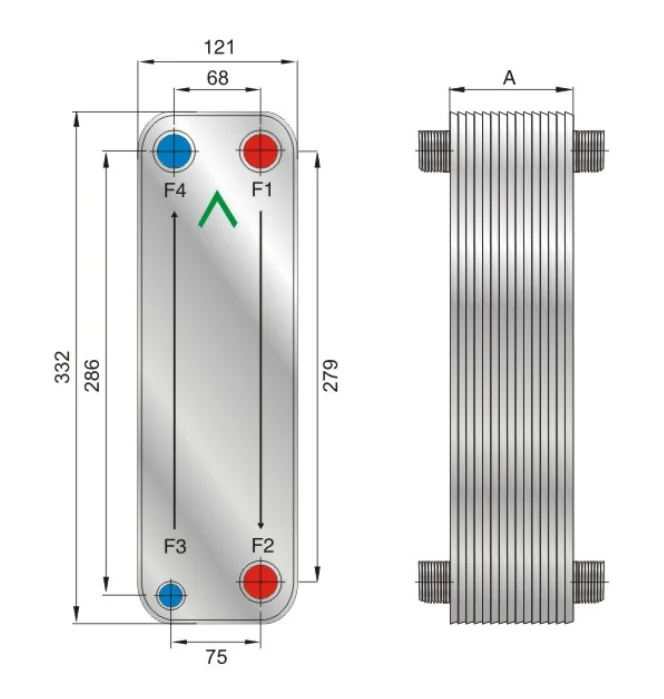

Size A(mm) | 11+1.53N(3.0Mpa)/13+1.53N(4.5Mpa) |
Weight(KGS) | 0.1N+1.65(3.0Mpa)/0.1N+1.95(4.5Mpa) |
Volume(L) | F1F2: 0.036*N/2; F3F4: 0.036*(N-2)/2 |
Heat transfer area(m2) | (N-2)*0.04 |
Installation | Upright |
Certifications | CE/ISO9001/ISO14001 |
Solder material | 99.9% Copper |
Plate material | AISI316L, AISI304 |
Warranty | 18 months |

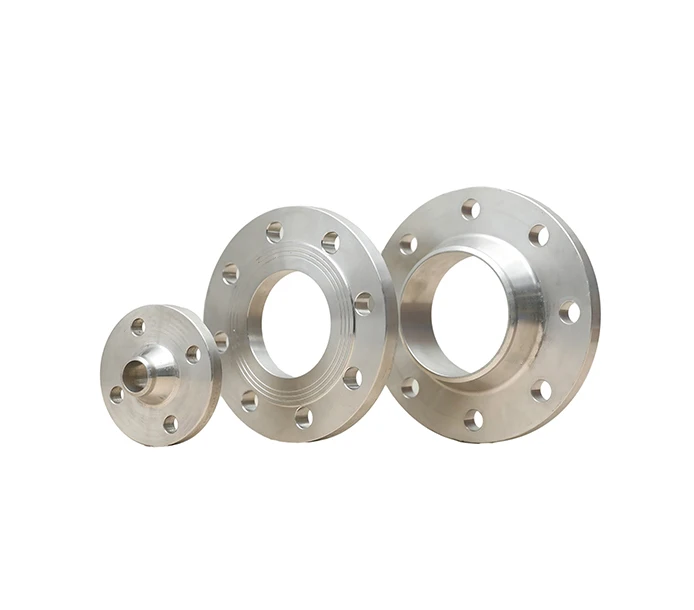

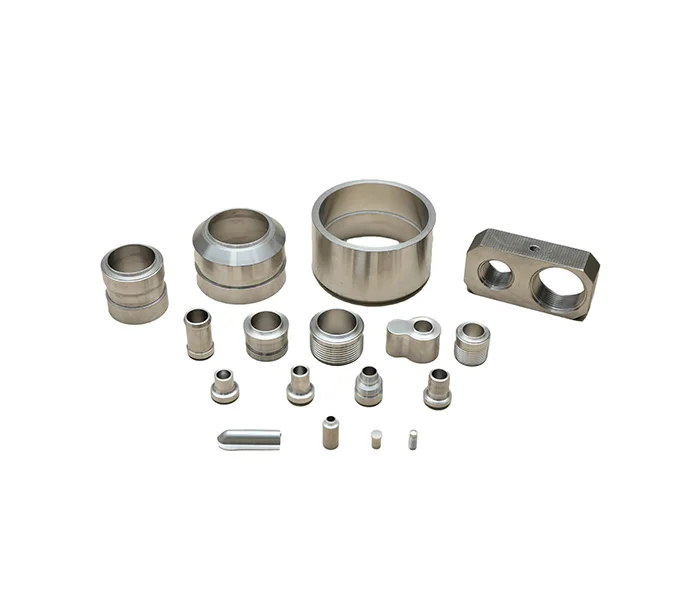

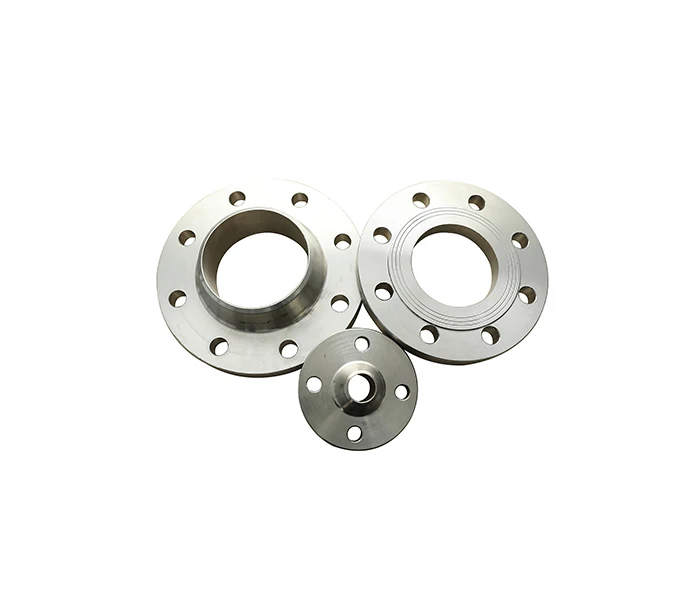

Available connections | Solder, male or female threaded, victaulic, flanges, etc |

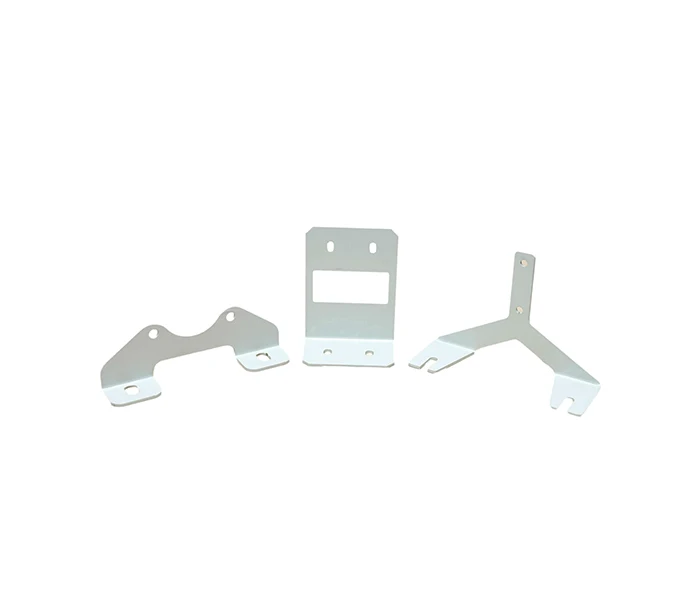

Available Accessories
