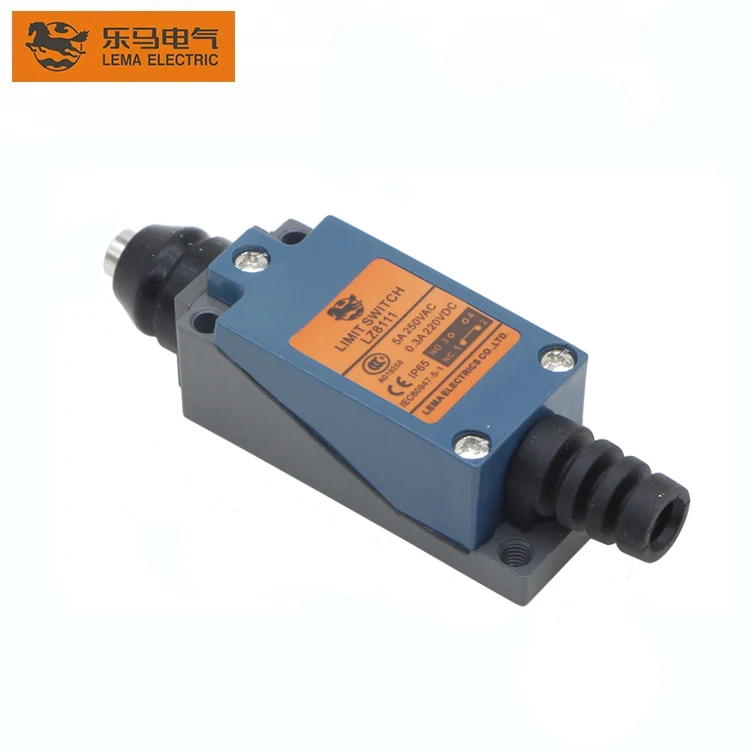

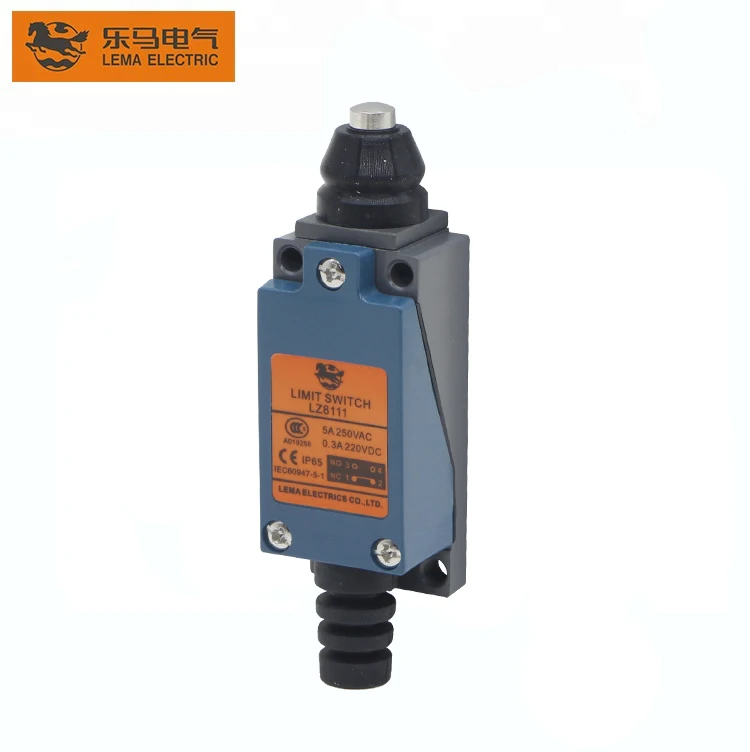

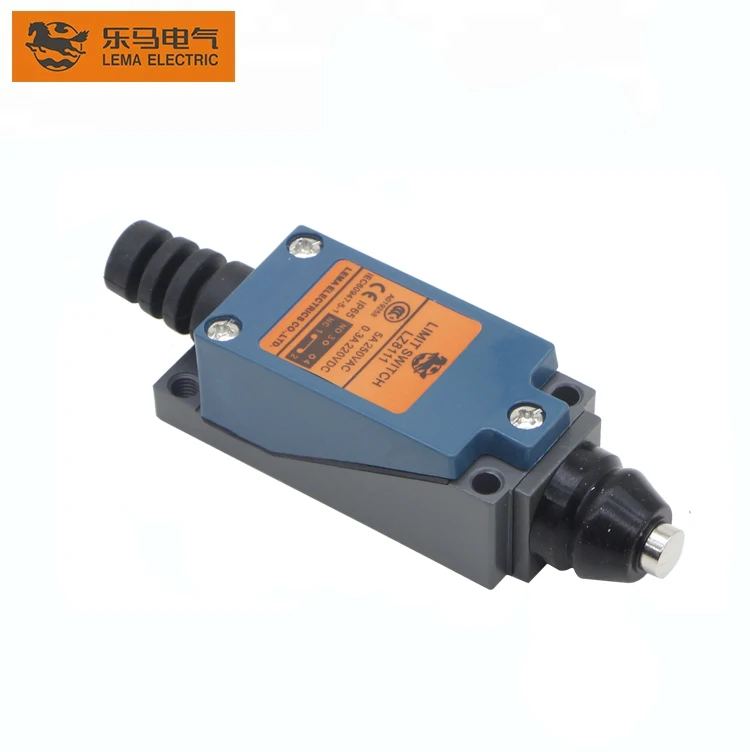

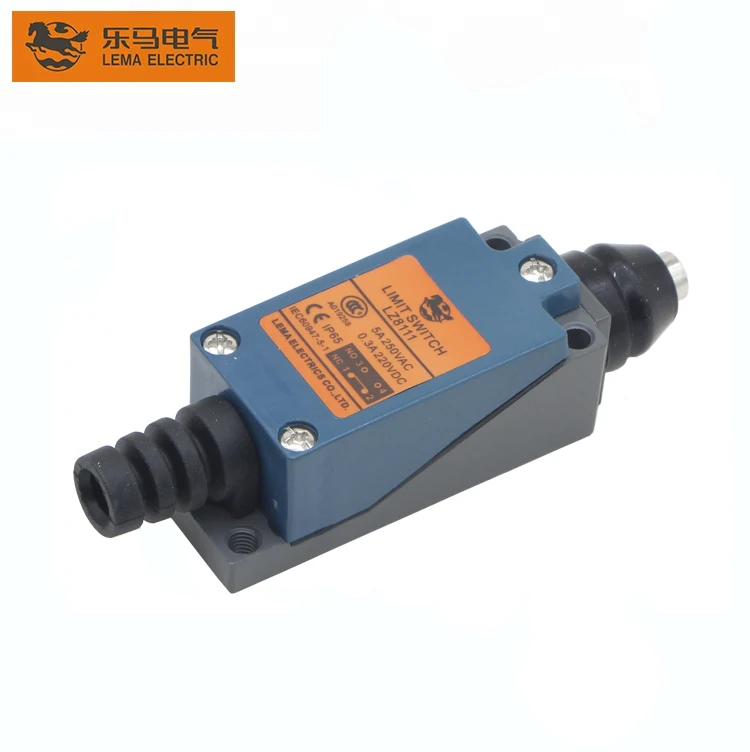

Оптовая продажа, Пылезащитный Водонепроницаемый маслостойкий механический концевой выключатель LZ8111 IP65
- Category: Limit Switches >>>
- Supplier: Zhejiang Lema Electrics Co. Ltd.
Share on (1600608447233):
Product Overview
Description
Product Description
Brand | LEMA |
Model | LZ8111 |
Voltage | 250V |
Electric Current | 5A |
Protection level | IP65 |
Package | CARTON |
Size | 29*25*97.5mm |
Certification | CE |
Operating speed | 5mm-0.5m/s | ||||||
Operating life | Mechanical: 1,000,000 operations/min Electrical: 200,000 operations/min | ||||||
Initial insulation resistance | 100MΩmin.(at 500VDC) | ||||||
Initial contact resistance | 25MΩmax. | ||||||
Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min | |||||
Between non-current carrying metal parts and each terminal | 1,500Vrms, 50/60Hz for 1 min | ||||||
Between ground and each terminal | 1,500Vrms, 50/60Hz for 1 min | ||||||
Vibration resistance | 10-55Hz,1.5mm double amplitude | ||||||
Max.shock resistance | Destruction: 1000m/s² Malfunction: 300m/s² | ||||||
FAQ
Q: How do you control the products’ quality? A: 100% Auto inspection machine and manual testing together before packing. | ||||||||
Q: What's your payment term? A: We usually accept T/T. Samples cost can be paid by PayPal, Western Union. | ||||||||
Q: Would you accept to use our logo? A: If you have good quantity, we can make OEM and ODM, customized specification. | ||||||||
Q: Can I get a sample for reference? A: We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. | ||||||||
Q: What is your delivery time? A: Usually it takes 15-20 working days for productions. | ||||||||
