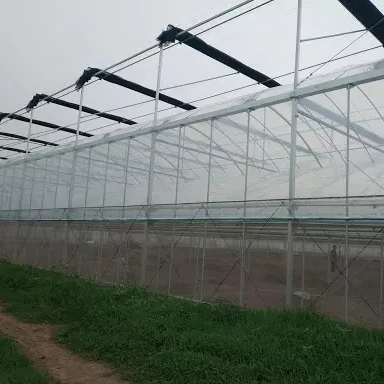

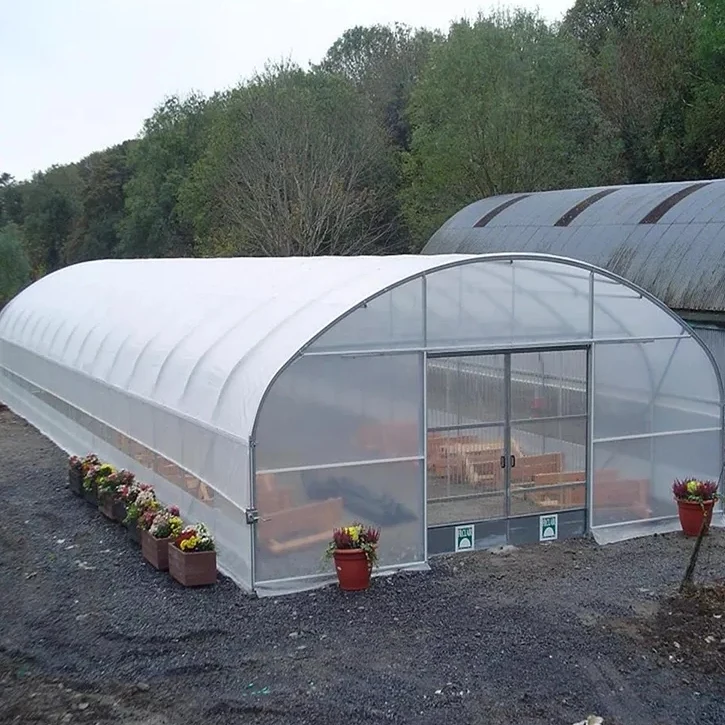

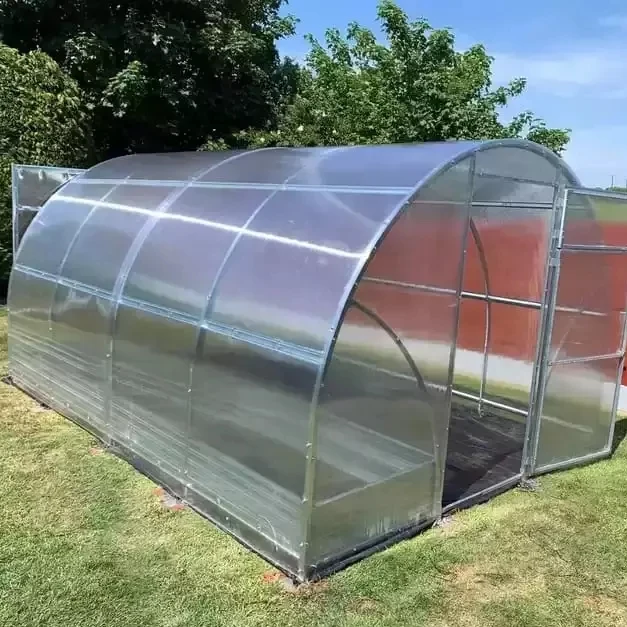

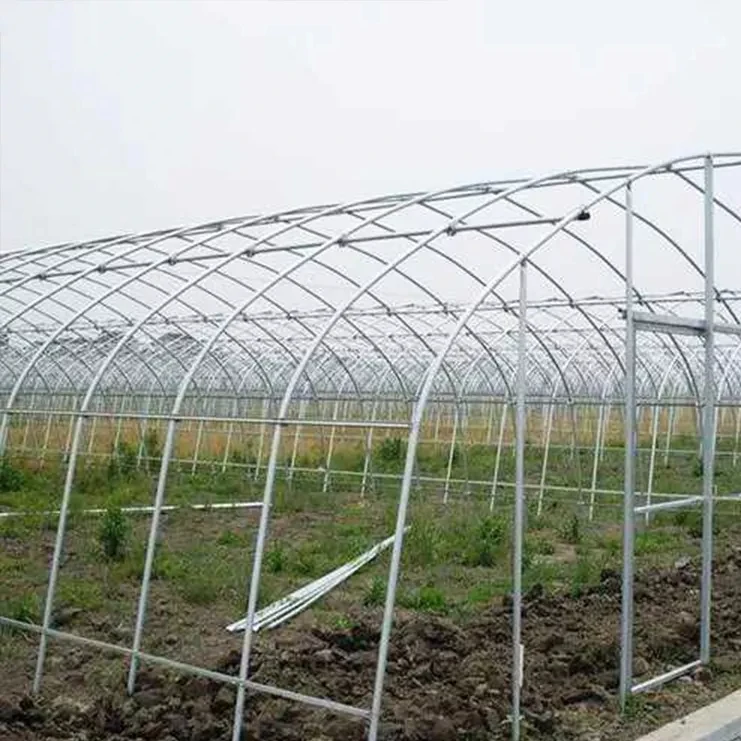

Economic Tunnel Plastic Greenhouse for Vegetable Greenhouse Tube GI pipe
- Category: >>>
- Supplier: Tianjin Jinzhuoyi Steel Co. Ltd.
Share on (1600608458022):
Product Overview
Description
Specification
item | value |
Size | Large |
Type | Multi-Span Agricultural Greenhouses |
Cover Material | Film |
Place of Origin | tianjin |
Brand Name | JZY |
Secondary Or Not | Non-secondary |
Application | Vegetable Fruits Flowers |
Cooling system | Cooling Pad Fan System |
Length | Customizable Size |
Structure | Hot Galvanized Steel Frame |
Thickness | 0.8-2.0mm |
Height | 2.5m-8m |
Optional system | Cooling System.irrigation System.ventilation.etc |
Certificate | ISO 9001 |
Warranty | 5-10 Years |
Products Description

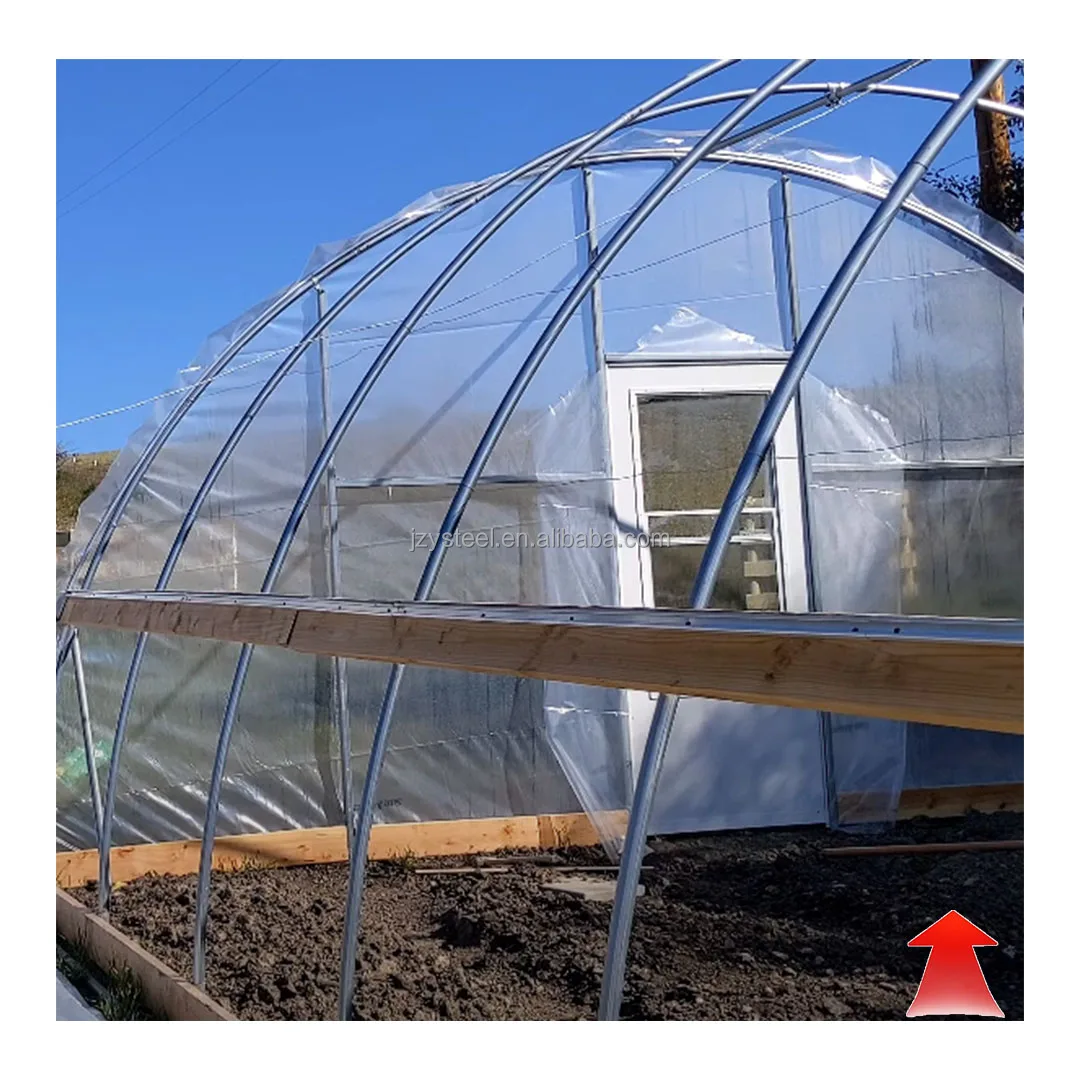

JZY Single-span Greenhouse | ||
1. Length: 10m-100m (can be customized according to requirements) | ||
2. Width: 6m-17m (can be customized according to requirements) | ||

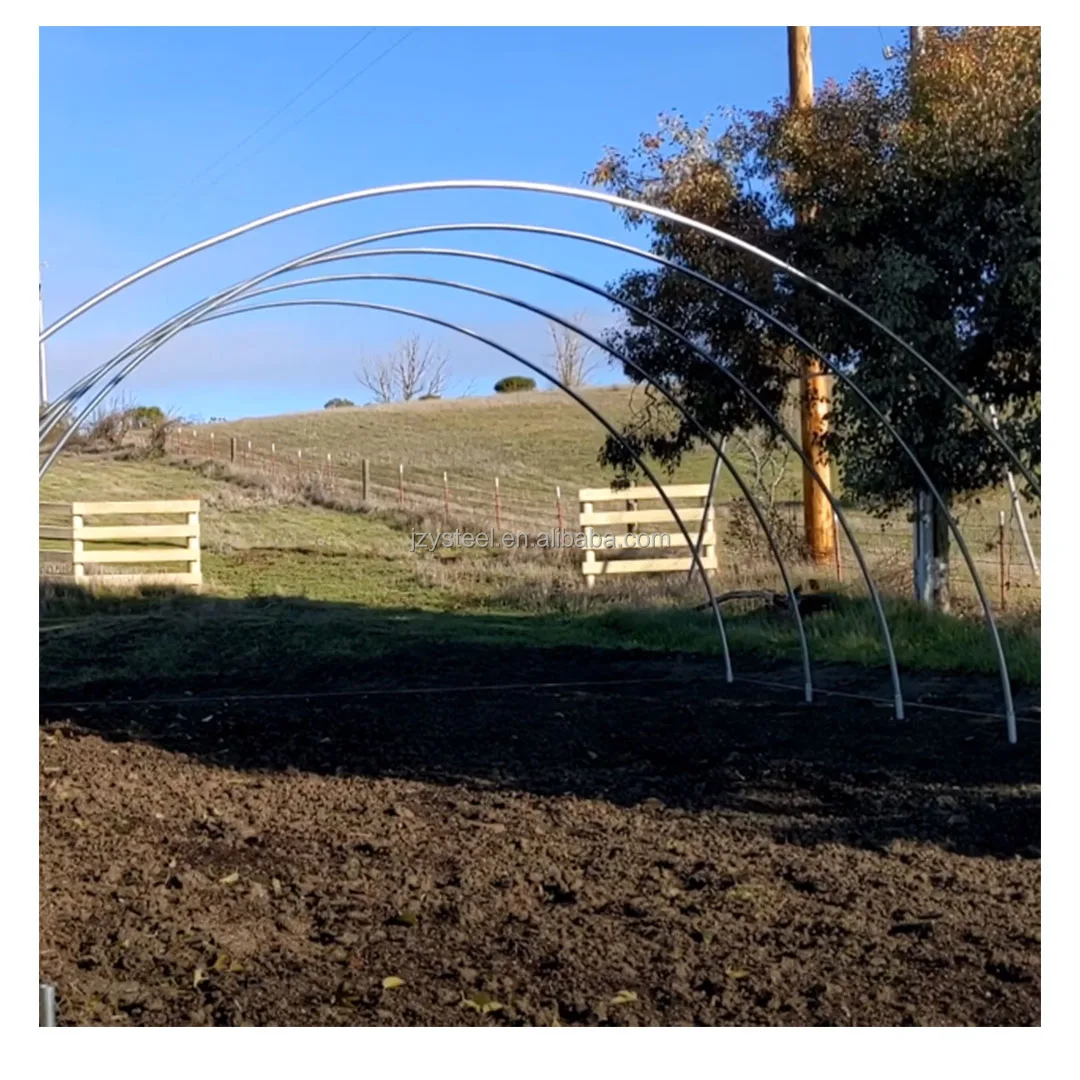

3. Frame structure:(1)Pre-galvanized steel frame/hot-galvanized steel frame (2) Frame tube: round tube, oval tube (3) Size; 32-60mm,30*50mm~40*80mm (4) Zinc coating: 40-210g (5) Thickness: 1-2.5mm | ||
4.Covering (1) PO/PEP/HDPE woven plastic film Thickness: 100μm-200μm (2) Polycarbonate Thickness: double/three layers | ||
5. Parameters: (1) Wind load: 0.5KN/㎡ (2) Snow load: 0.35KN/㎡ (3) Maximum rainfall: 140mm/h (4) Hanging weight: 15kg/㎡ | ||
6. Optional system: cooling system, shading system, thermal insulation system, heating system, hydroponic system, intelligent control system | ||

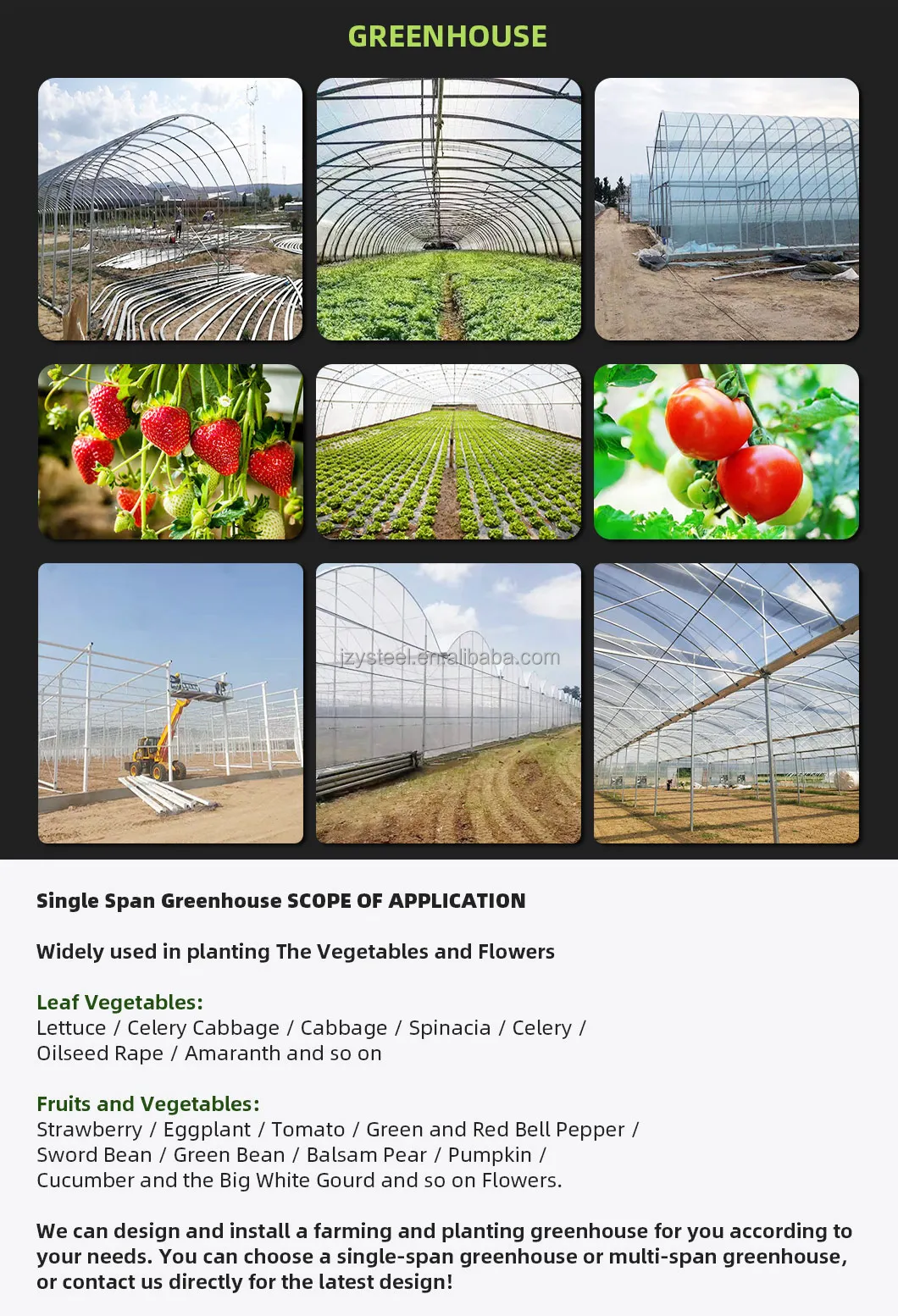

7.Usage Scenarios: Vegetable planting, flower planting, animal breeding | ||

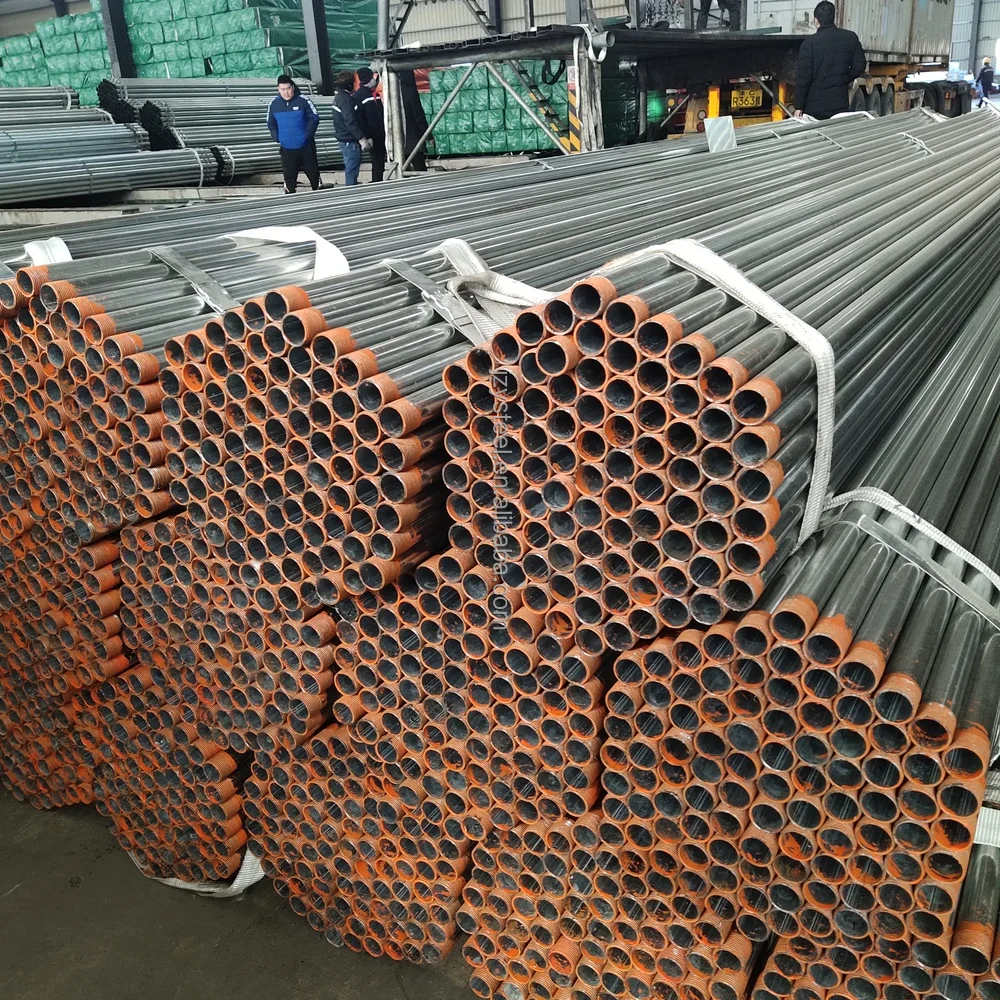

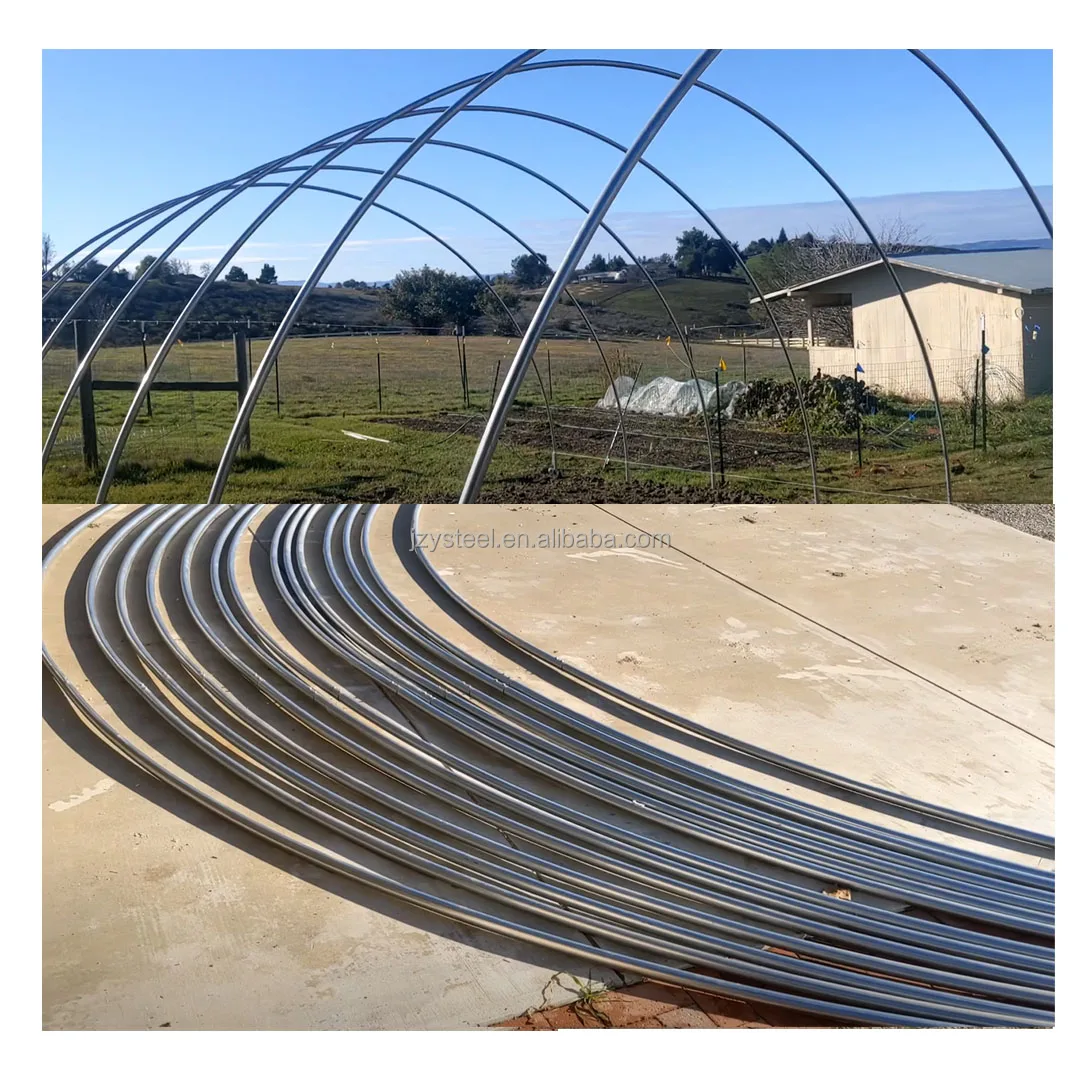

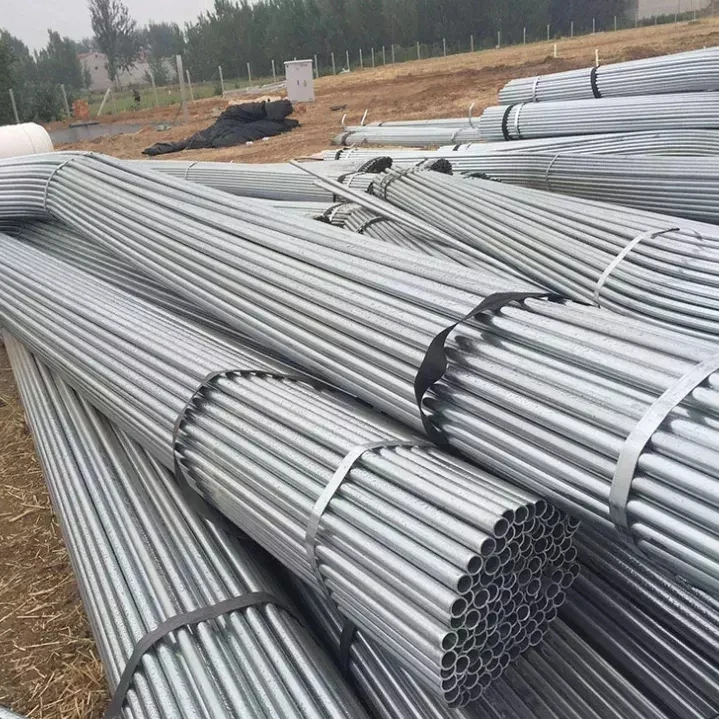

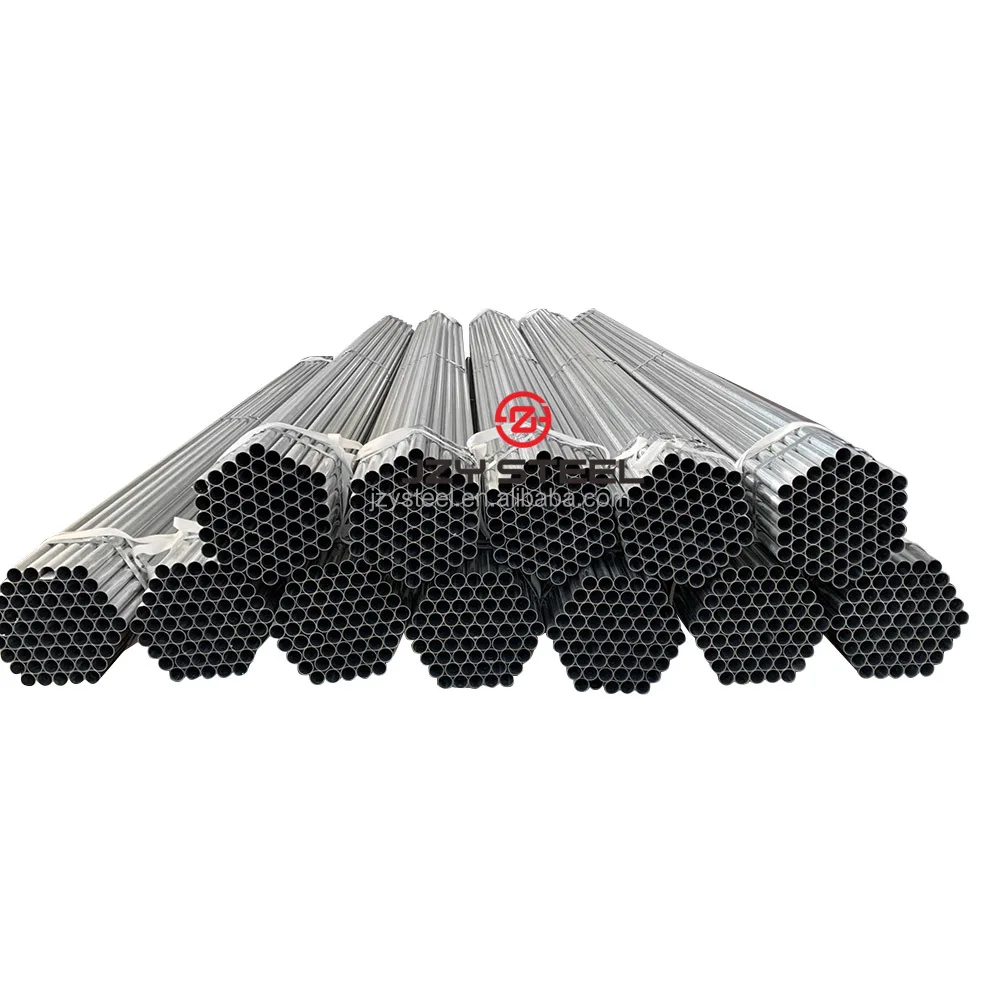

For structure, usually, we used hot galvanized steel pipe, it's the best steel material, and can be used for 20 years without rusting.

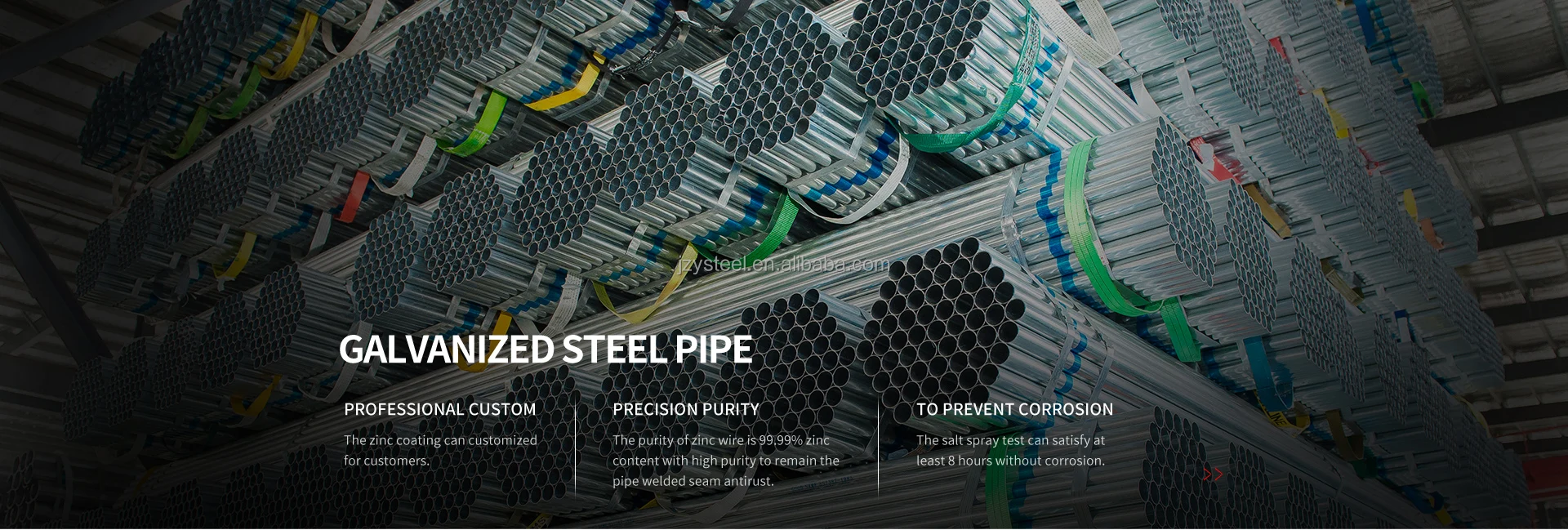

/ Galvanzied steel pipe has the advantages of uniform coating, strong adhesion and long service life. The base of the galvanized pipe and the molten plating solution undergo complex physical and chemical reactions to form a corrosion-resistant zinc-iron alloy layer with a tight structure. The alloy layer is integrated with the pure zinc layer and the steel pipe substrate. Therefore, its corrosion resistance is strong.
/ As long as the forming angle is changed, steel pipes of various calibers can be produced with the same width of strip steel, which is easy to adjust the shape.
/ Because it is formed by continuous bending, the fixed length of the spiral tube is not limited, and the length can be arbitrarily set.
COMPANY PROFILE

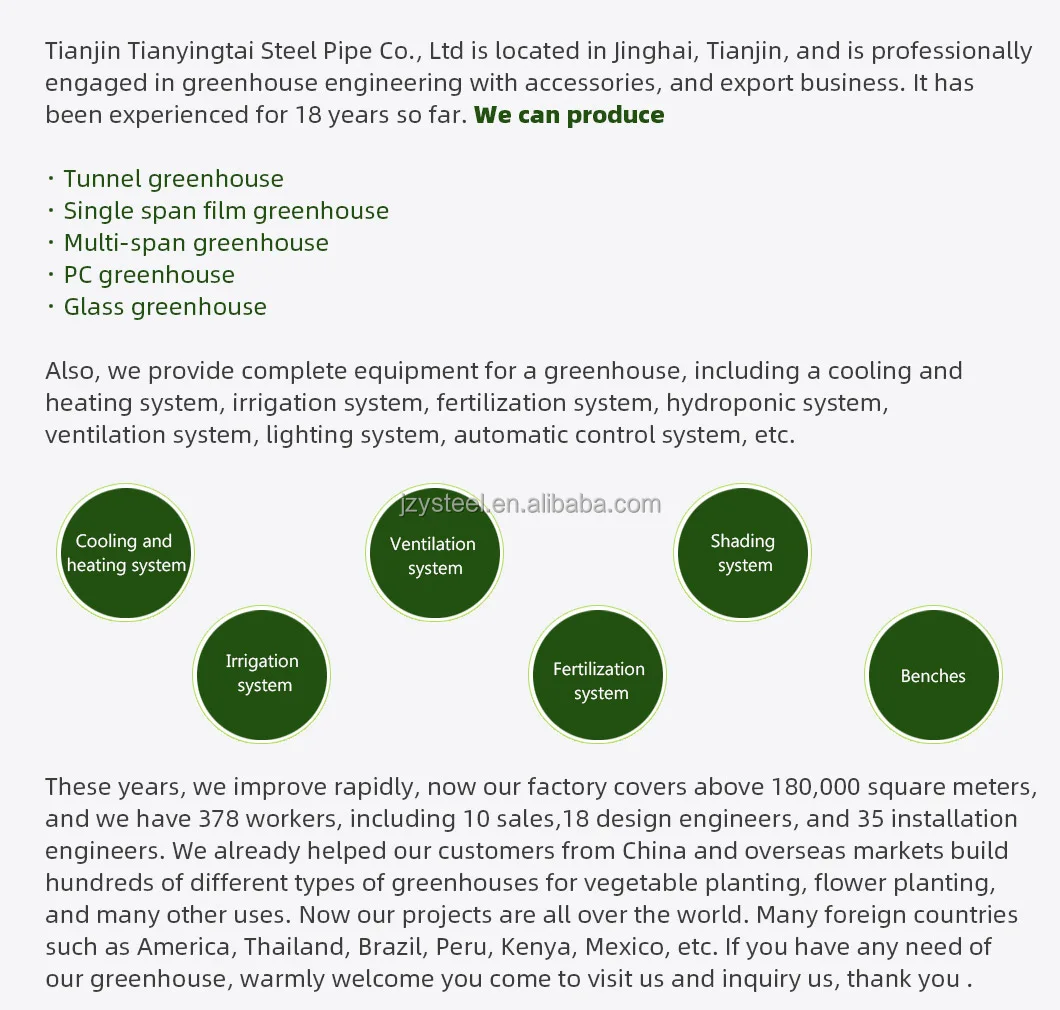

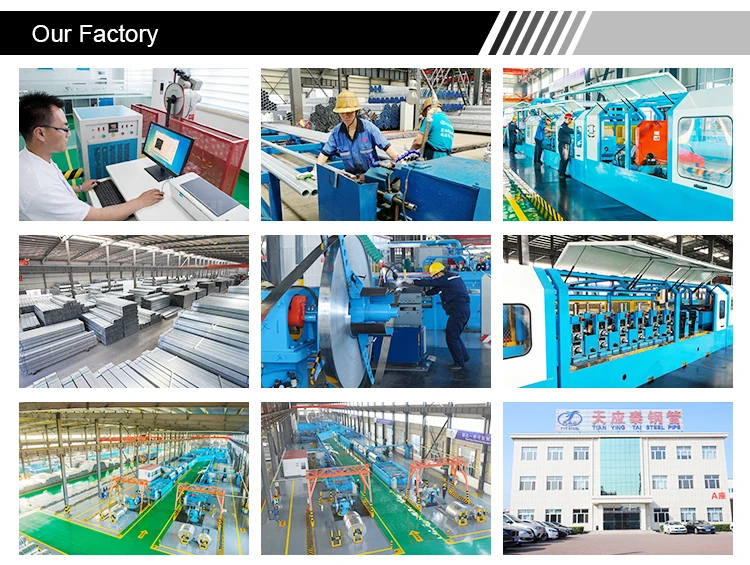

Tianjin JZY Steel Pipe Co., Ltd is located in Jinghai, Tianjin, and is professionally engaged in greenhouse engineering with accessories, and export business. It has been experienced for 18 years so far. we can produce
Exhibition

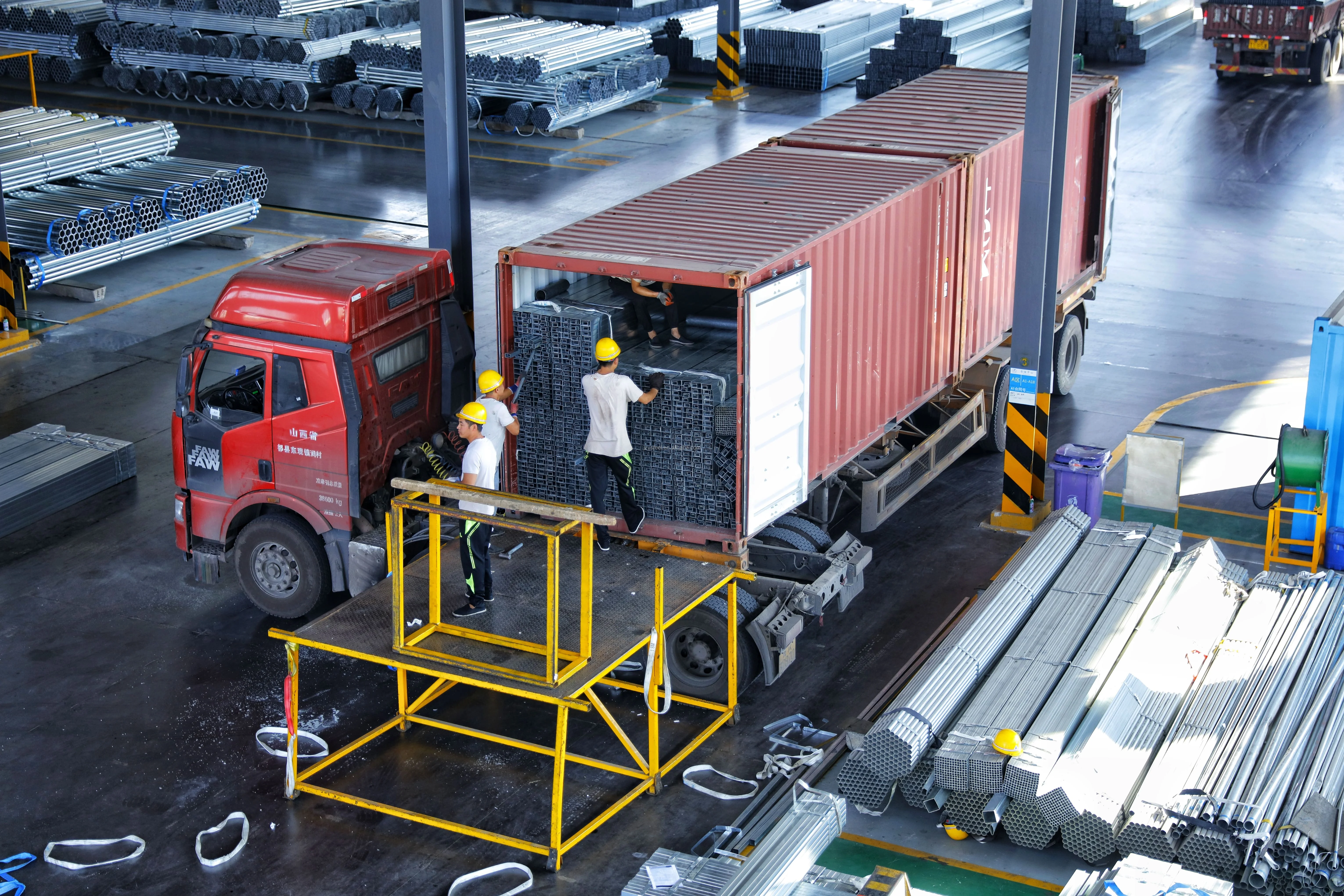

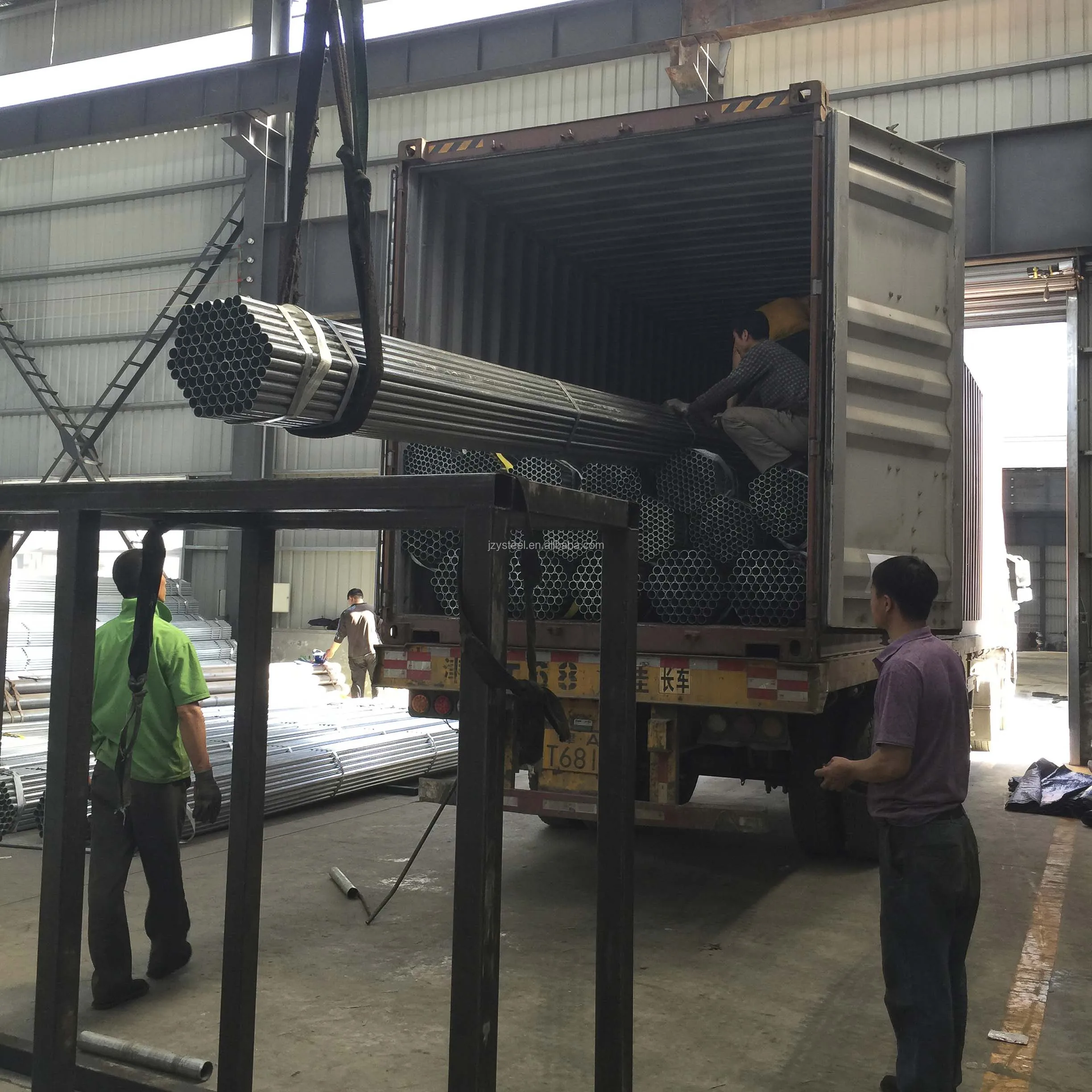

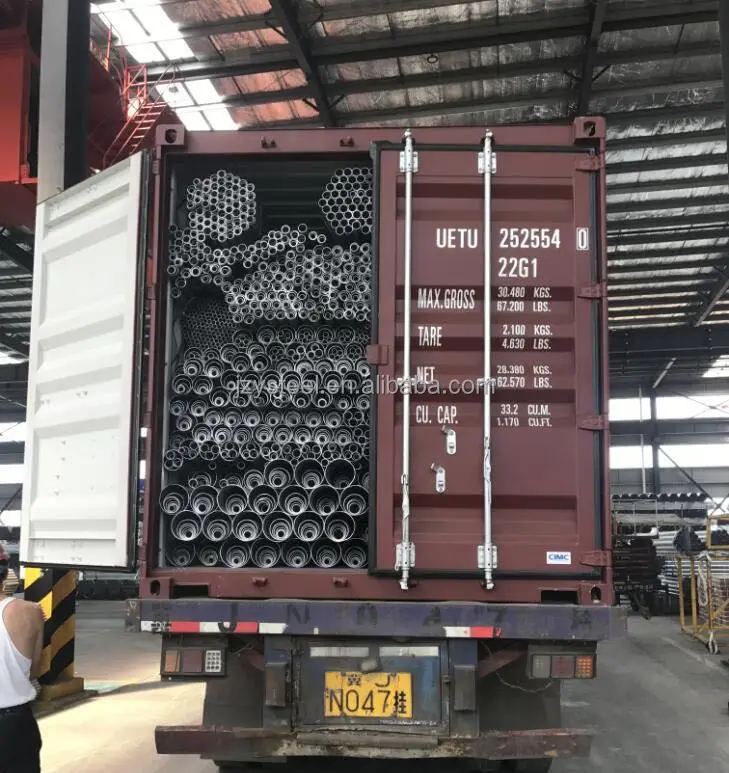

Packing & Delivery
JZY STEEL
/ Every product is strictly inspected before leaving the factory.
/ Make sure it's delivered to you in good condition.
^0^^0^^0^^0^

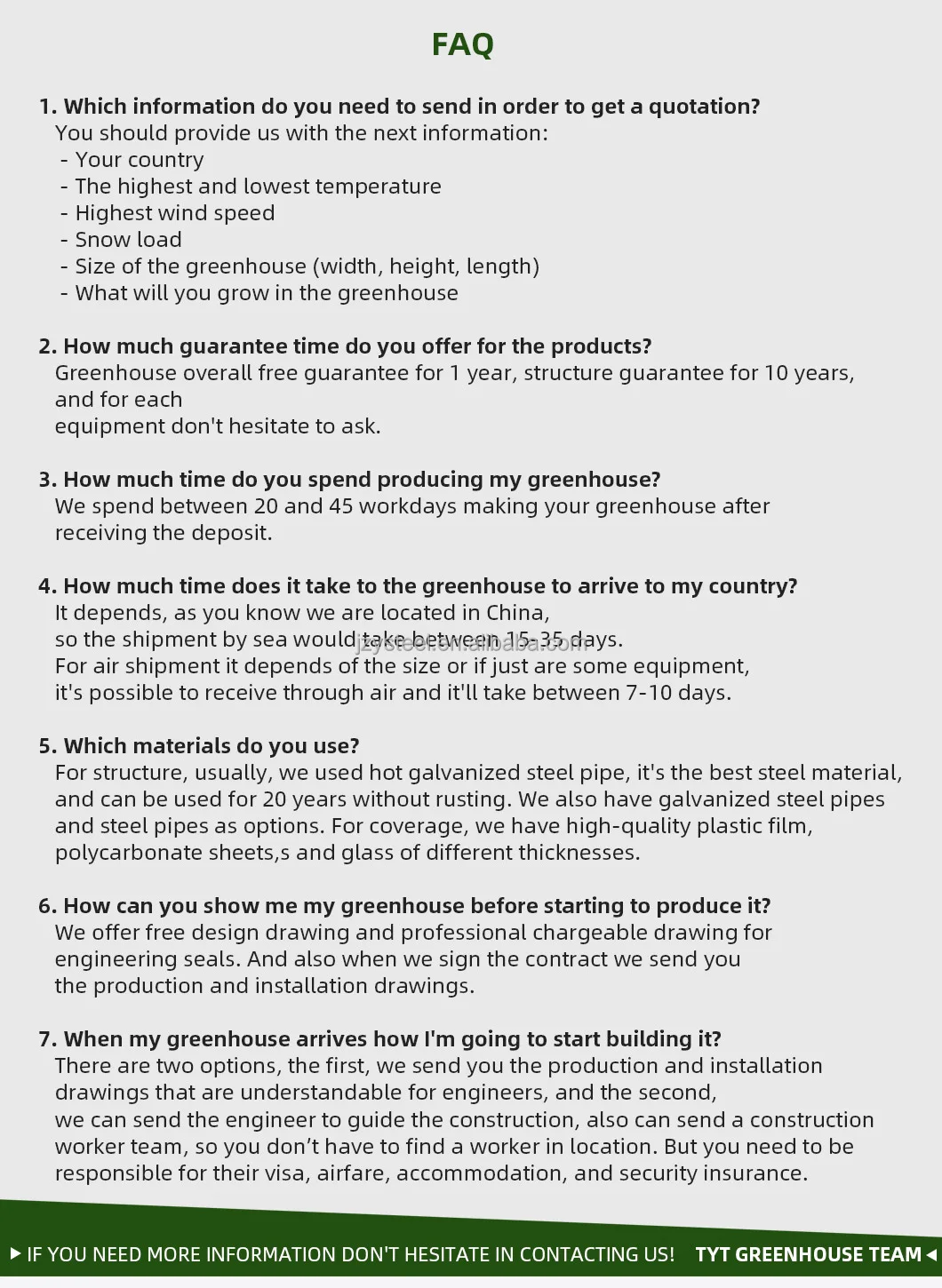

FAQ
