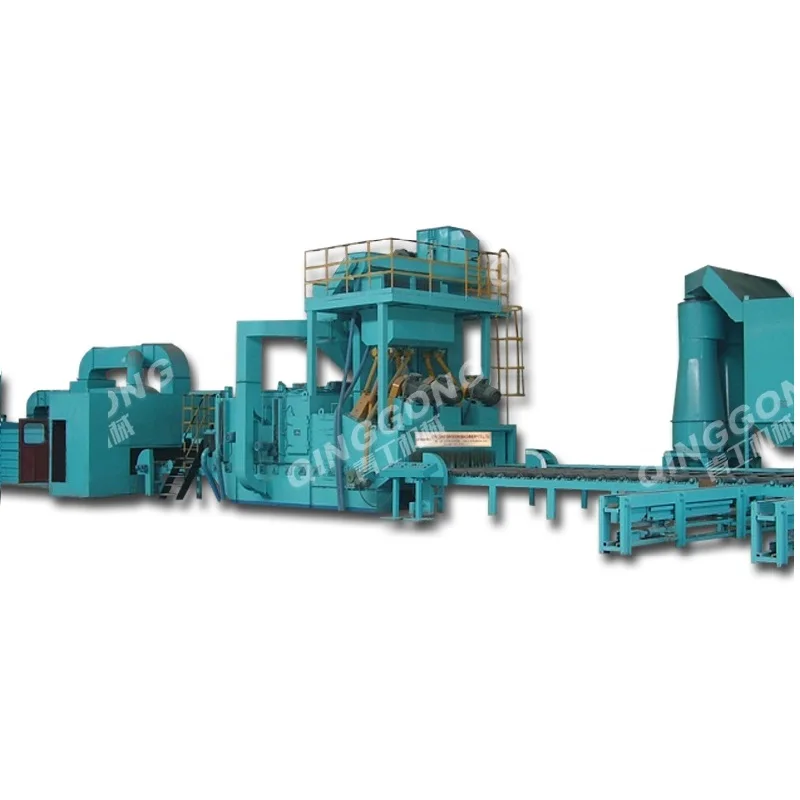

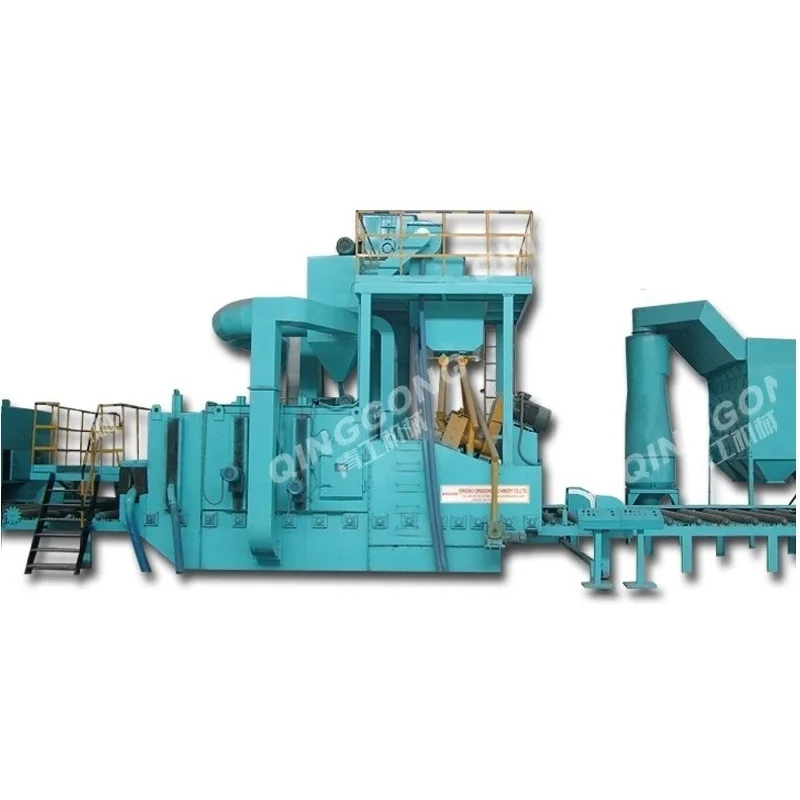

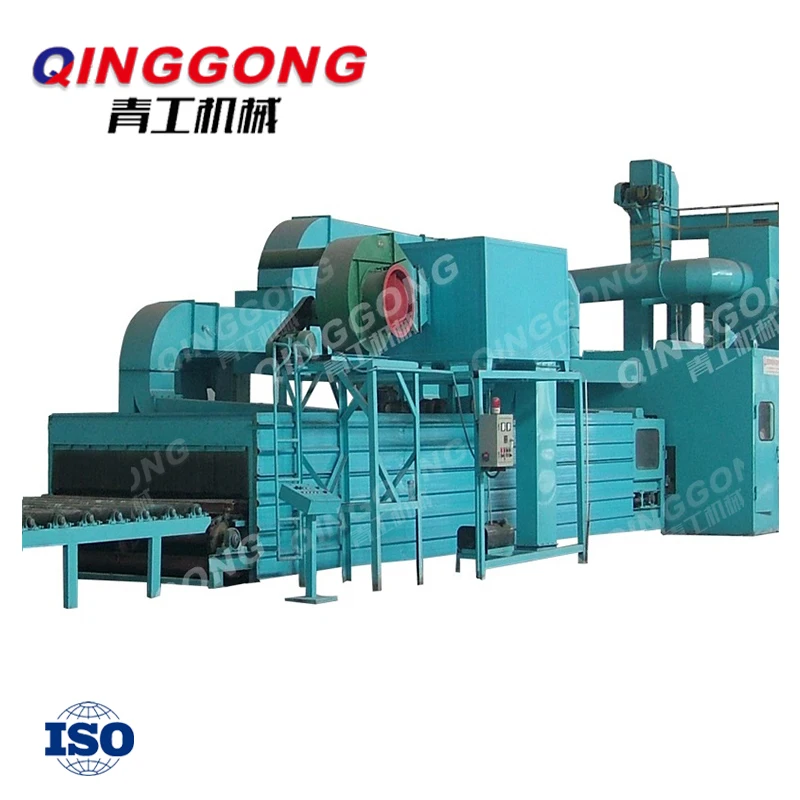

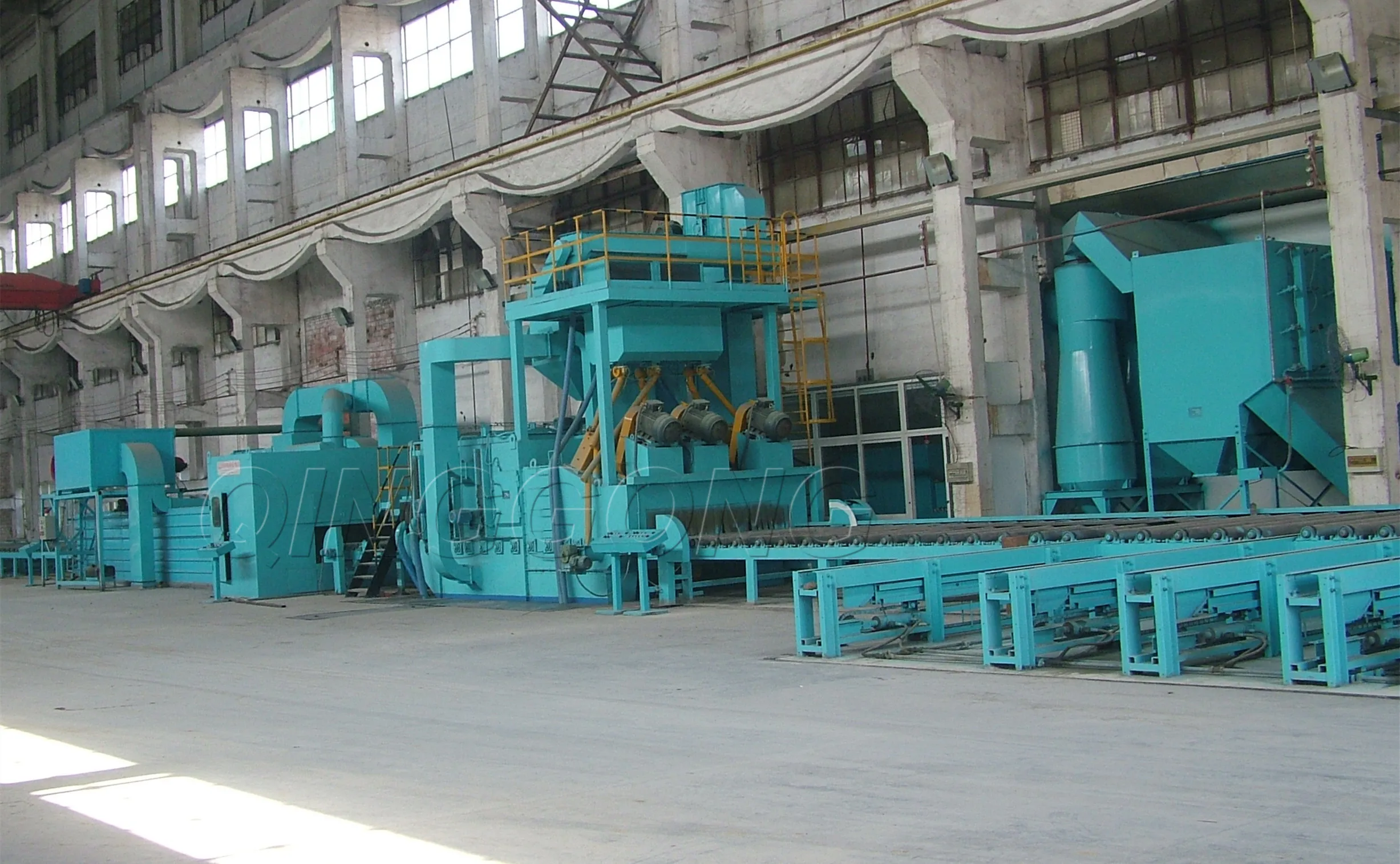

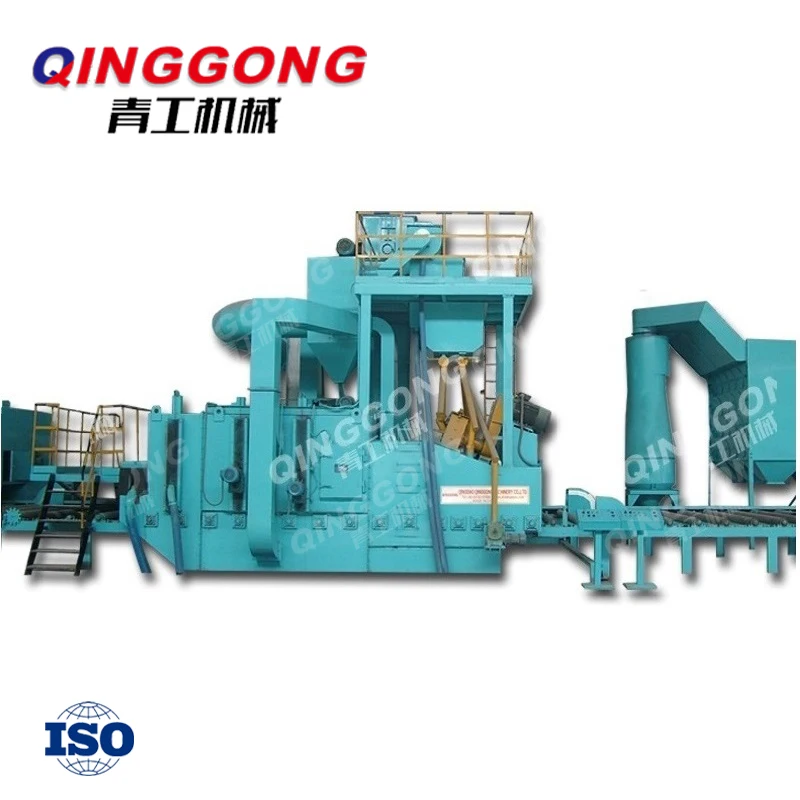

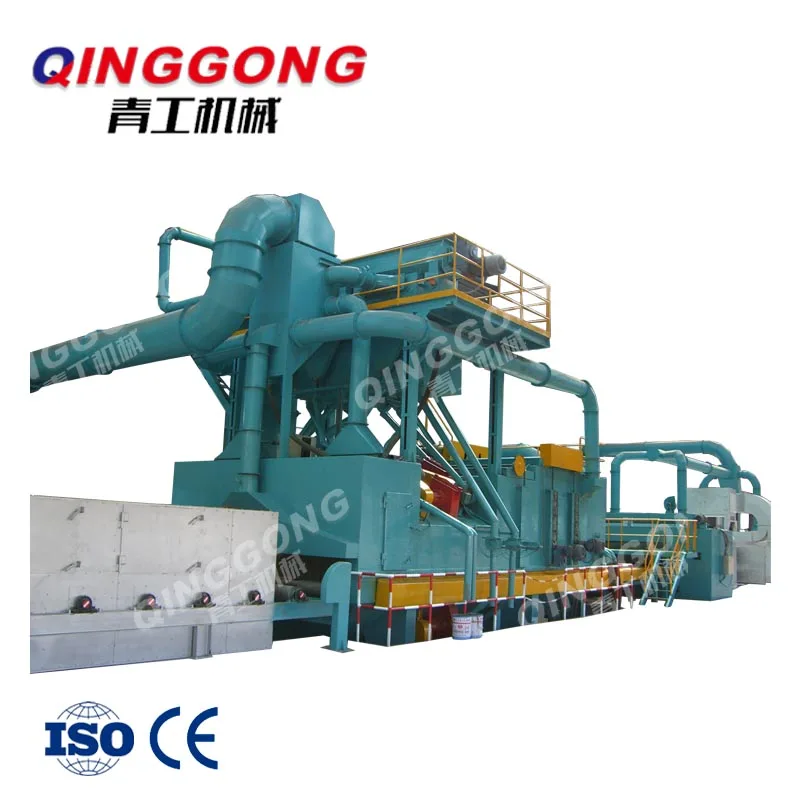

Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line
Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line
Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line
Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line
Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line
Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line
Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line

Good quality surface treatment equipment with painting and shot blasting machine steel plate preservation line

Share on (1600608770577):


Price:$3,600.00 - $15,500.00

Quantity:


Product Overview

Description







☆Transportation system
Roller conveyor system with frequency control step-less speed regulation. Painting chamber: Plate chain conveyor with "^" shaped
structure, painted steel short-term exposure to avoid film damage.
☆Blast turbine
Power of motor : 7.5-45 kw
Number of turbine: 4-16
☆Intelligent abrasive dosing system:
Service time max 20% longer, energy saved max 30%.
☆Application Industry
Most industries: aerospace, automotive, construction, foundry, shipbuilding, rail, and many others.
☆Workpieces
Sheet steel, profiles, or steel structures, etc.
☆Photoelectric detection
Workpiece detection (measure height) adopted world-famous brand photoelectric detection, workpiece width measurement device send a
signal to PLC so as to automatically adjust abrasive feeding valve opening number.
☆Abrasive cleaning up
First level: Brush+abrasive reclamation.
Second level: high-pressure blower blow the workpiece twice one after another after blast cleaning.

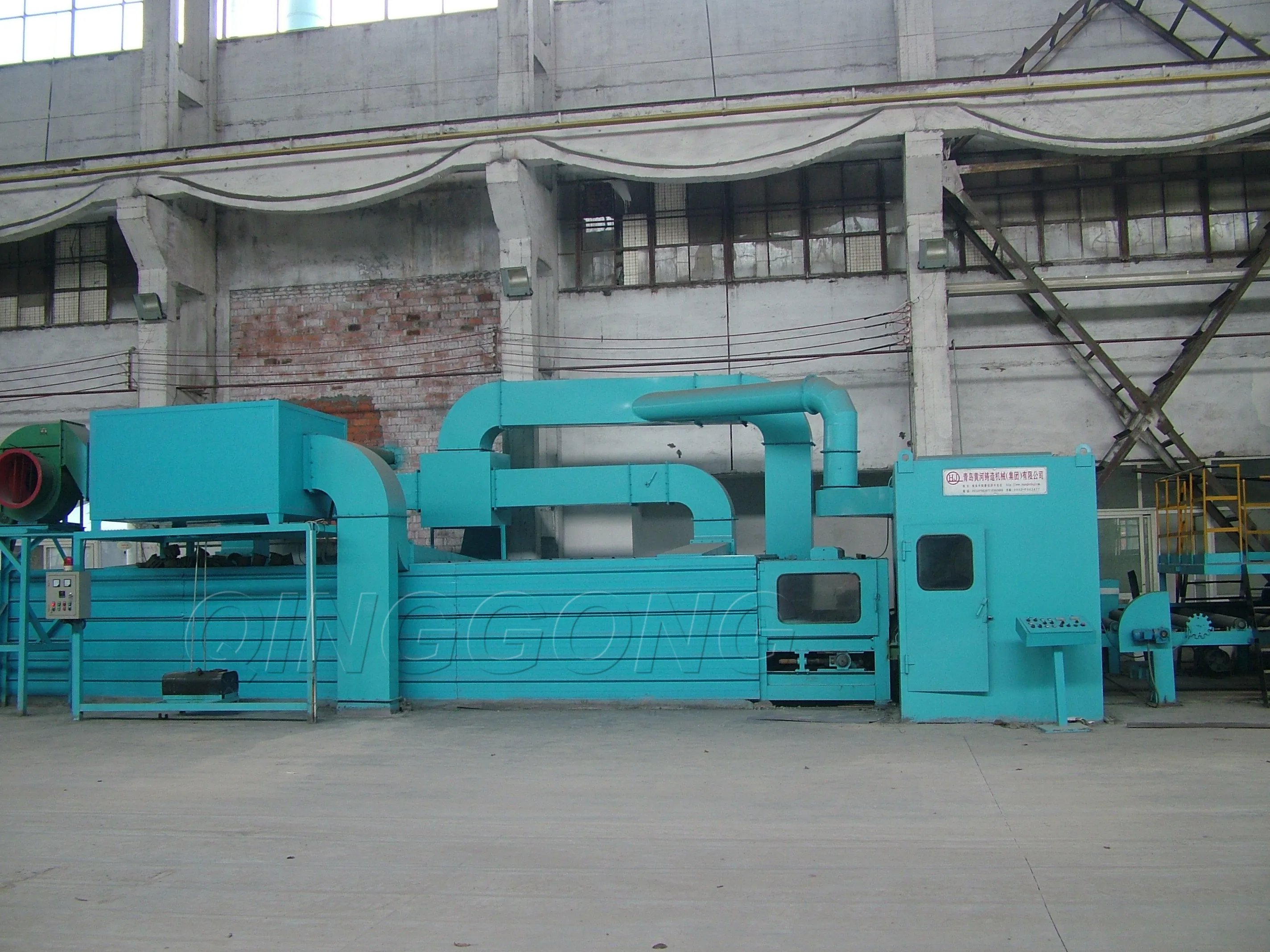

☆Spray chamber
Adopting GRACO high-pressure Airless spraying pump Using a standard linear guide trolley, frequency conversion buffer on both ends of trolley stroke.
Workpiece detection and transmission system separated from the spray gun set, paint mist interference-free,
easy to clean paint scale.
☆Dust collector
Settling chamber + cartridge-type dust collector
Cartridge filter service time: 5 years










model
QGPL300
QGPL500
QGPL800
QGPL1000
QGPL1200
Max. workpiece dimension(mm)
300*600
500*1200
800*2000
1000*2500
1200*3000
Work speed(m/min)
0.5-3
0.5-3
0.5-3
0.5-3
0.5-3
Number of wheels* power(kw)
4*7.5/11
4*7.5/11/15
6*7.5/11/15
6*11/15
8*11/15
Wheels optional
8*7.5/11
6*15/18.5
Dust collector
HR-12
HR-12
HR-16
HR-24
HR-24
Foundation pit required
No
No
No
Yes
Yes








*With 47 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of
wheel blast/air blast machines.

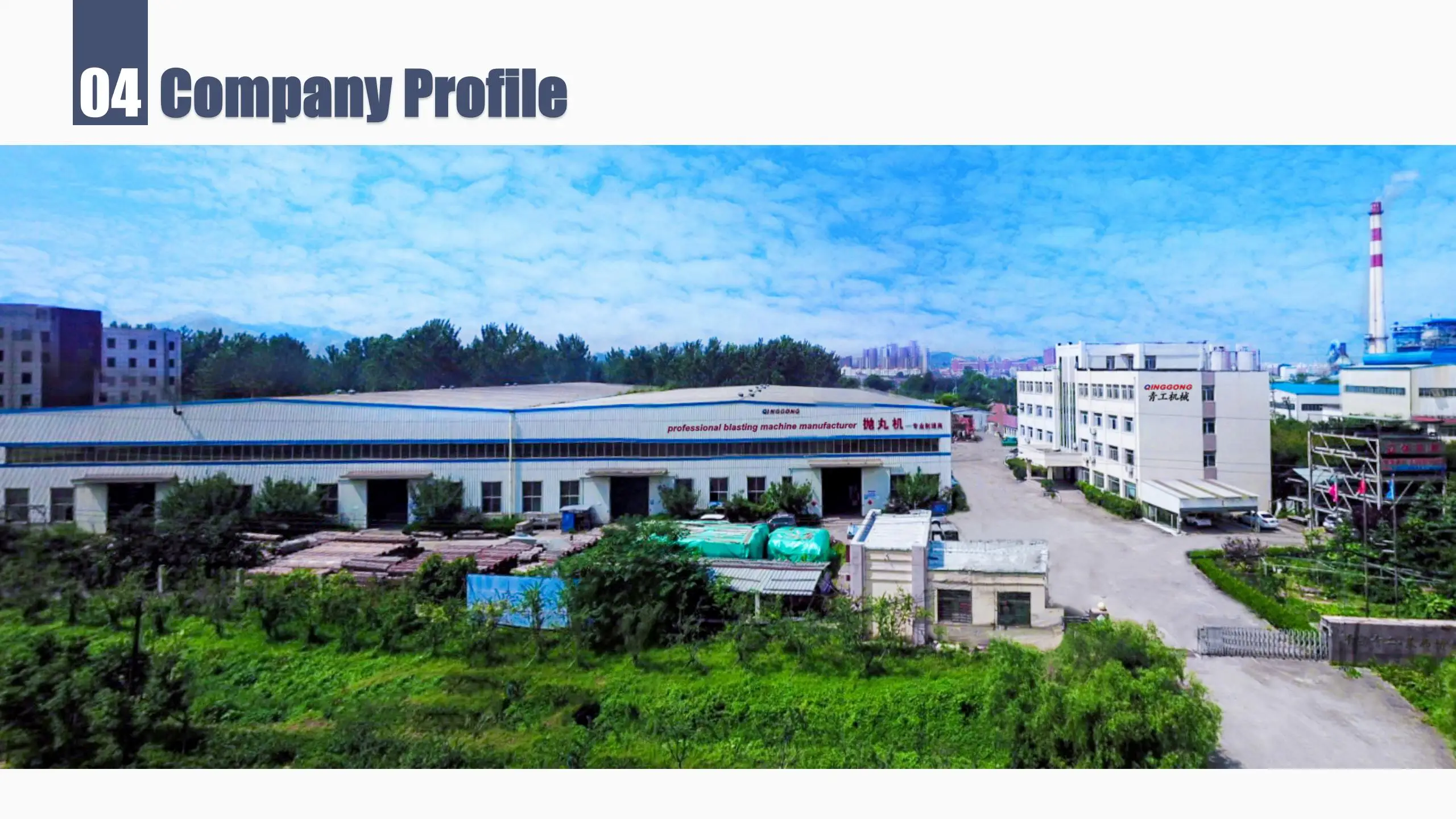

*Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of
30,000 ㎡.
*Untill 2022, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for
customers from more than 50 different countries and some major factories in China, like LongGong, SANY, TISCO.
*TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our
determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for
your industry.
