20 inch fat fork and fat wheel 20*4.0 inch thru axle 135*15/Doodlebike

Share on (1600608913291):


Price:$215.00 - $304.00

Quantity:


Product Overview

Description



Product Description

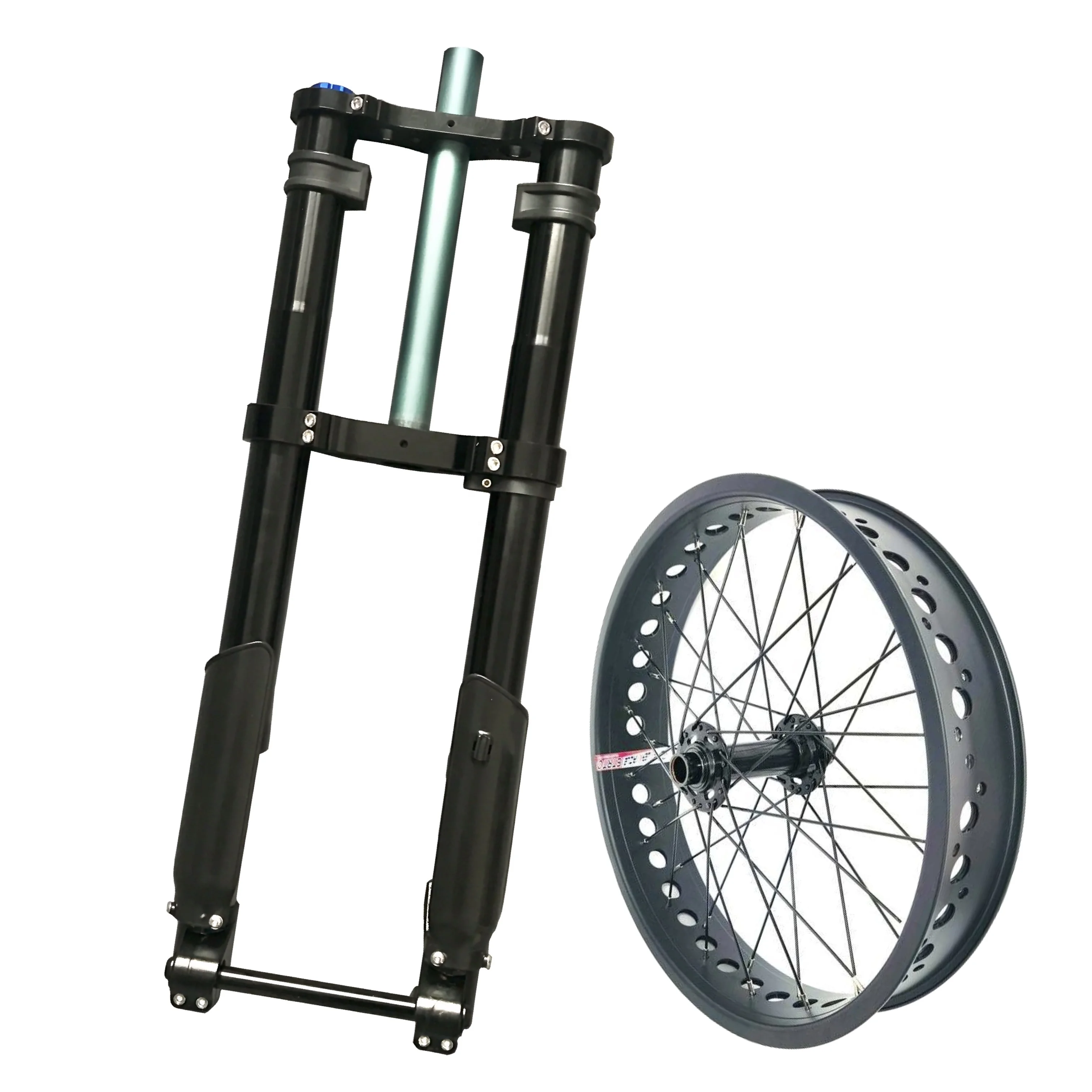

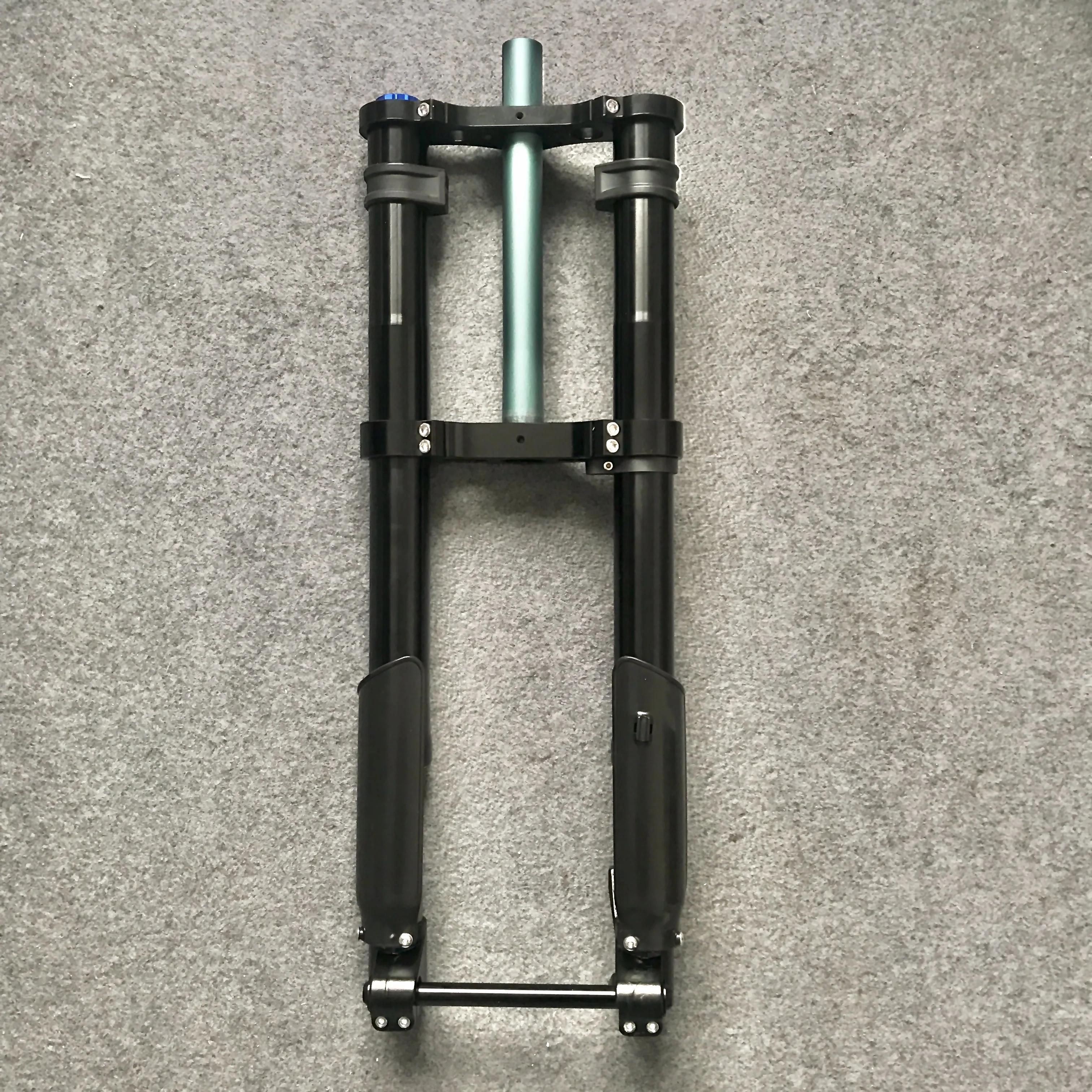

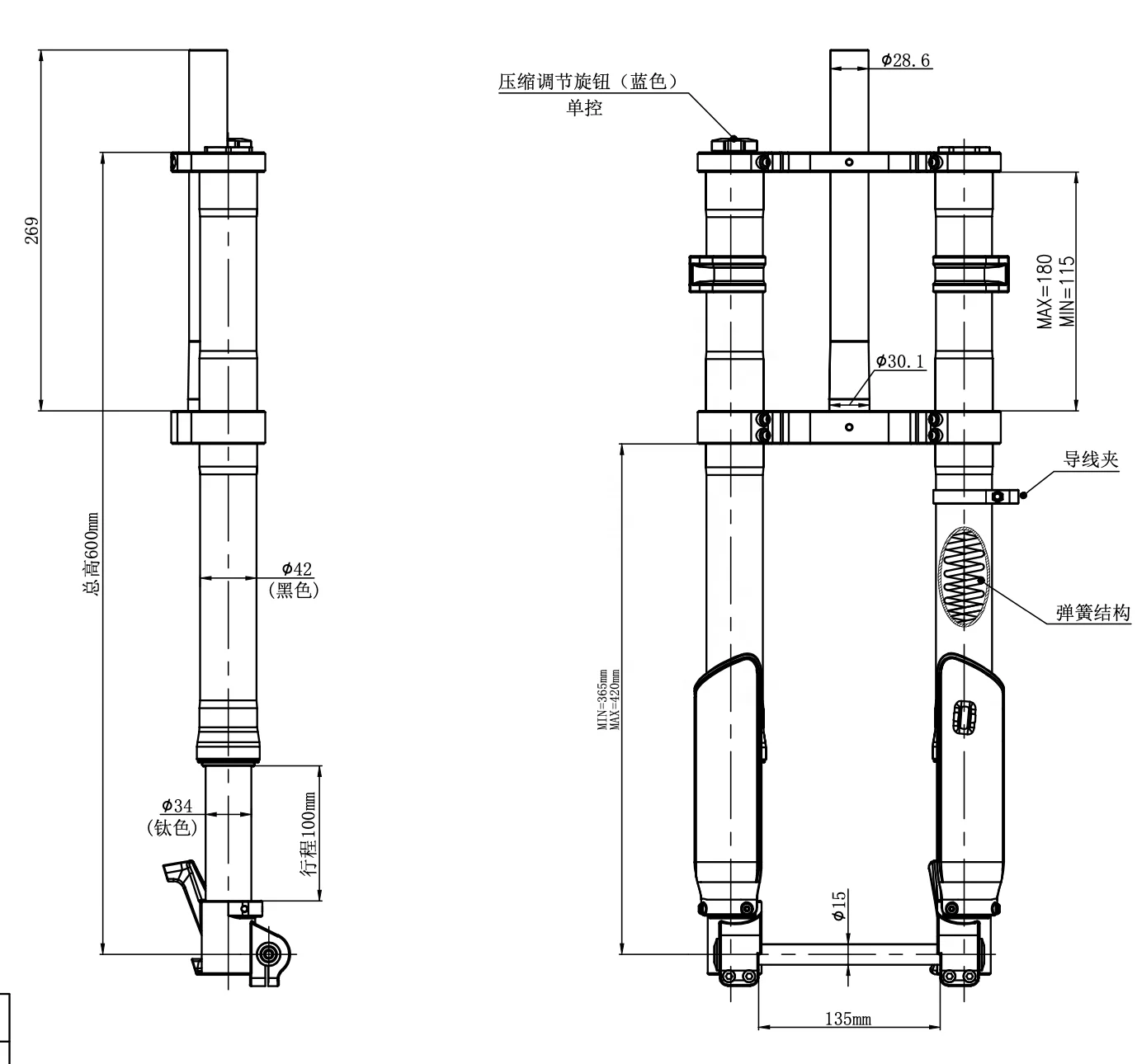

135*15" fat fork - 20*4.0inch fat bike use
Front wheel for 16" motorcycle = 20inch bike
Model Number
KKE R135
Material
AL-7075/6061
Weight
3.8Kg
Travel
100mm
Length
600 mm
Adjustment
Compression/ Rebound/Big impact
Axle Type
135*15mm screw thru axle
Suspension
Hydraulic Oil + Spring
Treatment
Anodized Black
Disc brake
Disc brake with adpater 74mm

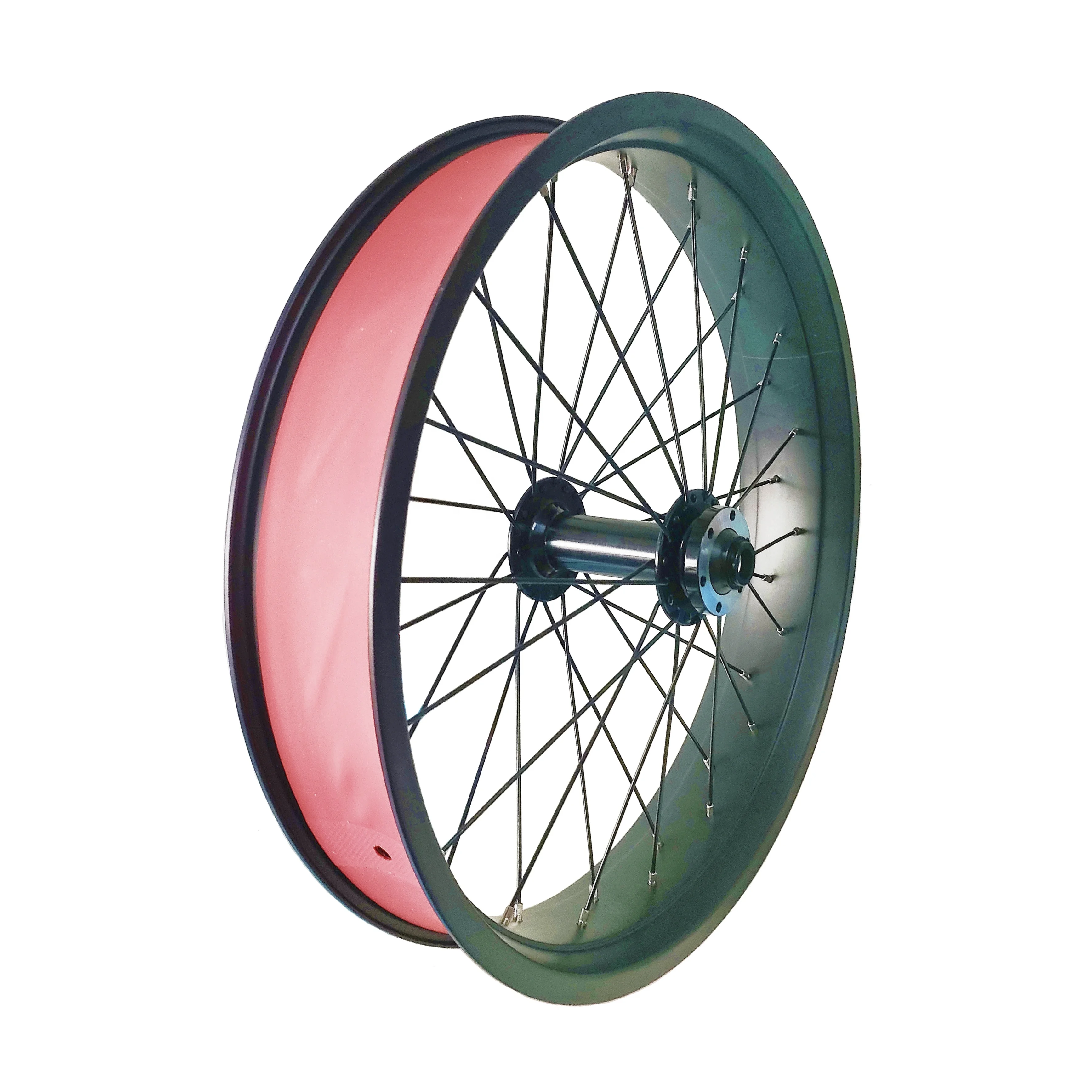

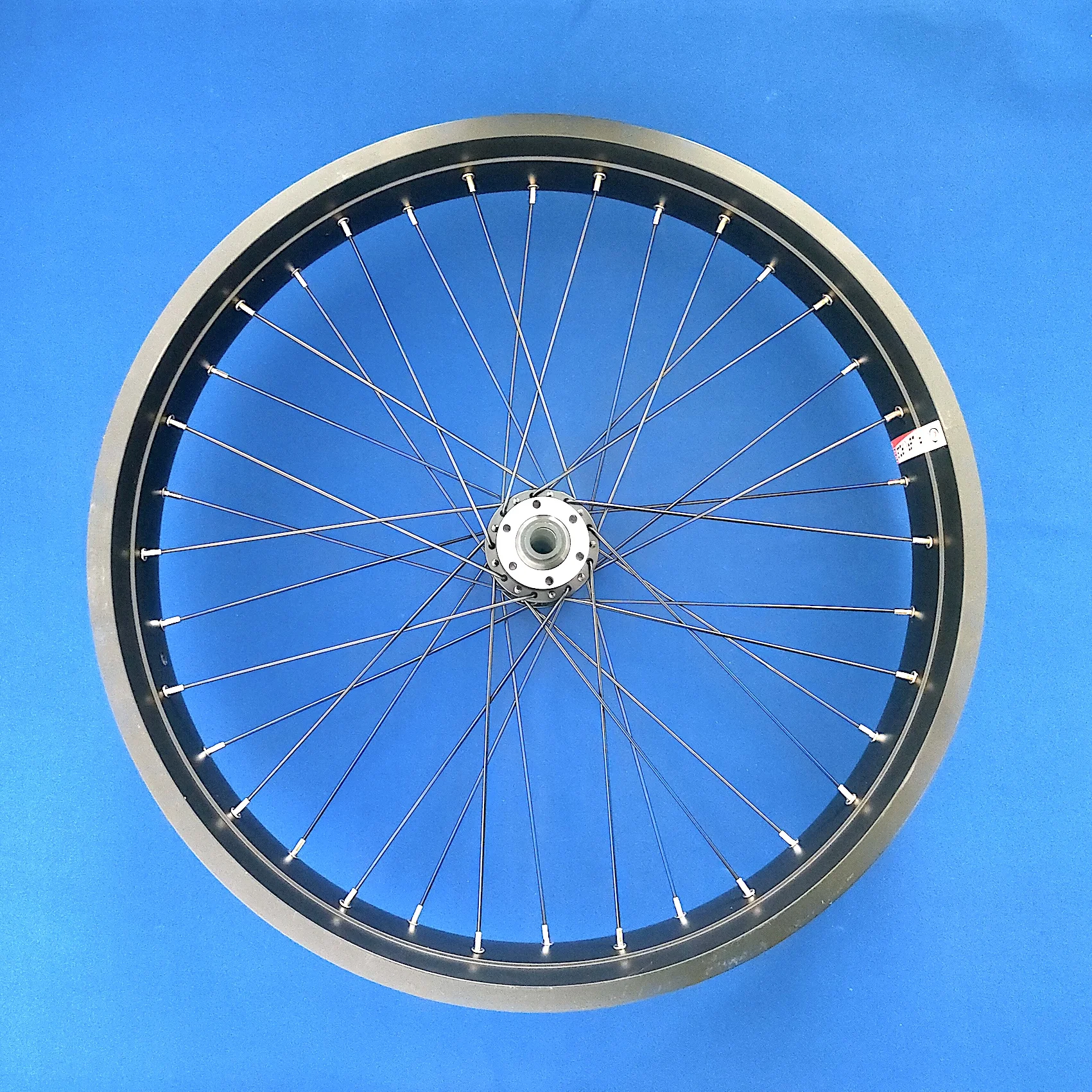

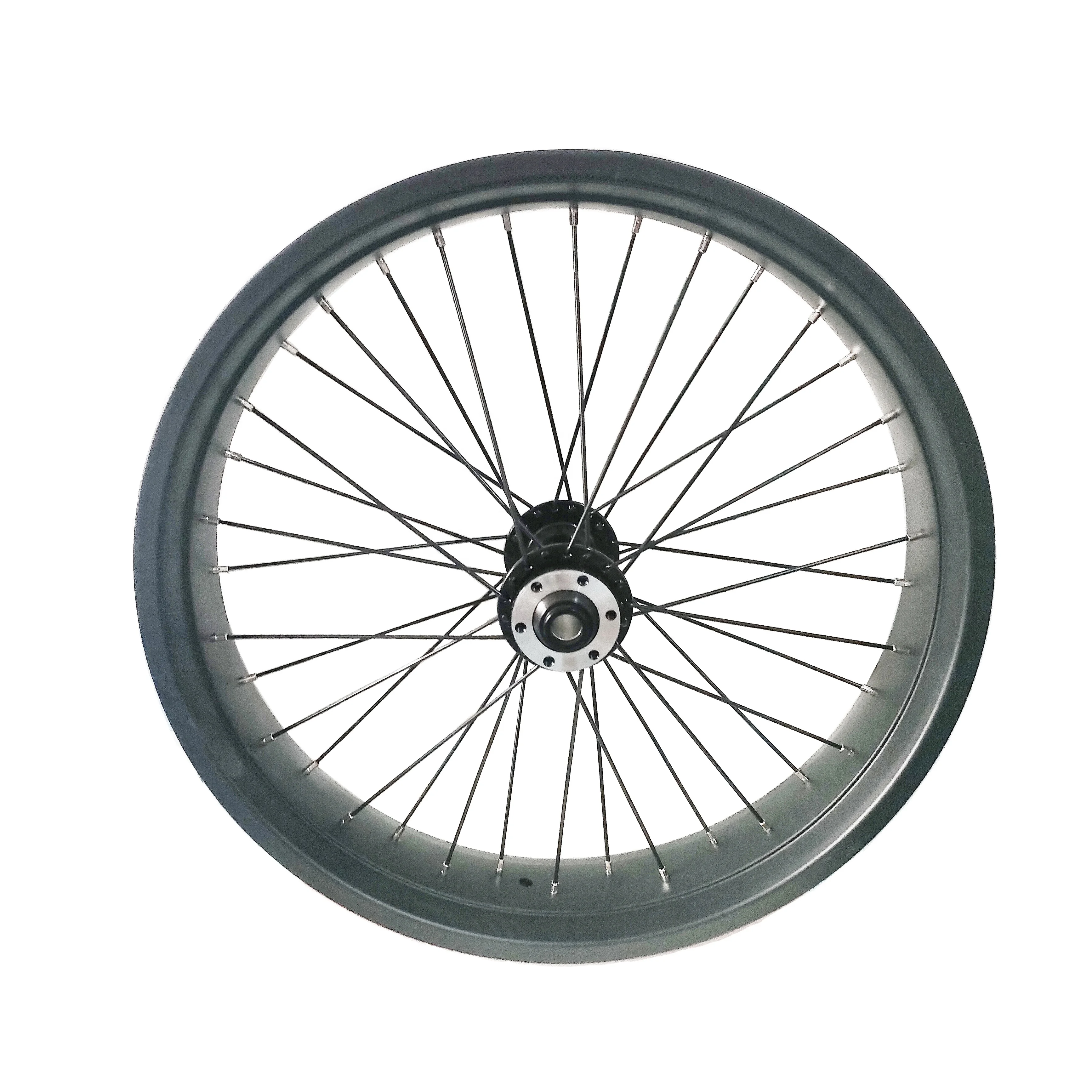

20*4.0 inch wheel for fat bike use
Model Number
20*4.0 inch
Brand
Doodle

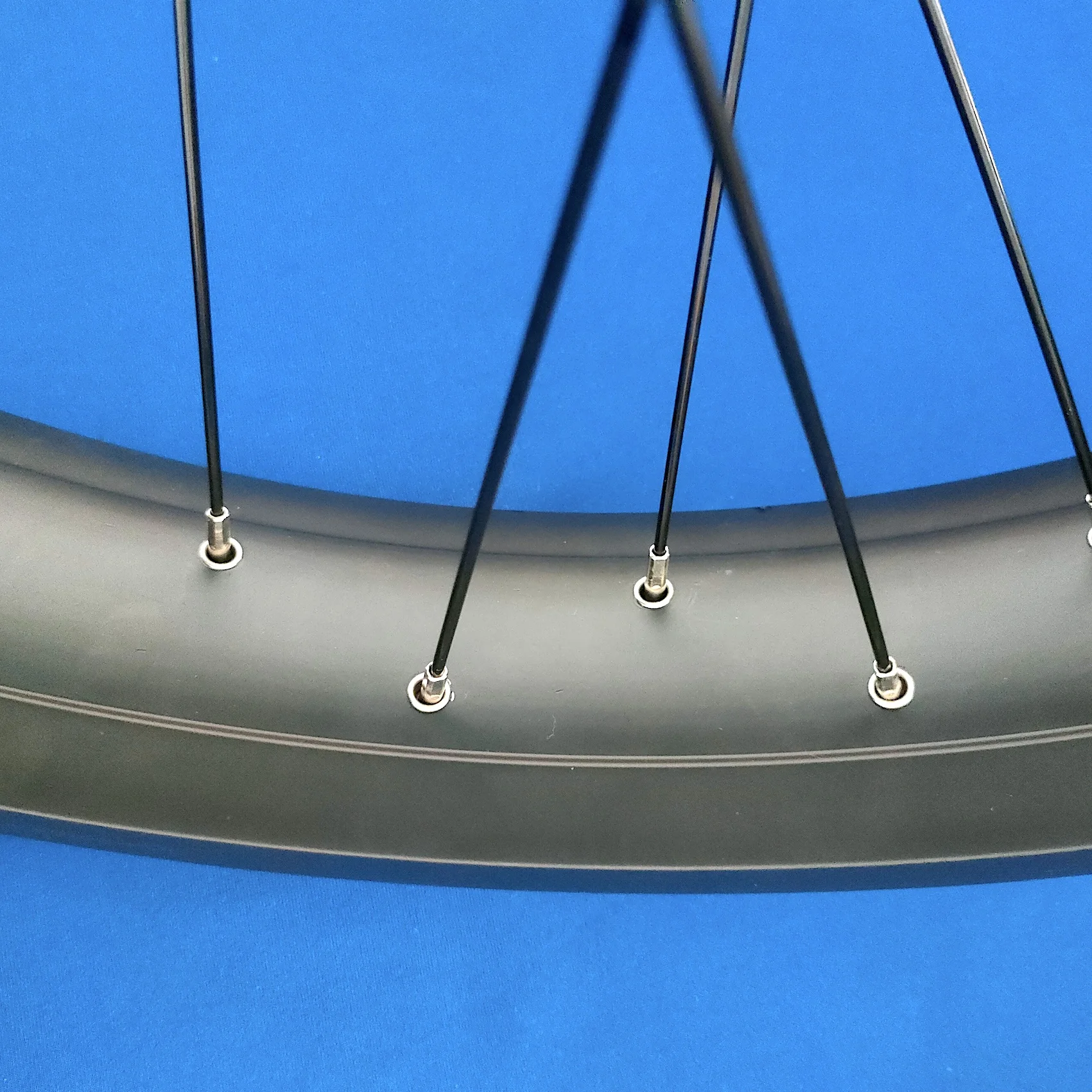

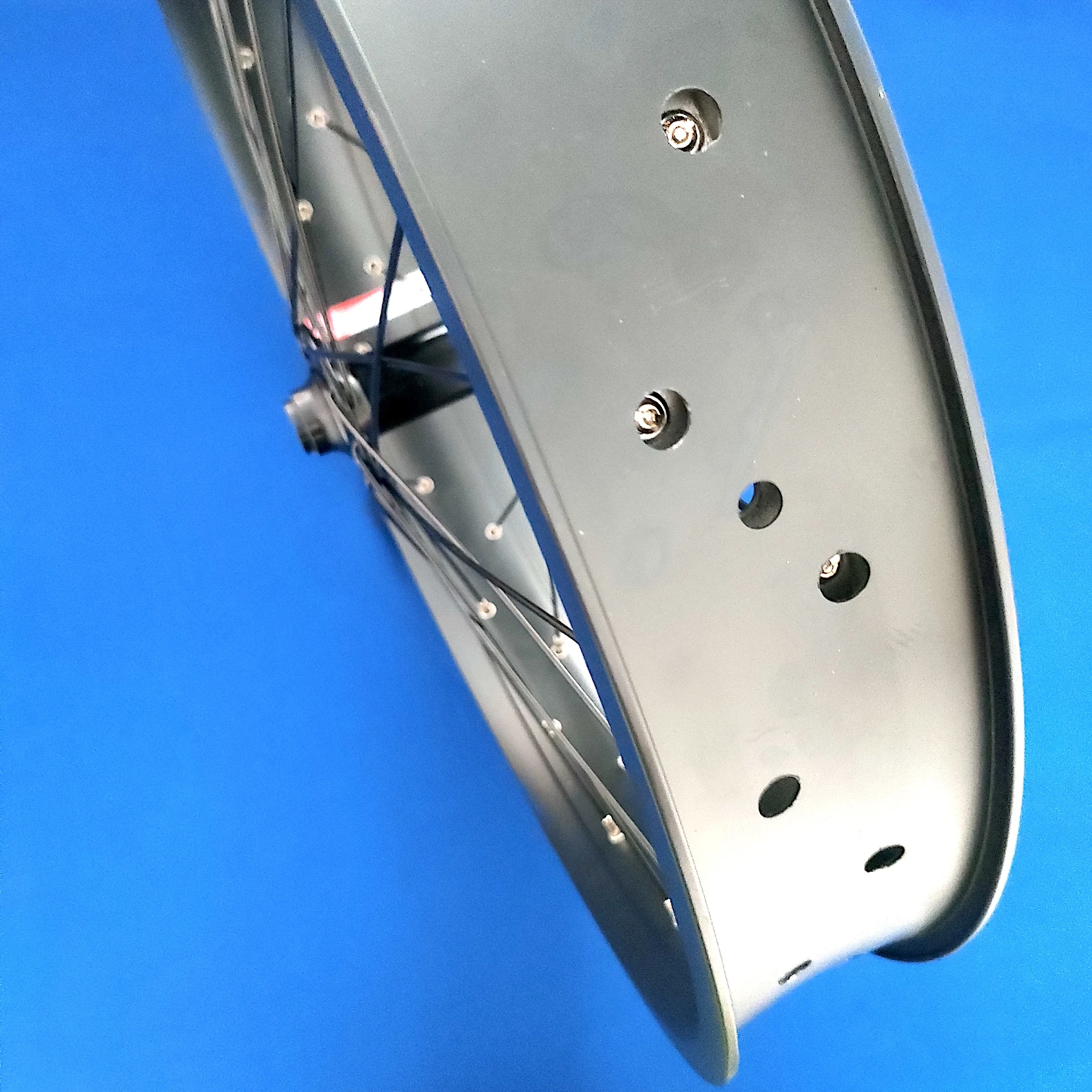

Rim
20*4.0", 36H, 12/13GG, Double Walls, BK, Aluminum alloy,

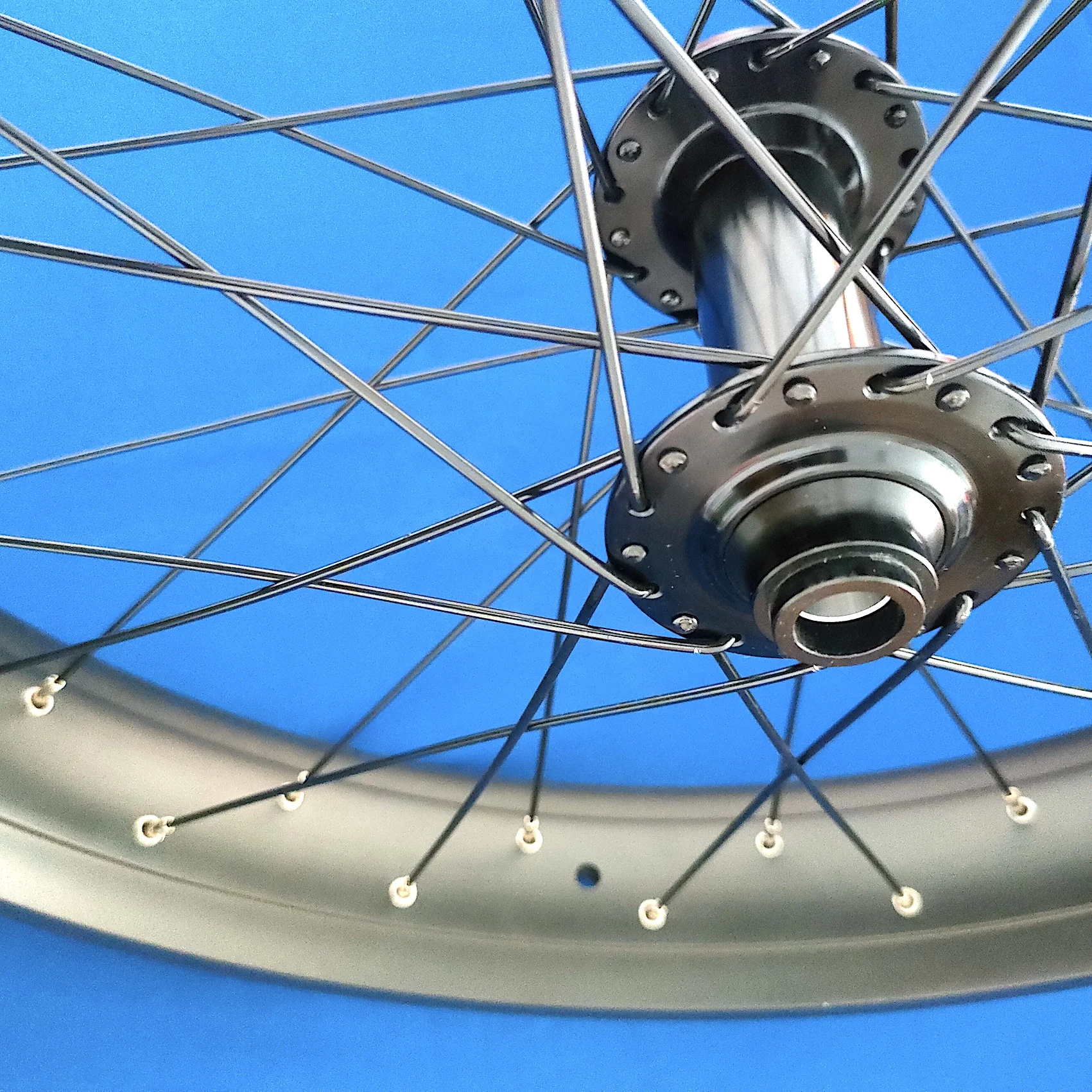

Hub
135*15, thru-axle, disc brake, 36H, 12/13G, BK, CNC, Aluminum alloy
Spoke/Nipple
12/13G, 36H, stainless, BK
Use
Fat bike 20*4.0" width tire
The Smallest Order Quantity
1Pc








Detailed Images














Recommend Products


135*15 thru-axle front fork for 20*4.0" fat bike use



135*15 thru-axle front fork for 24*4.0" fat bike use



135*15 thru-axle front fork for 26*4.0" fat bike use

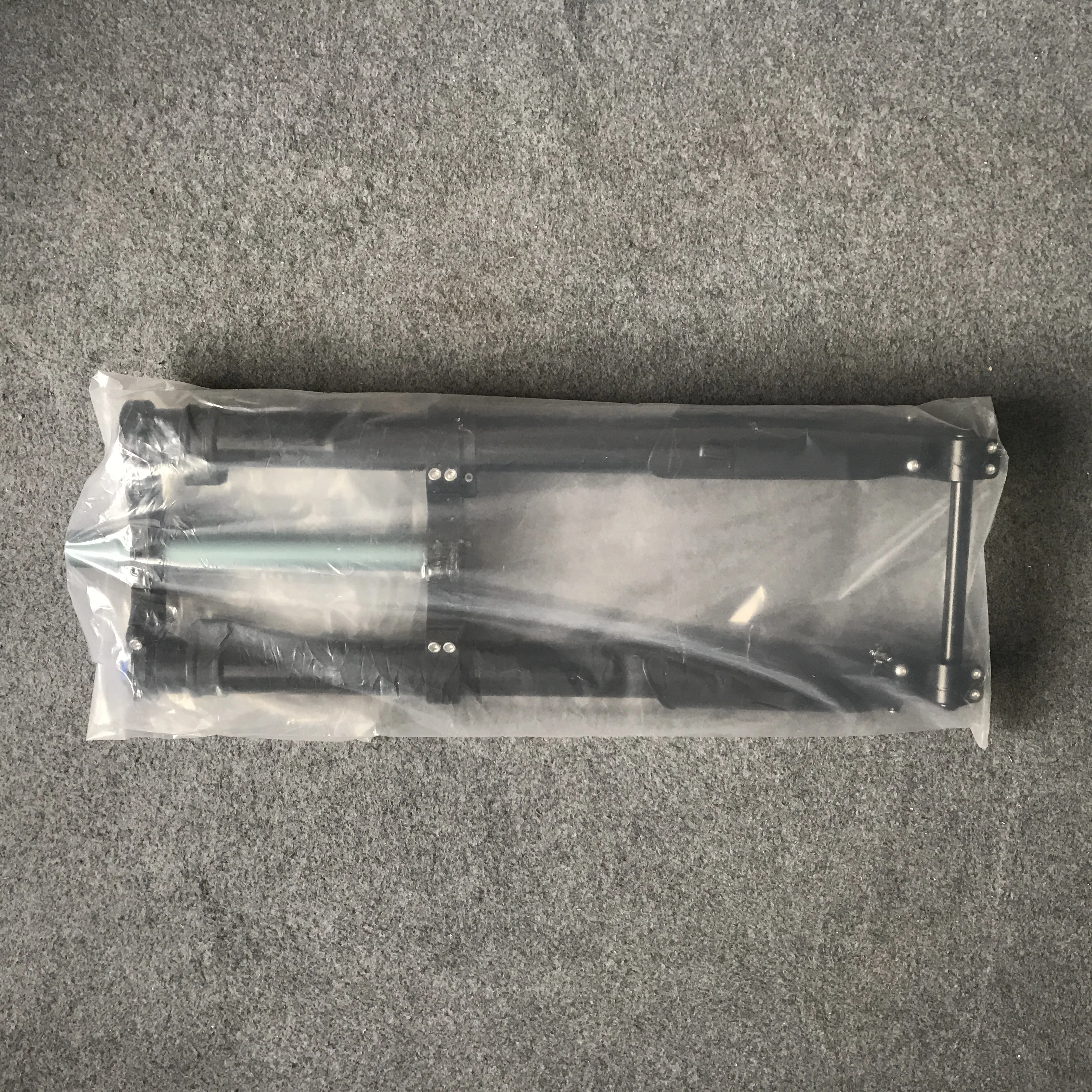

Packing&Shipping




Manufacturing Technique


Strict Material Management
A simple bike part even contains over hundred of small raw material, plus surface treatment, a small suspension does not a simple
product.

With strict raw material management system,
Every order and suspension product will be provided correctly and in order.


Customized CNC Machines
28Pcs of high rank customized CNC machines makes customized orders can be taken.

With these machines, the production lead time is shorter and contralable.


Well-Equipped Test Machines
High quanlity suspension products need intensive and massive test before packing and delivery.

Every batch of production will select random suspension products and do test before packing and delivery approval.


Company Introduction






All kinds of parts for bike can be provided by Doodlebike.Main brand can be massive provided is DNM.
DNM has been an integraed part of the suspension industry for more than 40 years.
High quality suspension products, after sale service and tech support.
Distributors are all over the world could help end user get service in the first place.


Catalog




FAQ


1. Are you manufacturer?
Yes, factories are in Taiwan and China.

2. What is your delivery time?
All the parts we have at least small quantity in stock. Bulk order delivery time 2-3 months.

3.Can you customize products?
Yes, we can support OEM for customers.

4. Do you have web site?
www.dnmshocks.com

5. Can you send Catalog?
Yes, please dont hesitate to contact us.

6. How can i purchase your product?
Please contact us.
