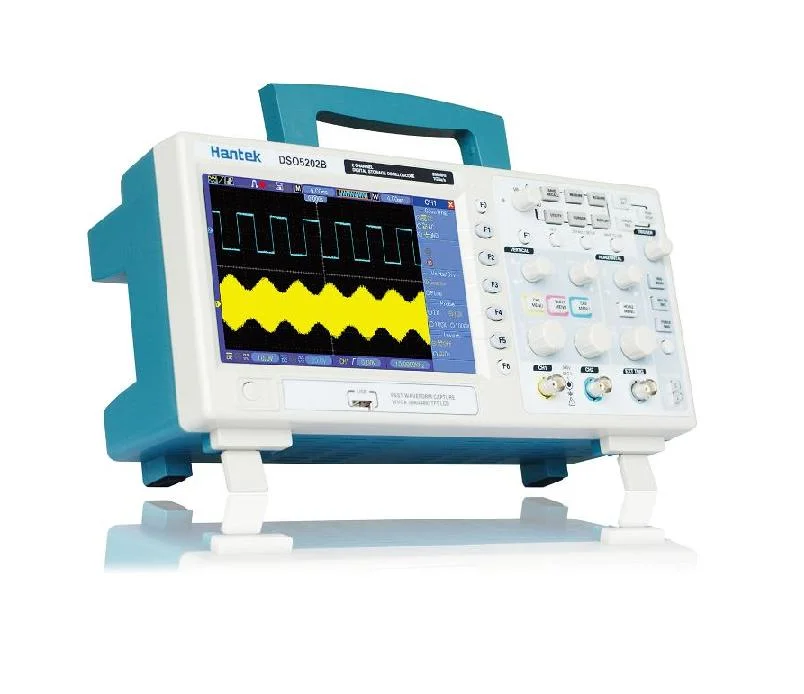

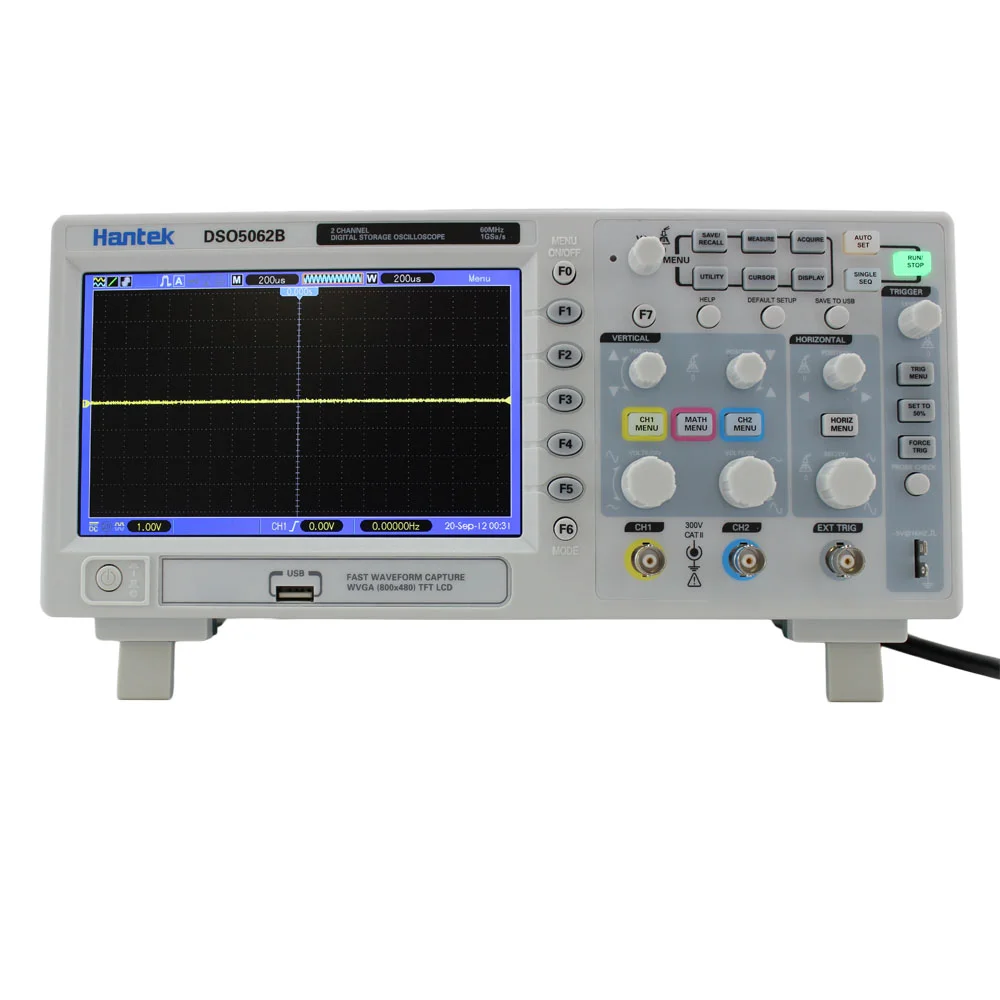

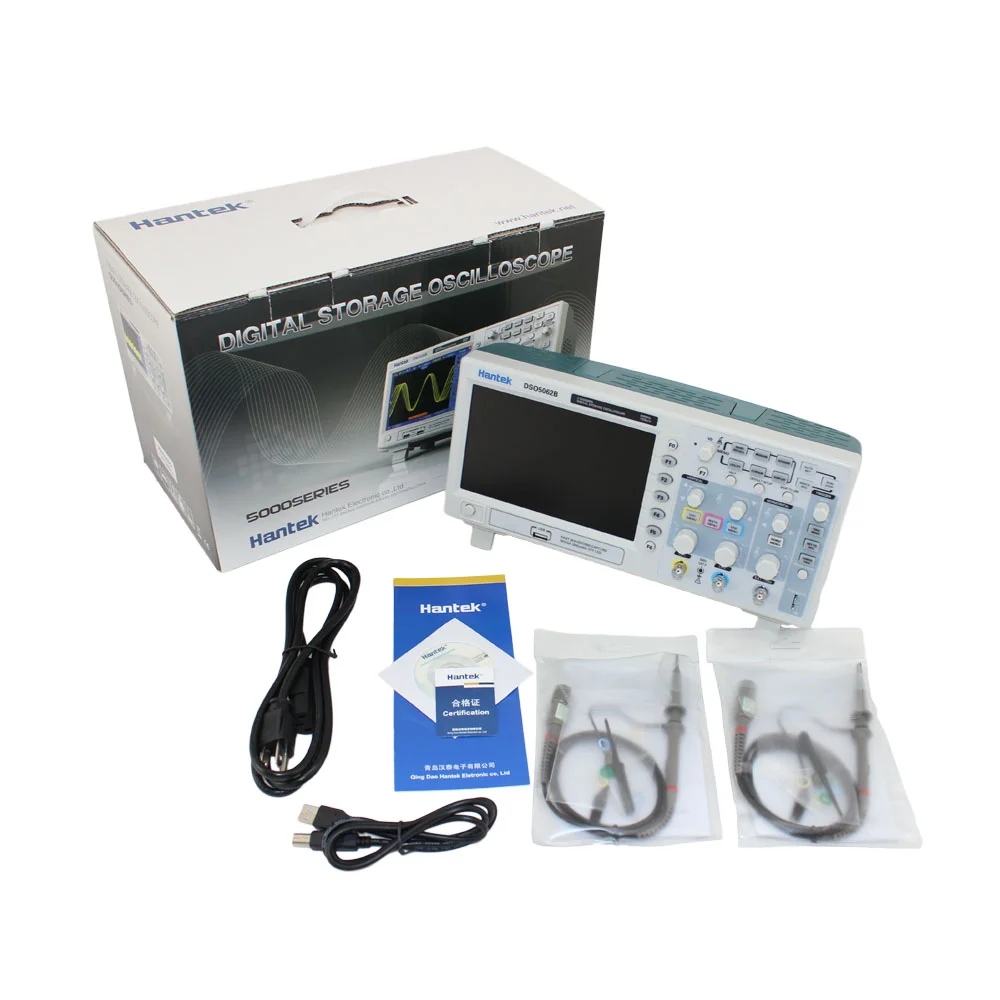

Dso5062b Hantek Digital Benchtop Storage Oscilloscope 2ch 60mhz Bandwidth 1gs/s Usb 7'

Model

DSO5202B

DSO5102B

DSO5062B

Bandwidth

200MHz

100MHz

60MHz

Real-time Sample Rate

1GSa/s

Equivalent Sample Rate

25GSa/s

Record Length(Sample Points)

Single-channel: Maximum 1M; Dual-channel:Maximum 512K
(4K,16K,40K optional)

SEC/DIV Range

4nS/div-40S/div (in a 2, 4, 8 sequence)

Delay Time Accuracy

500ps

Vertical

A/D Converter

8-bit resolution, each channel sampled simultaneously

VOLTS/DIV Range

2mV/div~5V/div at input BNC

Position Range

50V(5V/div),40V(2V/div~500mV/div),2V(200mV/div~50mV/div)
400mV(20mV/div~2mV/div)

Bandwidth Limit

20MHz

Rise Time at BNC

1.7ns

3.5ns

5.8ns

DC Gain Accuracy

4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
3% for Sample or Average acquisition mode, 5V/div to 10mV/div

Trigger

Trigger Sensitivity
(Edge Trigger Type)

DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
EXT(Typical) 200mV from DC to 40MHz
EXT/5(Typical) 1V from DC to 40MHz
AC: Attenuates signals below 10Hz
HF Reject: Attenuates signals above 80kHz
LF Reject: Attenuates signals below 150kHz
Noise Reject: Reduces trigger sensitivity

Trigger Level Range

CH1,CH2: 8 divisions from center of screen
EXT: 1.2V EXT/5: 6V

Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times 20ns)

CH1,CH2: (0.3div x V/div) (within 4divisions from center of screen)
EXT: (6% of setting + 40mV)
EXT/5: (6% of setting + 200mV)

Holdoff Range

100ns-10s

Trigger Type

Edge

Trigger on the rising or falling edge

Pulse Width

Trigger (when >,<,=,not=) on positive or negative pulses
Pulse Width Range: 20ns-10s

Video

Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)

Slope

Trigger (when >,<,=,not=) on a positive or negative slope
Set Time: 20ns~10s

Overtime

from the rising or falling edge
Set Time: 20-10s

Alternate

Internal trigger on edge, pulse width, video or slope

Measurement

Cursors

Manual: The difference between voltage cursors V; the difference between time cursors T; 1/T calculated by Hz.
Tracing: The voltage and time at a waveform point

Automatic

Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width

Display

Type

Right angle 7" TFT 16-digit color LCD

Resolution

800*480 dots

Contrast

16 gears, with the progress bar to show adjustment

Interface

USB host and USB slave

Power Supply

Voltage

100-120VACRMS(10%),45Hz to 440Hz,CAT 2
120-240VACRMS(10%),45Hz to 66Hz,CAT 2

Power

below 30W

Fuse

2A, T rating, 250V
