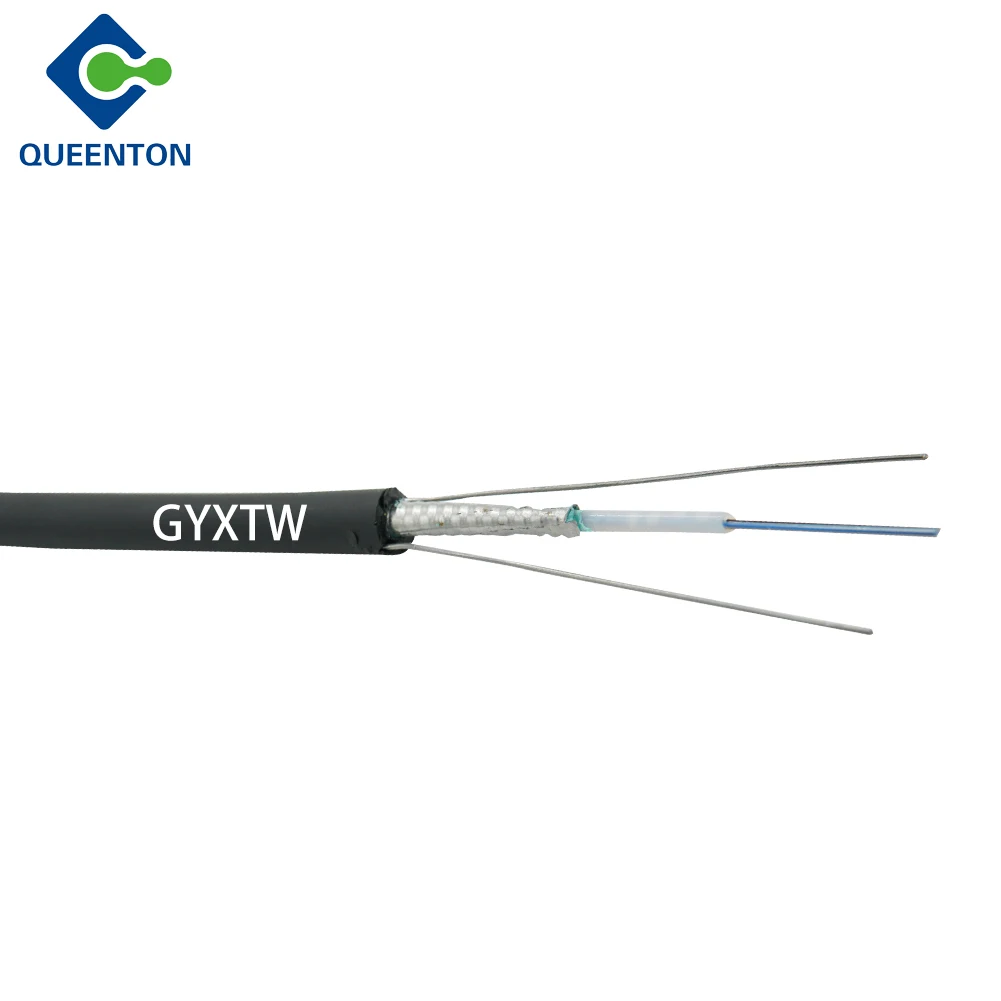

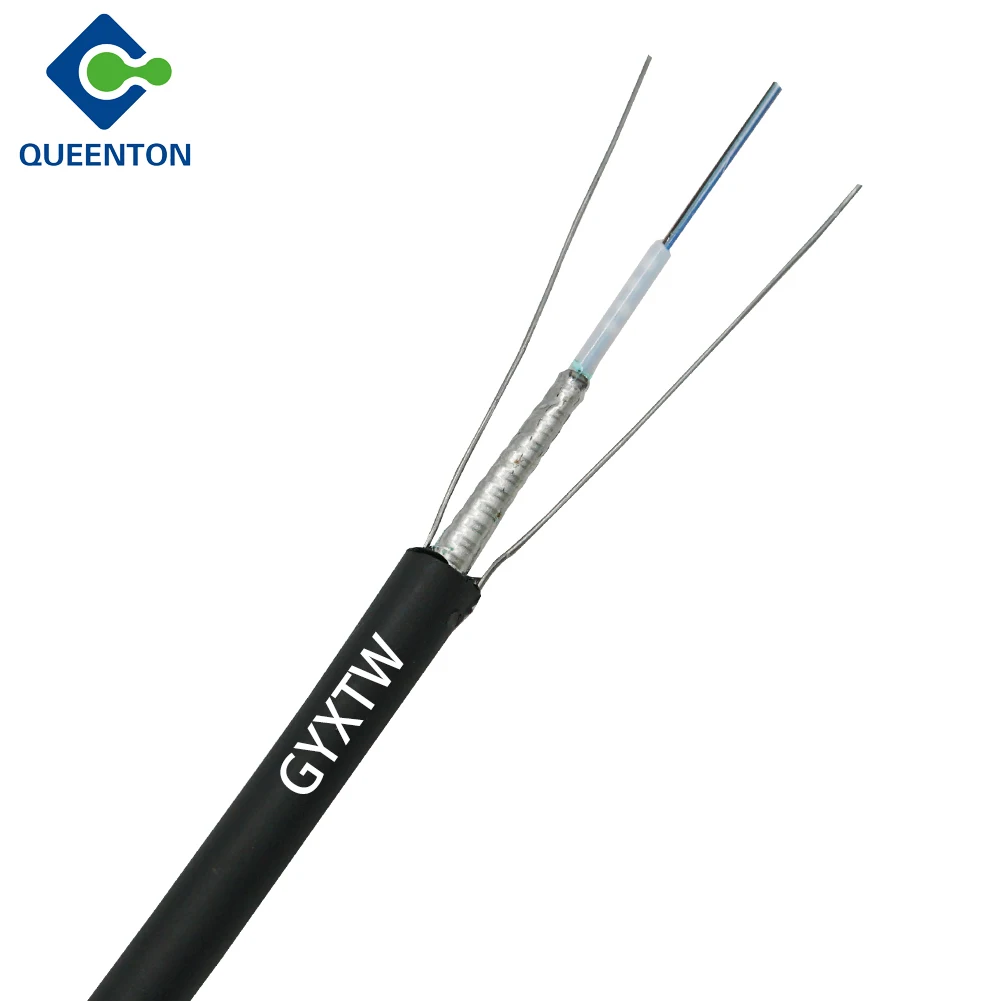

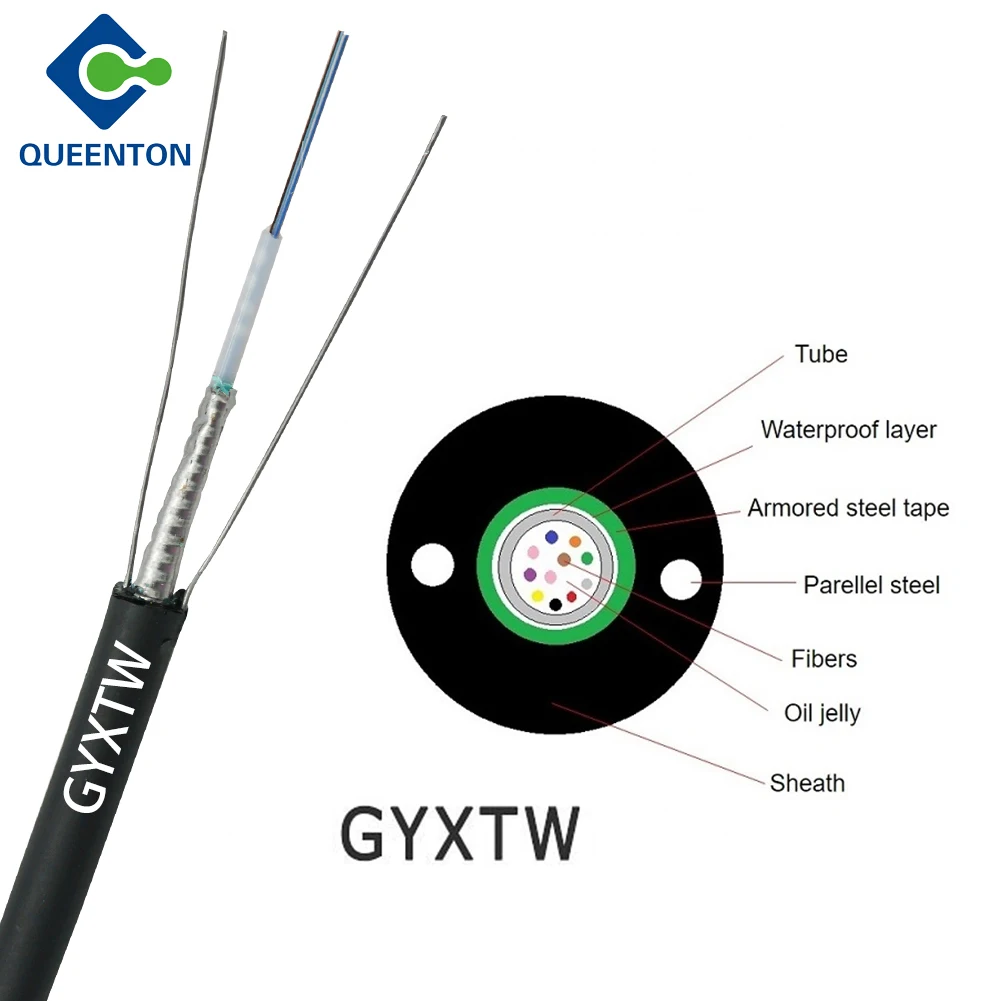

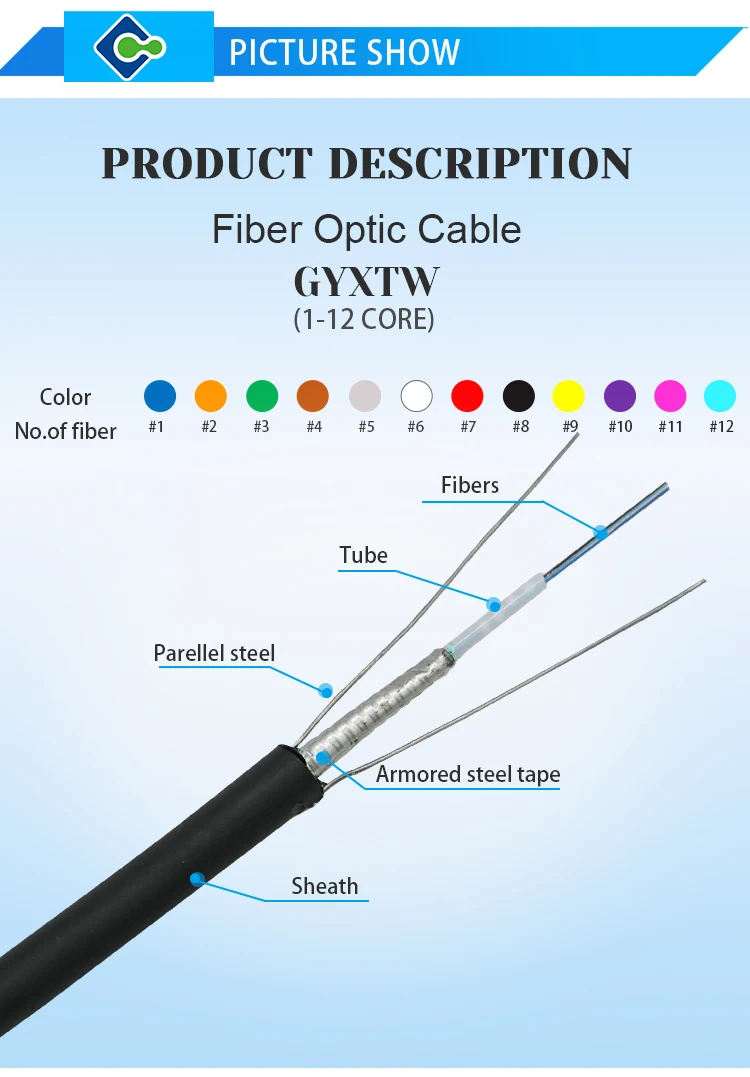

GYXTW single mode G652D central loose tube armored fiber optic cable for aerial or duct application
- Category: >>>
- Supplier: Guangzhou Qiton Electronics Technology Co. Ltd.
Share on (1600608975650):
Product Overview
Description
GYXTW single mode G652D central loose tube armored fiber optic cable for aerial or duct application
Product Description
| Production Description | |
| Model Number | GYXTW |
| Type | Fiber Optic Cable, Aerial |
| Number of Conductors | ≥ 10 |
| Number of Conductors | 1 or 2 or 4 or 6 or 8 or 12 |
| Certification | CE/ROHS |
| Armoured | Steel Tape |
| Fiber Type | Single Mode |
| Fiber Material | Doped Silica |
| Storage/Transport Temperature Range | -40℃~60℃ |
| Conductor | Copper |
| Product Parameters | ||||||||
| No. | Items | Unit | Specification | |||||
| G.652D | ||||||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 | ||||
| 1550nm | μm | 10.4±0.5 | ||||||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |||||
| 3 | Cladding Non-Circularity | % | ≤0.7 | |||||
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |||||
| 5 | Coating Diameter | μm | 245±5 | |||||
| 6 | Coating Non-Circularity | % | ≤6.0 | |||||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
| 8 | Cable Cutoff Wavelength | μm | λcc≤1260 | |||||
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 | ||||
| 1550nm | dB/km | <0.22 | ||||||
Product Functions
| Product Feature |
| Can be installed without shutting off the power. |
| Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV. |
| Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props. |
| Large span lengths and the largest span is over 200m. |
| Good performance often sile strength and temperature. |
| The design life span is over 30 years. |
Why Choose Us
Company Information
Contact Alice

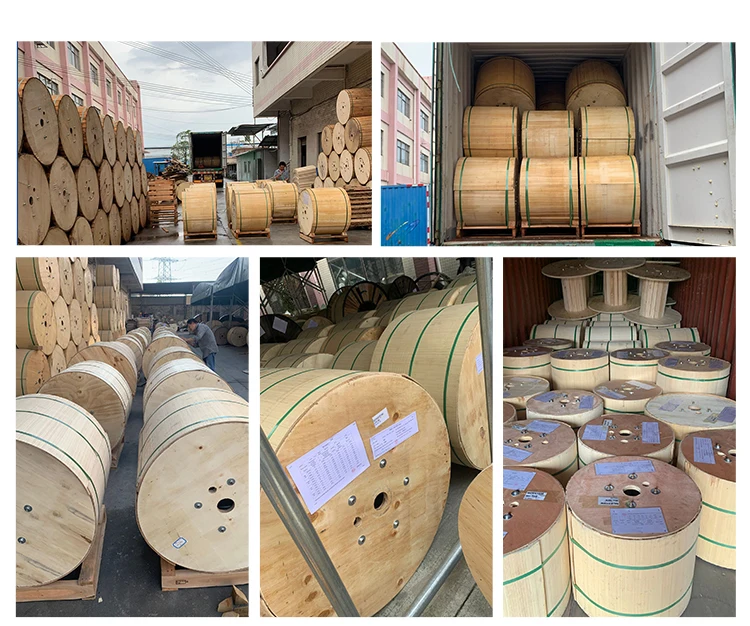

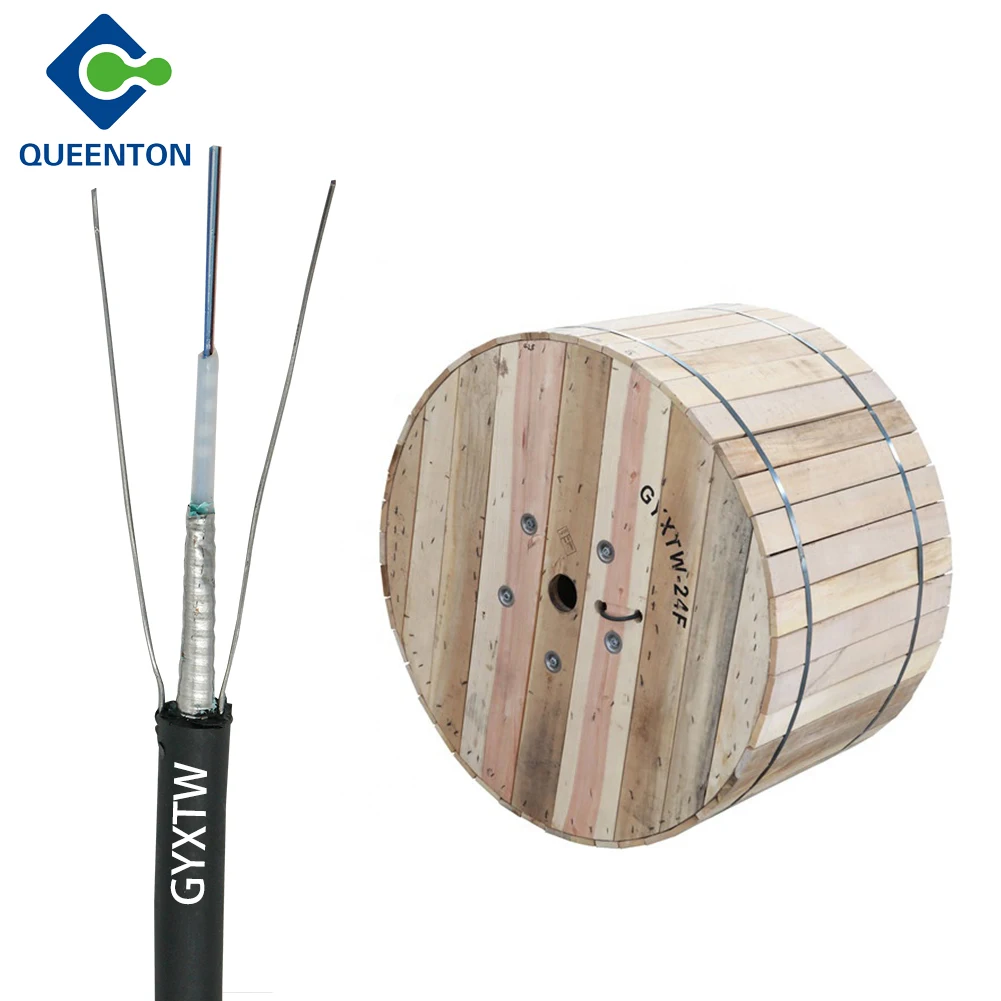

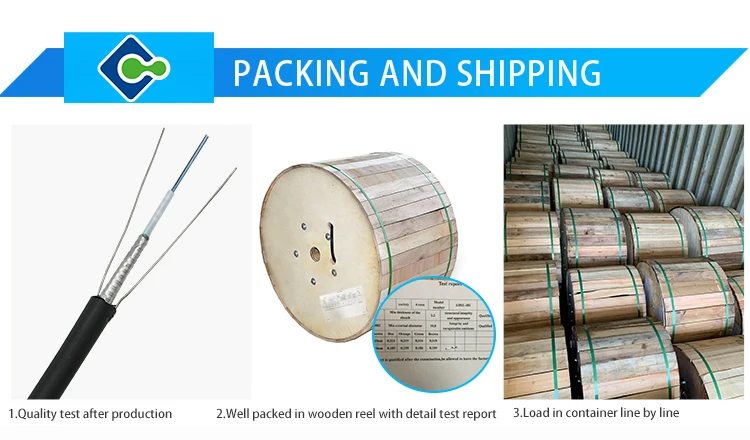

Product packaging
FAQ
Q1:What is your main products?
A:Our company, Queenton supply ONUs, OLTs, Business Board, and fiber optic accessories, like fast connectors, adapters, splitters, drop cable, patch cord.
Q2:What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3:Can we get free samples?
A:Sorry, it is not available for initial order.
Q4:is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6:How about your delivery time?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.
Q7:Do you test all your goods before delivery?
A:Yes, we have professional engineer to test all devices before shipping.
Q8:How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3:Can we get free samples?
A:Sorry, it is not available for initial order.
Q4:is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6:How about your delivery time?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.
Q7:Do you test all your goods before delivery?
A:Yes, we have professional engineer to test all devices before shipping.
Q8:How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
