VICTOR DM3218 Digital Clamp Meter DC/AC Current Multimeter Ammeter Voltage Tester True RMS Car Amp Hz Capacitance Ohm Test

VICTOR DM3218+ Small Size Digital Clamp Multimeter 3218+ Manual Range Multimeter AC Clamp Meter AC Frequency Response 40Hz-400Hz

1. Introduction
This meter is a latest portable type 3 1/2 digit ARDCM (Auto Range Data Clamp Meter) of micropower launched by us. It can be used
to measure ACV, DCV, ACA, DCA, resistance, diode forward voltage drop, circuit continuity, etc.
This meter has unique super-thin and super-small design and the Auto Power function. It is characterized by exquisiteness,
firmness, simplicity for operation and convenience for carrying; thus it is a desirable tool for engineering design, labs,
schools, field operations, home appliances servicing, etc!

2.Features
Max. allowed voltage between the measuring terminal and the ground: 600V(DC) or 600V(rms) insulation level: CATⅡ
Pollution level: Ⅱ
Range: Auto range

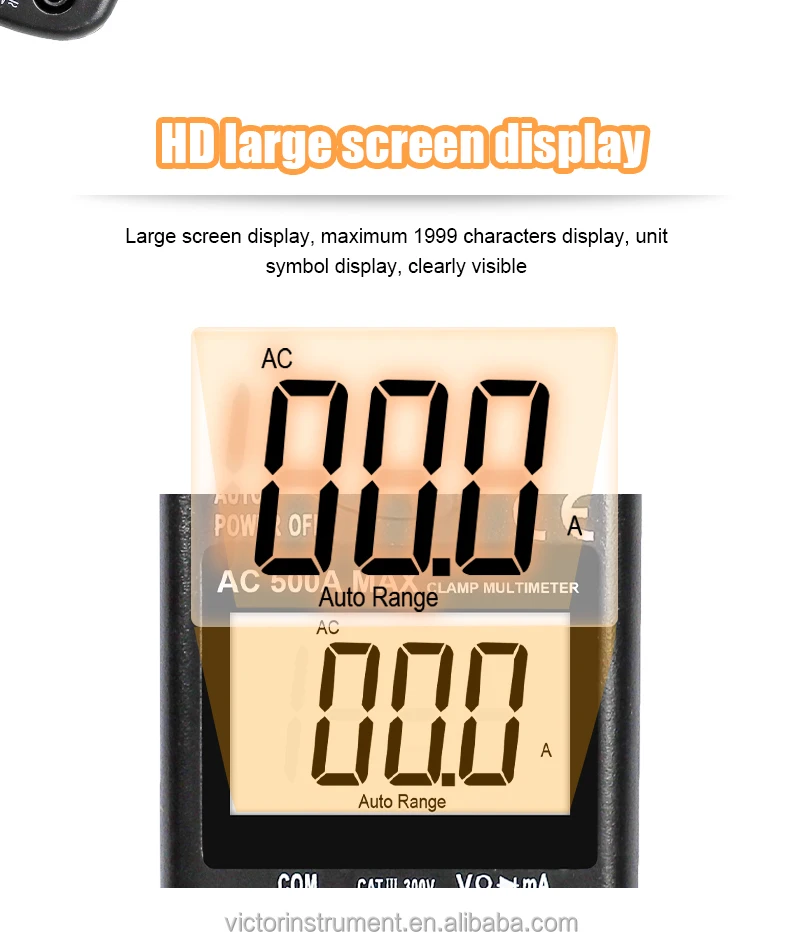

Display: 3 1/2 digit LCD, max. display 1999; full symbol display;
Font height: 12mm
Polarity: Automatic polarity display;
Auto power off: idle for 15min;
Key tone; Full-range overload protection;
Low battery display
External dimensions: 195mm×60mm×36mm
Weight: Approx. 170 g (including battery);
Working voltage: 3V(1.5VAAA×2)
Working current: <1mA
Testing speed: 3times/s;
Working environment: 0℃~40℃(32℉~104℉), RH<80%
