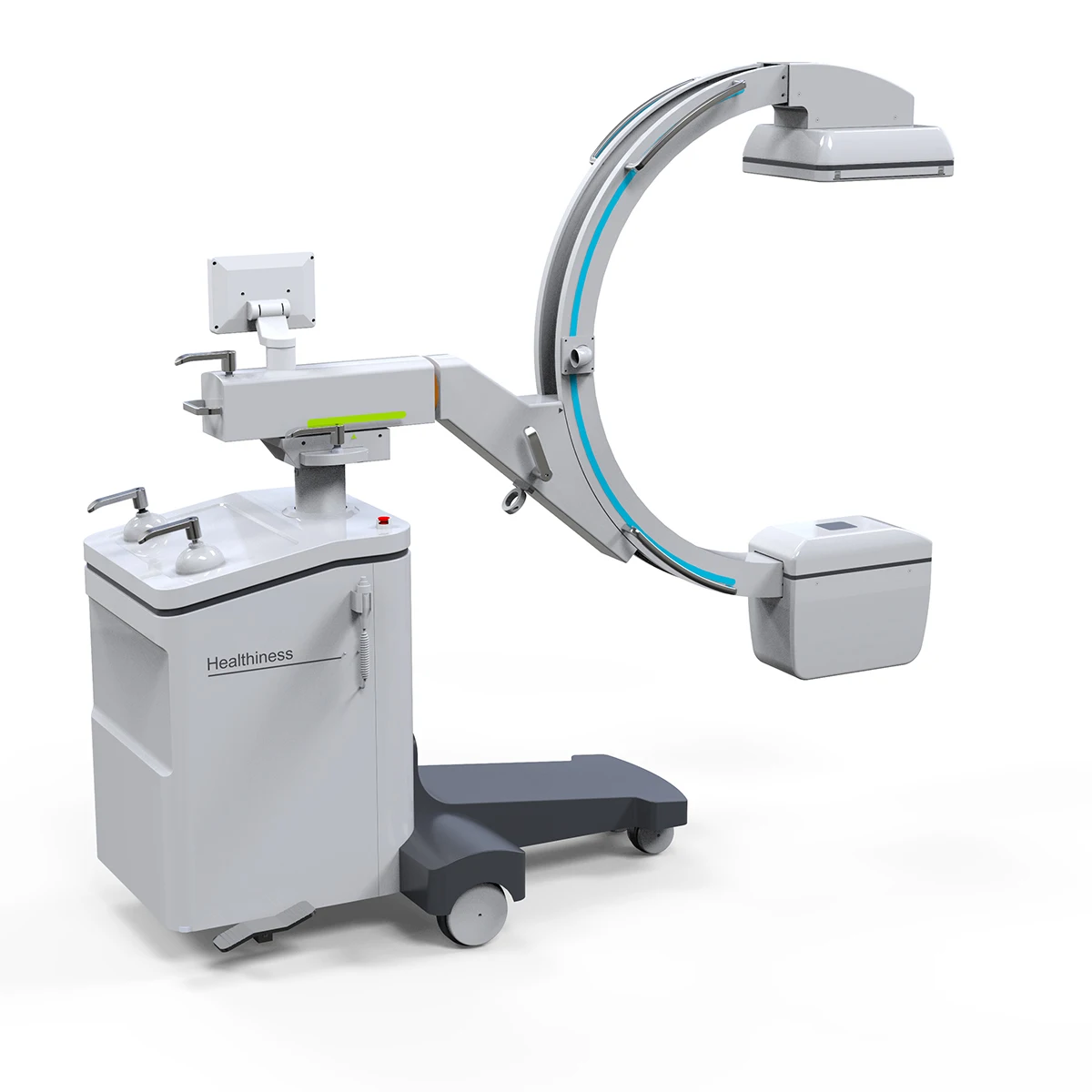

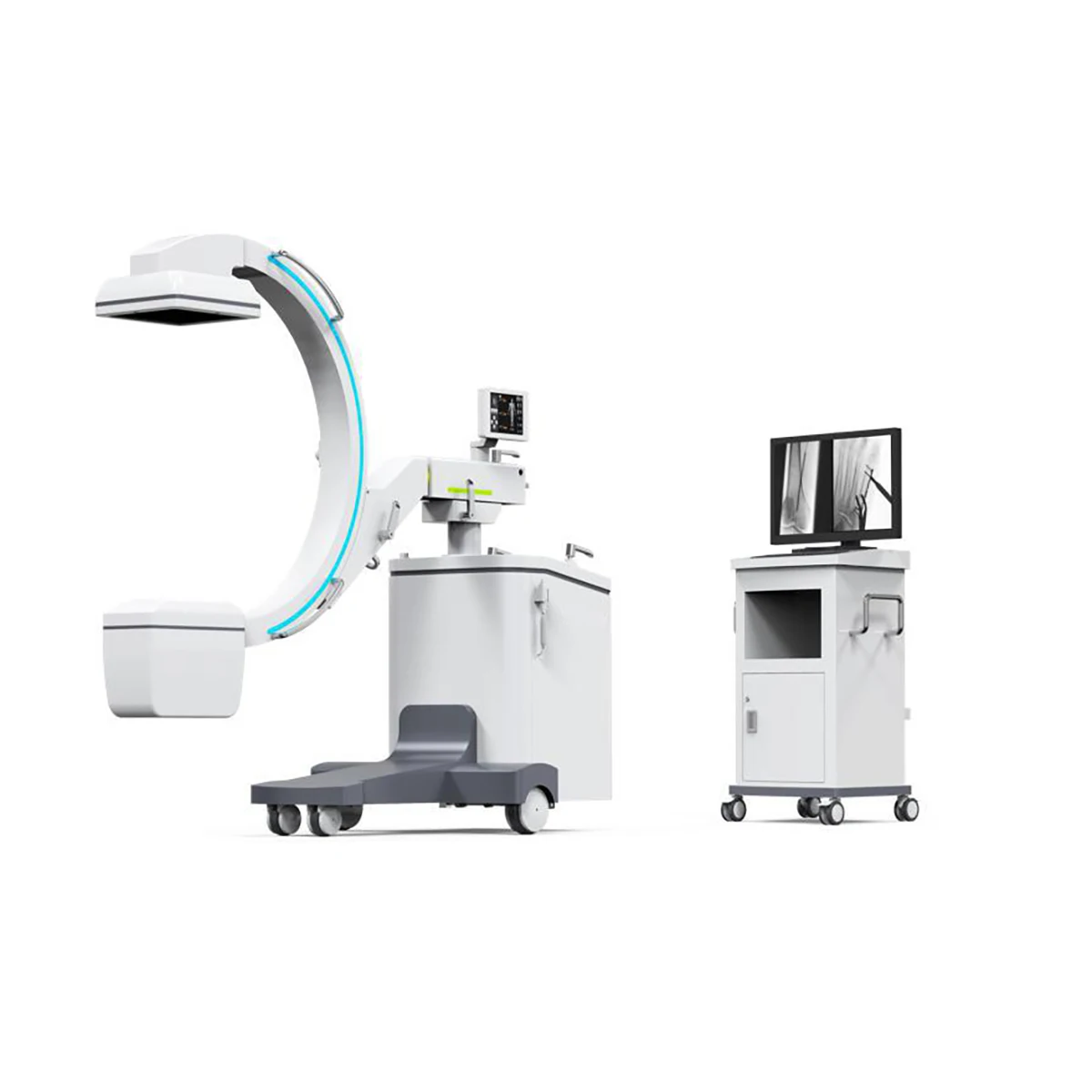

High Frequency 5.6kw Mobile Digital FPD C arm fluoroscopy surgical x ray c arm machine MSLCX50
- Category: >>>
- Supplier: MEDSINGLONG CO LTD
Share on (1600609049500):
Product Overview
Description
High Frequency 5.6kw Mobile Digital FPD C-arm fluoroscopy surgical x ray c arm machine MSLCX50
Product Description
Specification
Product Feature
1.With a compact appearance,light design, easy to operate
2、Unique base electric auxiliary support arm design, it's more security for using.
3、A unique hand-held controller design, convenient to operate working mode.
4、With a high-quality knockdown X-ray generator to reduce radiation.
5、With the Perspective KV，MA automatically track fluoroscopy to make the image brightness and clearness optimum
6、imported FPD 9*9inch acquisition,ensure sharp image .
7、Workstation:
Registration: registration, medical records, Worklist
Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass,
negative image
Open silhouette, edge enhancement, recursive noise reduction
Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
Paper Report: save, preview, expert annotation.
Dicom features: Dicom browsing, web service , Dicom3.0 interface to connect with PACS, OR HIS SYSTEM, and dry film printer
* Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
* Human graphic interface on workstation for select different body parts ;like children, or adult, lateral or formal standing to do exposure.
* 3 sets synchronous monitors to help doctor have a great observing experience.
* Error Code alarming for overloading of current, kv, or power and any problems.
* Equipped with emergency stop button tosuddenly failureor wrong operation.
2、Unique base electric auxiliary support arm design, it's more security for using.
3、A unique hand-held controller design, convenient to operate working mode.
4、With a high-quality knockdown X-ray generator to reduce radiation.
5、With the Perspective KV，MA automatically track fluoroscopy to make the image brightness and clearness optimum
6、imported FPD 9*9inch acquisition,ensure sharp image .
7、Workstation:
Registration: registration, medical records, Worklist
Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass,
negative image
Open silhouette, edge enhancement, recursive noise reduction
Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
Paper Report: save, preview, expert annotation.
Dicom features: Dicom browsing, web service , Dicom3.0 interface to connect with PACS, OR HIS SYSTEM, and dry film printer
* Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
* Human graphic interface on workstation for select different body parts ;like children, or adult, lateral or formal standing to do exposure.
* 3 sets synchronous monitors to help doctor have a great observing experience.
* Error Code alarming for overloading of current, kv, or power and any problems.
* Equipped with emergency stop button tosuddenly failureor wrong operation.
Category | Items | Content |
Power supply High frequency inverter | Power output: 5.0kW Main inverter frequency: 110 kHz | |
Automatic fluoroscopy | tube voltage 40 kv~120kv,adjust automatically tube current : 0.3mA~~4mA adjust automatically | |
Manual fluoroscopy | tube voltage 40 kv~120kv, continuous tube current : 0.3mA~~4mA continuous | |
Pulse fluoroscopy | tube voltage 40 kv~120kv, continuous tube current : 0.3mA~~30mA continuous | |
Photography tube voltage, mA | 40KV~120KV, 25mA~100mA, 1.0mAs~280mAs | |
Medsinglong X-ray tube | X-ray tube special for high frequency | Dual focus:0.6/2.0mm thermal capacity: 650Kj (867kHu) |
system | Medsinglong 12*12 inch Dynamic flat panel detector | |
Amorphous silicon cesium iodide | ||
Image acquisition matrix: 1024*1024 | ||
Gray scale of image acquisition: 16bit | ||
Pixel size:205μm | ||
DQE:74% | ||
Spatial resolution:2.5LP/mm | ||

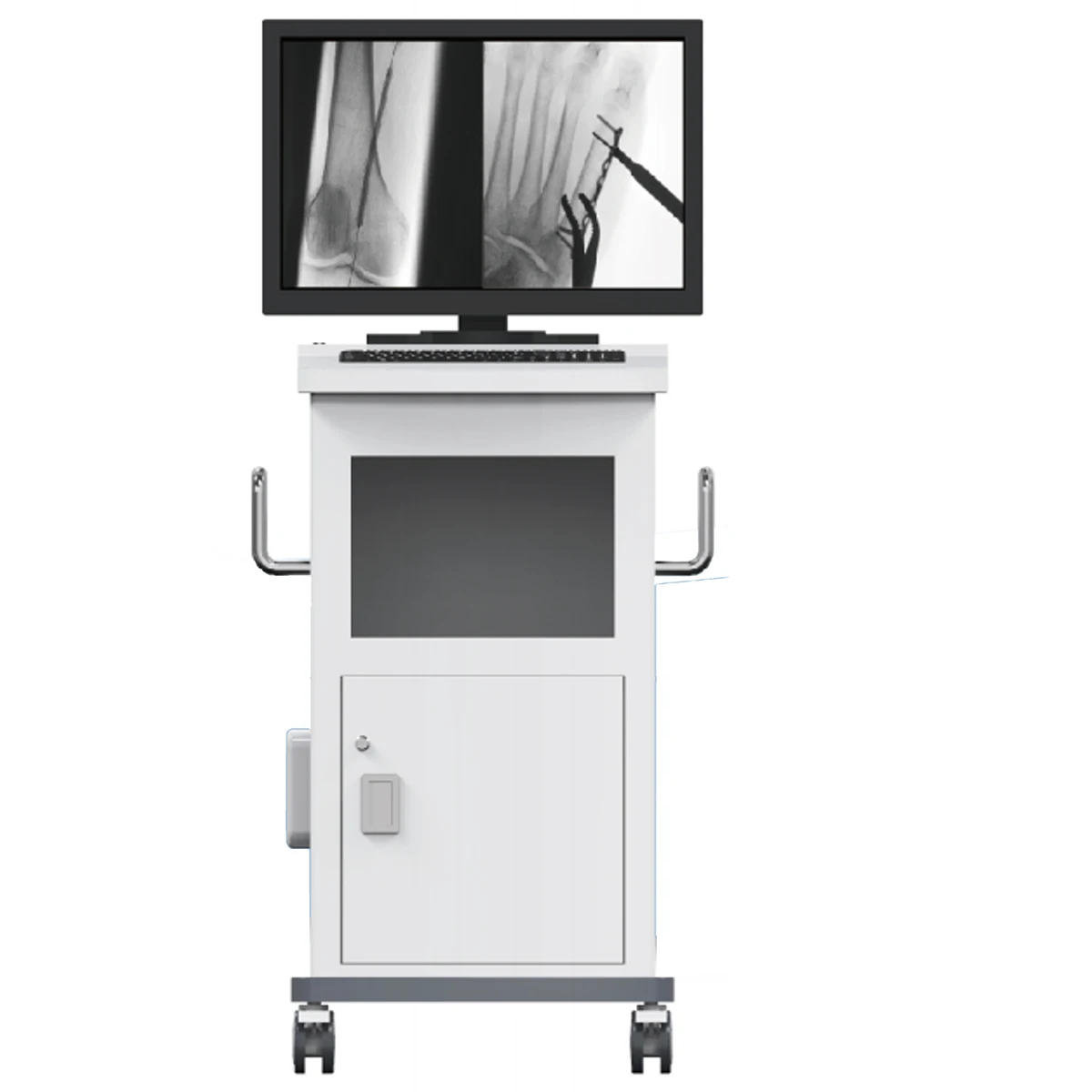

Monitor | 32 inch ultra-wide 4K LCD display *1 sets | |
Workstation software | Image W/L adjust, grayscale conversion, interest area balance, turn, noise reduction, enhancement, smoothing, sharpening, compression, zoom, measure, mark, print layout, Dicom image sending, Dicom image print and movie playback, etc. | |
Imaging system | Equipped with proprietary intellectual property rights---"Vinci" image processing system: RCDPS --- rapid calculate display platform GPU --- based dynamic real-time image processing technology and automatic brightness tracking makes it easy to get sharp image of various body parts and meet the diverse needs of customers. | |
Direction wheel and main wheel | Direction wheel can rotate in any direction, and main wheel can rotate in ±90°. | |
C-arm movement | The up and down(motorized): 400mm. Forward and backward movement: 200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°, Distance from focus to screen: 1000 mm; C-arm open distance: 800mm C-arm arc depth: 660mm; Slipping on orbit : 135° |

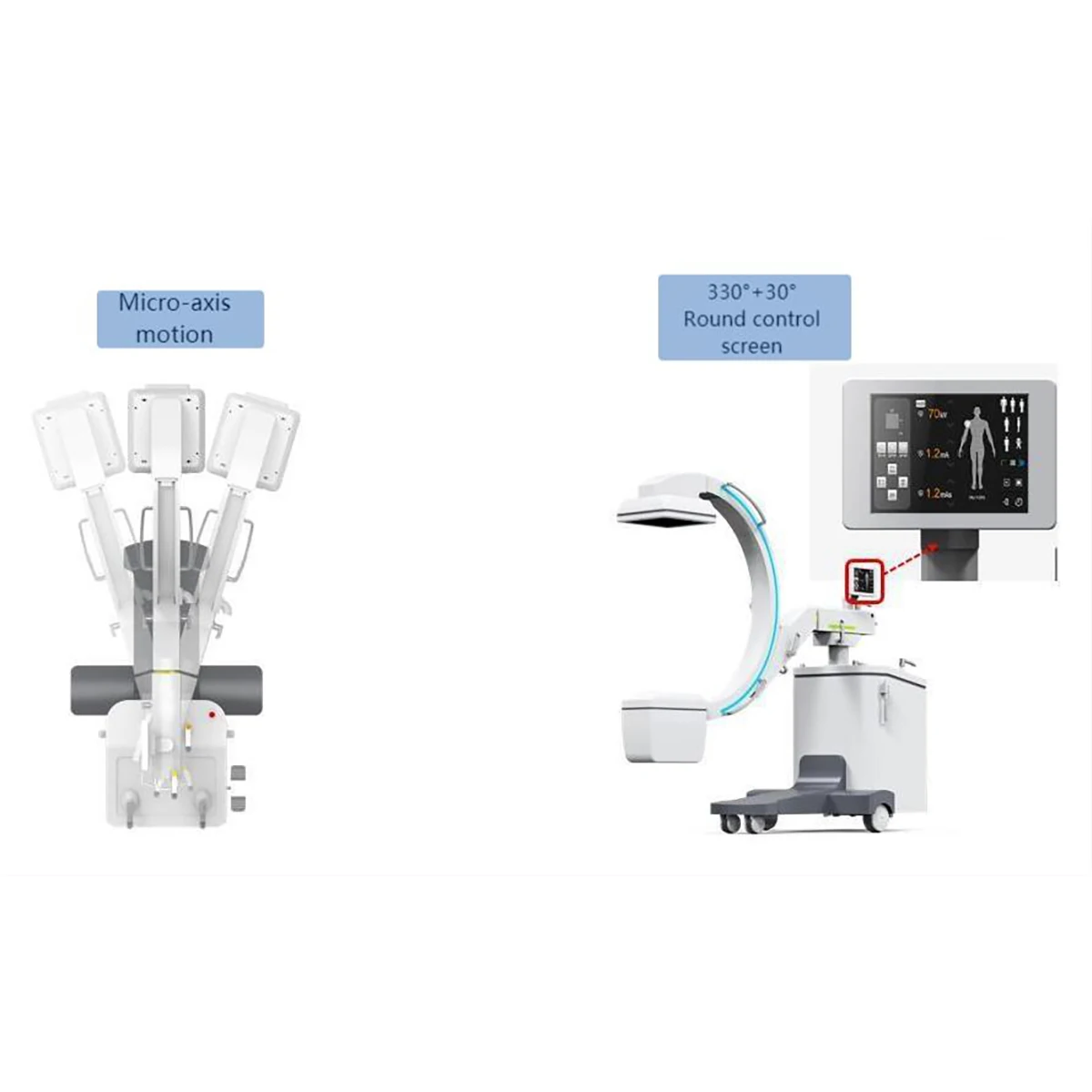

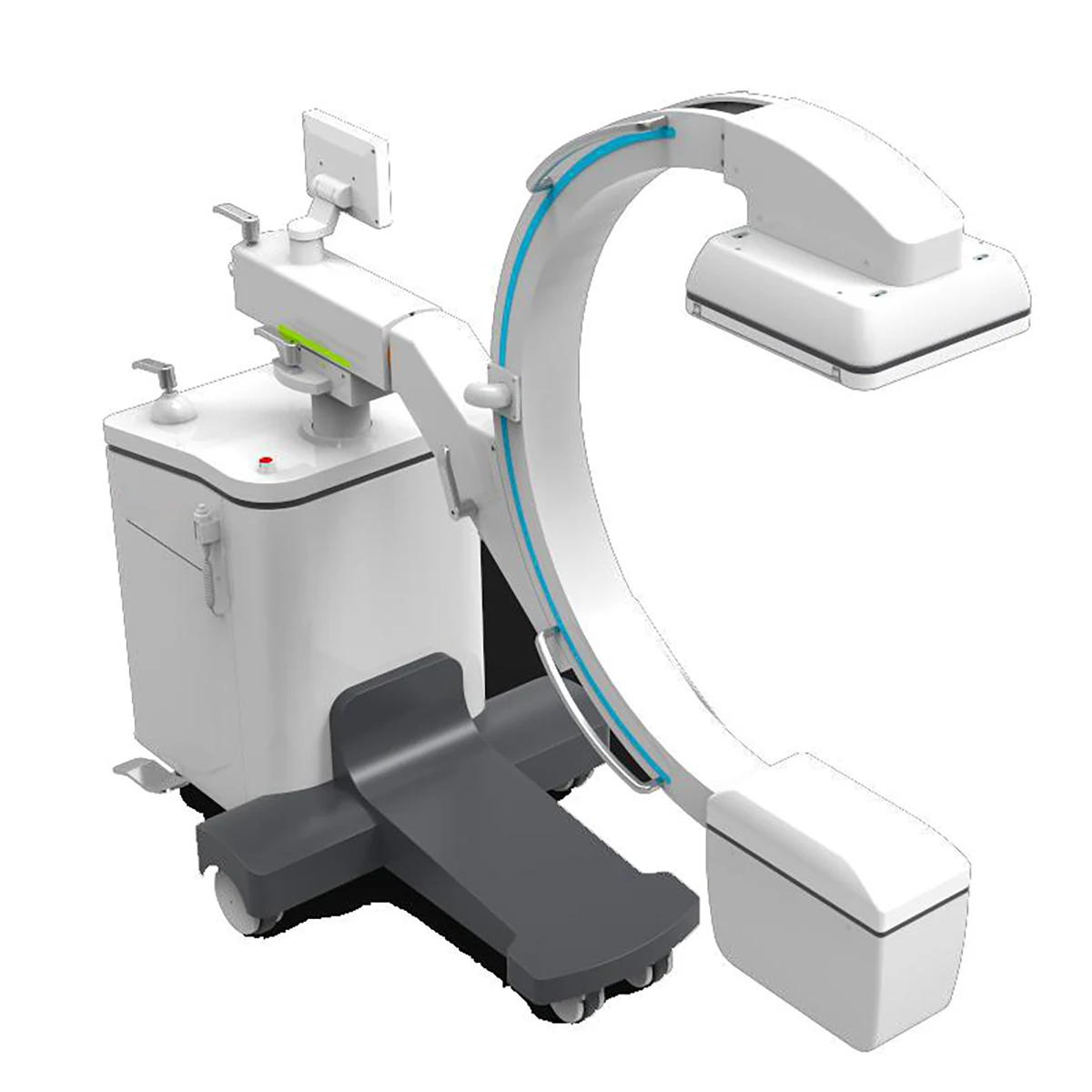

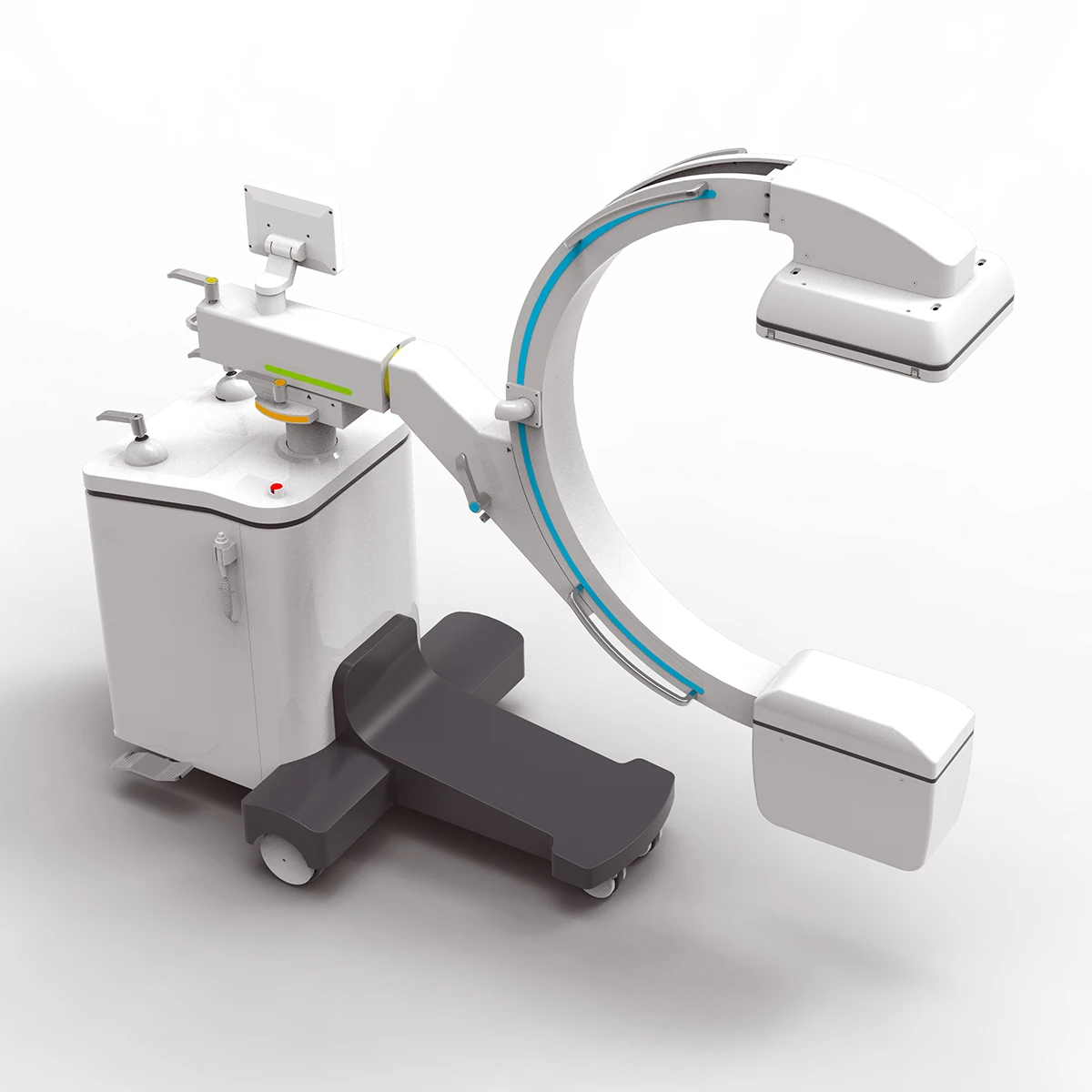

Detailed Images
