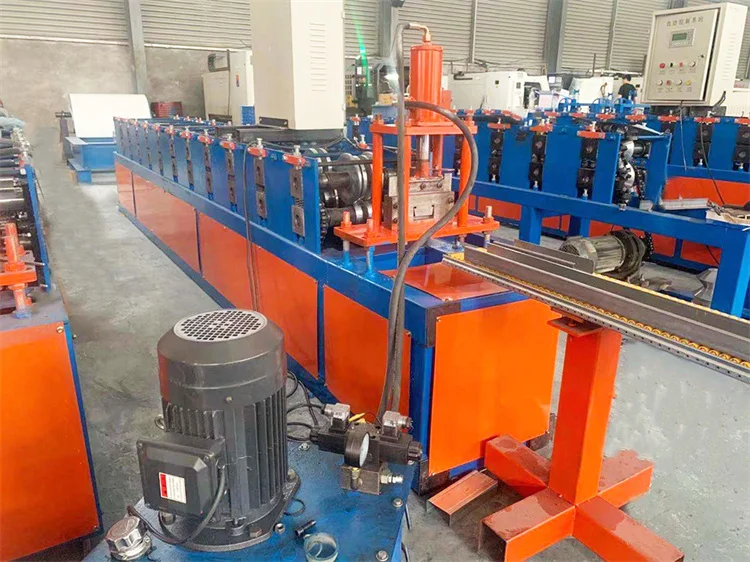

High Precision Purlin Forming Machine Cz Purlin Roll Forming Machinery
- Category: Tile Making Machinery >>>
- Supplier: Zhengzhou,Howann,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

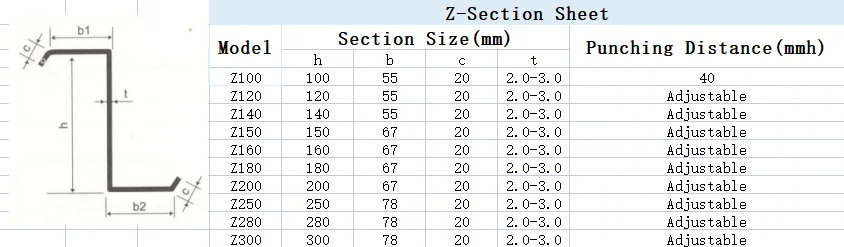

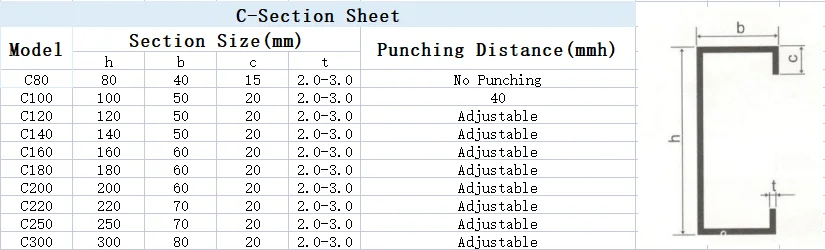

The following versions are for reference only, you only need to send me your final drawings, thickness, and feed width, and we can customize your own products, thank you! ! !
Product name | C Purlin Roll Forming Machine | |||||||
Frame materials | 350H steel | |||||||
Diameter | 80mm | |||||||
Forming roller | 16row | |||||||
Forming shaft | Material 45# quenched and tempered | |||||||
Max.speed | 15m/min | |||||||
Feeding width | 1000mm | |||||||
Cutting system | Hydraulic Cutting | |||||||
Main engine power | 22 KW with cycloidal reducer | |||||||
Voltage | 380V 50 Hz 3 Phase or as your requirements | |||||||
Hydraulic oil | 40# hydraulic oil | |||||||
Material of cutting table | Cr 12 mould steel with quenched treatment | |||||||
Applicable industries | Building Material Shops, Manufacturing Plant, Construction works | |||||||
Our Advantanges:
1. Main-machine interface touch screen for easy operation2. Automatic material feeding system
3. The machine can be used for different type of stud and track
4. Automatic electric control system make production safety ang efficiency
5. Solid shaft and high quality rollers make the machine working smoothly and endurable
6. Low noise,low wasting ,energy saving and environmental

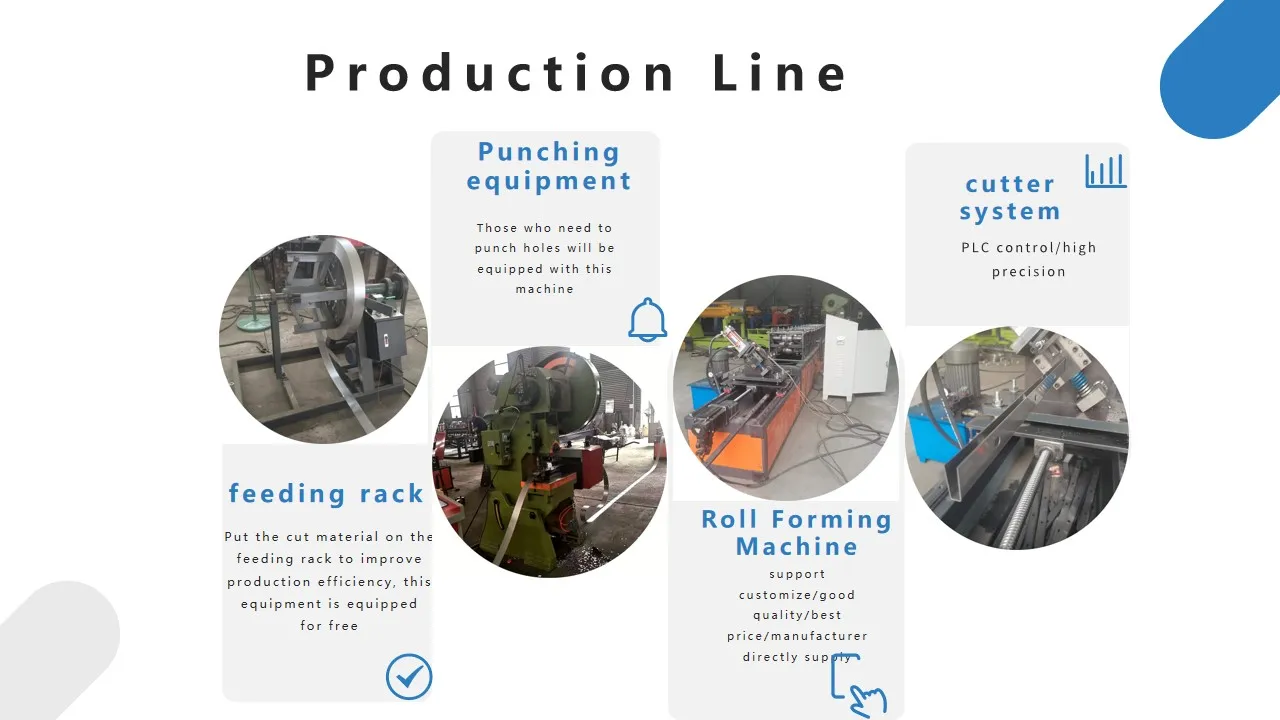

The Working Flow

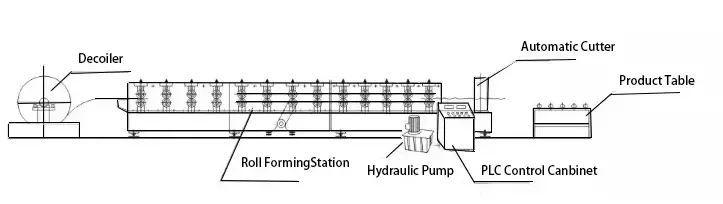

Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table

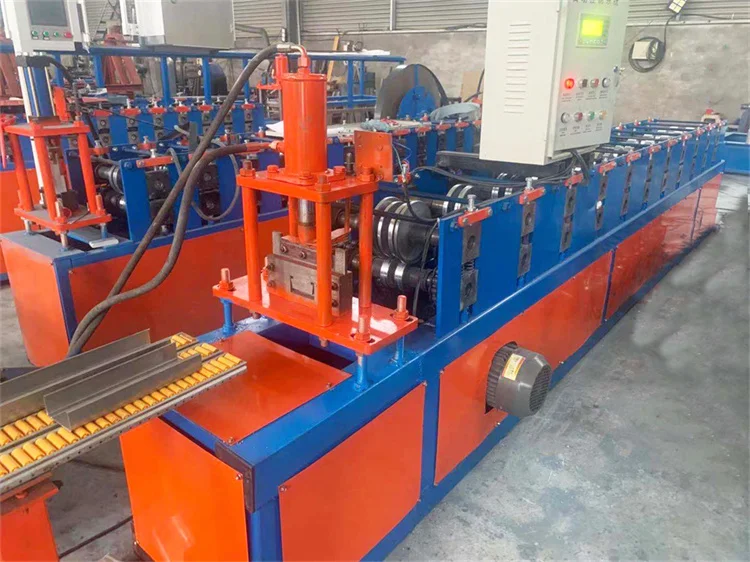

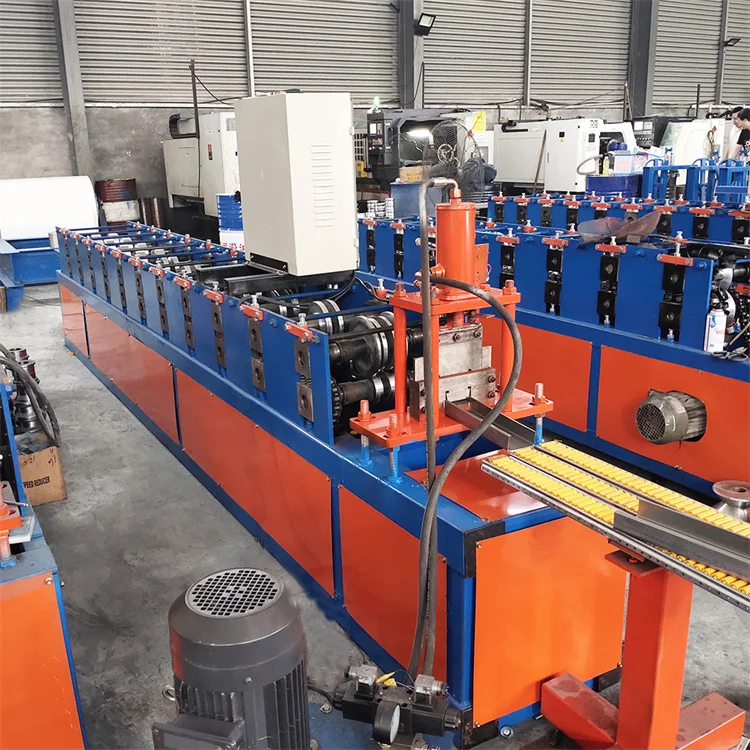

Details Images

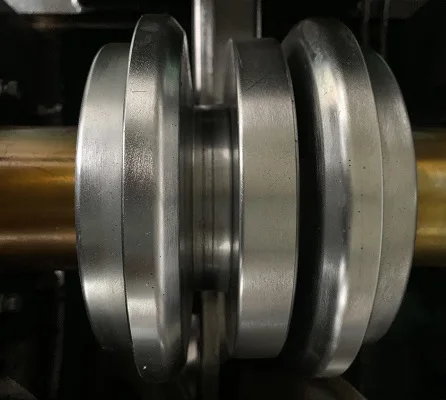

Roller material:
Hardwood plated on the surface
High hardness roller
High-precision machining rollers Does not hurt the galvanized surface of the profile
High-precision machining rollers Does not hurt the galvanized surface of the profile
Stepless shearing system after forming, no need for shearing tool change, manual changeover

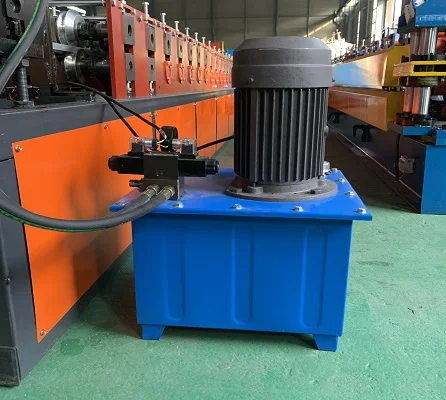

Hydraulic station pressure at 10-12mpa
46# hydraulic oil
Size: 500*400*700mm

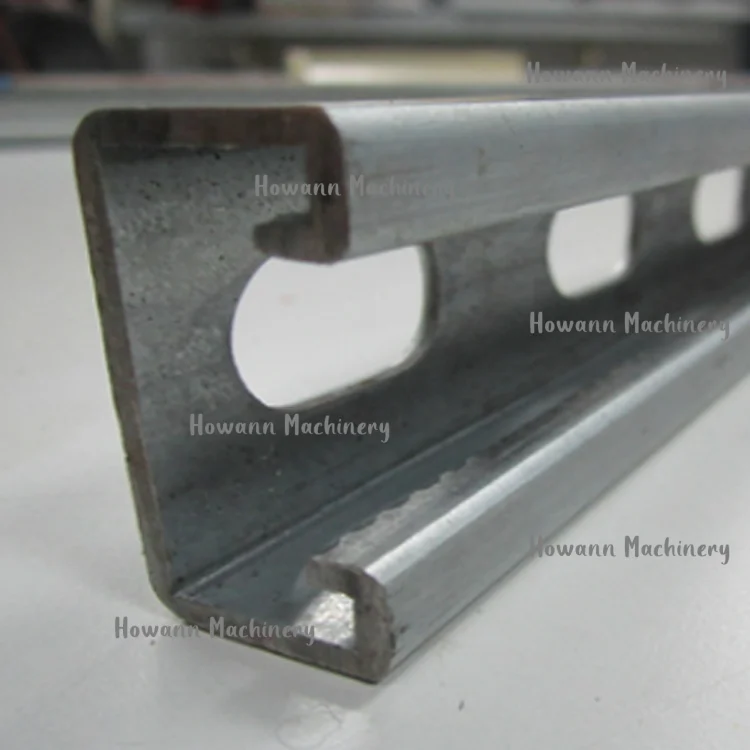

The board surface is flat, no wrinkles, no scratches, and the molding effect is good.
We can process the machine according to customers' demand and also can give professional suggestions if the customers need~

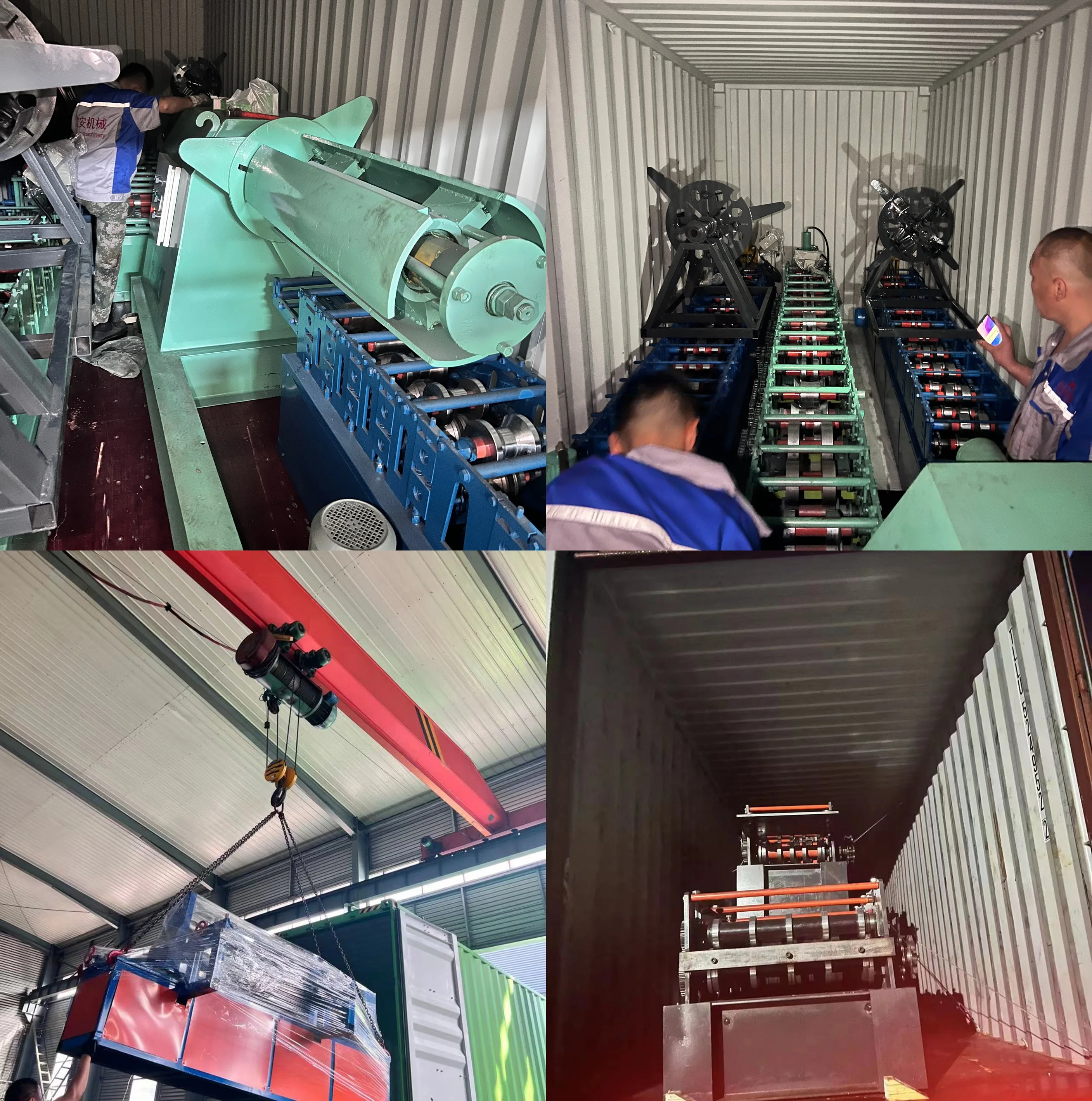

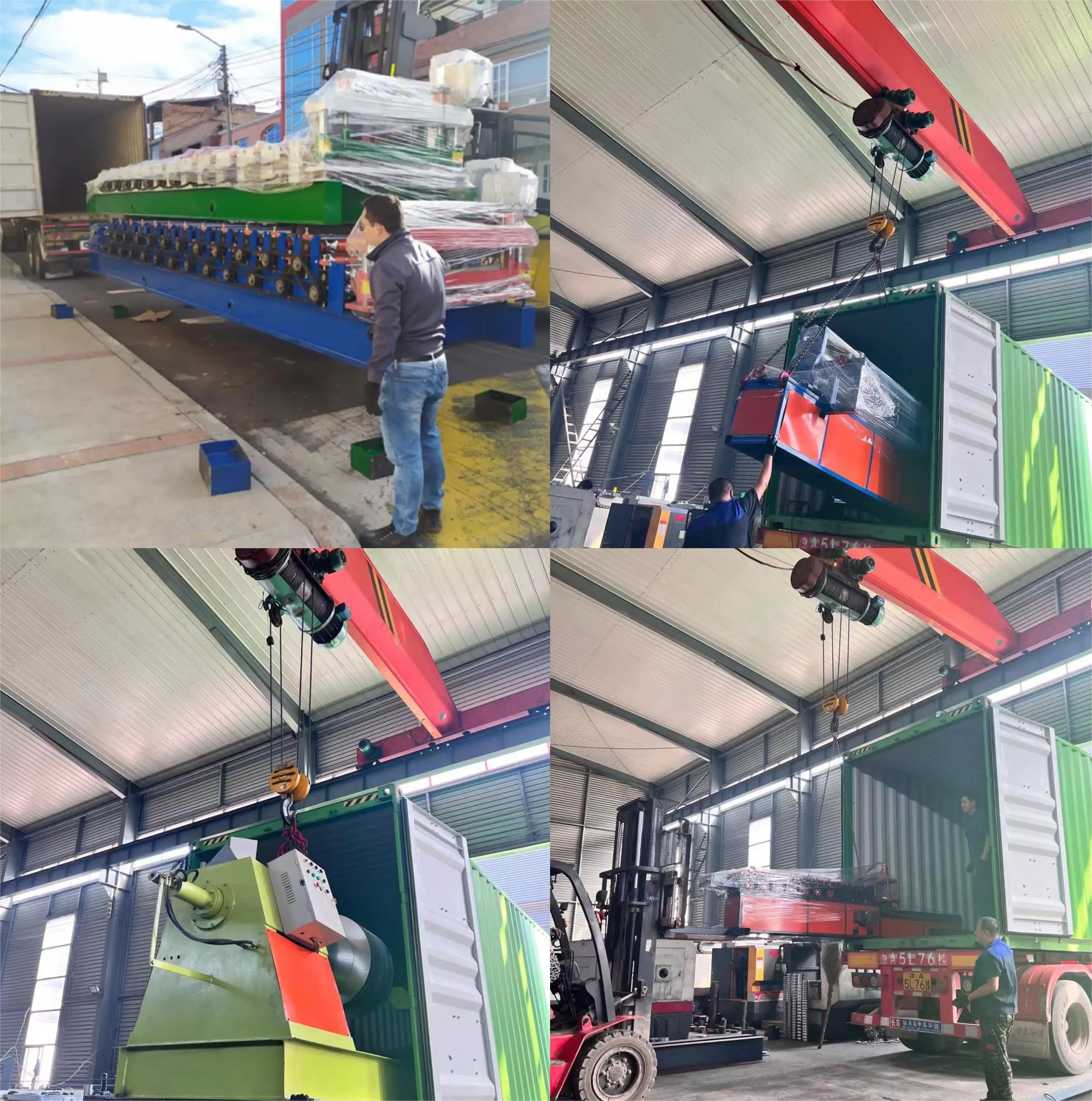

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

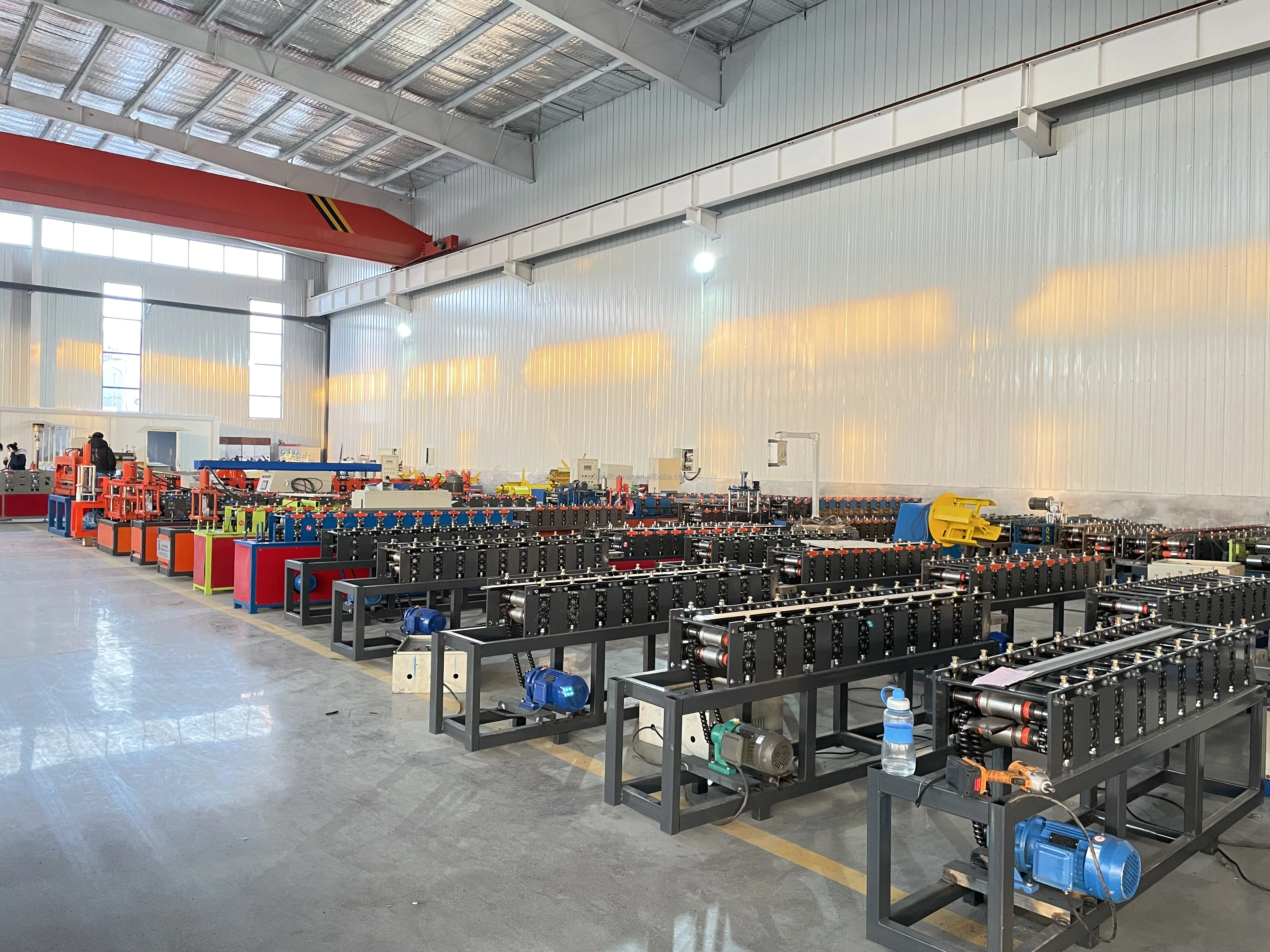

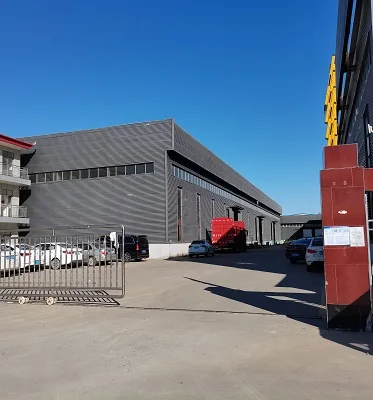

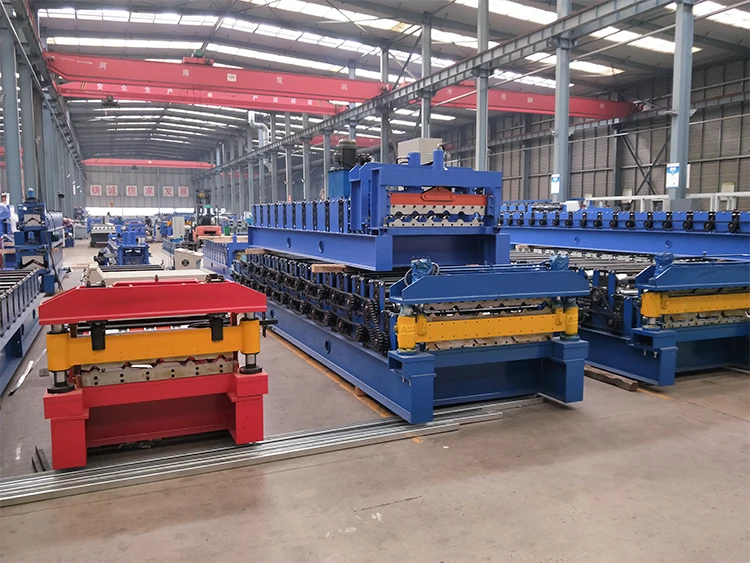

Company Profile
Certifications
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and otherparts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and otherparts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
