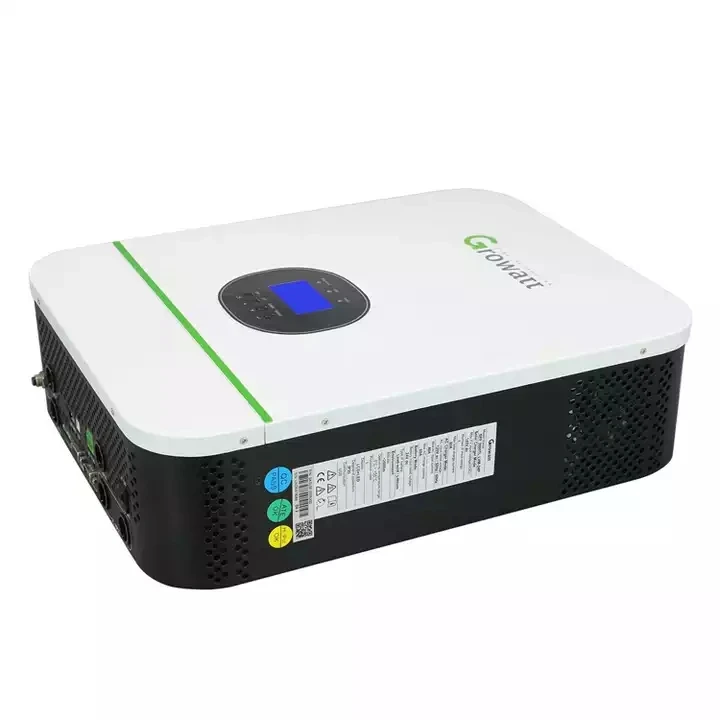

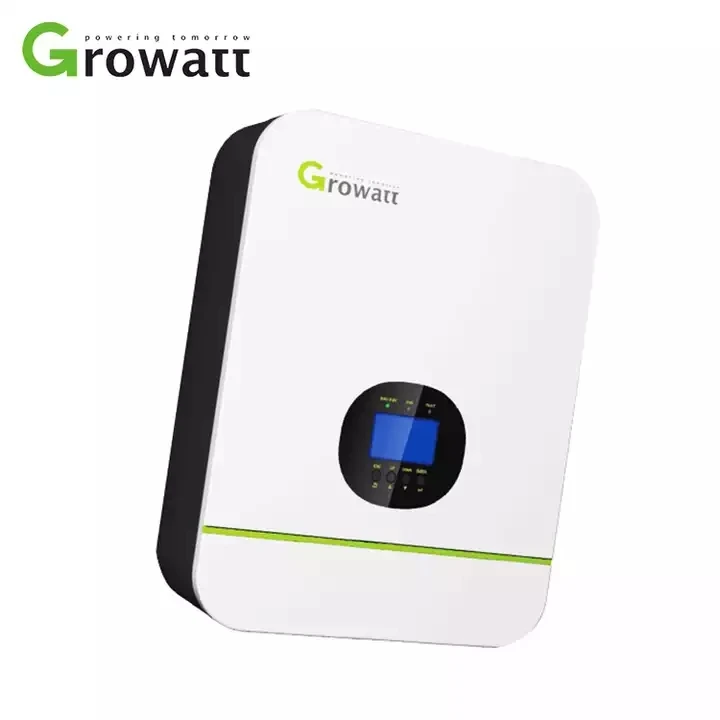

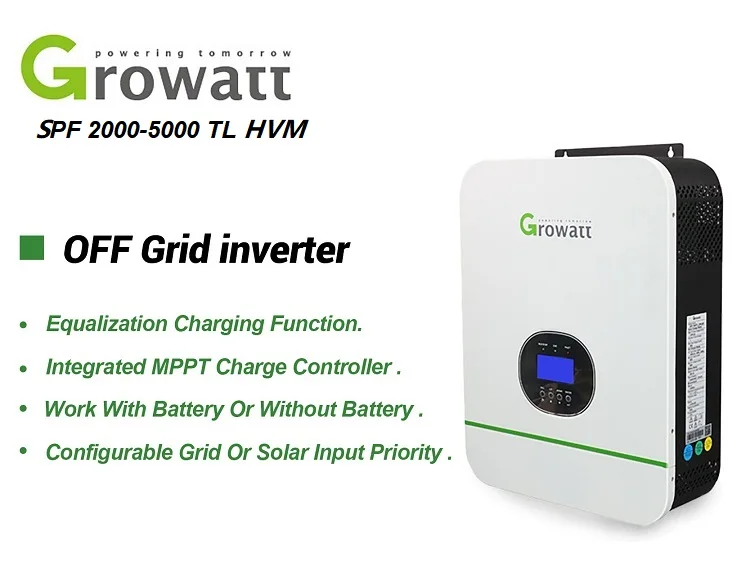

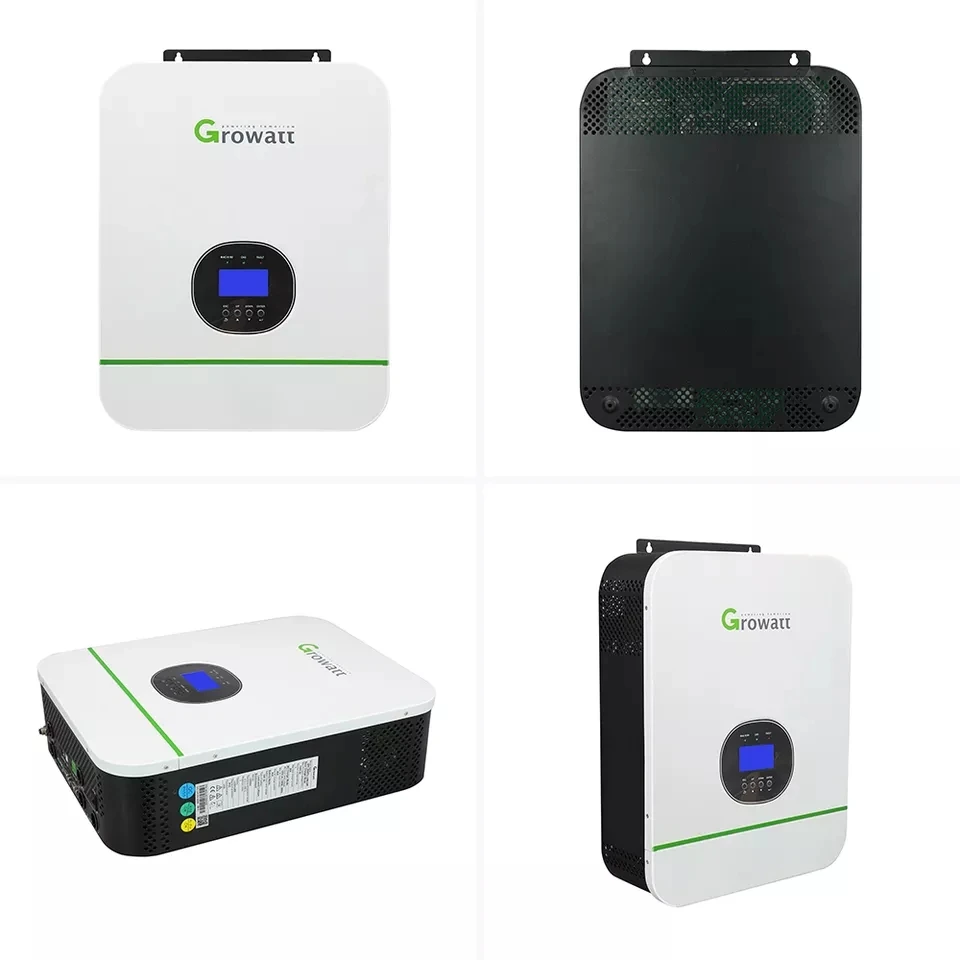

Growatt Hybrid Solar Inverter 5kw 3kw Single/Three Phase SPF 2000 5000TL Solar Power Inverter Price
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1600609133086):
Product Overview
Description
Product Description
Growatt inverters have obtained more than 20 certifications around the world, and the products have been sold to more than 100 countries and regions in Australia, Europe, America, Asia, Africa, and Latin America on a large scale.
Detailed Parameters
Datasheet | SPF 2000TL-HVM-24 | SPF3000TL-HVM-24 | SPF 2000TL-HVM-48 | SPF 3000TL HVM-48 | SPF 5000TL HVM/HVM-P | |||||
Battery voltage | 24V DC | 48V DC | ||||||||
Battery type | Lithium/Lead-acid | |||||||||
INVERTER OUTPUT | ||||||||||
Rated power | 2000VA/2000W | 3000VA/3000W | 2000VA/2000W | 3000VA/3000W | 5000VA/5000W | |||||
Paralell capability | No | NO/YES,6 units | ||||||||
Surge power | 4000VA | 6000VA | 4000VA | 6000VA | 10000VA | |||||
Efficiency(peak) | 93% | |||||||||
Waveform | Pure sine wave | |||||||||
Transfer time | 10ms typical,20ms max | |||||||||
SOLAR CHARGER | ||||||||||
Maximum power | 1500W | 1800W | 4500W | |||||||
MPPT range | 30V-80V DC | 60-115V DC | ||||||||
Maximum pv array open circuit voltage | 102V DC | 145V DC | ||||||||
Maximum solar charge current | 50A | 30A | 80A | |||||||
Maximum efficiency | 96% | |||||||||
AC CHARGER | ||||||||||
Charge Current | 30A | 15A | 60A | |||||||
AC Input Voltage | 230 VAC | |||||||||
Selectable Voltage | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||
PHYSICAL | ||||||||||
Protection Degree | IP20 | |||||||||
Dimension (W/H/D) | 315/400/130mm | 350/455/130mm | ||||||||
Net Weight (kgs) | 8 | 8.5 | 8 | 8.5 | 11.5 | |||||
OPERATING ENVIRONMENT | ||||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||||
Altitude | <2000m | |||||||||
Operating Temperature | 0°C - 55°C | |||||||||
Storage Temperature | -15°C - 60°C | |||||||||
Recommend Products
Company profile
Anhui Solarasia Energy Technology Co.,Ltd was established in 2016, Located in Hefei City Anhui Province. Specializes in manufacturing all types of solar module, solar inverter etc ,exported to Asia, Europe,America, over 100 countries, our solar product acclaimed worldwide.The products are of high quality which follow the standard of ISO, TUV and CE certificates. In addition, The company has skilled engineers and professional sales consultants to provide you with professional services.We sincerely welcome your cooperation and look forward to building business relationship with you.

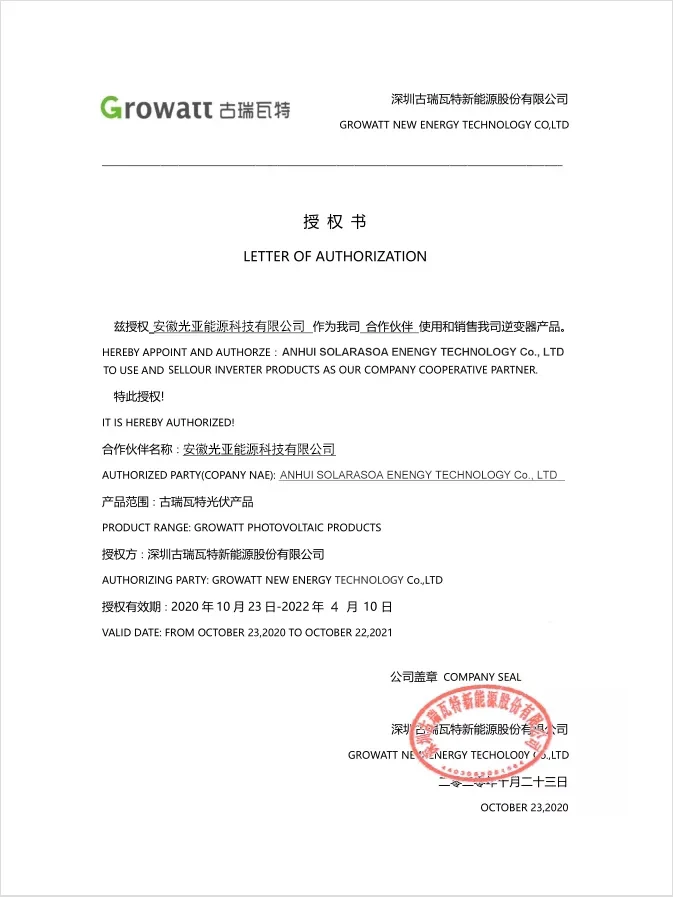

Authorization Certificate

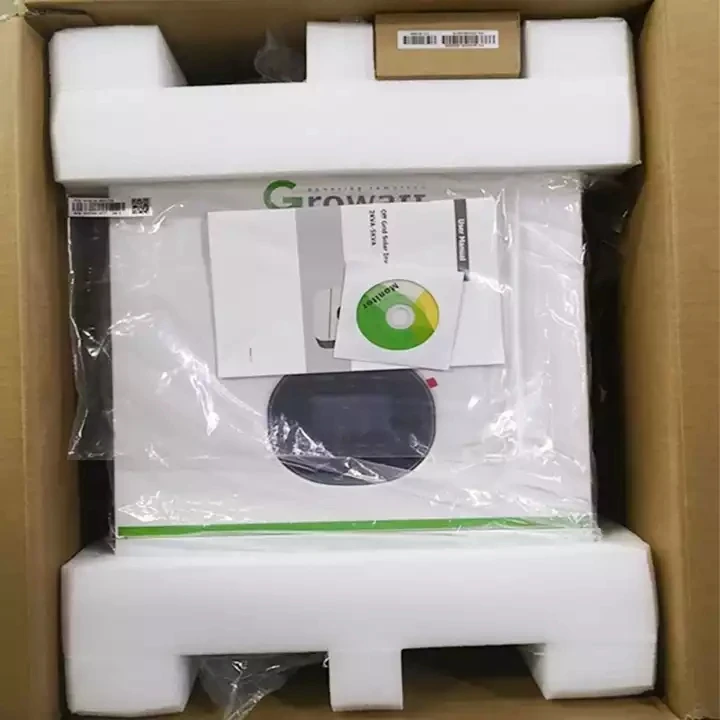

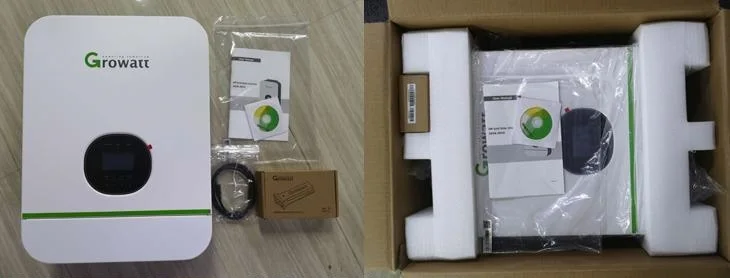

Packaging&Shipping
FAQ
Q1: What is the warranty of this solar inverter
Re: The warranty of OFF-Grid inverter is 2 years,ON-Grid and hybrid inverters are 5 years.
Q2: Can you use customer brand ?
Re: Yes , OEM is supported.
Q3: How do you resolve the trust crisis between buyers and sellers ?
Re: We already join the alibaba L/C assurance , which can help to resolve business concerns when new customers trade tous.
Q4: What advantages do we have ?
Re: Our price is competitive . we have a certain price in bulk purchase and factorypurchase . The goods can be delivered to you
within a week, A variety of brands isavailable here, you only need to tell us your needs , then we can help you find it.
Re: The warranty of OFF-Grid inverter is 2 years,ON-Grid and hybrid inverters are 5 years.
Q2: Can you use customer brand ?
Re: Yes , OEM is supported.
Q3: How do you resolve the trust crisis between buyers and sellers ?
Re: We already join the alibaba L/C assurance , which can help to resolve business concerns when new customers trade tous.
Q4: What advantages do we have ?
Re: Our price is competitive . we have a certain price in bulk purchase and factorypurchase . The goods can be delivered to you
within a week, A variety of brands isavailable here, you only need to tell us your needs , then we can help you find it.
